Additional information

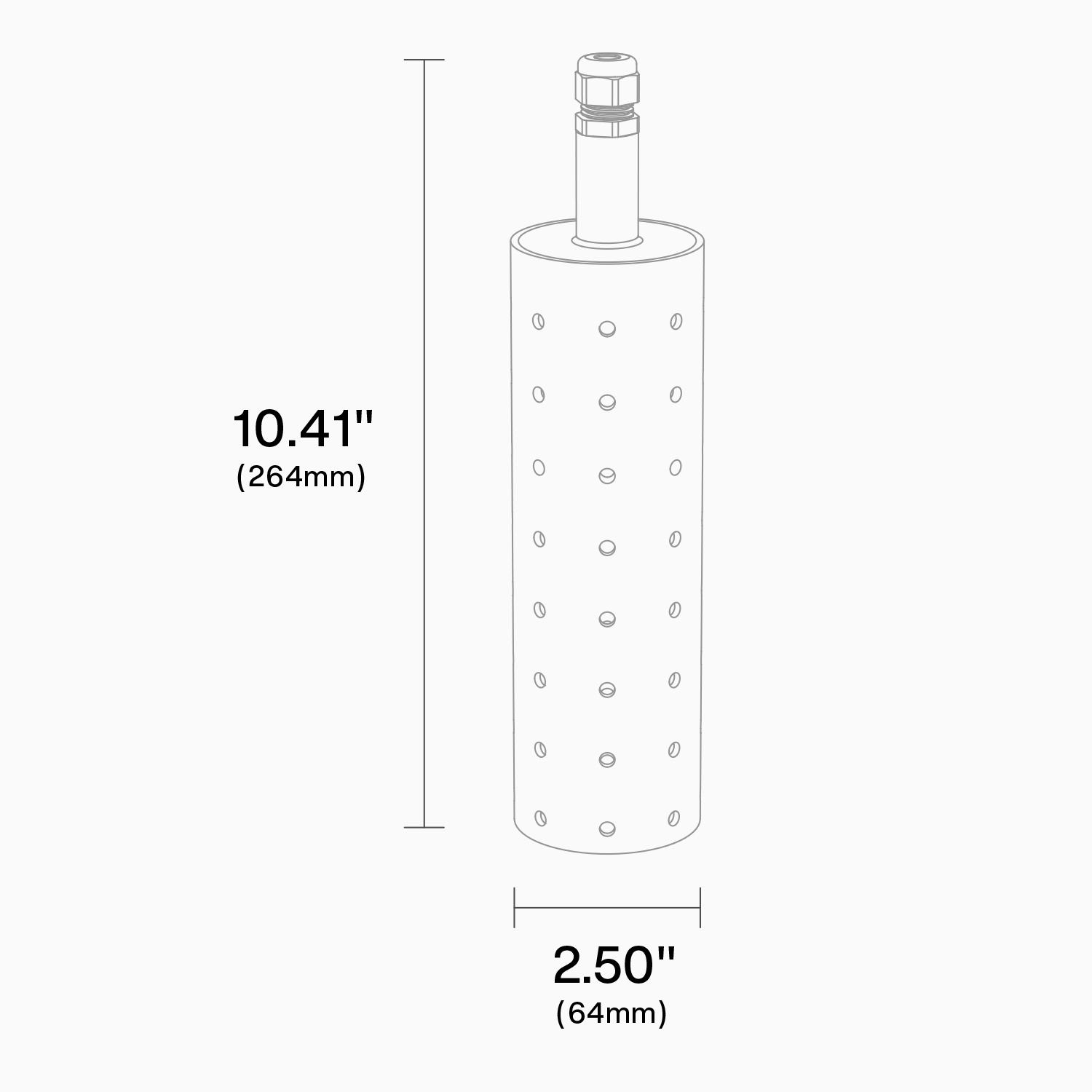

| Dimensions | 2.25 × 10.41 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

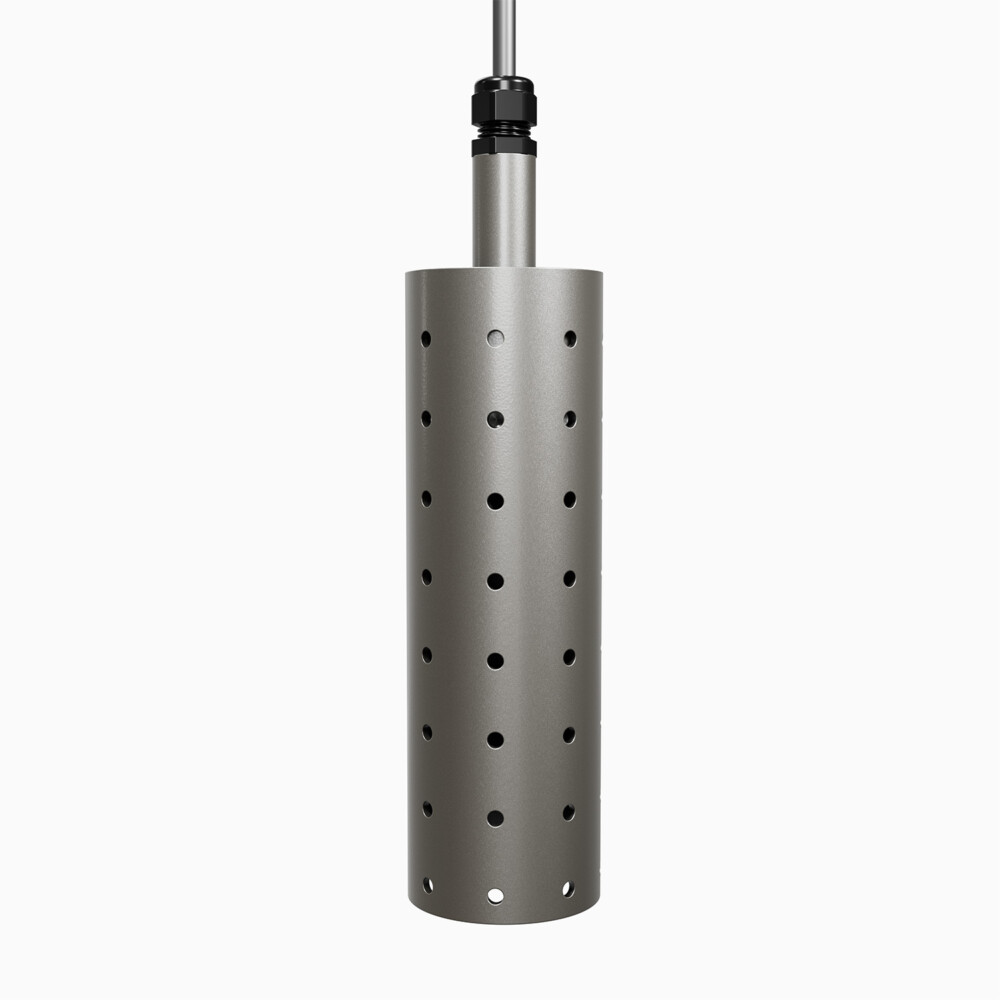

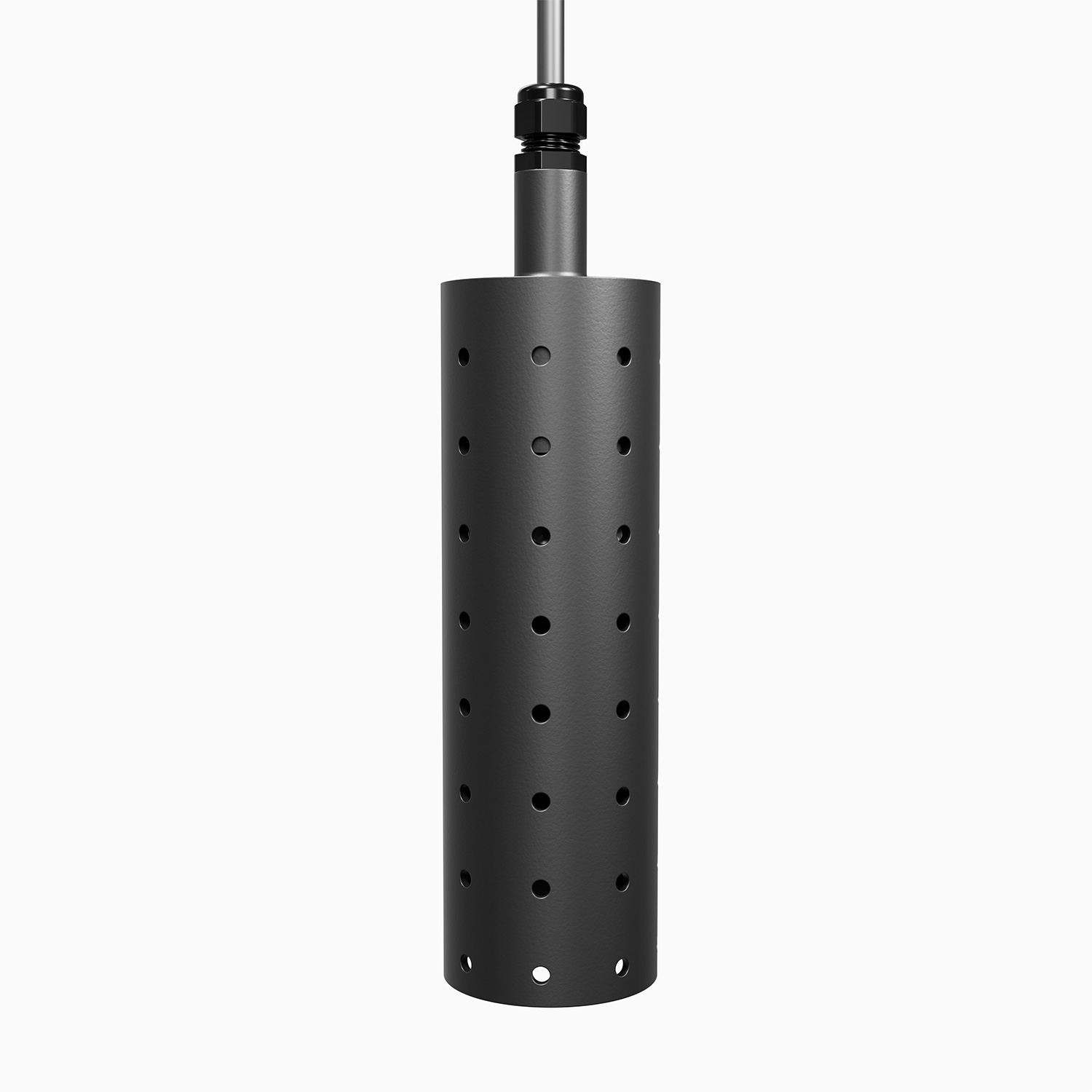

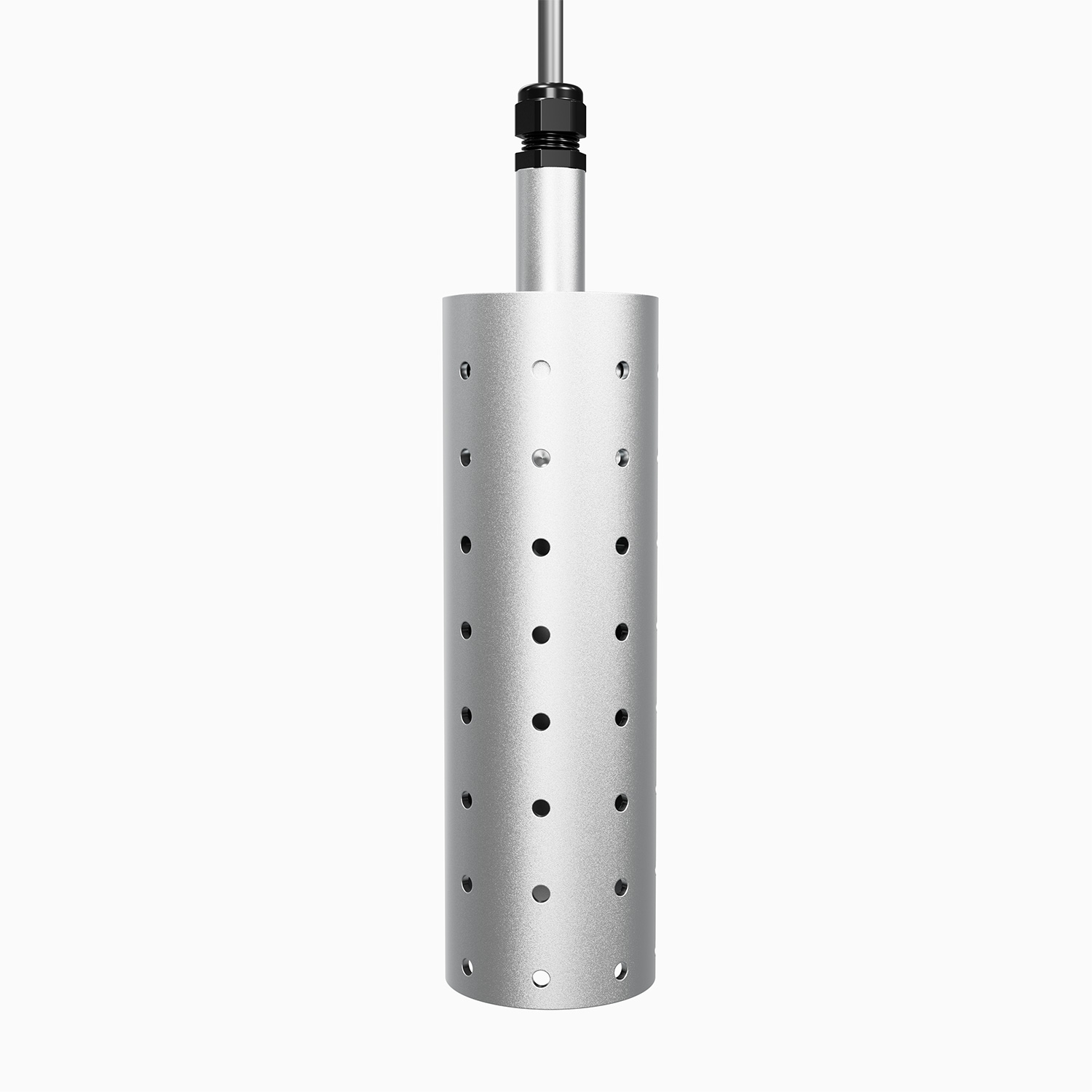

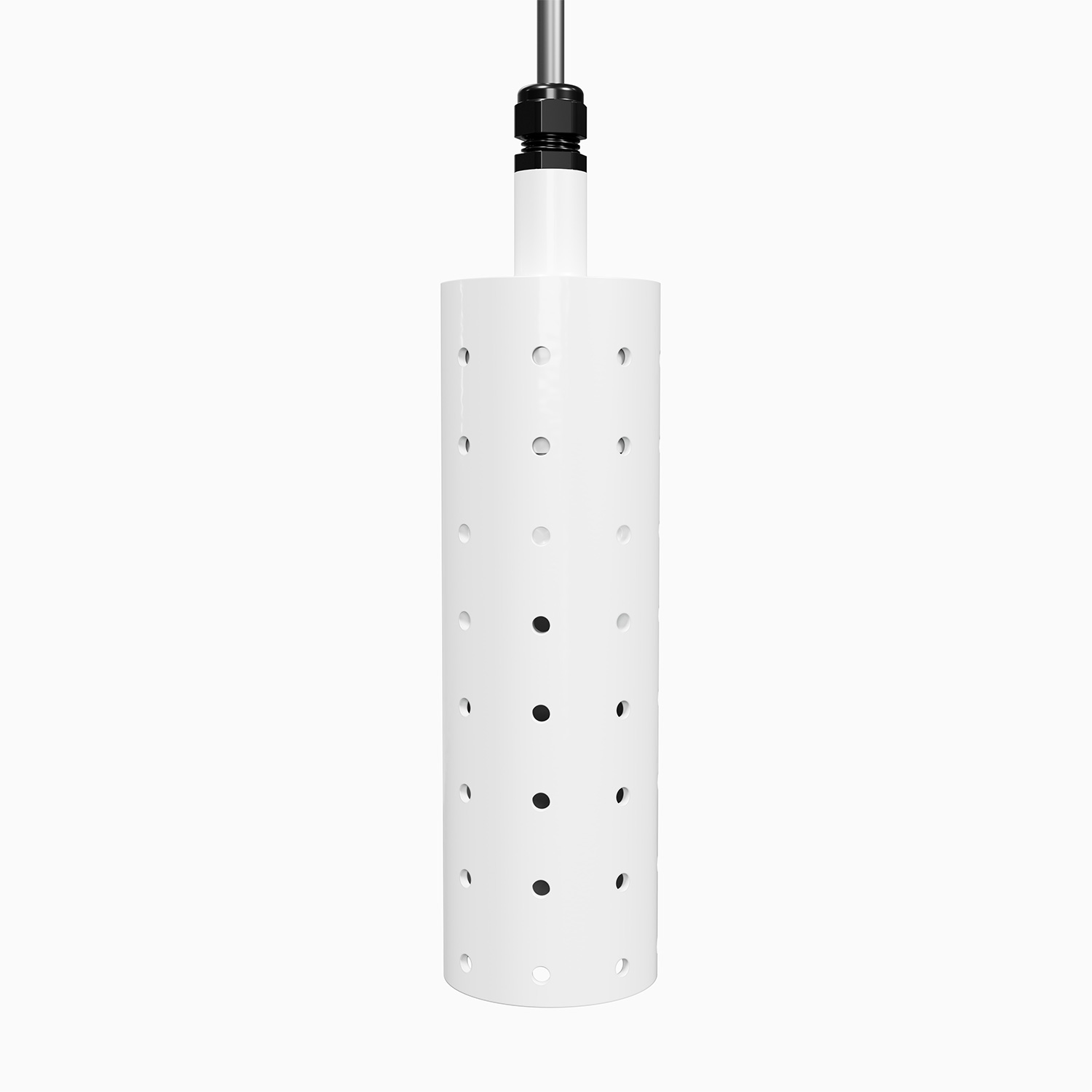

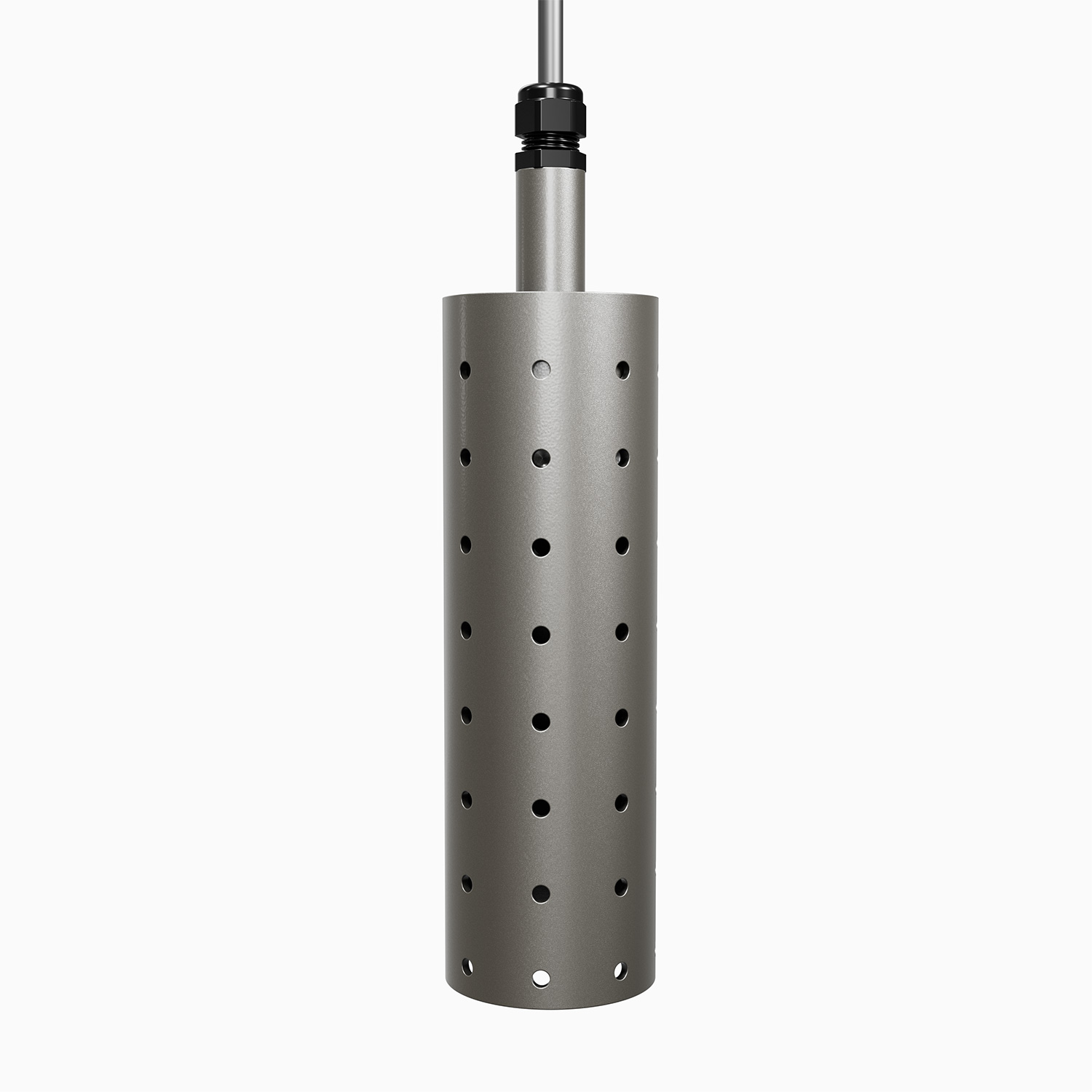

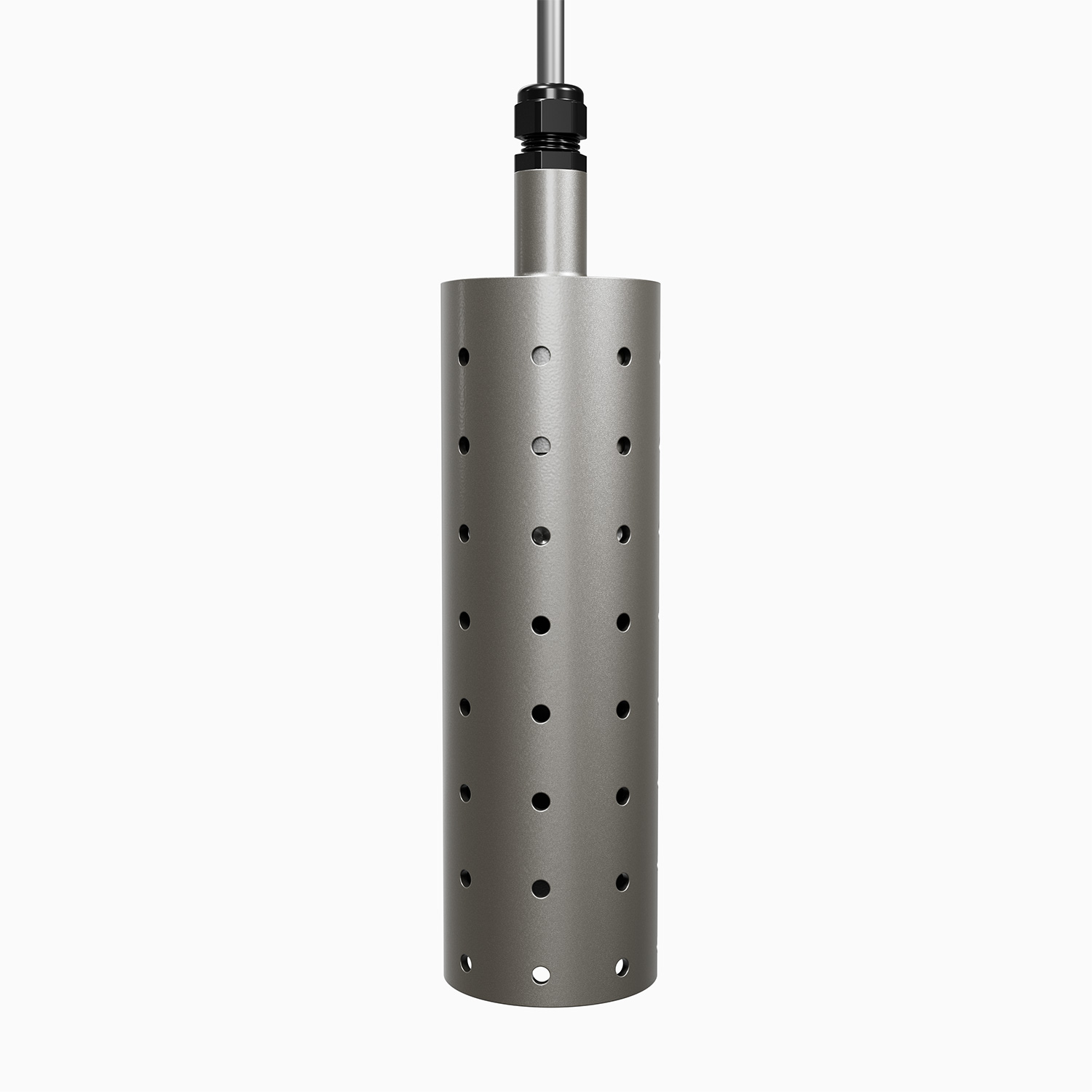

ZX16-HP-(GU10)-SOi
Hanging & Catenary • ZX16/ZH16 Series
ZX16-HP-(GU10)-SOi
Hanging & Catenary • ZX16/ZH16 Series
MR16 SORAA hanging with perferated shade
FEATURES:
- Suspension/pendant fixture for landscape and architectural application.
- For SORAA® 12V GU5.3 base MR16 LED, or line voltage GU10 base MR16 LED.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Perforated hood allows subtle lighting around the fixture in addition to the down light.
- US patented integral SORAA heat sink.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request. Fixture Weight: 2lbs.
Voltage
12V, 120V or 230V AC
Lamp Base/Socket
12V with GU5.3 socket, or 120V/230V with porcelain GU10 twist-lock socket.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 35W for halogen MR16 without Thermobuster.
Mounting
Mount cable on tree branches or beam using screw-mount-cable ties, or attach to a canopy plate/box for pendant application. Standard fixture comes with 5’ 18/2 SJTW power cable
Light Engine
12V - MR16 SORAA LED lamp. Line Voltage - MR16 GU10 SORAA LED lamp.
Dimming
12V - MLV or ELV dimming. Line voltage - Phase dimming.
Compatible Accessories
