ZXL-SLR-3.0
Products • Step & In Ground

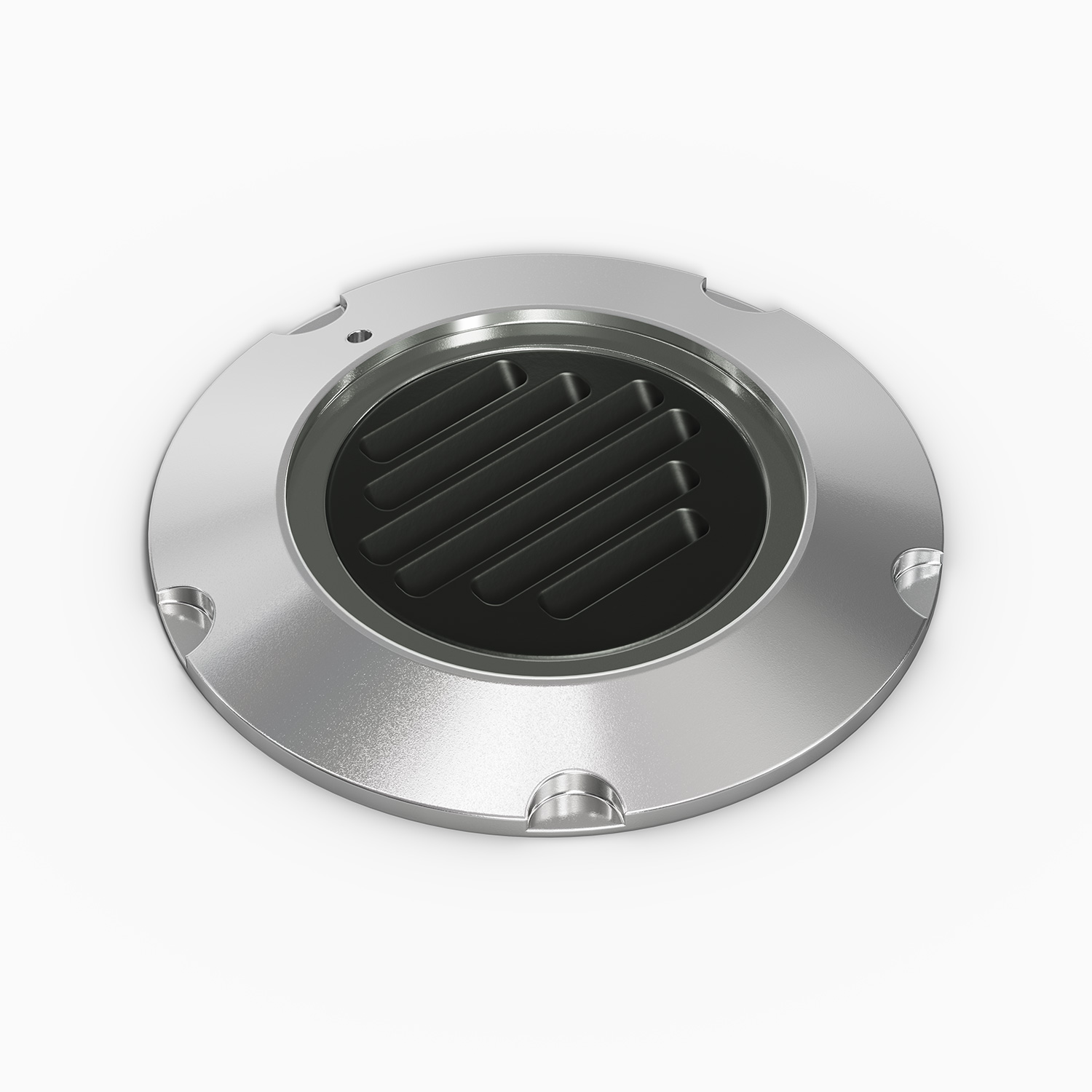

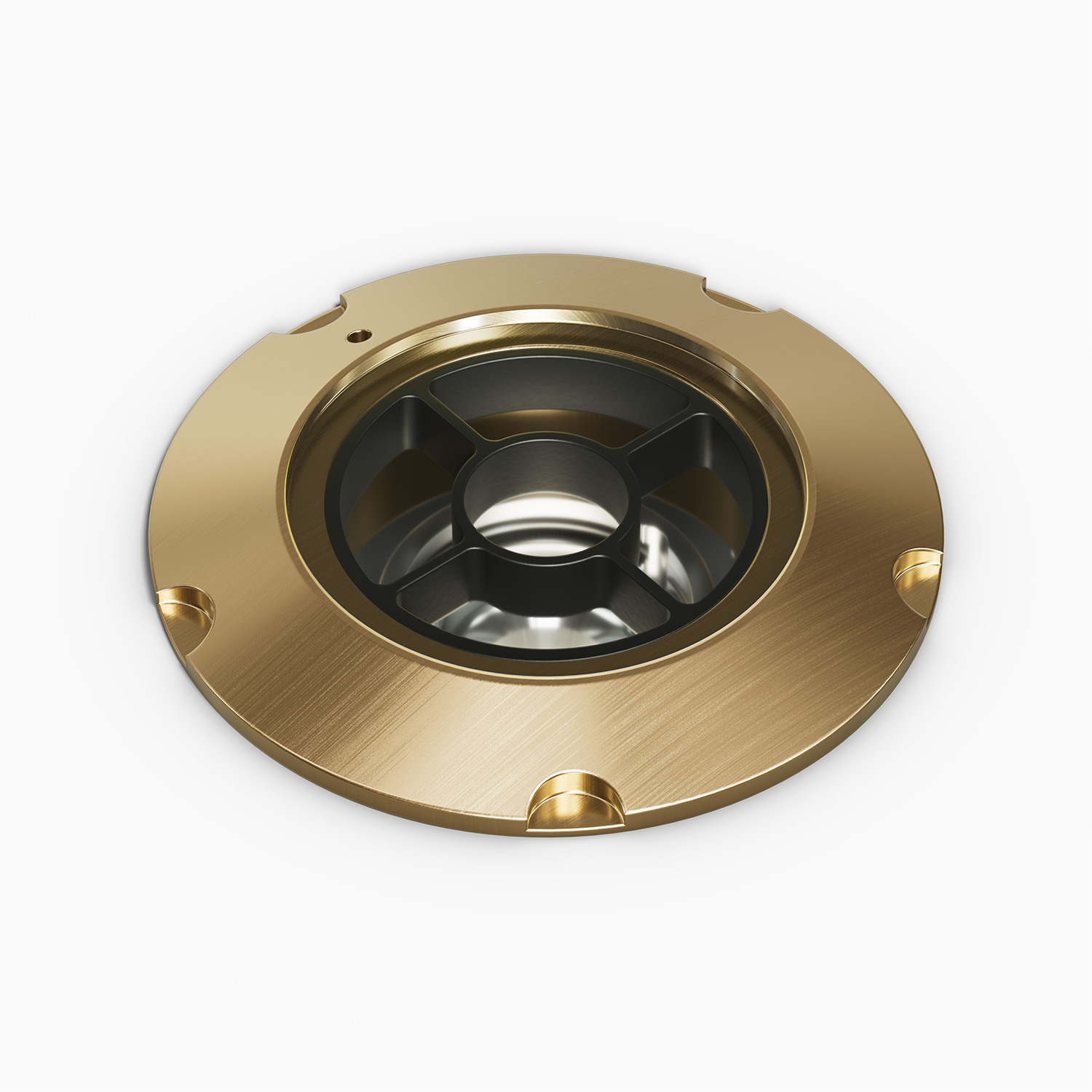

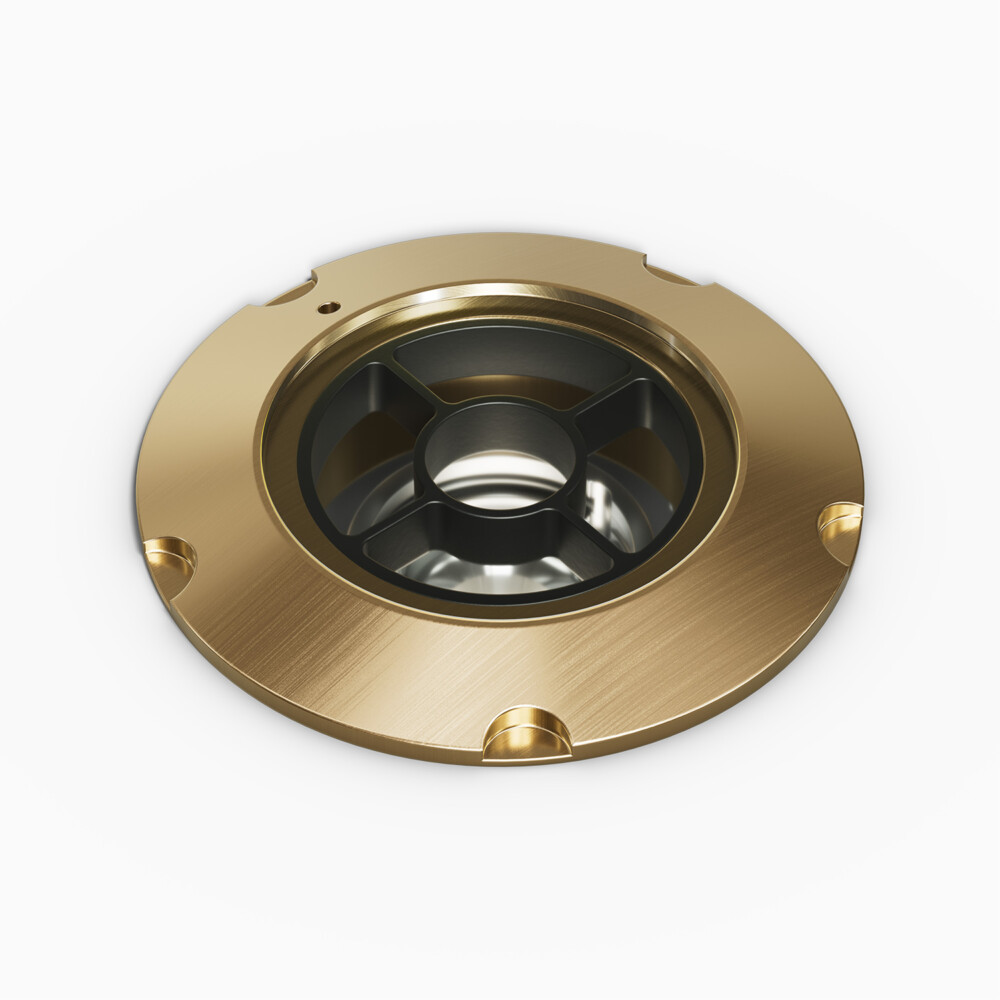

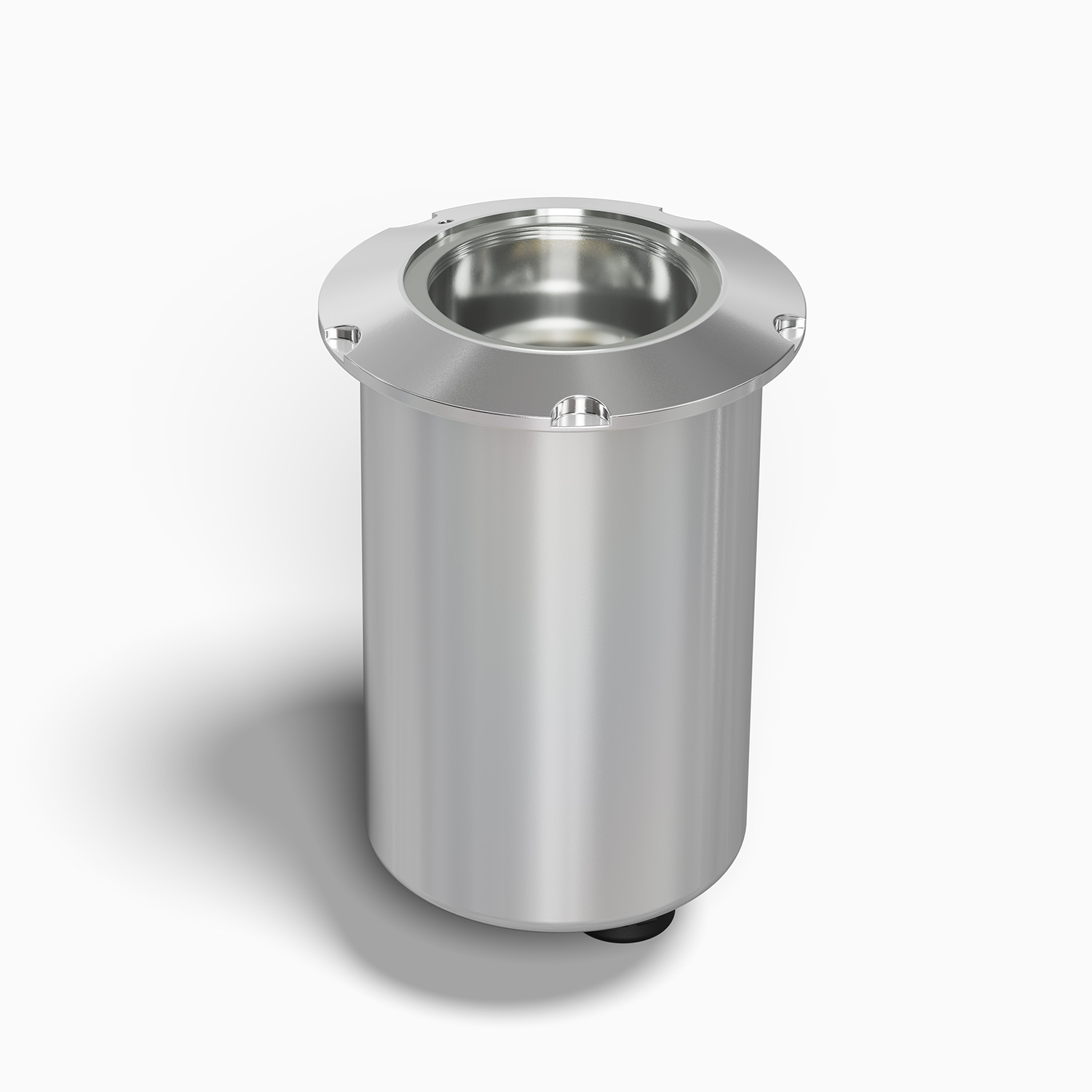

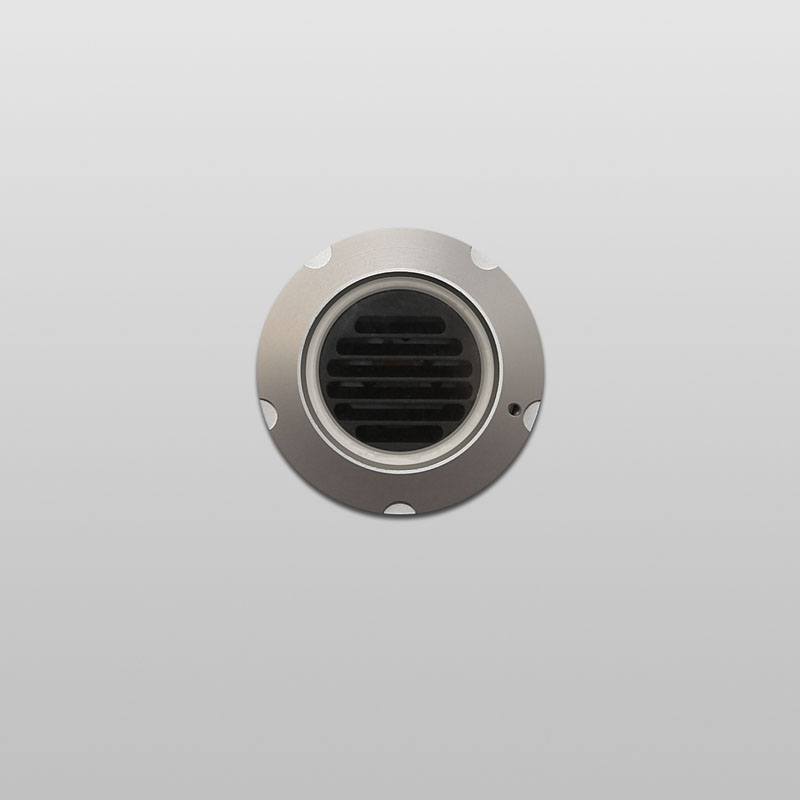

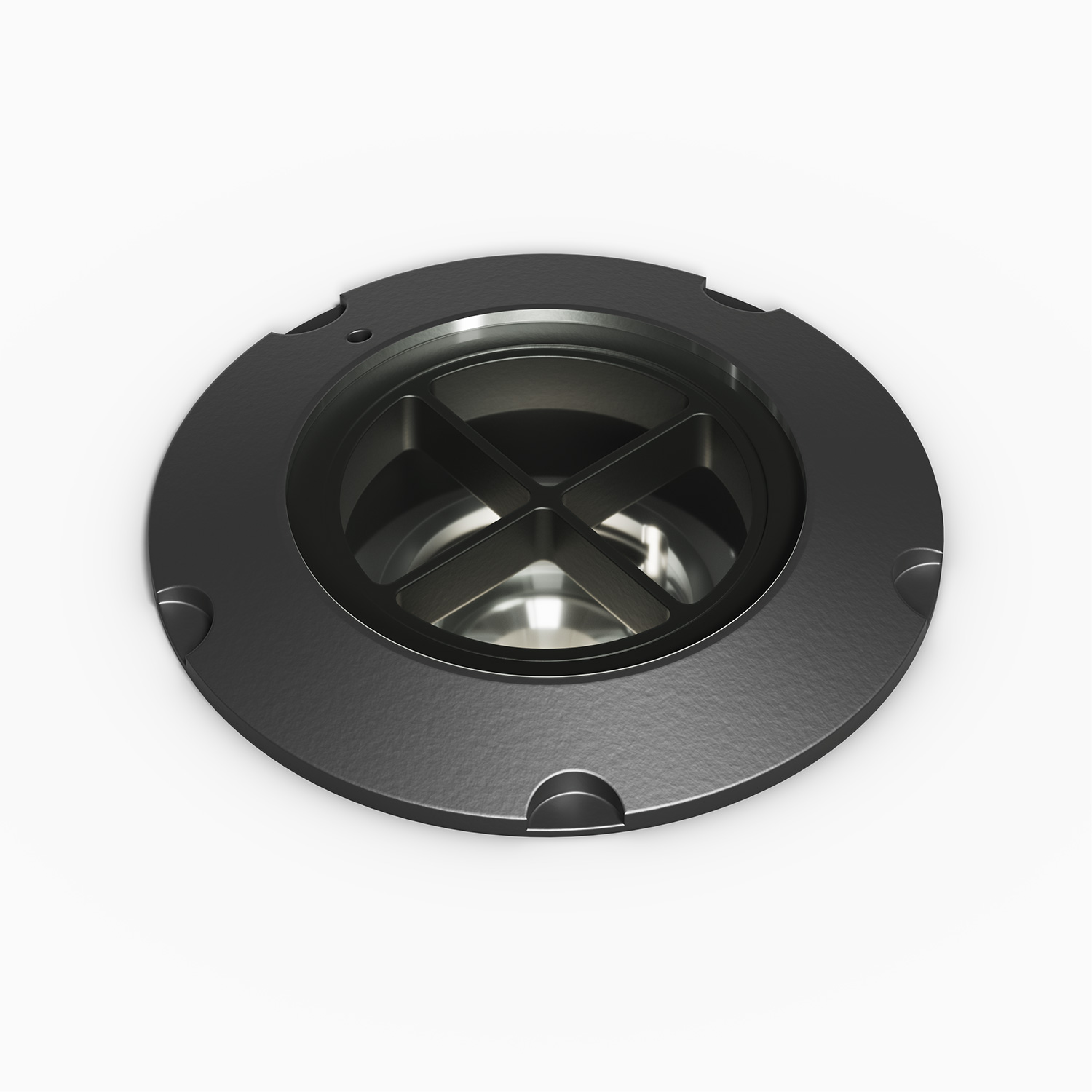

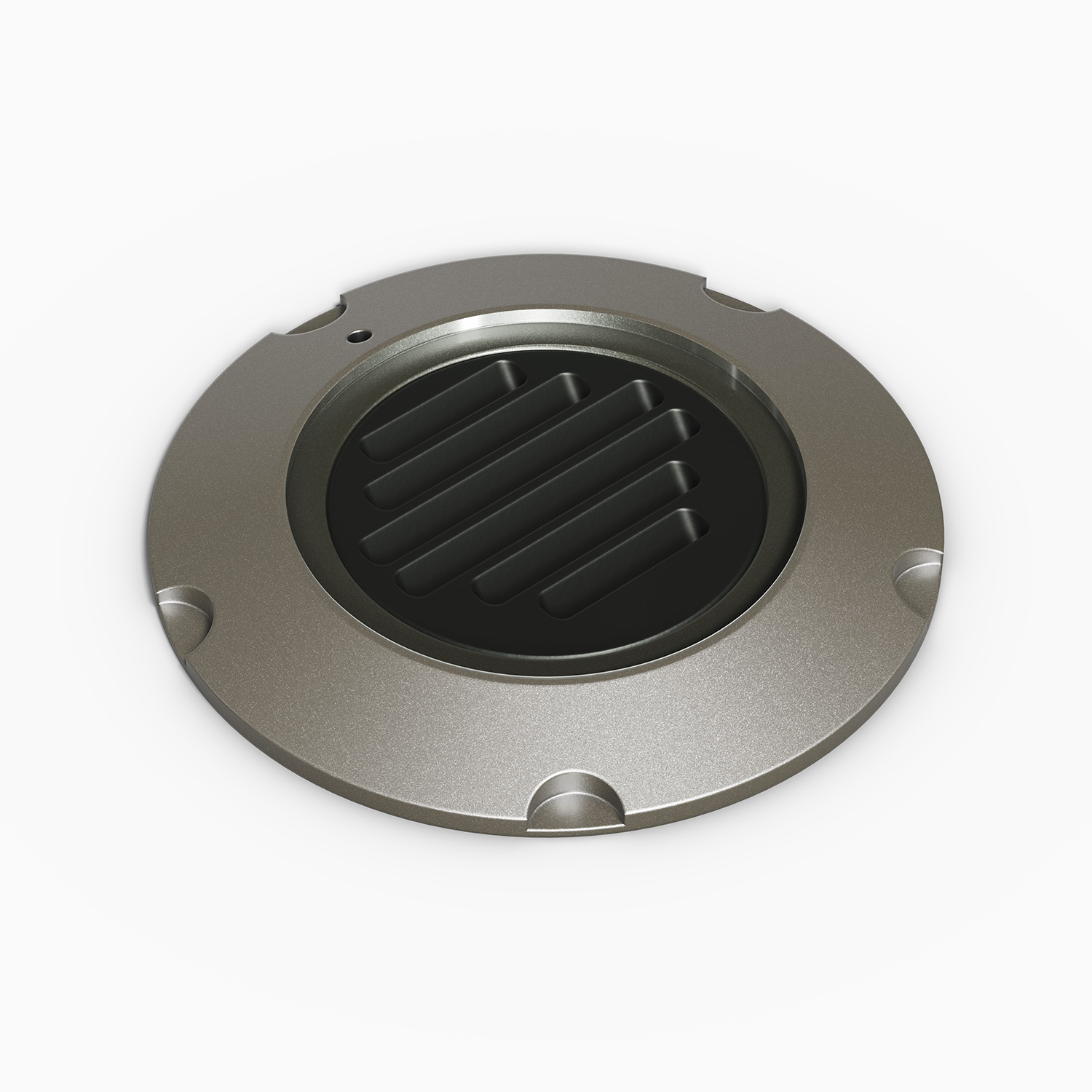

ZXL-SLR-3.0
Step & In Ground
FEATURES:
- Compact Recessed fixture for wall, soffit, or in-grade installation. Perfect for step light, under the eave light, or in grade marker light.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061T6 corrosion resistant aluminum. Available in stainless steel trim bezel and outer housing.
- Modular components – field changeable LED module & beam spread reflectors.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
5W HK LED.
Optics
Additional glare control accessories are available in different styles.
Dimming
MLV or ELV.
Compatible Accessories
