5–7W ( 450–675lm ) | 12V | HK LED
SIGN-2-11L
5–7W ( 450–675lm ) | 12V | HK LED

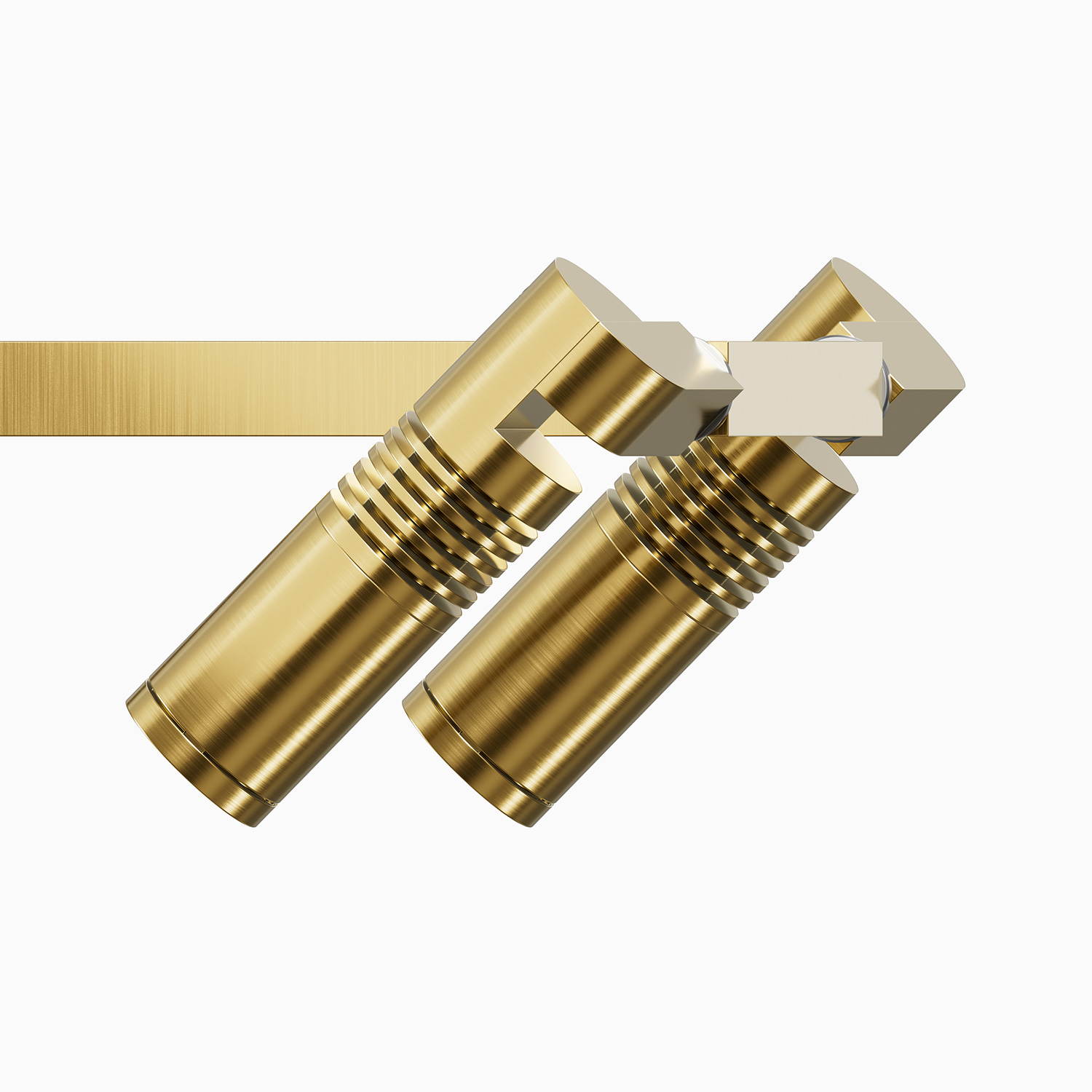

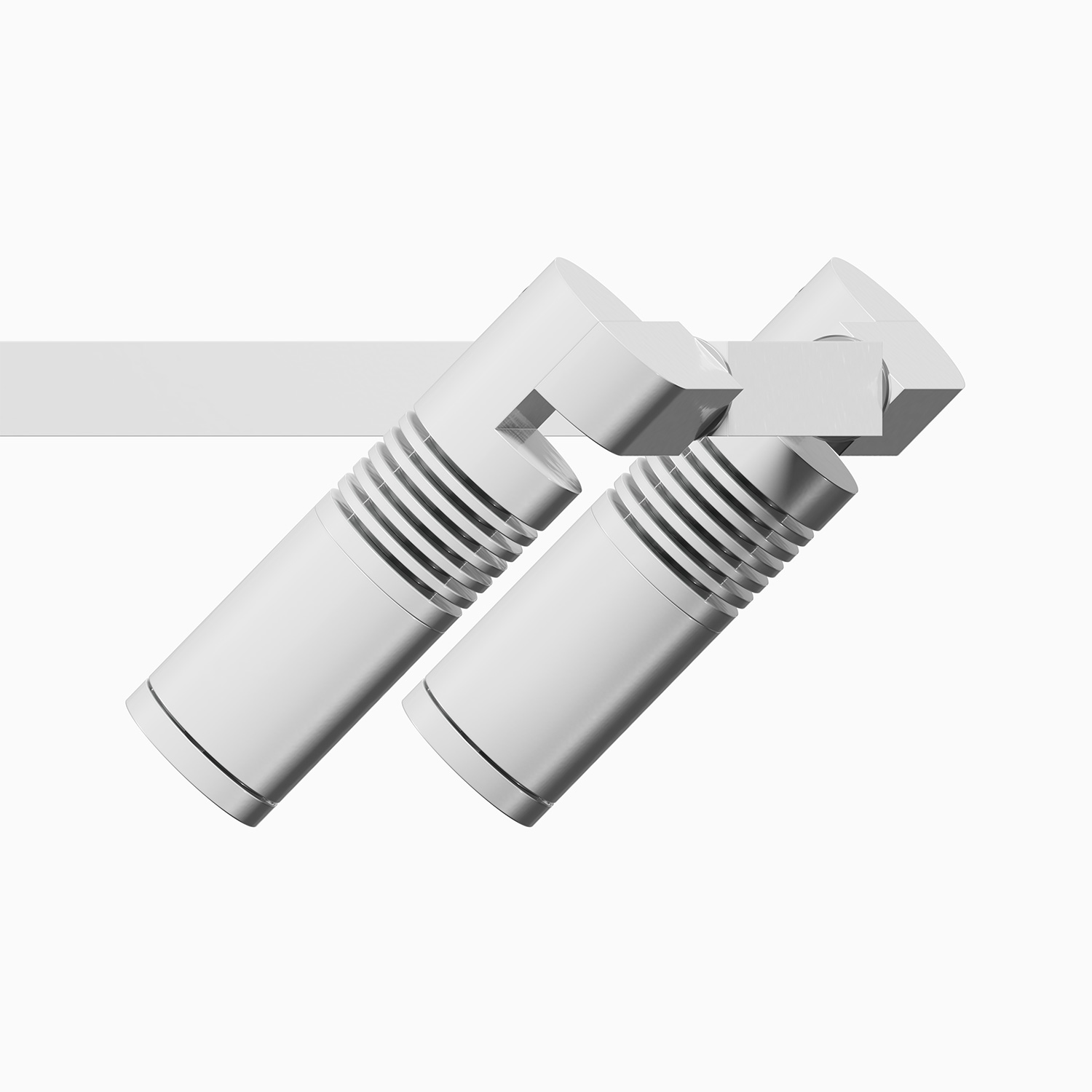

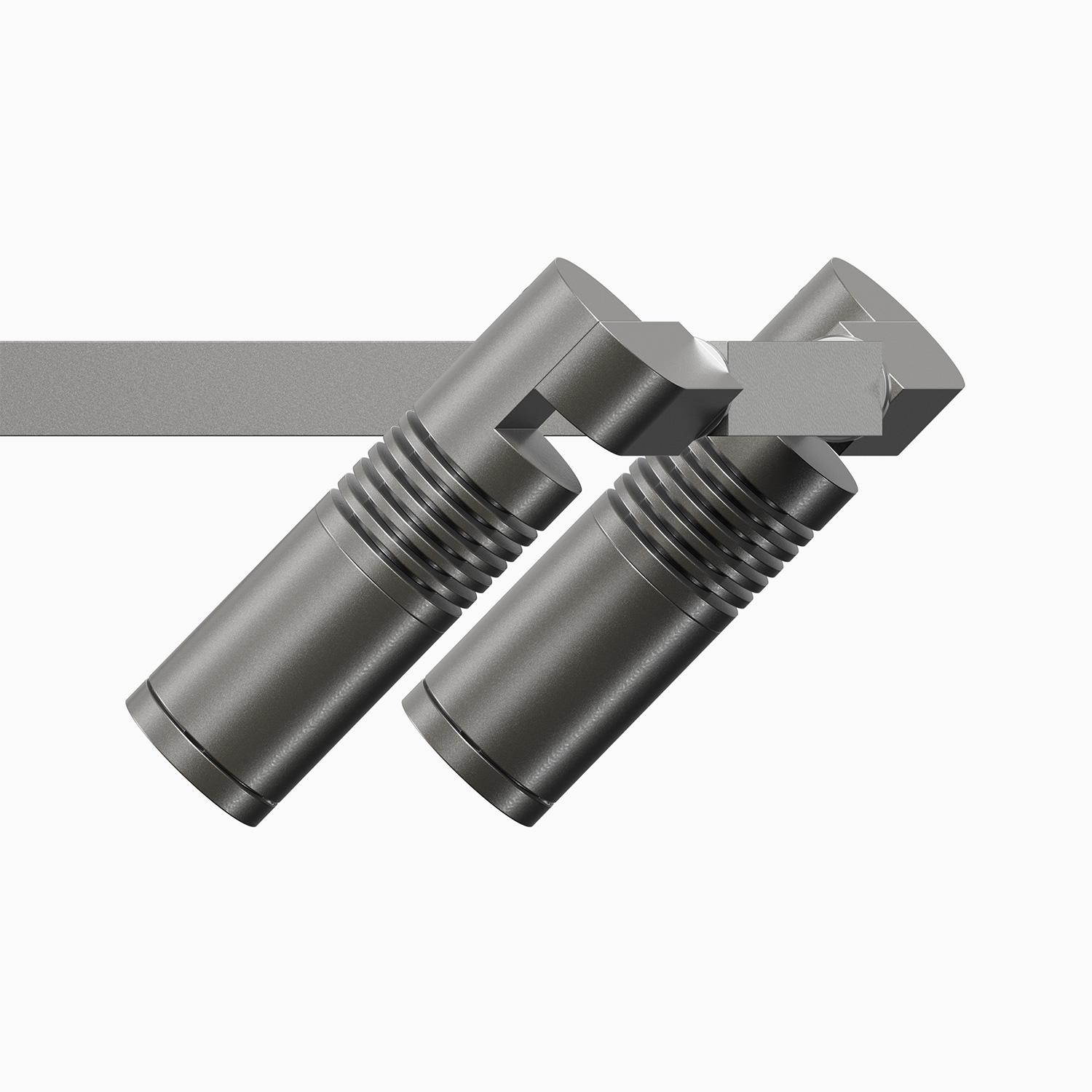

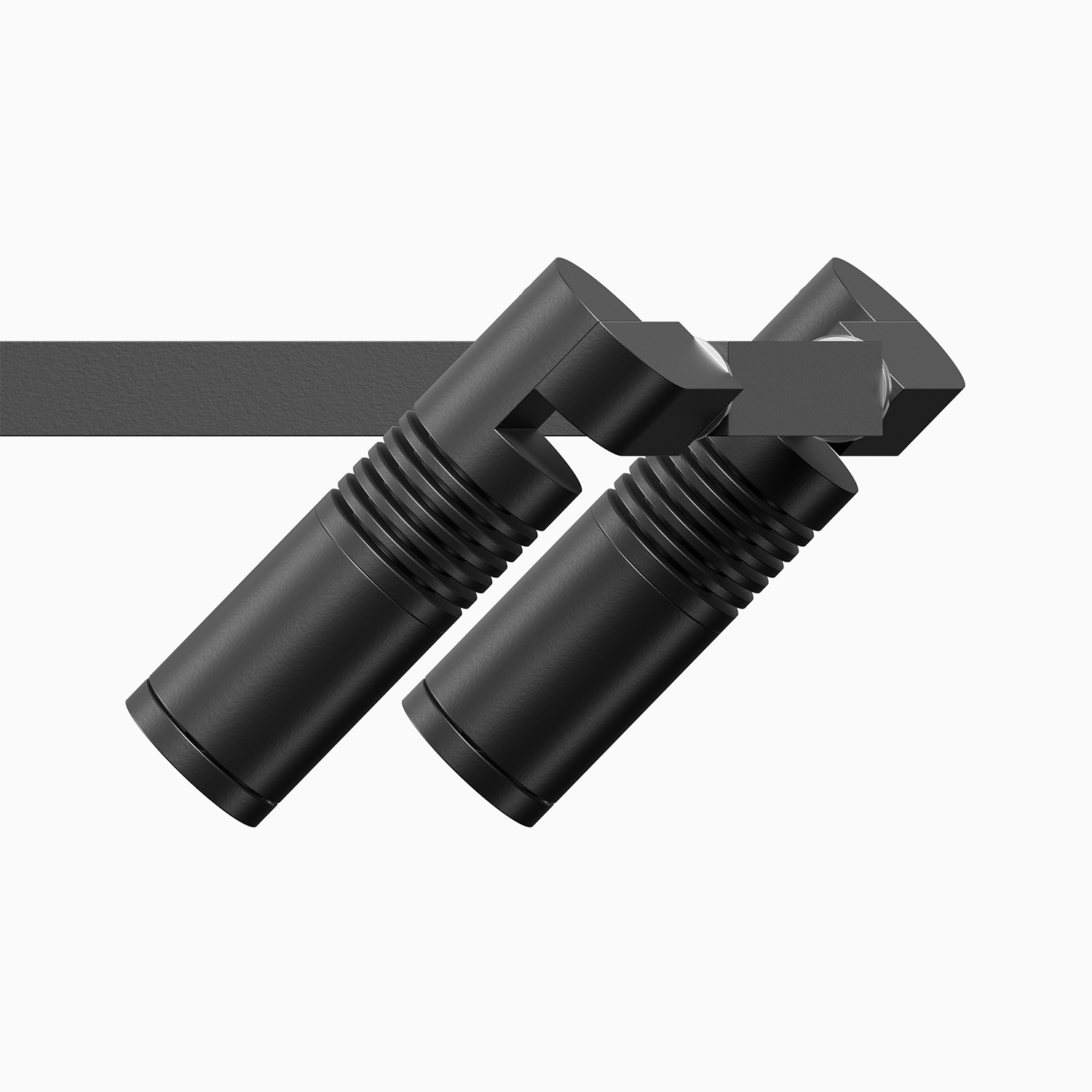

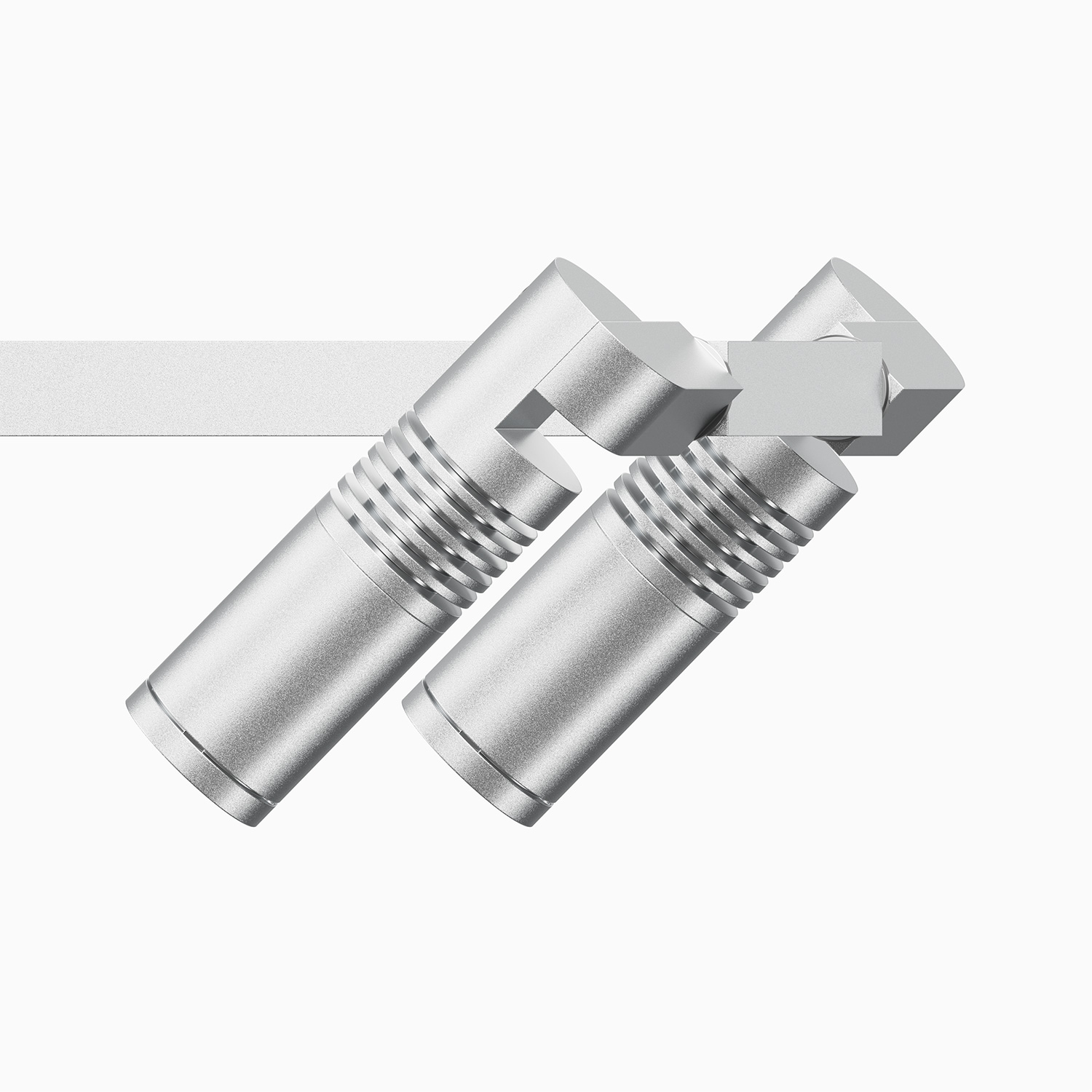

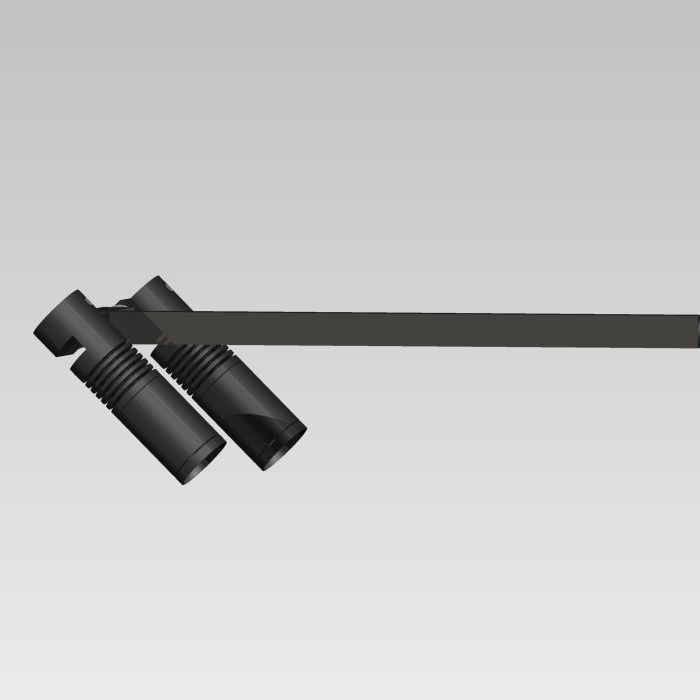

Twin-head (5-7W)x2 LED modular sign light.
FEATURES:
- CSA Listed for Wet Location, IP67 Standard.
- Utilize adjustable accent fixture head with directional light.
- Machined from solid billet 6061-T6 corrosion-resistant aluminum.
- Accommodates different beam spread reflectors and optic accessories.
- Modular components – field changeable LED module & beam spread reflectors.
Materials
Machined from solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC. Requires remote step-down transformer.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with a metal snap ring.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
(5 or 7W)x2 HK LED.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. (See "Resources" for details)
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 4 of the spec sheet for details)
Light Source
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Dimming
MLV or ELV.
