1.7W ( 150lm ) | 12V | HK LED
ZGLA1 Anchor 1″
1.7W ( 150lm ) | 12V | HK LED

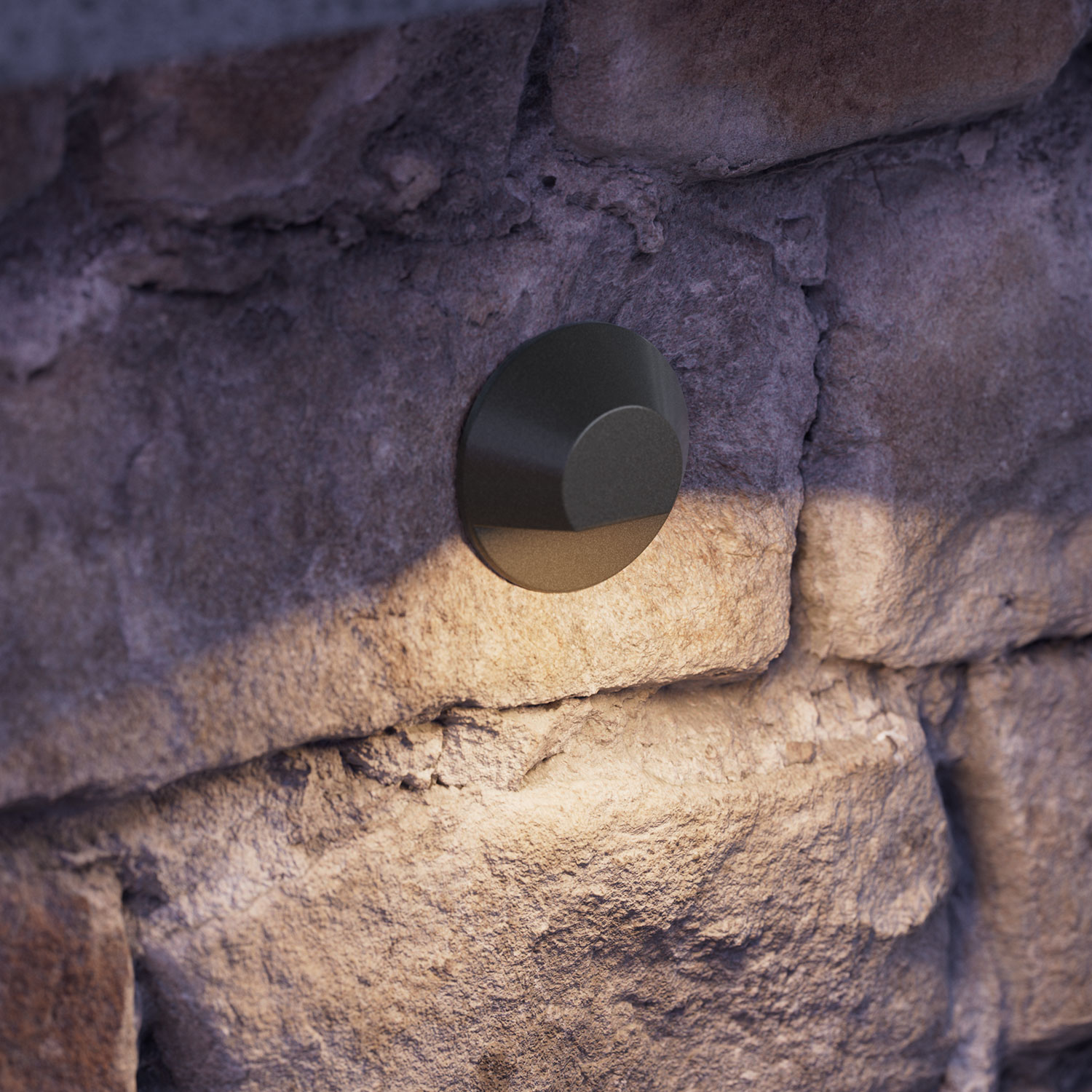

Ultra-compact 1" low voltage (12V) LED fixture for use as a Step, Marker, or In Ground light in architectural outdoor and landscape applications.
FEATURES:
- 1.7W integrated HK LED delivering 150 lumens. 2700 – 4000K CCT.

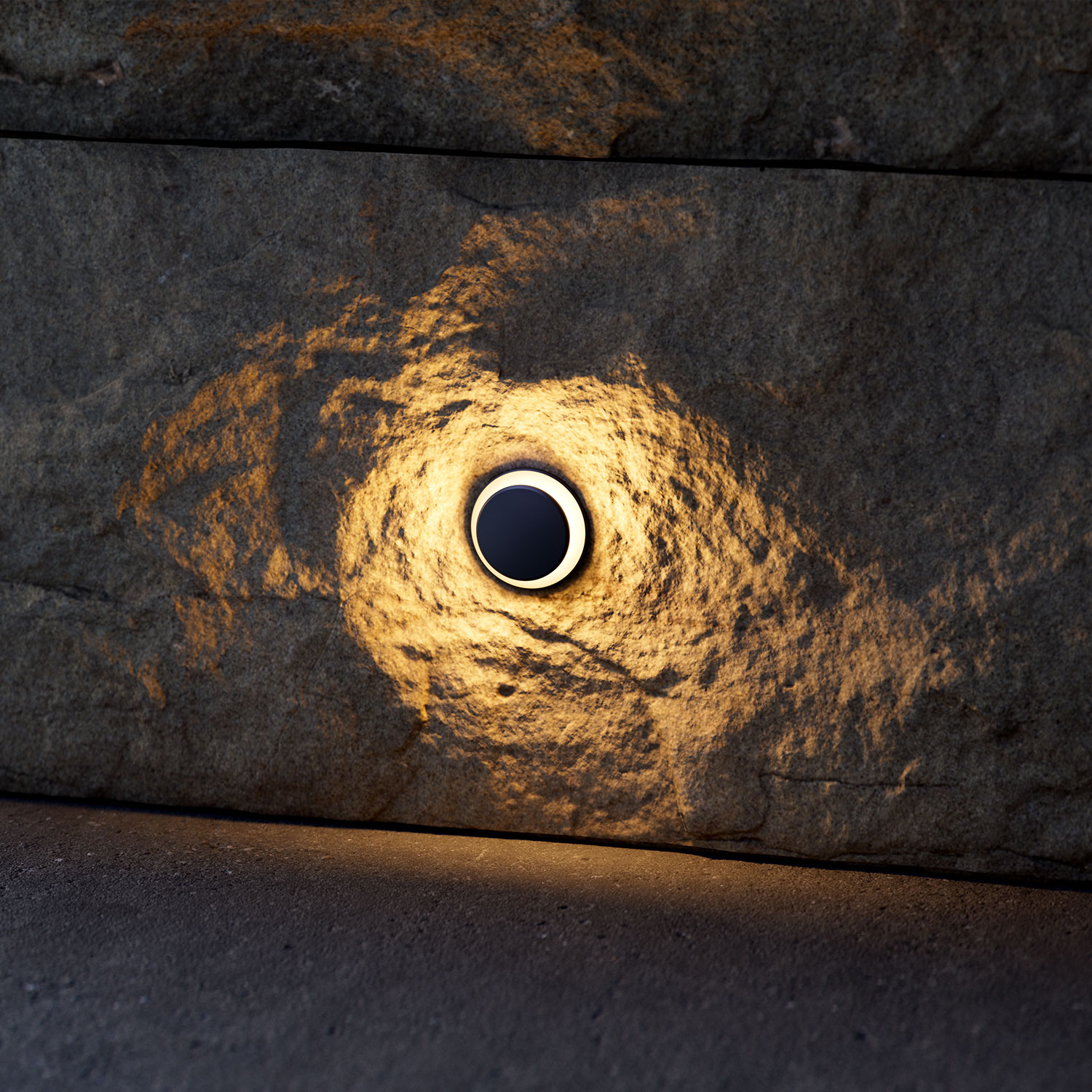

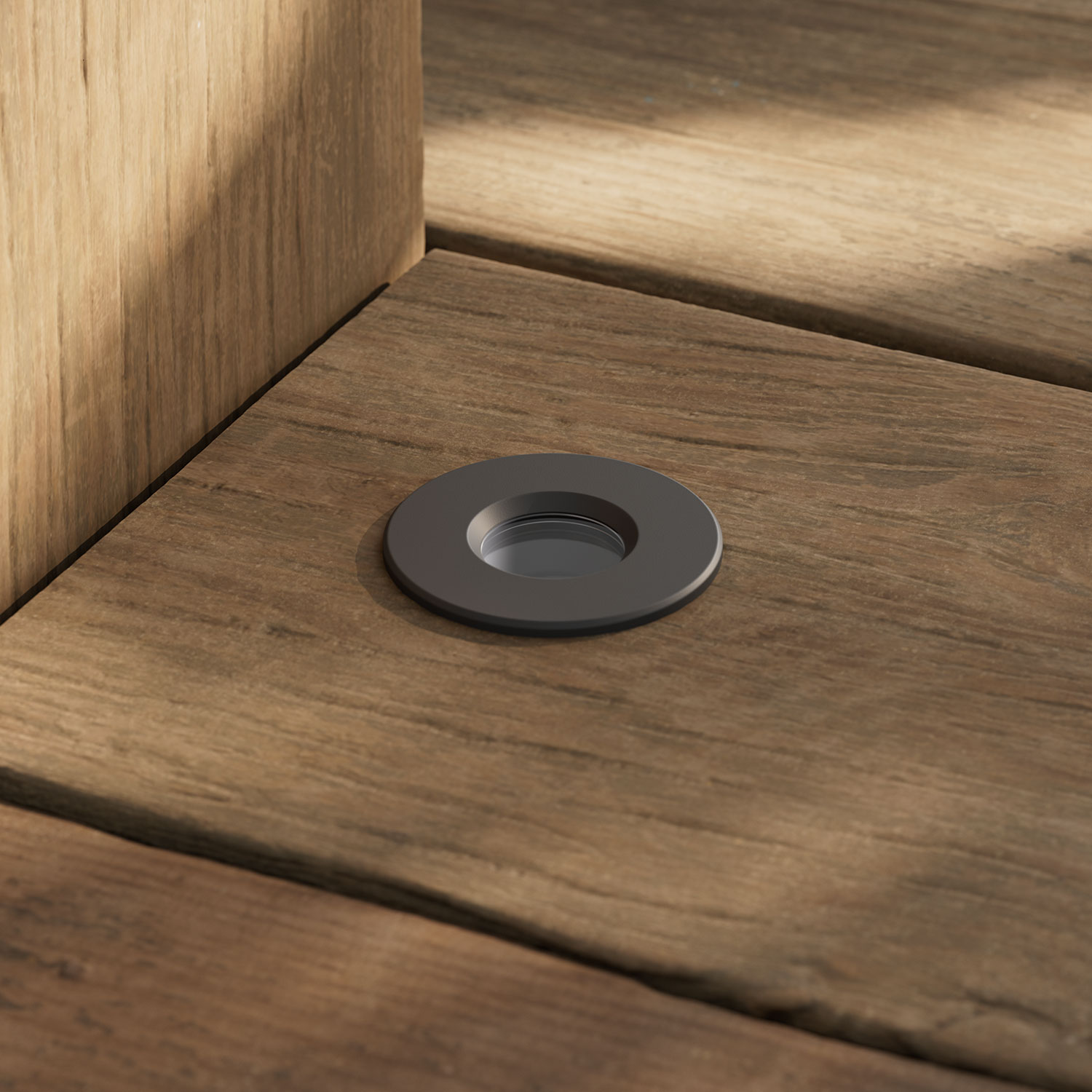

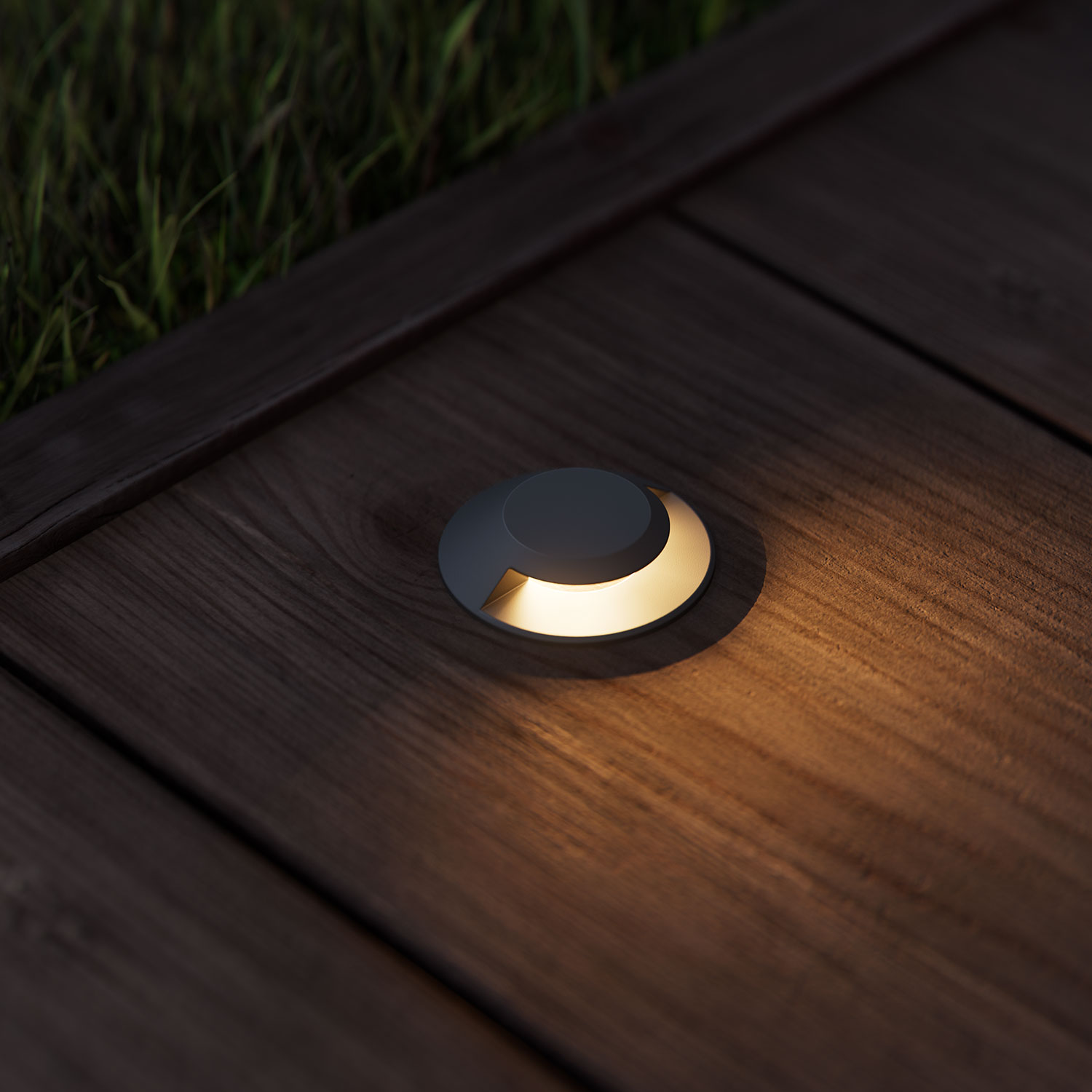

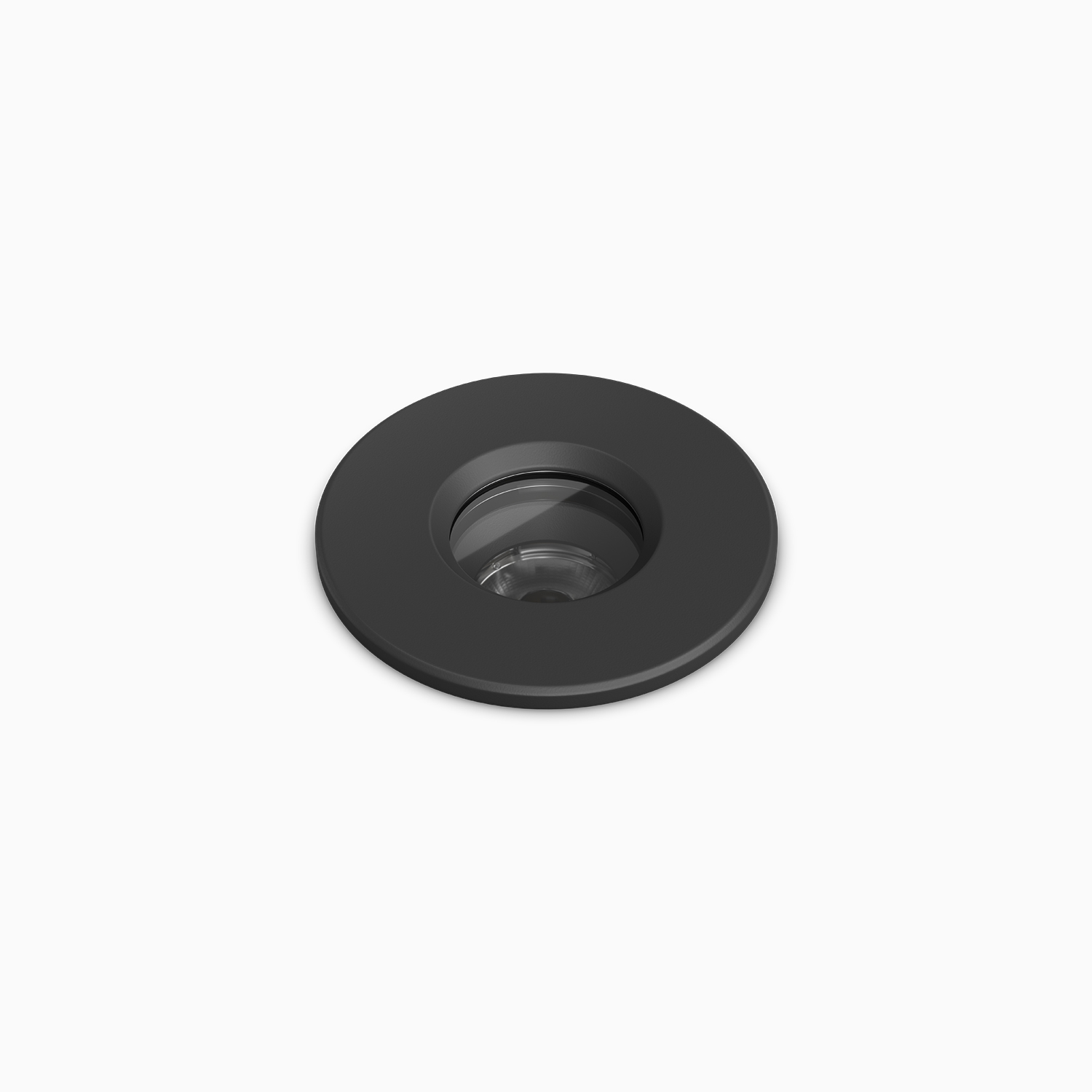

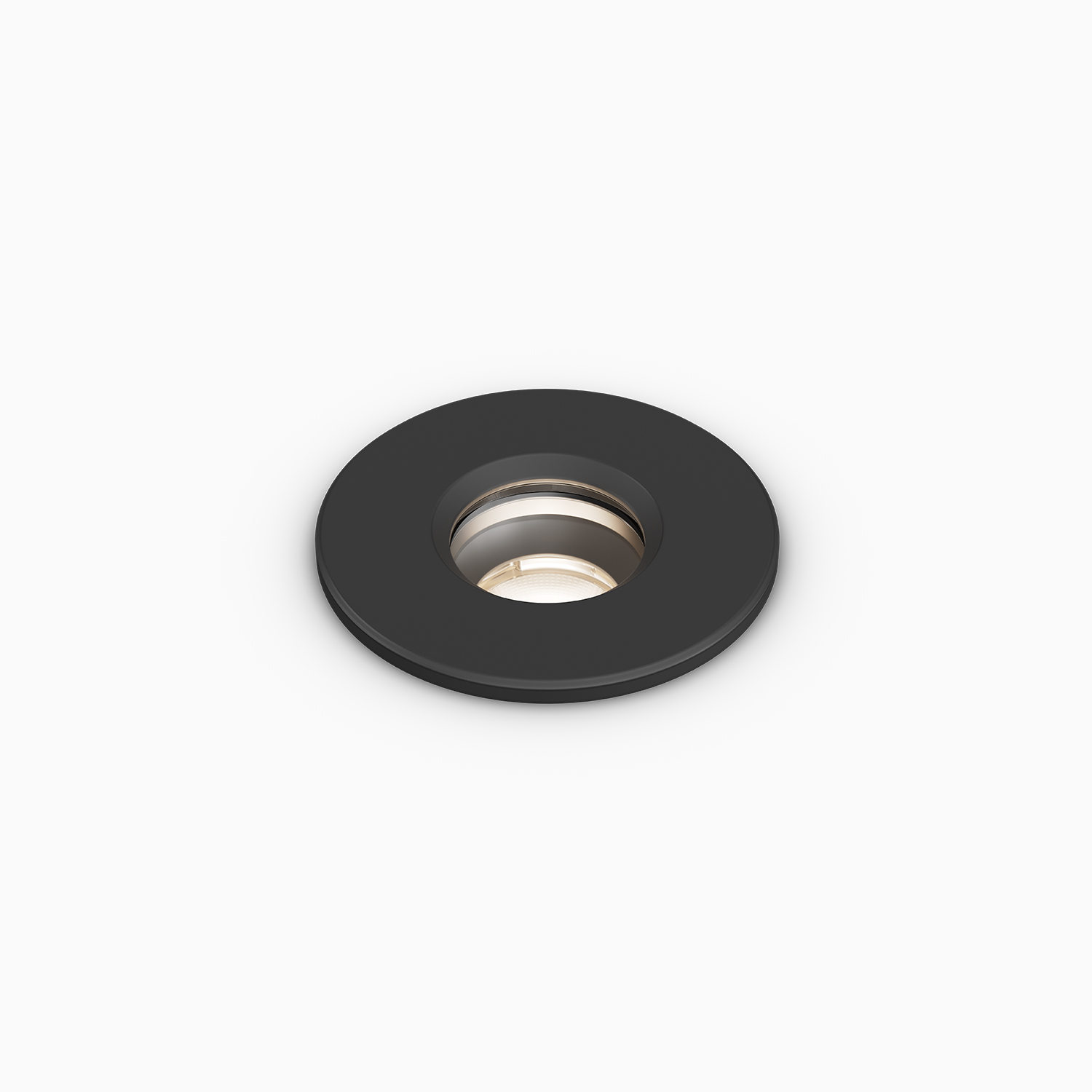

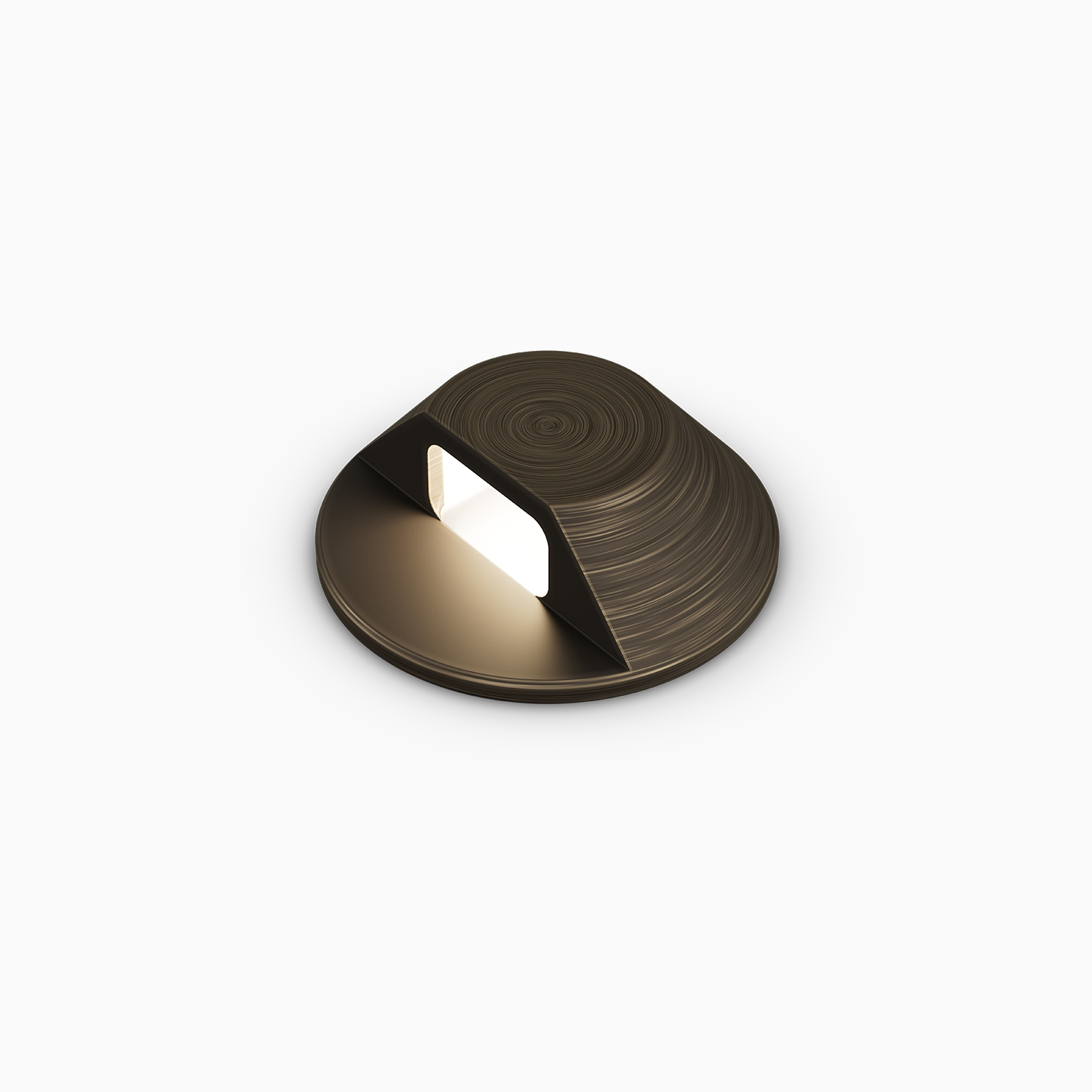

- Available field-changeable shields, including Standard Direct View, Glare Shield, Top Cover 360° and Top Cover 180°. Top Cover 360° and Top Cover 180° configurations meet Dark Sky requirements.
- Installs vertically or horizontally in any nominal one-inch drilled hole in soil, decking, masonry, pavers, or concrete.
- Wet Location Listed, IP68 Standard.
- Precision-machined from corrosion-resistant brass. Available finishes include Black and Bronze powdercoat.
- 360° rotation adjustment after installation.

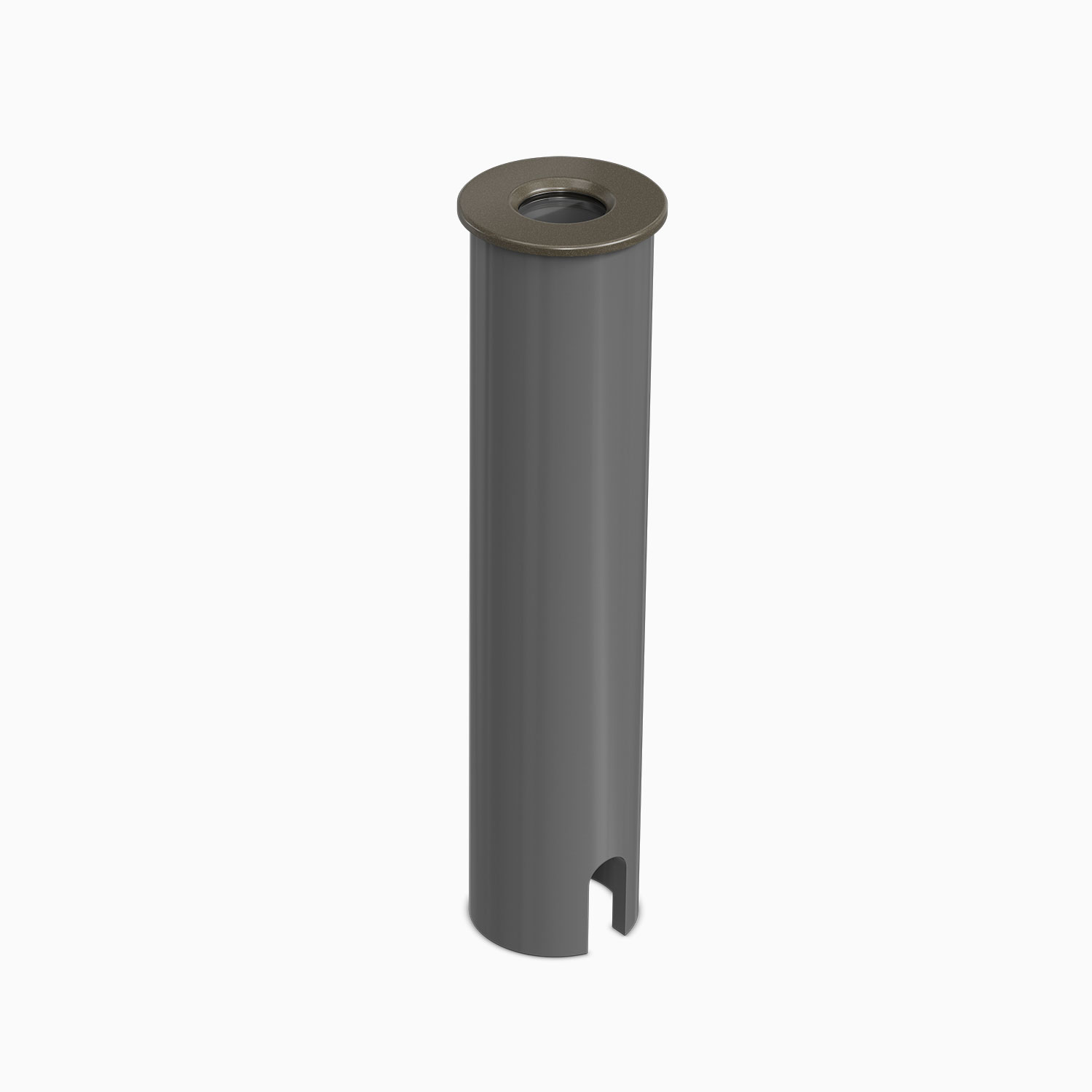

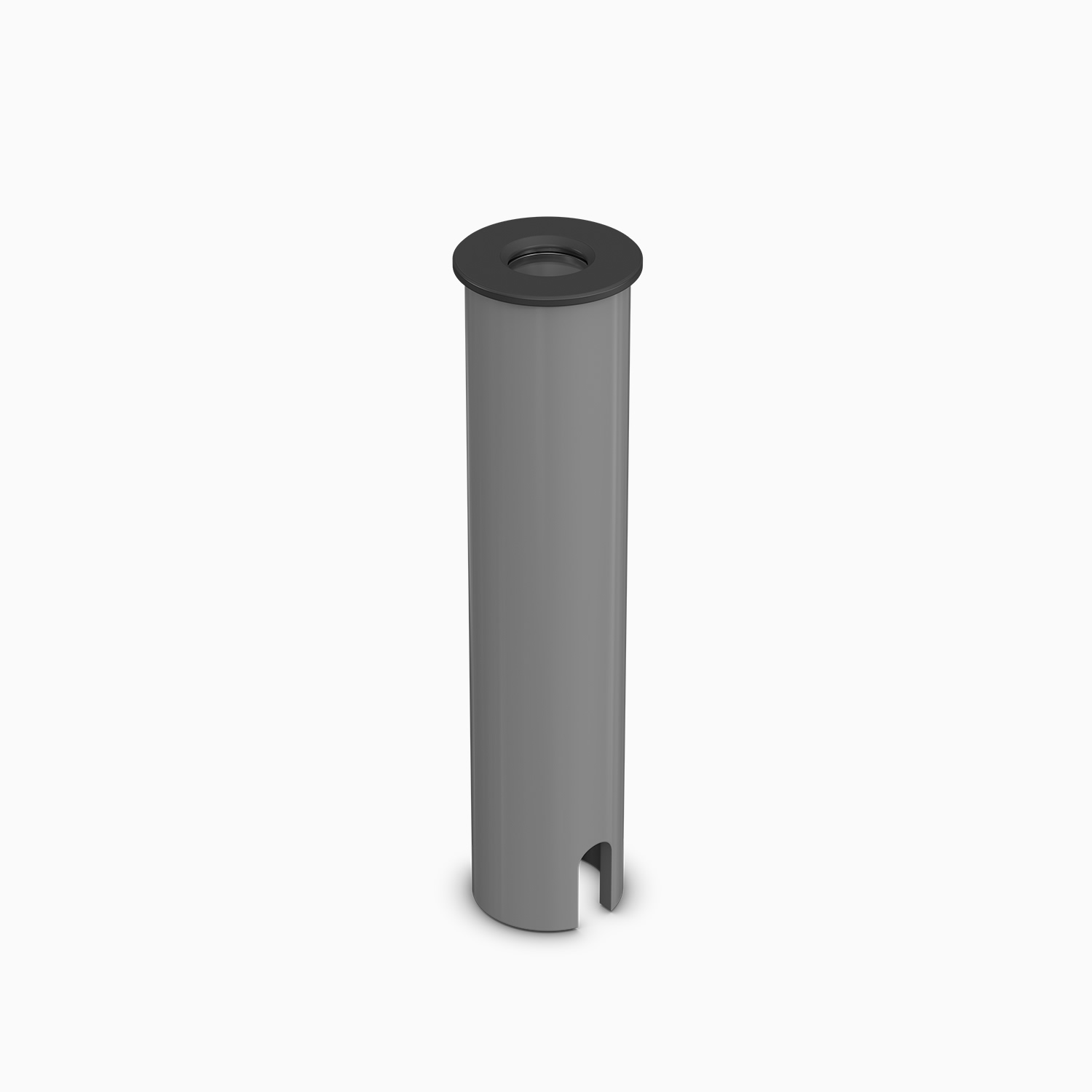

- Included PVC Outer Sleeve simplifies installation in soil or poured concrete.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials

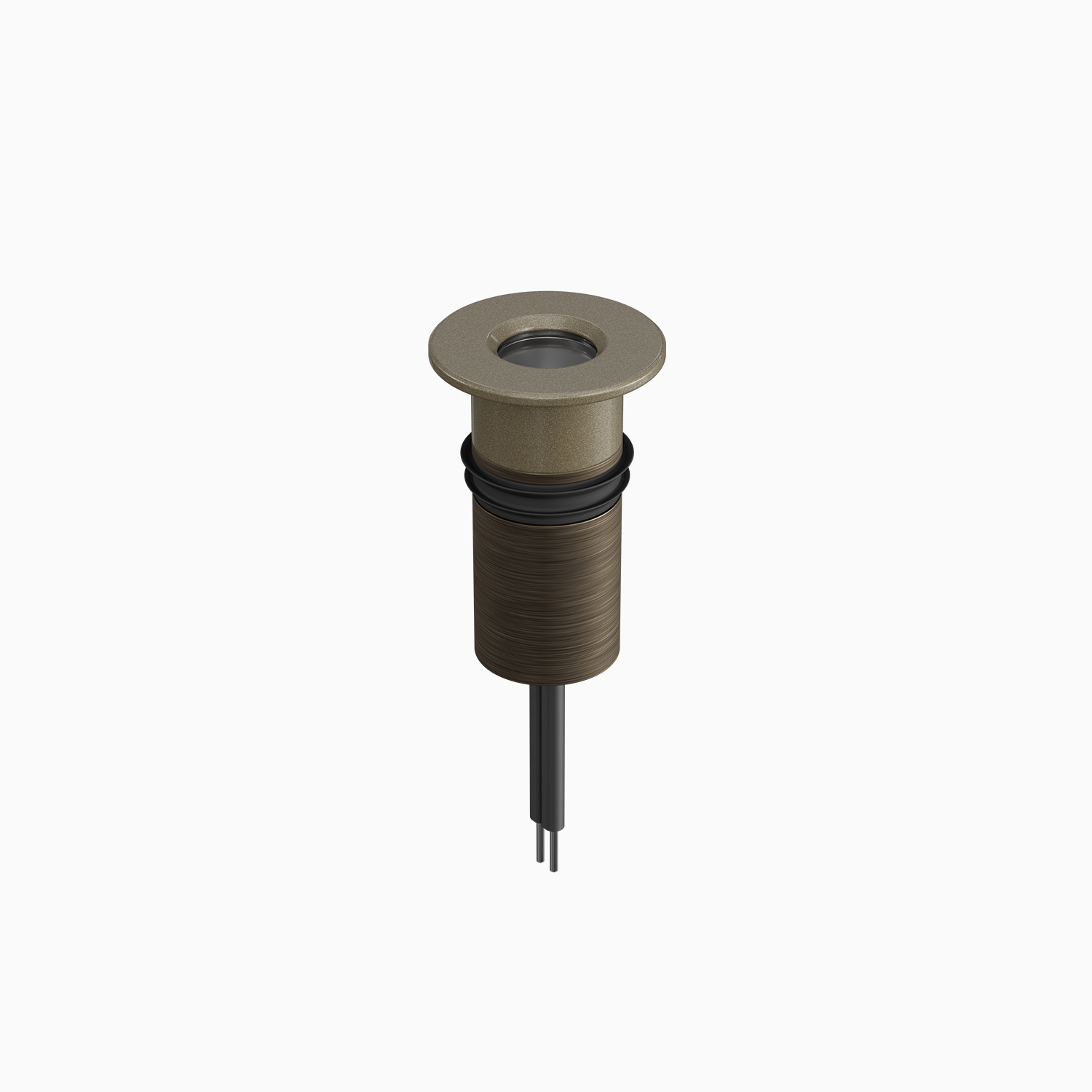

Machined from solid billet 360 brass with 316 stainless steel hardware and silicone placement gaskets.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Narrow (20°), Medium (35°), and Wide (60°) beam spread options available for Standard and Glare Shield Styles. Accepts one optical accessory. Top Cover Styles include Shield Optimized optic.
Finish
Superior corrosion-resistant Black or Bronze powdercoat for a robust marine grade finish.
Wattage
1.7W HK LED delivers 150 lumens.
Mounting
Installs in any nominal one-inch drilled hole in soil, decking, masonry, pavers, or concrete. Included PVC Outer Sleeve aids installation. (See page 5 of Spec Sheets for details)
Optional Shields

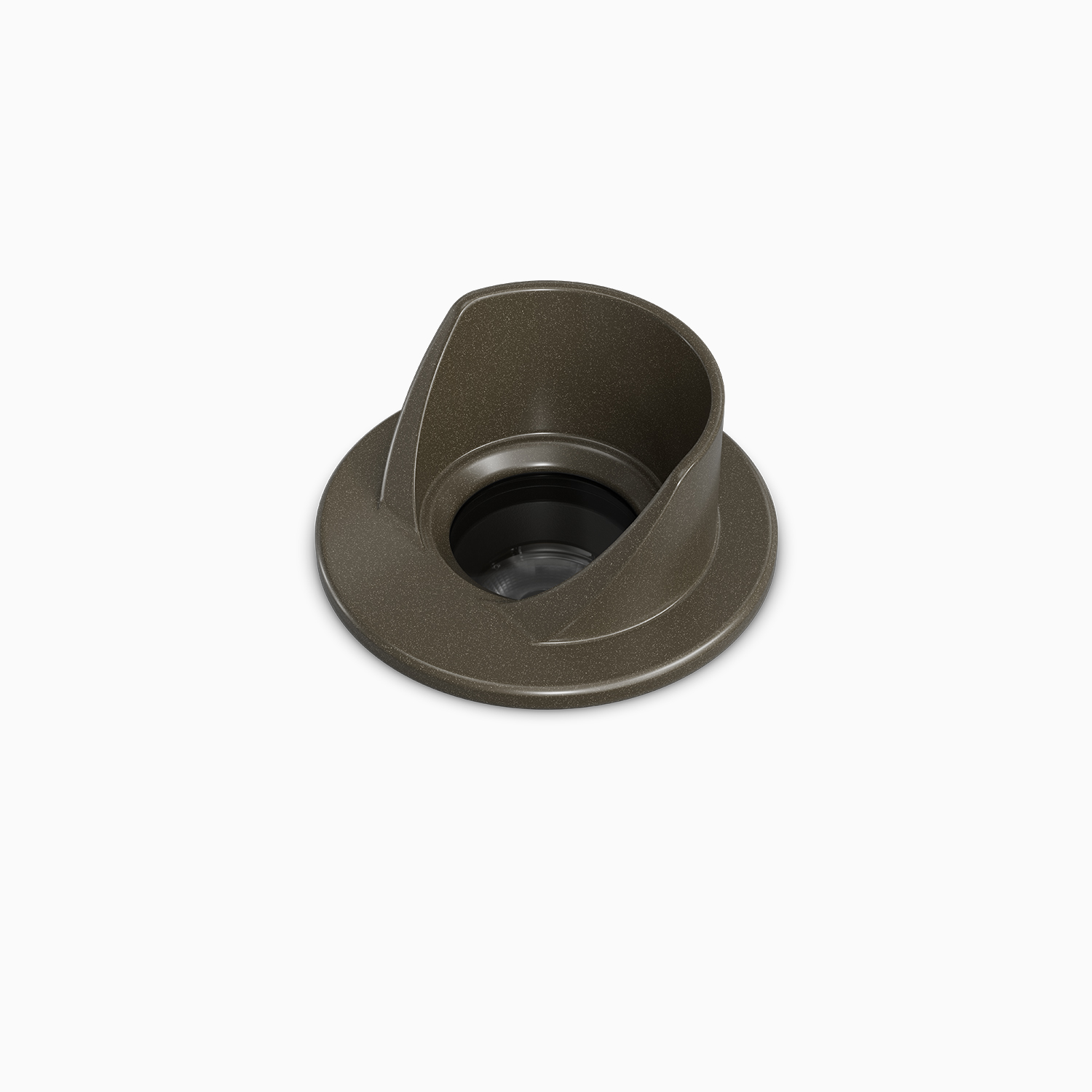

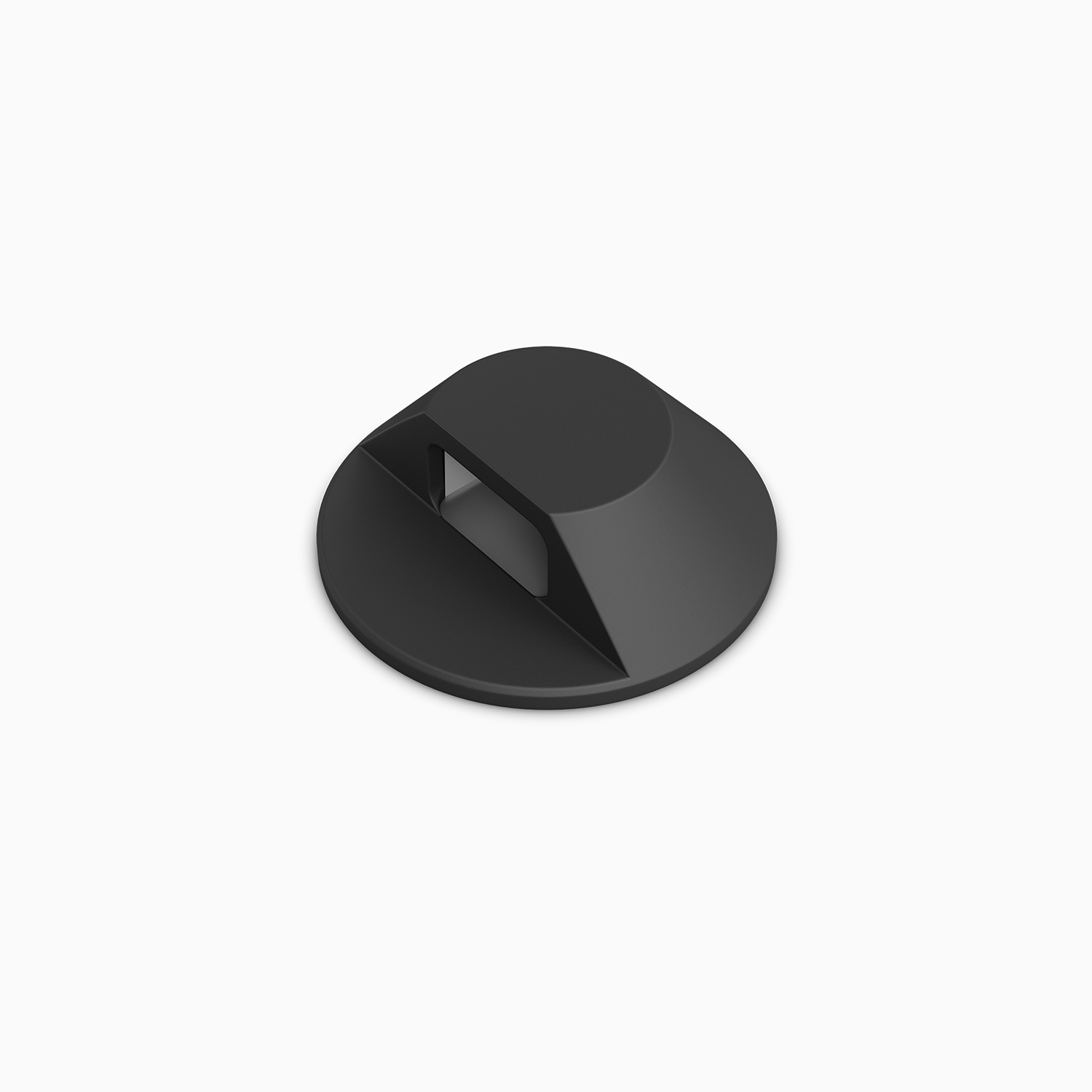

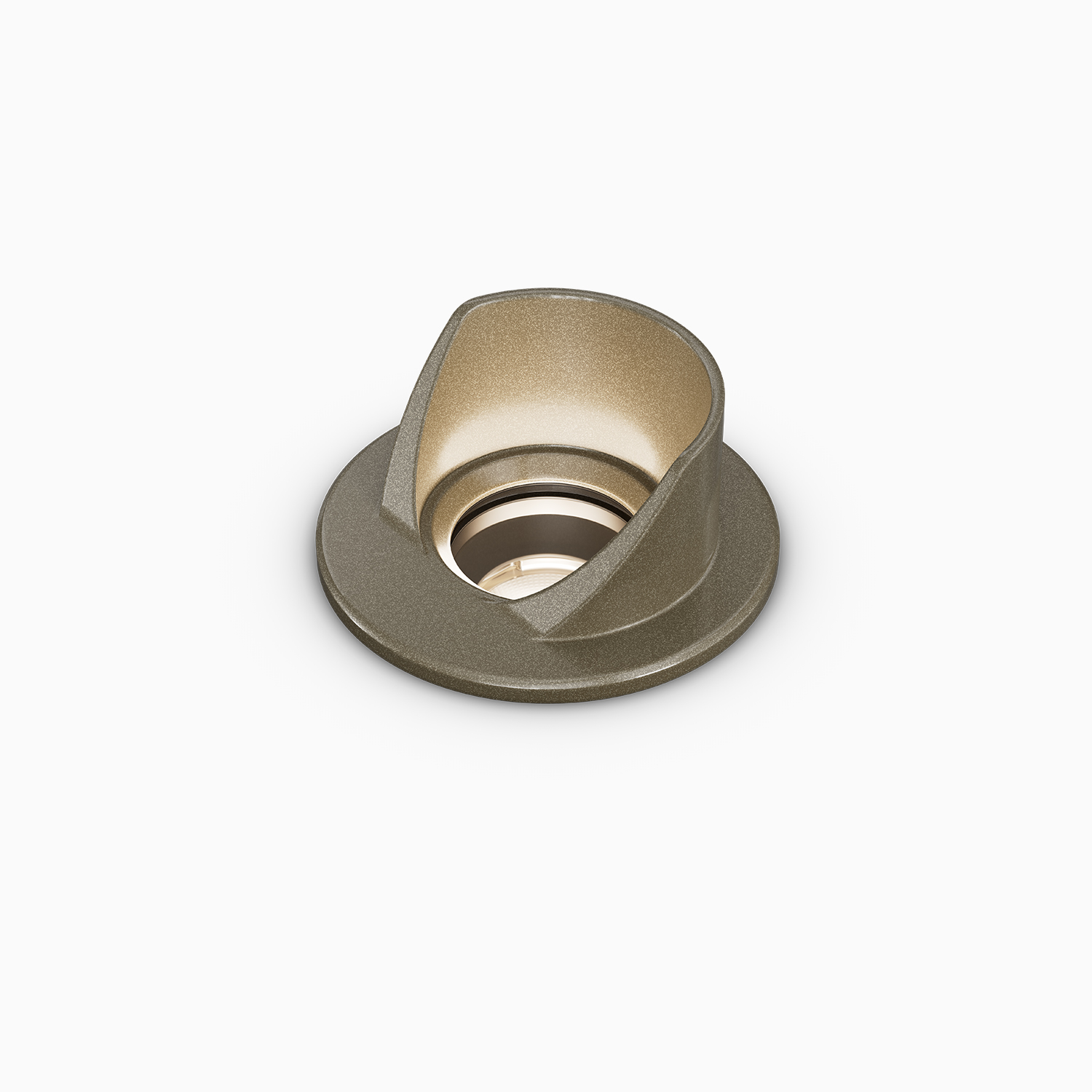

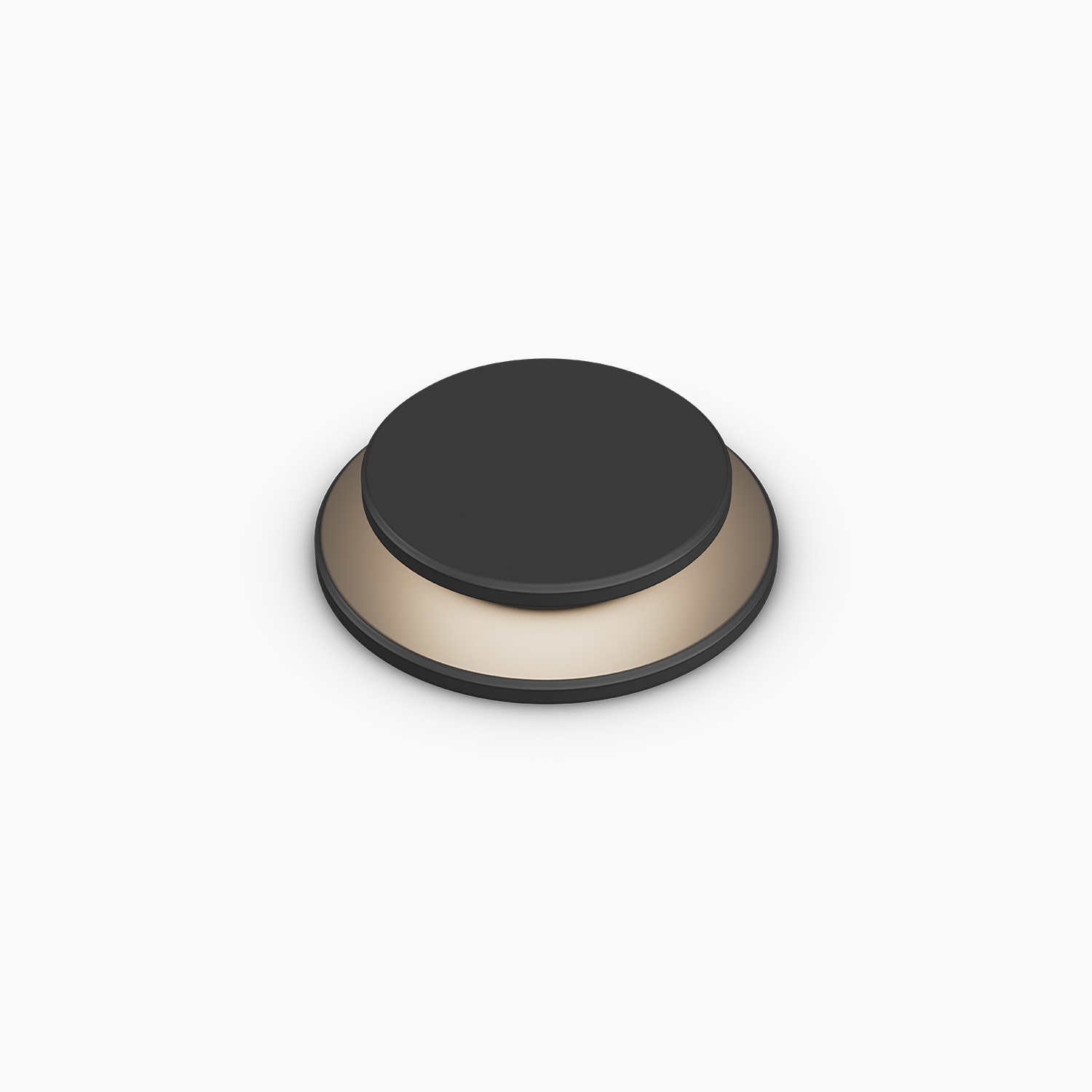

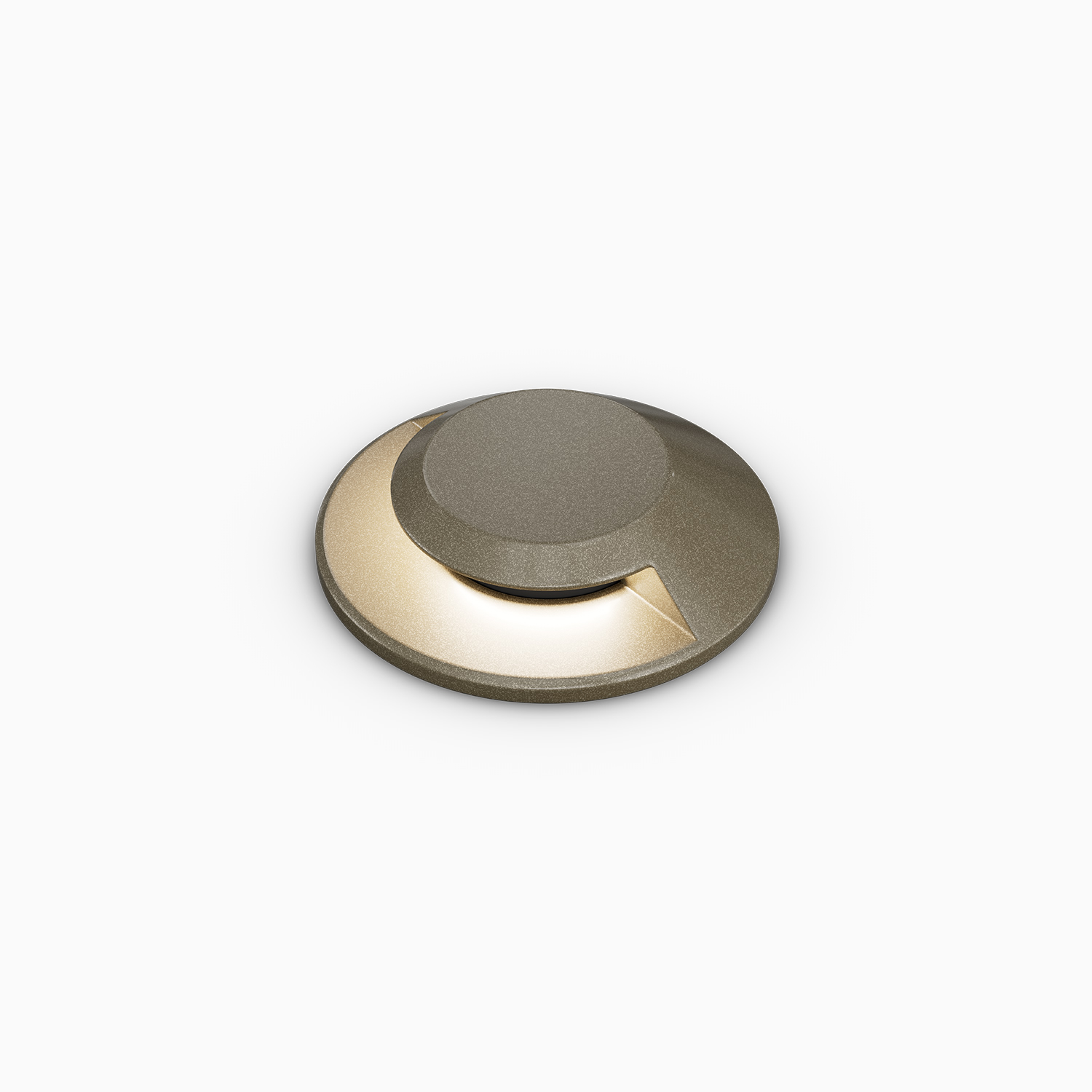

Glare, Top Cover 360° and Top Cover 180° Shields available.
Light Engine
Innovative HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K, 3000K, 3500K, 4000K.
Listings
CSA Listed for Wet Location, IP68 Standard. Standard Direct View and Top Cover 180° Shields are drive-over rated. Top Cover 360° and Top Cover 180° Shields meet Dark Sky requirements. RoHS Compliant.
Dimming
MLV or ELV Phase Control dimming.
