ZDL25-I

DOWNLIGHT | ZD25 Series | 3.50" dia.
21–28W ( 2000–2700lm ) | 120V–277V | HK LED, RGBW

(includes former ZXL25i-CM-ADJ model)

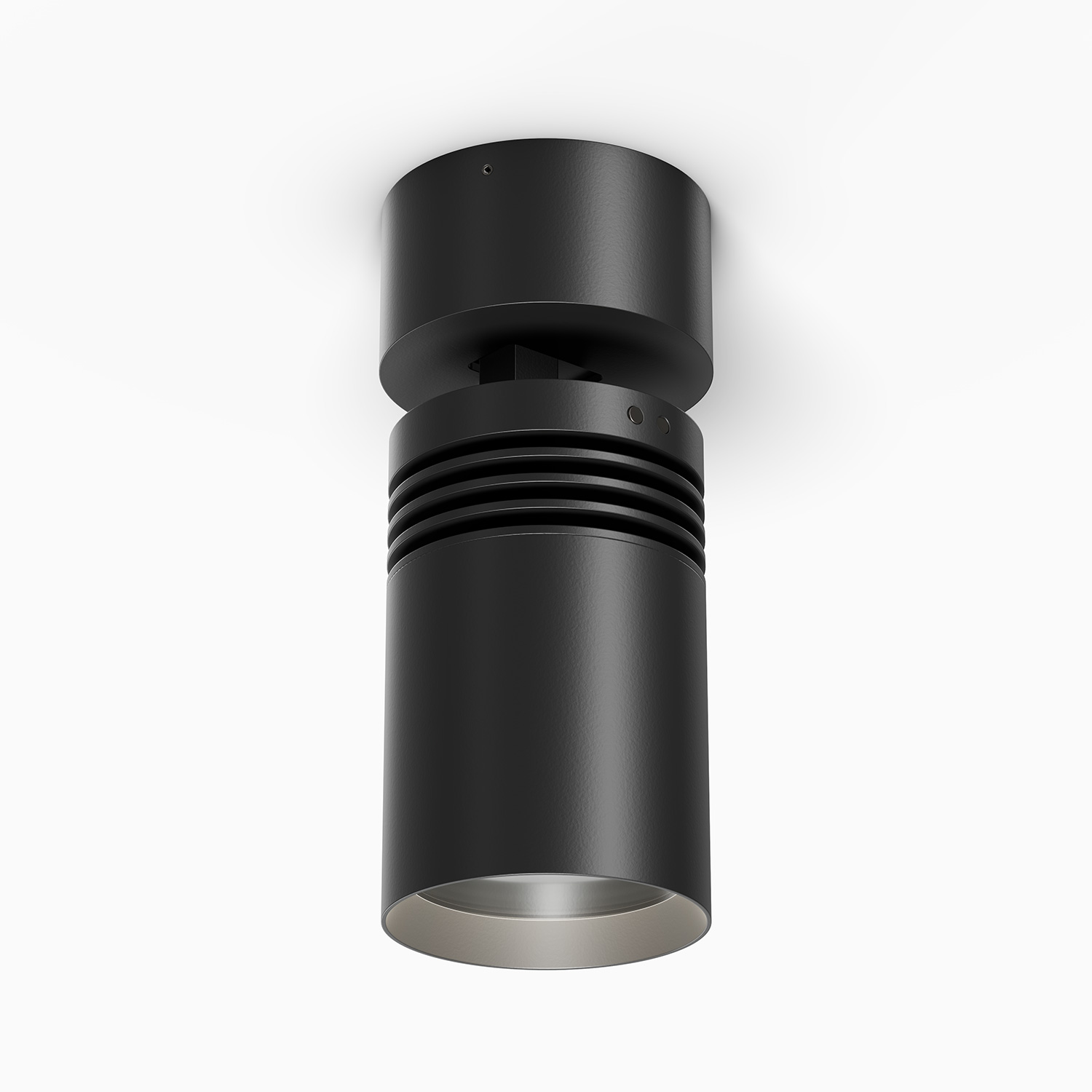

Adjustable 3.50" round, integrated LED, line-voltage downlight for architectural outdoor applications.

FEATURES:

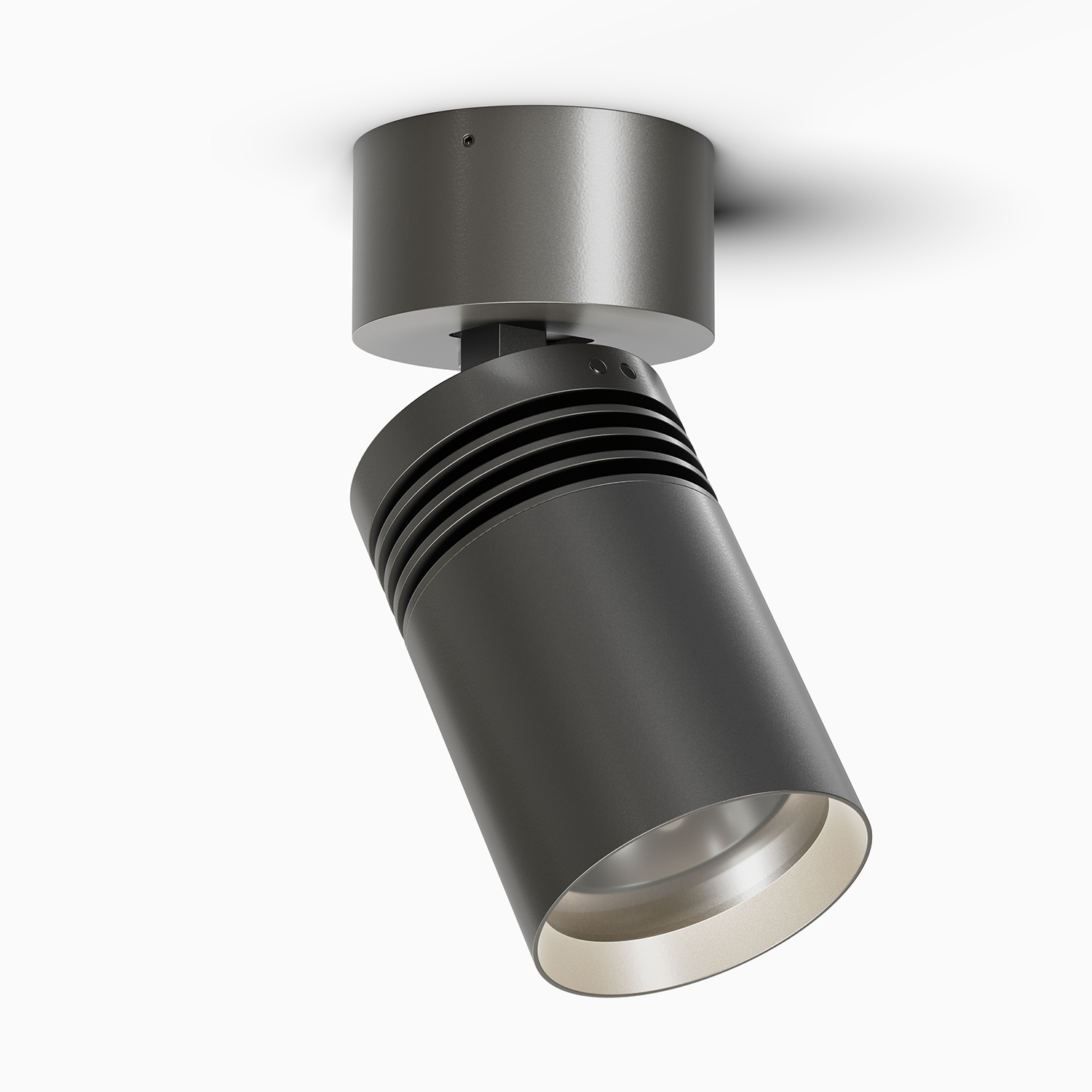

Adjustable aiming with up to 60° tilt and 360° rotation.
21W, 28W integrated HK LED delivering 2000–2700 lumens. 2200–4000K CCT, including specialty RGBW option.
Wet Location Listed, IP65 Standard.

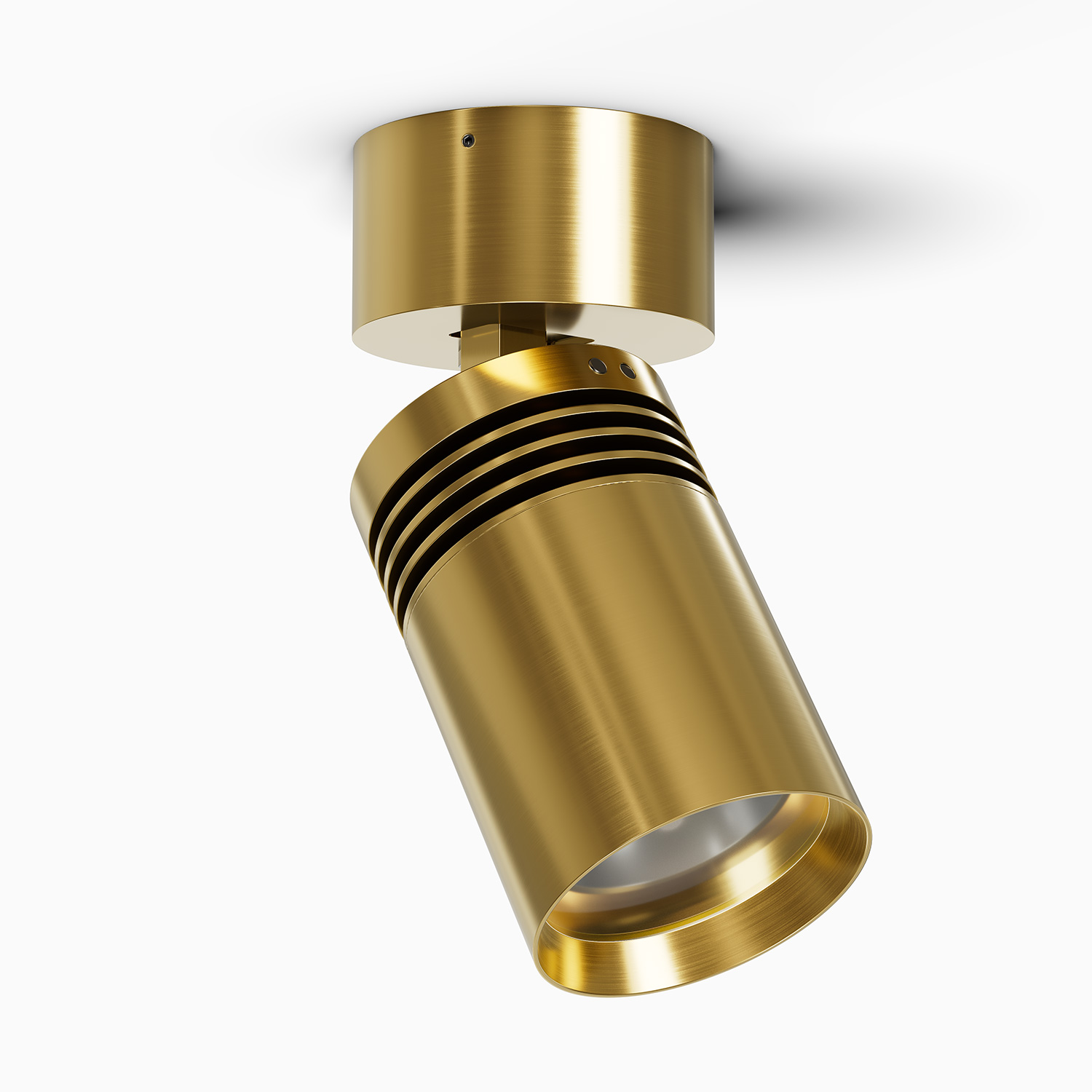

Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
Modular component design with configurable optical beam angles and accessory lenses.
Includes integrated 3.5″ surface mount box. Adjustable angled, long, and short glare shields, along with additional canopy and surface mount options, are available.
Every fixture tested end of line for water tightness and light quality.

spec sheets

photometry

Specifications

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.

Voltage

120V–277V AC.

Optics

Narrow (16º), Medium (26º), Wide (40º), and Extra Wide (60º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

21 or 28W HK LED delivers 2000–2700 lumens.

Mounting

Includes integrated 3.5" surface mount box and (2X) 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).

Hood and Glare Shield

Non-weeping Hood Style. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of spec sheet for details)

Light Engine

CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and RGBW options available. Consult factory for specialty LED specification details.
