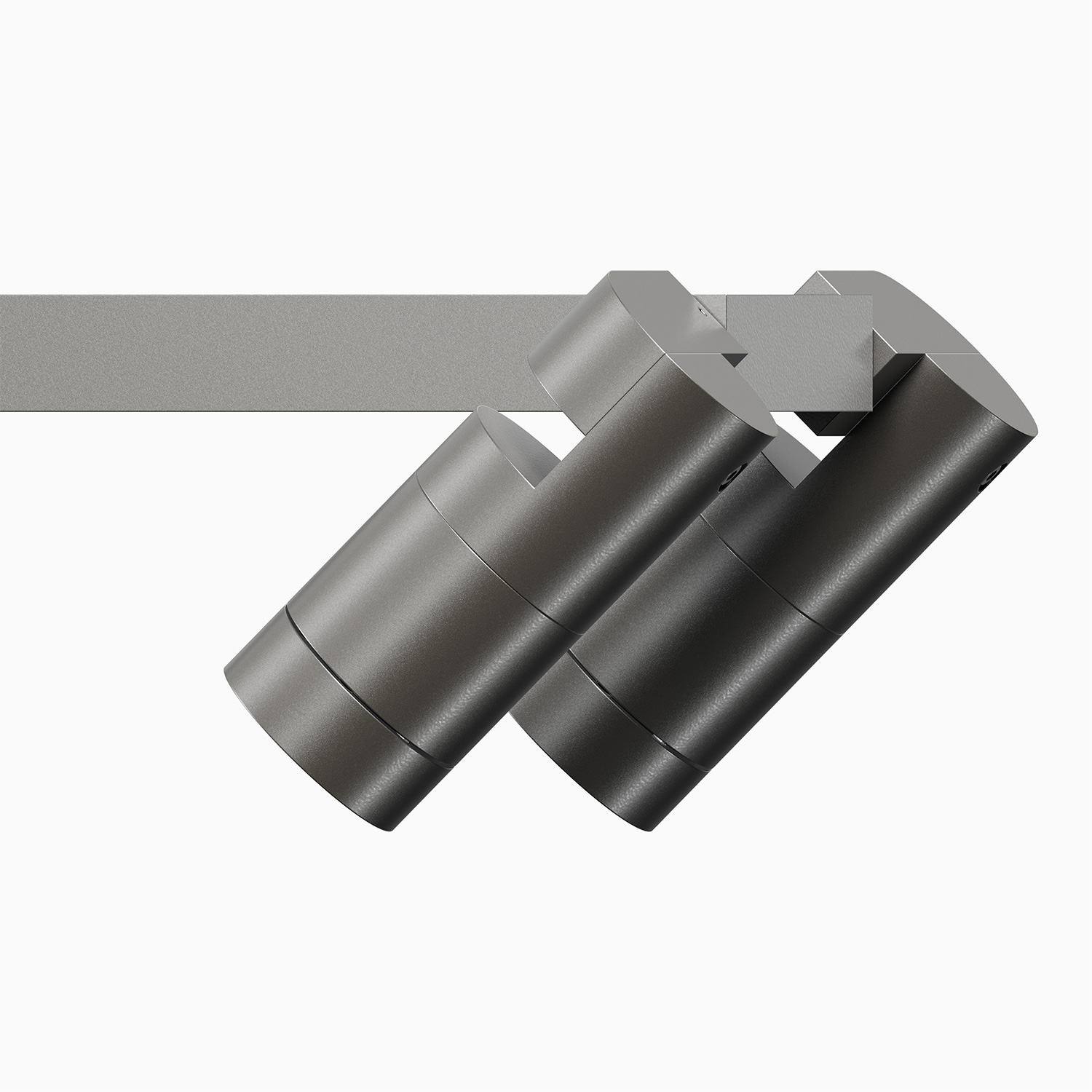

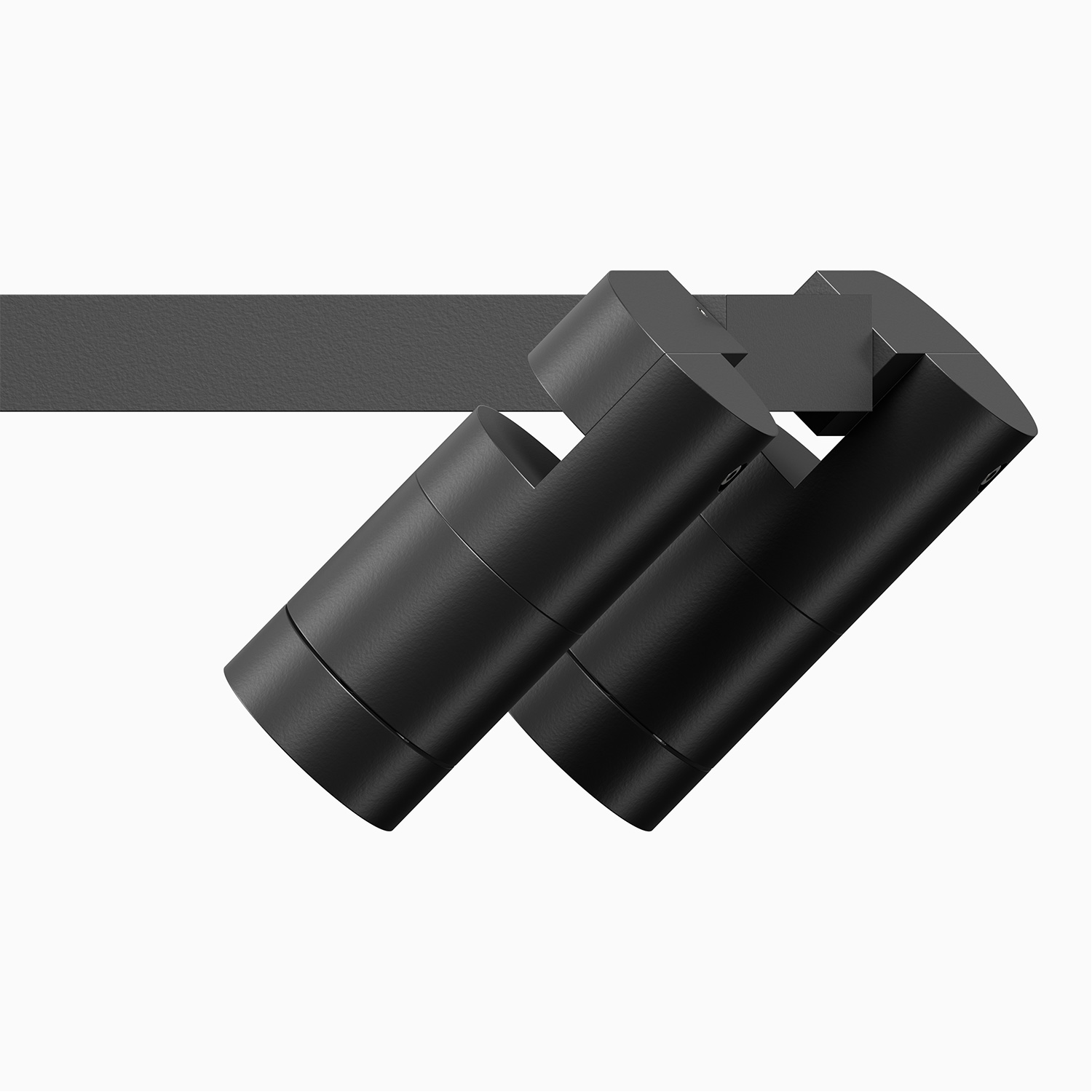

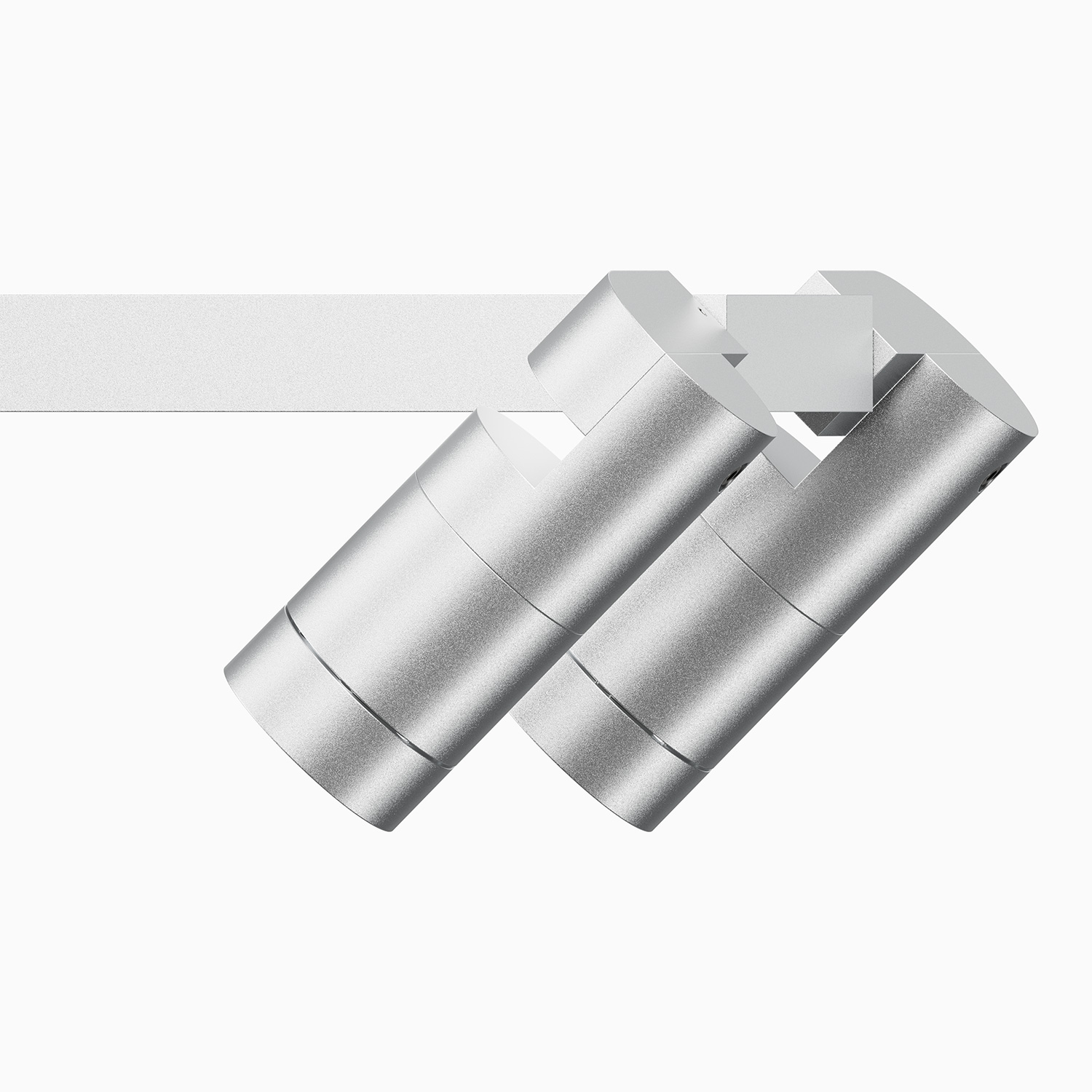

SIGN-2-SOi
FEATURES:
- Twin-head (7.5 W or 9W)x2, SORAA® LED modular sign light.
- 12V with GU5.3 lamp base.
- Utilizes adjustable accent fixture head with directional light.
- US patented integral SORAA heat sink.
- Field changeable SORAA lamps and accessories.
- ETL outdoor wet location listed. IP67 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V, 120V or 230V AC.
Lamp Base/Socket
12V with GU5.3 socket, or 120V/230V with porcelain GU10 twist-lock socket.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
(Max. 9W)X 2 for SORAA MR16 lamp with Thermobuster.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 2 of Spec Sheet for details).
Light Engine
12V - MR16 Halogen lamp or MR16 SORAA LED lamp. Line Voltage - MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp.
Dimming
12V - MLV or ELV dimming. Line voltage - Phase dimming.
