ZXG-RH-LED / ZXGi-RH-LED
STEP & IN-GRADE | ZXG-RH Series | 4.00" dia.
7.5, 9W (390 - 590lm) | 12V | SORAA LED

ZXG-RH-LED / ZXGi-RH-LED

STEP & IN-GRADE | ZXG-RH Series | 4.00" dia.
7.5, 9W (390 - 590lm) | 12V | SORAA LED

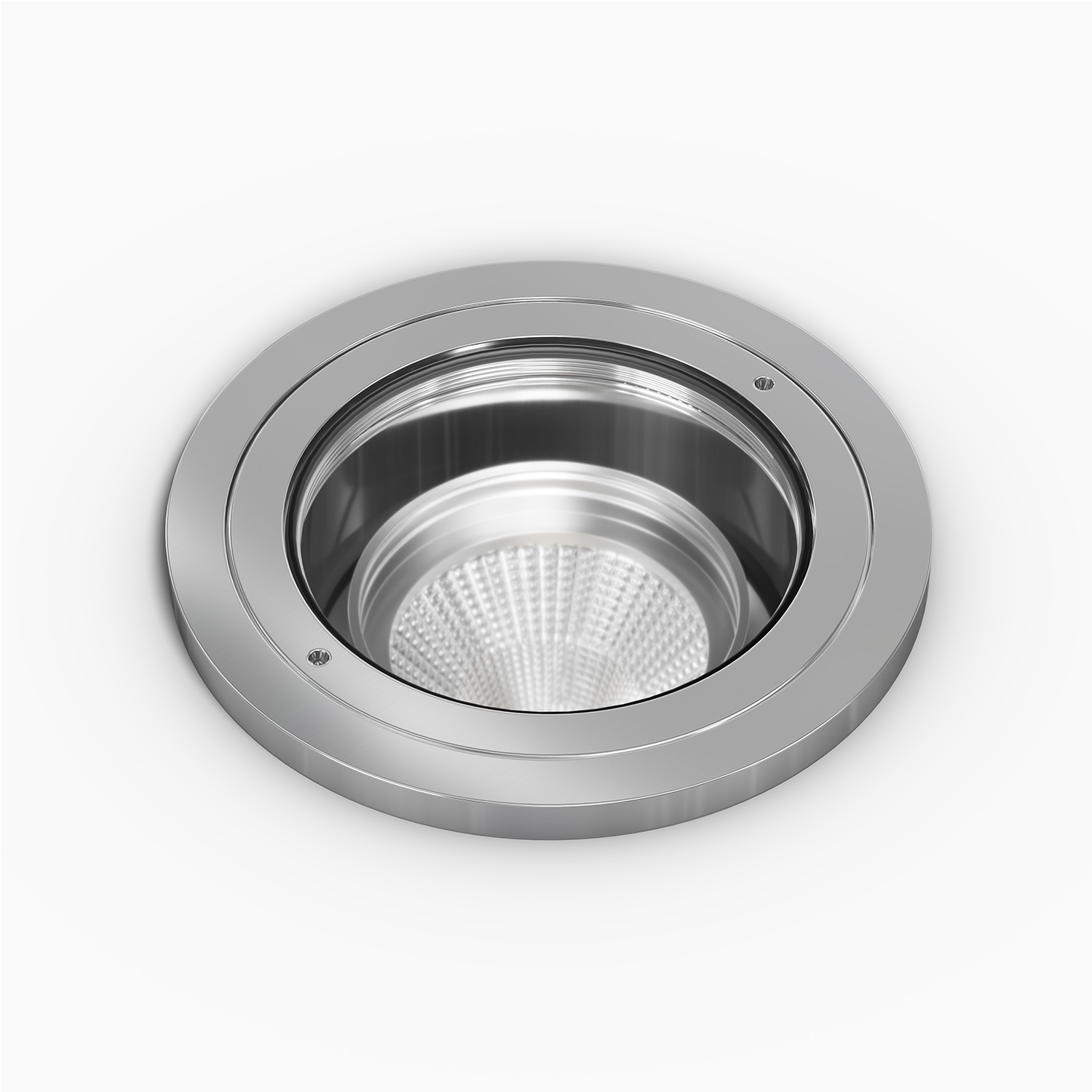

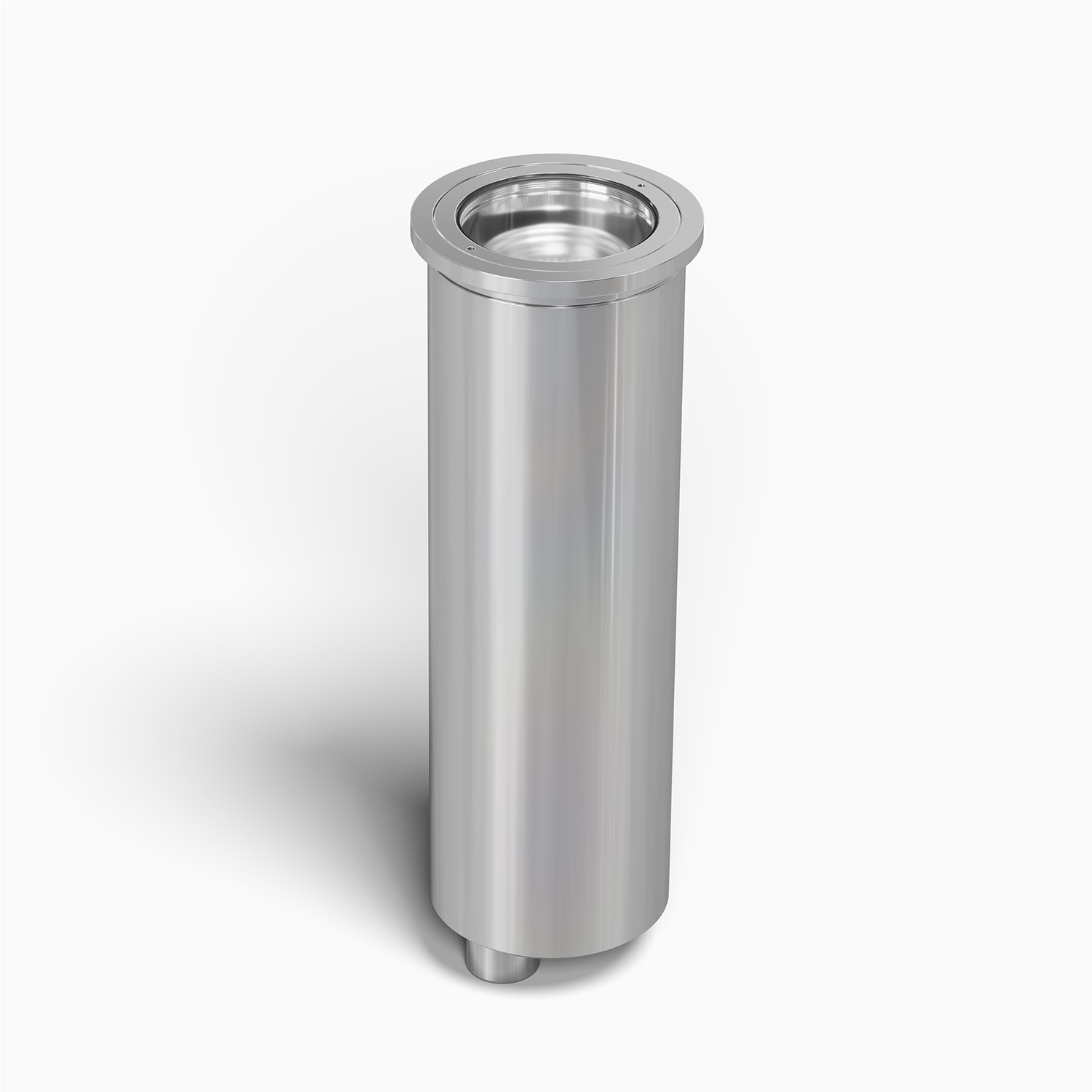

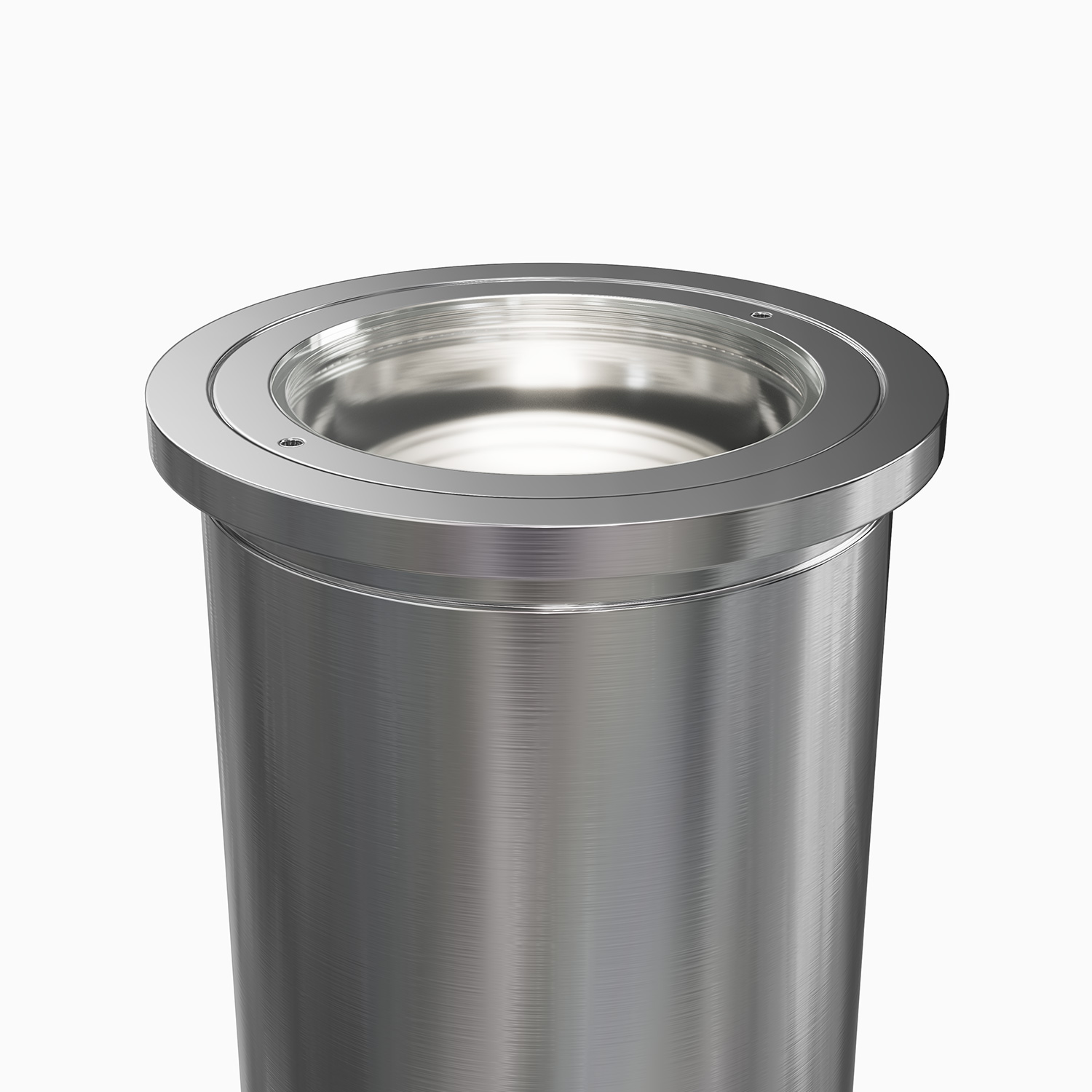

Stainless steel in-grade fixture with superior corrosion resistance.

FEATURES:

  • ETL outdoor wet location listed. IP67 standard.

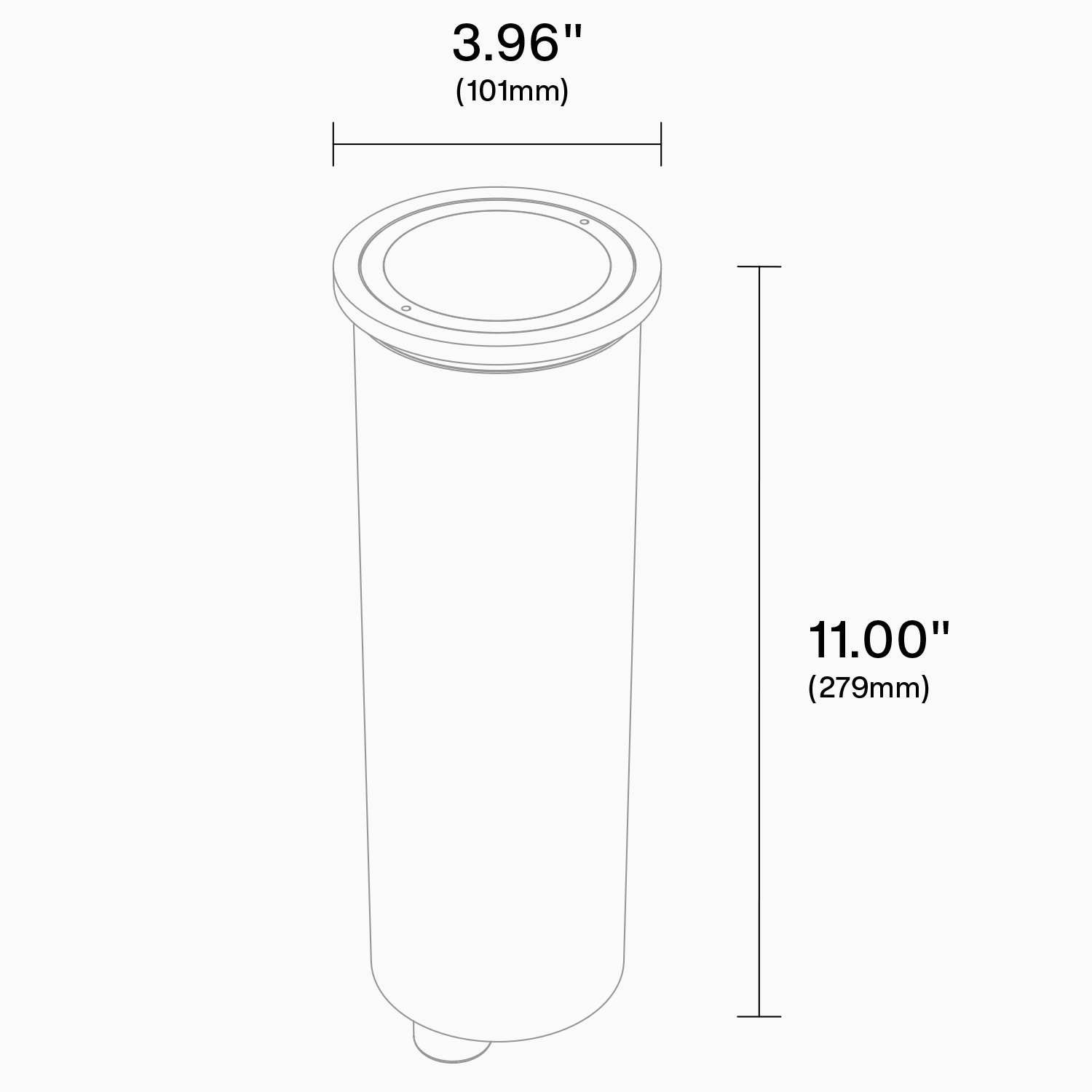

  • Compact size with 4″ diameter profile.
  • Built-in optic accessory holder.
  • Modular components – field changeable LED module & beam spread reflectors.
  • Line voltage input with integral step down transformer in fixture housing.
Specifications

Materials

Outer housing: Stainless steel. Lamp holder and Aiming Assembly: Machined from billet 6061-T6 corrosion resistant aluminum.

Voltage

12V AC/DC. Requires remote step down transformer. Line volatge models come with integral transformer.

Lamp Base/Socket

Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.

Finish

Natural Stainless Steel.

Wattage

5W HK LED

Optics

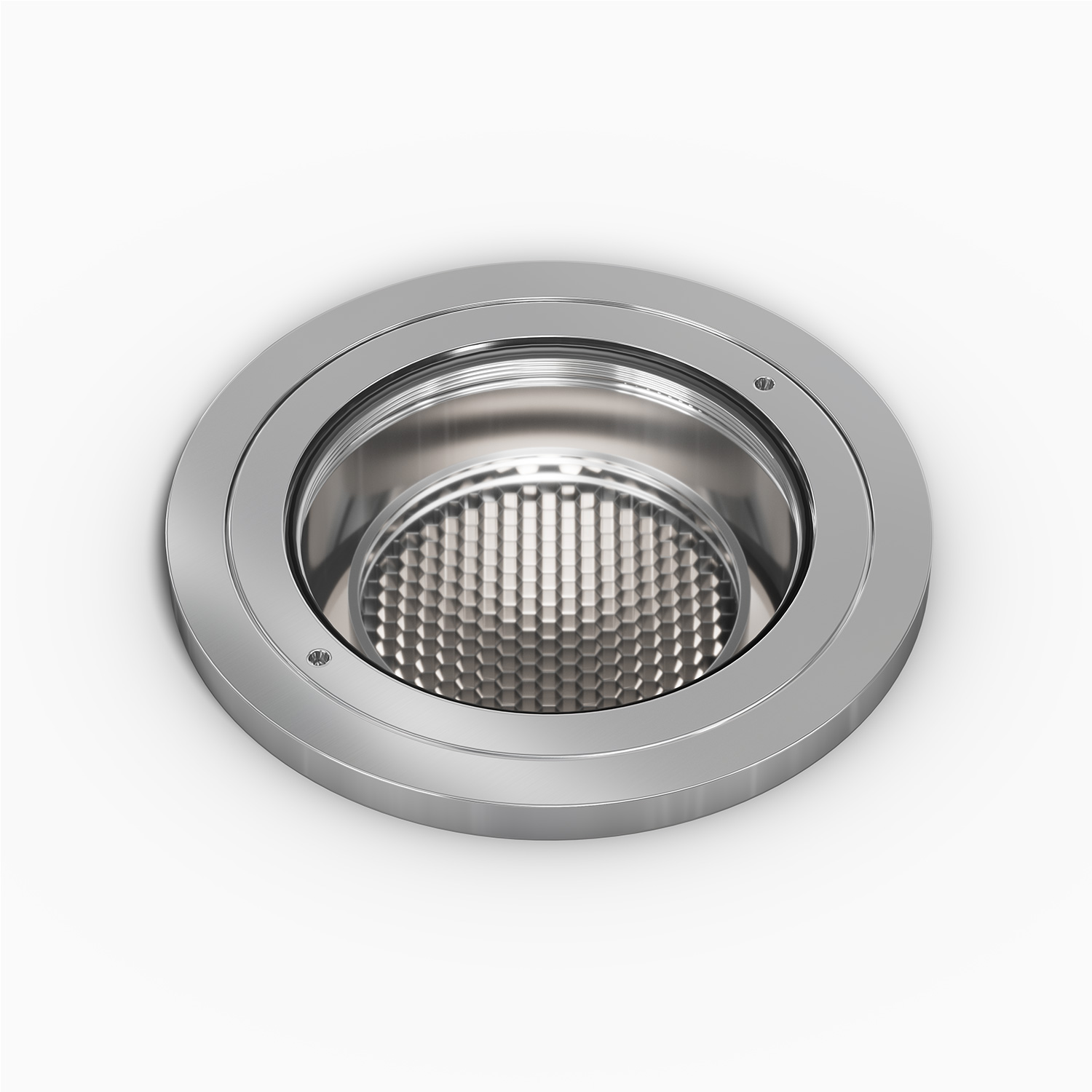

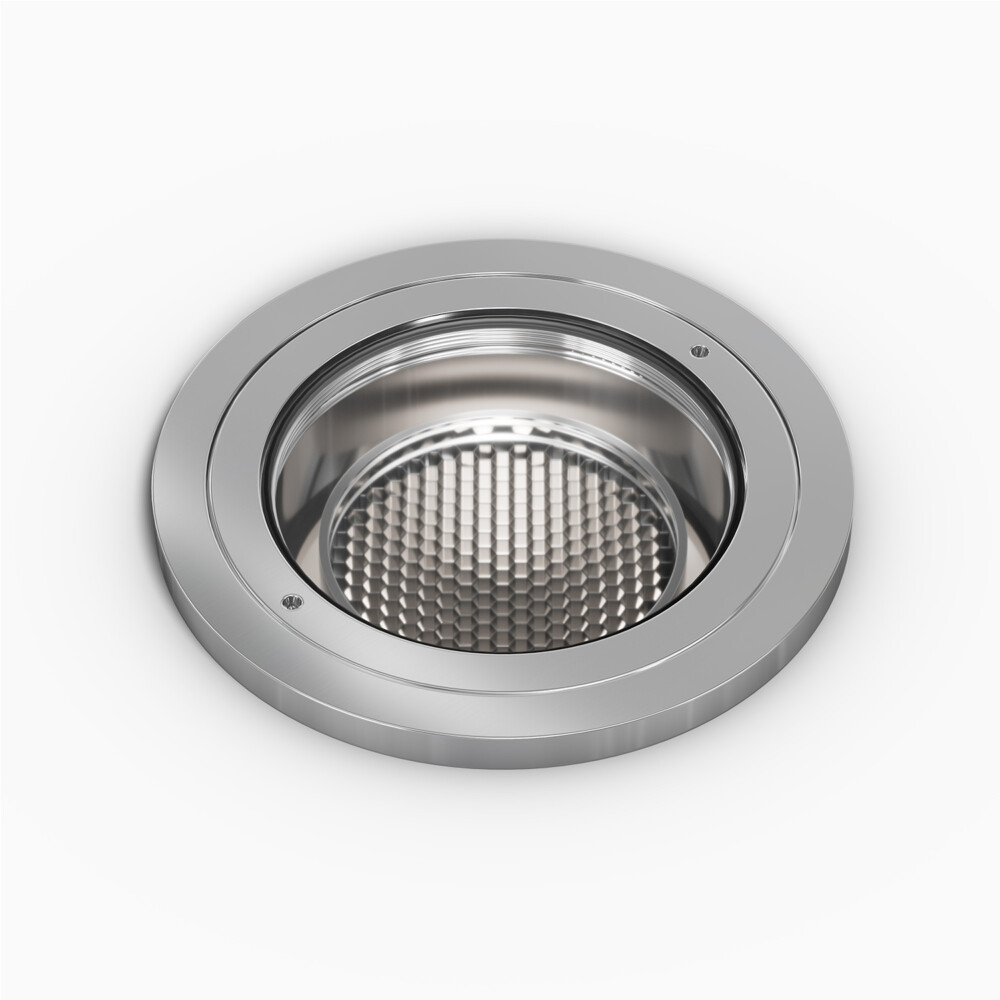

Standard is with hexcel louver. Accepts up to 3 additional accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.

Light Engine

CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.

Dimming

12V - MLV or ELV depending on the transformer used. Line voltage - MLV dimming (consult factory for other types of dimming).

Additional information

Light Source

Shape

Lumen Output

,

Input Voltage

,

Wattage

Compatible Accessories

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter
Transformers
Transformers
Transformers
Transformers
Transformers
Transformers

IGT

Transformers
Transformers
