7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen
ZXG16-SOi
7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen

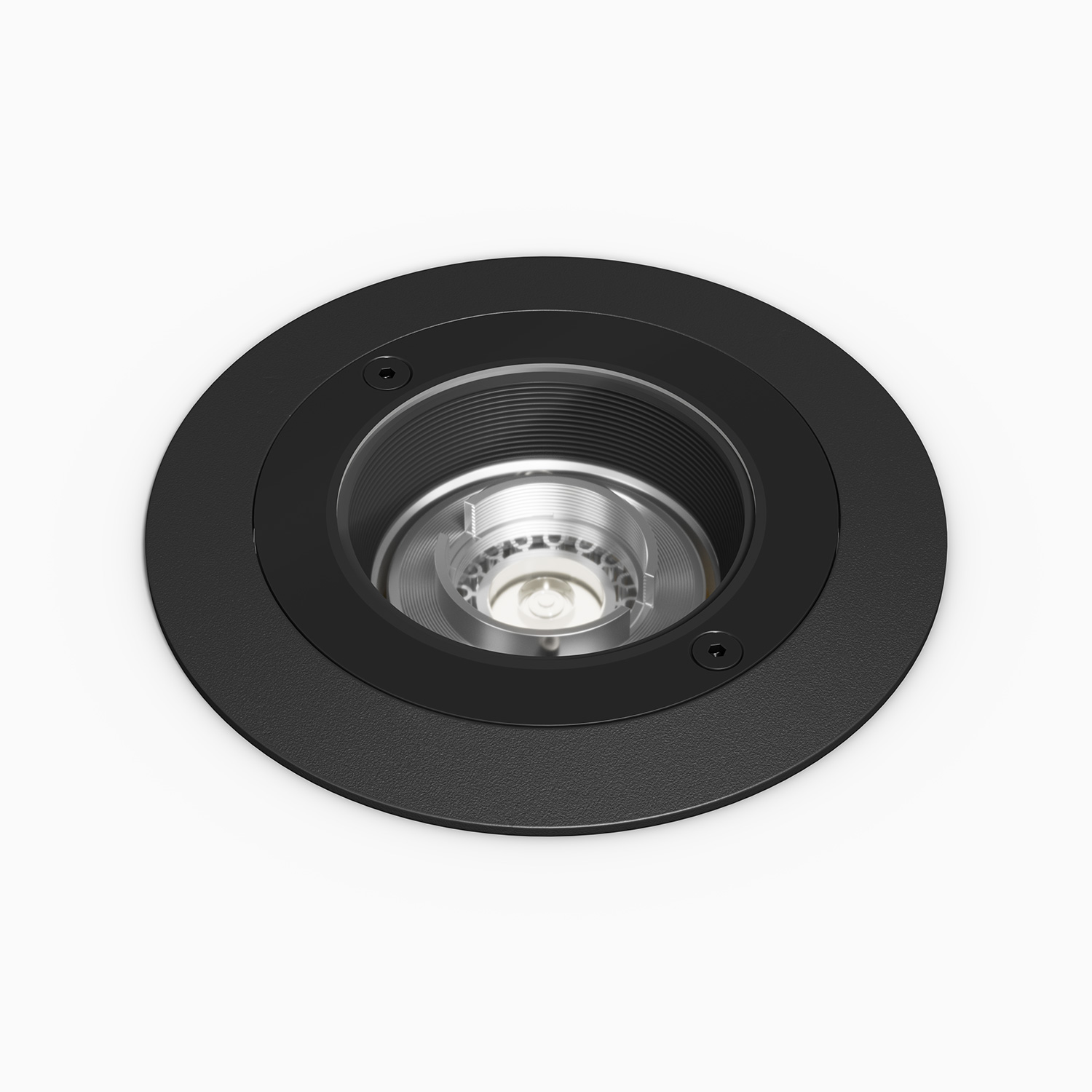

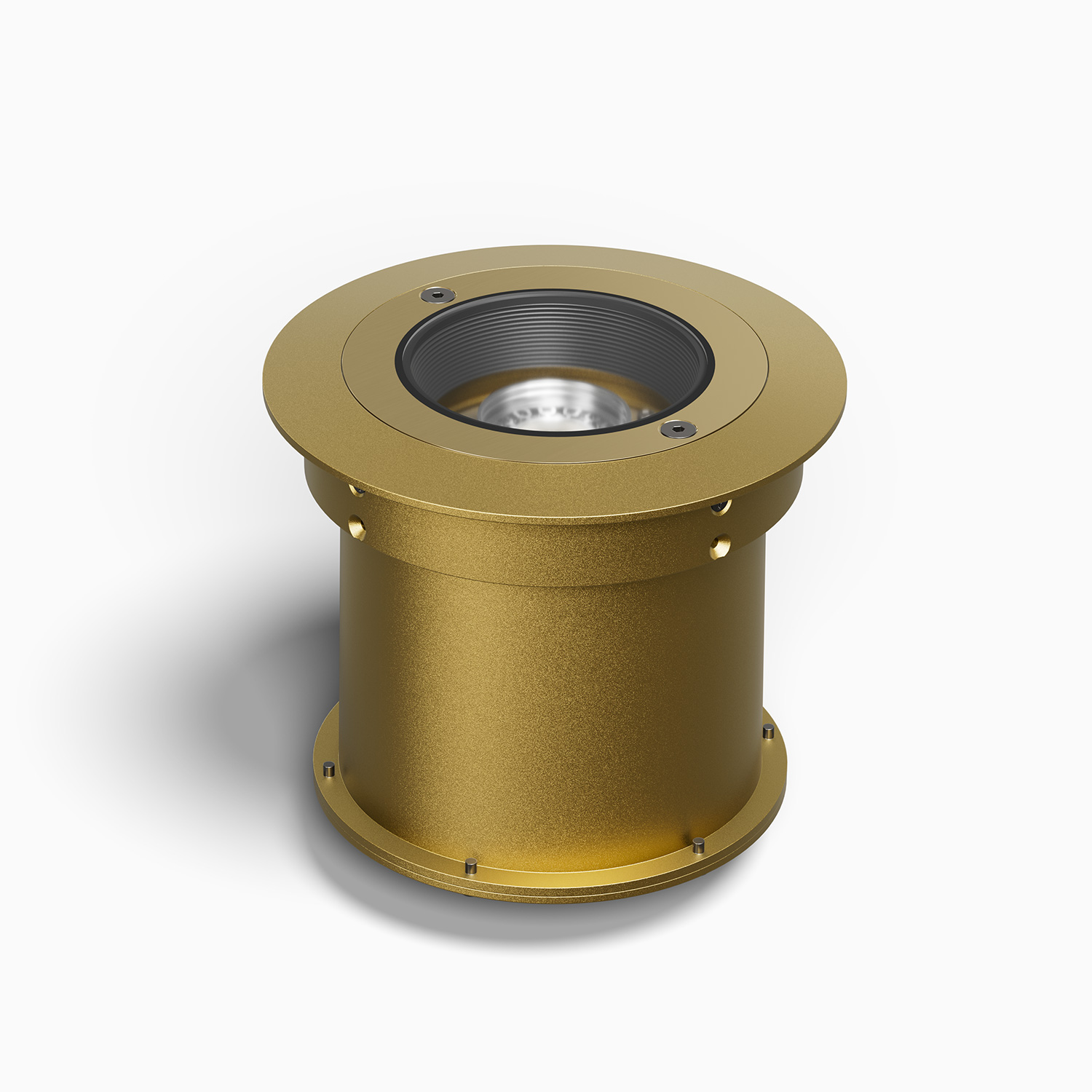

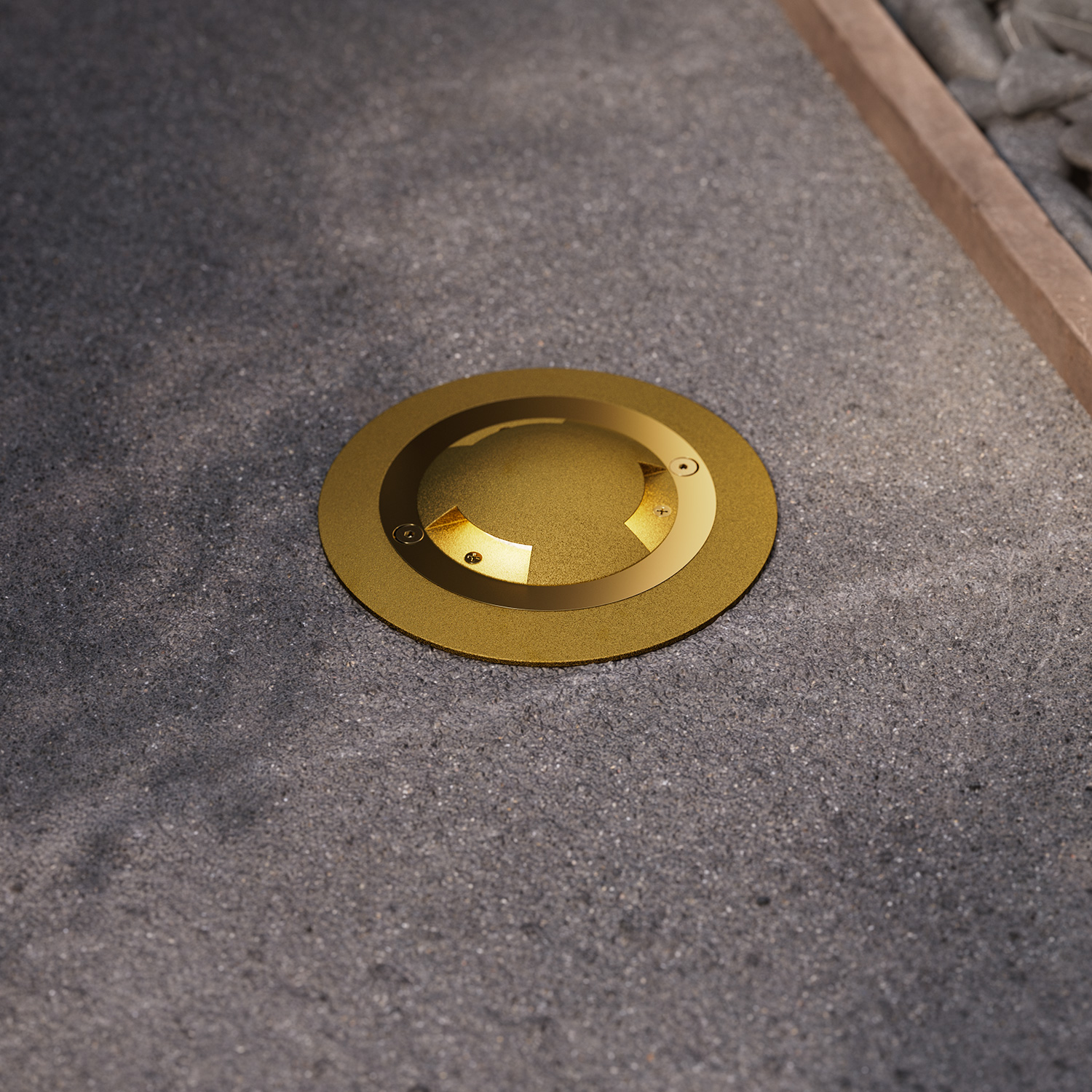

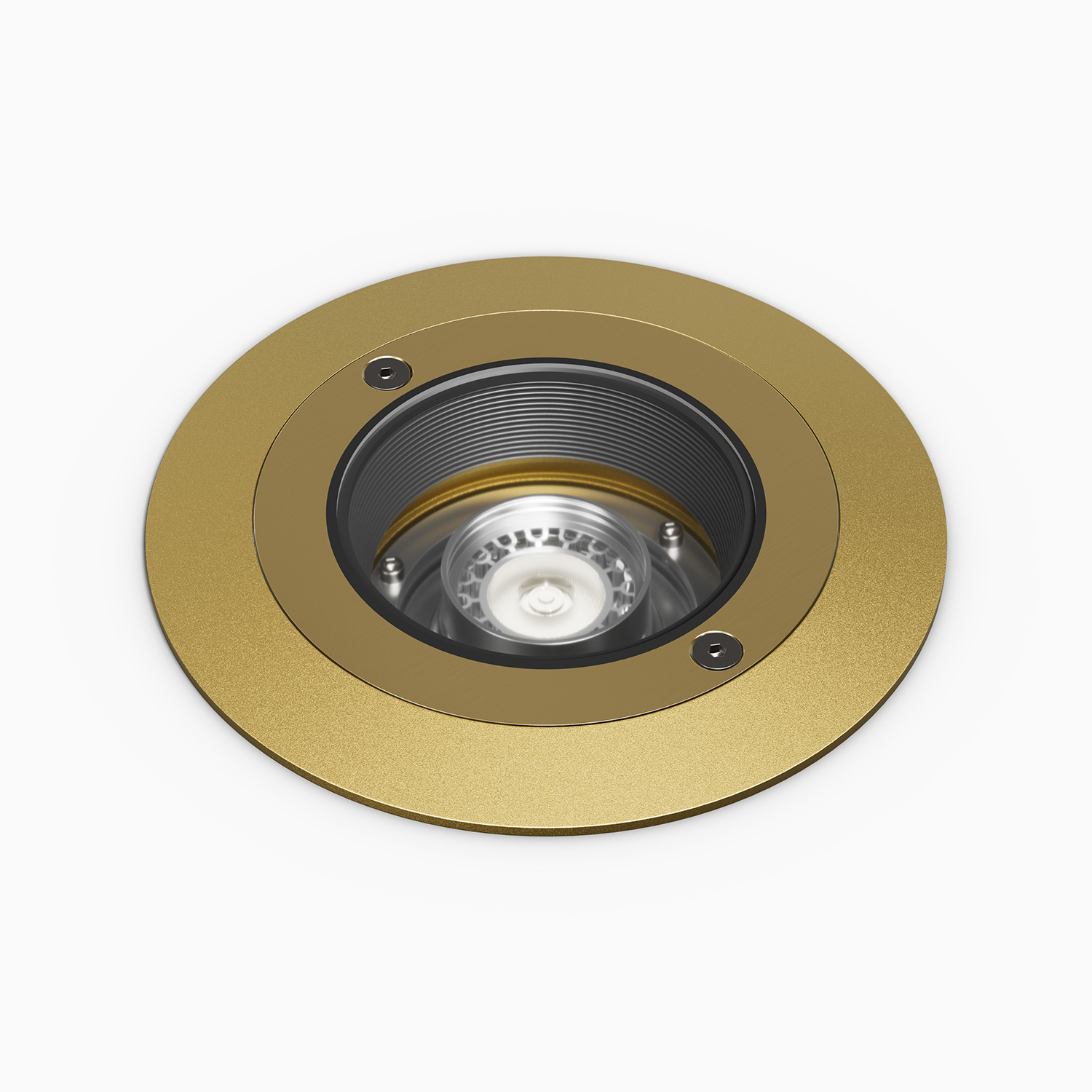

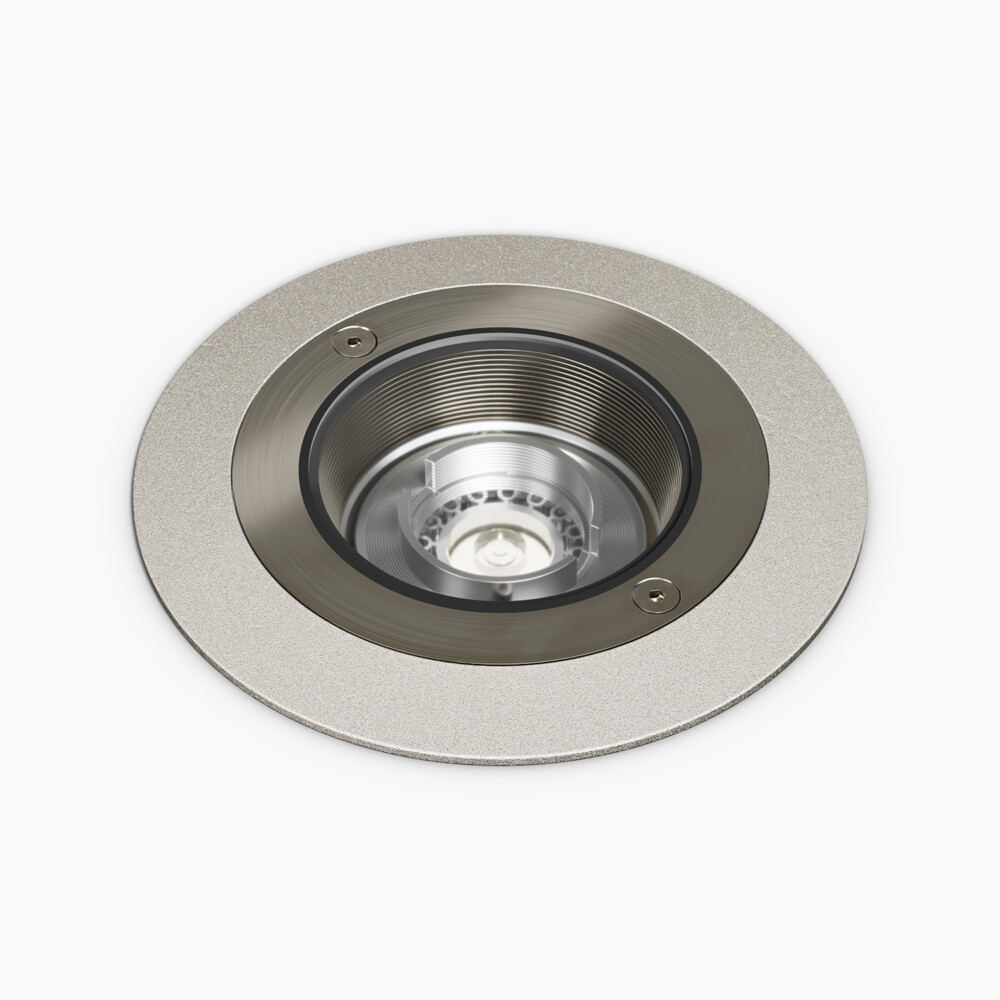

Brass In Ground fixture with superior corrosion-resistance.
FEATURES:
- CSA Listed for Wet Location, IP68 Standard.
- Built-in optic accessory holder.
- Easy-Lock Aiming Mechanism allows 360° horizontal and 30° vertical adjustability.
- US patented integral SORAA heat sink.
Materials
HOUSING: Die-cast brass.
LAMP HOLDER & AIMING ASSEMBLY: Solid billet 6061-T6 corrosion-resistant aluminum.
HARDWARE: 304 stainless steel.
Voltage
12V AC/DC. Requires remote step-down transformer.
Optics
Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with a metal snap ring.
Finish
Superior corrosion-resistant Natural Brass. Nickel Plating, or Black Oxide on top plates.
Wattage
Max 9W for SORAA MR16 lamp with Thermobuster. Max 50W for halogen MR16 without Thermobuster.
Mounting

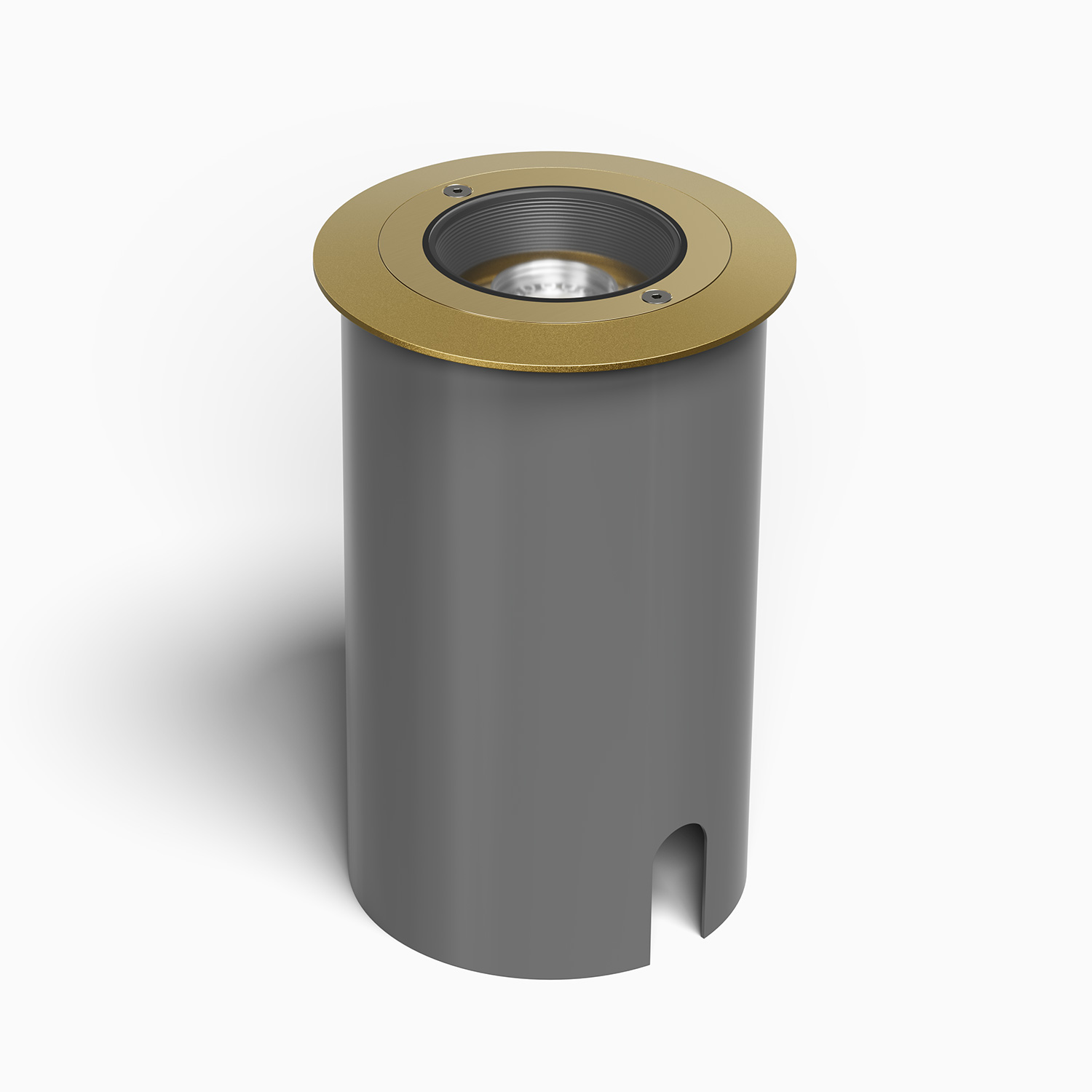

Mounts directly in ground, or poured concrete. Optional PVC Outer Sleeve is available to aid installation (See page 4 of spec sheet for details)
Optional Shields
Grate Cover, Slot Aperture, Drive Over, and Eyebrow Shields available. (See page 4 for details)
Light Source
MR16 Halogen or MR16 SORAA LED lamp. Compatible with SORAA Brilliant HL and other MR16 GU5.3 lamp selections. (See Ordering Guide for available lamp options and specifications)
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.
Dimming
MLV or ELV. Please refer to SORAA website for SORAA GU5.3 dimmer compatibility.
