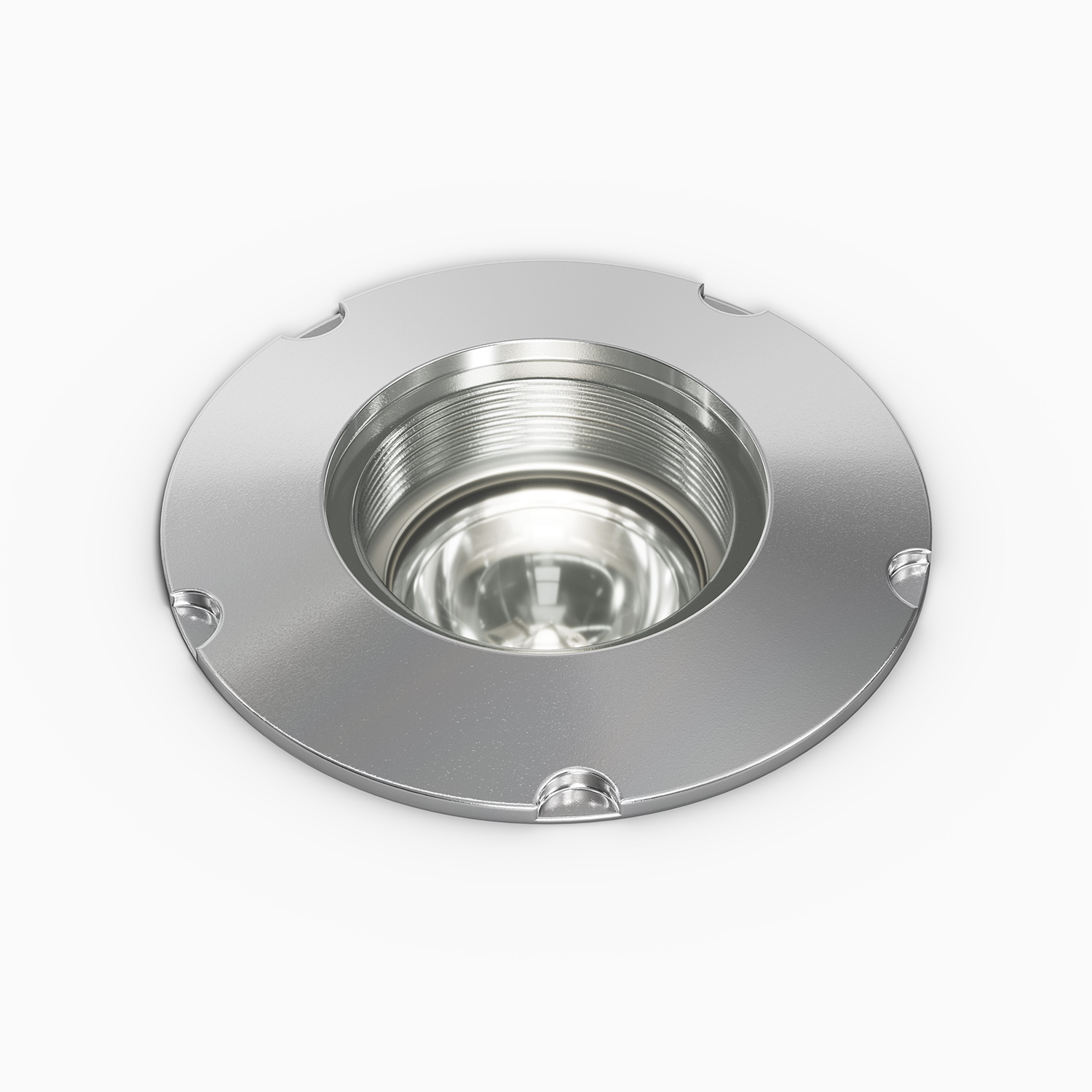

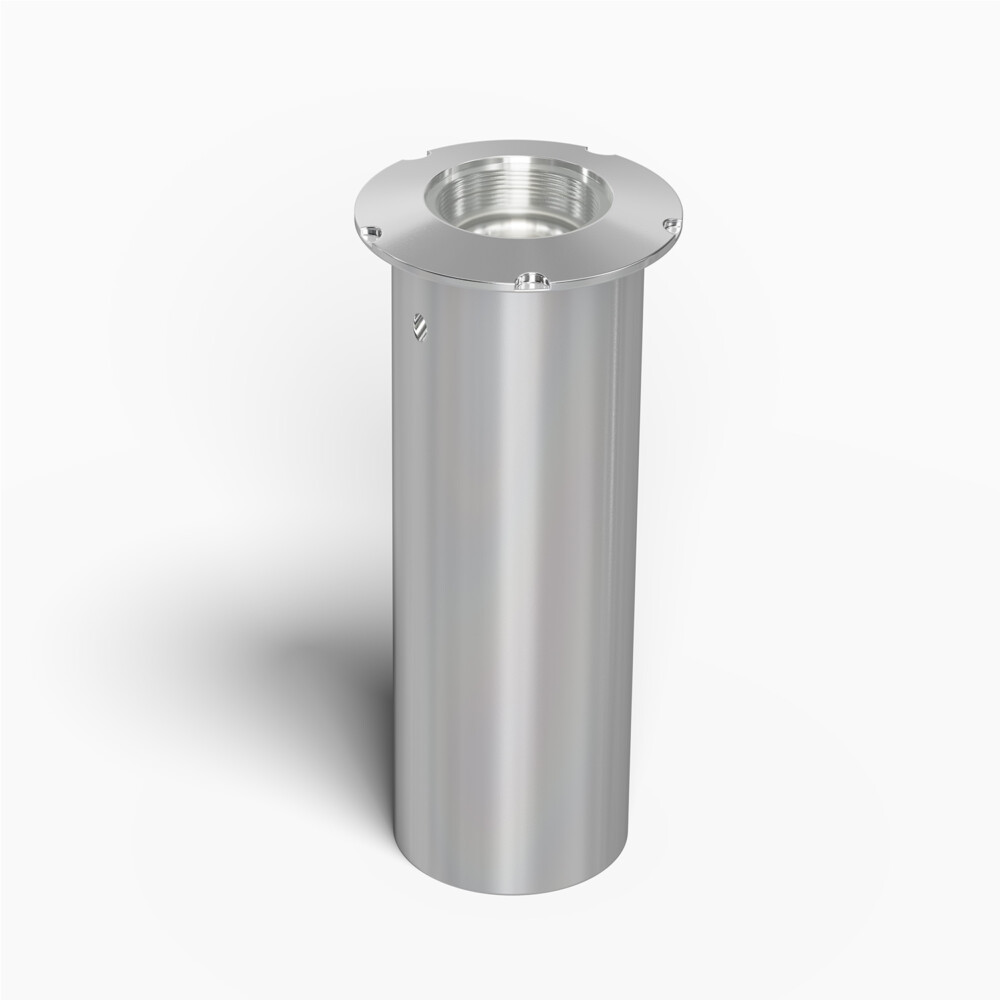

ZXL08-IIGM
Products • Step & In Ground
ZXL08-IIGM
Step & In Ground
FEATURES:
- Compact Recessed fixture for wall, or in grade installation. Perfect for step light, in grade, or any application with a small marker light.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Modular components – field changeable LED module & beam spread reflectors.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish

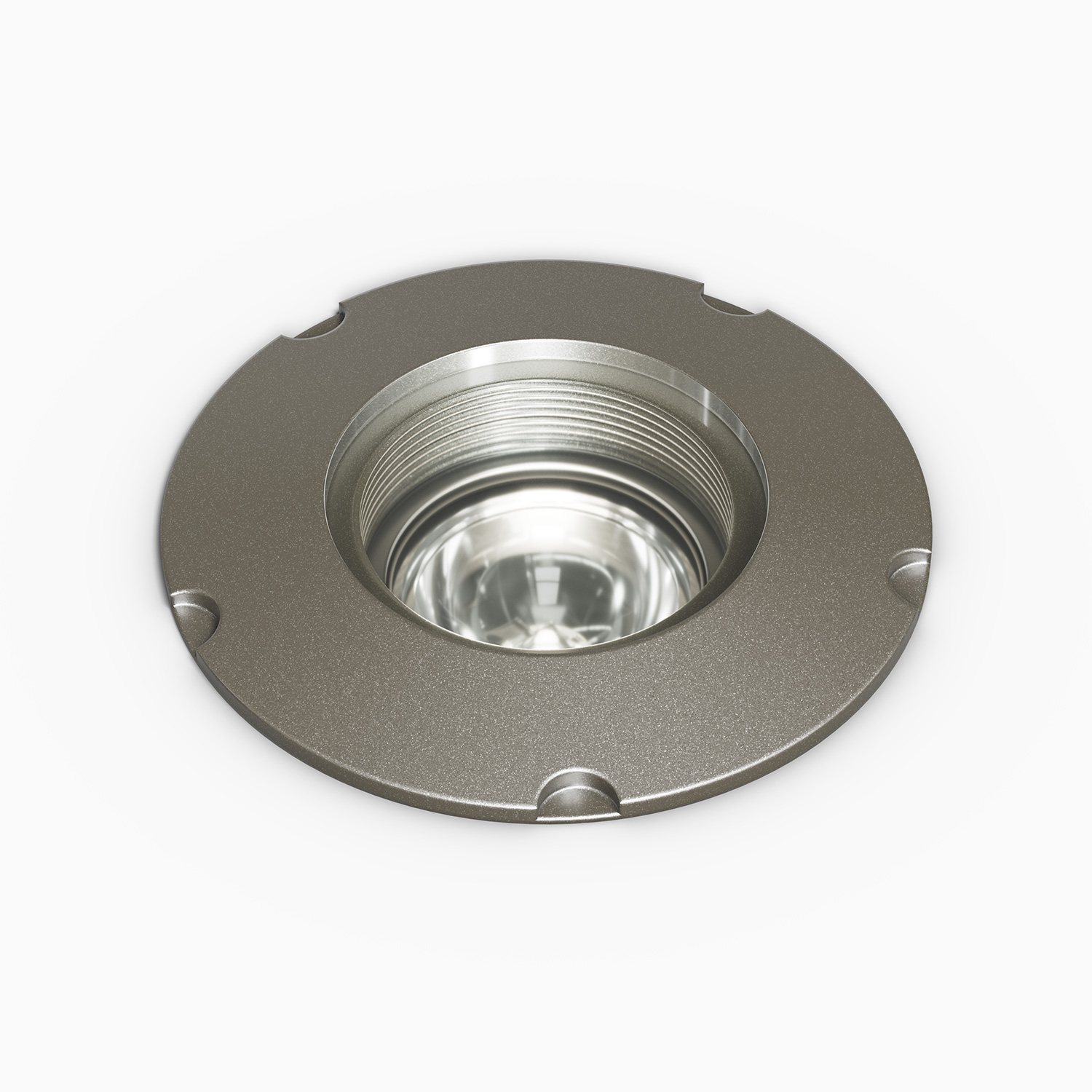

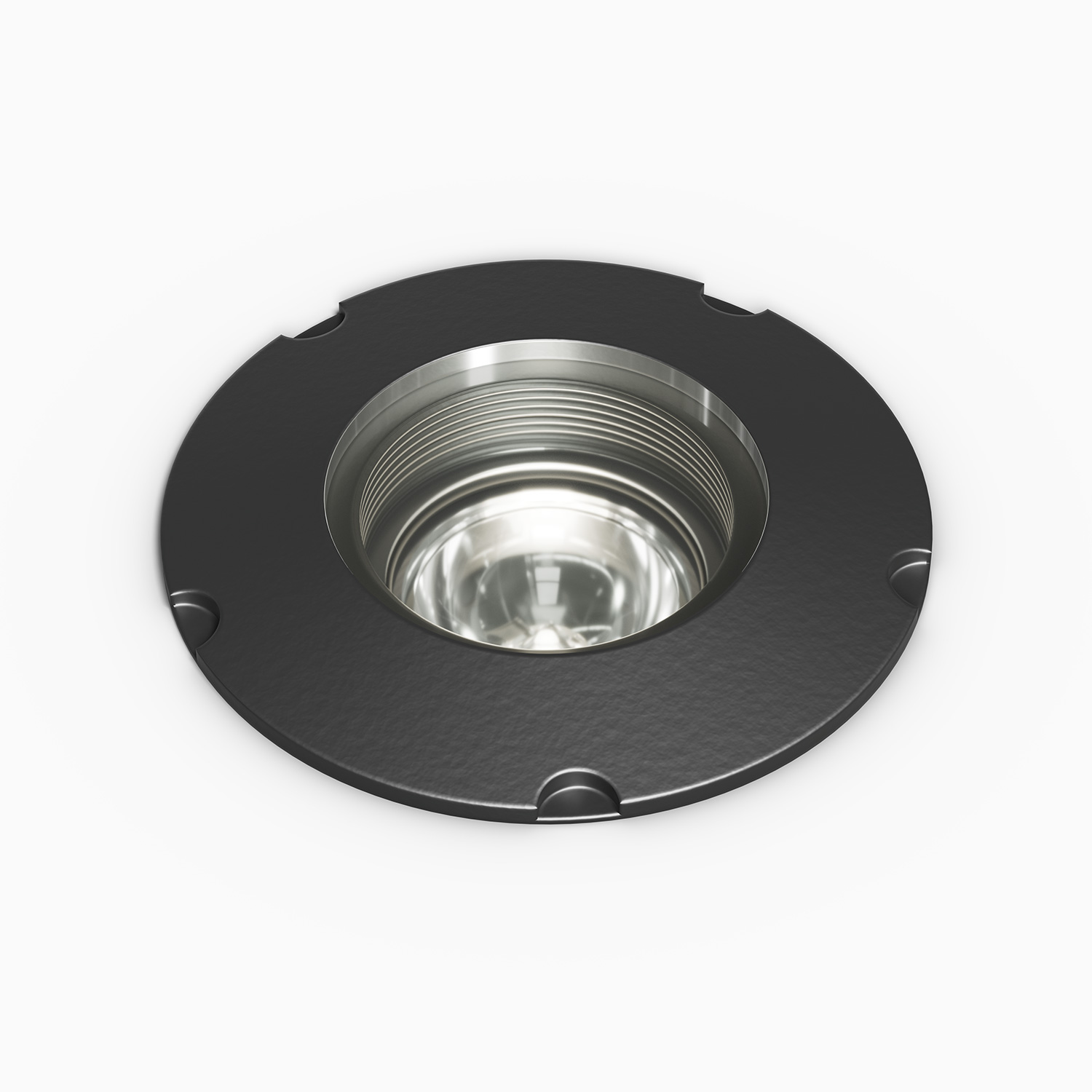

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
3W HK LED.
Optics
Accepts up to one accessorie (hexcel louver, optical lenses, dichroic color filters, etc.).
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Dimming
MLV or ELV.
Compatible Accessories
