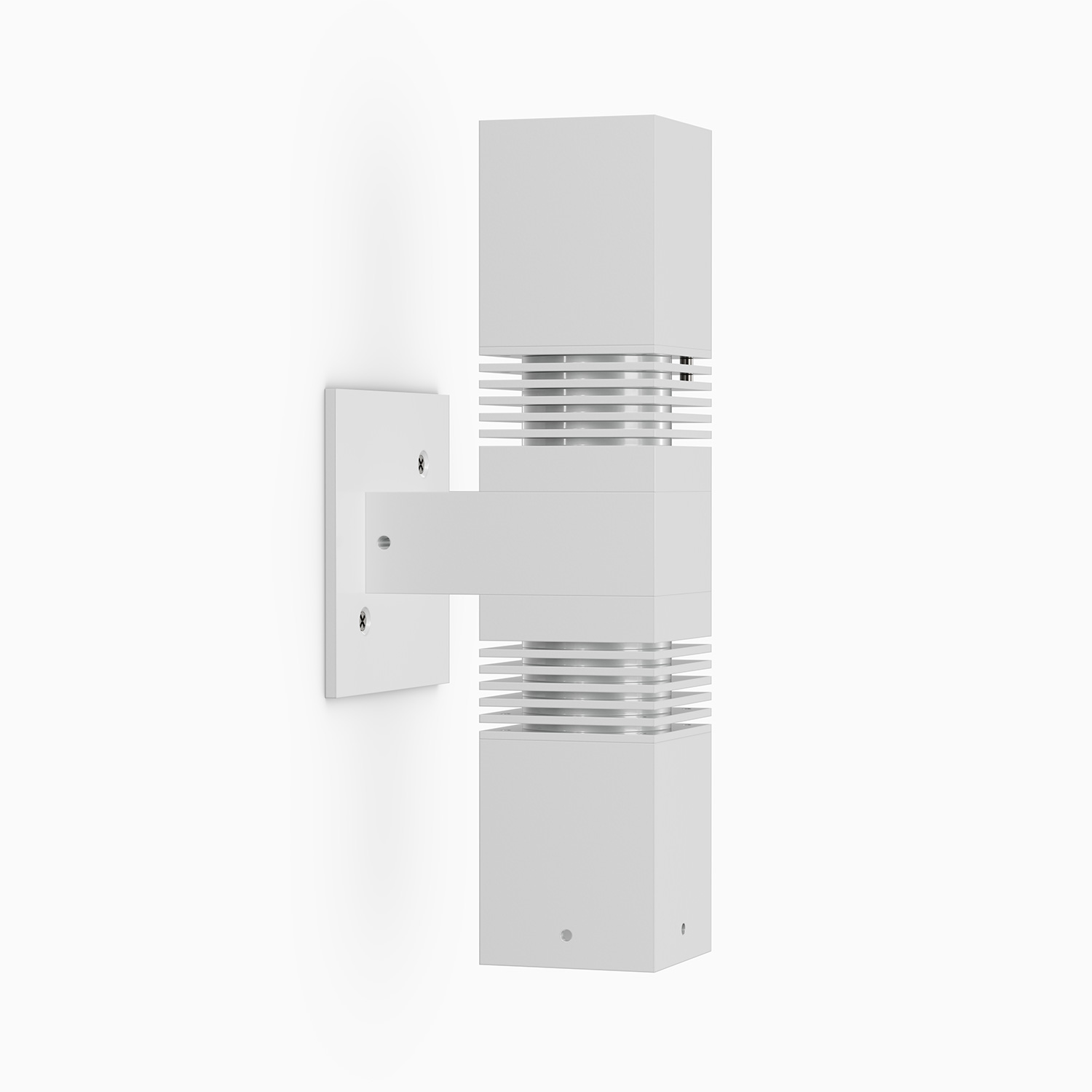

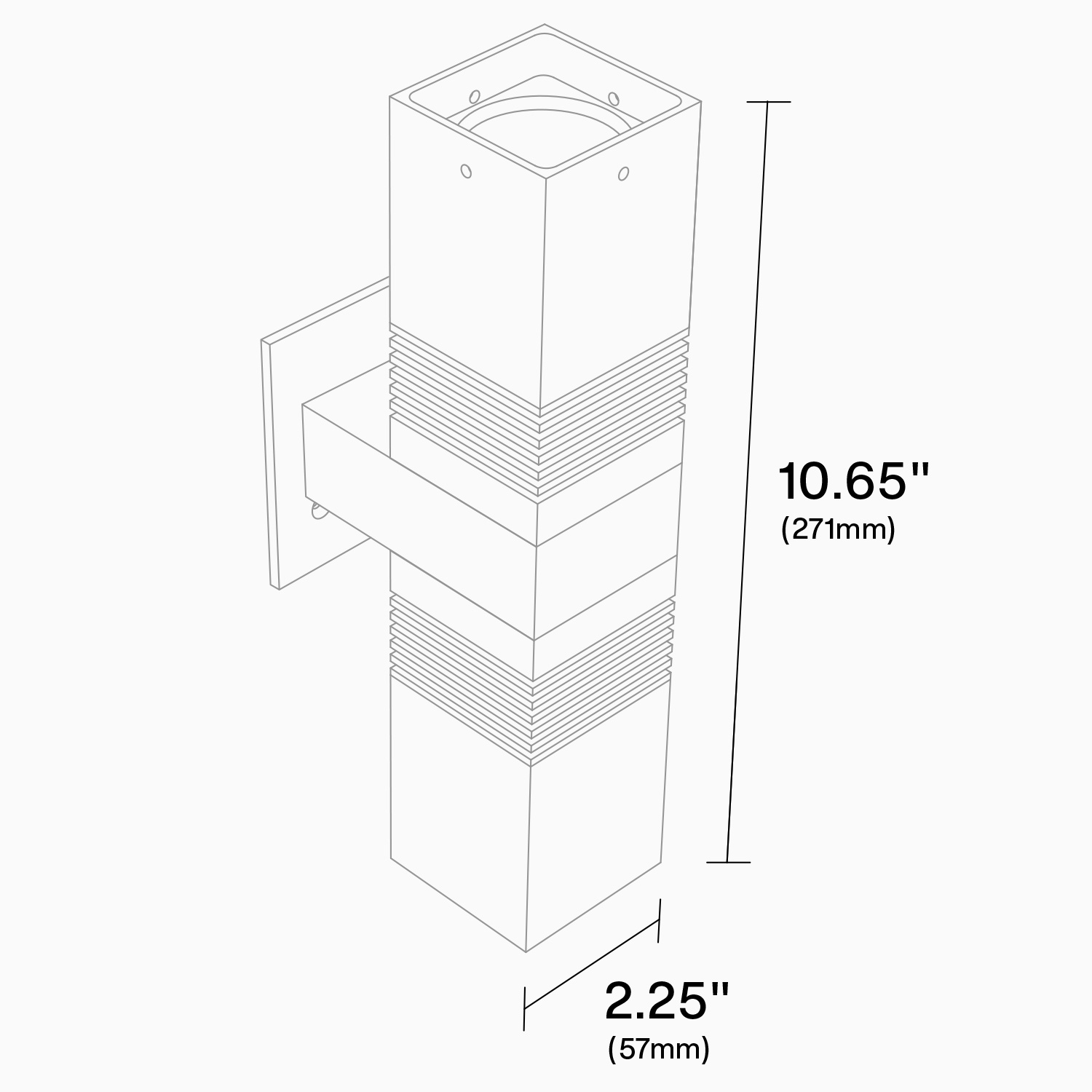

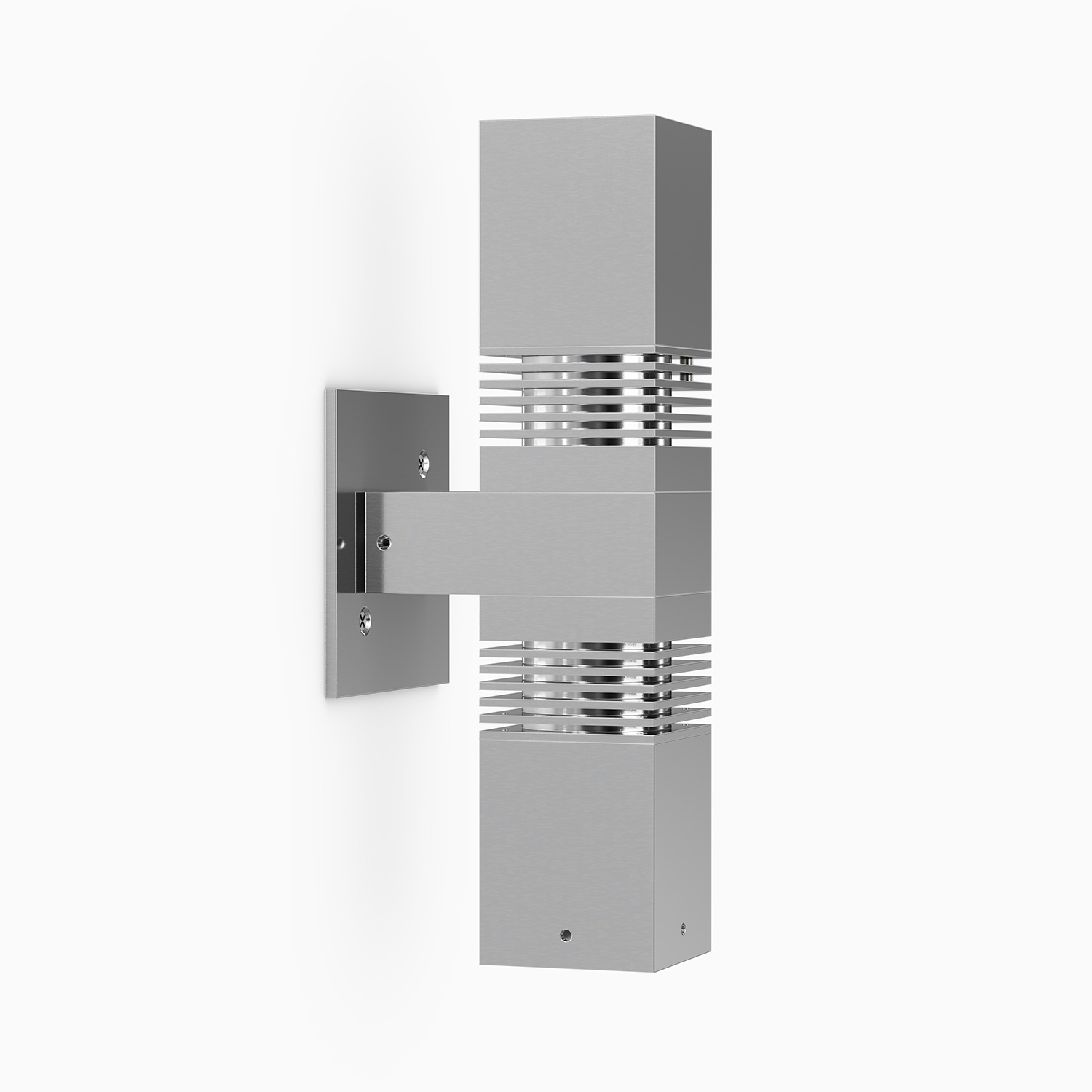

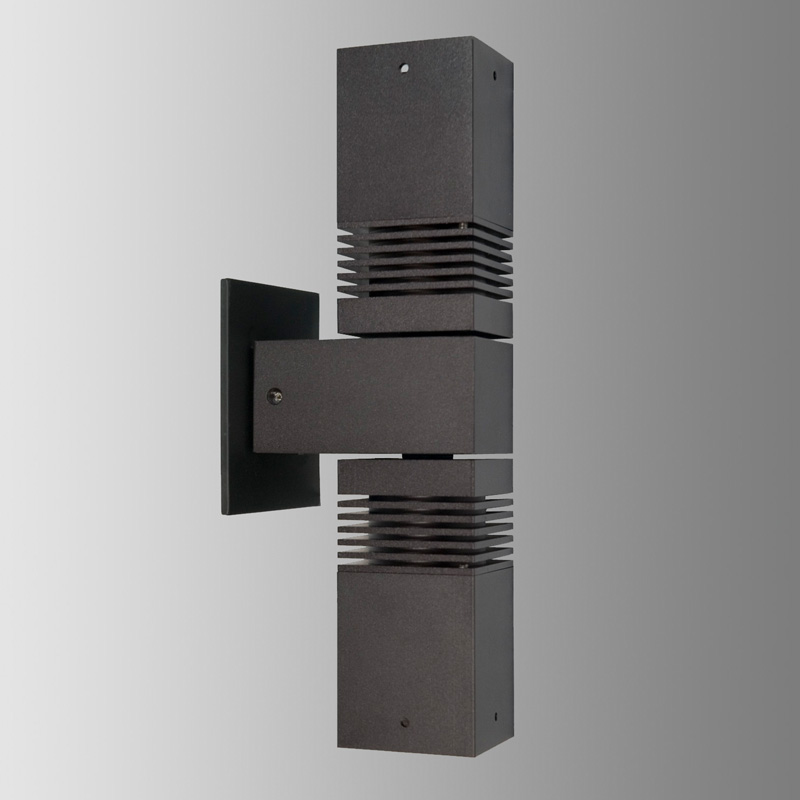

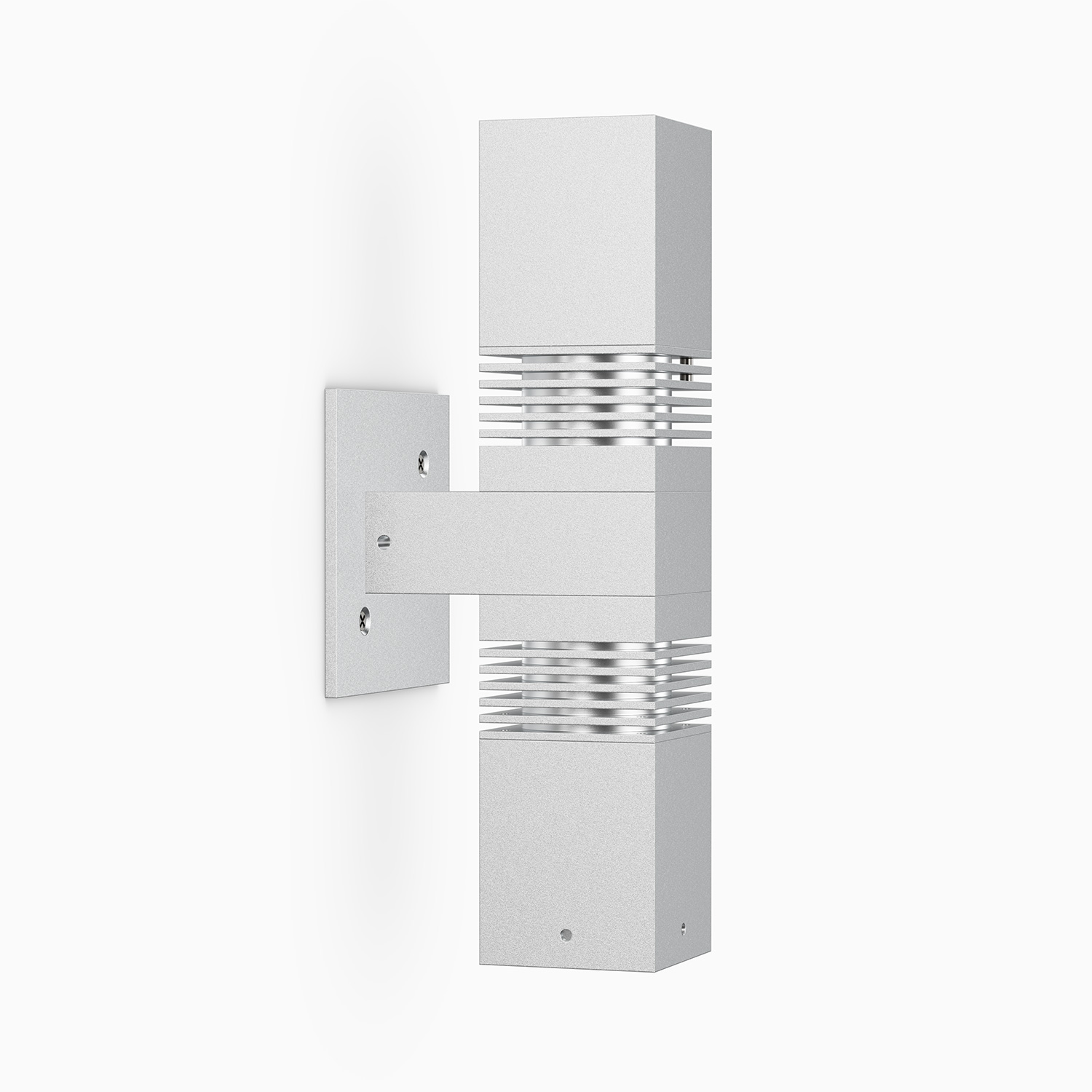

ZXL16-WM2-SQ / ZXL16i-WM2-SQ
Wall Mount • ZX16-WM2-SQ Series

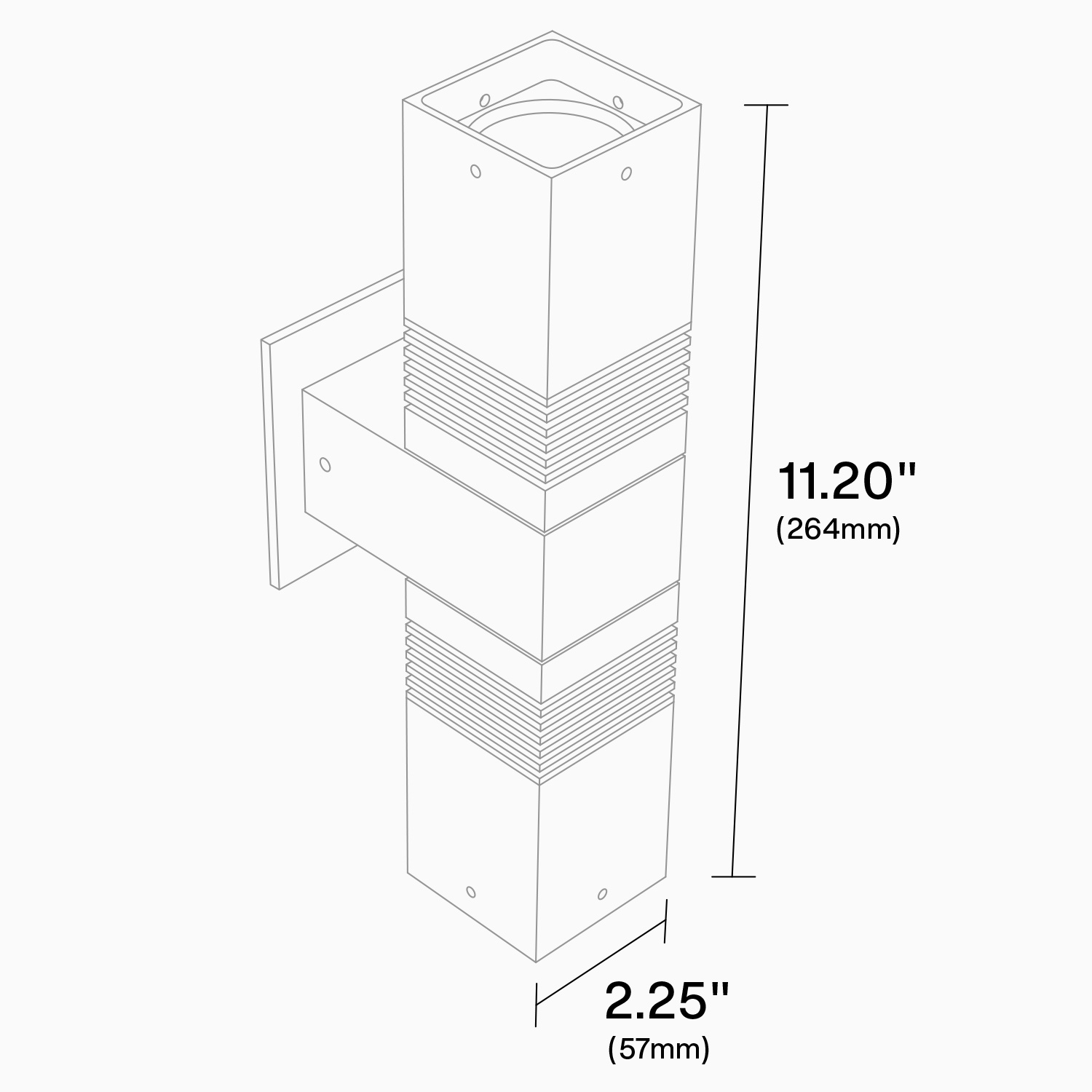

ZXL16-WM2-SQ / ZXL16i-WM2-SQ

Wall Mount • ZX16-WM2-SQ Series

FEATURES:

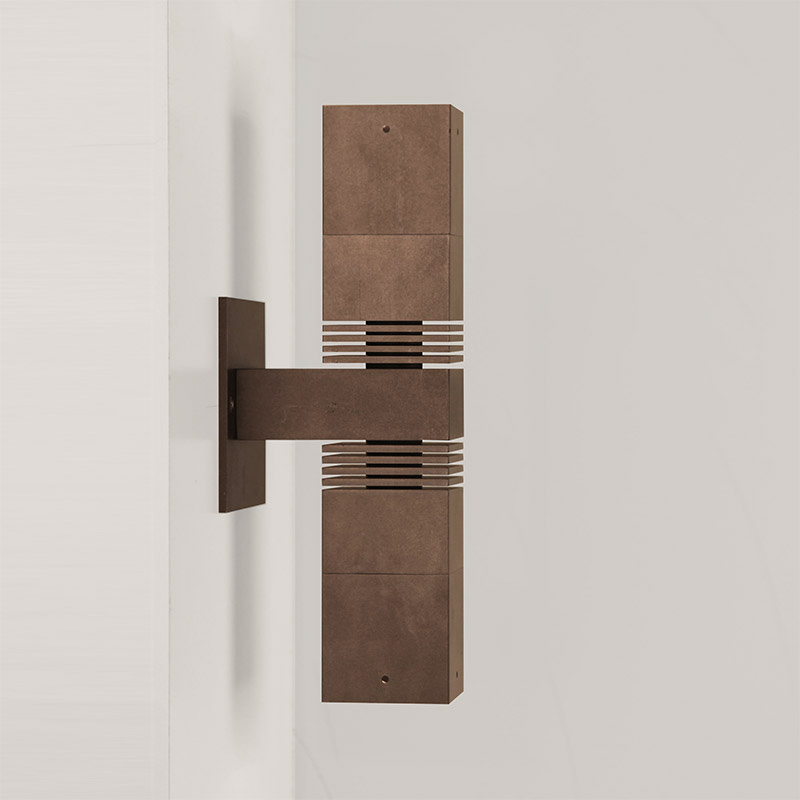

  • Up/Down wall sconce with mounting canopy.
  • ETL outdoor wet location listed. IP65 standard.
  • Machined from solid billet 6061-T6 corrosion resistant aluminum.
  • Swivel stem insert allows for precision adjustment during installation.
  • Unique weep hole design in hood of the up-light with minimum light leak.
  • Modular components – field changeable LED module & beam spread reflectors.
  • 12V or line voltage with integral step-down transformer.
Specifications

Materials

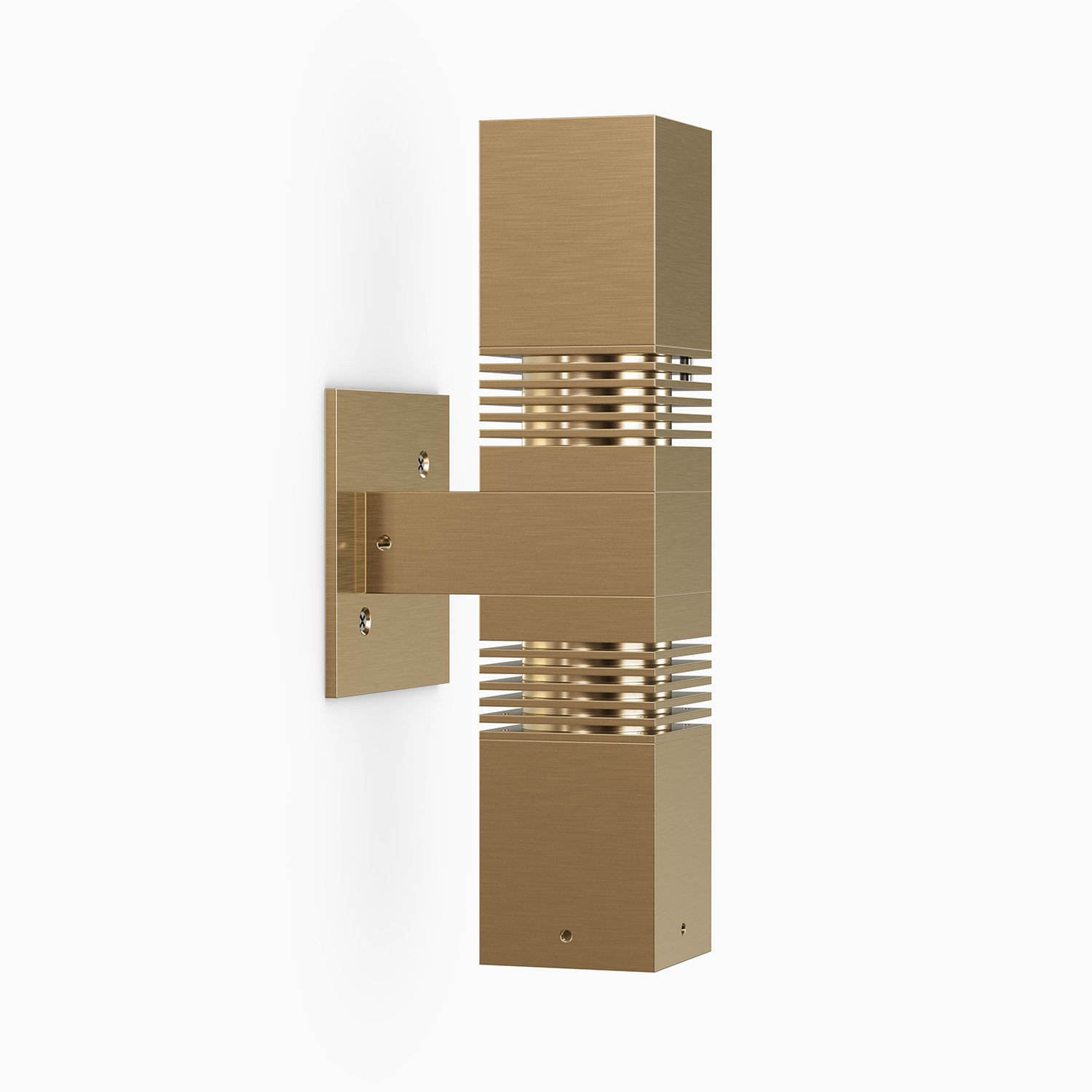

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

12V - Remote Transformer. Line Voltage - Integral Transformer

Lamp Base/Socket

Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details

Finish

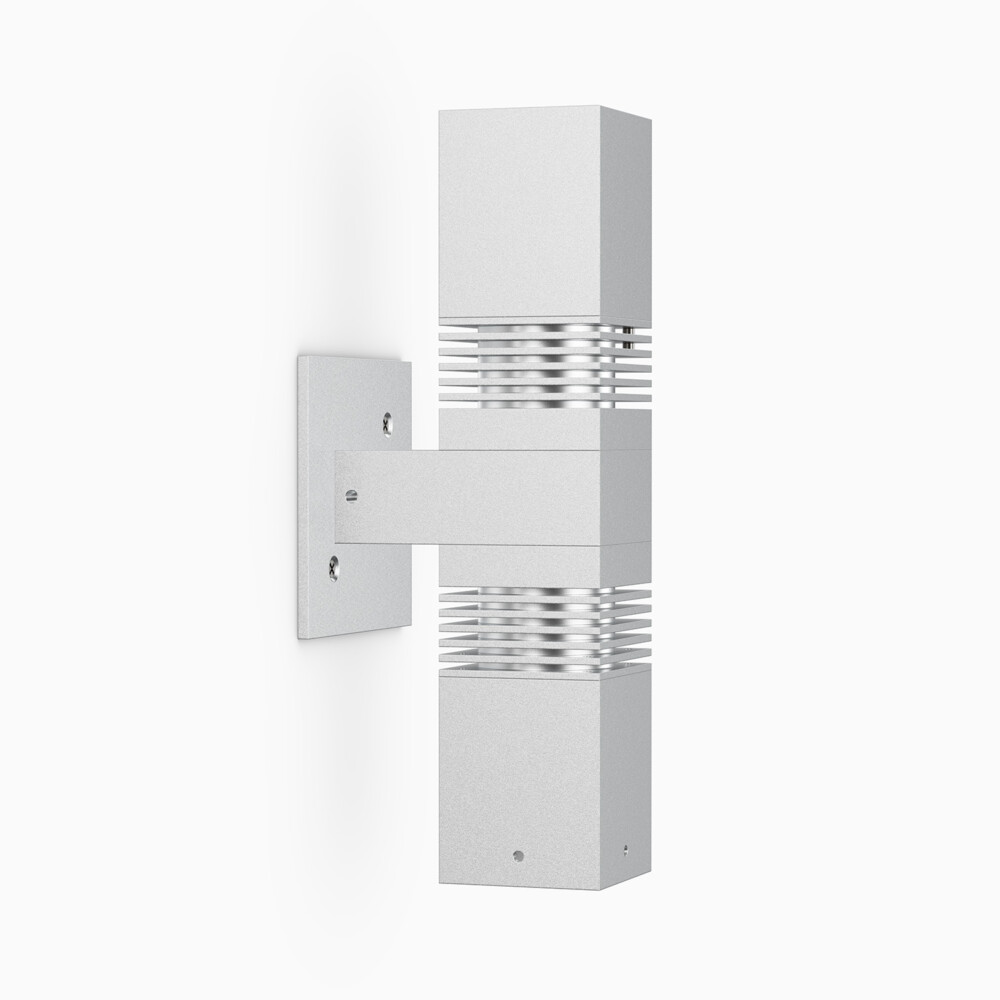

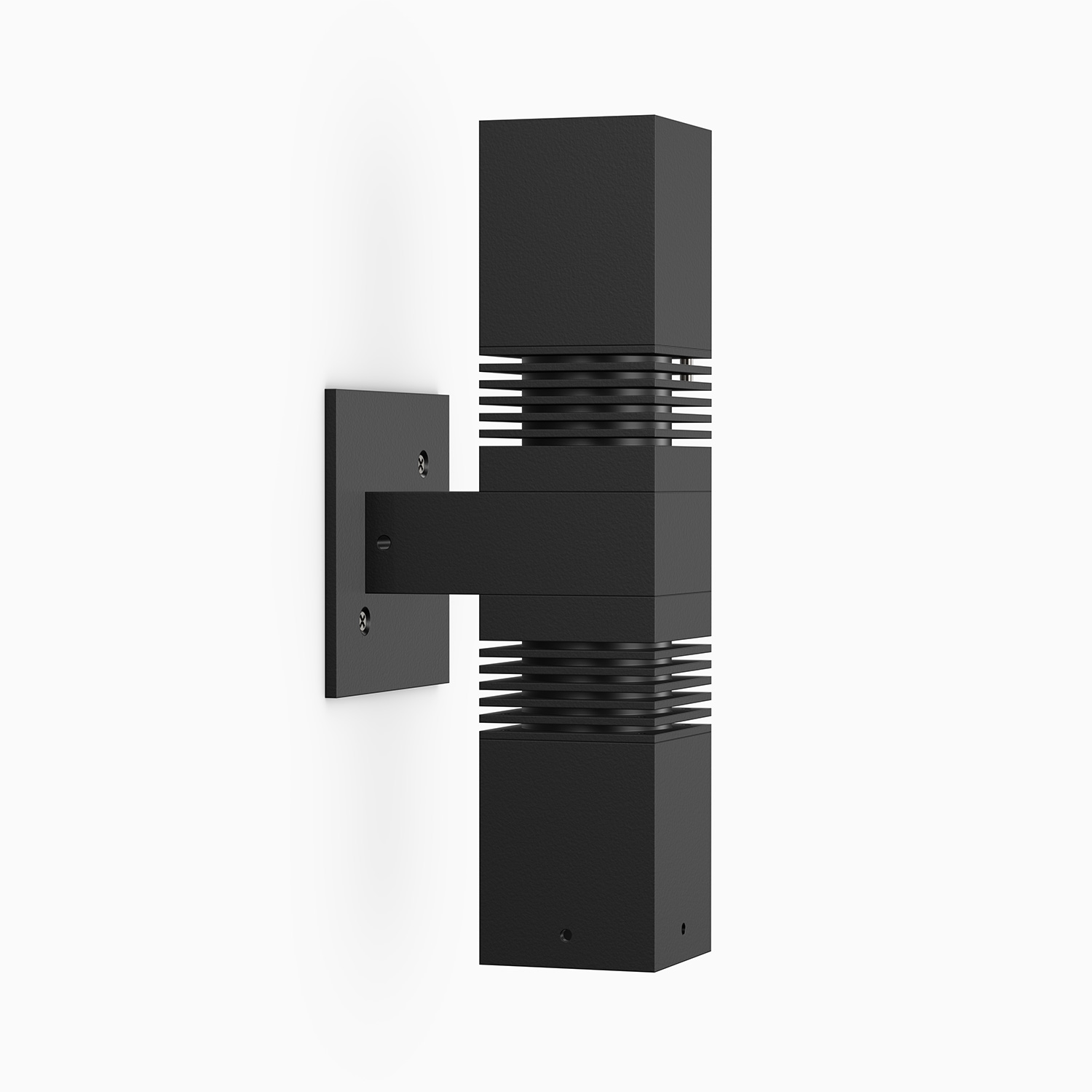

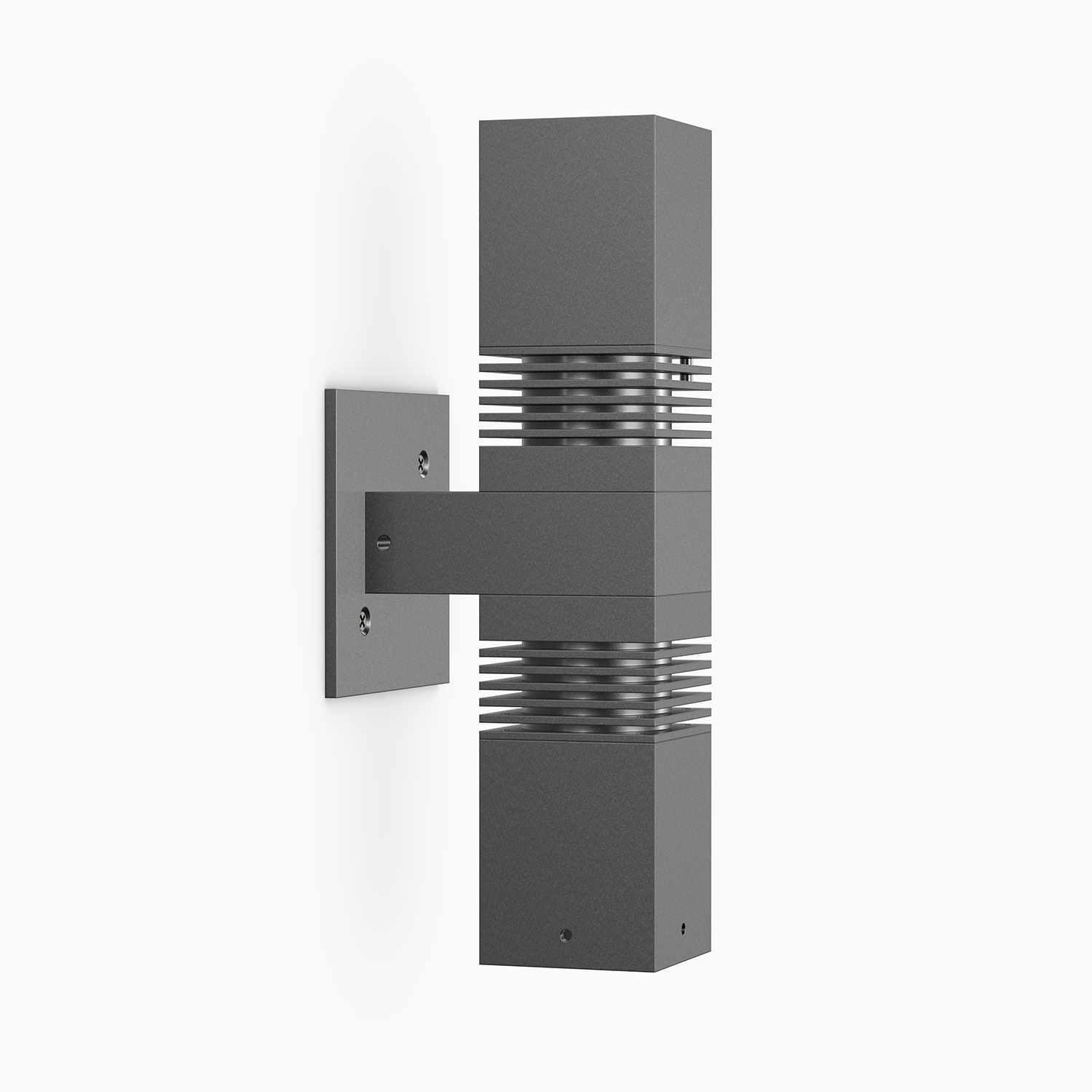

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.

Wattage

5W x2, 7W x2, 10W x2 HK LED. 10W x2 Amber LED.

Optics

Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.

Glare Shield

3 optional glare shields(GSL-SQ long, GSA-SQ angled, GSS-SQ short for additional glare control. (See page 3 of Spec Sheet for details).

Light Engine

CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.

Mounting

Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).

Dimming

12V - MLV or ELV depending on the transformer used. Line voltage - 0V-10V dimming, Phase dimming @120V.

Additional information

Light Source

,

Shape

Lumen Output

, , ,

Input Voltage

, , ,

Wattage

,

Compatible Accessories
Long
Angled
Short

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter

CM2

Canopy Mount

CM1

Canopy Mount

CM3

Canopy Mount

CM5

Canopy Mount
Surface Mount

CB4

Surface Mount
Surface Mount
Surface Mount
Surface Mount
Tree Mount
