5 - 10W ( 464 - 876lm ) | 120V - 277V | Amber LED, HK LED

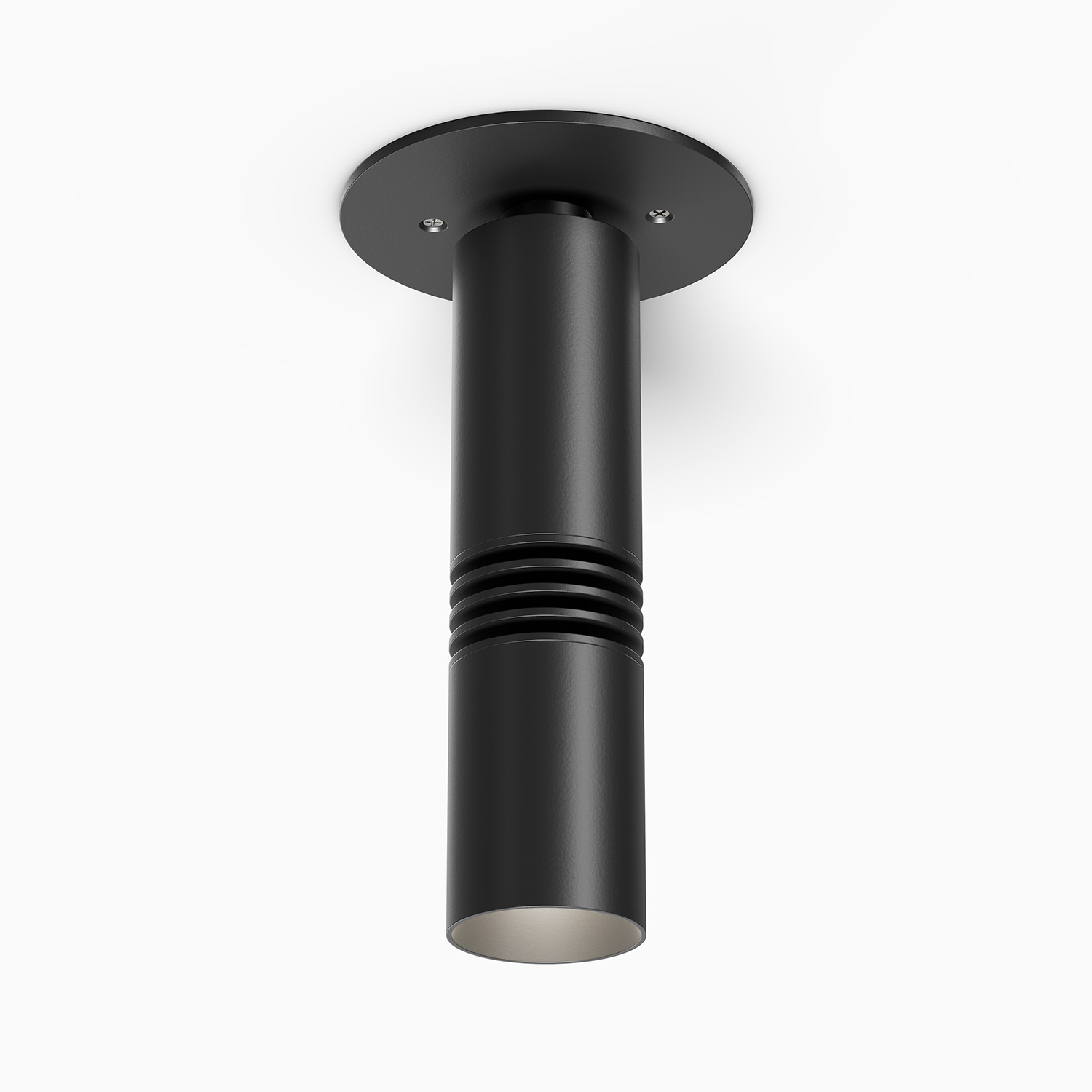

ZXL16i-CM
5 - 10W ( 464 - 876lm ) | 120V - 277V | Amber LED, HK LED

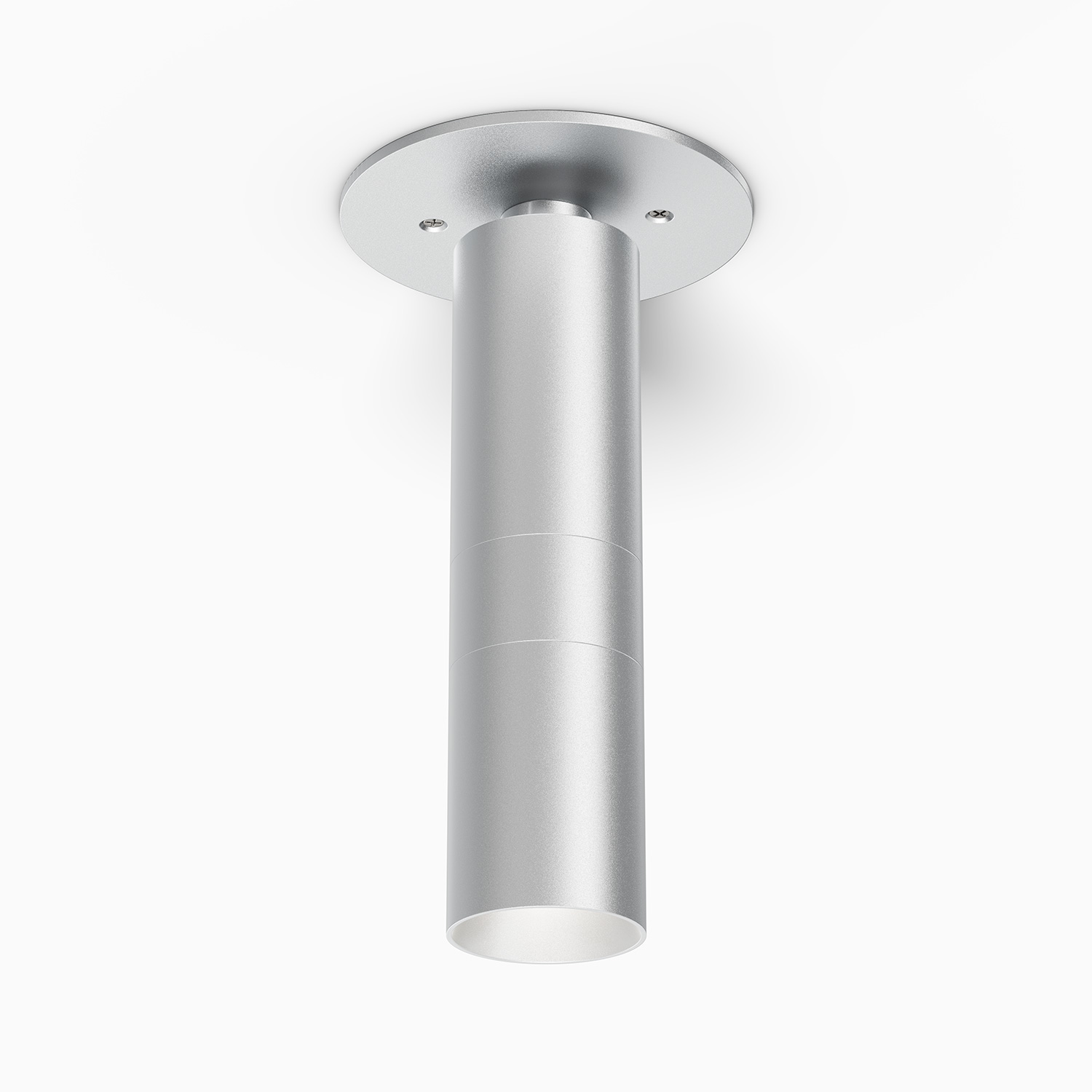

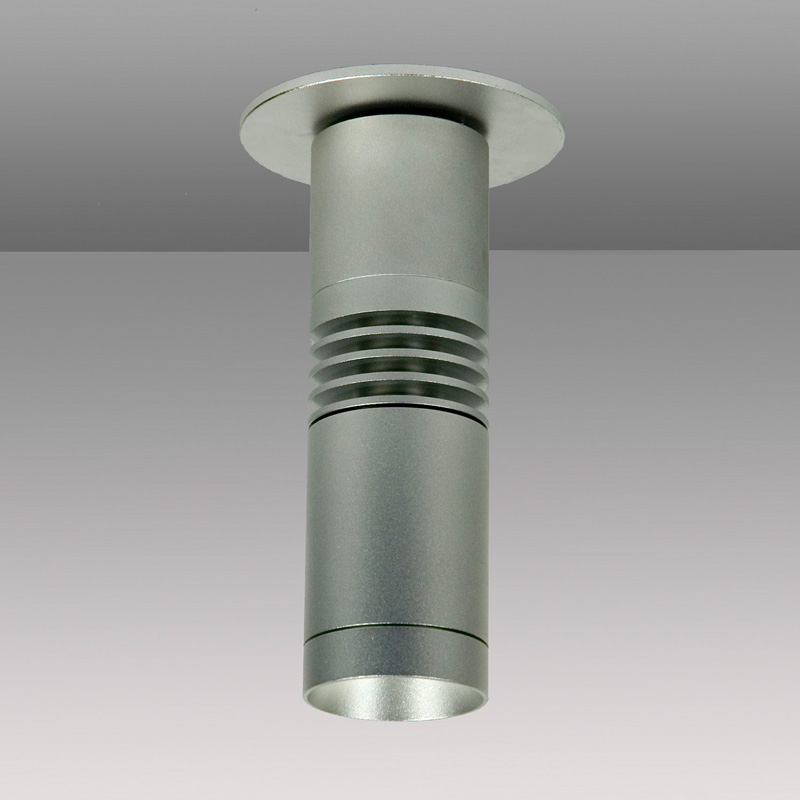

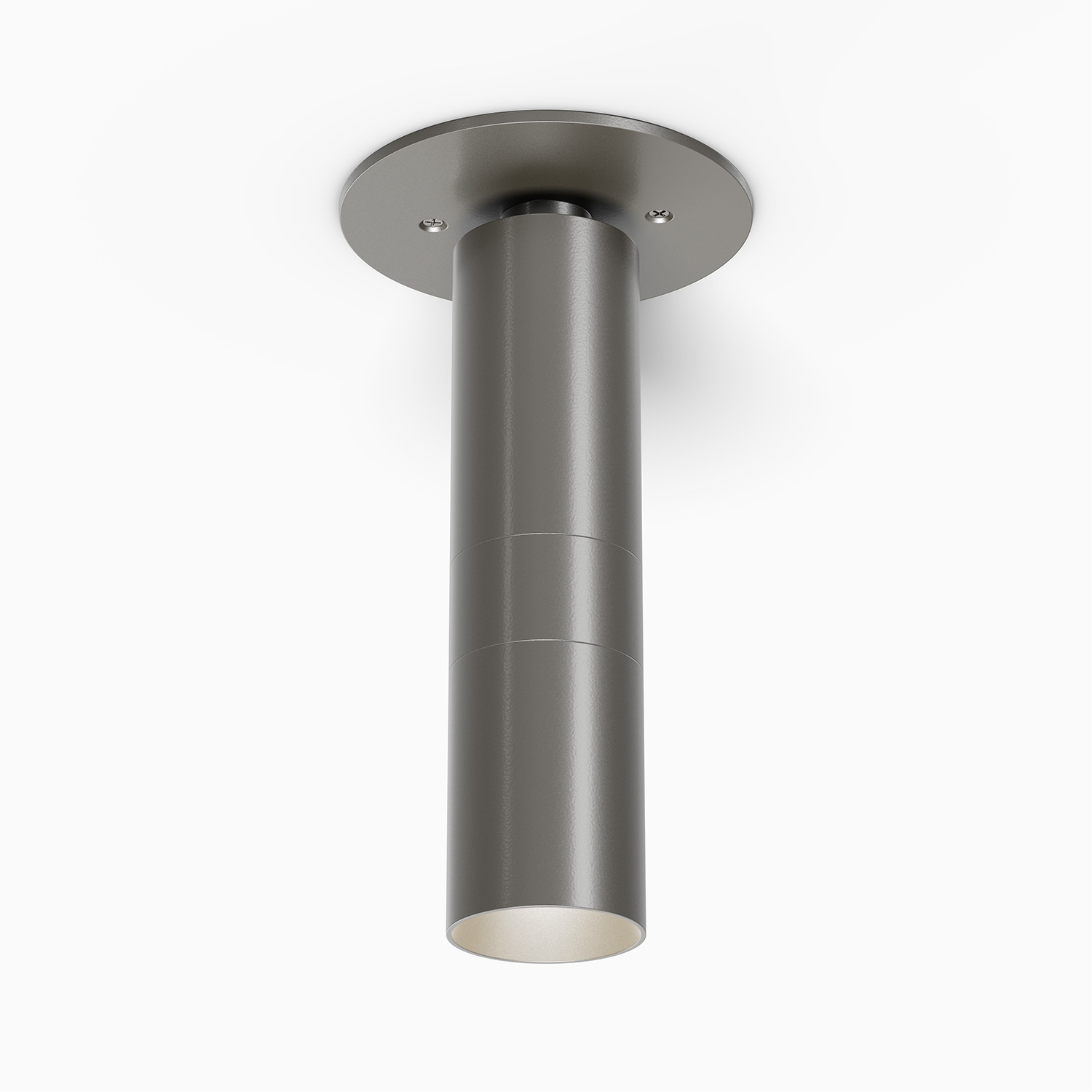

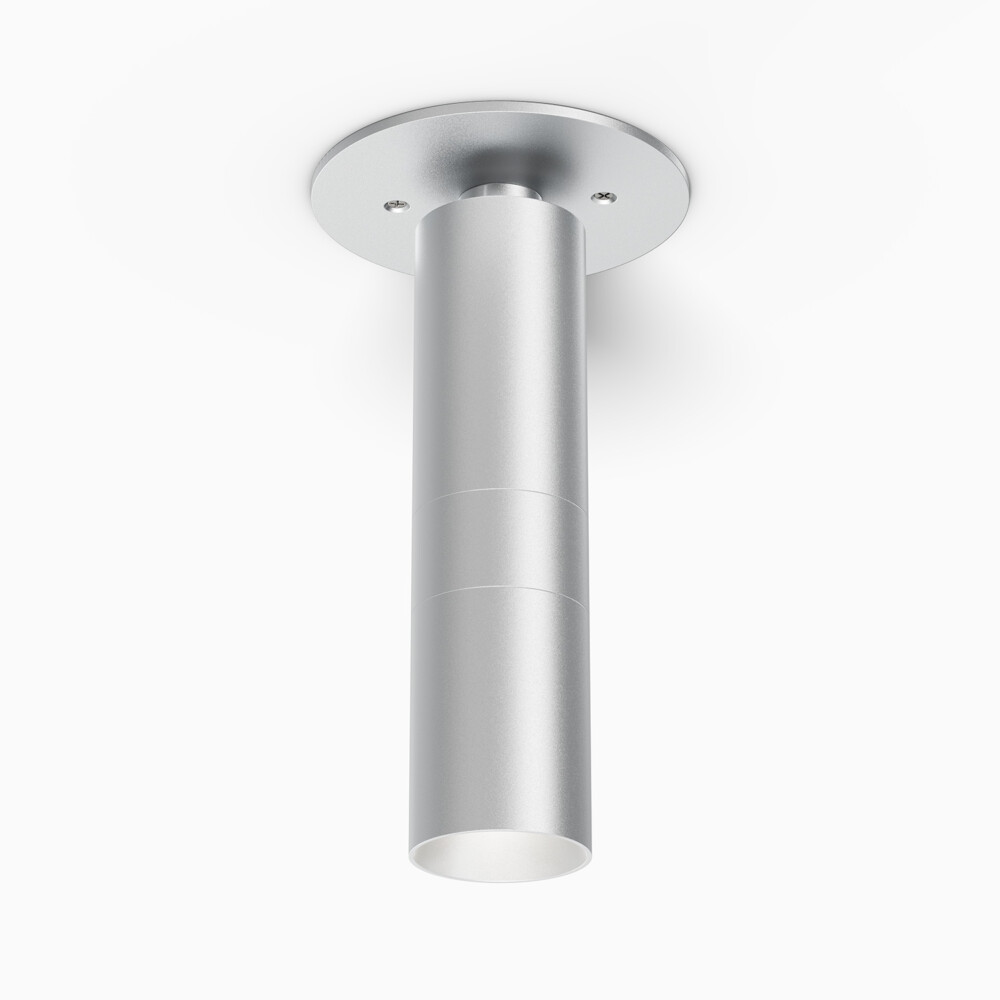

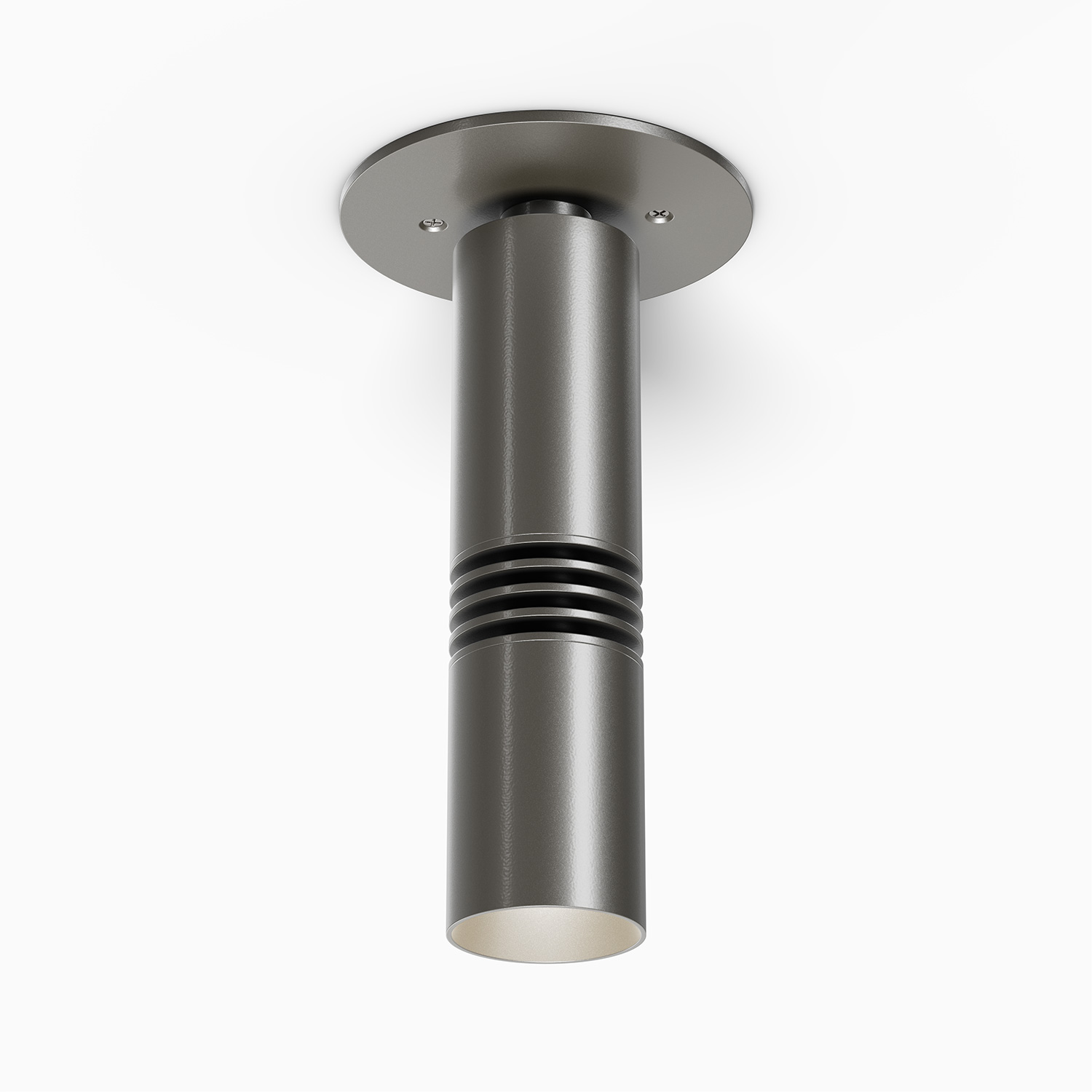

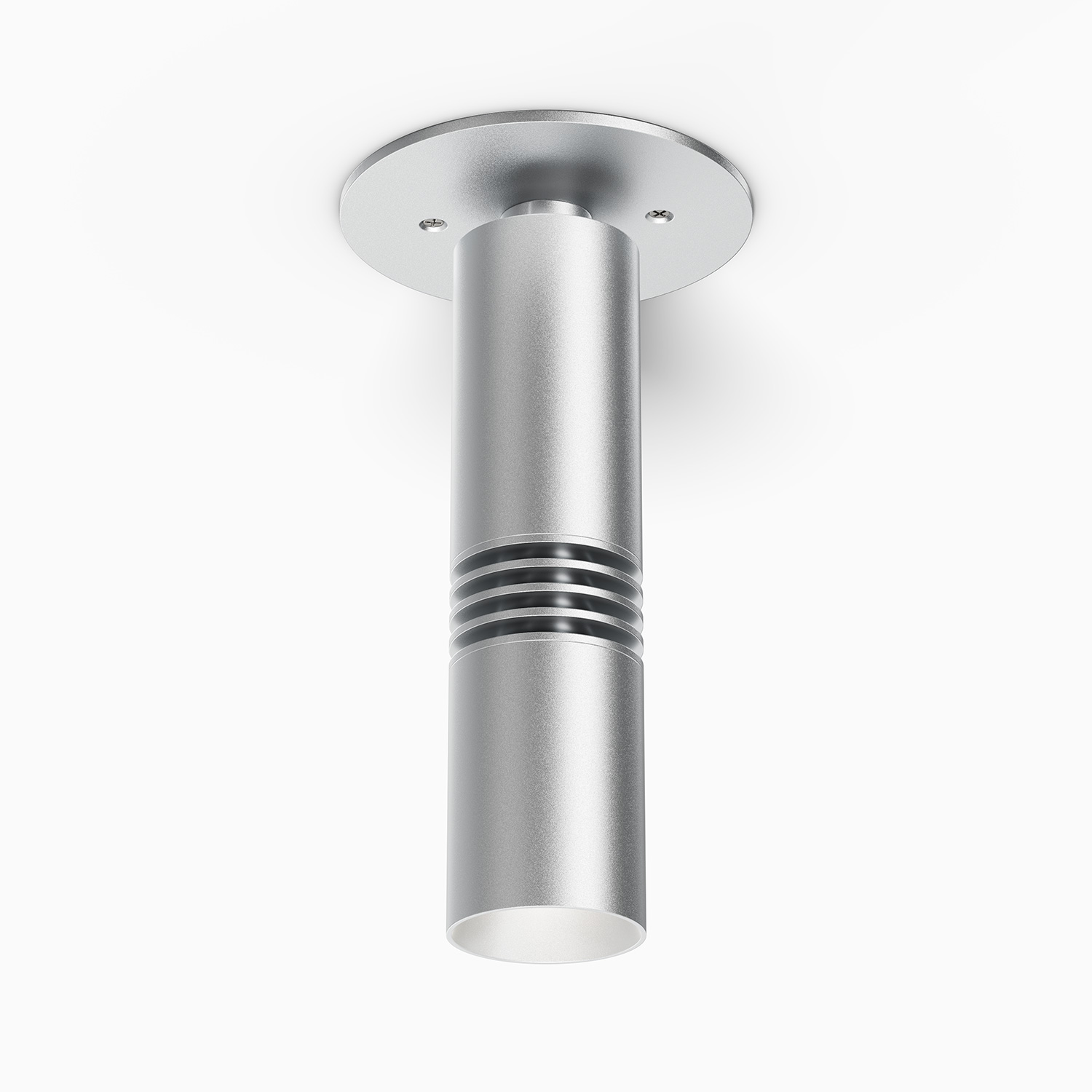

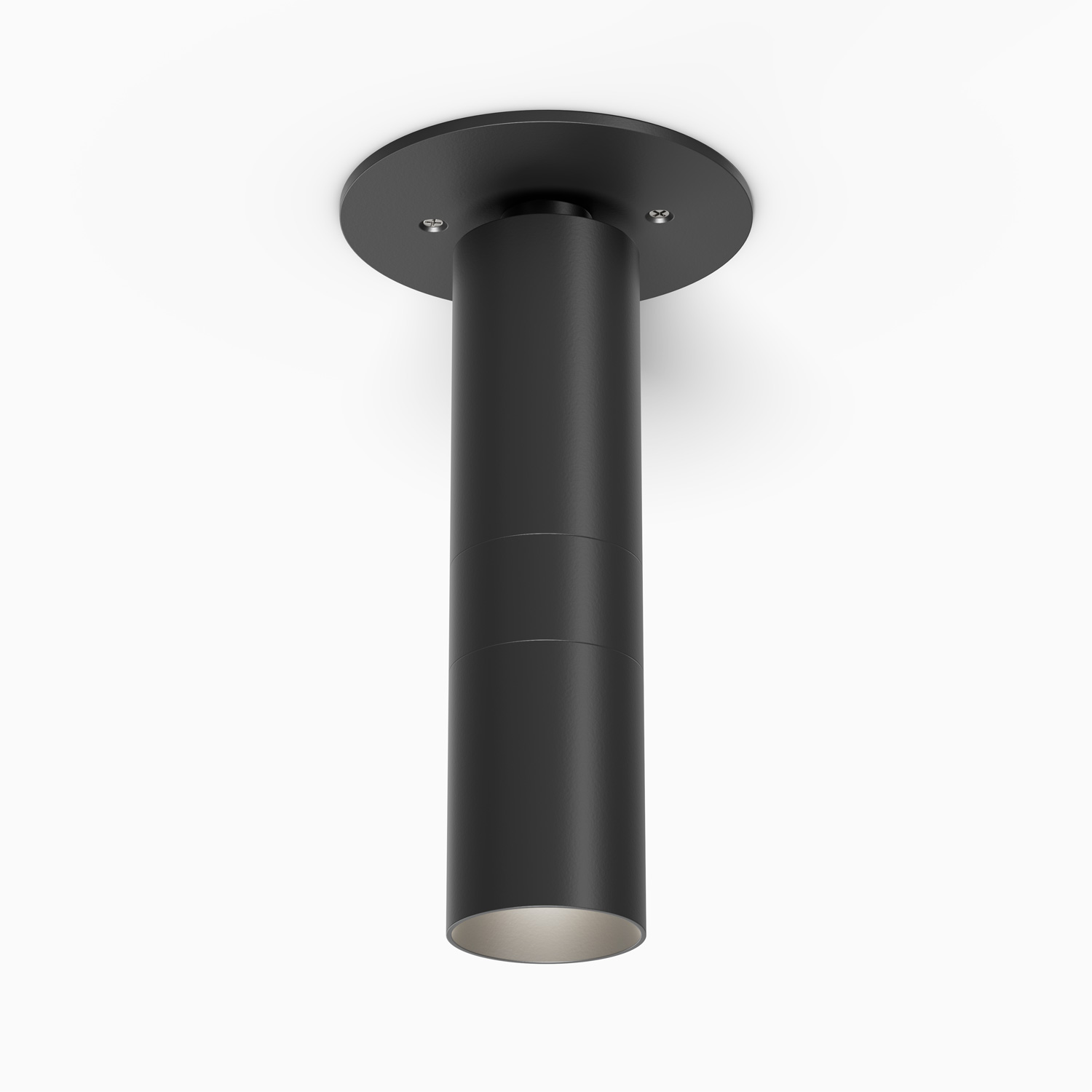

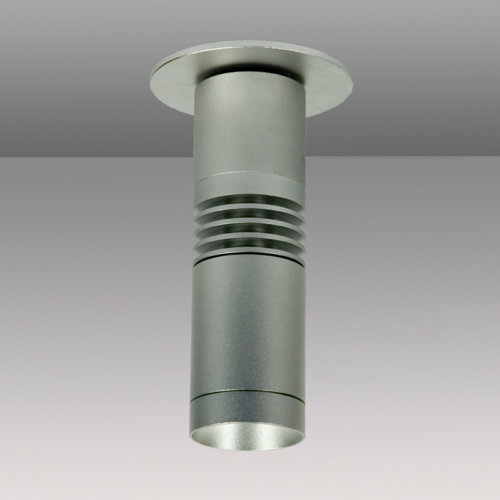

5W, 7W or 10W Ceiling mount lighting for architectural and down light application.
FEATURES:
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- Modular components – field changeable LED module & beam spread reflectors.
- Line voltage input with integral step down transformer in fixture housing.
- Available in turtle friendly amber model.
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V, 230V or 277V AC.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7 or 10W HK LED. 10W Amber LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
2 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice.
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
0V - 10V dimming, phase dimming @120V.
