ZXL20-I FIT
ACCENT & LANDSCAPE | ZX20 Series | 3.88"
31W (3100lm) | 120V - 277V | HK LED

ZXL20-I FIT

ACCENT & LANDSCAPE | ZX20 Series | 3.88"
31W (3100lm) | 120V - 277V | HK LED

Powerful and cost-effective, directional 120V - 277V LED modern accent light for commercial environments.

(includes former ZXL20i-FIT model)

FEATURES:

  • 31W integrated HK LED delivering 3100 lumens 2700-4000K CCT.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • 180º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
  • Ships complete with selected accessories installed.
Specifications

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.

Voltage

120V - 277V AC

Optics

Narrow (16º), Medium (26º), Wide (60º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

31W HK LED delivering 3100 lumens.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.

Hood and Glare Shield

Oversized FIT Style Hood with included Angled or Long Glare Shield.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K.

Listings

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

Driver/Dimming

Onboard, Integrated LED Driver, Phase Control @120V, 0V-10V @120V-277V.

Additional information

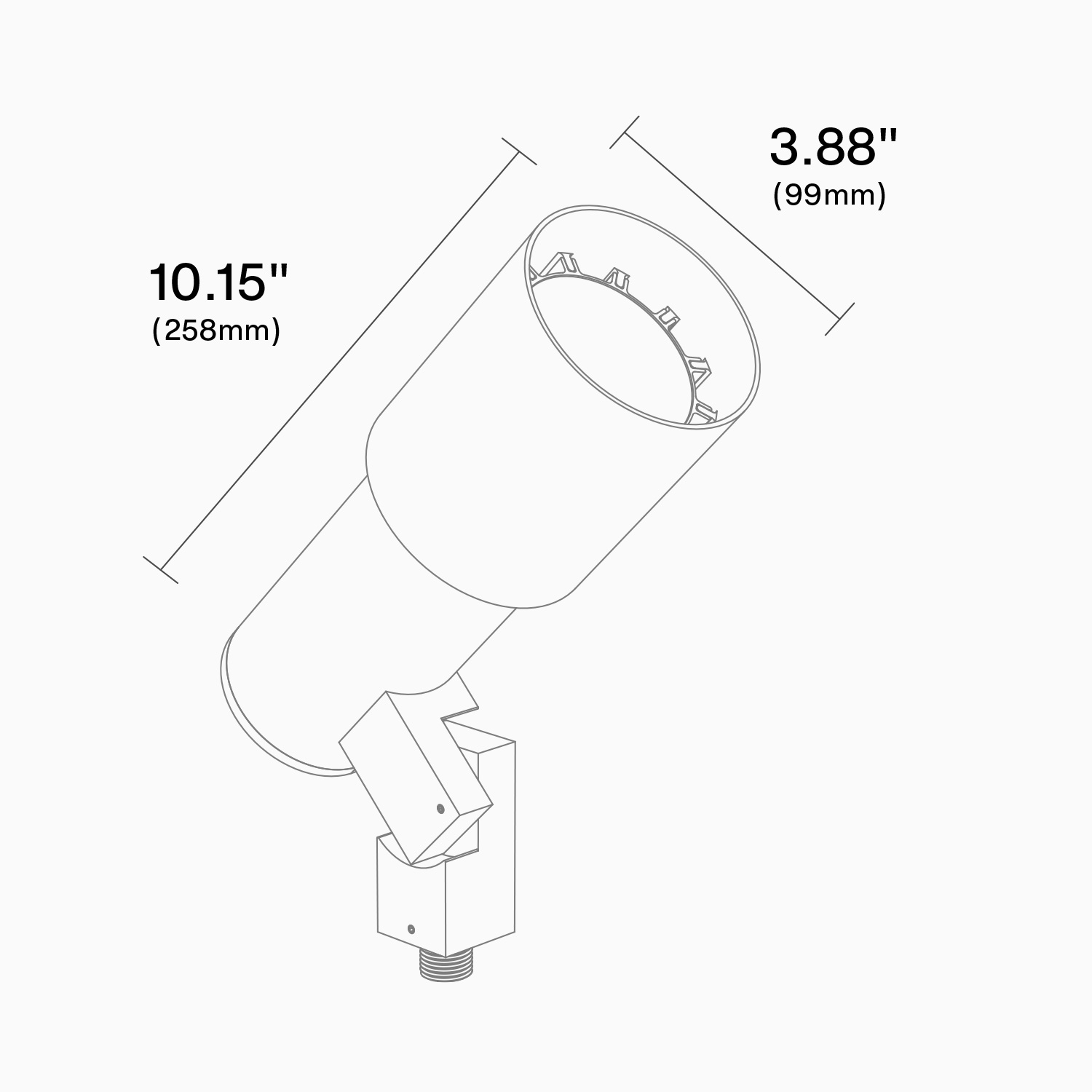

Dimensions 3.88 × 10.15 in
Light Source

Shape

Lumen Output

Input Voltage

Wattage
