21 - 28W ( 2000-2700lm ) | 120V - 277V | HK LED, RGBW, Amber
ZXL20-I
21 - 28W ( 2000-2700lm ) | 120V - 277V | HK LED, RGBW, Amber

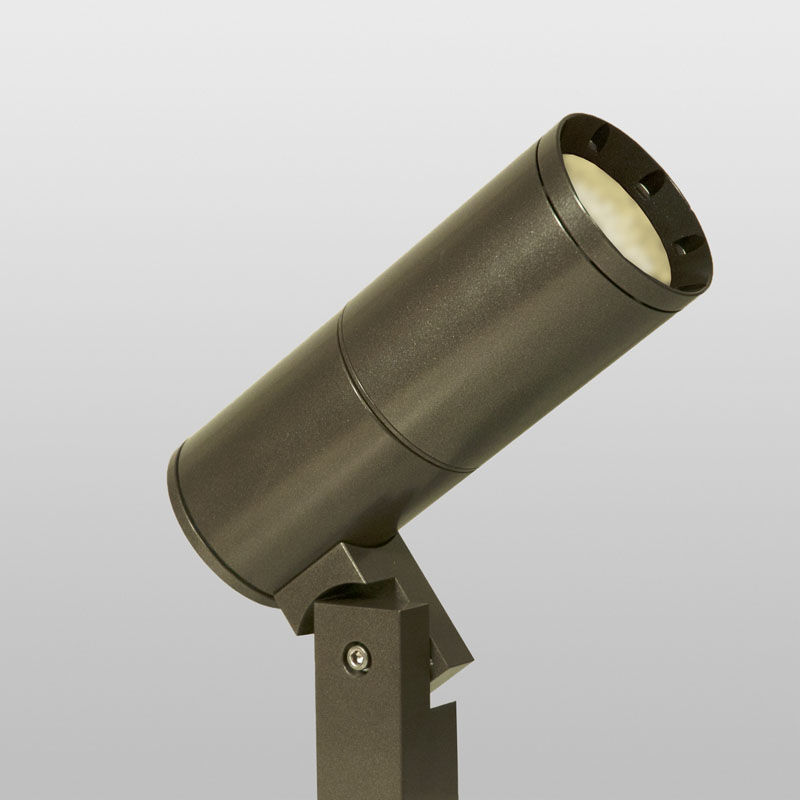

Powerful round, directional 120V - 277V LED modern accent light for commercial environments.
FEATURES:
- Powerful round, directional 120V – 277V LED modern accent light for architectural outdoor and landscape lighting environments. Most appropriate for distant light throw for taller trees, building facades, and architectural details.
- 21W, 28W integrated HK LED delivering 2000 to 2700 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also
available in solid brass or stainless steel. - 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V - 277V AC.
Optics
Narrow (16º), Medium (26º), Wide (40º), and Extra Wide (60º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
21 or 28W HK LED delivers 2000 to 2700 lumens.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Driver/Dimming
Onboard, Integrated LED Driver, Phase Control @120V, 0V-10V @120V-277V DALI or DMX control available, consult factory for details.
