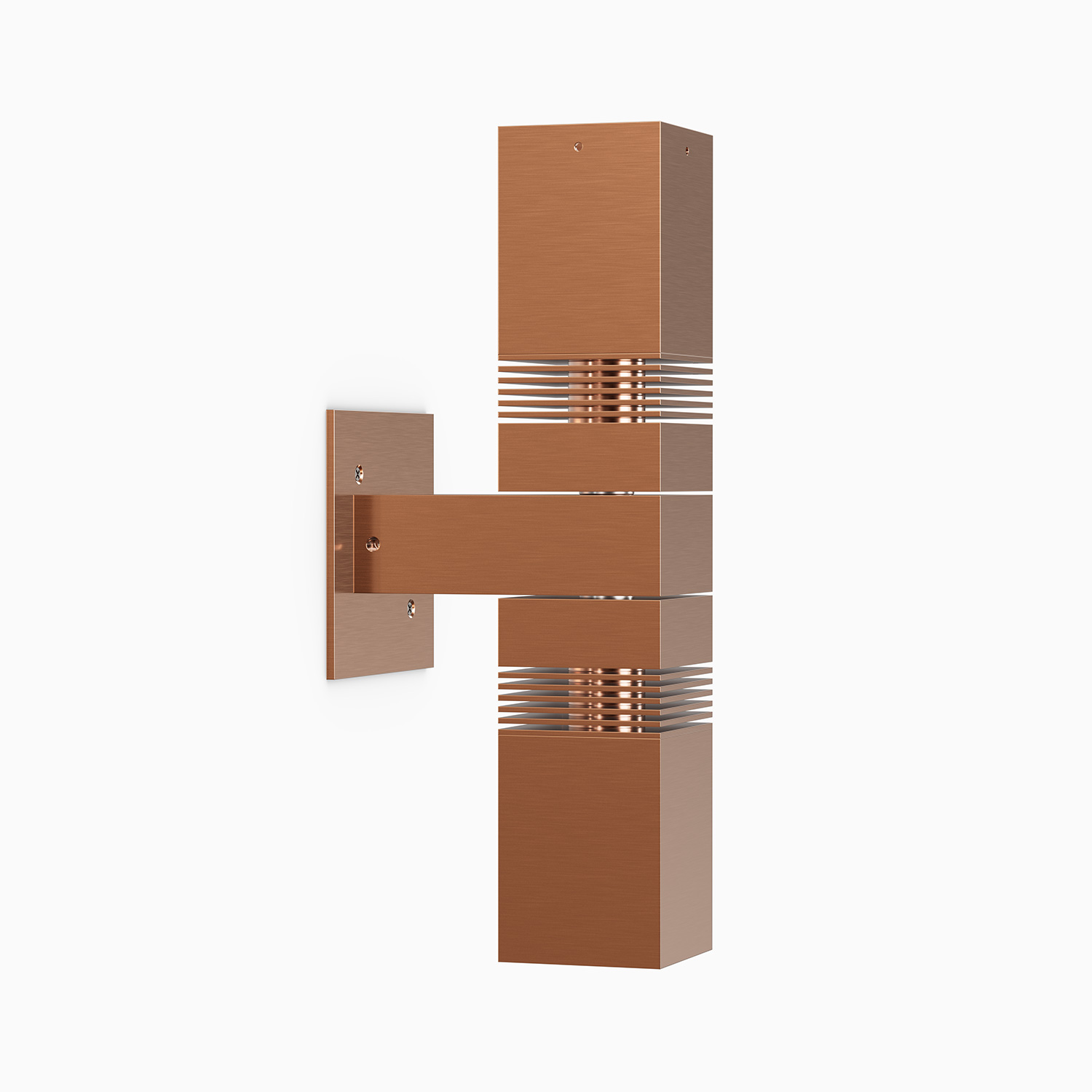

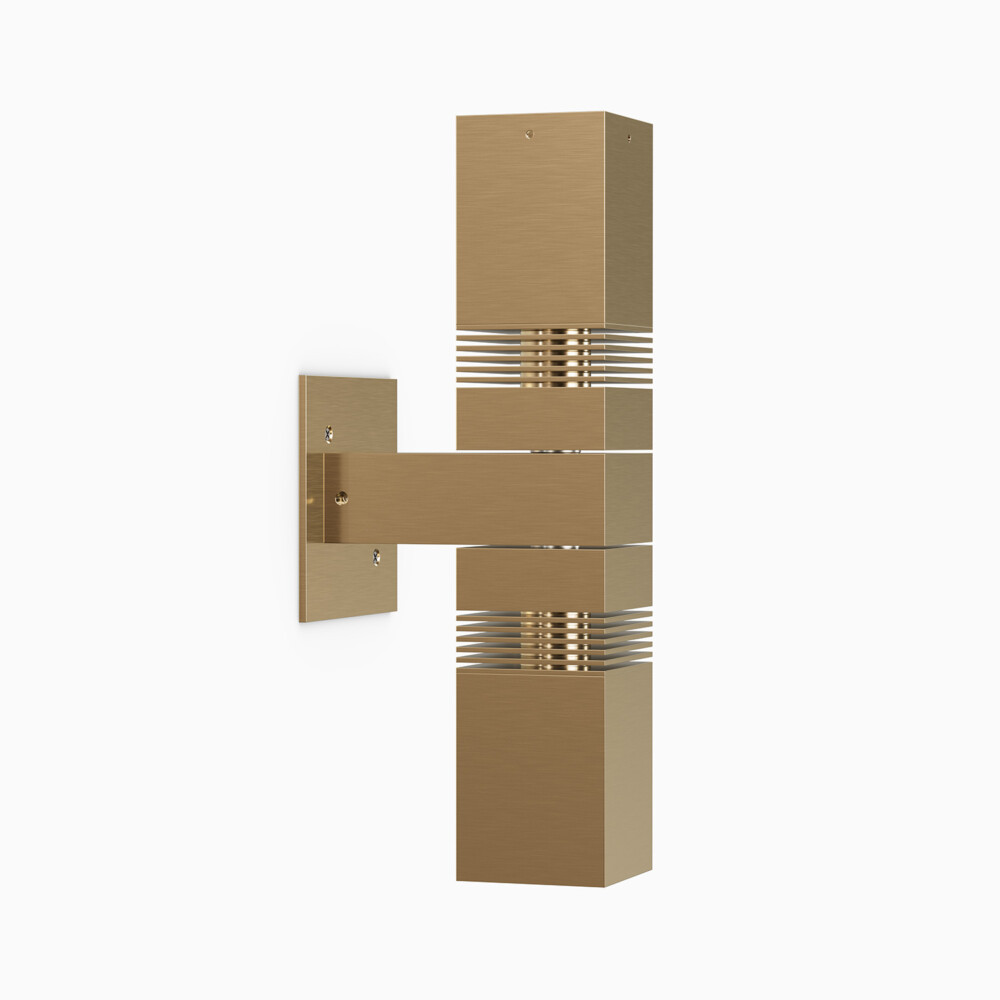

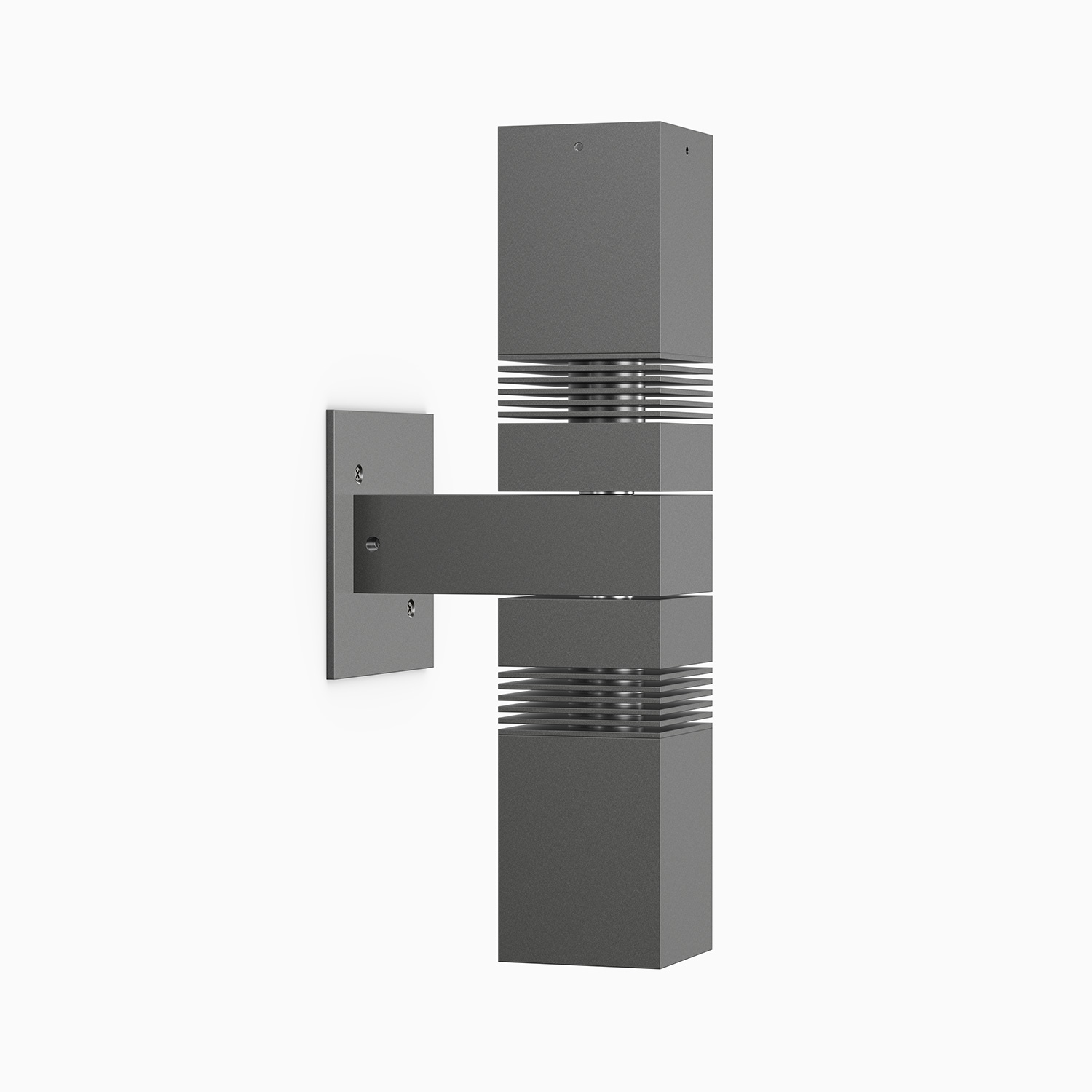

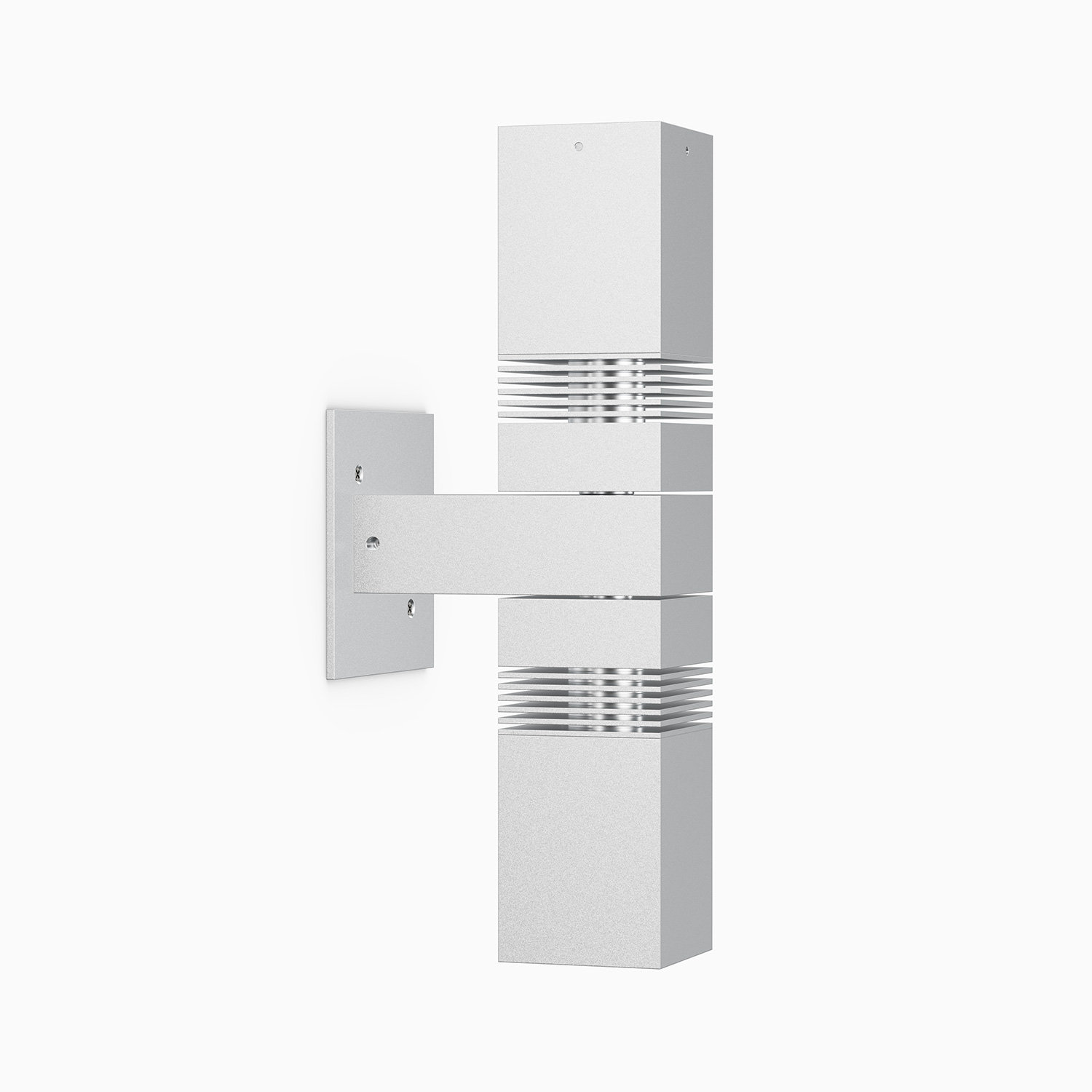

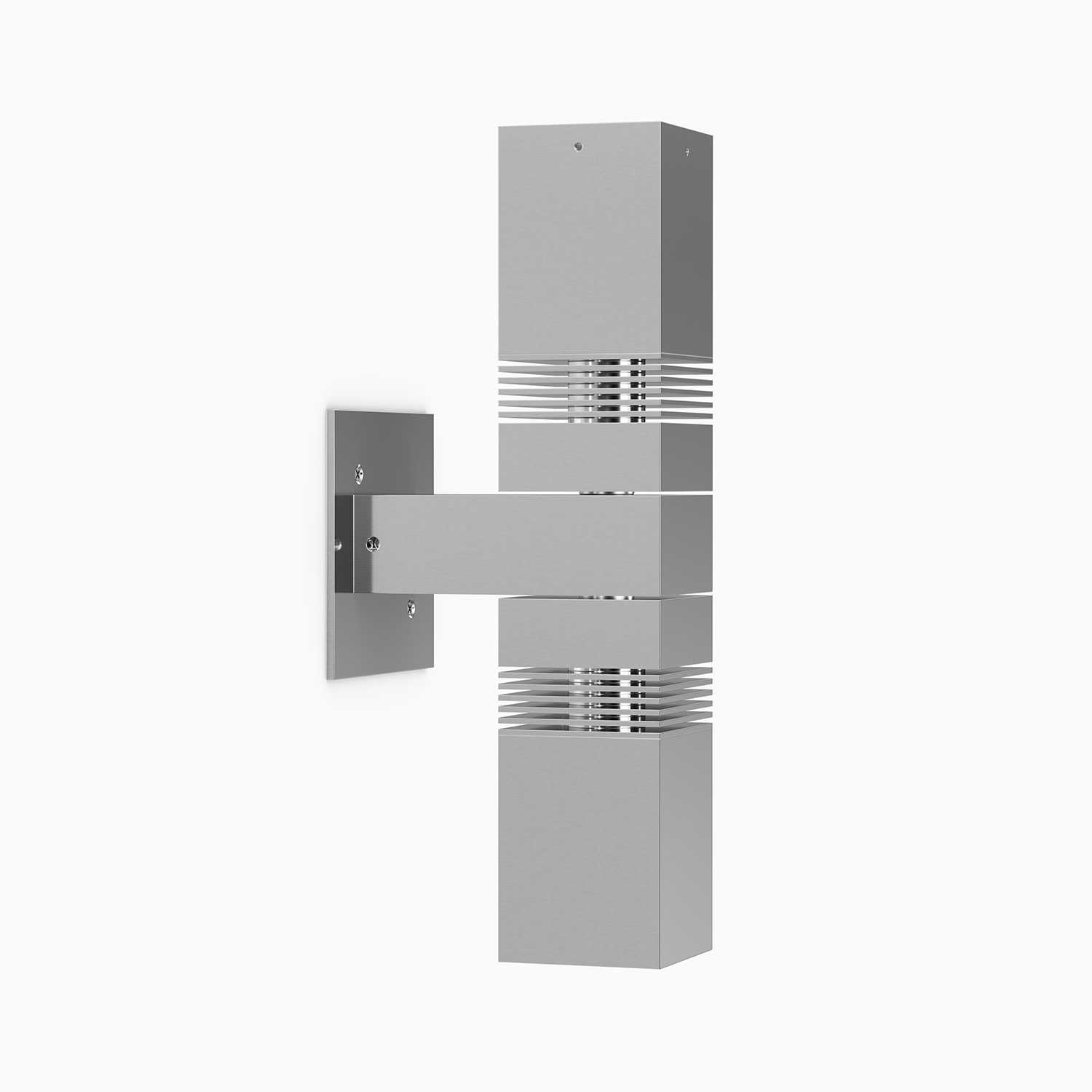

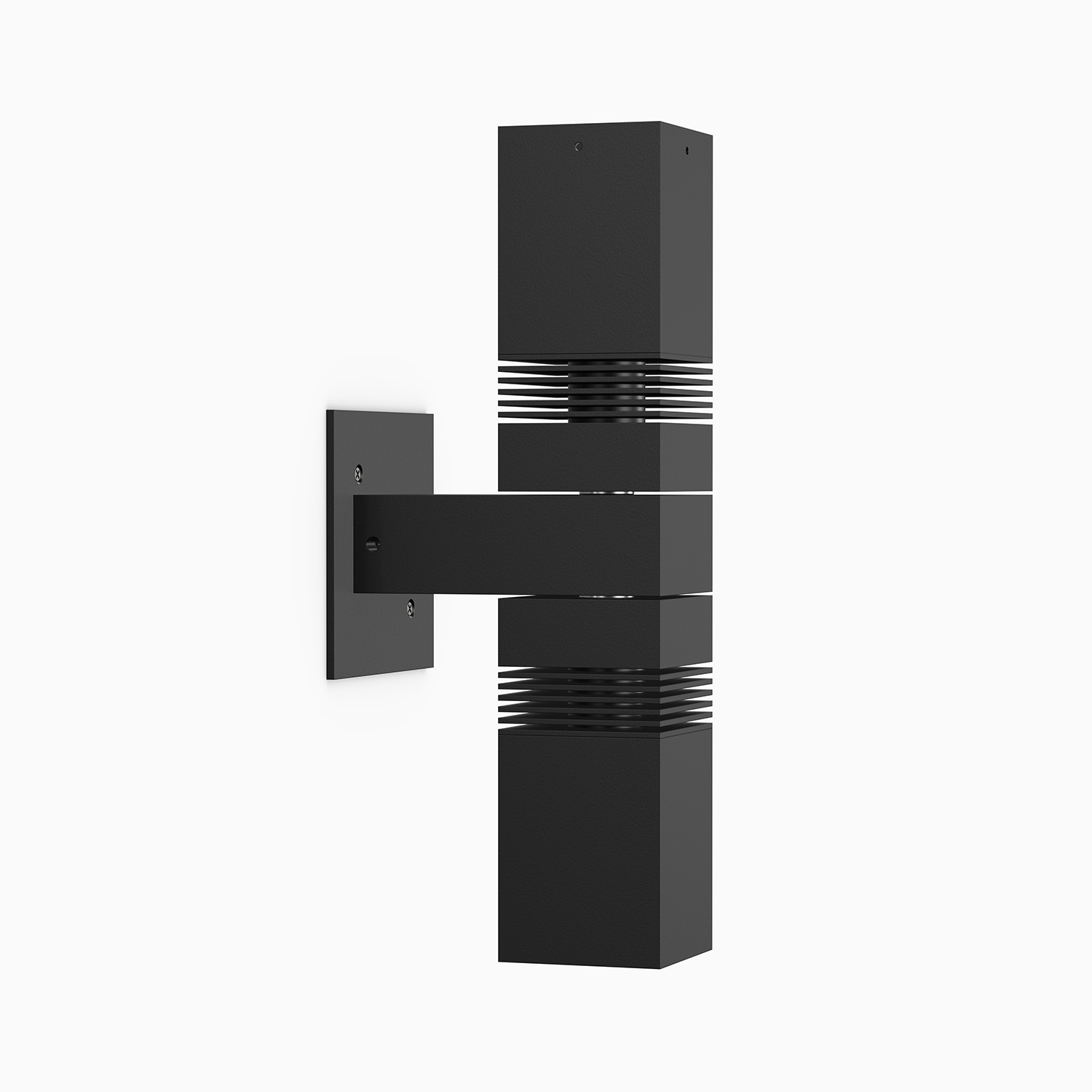

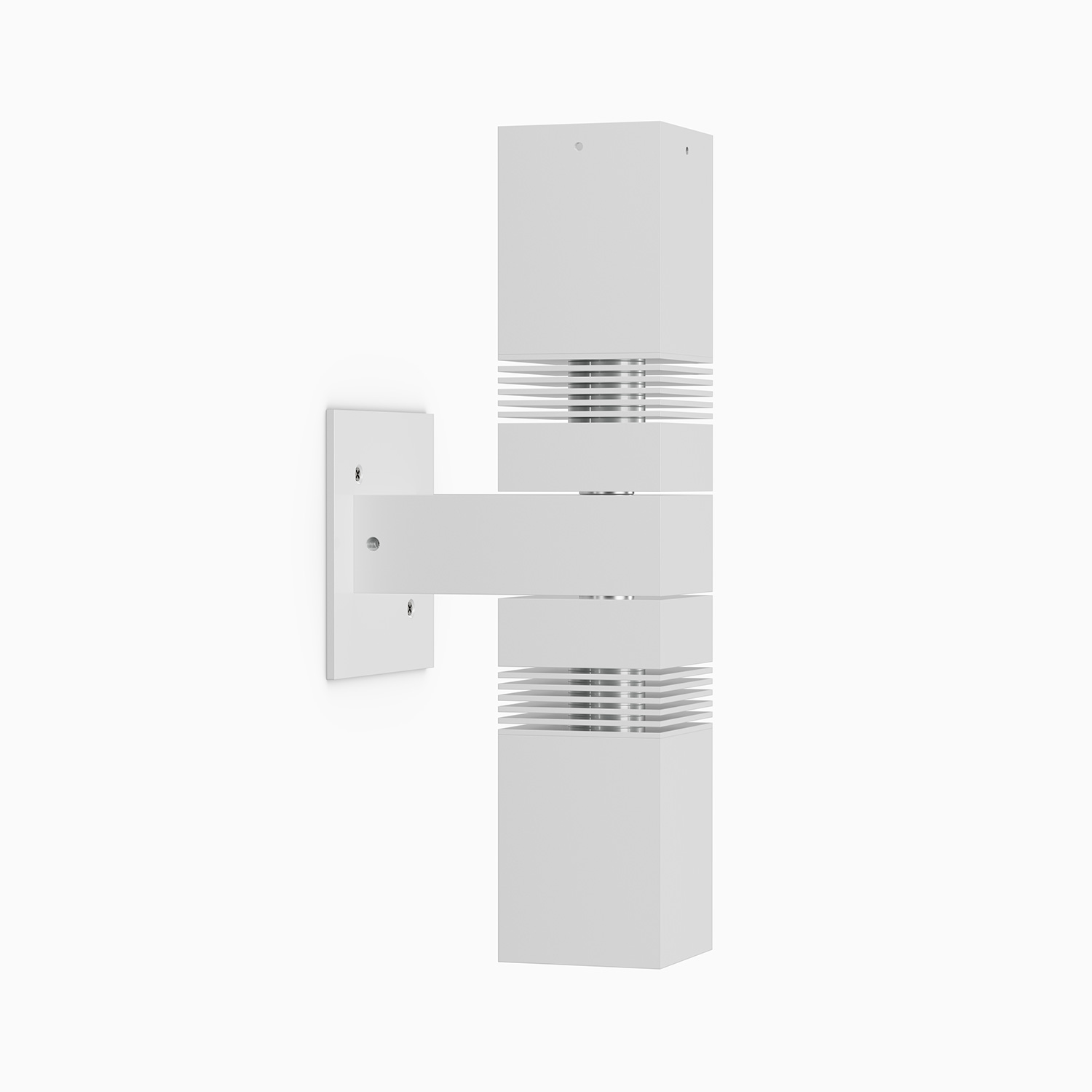

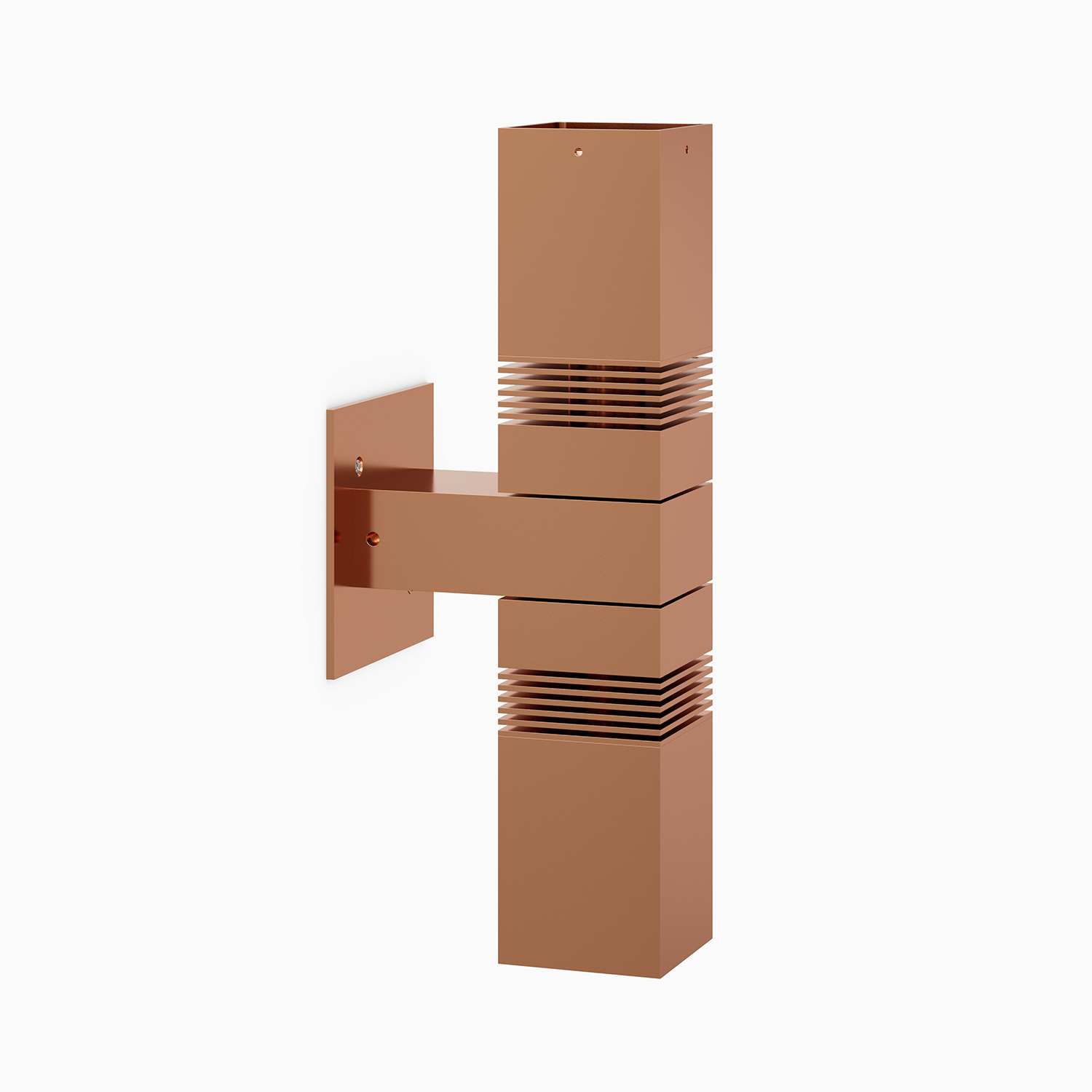

ZXL20i-WM2-SQ
FEATURES:

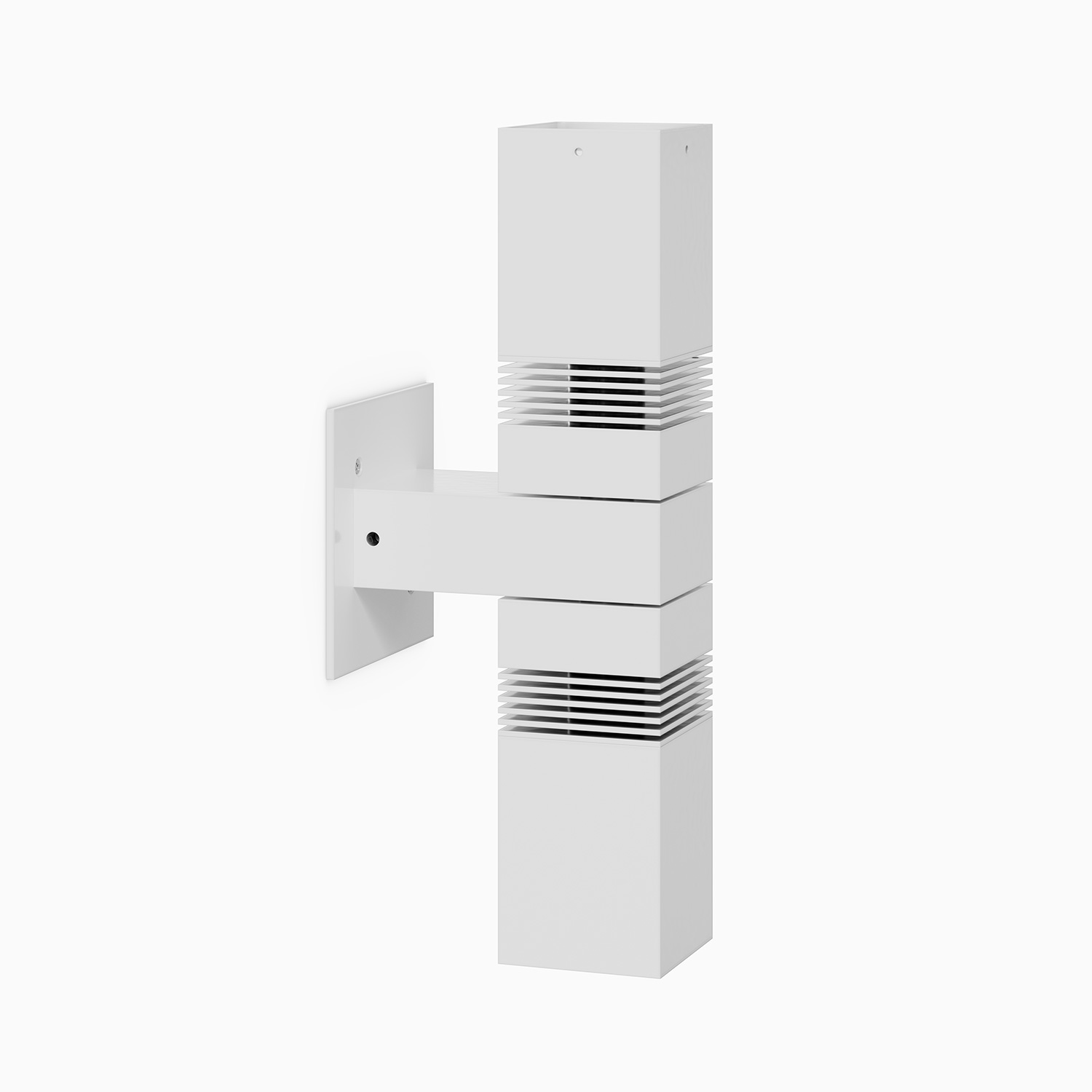

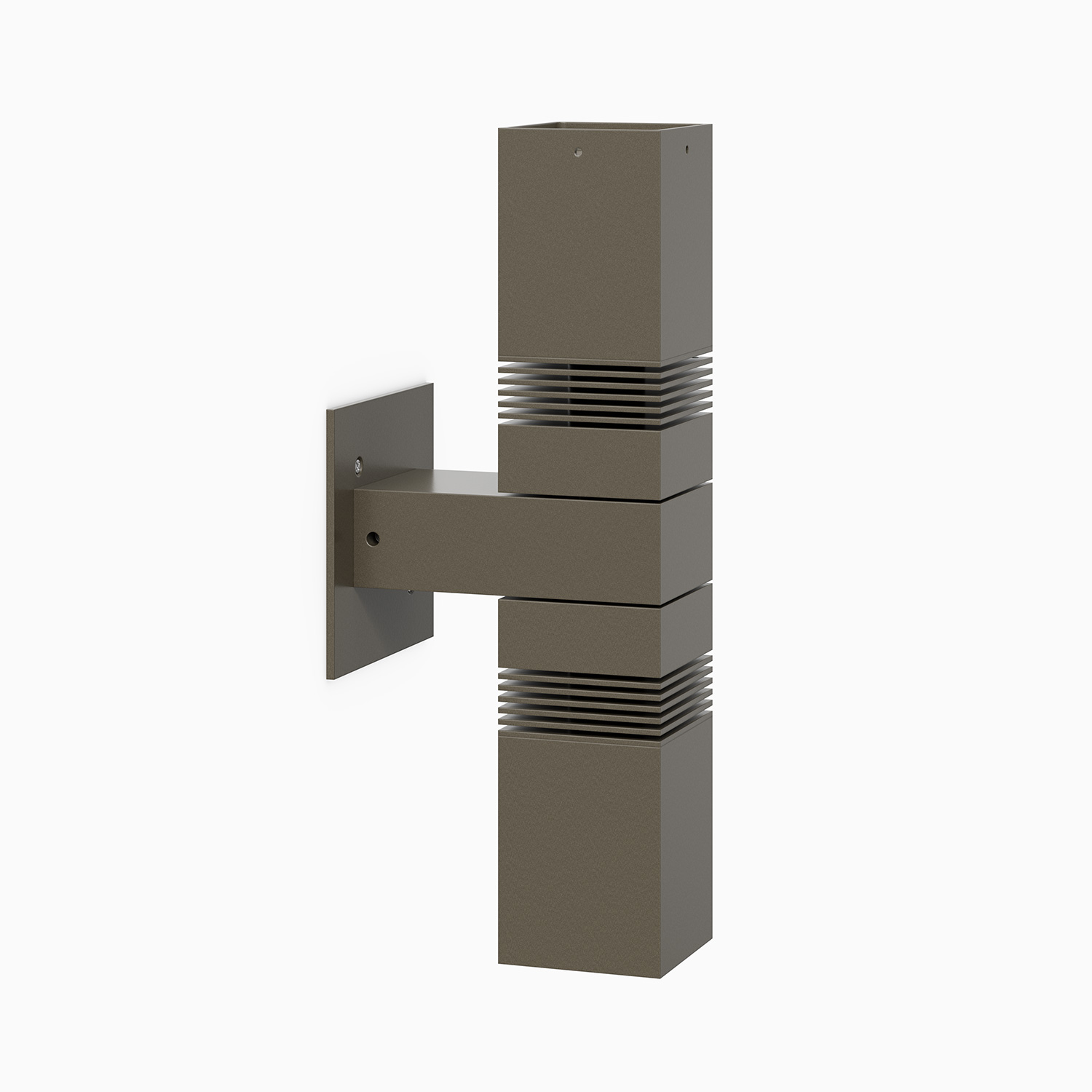

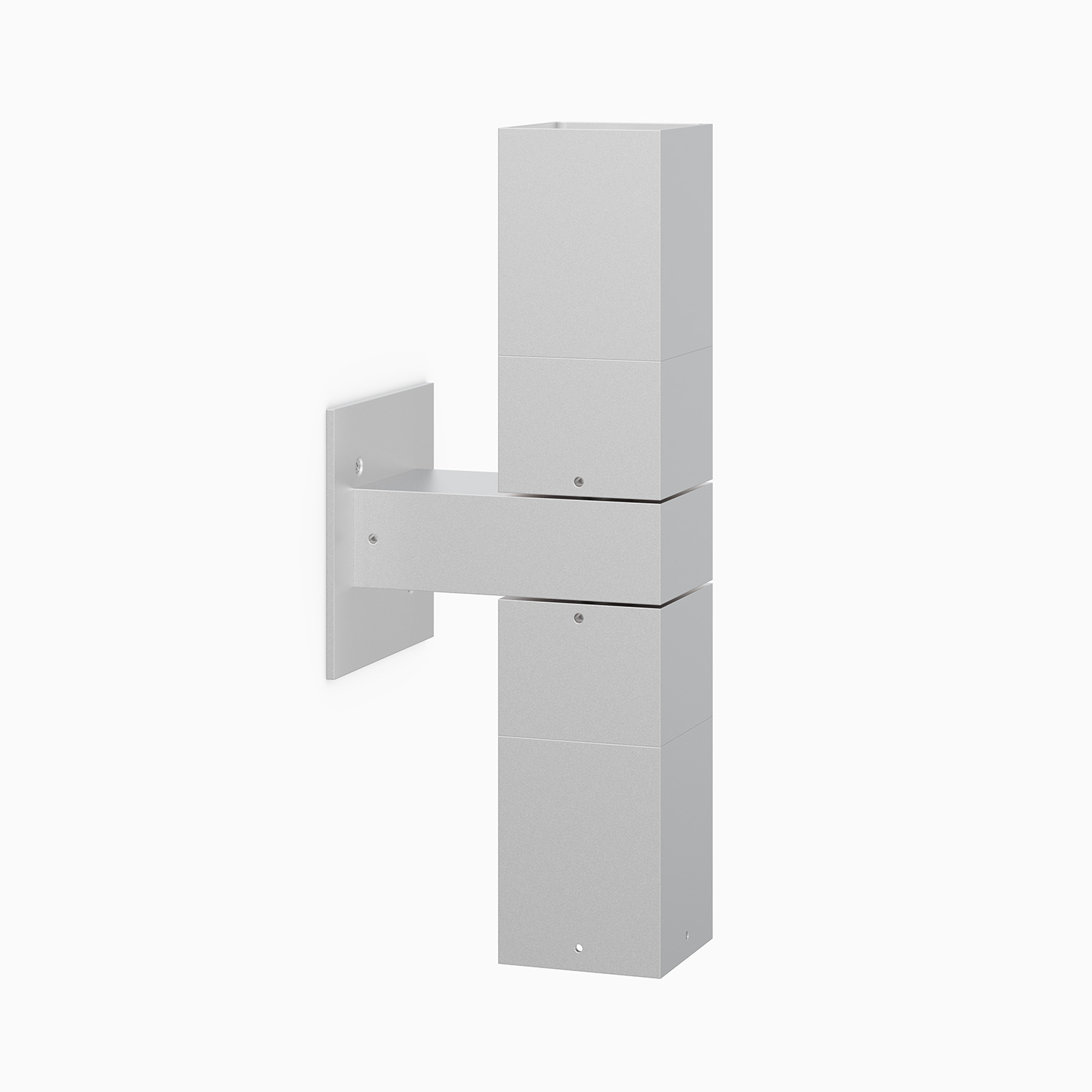

- Up/Down LED wall sconce with mounting canopy.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Swivel stem insert allows for precision adjustment during installation.
- Unique weep hole design in hood of the up-light with minimum light leak.
- Modular components – field changeable LED module & beam spread reflectors.
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
Universal 120V - 277V AC with integral LED driver
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
20W x2 Nichia LED, 16W (X2) for Amber LED or 18W(X2) Xicato LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Glare Shield
3 optional glare shields(GSL-SQ-long, GSA-SQ-angled, GSS-SQ-short) for additional glare control. (See page 3 for details)
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K, RGBW.
Mounting
Utilizes (2X) 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
Standard with 0V-10V dimming or phase dimming @120V. Please consult factory for DALI or DMX control.
