SIGN-2-16Li
FEATURES:

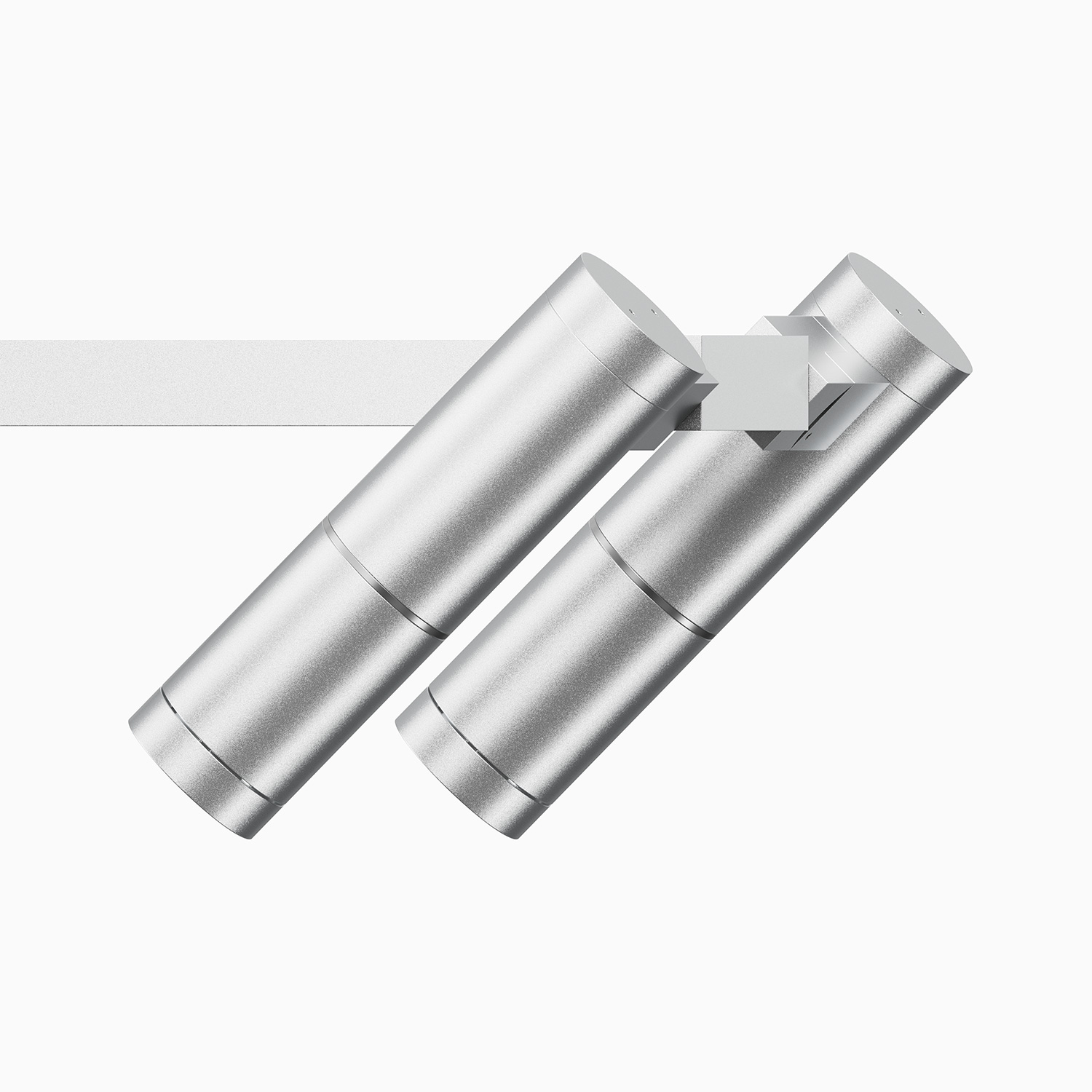

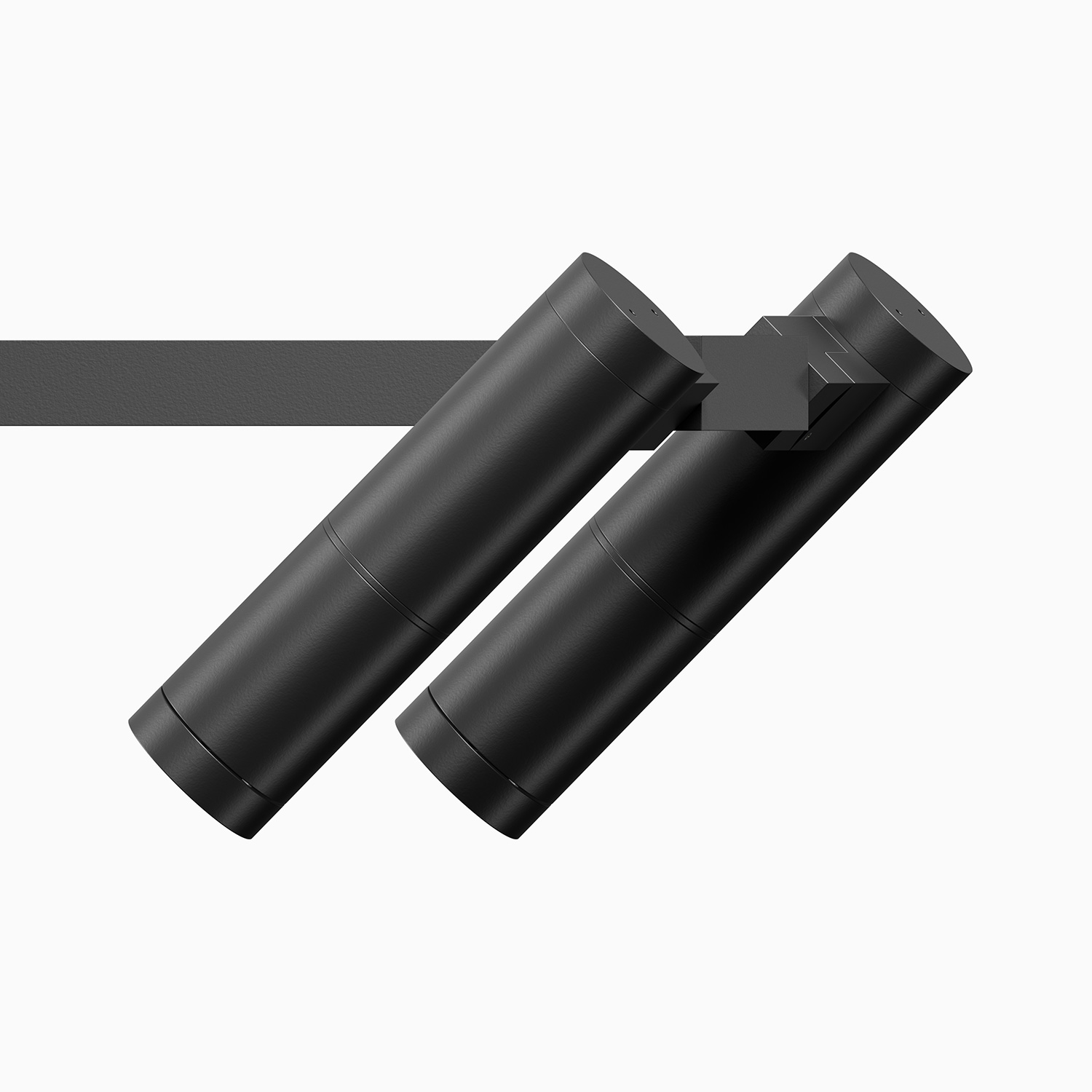

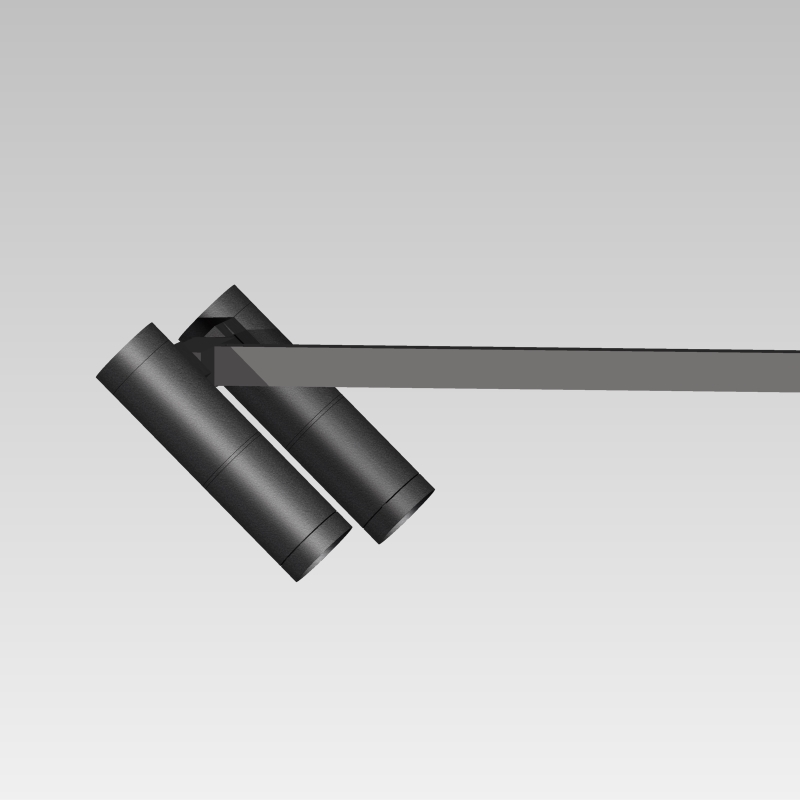

- Twin-head, 7-10W x2 LED modular sign light.
- Line volt input with integral step-down transformer.
- Utilizes adjustable accent fixture head with directional light.
- Accommodates different beam spread reflectors and optic accessories.
- Modular components – field changeable LED module & beam spread reflectors.
- ETL outdoor wet location listed. IP67 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V, 230V or 277V AC.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
(5, 7 or 10W)x2 HK LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 3 of Spec Sheet for details).
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Dimming
0V - 10V dimming, Phase dimming @120V
