7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen
ZA16 Center Pivot
7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen

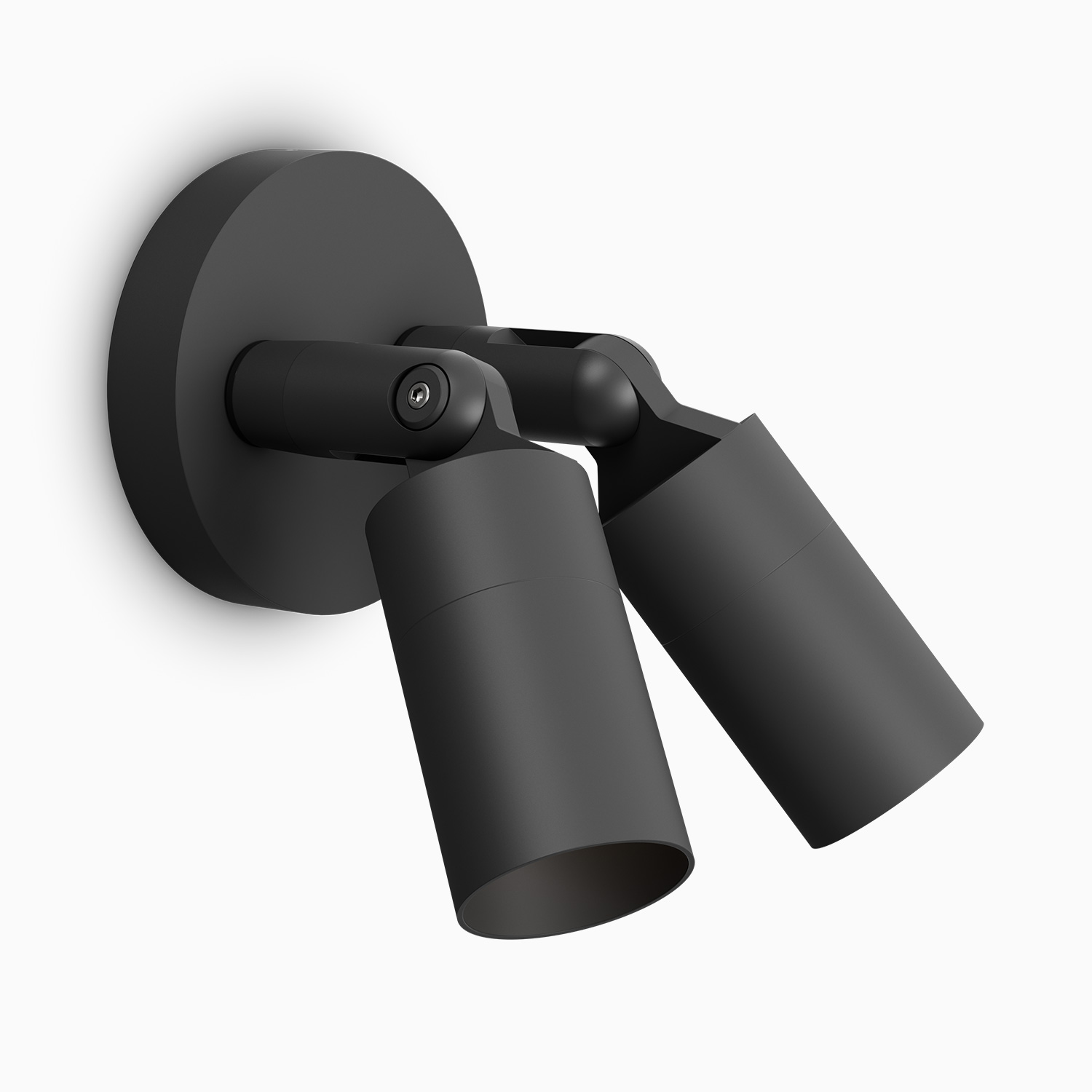

Single or double-head traditional Center Pivot style low-voltage, MR16 (GU5.3) fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting.
FEATURES:
- Built on the ZX16 lamp-based Center Pivot Accent Light platform, with heads that rotate and tilt to aim down or across for broader coverage. Ships installed to the CBA1 or CBA2 4.75″ Surface Mount Box.
- Flexible lamp configurations include the SORAA® Brilliant™ HL LED installed in our patented Thermobuster™ heat sink or your preferred MR16 (GU5.3) LED or halogen lamp.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, and white to create a highly durable, marine-grade finish.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Field-changeable optical accessories available.
- Adjustable Angled or Long Glare Shield available.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Provided SORAA Lamp delivers a 10º beam spread. Select optional SORAA Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 optical accessories secured in place with metal snap ring. (See Ordering Guide for available SORAA lamp options)
Finish
Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish.
Wattage
Max 9W per light head for SORAA MR16 lamp with Thermobuster. Max 50W per light head for halogen lamp.
Mounting
Single Area Light (Type-0C1) ships mounted to a CBA1 Surface Mount Box. Double Area Light (Type-0C2) ships pre-mounted to a CBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible with standard 3O and 4O junction boxes. Each light includes a ½"-14 NPS male fitting that is compatible with the included Surface Mount Box or is compatible with a wide range of HK Lighting mounting accessories
Hood and Glare Shield
Clean aesthetic, non-weeping Hood Style. Set screw Angled or Long Glare Shields. (See page 5 of spec sheet for details)
Light Engine
MR16 Halogen or MR16 SORAA LED lamp. Compatible with SORAA Brilliant HL and other 12V MR16 GU5.3 lamp selections. (See Ordering Guide for available lamp options and specifications)
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/ GX5.3/GY6.35/GZ4.
Dimming
MLV, ELV Phase Control Dimming at 12V. Please refer to website for SORAA MR16 dimmer compatibility.
