21–28W ( 2000–2700lm ) | 120V–277V | HK LED
ZAL20-I
21–28W ( 2000–2700lm ) | 120V–277V | HK LED
Single or double-head modern directional line-voltage 120V-277V LED fixture. Surface mounts to walls or other architectural surfaces for aimable area and security lighting.
FEATURES:
- Built on the ZXL20-I Accent Light platform, with heads that rotate and tilt to aim down or across for broader coverage. Ships installed to the CBA1 or CBA2 4.75″ Surface Mount Box.
- 21W, 28W integrated HK LED delivering 2000–2700 lumens per light head. 2700K, 3000K, and 4000K CCT options for residential and commercial lighting applications.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, or white to create a highly durable, marine-grade finish.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field-changeable optical beams, and lenses.
- Adjustable Angled or Long Glare Shield available.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Voltage
120V–277V AC.
Optics
Narrow (16º), Medium (26º), Wide (40º), and Extra Wide (60º) beam spread options available. Accepts up to 3 optical accessories secured in place with metal snap ring.
Finish
Aluminum fixtures are first anodized and then powder coated to create a robust, marine-grade, natatorium-grade finish.
Wattage
21 or 28W HK LED delivers 2000–2700 lumens per light head.
Mounting

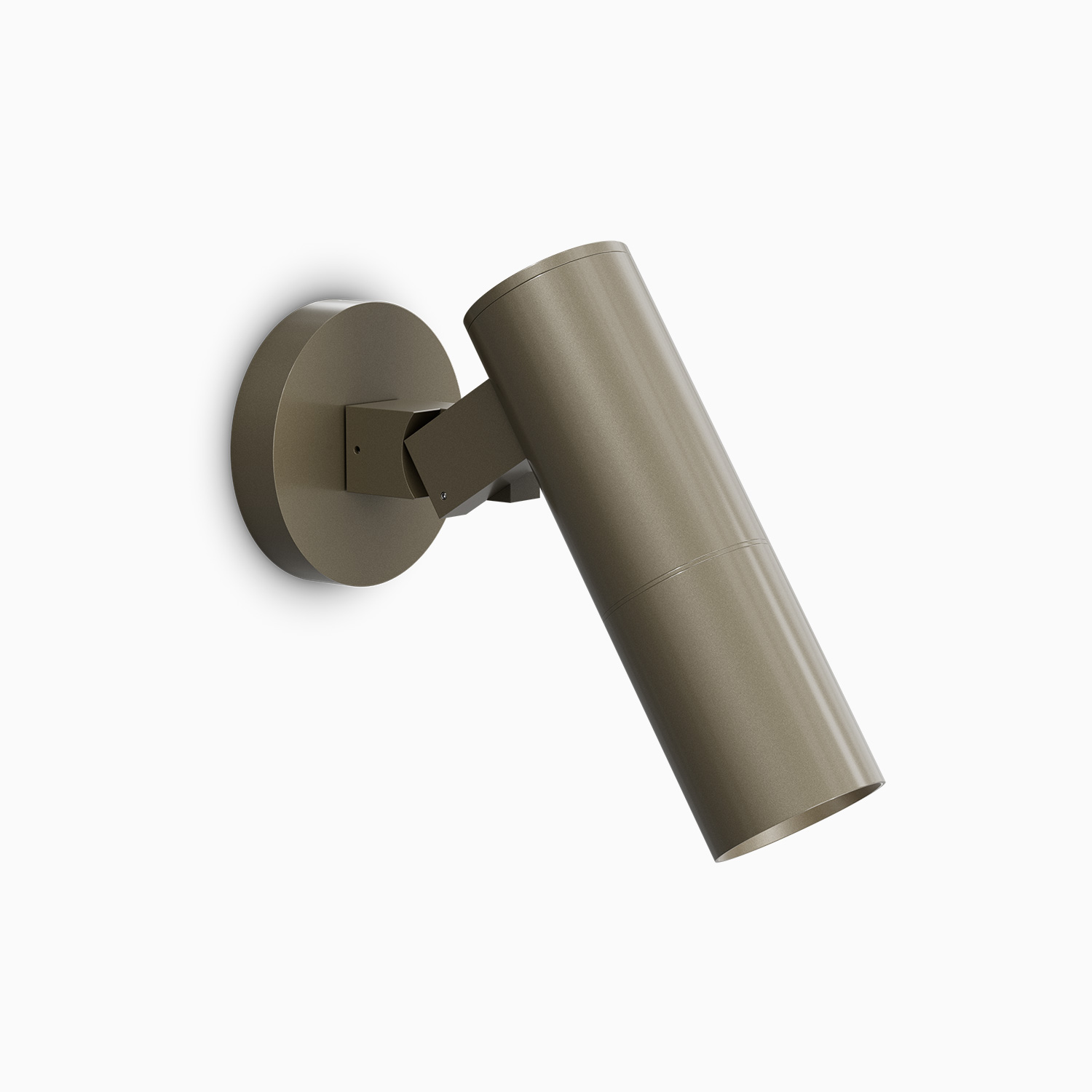

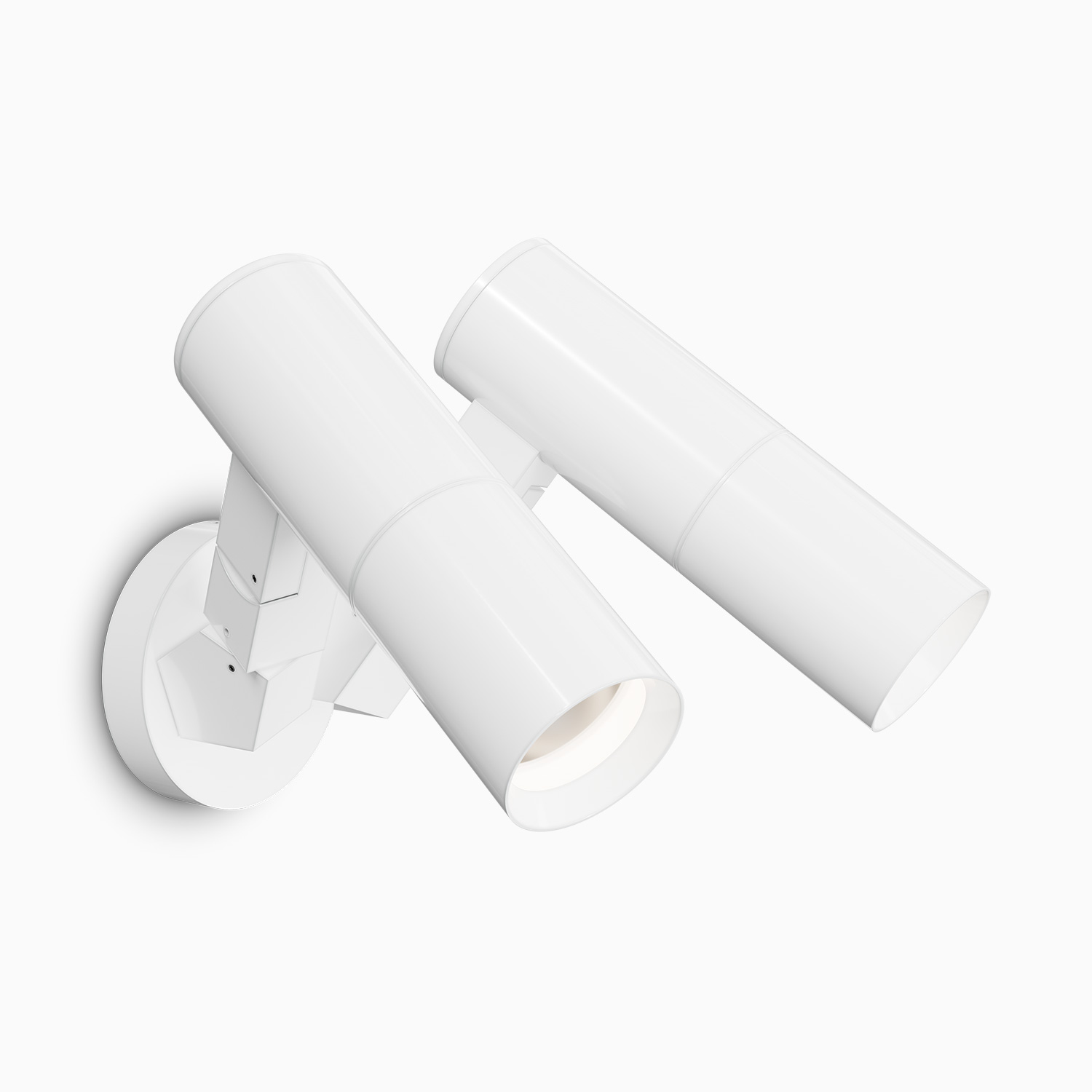

Single Area Light (Type-IR1) ships mounted to a CBA1 Surface Mount Box. Double Area Light (Type-IR2) ships pre-mounted to a CBA2 Surface Mount Box with EL-30 Elbow Extensions. Both variants mount directly to any architectural surface and are compatible with standard 3O and 4O junction boxes. Each light includes a ½"-14 NPS male fitting compatible with the included Surface Mount Box and the full range of HK Lighting mounting accessories.
Hood and Glare Shield
Clean aesthetic, non-weeping Hood Style. Set screw Angled or Long Glare Shields. (See page 5 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K, 3000K, and 4000K CCT.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Driver/Dimming
Onboard, Integrated LED Driver Phase Control @120V, 0V–10V @120V–277V, DALI or DMX control available, consult factory for details.
