ZD16 GU10

DOWNLIGHT | ZD16 Series | 2.25" dia.
7.5W ( 640lm ) | 120V, 230V | SORAA, LED Lamp, Halogen

(includes former ZX16-CM-GU10 & ZX16-CM-GU10-SOi models)

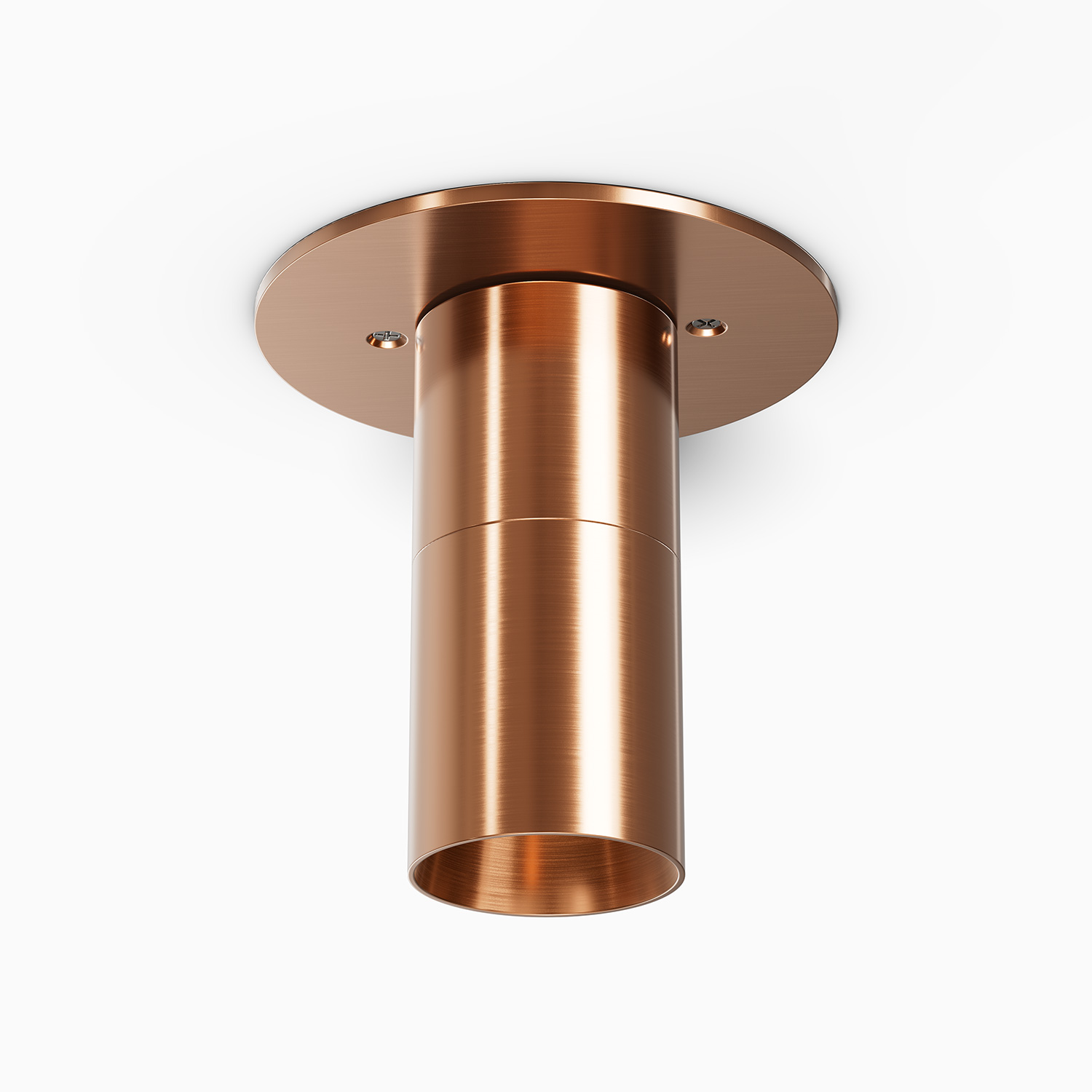

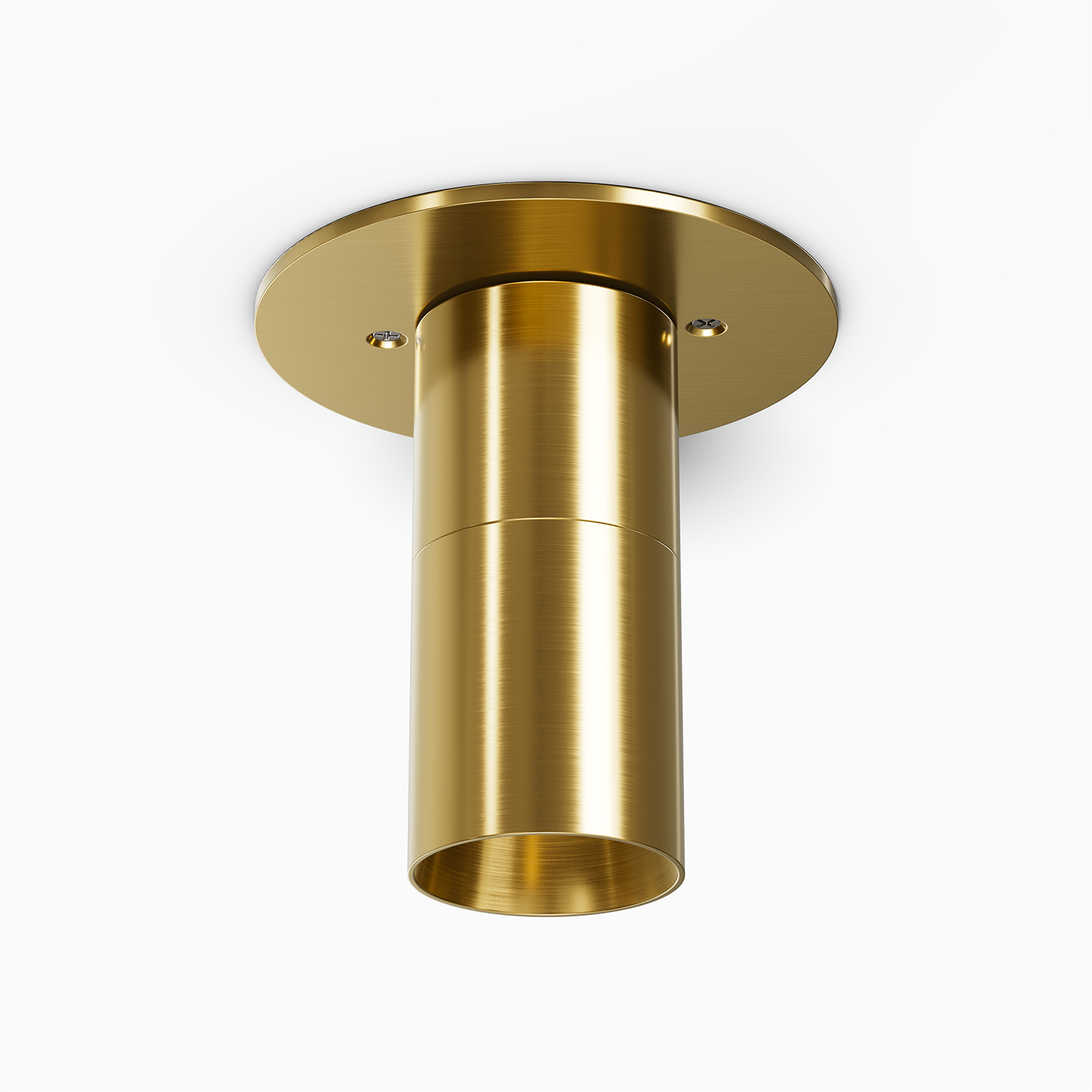

Compact 2.25" round, GU10 lamp-based, line-voltage downlight for architectural outdoor applications.

FEATURES:

Flexible lamp configurations support SORAA® LED lamps with integrated heat sink or compatible GU10 LED and halogen lamps.
Wet Location Listed, IP65 Standard.
Machined from solid billet aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable,
marine-grade finish. Also available in solid brass or stainless steel.
Accepts up to three optical accessories, including hexcel louvers, spread lenses, and color filters.
Available with adjustable angled, long, and short glare shields, with canopy and surface mounting options.
Every fixture tested end of line for water tightness and light quality.

spec sheets

photometry

Specifications

Materials

Machined from solid billet 6061-T6 corrosion-resistant aluminum with 316 stainless steel hardware. Available in 316 stainless steel or 360 brass upon request.

Voltage

120V or 230V AC

Optics

Provided SORAA Lamp delivers 10º beam spread. Select optional SORAA Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 accessory pieces (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring. (See Ordering Guide for available SORAA lamp options)

Finish

Aluminum materials are anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

Max 9W for SORAA lamp with Thermobuster. Max 50W for halogen lamp.

Mounting

Includes CM5 5" Canopy Plate and (2X) 8-32 UNC machine screws to attach to a standard 3O or 3R recessed back box (provided by others).

Hood and Glare Shield

Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of spec sheet for details)

Light Engine

GU10 Halogen or GU10 SORAA LED lamp. Compatible with SORAA Brilliant HL and other 120V GU10 lamp selections. (See Ordering Guide for available lamp options and specifications)
