7.5 ( 640lm ) | 120V, 230V | SORAA, LED Lamp, Halogen
ZD16 Square GU10
7.5 ( 640lm ) | 120V, 230V | SORAA, LED Lamp, Halogen
(includes former ZX16-CM-SQ-GU10 & ZX16-CM-SQ-GU10-SOi models)

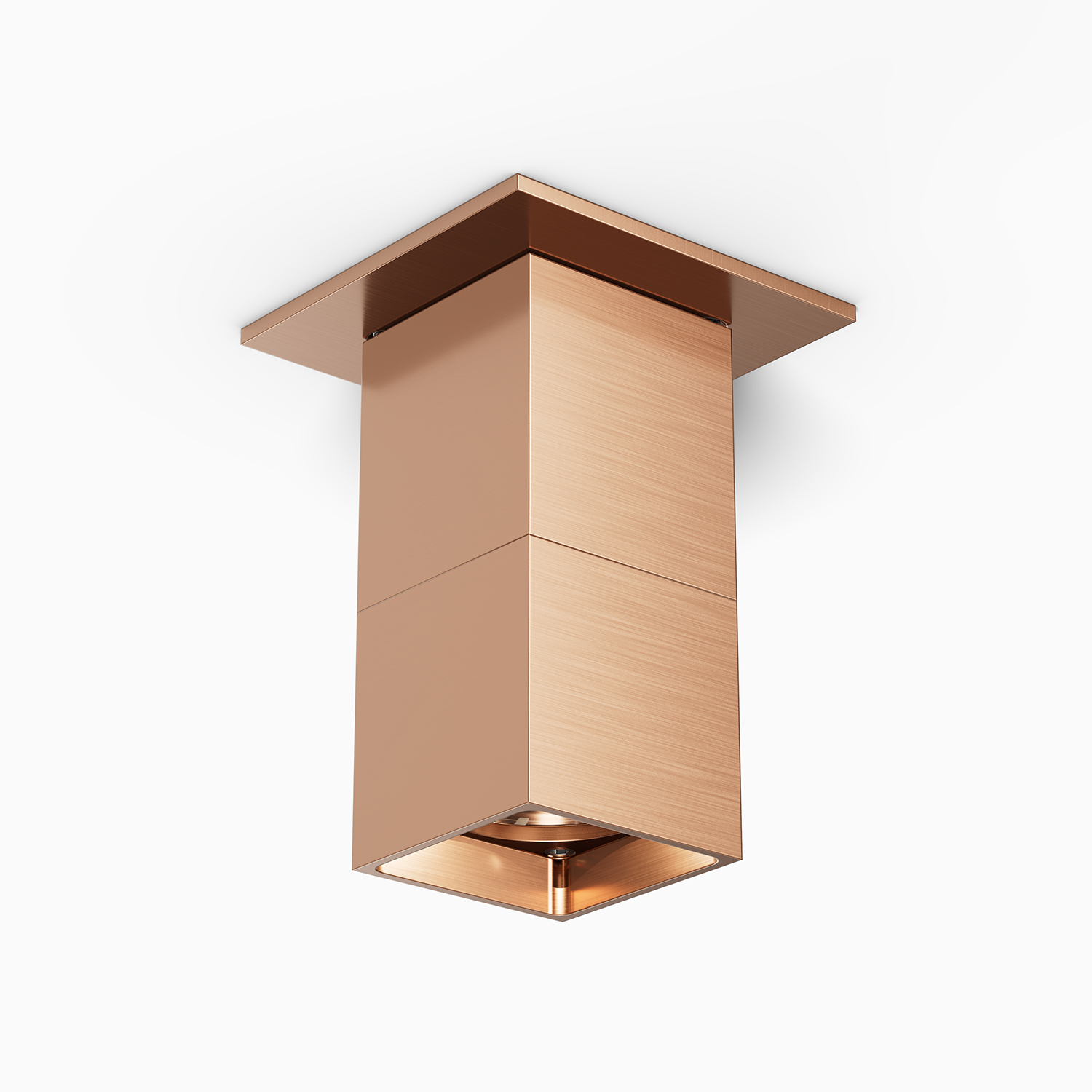

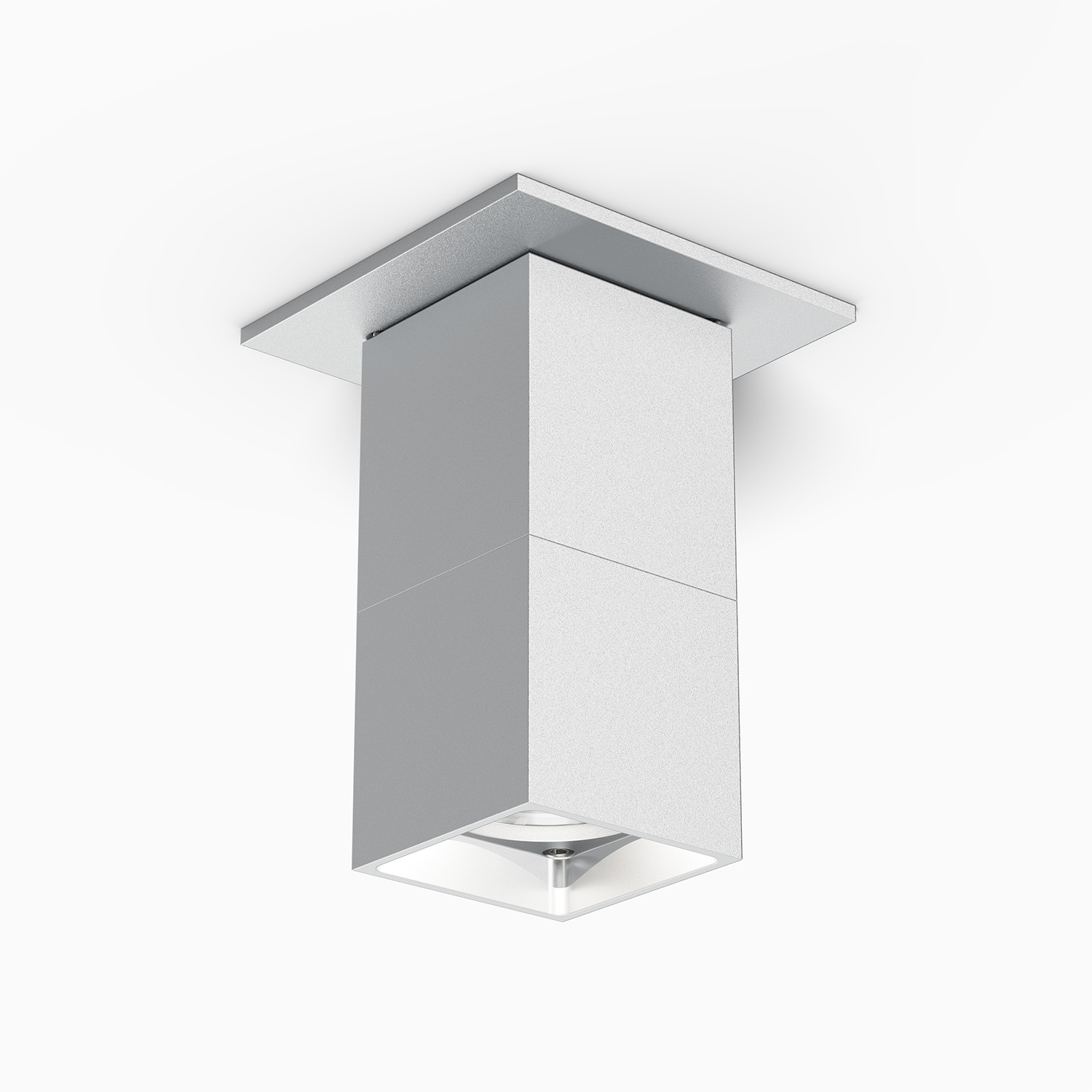

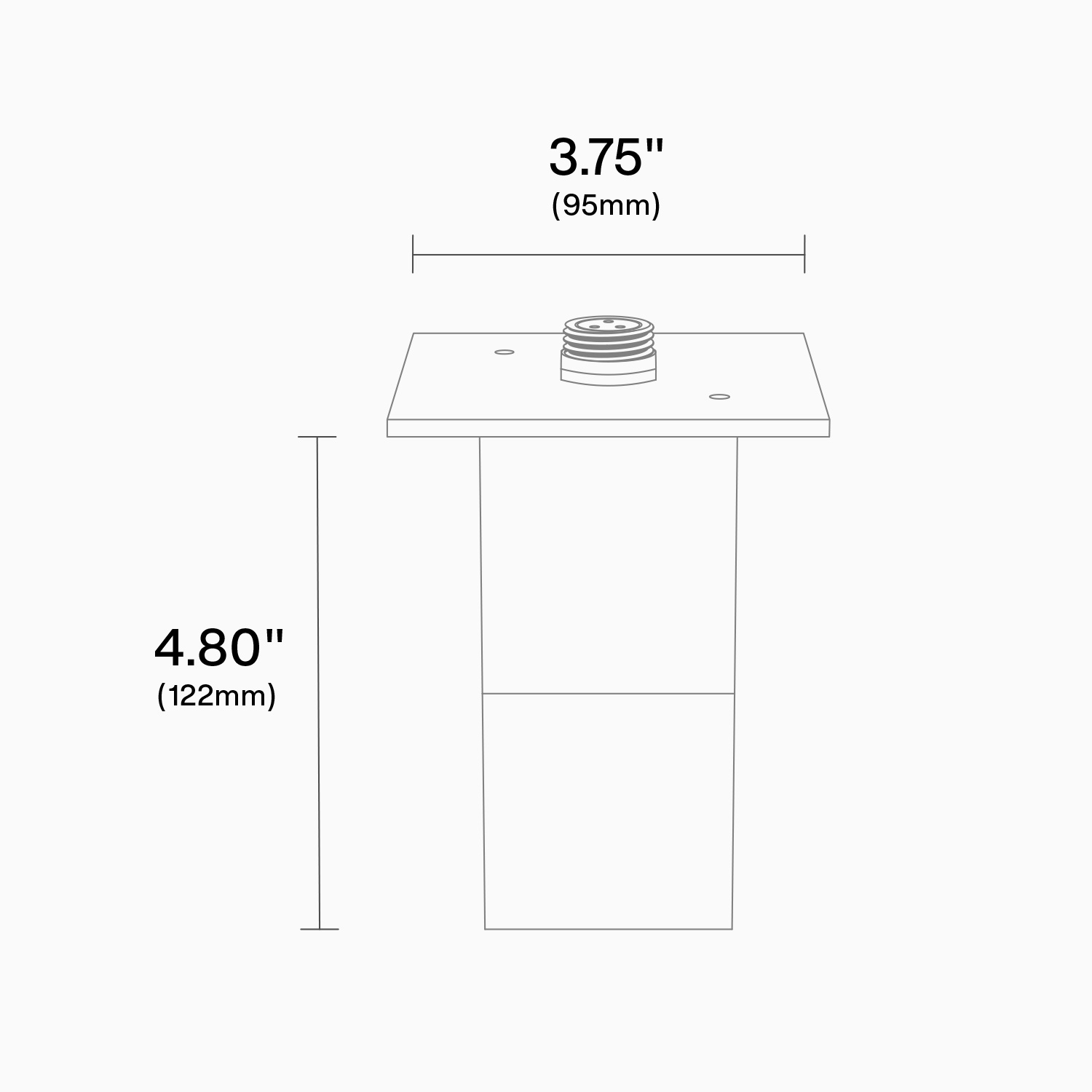

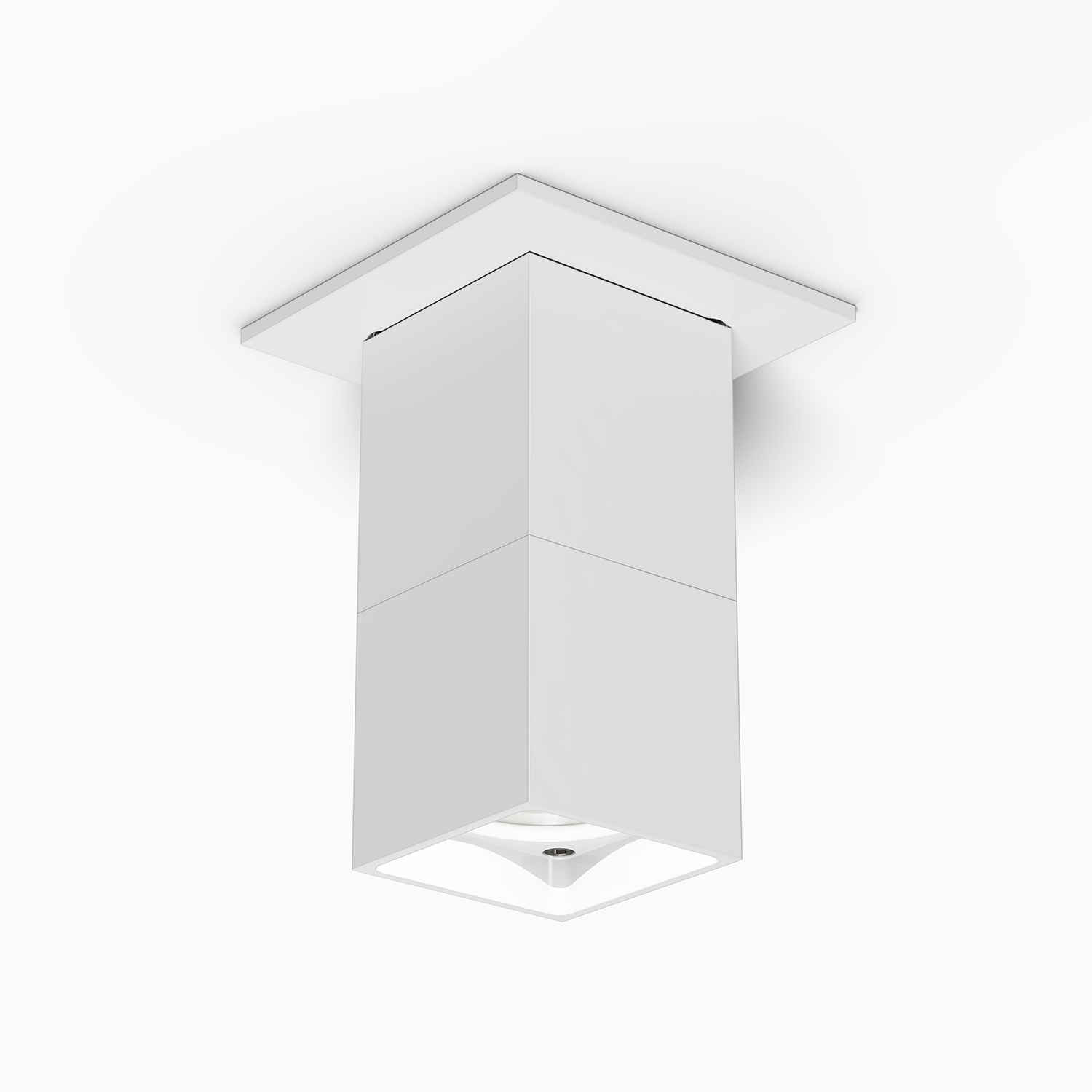

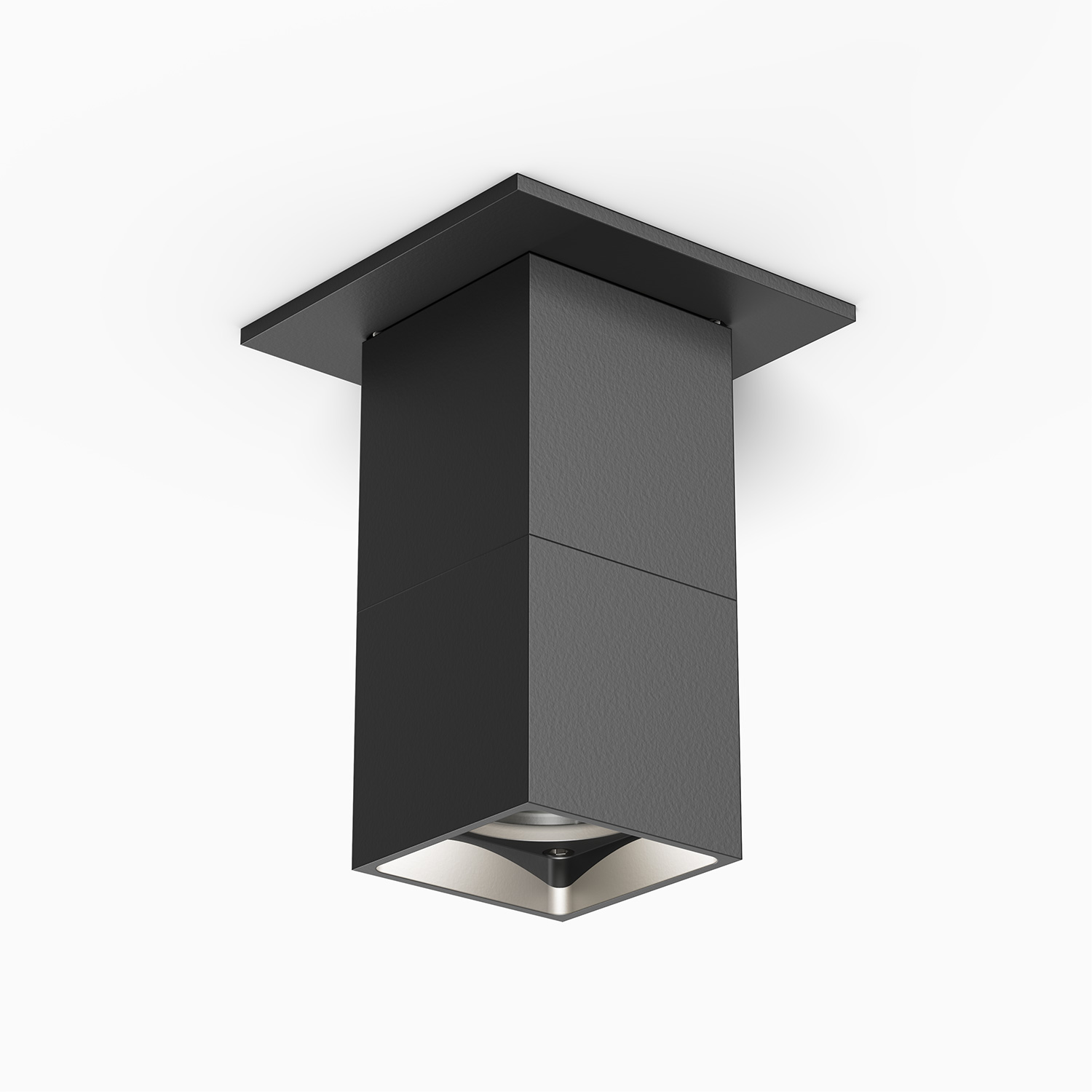

Compact 2.25" square, GU10 lamp-based, line-voltage downlight for architectural outdoor applications.
FEATURES:
- Flexible lamp configurations support SORAA® LED lamps with integrated heat sink or compatible GU10 LED and halogen lamps.
- Wet Location Listed, IP65 Standard.
- Machined from solid billet aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
- Accepts up to three optical accessories, including hexcel louvers, spread lenses, and color filters.
- Available with adjustable angled, long, and short glare shields, with canopy and surface mounting options.
- Every fixture tested end of line for water tightness and light quality.
Materials

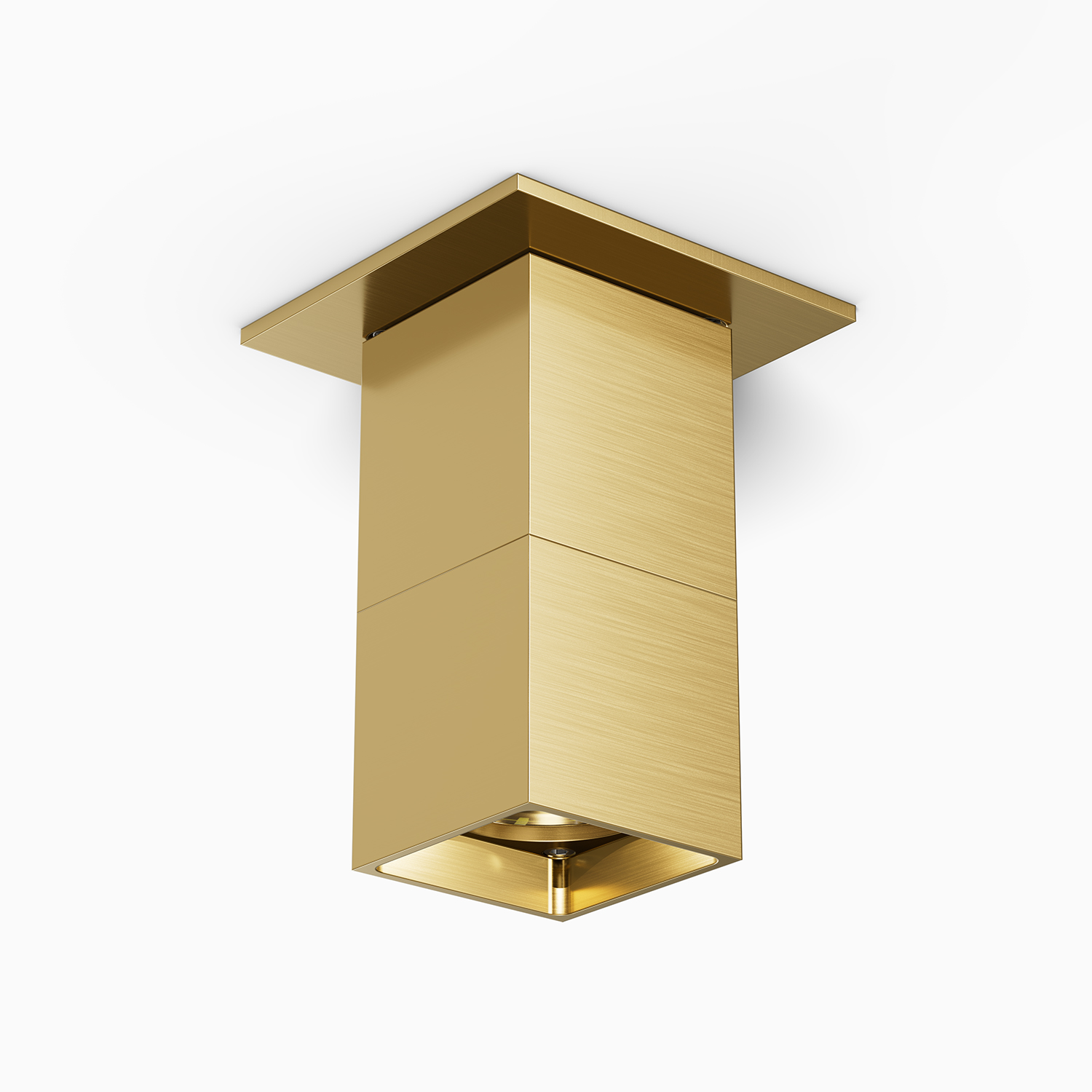

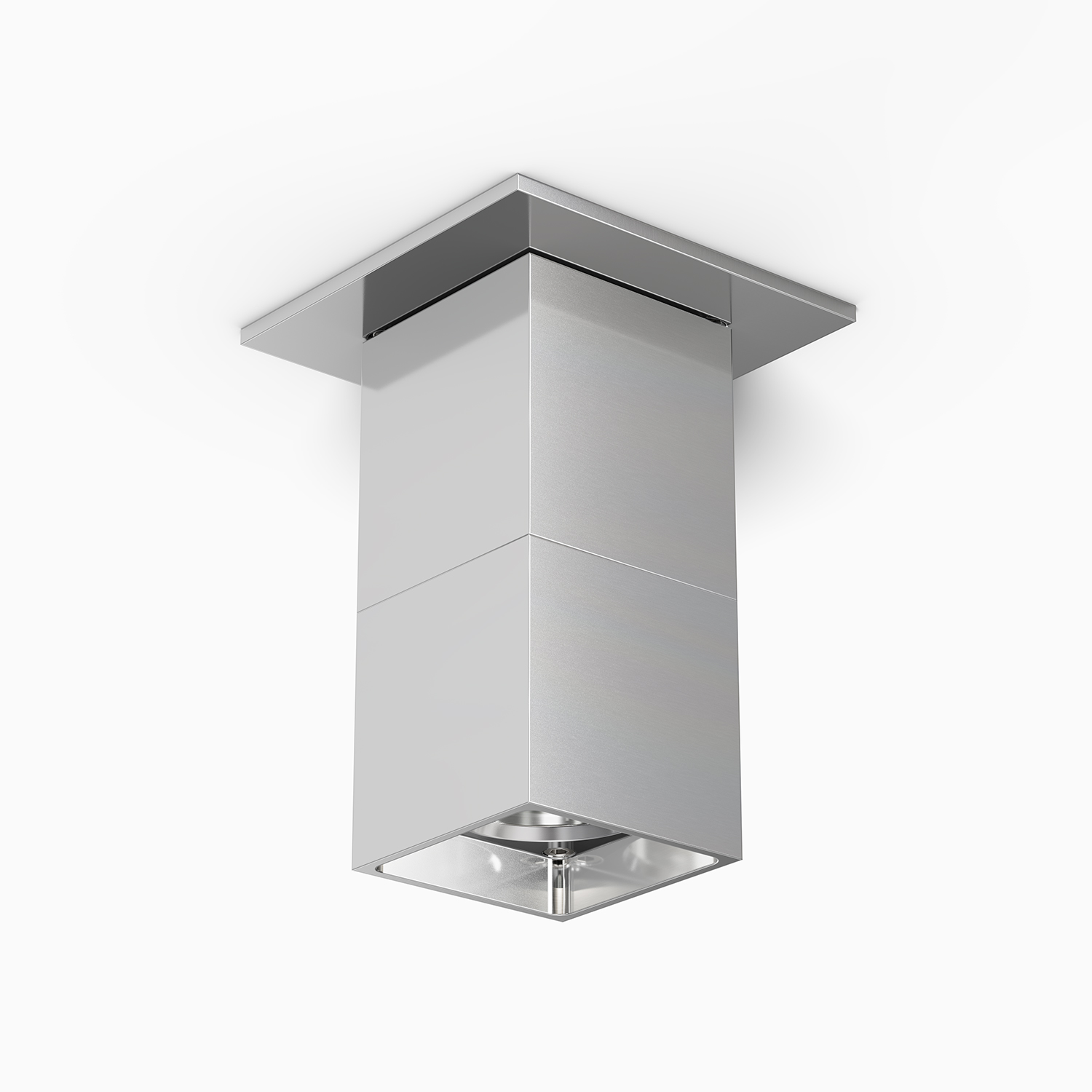

Machined from solid billet 6061-T6 corrosion-resistant aluminum with 316 stainless steel hardware. Available in 316 stainless steel or 360 brass upon request.
Voltage
120V or 230V AC.
Optics
Provided SORAA Lamp delivers 10º beam spread. Select optional SORAA Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 accessory pieces (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring. (See Ordering Guide for available SORAA lamp options).
Finish
Aluminum materials are anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
Max 9W for SORAA GU10 lamp with Thermobuster. Max 50W for halogen lamp.
Mounting
Includes CM3 4.75" Canopy Plate (2X) 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Hood and Glare Shield
Non-weeping Hood Style. Set screw mounted Angled, Short, or Long Glare Shields. (See page 4 of spec sheet for details)
Light Engine
GU10 Halogen or GU10 SORAA LED lamp. Compatible with SORAA Brilliant HL and other 120V GU10 lamp selections. (See Ordering Guide for available lamp options and specifications)
Listings
ETL Listed for Wet Location, IP65 Standard. RoHS Compliant.
Dimming
MLV, ELV Phase Control Dimming at 120V. Please refer to website for SORAA GU10 dimmer compatibility
