11W ( 960lm ) | 120V, 230V | SORAA, Halogen
ZD20
11W ( 960lm ) | 120V, 230V | SORAA, Halogen
(includes former ZX20-CM & ZX20-CM-SOi models)

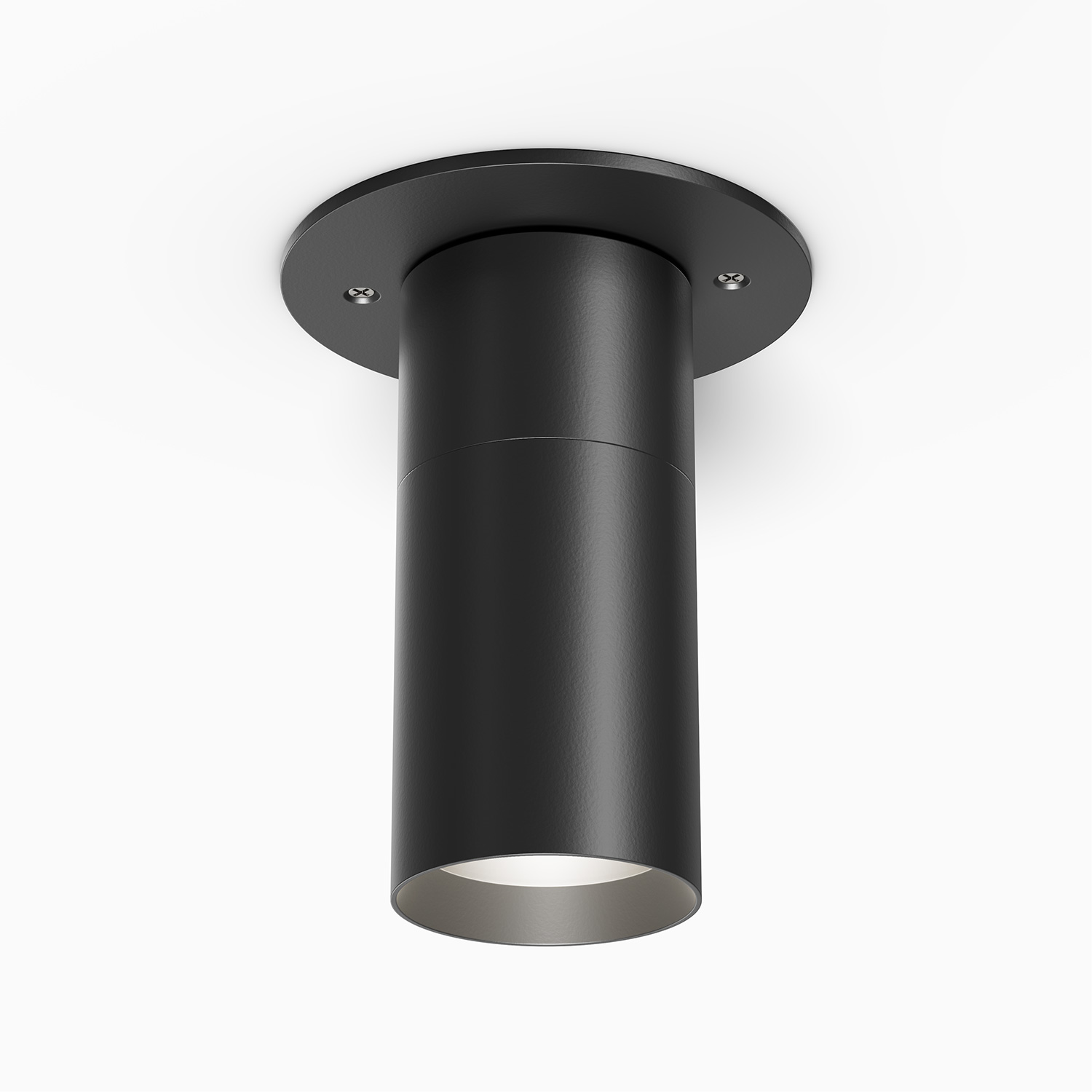

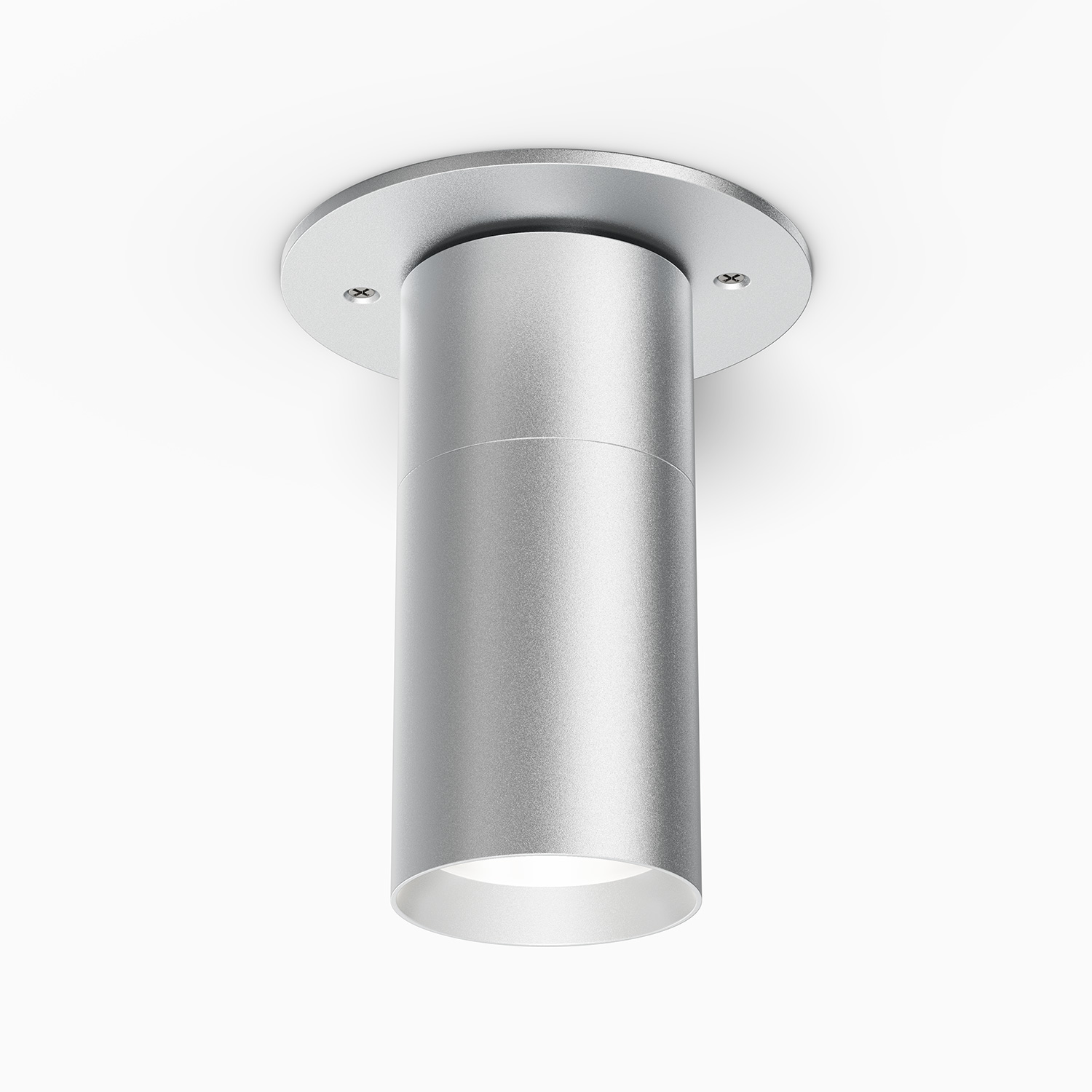

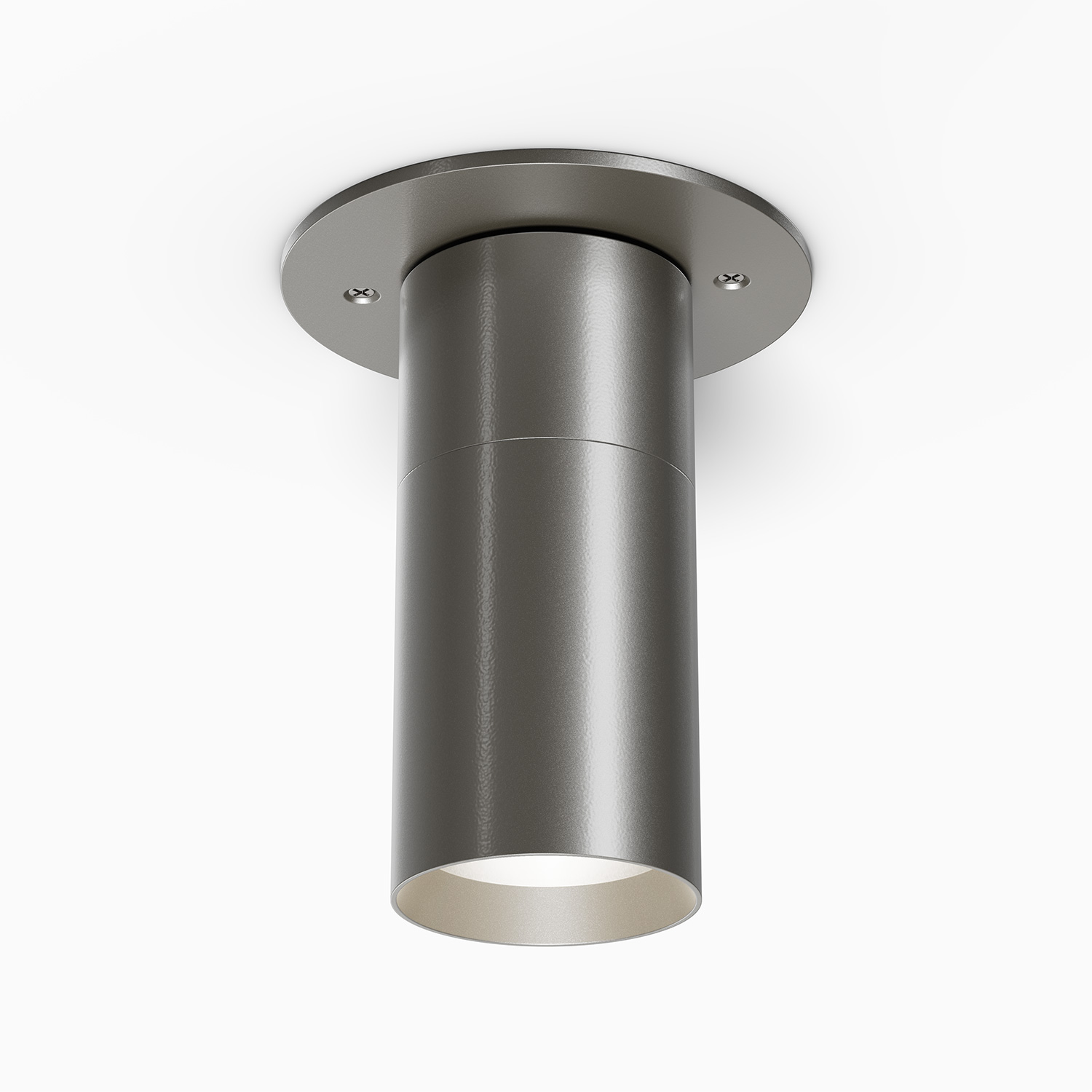

2.75" round, PAR20 lamp-based, line-voltage downlight for architectural outdoor applications.
FEATURES:
- Flexible lamp configurations include SORAA® LED lamps with integrated heat sink or compatible PAR20 LED and halogen lamps.
- Wet Location Listed, IP65 Standard.
- Machined from solid billet aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
- Accepts up to three optical accessories, including hexcel louvers, spread lenses, and color filters.
- Available with adjustable angled, long, and short glare shields, canopy and surface mounting options.
- Every fixture tested end of line for water tightness and light quality.
Materials
Machined from solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 316 stainless steel or 360 brass upon request.
Voltage
120V or 230V AC.
Optics
Provided SORAA Lamp delivers 10º beam spread. Select optional SORAA Snap System Beam Spreader magnetic lenses to expand optical beam up to 60º. Accepts up to 3 accessory pieces (hexcel louver, optical lenses, etc.). Secured in place with metal snap ring. (See Ordering Guide for available SORAA lamp options).
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 11W for SORAA PAR20 lamp.
Mounting

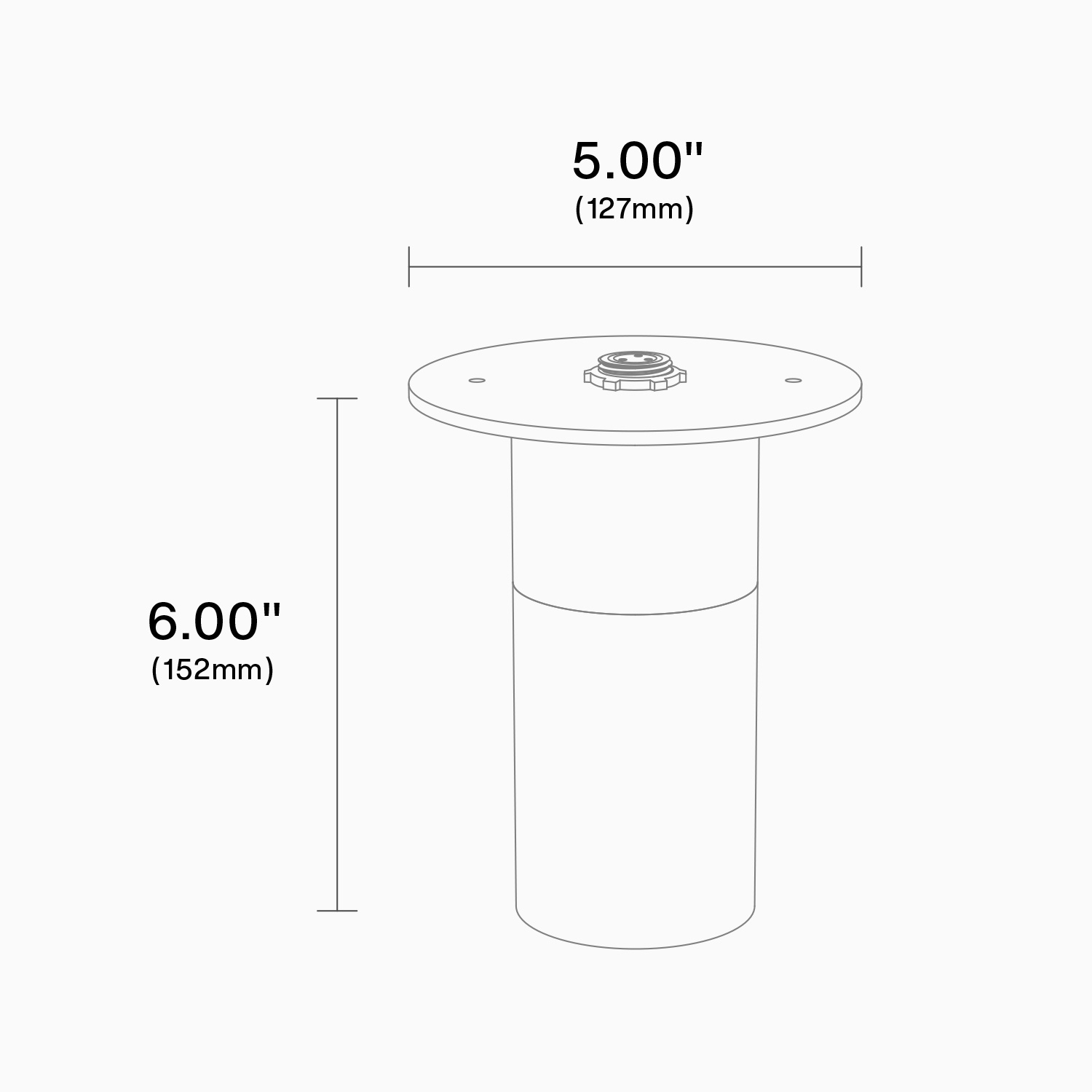

Includes CM5 5" Canopy Plate and (2X) 8-32 UNC machine screws to attach to a standard 3O or 3R recessed back box (provided by others).
Hood and Glare Shield
Non-weeping Hood Styles. Set screw mounted Angled, Short, or Long Glare Shields. (See page 4 of spec sheet for details)
Light Engine
PAR20 Halogen lamp or PAR20 SORAA LED lamp. (See Ordering Guide for available lamp options and specifications)
Listings
ETL Listed for Wet Location, IP65 Standard. RoHS Compliant.
Lamp Base/Socket
Standard PAR20 E26.
Dimming
Phase dimming, with trailing edge dimming preferable. Please refer to website for SORAA PAR20 dimmer compatibility.
