5–10W ( 400–1000lm ) | 120V–277V | HK LED, RGBW
ZDL16-I Square
5–10W ( 400–1000lm ) | 120V–277V | HK LED, RGBW
(includes former ZXL16i-CM-SQ & ZXL16i-CM-SQ-NF models)

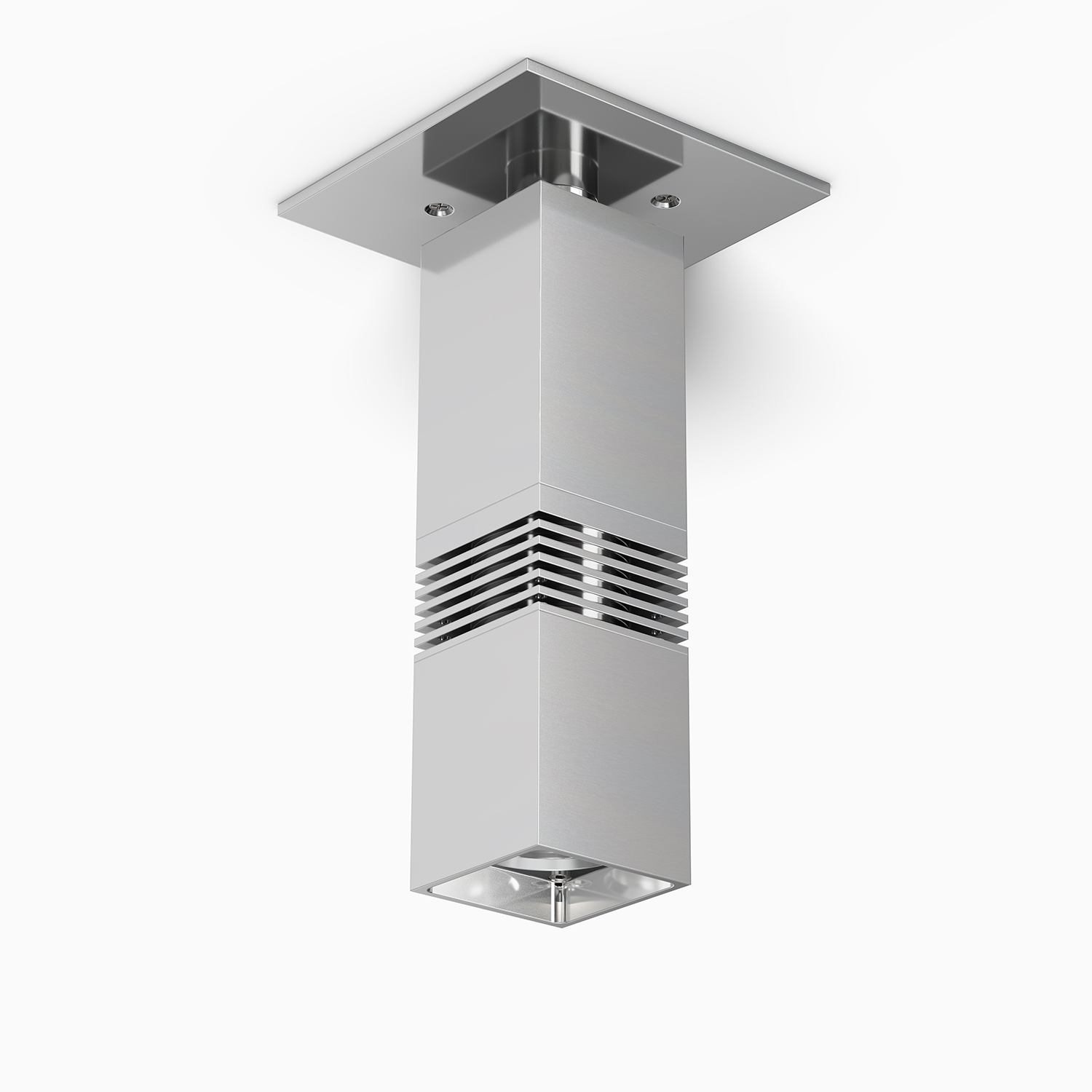

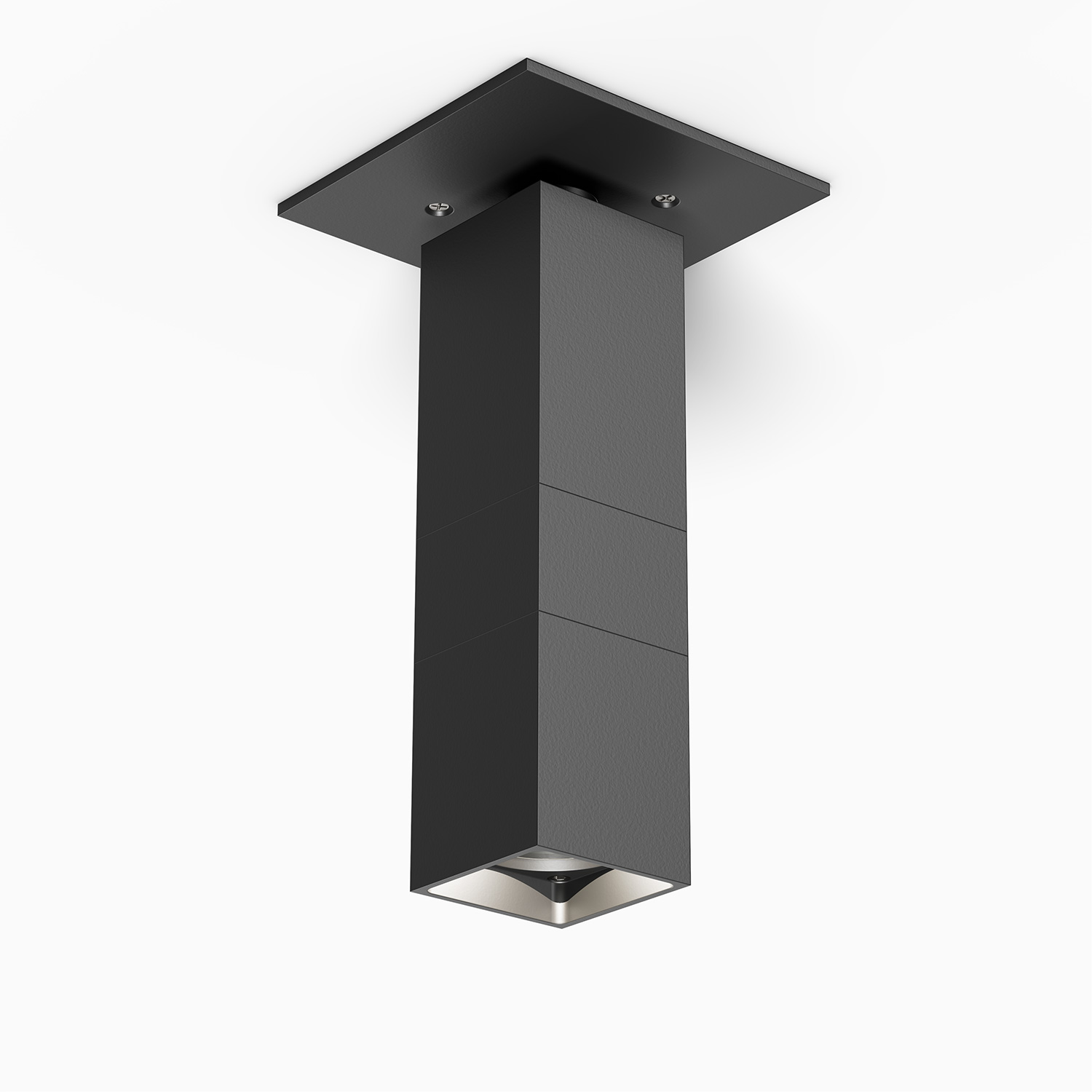

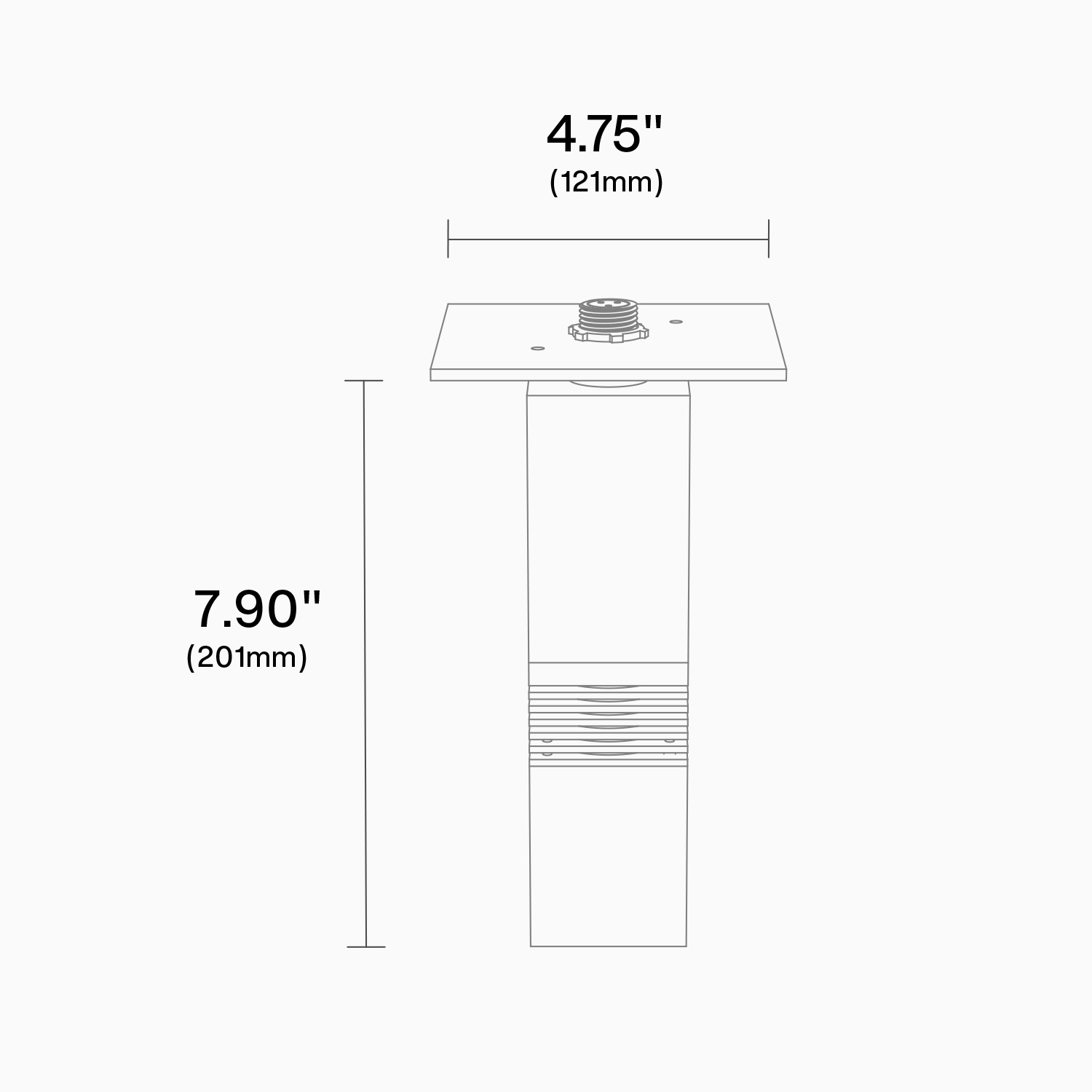

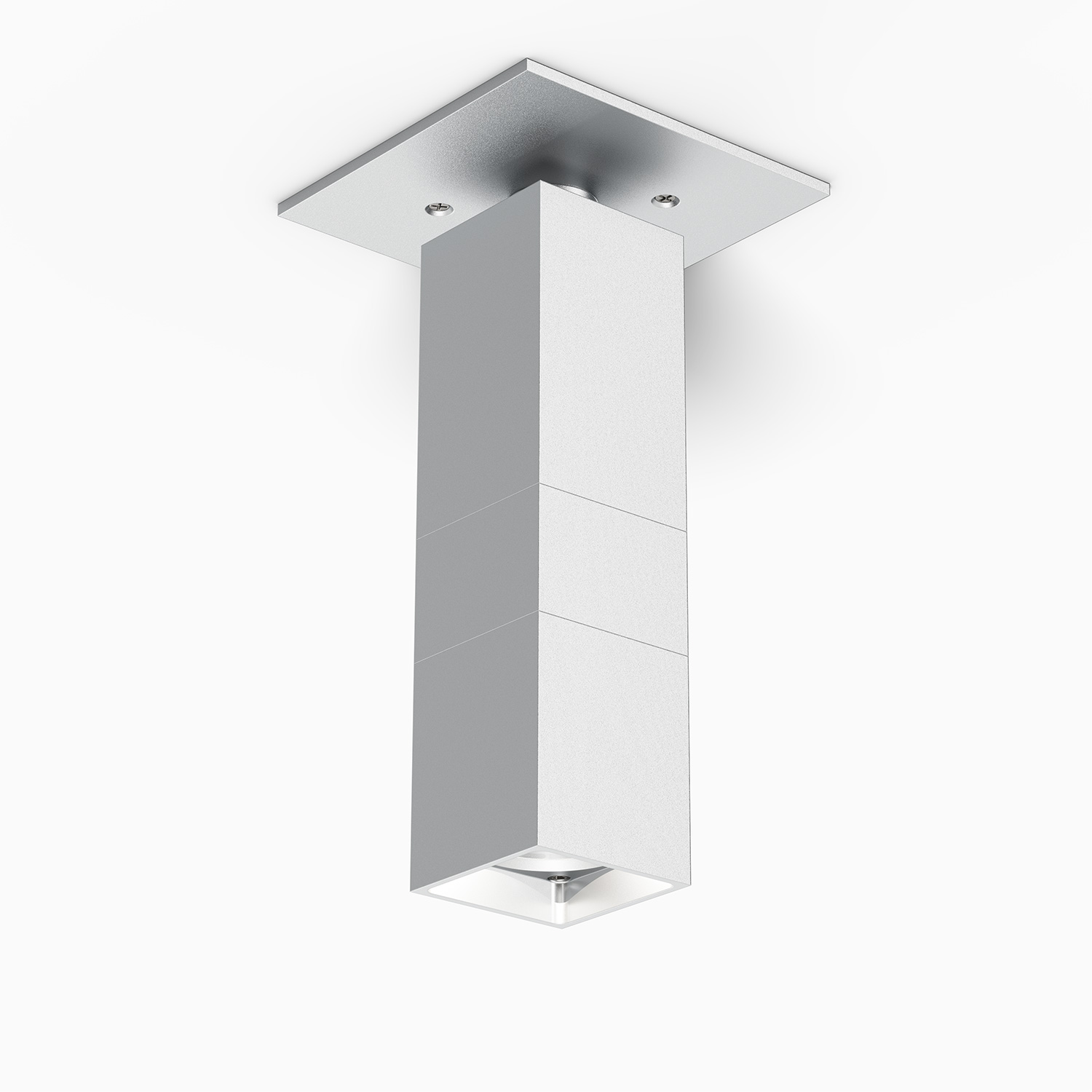

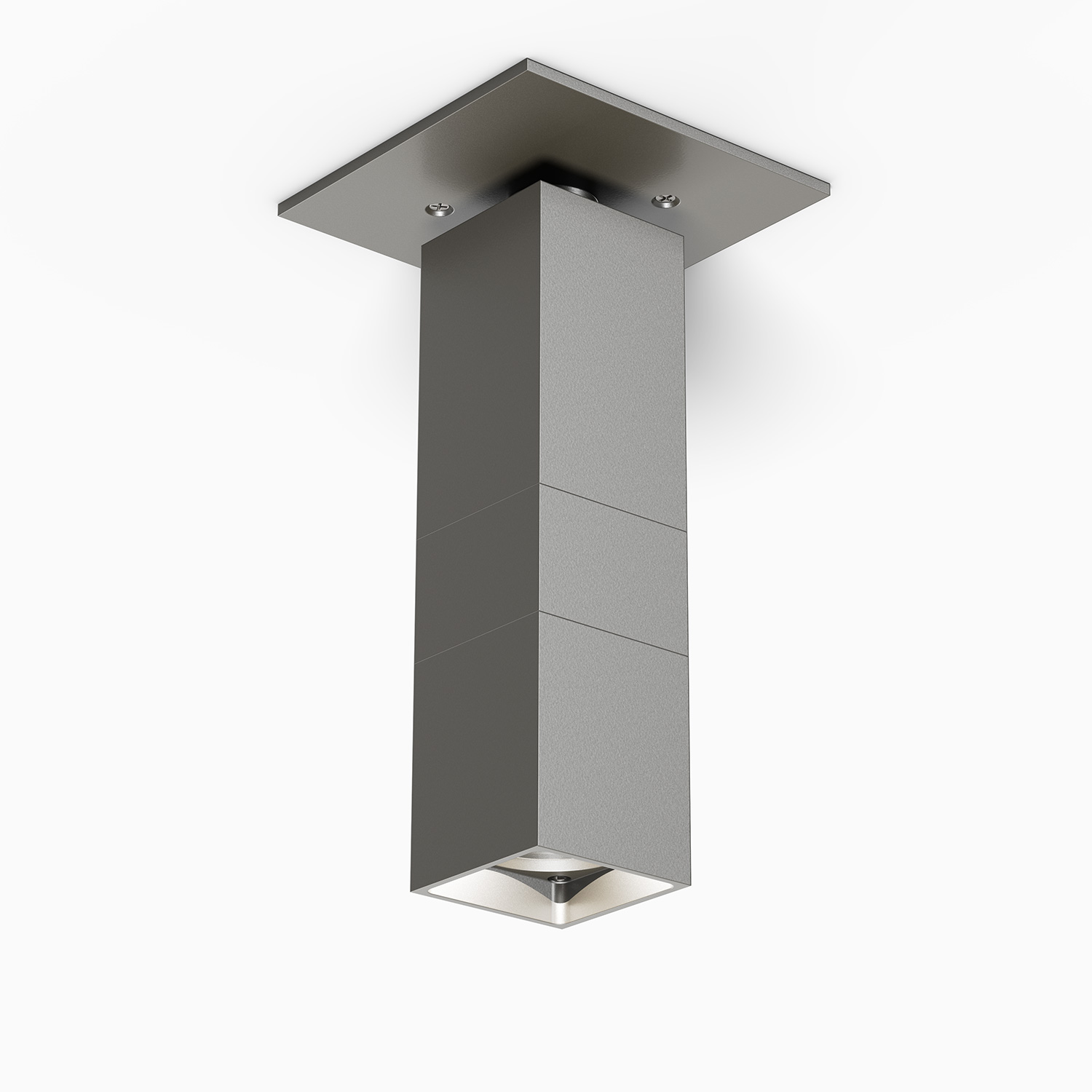

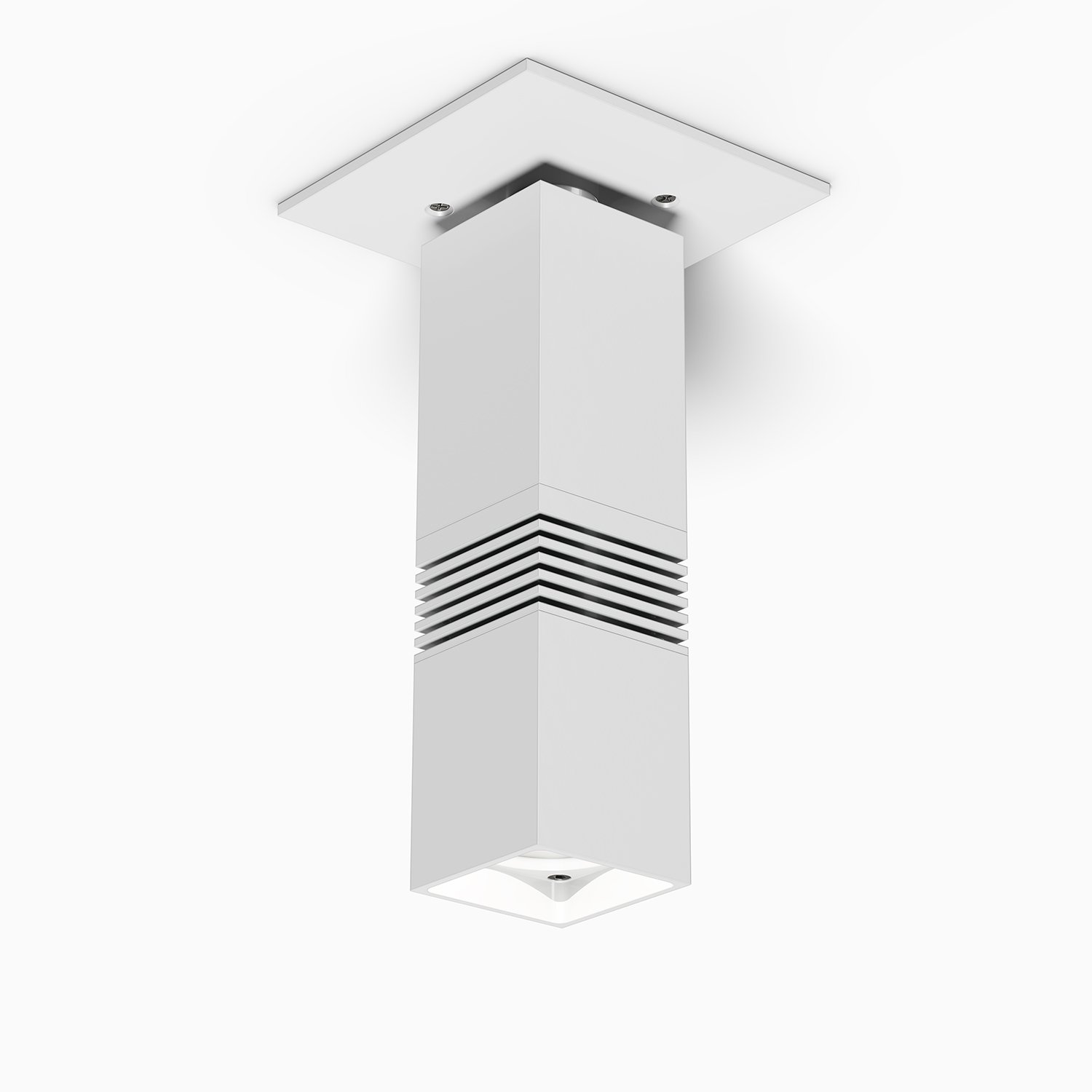

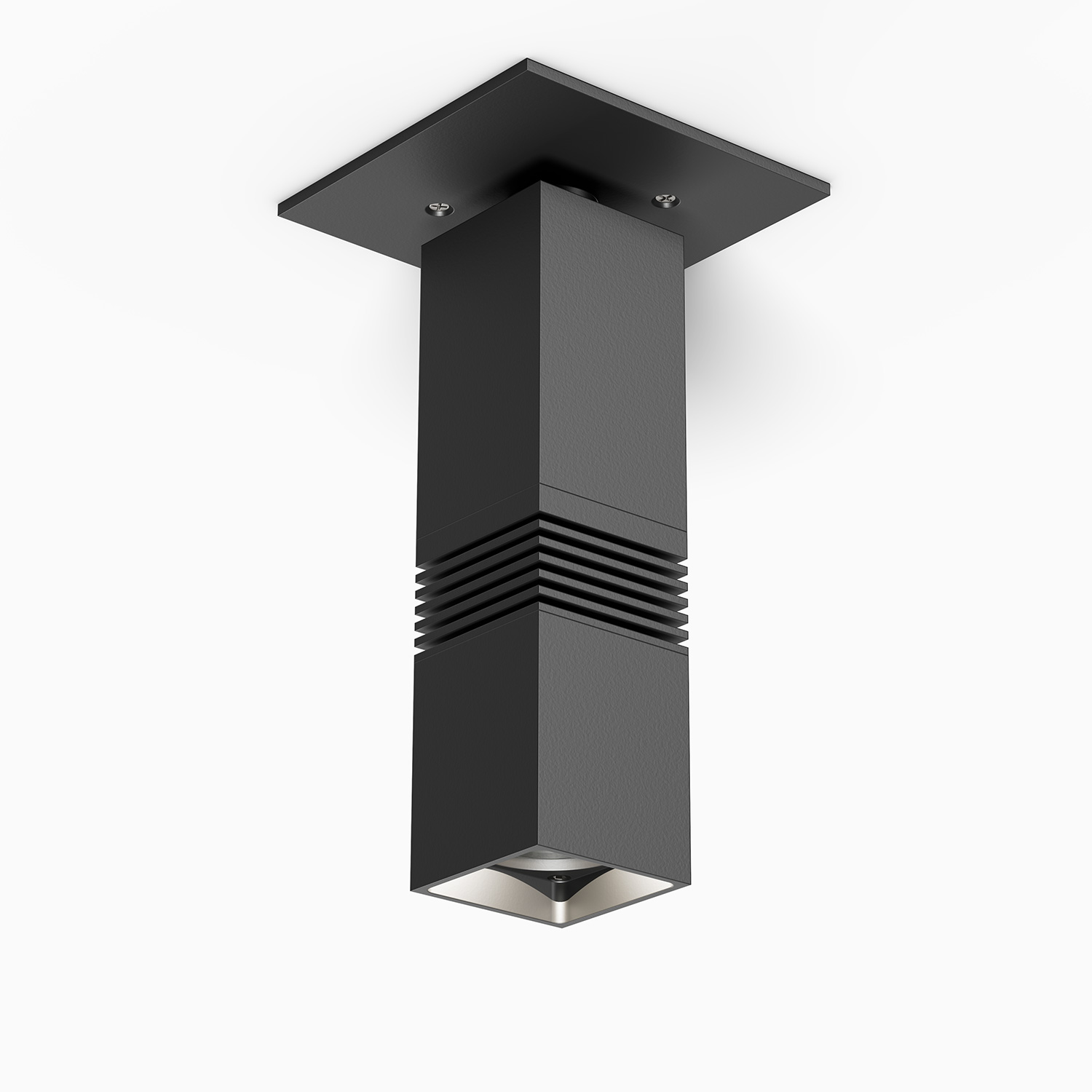

Compact 2.25" square, integrated LED, line-voltage downlight for architectural outdoor applications.
FEATURES:
- 5W, 7W, 10W integrated HK LED delivering 400–1000 lumens. 2200–4000K CCT, including specialty RGBW option.
- Wet Location Listed, IP65 Standard.

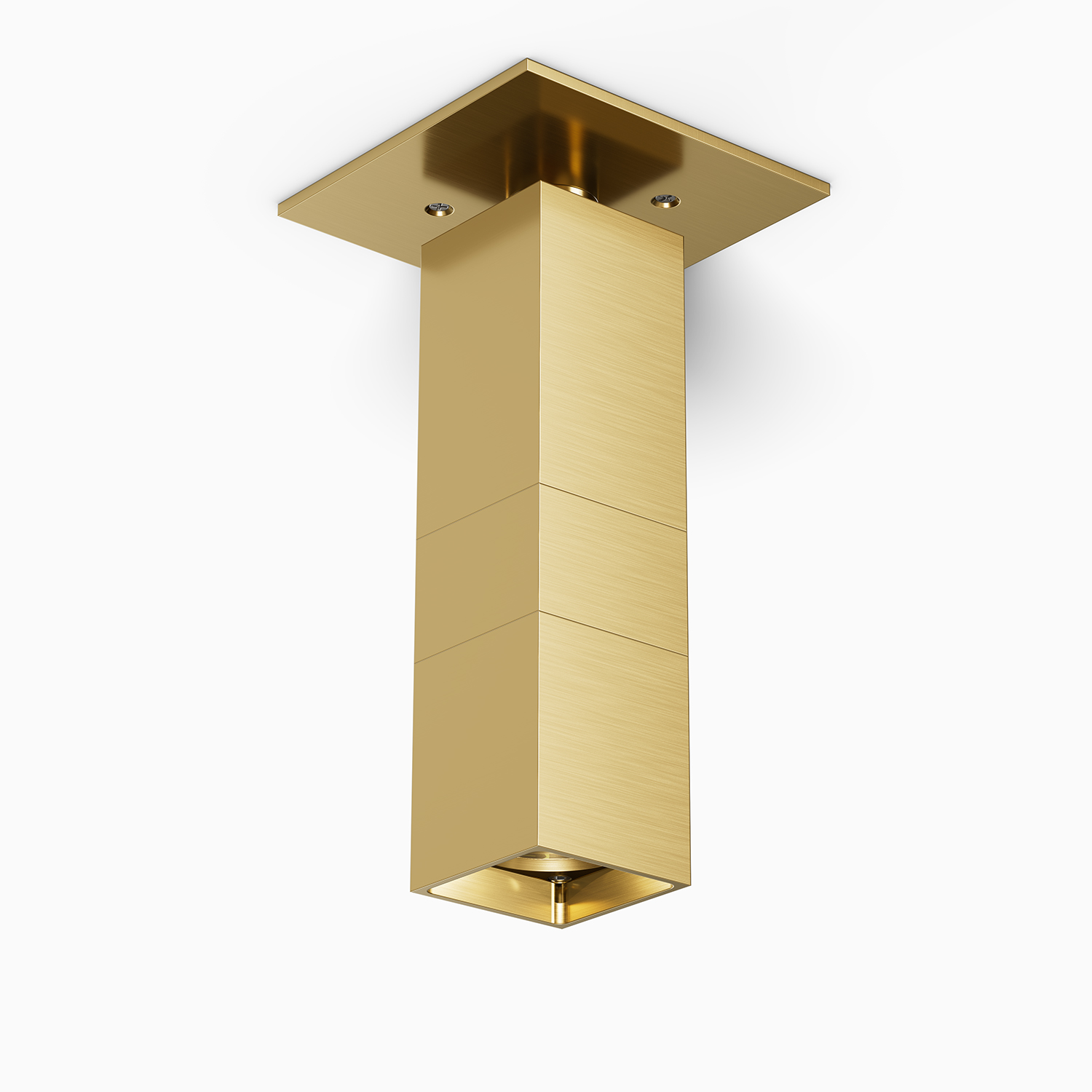

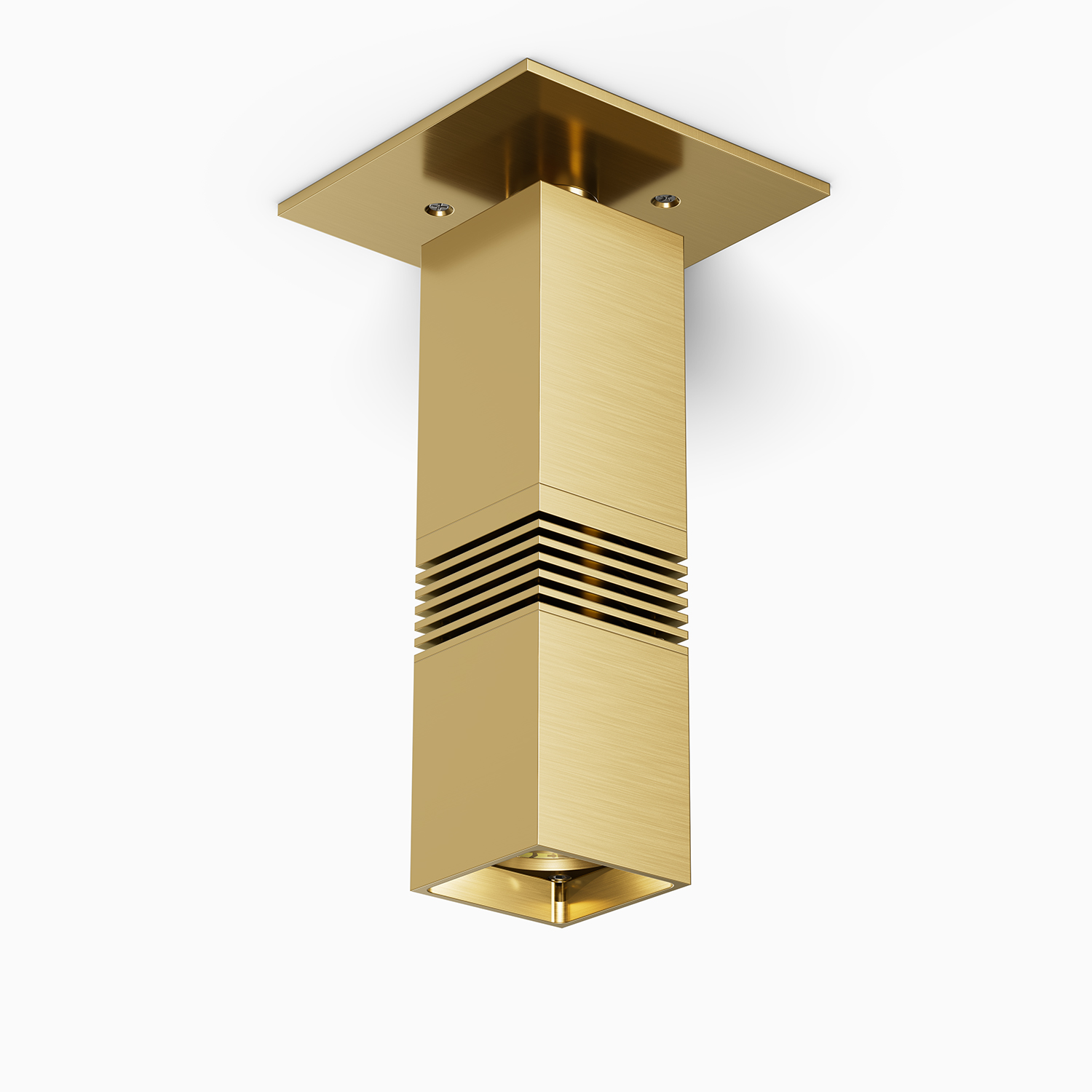

- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
- Modular component design with configurable optical beam angles and accessory lenses.
- Includes CM3 4.75″ canopy plate. Adjustable angled, long, and short glare shields, along with additional canopy and surface mount options,
are available. - Every fixture tested end of line for water tightness and light quality.
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Voltage
120V–277V AC.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7, or 10W HK LED delivers 400–1000 lumens.
Mounting
Includes CM3 4.75" Square Canopy Plate and (2X) 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Hood and Glare Shield
Non-weeping Hood Style. Set screw mounted Angled, Short, or Long Glare Shields. (See page 4 for details)
Light Engine
CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and RGBW options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP65 Standard. RoHS Compliant.
Driver/Dimming
Onboard, Integrated LED Driver Phase Control @120V, 0V–10V @120V–277V, DALI or DMX control available, consult factory for details.
