21–28W ( 2000–2700lm ) | 120V–277V | HK LED, RGBW
ZDL20-I Square
21–28W ( 2000–2700lm ) | 120V–277V | HK LED, RGBW
(includes former ZXL20i-CM-SQ model)

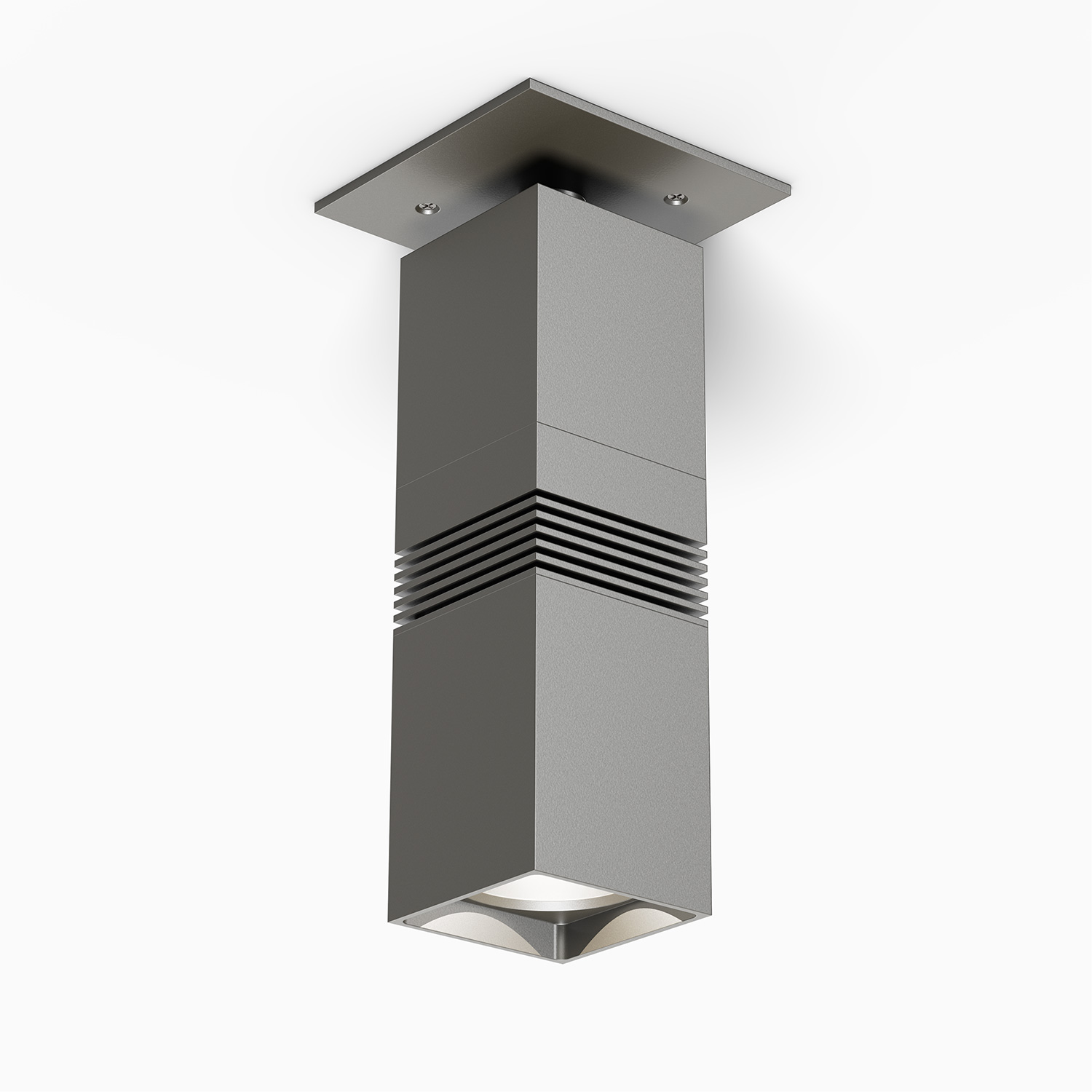

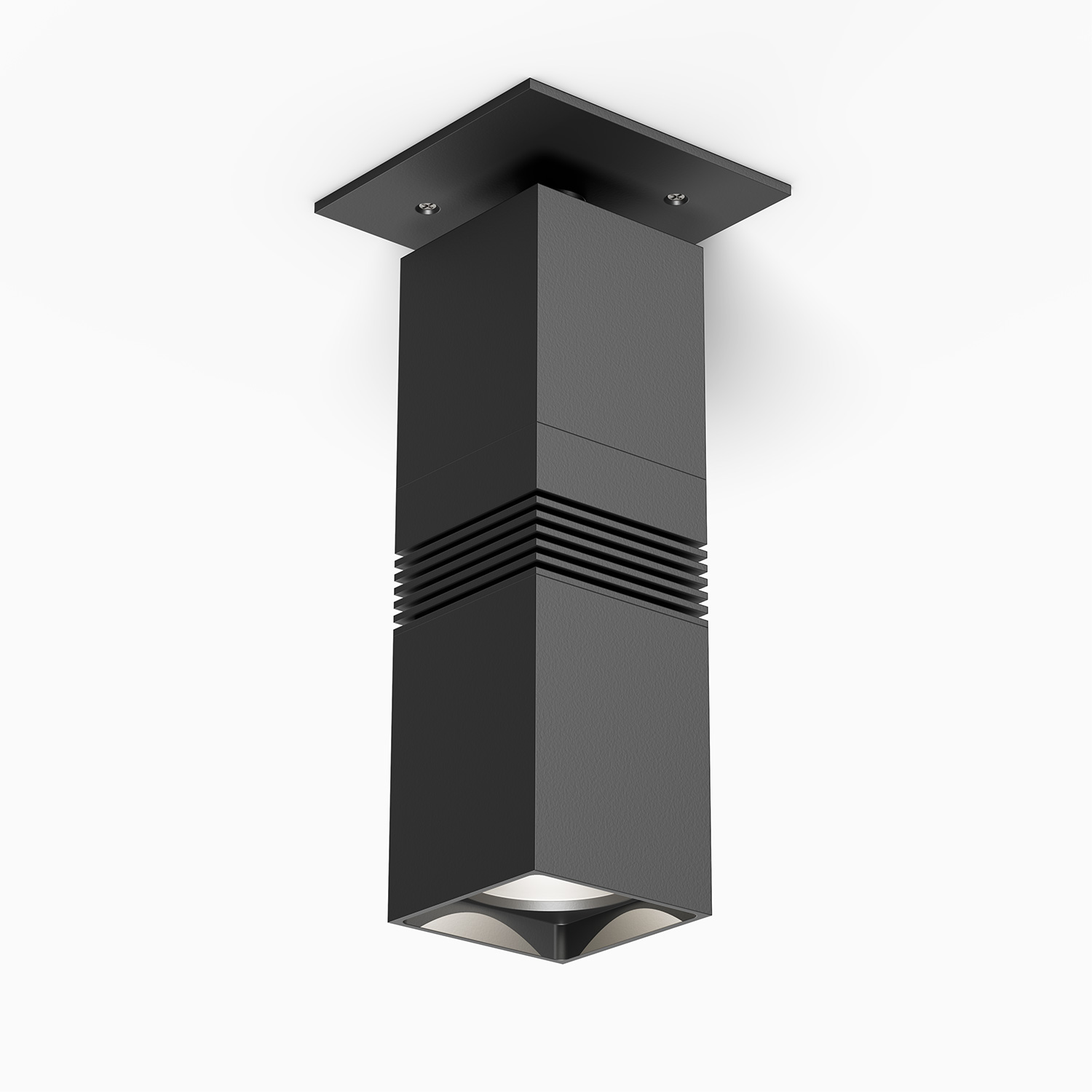

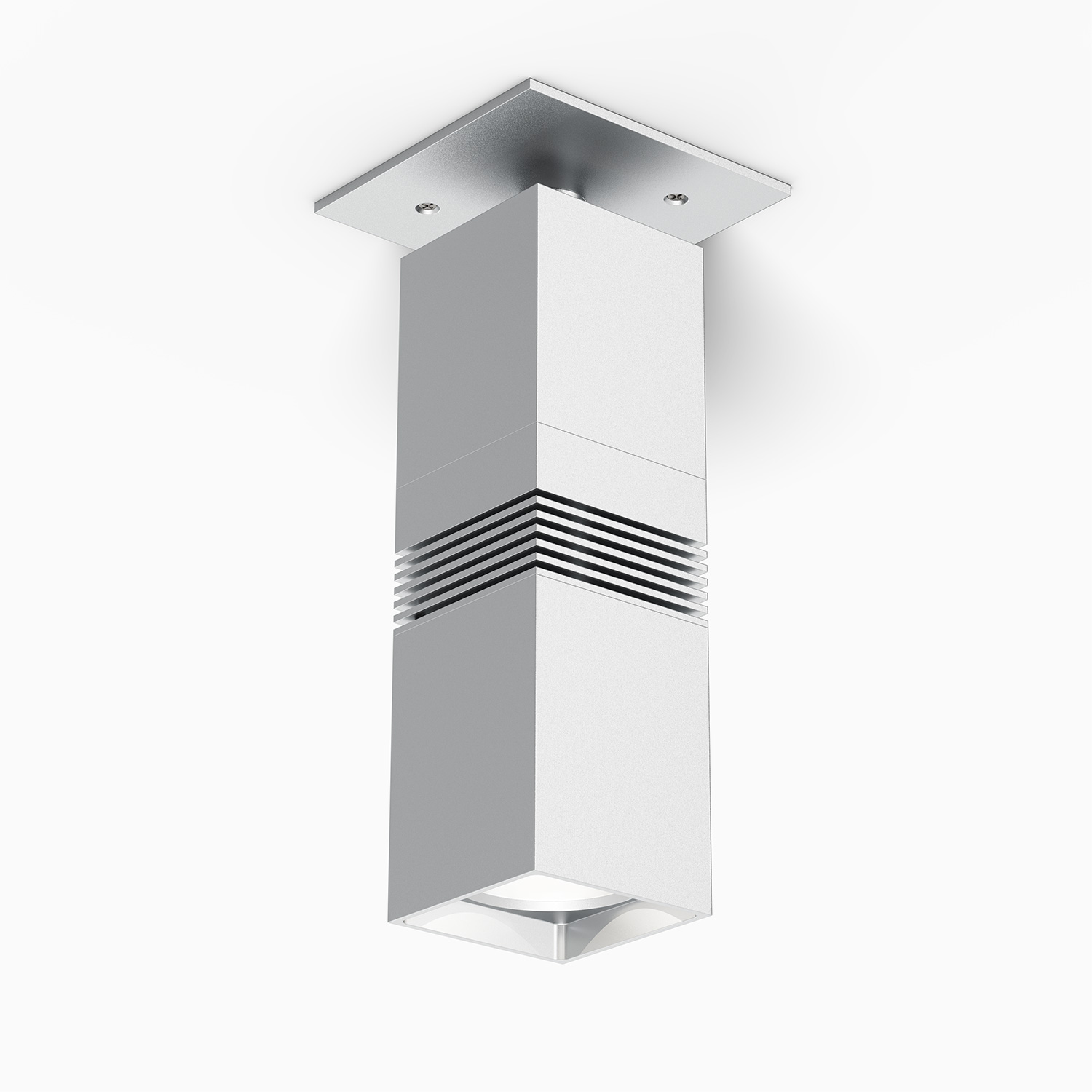

Powerful 3" square, integrated LED, line-voltage downlight for architectural outdoor applications.
FEATURES:
- 21W, 28W integrated HK LED delivering 2000–2700 lumens. 2200–4000K CCT, including specialty RGBW option.
- Wet Location Listed, IP65 Standard.
- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
- Modular component design with configurable optical beam angles and accessory lenses.
- Includes CM3 4.75″ canopy plate. Adjustable angled, long, and short glare shields, along with additional canopy and surface mount options, are available.
- Every fixture tested end of line for water tightness and light quality.
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V–277V AC.
Optics
Narrow (16º), Medium (26º), Wide (40º), and Extra Wide (60º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
21 or 28W HK LED delivers 2000–2700 lumens.
Mounting
Includes CM3 4.75" Canopy Plate and (2X) 8-32 UNC machine screws to attach to a standard 3O or 3R recessed back box (provided by others).
Hood and Glare Shield
Non-weeping Hood Style. Set screw mounted Angled, Short, or Long Glare Shields. (See page 4 of spec sheet for details)
Light Engine
CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and RGBW options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP65 Standard. RoHS Compliant.
Driver/Dimming
Onboard, Integrated LED Driver, Phase Control @120V, 0V–10V @120V–277V DALI or DMX control available, consult factory for details.
