Additional information

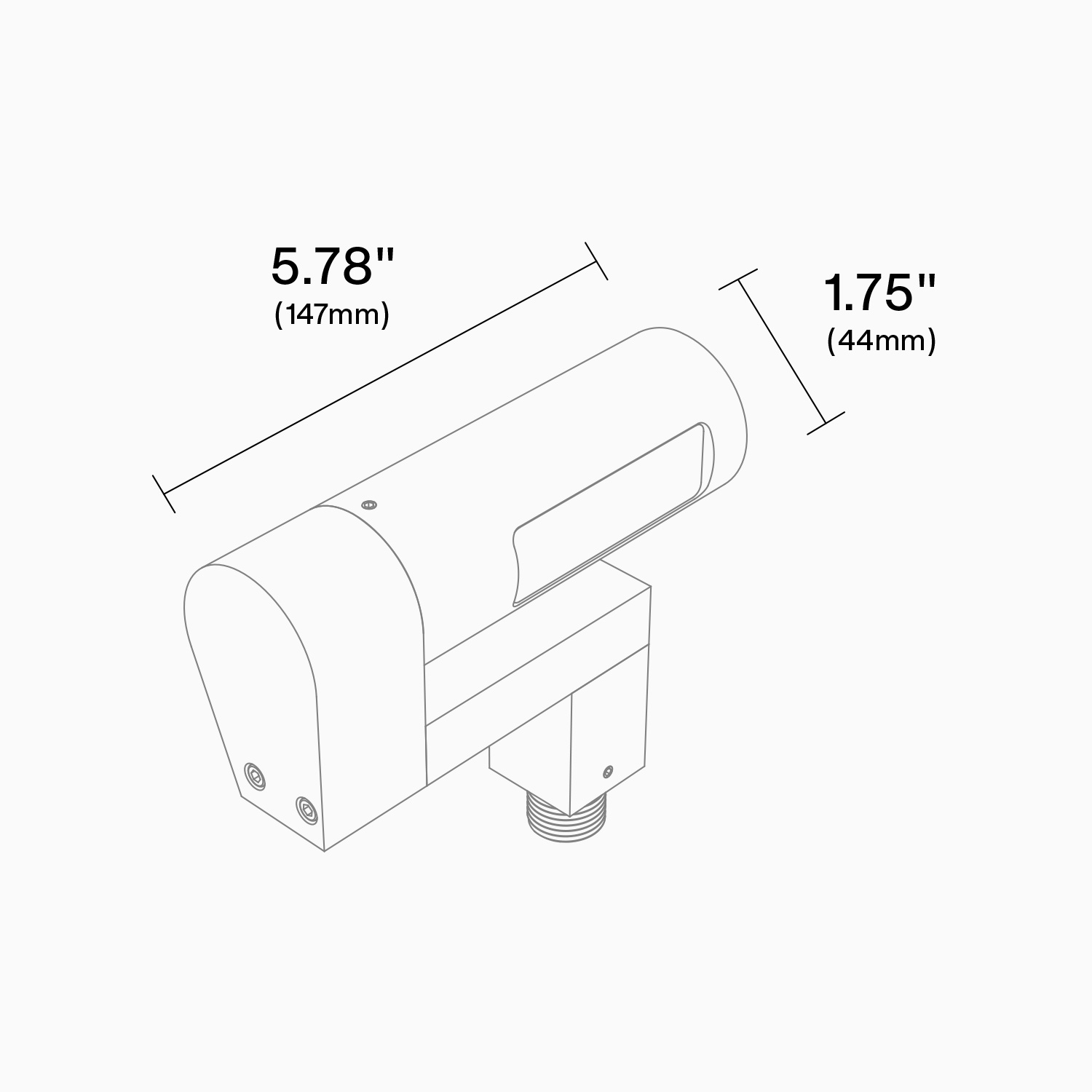

| Dimensions | 1.75 × 5.78 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |
ZFL11
FLOOD & WALL WASH | ZFL11 Series | 1.75"
4 - 8W ( 250 - 500lm) | 12V | HK LED, Amber
4 - 8W ( 250 - 500lm) | 12V | HK LED, Amber
ZFL11
FLOOD & WALL WASH | ZFL11 Series | 1.75"
4 - 8W ( 250 - 500lm) | 12V | HK LED, Amber
4 - 8W ( 250 - 500lm) | 12V | HK LED, Amber

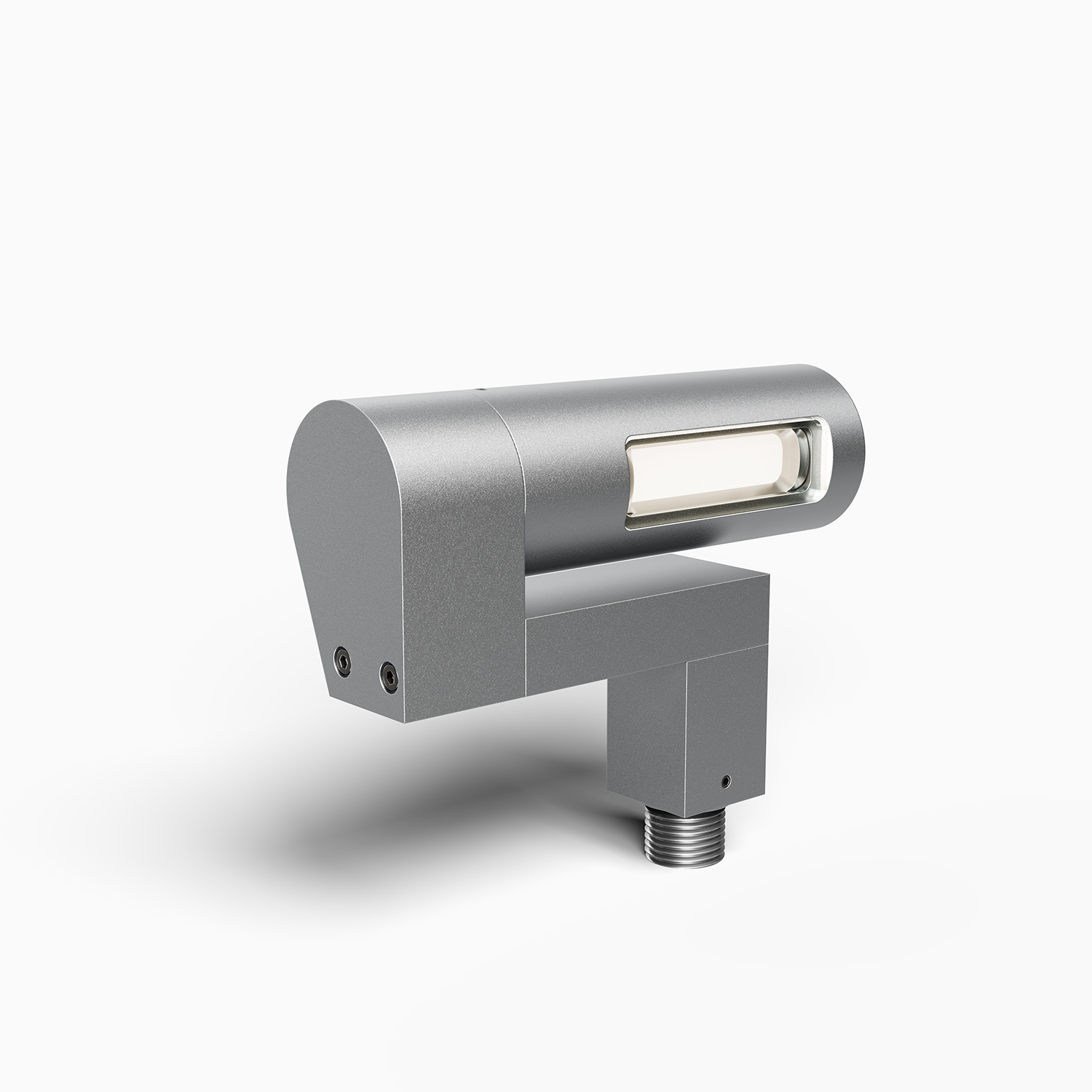

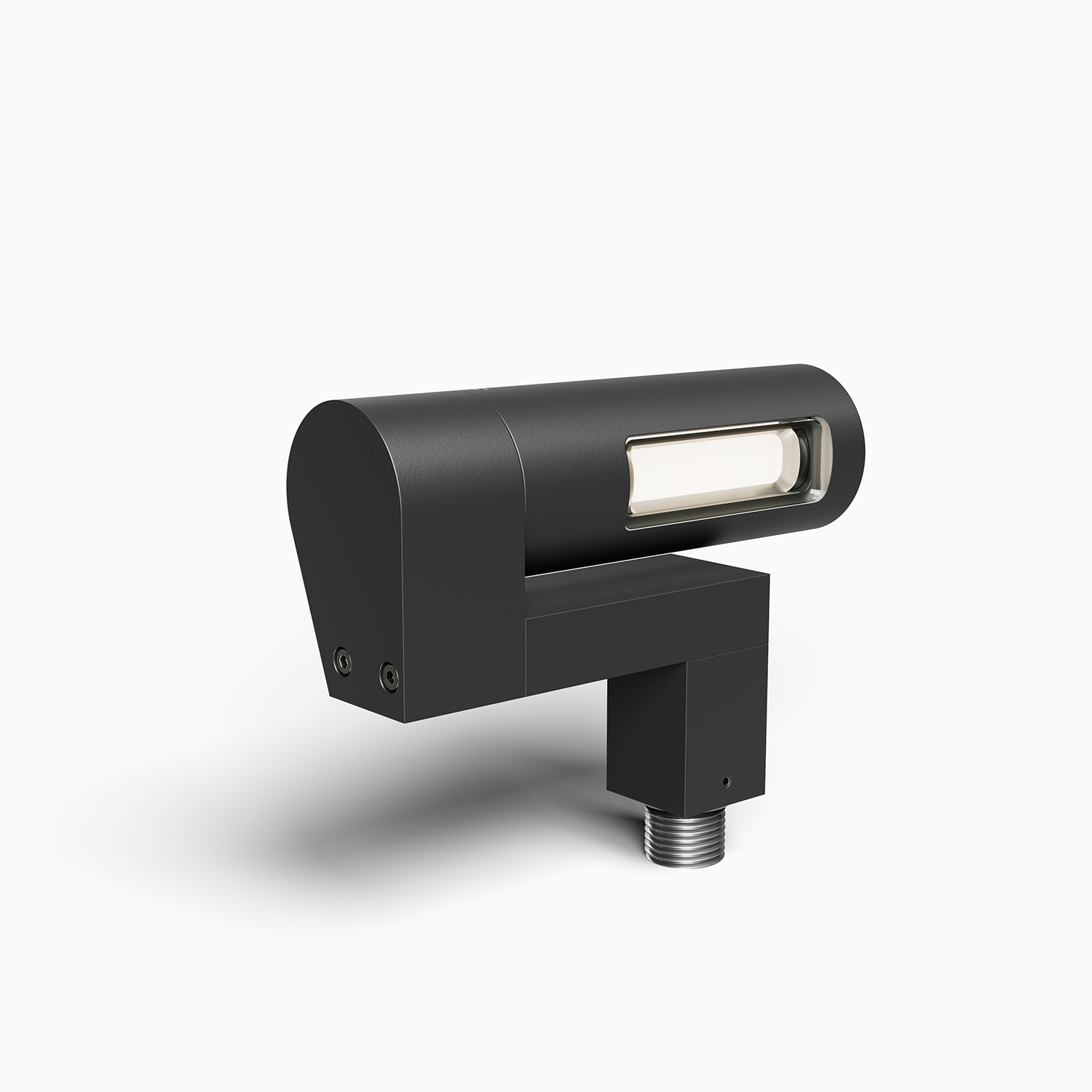

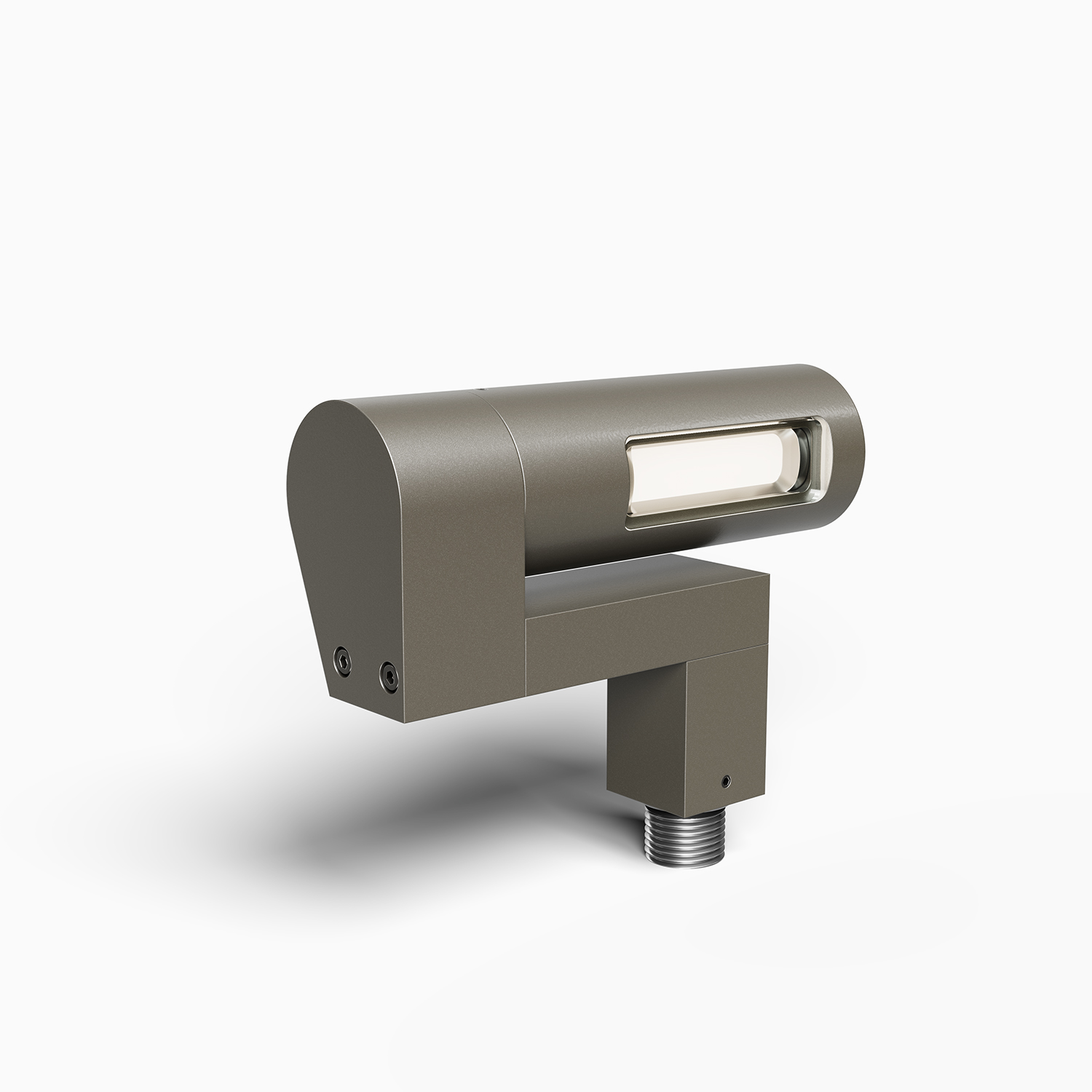

Strong 12V LED center pivot flood light for wall wash, landscape, hardscape, and signage illumination.
(includes former ZXLF-CPV model)
FEATURES:
- 4W, 8W integrated HK LED delivering 250 to 500 lumens. 2700K-4000K CCT, including specialty Amber option.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- 360° vertical and 360° horizontal adjustment via unique swivel stem design.
- Available ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Includes Solite Soft Focus lens for smooth, even distribution of light.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
4 or 8W HK LED delivering 250 to 500 lumens.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).
Optional Barn Door
Optional barn doors for glare control and precision cut off. (See page 4 of Spec Sheet for details).
Light Engine
Innovative HK LED light engine. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Amber option available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
MLV or ELV Phase Control dimming.
Accessories
