ZP16 (GU10)
PATH & BOLLARD | ZP16 Series | 2.25"
7.5W (600lm) | 120V, 230V | SORAA, LED Lamp, Halogen

ZP16 (GU10)

PATH & BOLLARD | ZP16 Series | 2.25"
7.5W (600lm) | 120V, 230V | SORAA, LED Lamp, Halogen

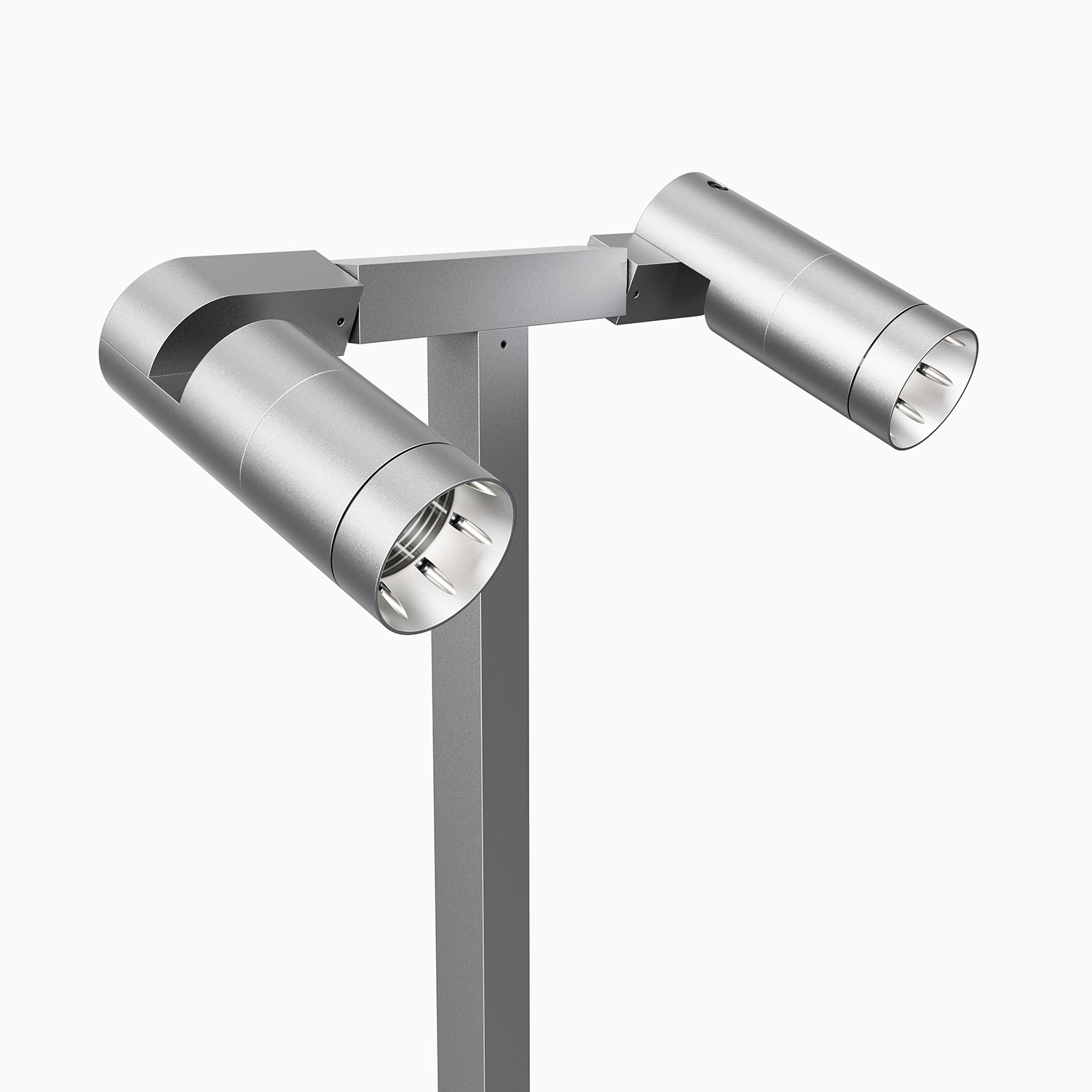

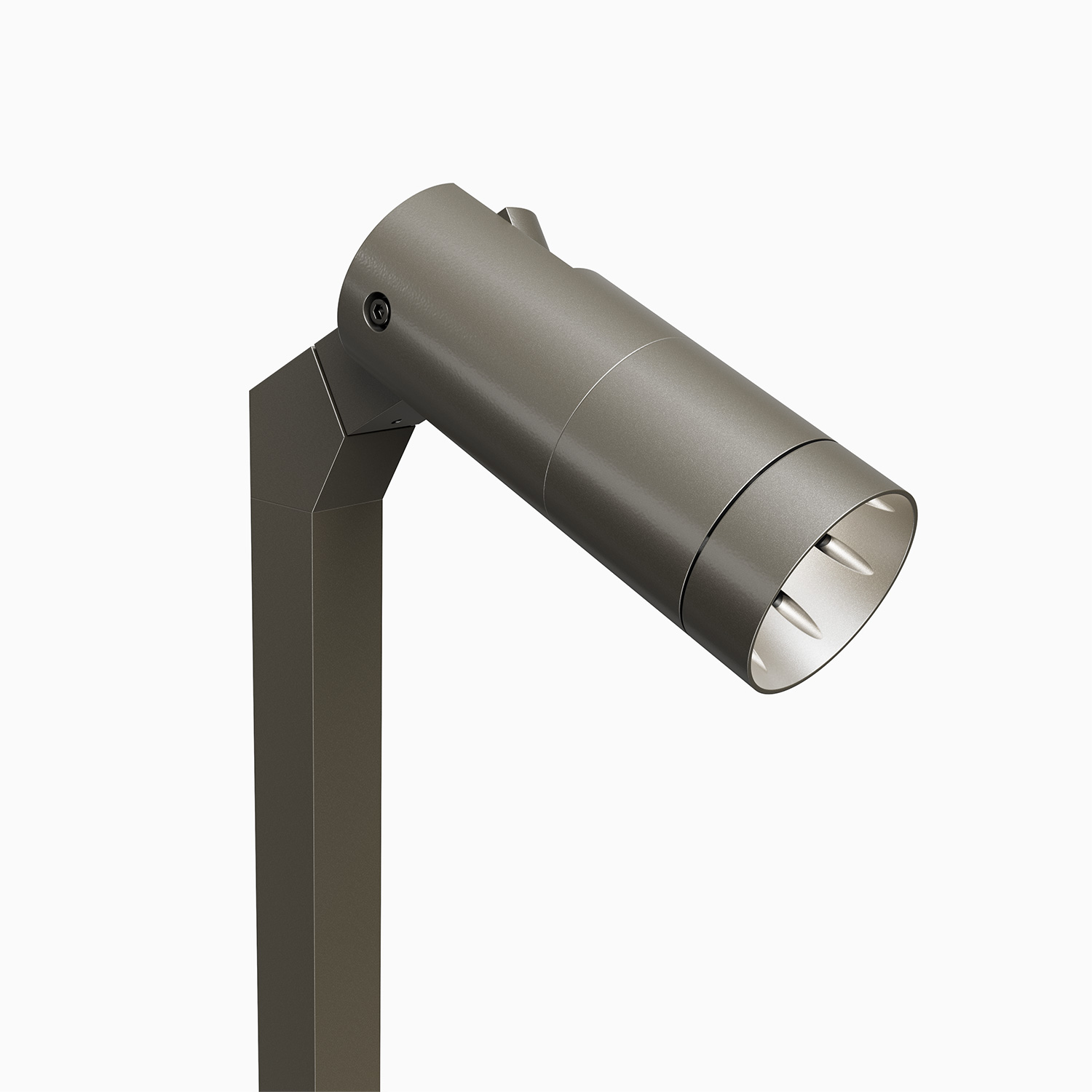

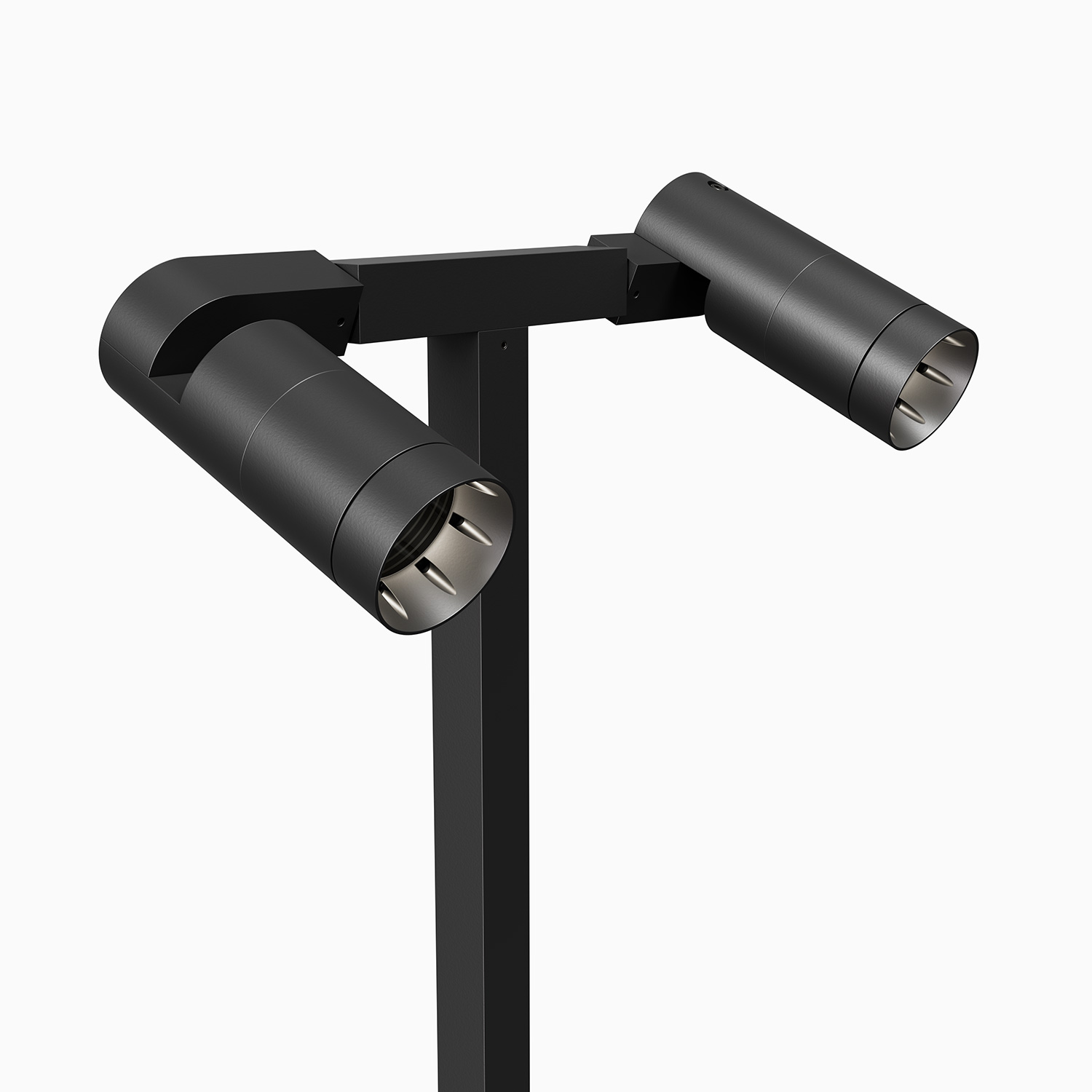

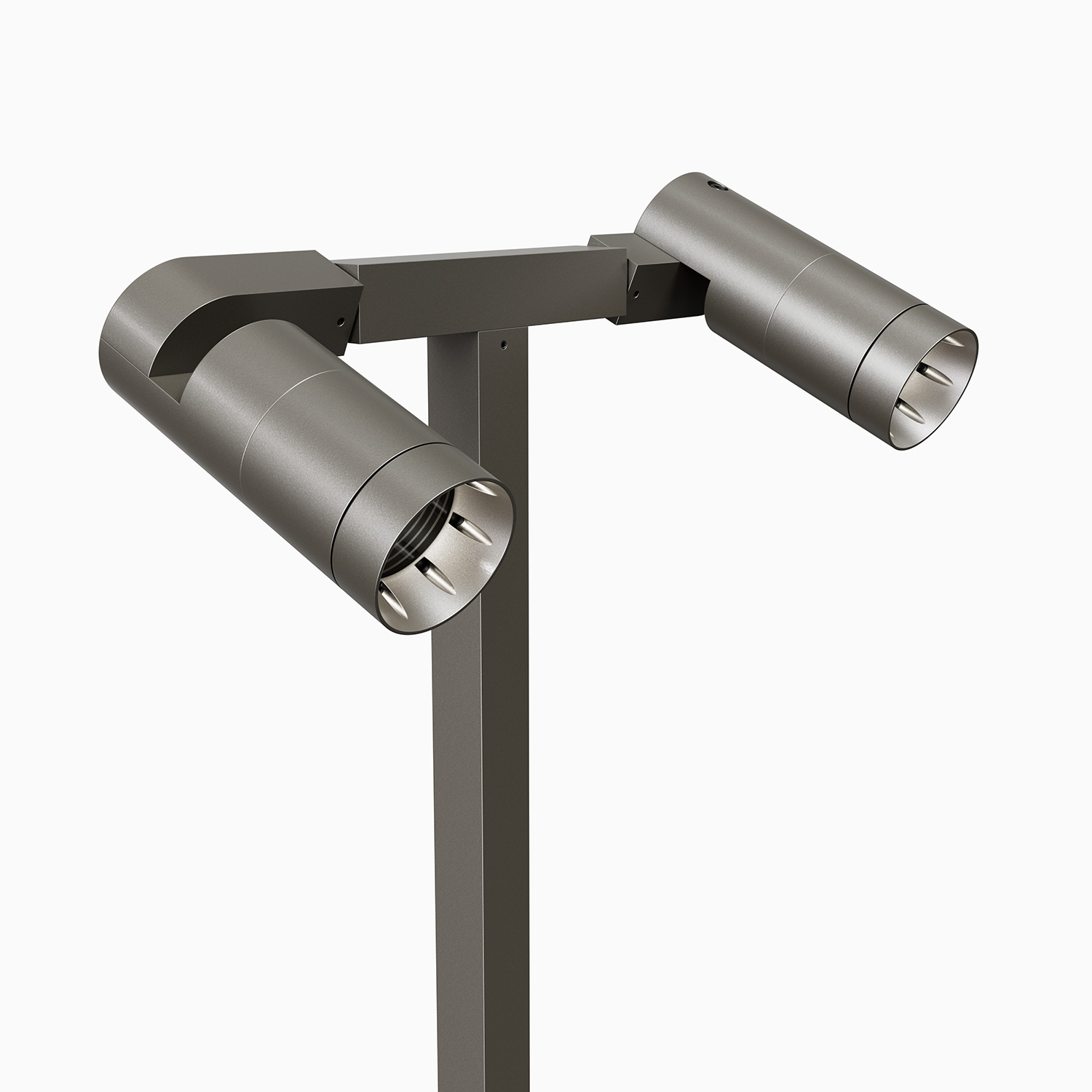

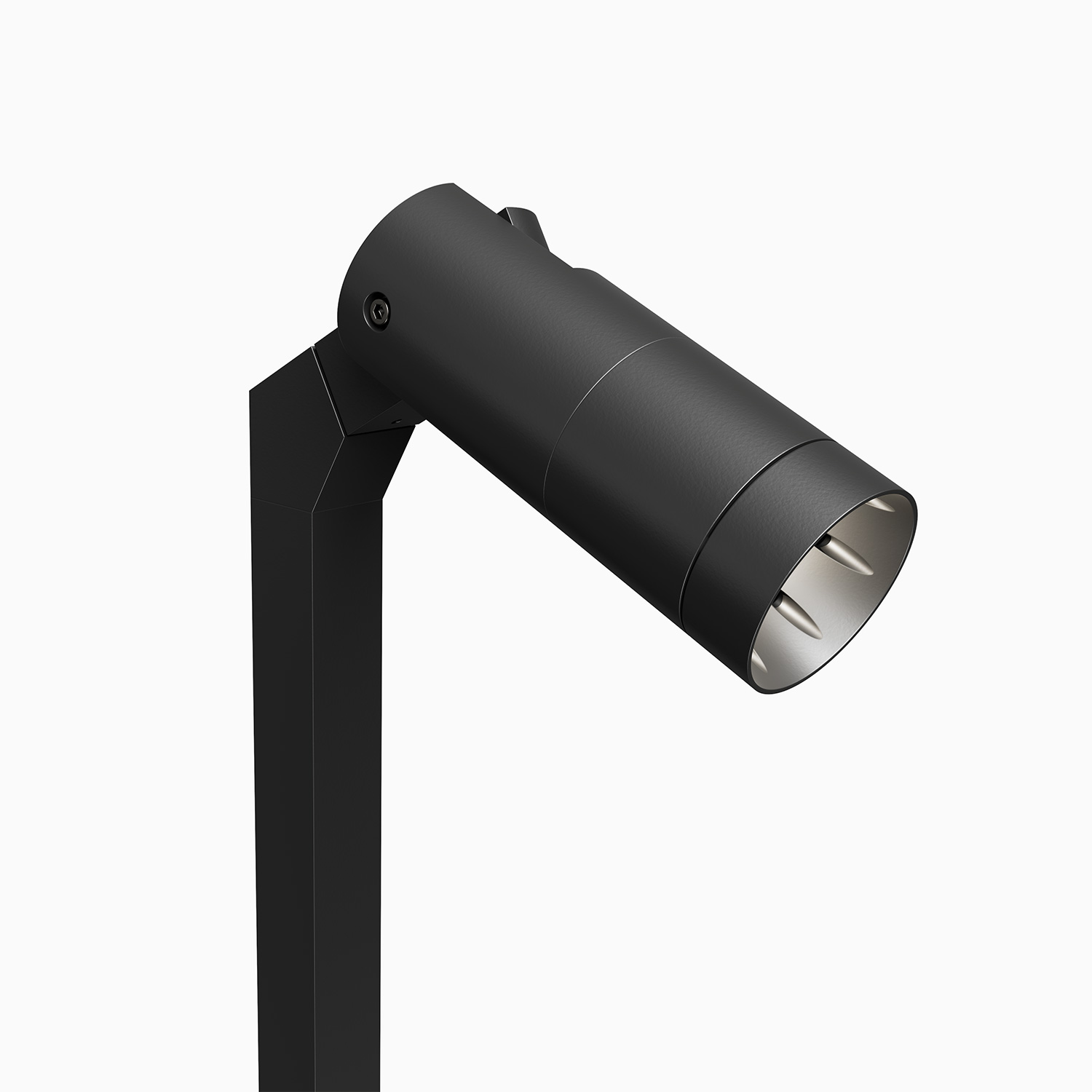

Versatile directional 120V/230V MR16 (GU10) path light for residential and commercial environments.

(includes former PATH-1-GU10-SOi & PATH-2-GU10-SOi models)

FEATURES:

  • Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • 240º vertical and 360º horizontal light adjustment via locking swivel stem design.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.

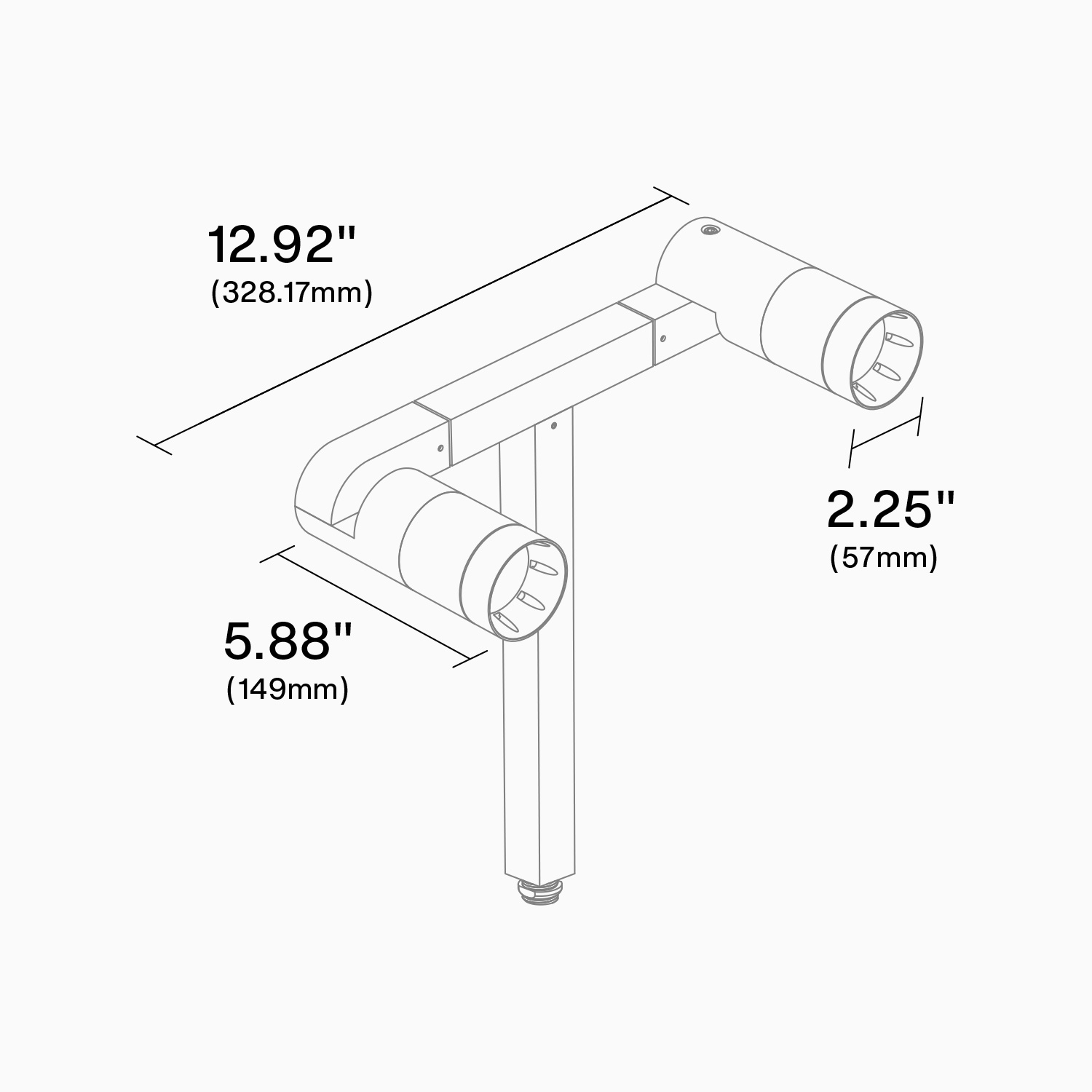

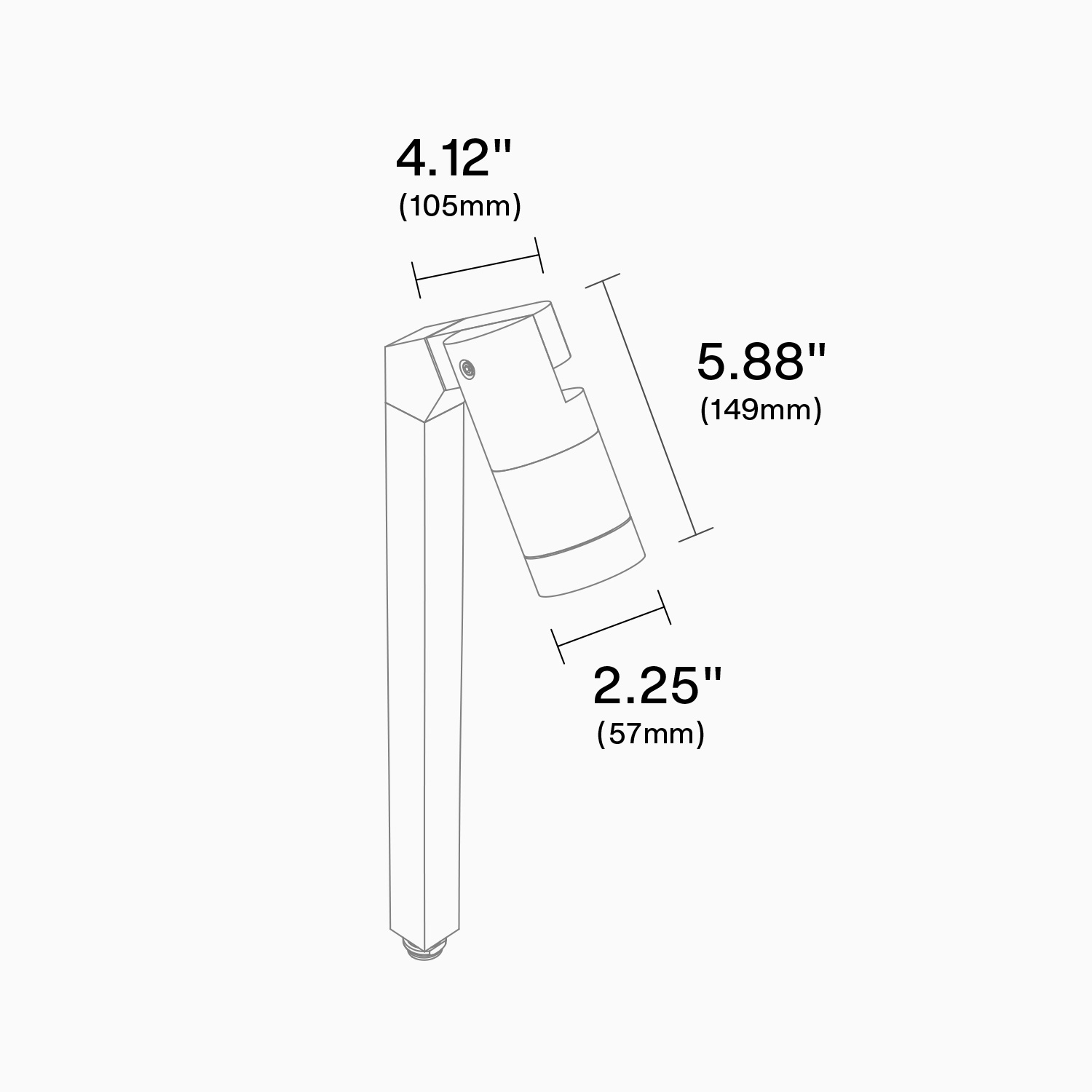

  • Single and double light mounting options at 12″, 24″, 30″ or custom height.
  • Every fixture tested end of line for water tightness and light quality.
  • Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.

Voltage

120V or 230V AC.

Lamp Base/Socket

Porcelain GU10 twist - lock lamp base.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

Max 9W for SORAA MR16 lamp with Thermobuster. Max 50W for halogen lamp.

Optics

Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.

Hood and Glare Shield

Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields.

Light Engine

MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.

Dimming

MLV, ELV Phase Control Dimming at 120V. Please refer to website for SORAA GU10 dimmer compatibility

Listings

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

Additional information

Light Source

, ,

Shape

Lumen Output

Input Voltage

,

Wattage

ReadyMade

Compatible Accessories

GSA

Angled

GSL

Long

GSS

Short
Angled
Long
Short

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter

CM1

Canopy Mount

CM3

Canopy Mount

CM5

Canopy Mount
Canopy Mount

CM2

Canopy Mount
Surface Mount

CB4

Surface Mount
Surface Mount
Surface Mount
Surface Mount
Surface Mount
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike

EX

Extensions

EL

Extensions

ET

Extensions
