ZPL16-I

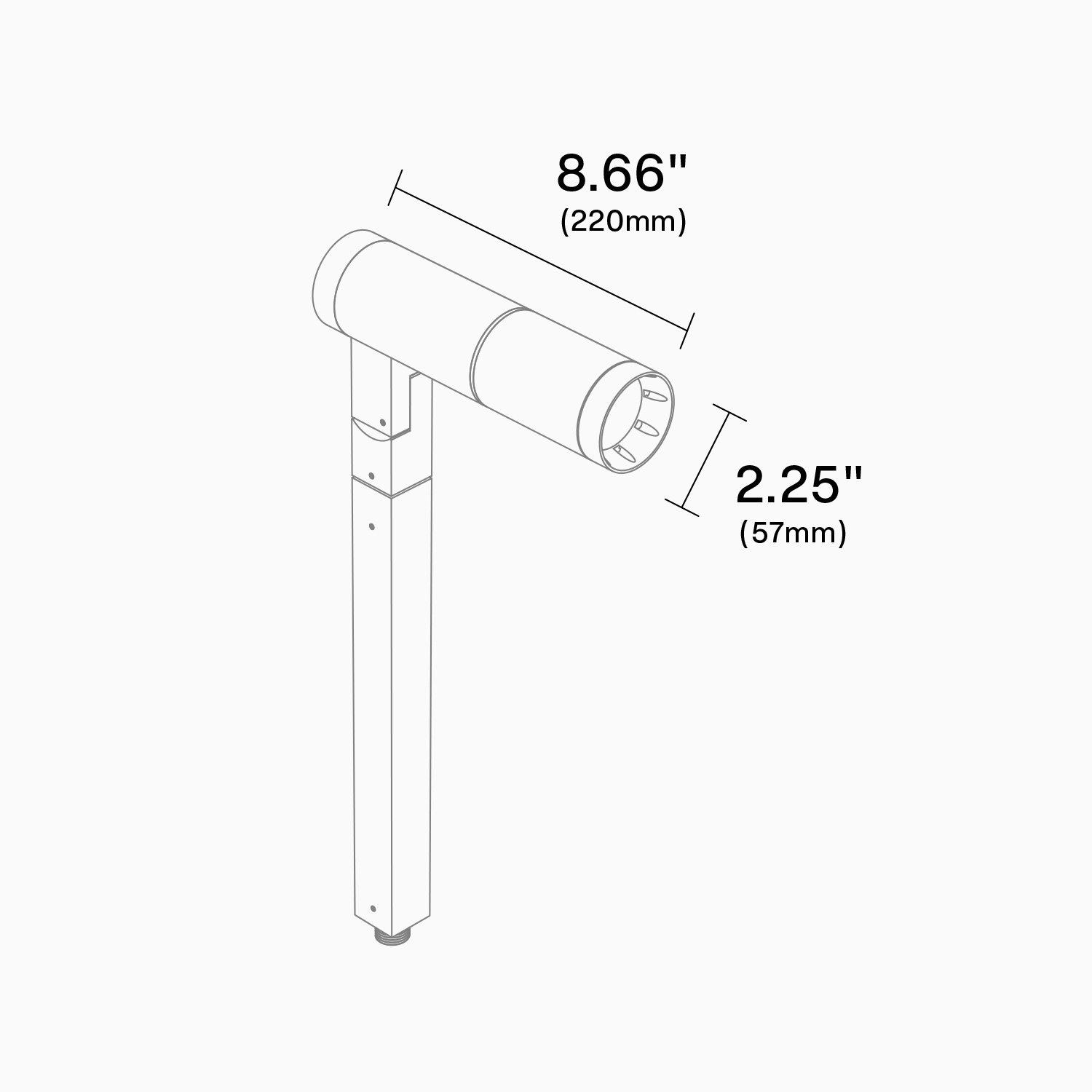

PATH & BOLLARD | ZP16 Series | 2.25"
5 - 14W (400 - 1400lm) | 120V - 277V | HK LED, Amber

ZPL16-I

PATH & BOLLARD | ZP16 Series | 2.25"
5 - 14W (400 - 1400lm) | 120V - 277V | HK LED, Amber

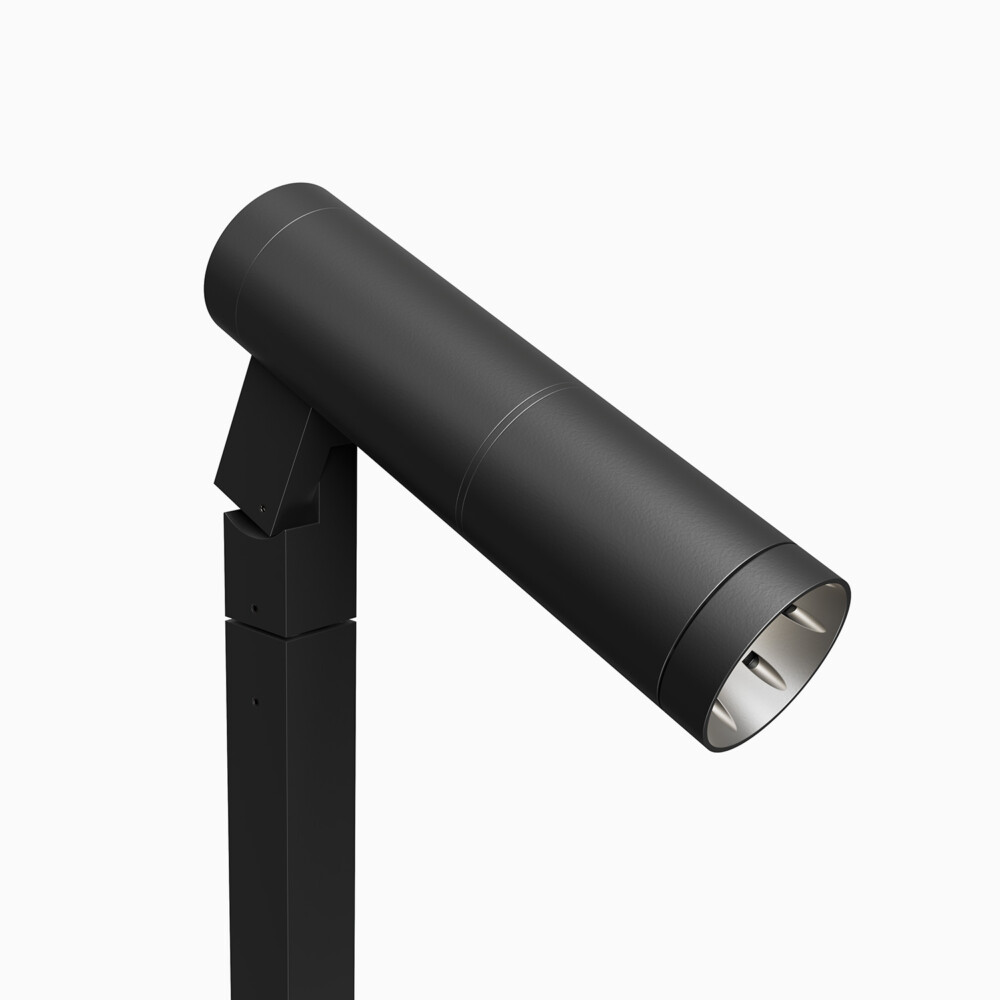

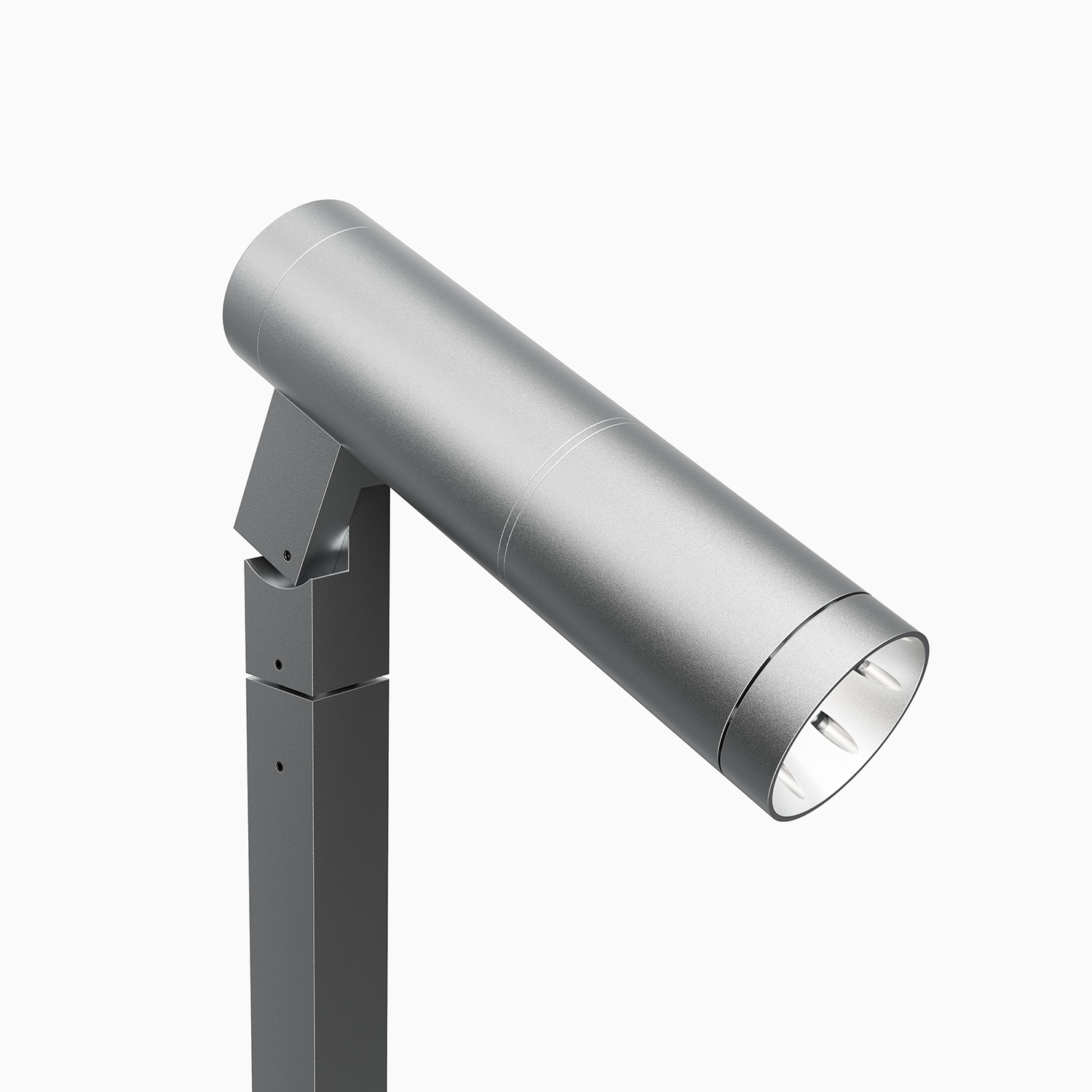

Versatile directional 120-277V LED path light for commercial and large residential environments.

(includes former PATH-1-16Li & PATH-2-16Li models)

FEATURES:

  • 5W, 7W, 10W, 14W integrated HK LED delivering 450 to 1400 lumens per light. 2200 – 4000K CCT, including specialty Amber options.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • 240º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.

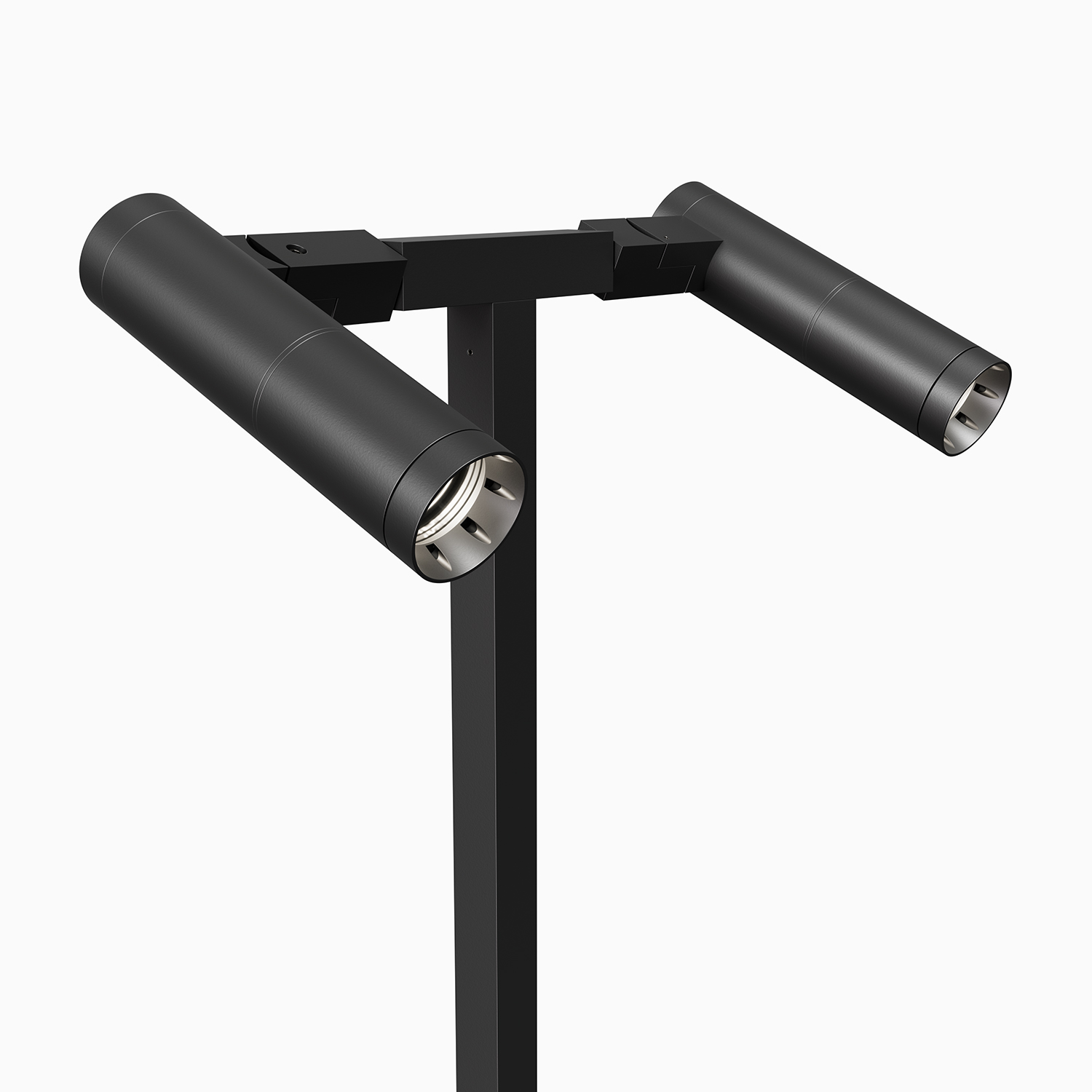

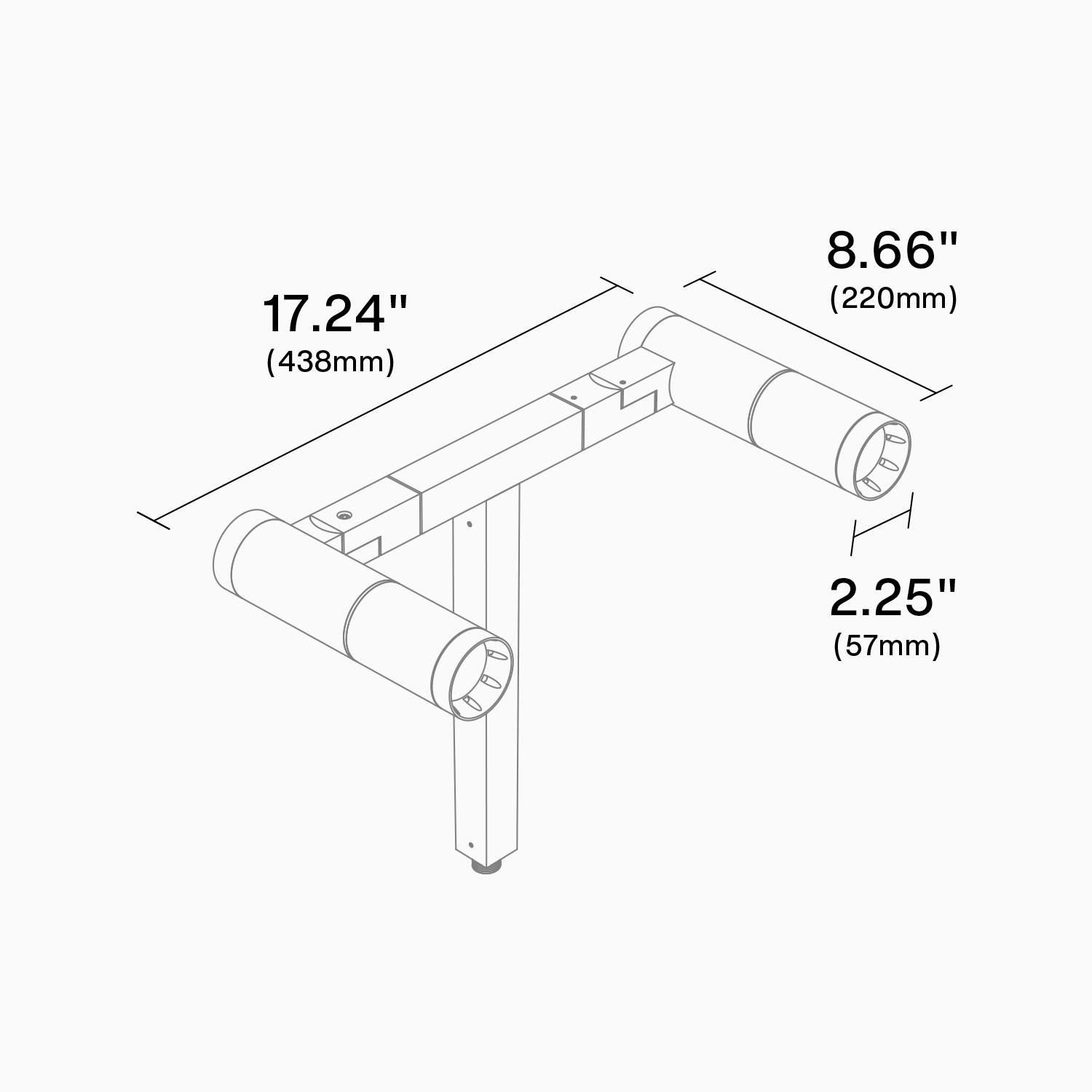

  • Single and double light mounting options at 12″, 24″, 30″ or custom height.
  • Every fixture tested end of line for water tightness and light quality.
  • Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications

Materials

Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.

Voltage

120V - 277V AC

Optics

Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7, 10 or 14W HK LED delivering 400 - 1400 lumens per light.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).

Hood and Glare Shield

Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and Amber options available. Consult factory for specialty LED specification details.

Listings

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

Driver/Dimming

Onboard, Integrated LED Driver Phase Control @120V, 0V-10V @120V-277V.

Additional information

Light Source

,

Shape

Lumen Output

Input Voltage

, ,

Wattage

ReadyMade

Compatible Accessories

GSA

Angled

GSL

Long

GSS

Short
Angled
Long
Short

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter

CM1

Canopy Mount

CM3

Canopy Mount

CM5

Canopy Mount
Canopy Mount
Surface Mount

CB4

Surface Mount
Surface Mount
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
