4–8W ( 100–200lm ) | 120V | HK LED
ZPLCM-I
4–8W ( 100–200lm ) | 120V | HK LED
(includes former CMBL-150i and CMBL150i-GFCI models)

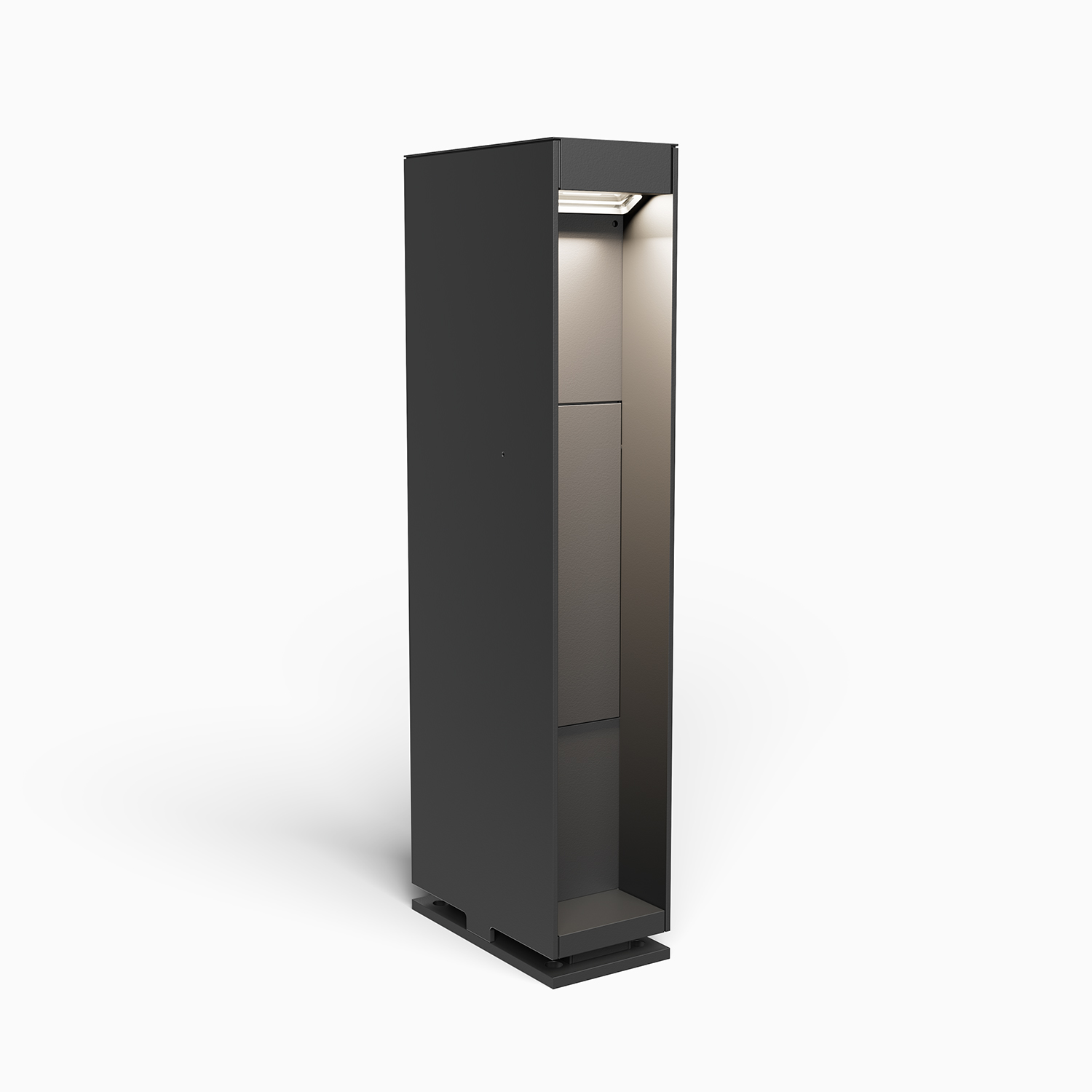

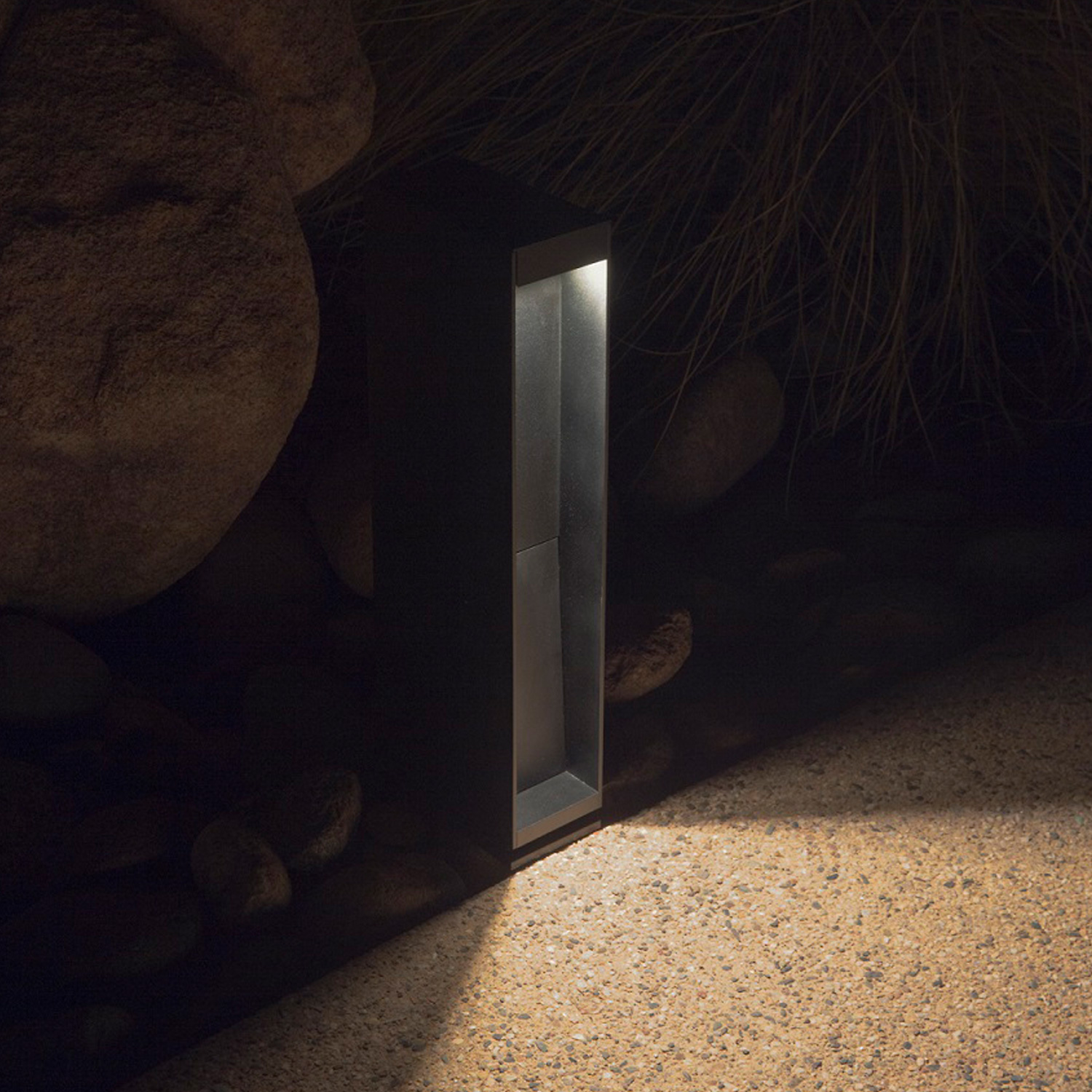

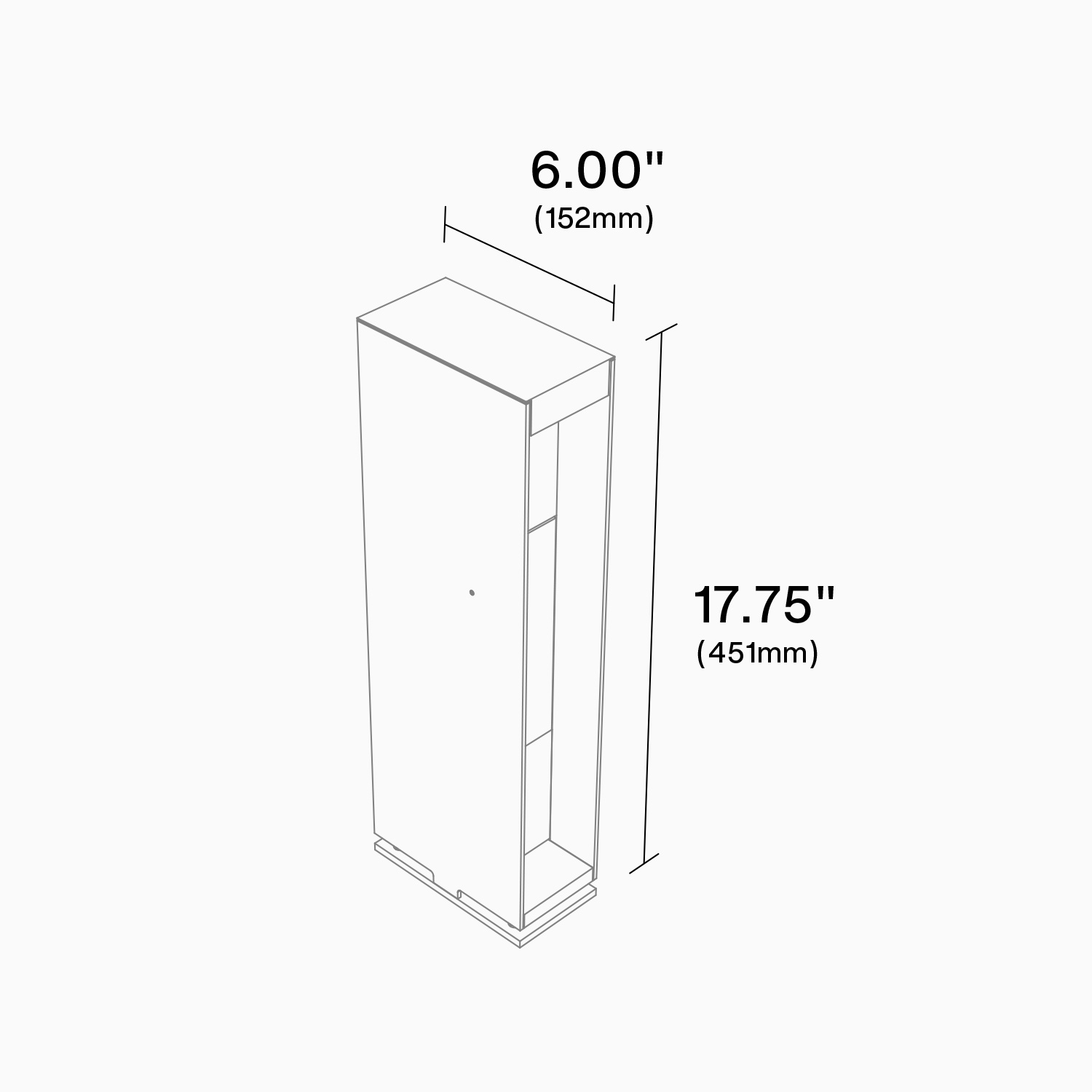

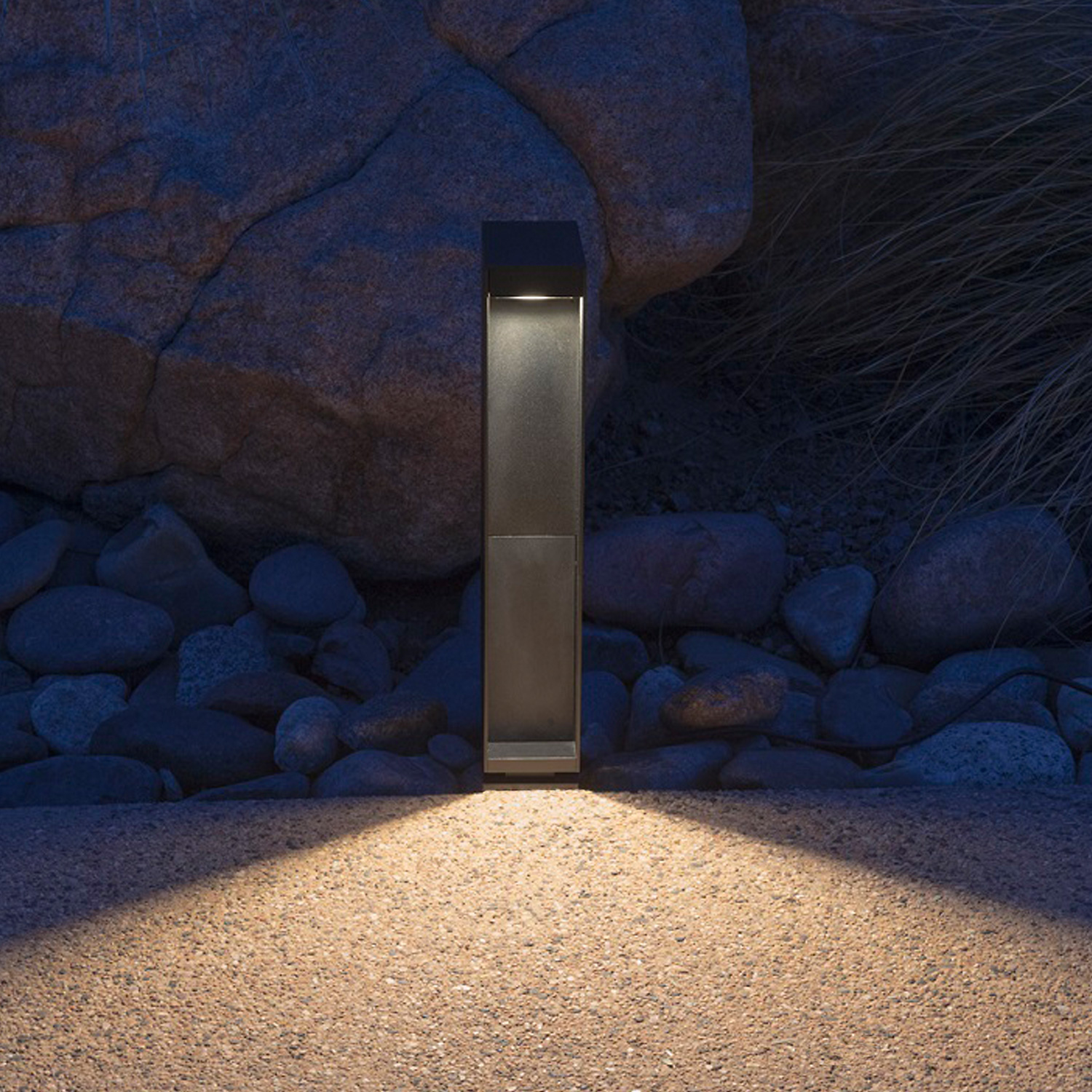

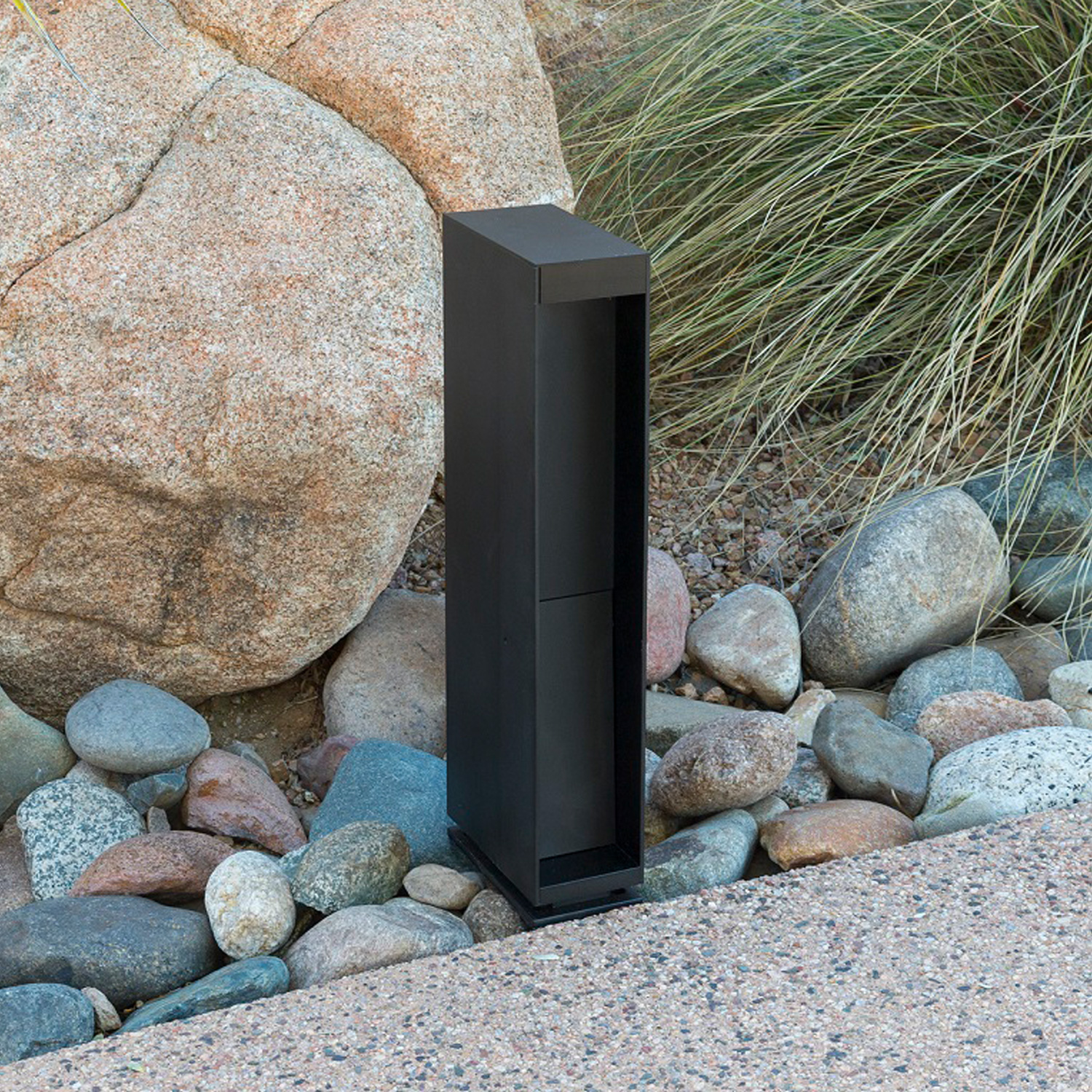

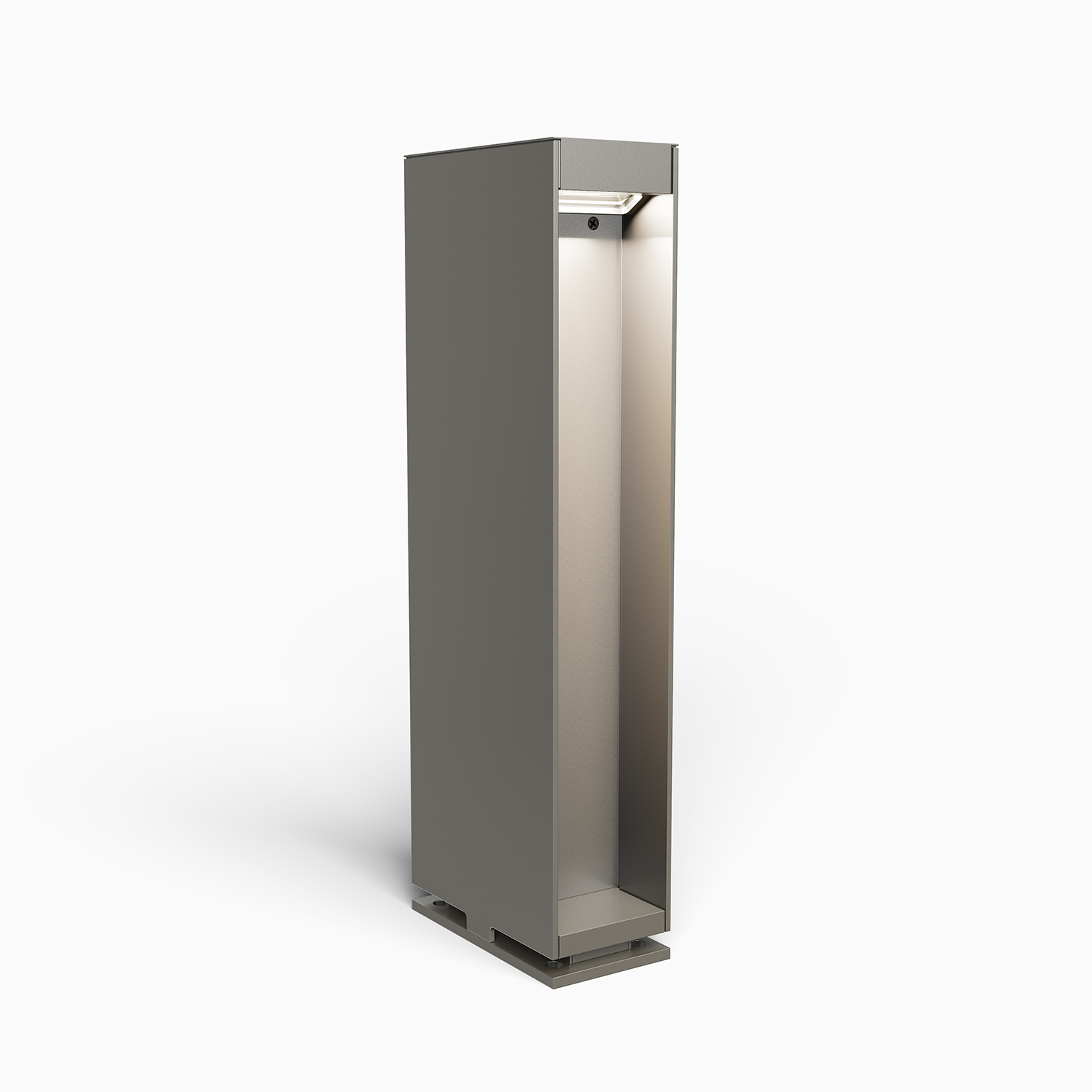

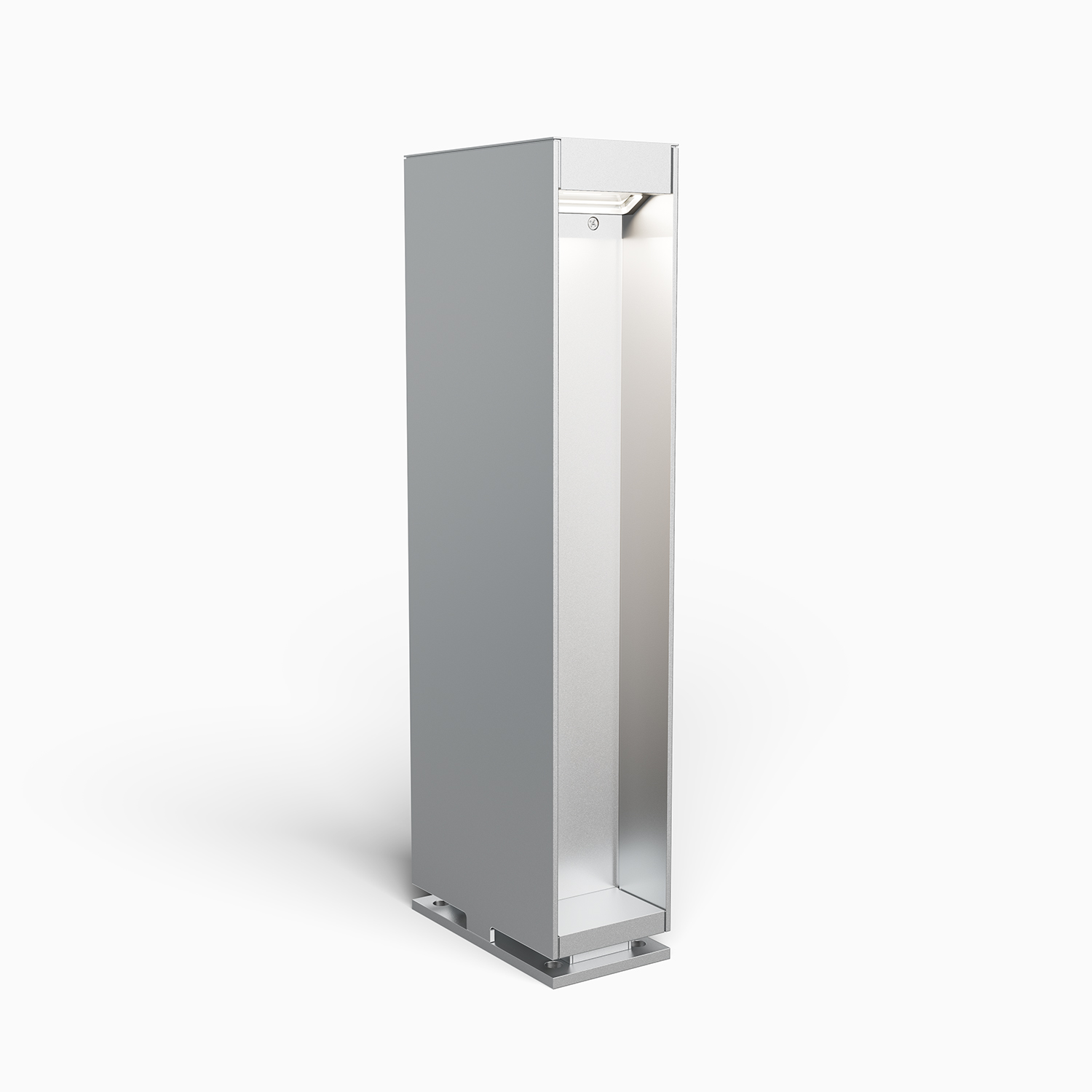

Rectangular 120V bollard-style commercial path light with directional light pattern and available onboard GFCI power receptacle and the ability to include USBA or USBC charging ports. Stands 18" high.
FEATURES:
- 4W, 8W integrated HK LED delivering 100–200 lumens. 2700–4000K CCT.
- Lighting is Wet Location Listed, IP67 standard. Power receptacle is Wet Location Listed, IP67 standard, when access cover is closed and receptacle is not in use.
- Extruded aircraft grade 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments.
- Every fixture tested end of line for water tightness and light quality.
Materials
Extrusion of 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Voltage
120V AC with Integral LED driver.
Optics
Includes Solite soft focus lens for broad and even light spread.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine-grade, natatorium-grade finish.
Wattage
4 or 8W HK LED delivers 100–200 lumens.
Optional Power Receptacle
Available with built-in GFCI power receptacle that can be combined with USBA or USBC charging ports. This enables up to 2 power socket plug-ins and 2 USB plug-ins. GFCI cover is Wet Location Listed when cover is closed.
Light Engine
Innovative HK LED light engine. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K.
Mounting
Use anchor bolts size 5/16" or 3/8" (by others, not included with fixture).
Driver/Dimming
Onboard, Integrated LED Driver. Non-dimmable.
Listings
CSA Listed for Wet Location (UL1838), IP67 Standard. RoHS Compliant.
