ZPLTR Trace Solar
1W (100lm) | Solar | HK LED

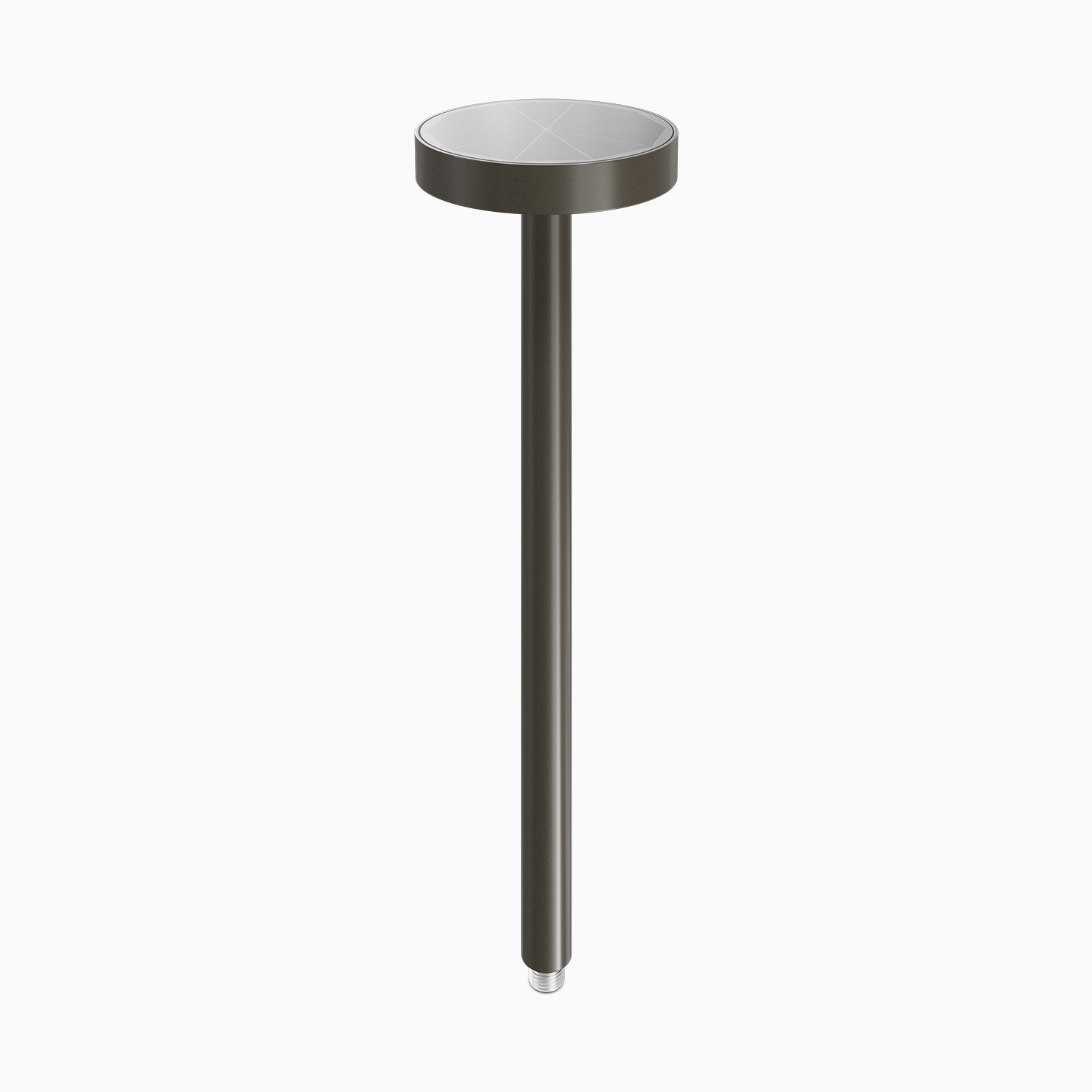

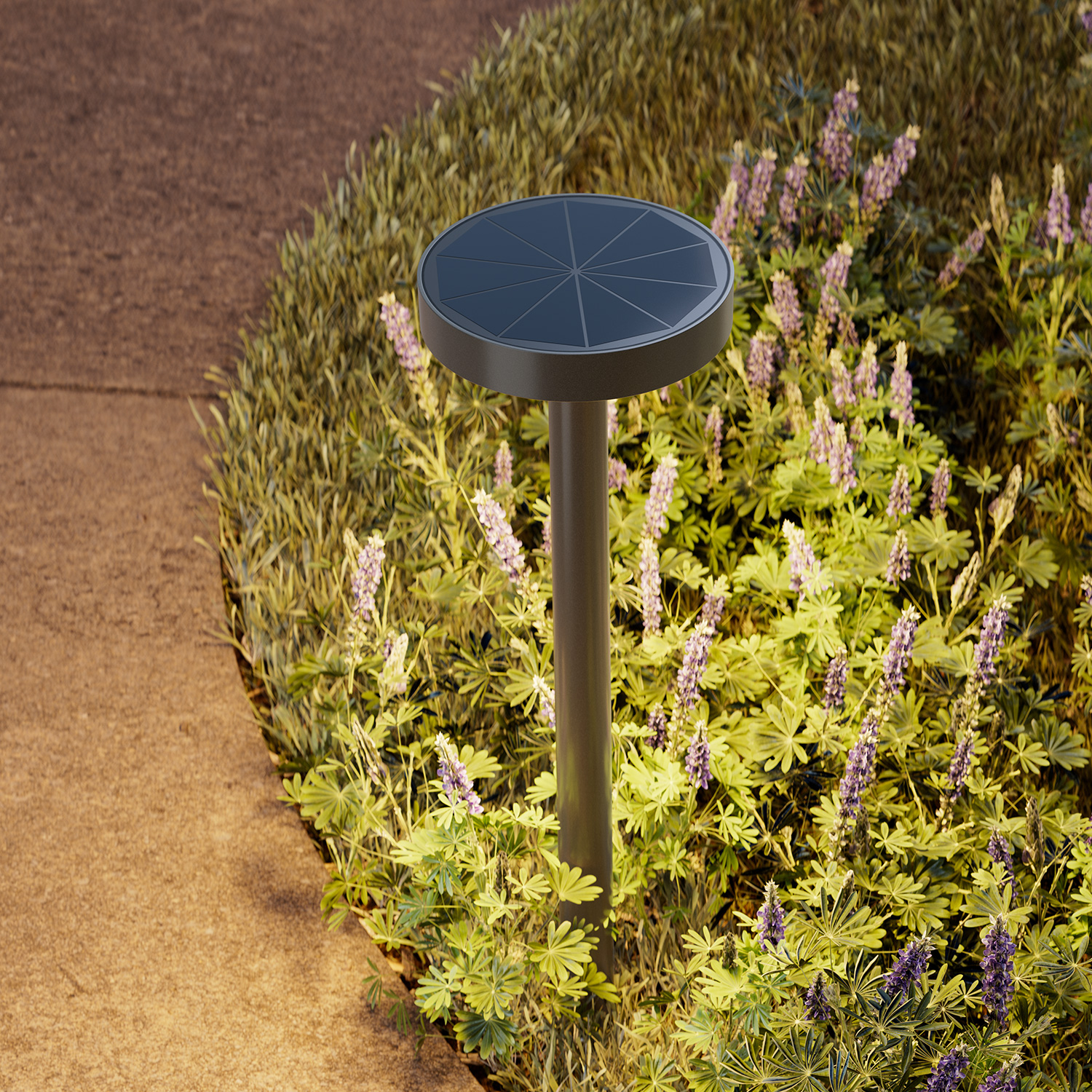

Solar-powered LED fixture designed for architectural outdoor and landscape lighting applications, providing path and area illumination where traditional wiring is unavailable or not preferred.
FEATURES:
- Integrated photovoltaic system with onboard battery management for autonomous dusk-to-dawn operation.
- Lithium Iron Phosphate (LiFePOâ‚„) battery, user-replaceable for long-term serviceability.
- Minimalist center-mount design with a precision optical system delivering smooth, balanced 360° illumination.
- 1W integrated HK LED delivers 100 lumens. Available in 2700K or 3000K CCT.
- Wet Location Listed. IP67 standard.
- Precision crafted from machined 6061-T6 aluminum and die-cast A360 aluminum components, then anodized and powder coated for a highly durable, corrosion-resistant, marine-grade finish. A custom photovoltaic glass lens complements the fixture design and resists hazing and daytime reflection.

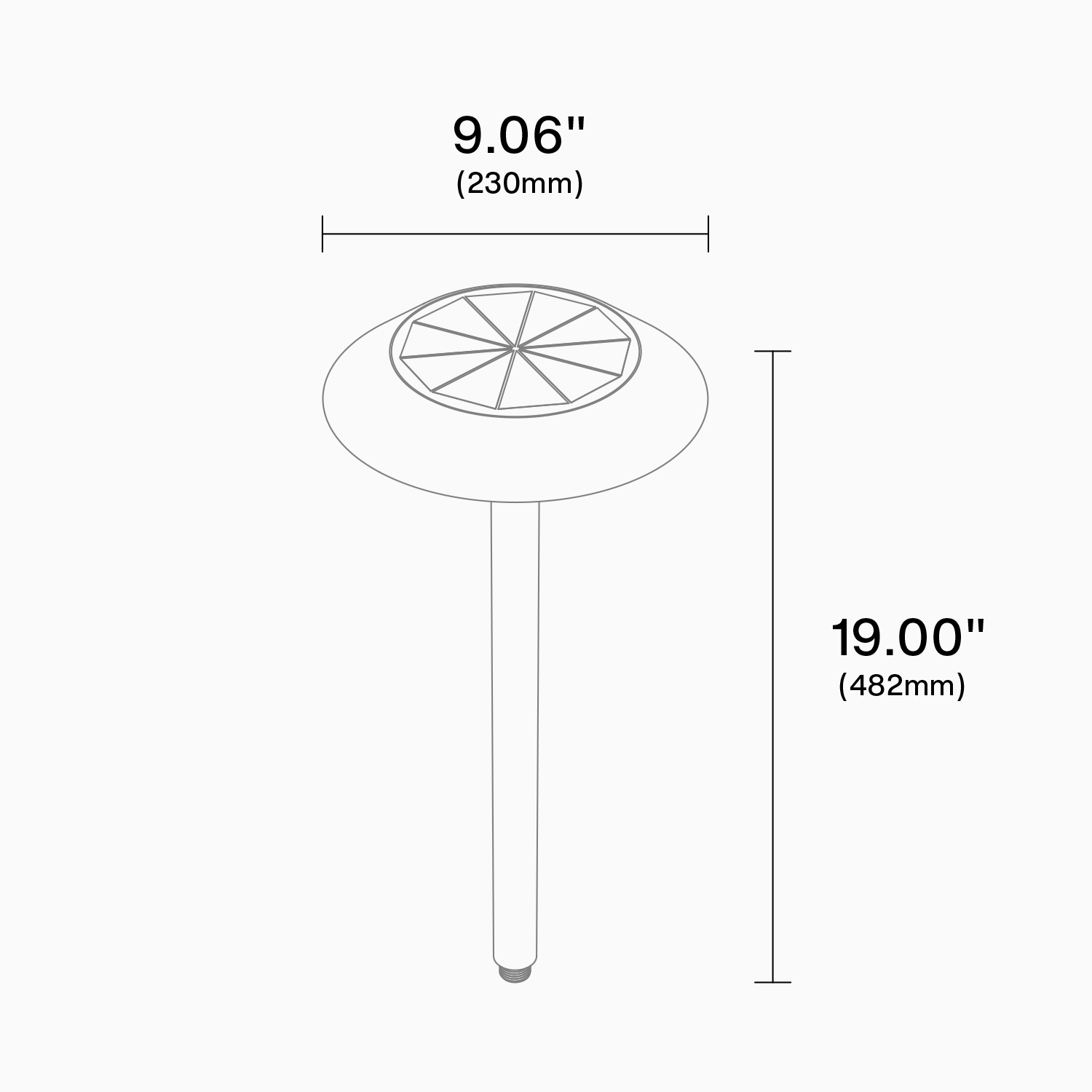

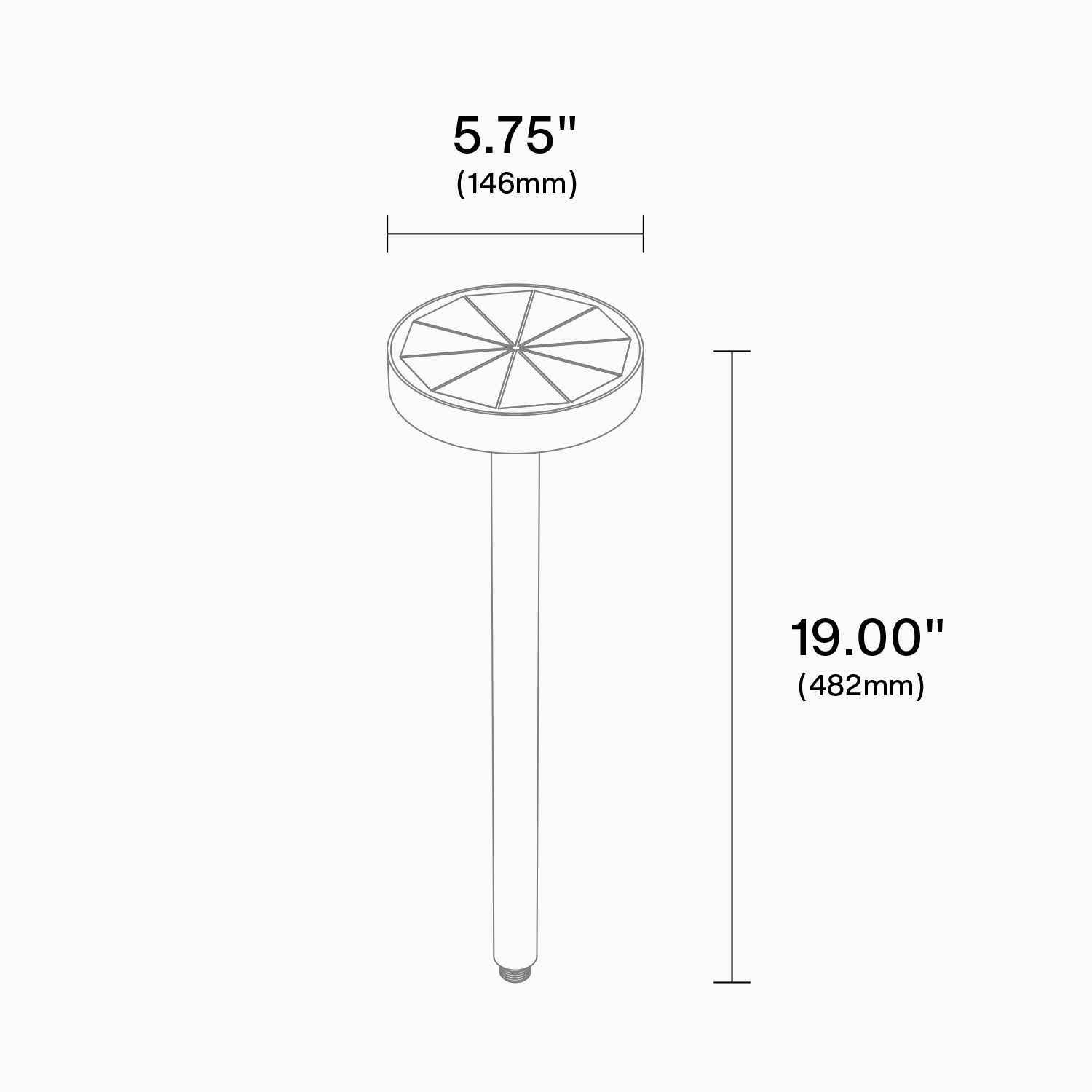

- Available mounting heights of 18″, 24″, and custom lengths.
- Readymade eligible configurations ship in 2 weeks.
Materials
LIGHT MOUNT: Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel.
LIGHT HEAD: Die Cast A360 corrosion resistant aluminum with 316 stainless steel hardware.
SHADE: Die Cast A360 corrosion resistant aluminum.
BATTERY: Lithium Iron Phosphate (LiFePOâ‚„/ LFP) rechargeable battery with high safety and long service life.
Power / Battery
Integrated photovoltaic charging system with onboard battery management and user-replaceable Lithium Iron Phosphate (LiFePOâ‚„) battery for autonomous dusk-to-dawn operation. Runtime varies based on geographic location, seasonal daylight availability, and solar exposure conditions.
Optics
Precision engineered polycarbonate optical lens with batwing distribution for smooth, even illumination.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish.
Wattage
1W delivers 100 lumens.
Mounting
Mounts using ½"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of spec sheet for details)

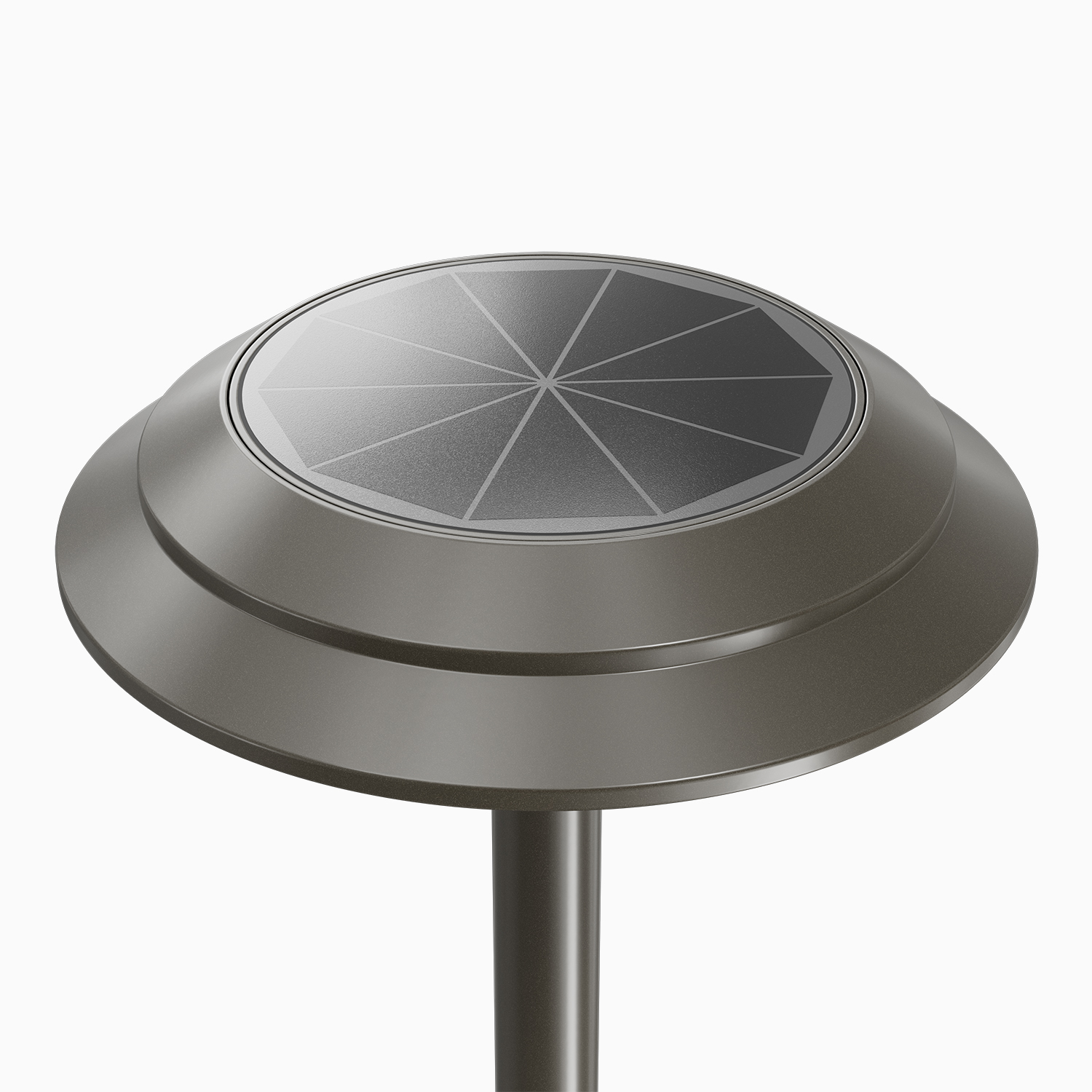

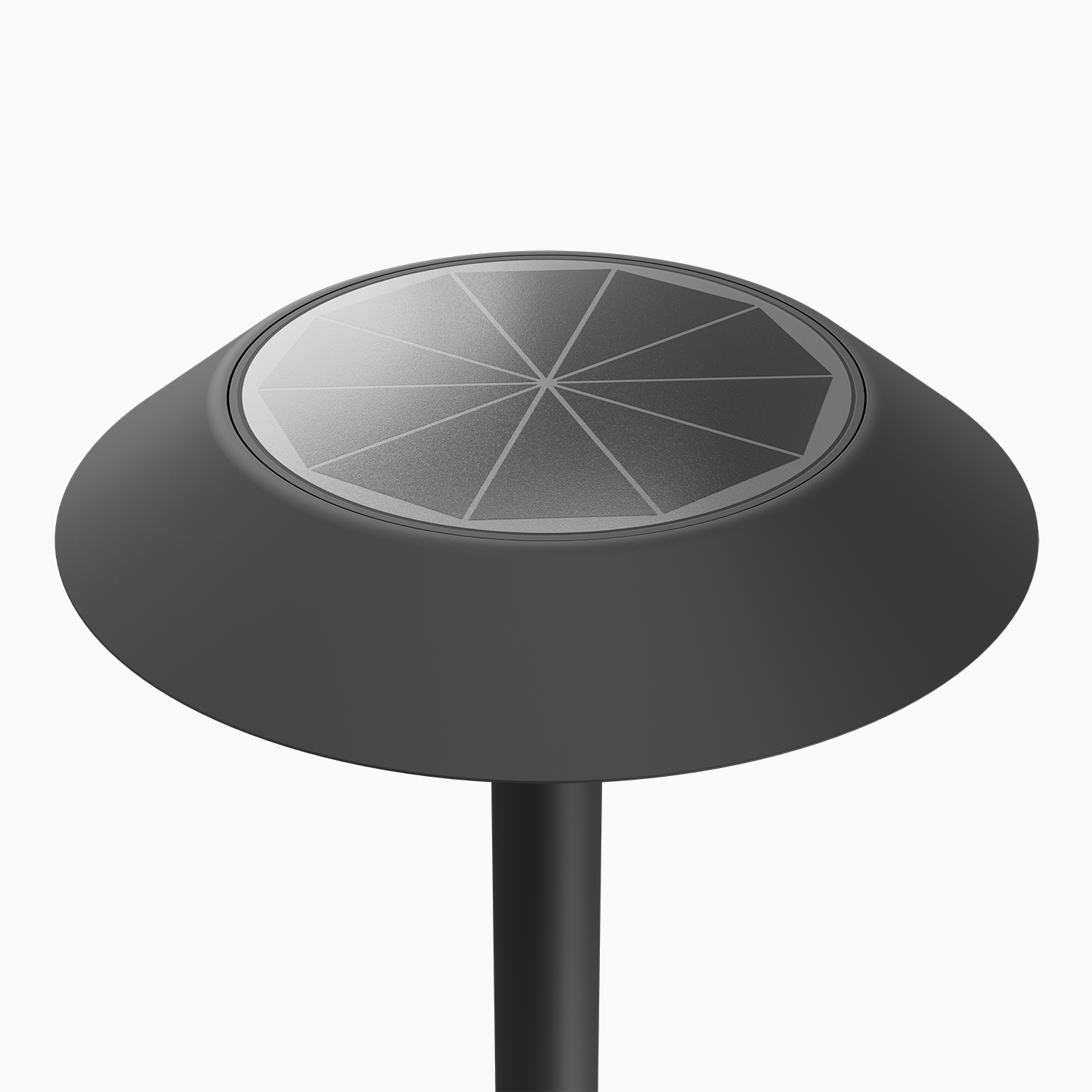

Shades
Optional Modern or Pagoda architectural shade accessories.
Light Engine
HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K, 3000K.
Listings
IP67 Standard. RoHS Compliant. Meets Dark Sky requirements.
Solar Collector
Photovoltaic charging surface utilizes a custom tempered glass engineered to maintain solar charging performance over time. It resists hazing, discoloration, scratching, and unwanted daytime reflections.
