1–10W (120–810lm) | 12V | HK LED
ZPLTR Trace
1–10W (120–810lm) | 12V | HK LED

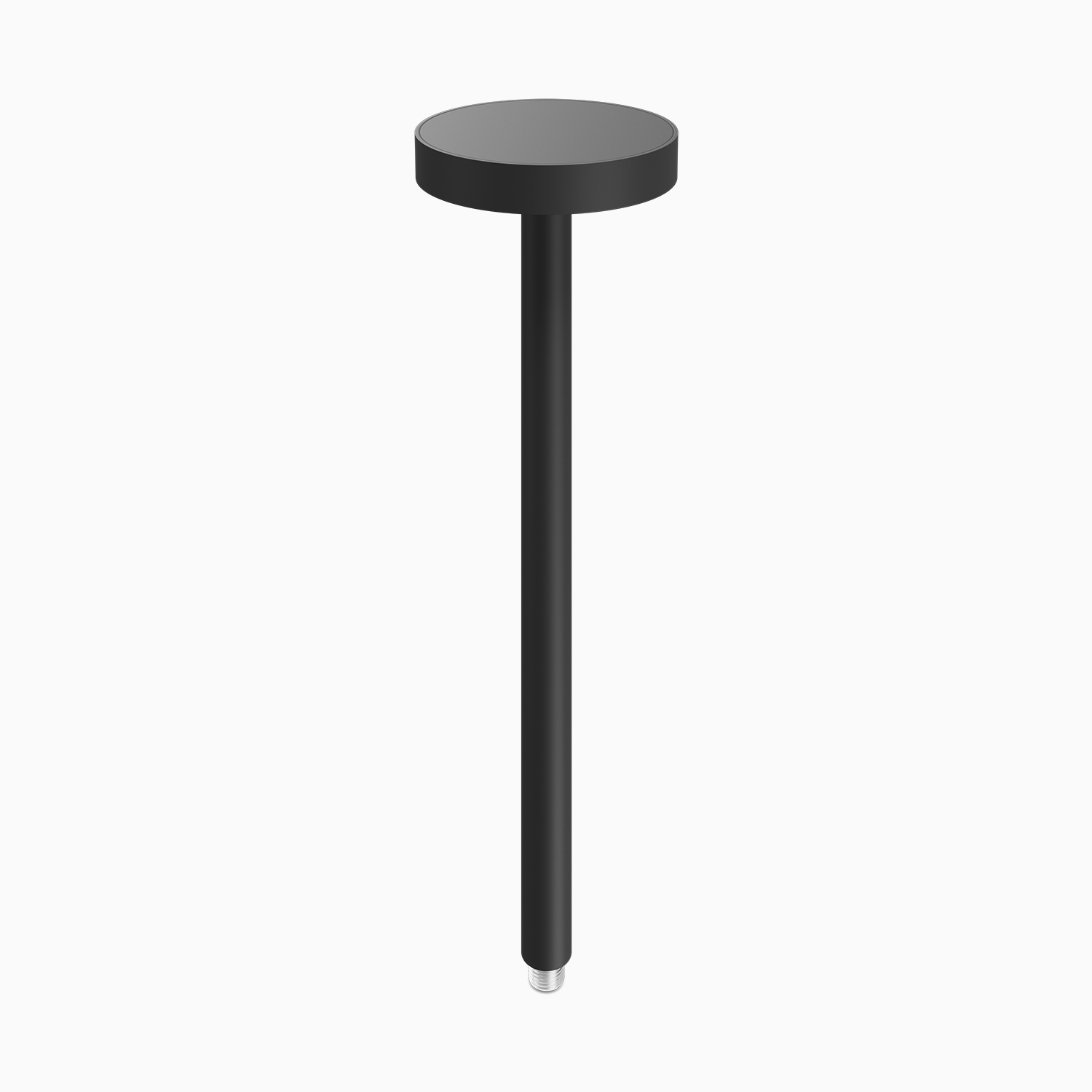

Versatile low voltage (12V) LED fixture designed for architectural outdoor and landscape path and ground area lighting applications.
FEATURES:
- Minimalist center-mount design with a precision optical system delivering smooth, balanced 360° illumination.
- 1W, 3W, 7W, or 10W integrated HK LED delivers 120–810 lumens. Available in 2700K or 3000K CCT.
- Wet Location Listed. IP67 standard.
- Precision crafted from machined 6061-T6 aluminum and die-cast A360 aluminum components, then anodized and powder coated for a highly durable, corrosion-resistant, marine-grade finish.

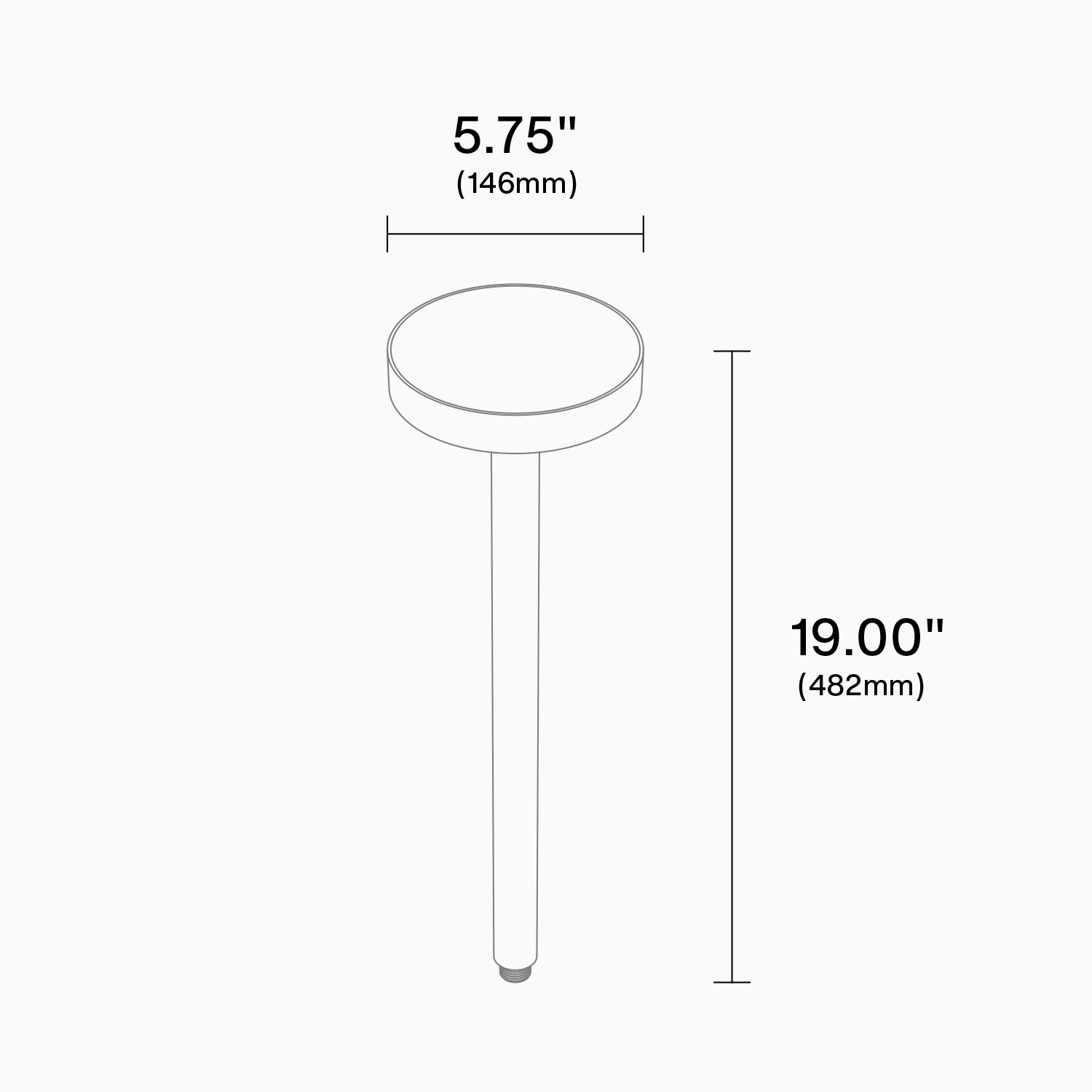

- Available mounting heights of 18″, 24″, and custom lengths.
- Readymade eligible configurations ship in 2 weeks.
Materials
LIGHT MOUNT: Solid billet 6061-T6 corrosion resistant aluminum with 316 stainless steel.
LIGHT HEAD: Die Cast A360 corrosion resistant aluminum with 316 stainless-steel hardware.
SHADE: Die Cast A360 corrosion resistant aluminum.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Precision engineered polycarbonate optical lens with batwing distribution for smooth, even illumination.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish.
Wattage
1W, 3W, 7W, 10W delivers 120–810 lumens.
Mounting
Mounts using ½"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of spec sheet for details)
Shades

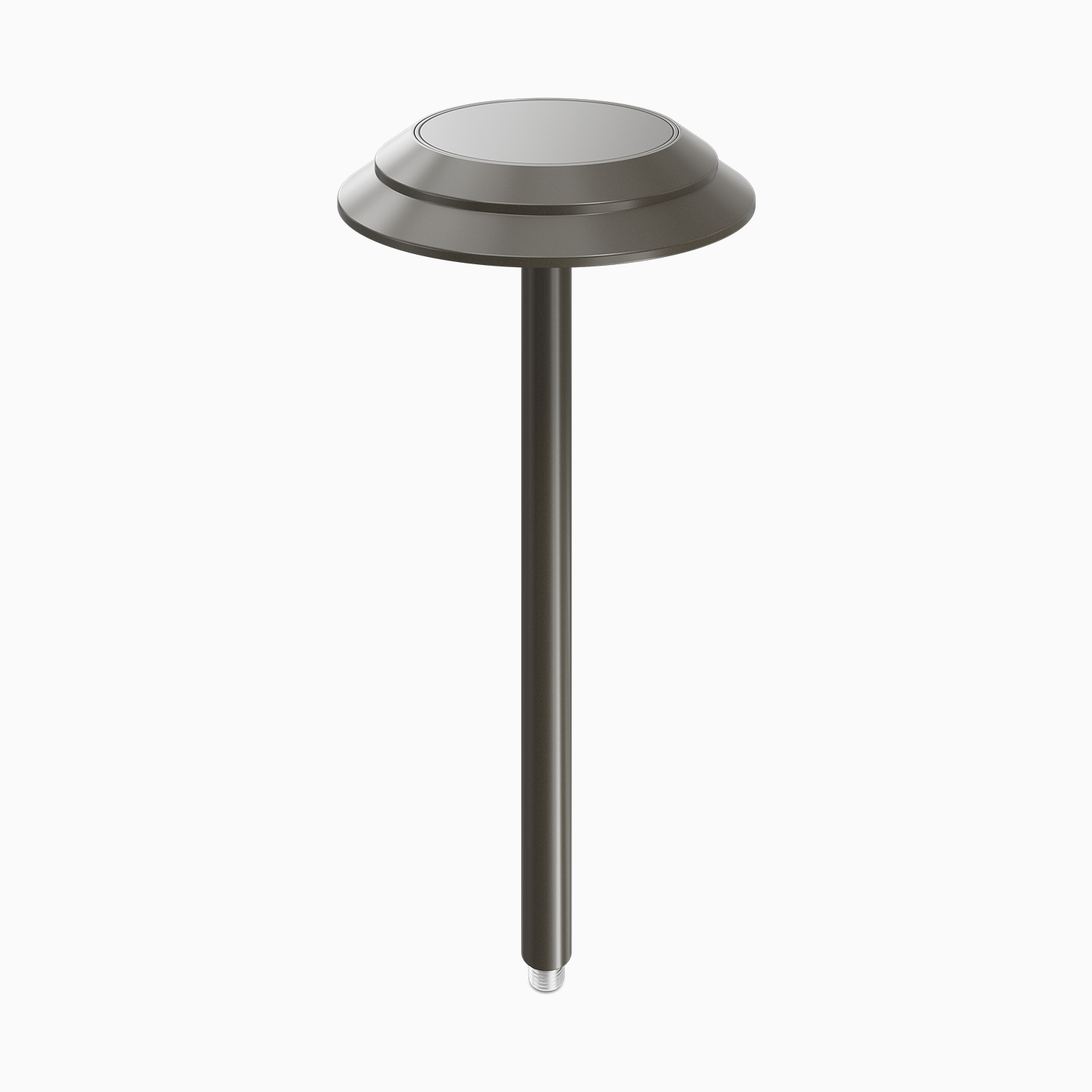

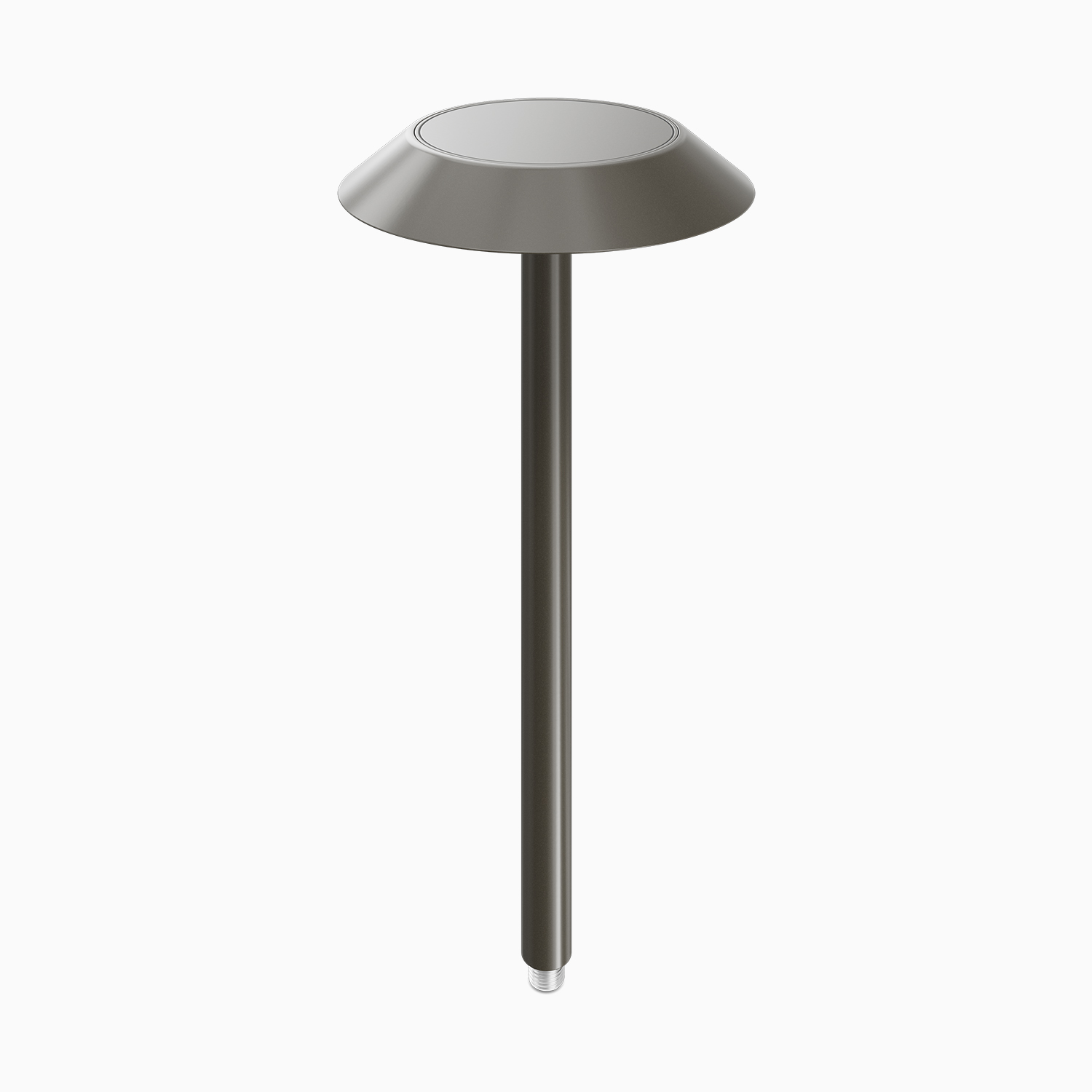

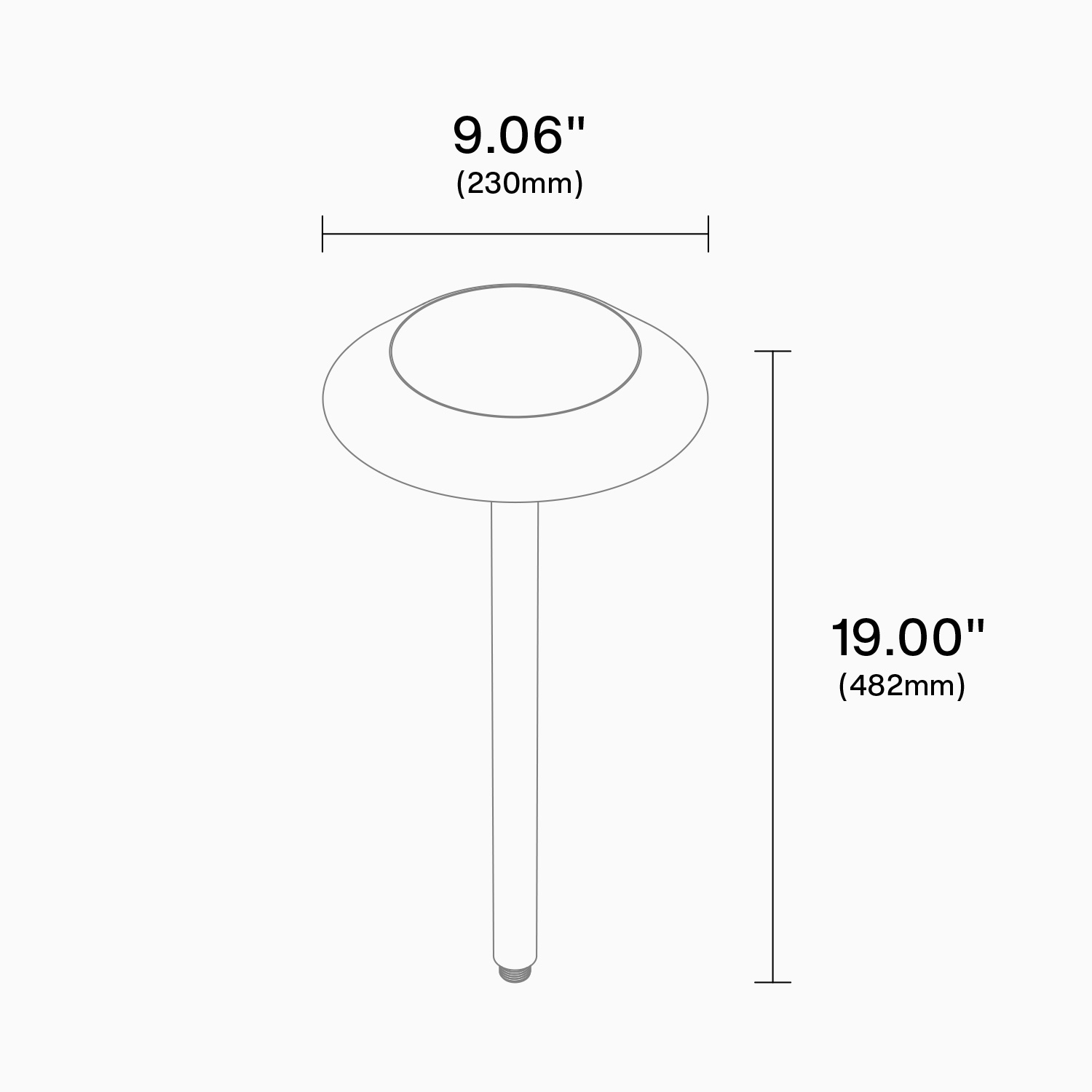

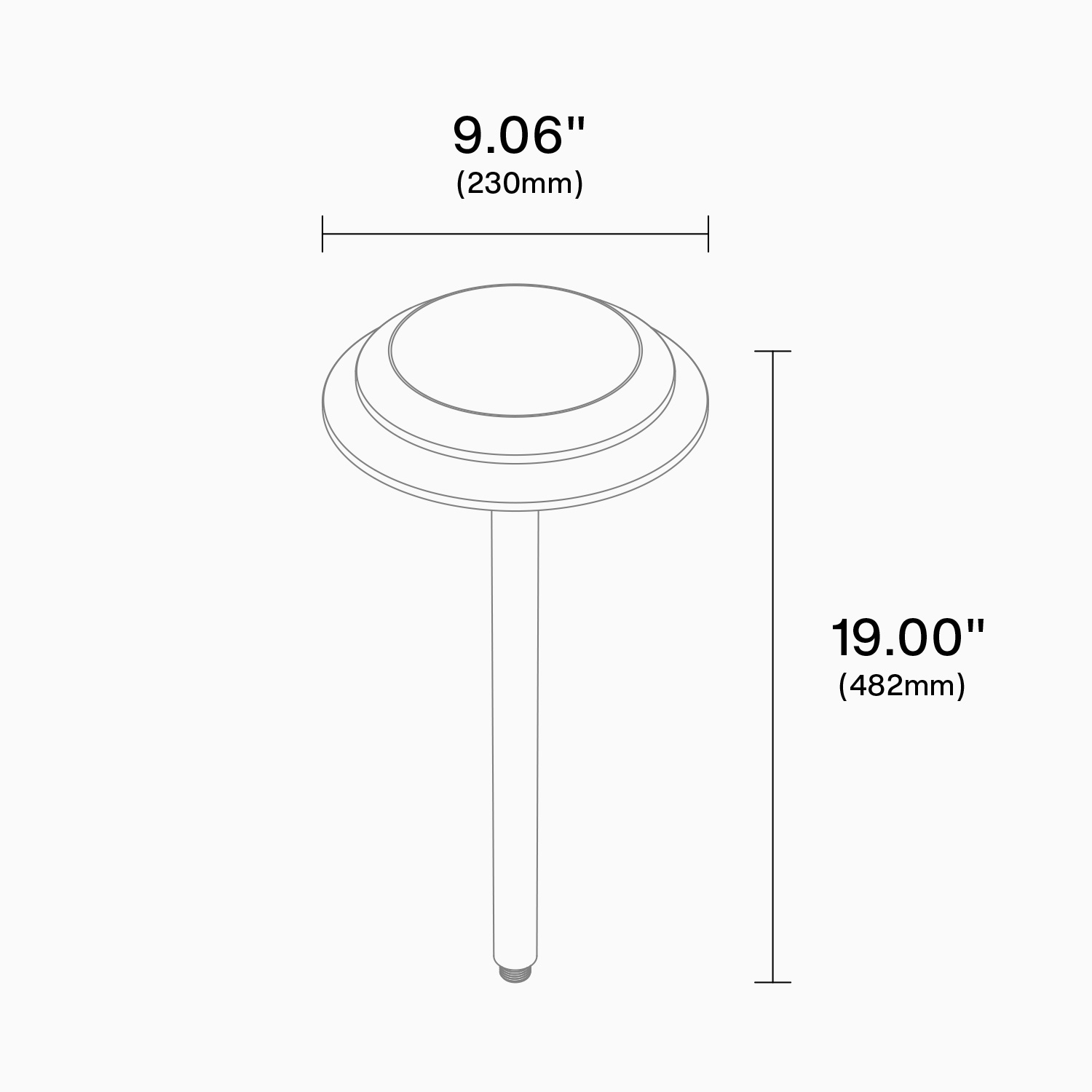

Optional Modern or Pagoda architectural shade accessories.
Dimming
MLV or ELV phase control dimming, or secondary 12VAC dimming.
Listings
CSA Listed for Wet Location, IP67 Standard. RoHS Compliant. Meets Dark Sky requirements.
Light Engine
HK LED Light engine. CRI 90 Standard. Standard CCT options are 2700K, 3000K.
