Additional information
| Light Source | |
|---|---|
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage | |
| ReadyMade |
ZSLFM-I

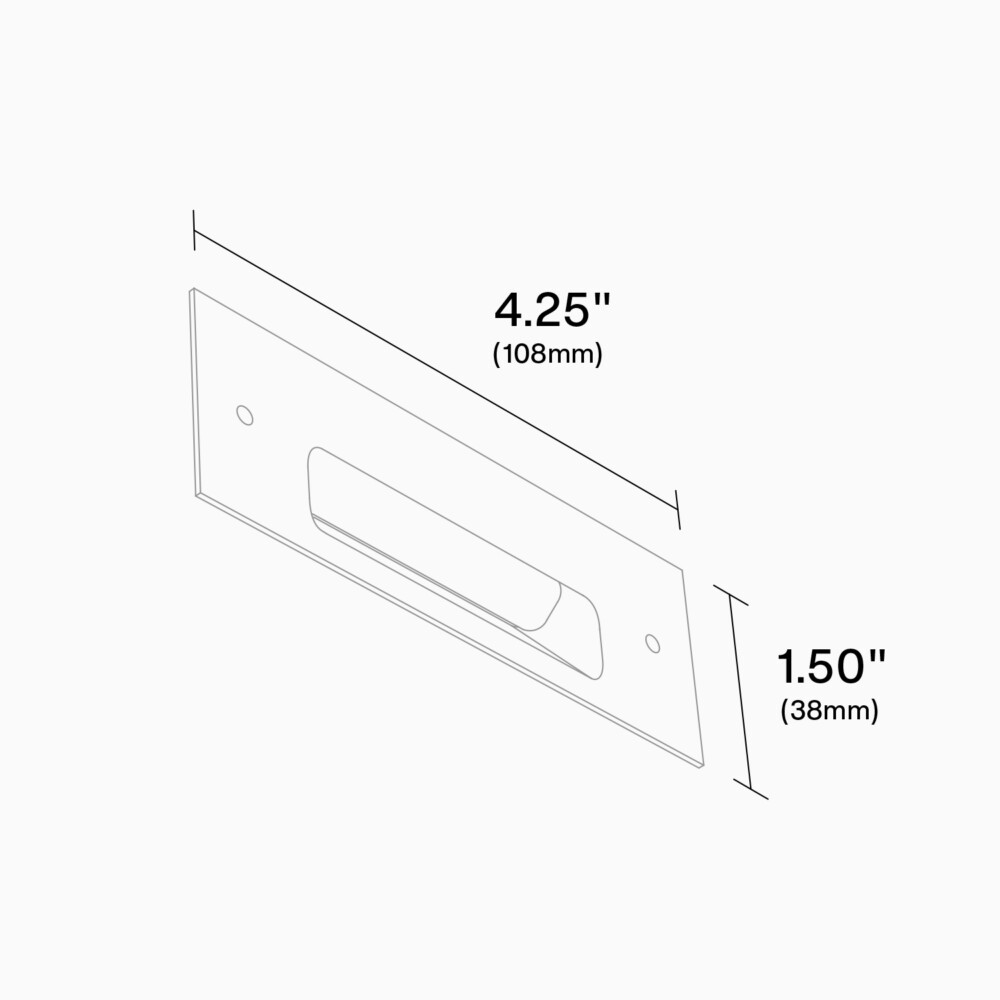

STEP & IN GROUND | ZSLFM Series | 4.25" X 1.50"
4W ( 135lm ) | 120V - 277V | HK LED, Amber
4W ( 135lm ) | 120V - 277V | HK LED, Amber
ZSLFM-I
STEP & IN GROUND | ZSLFM Series | 4.25" X 1.50"
4W ( 135lm ) | 120V - 277V | HK LED, Amber
4W ( 135lm ) | 120V - 277V | HK LED, Amber
Versatile line voltage, 120V-277V LED, flush mount step light for use in a range of hardscape and architectural outdoor lighting applications.
(includes former ZXLi-SL-FM model)
FEATURES:
- 4W integrated HK LED delivers 135 lumens. 2700 – 4000K CCT, including specialty Amber option.
- Wet Location Listed, IP65 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- True flush mount capable with included recessed junction box and adjustable depth flange.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V - 277V AC.
Optics
Includes Solite Soft Focus lens for smooth, even distribution of light.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
4W HK LED delivers 135 lumens.
Mounting

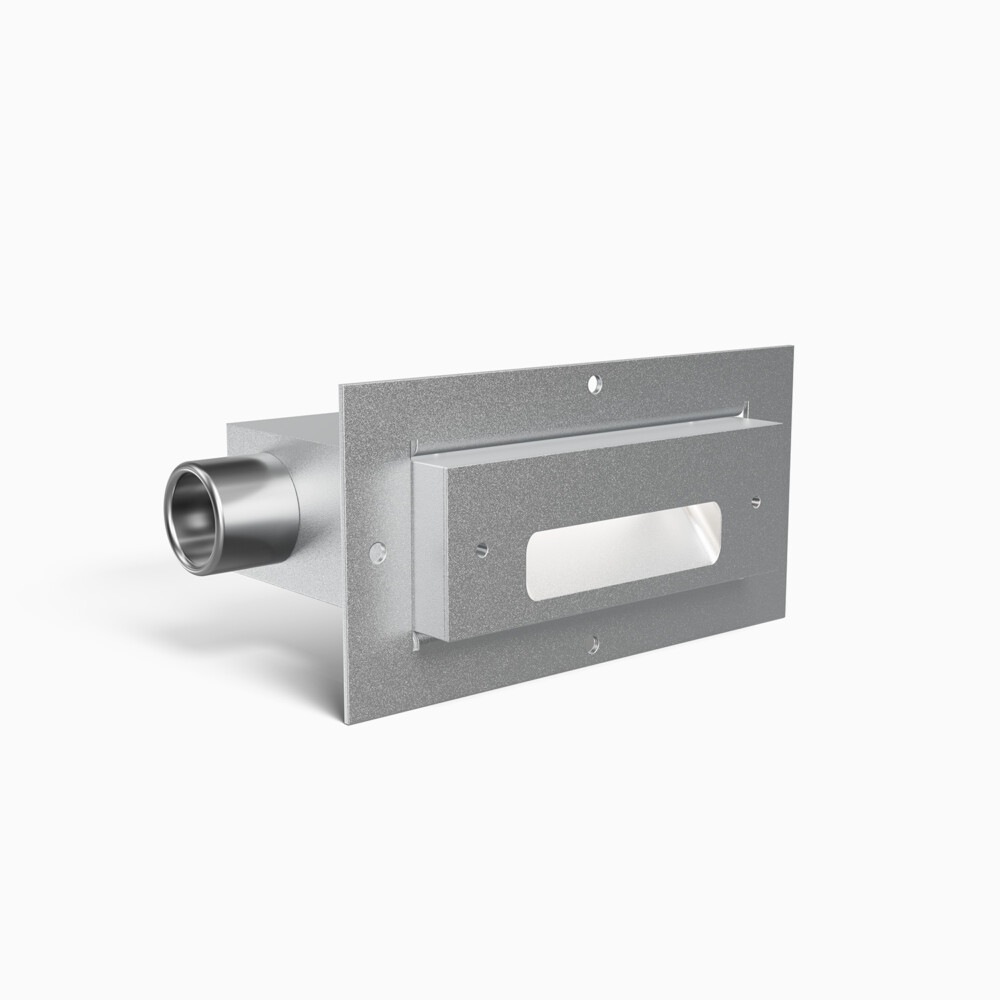

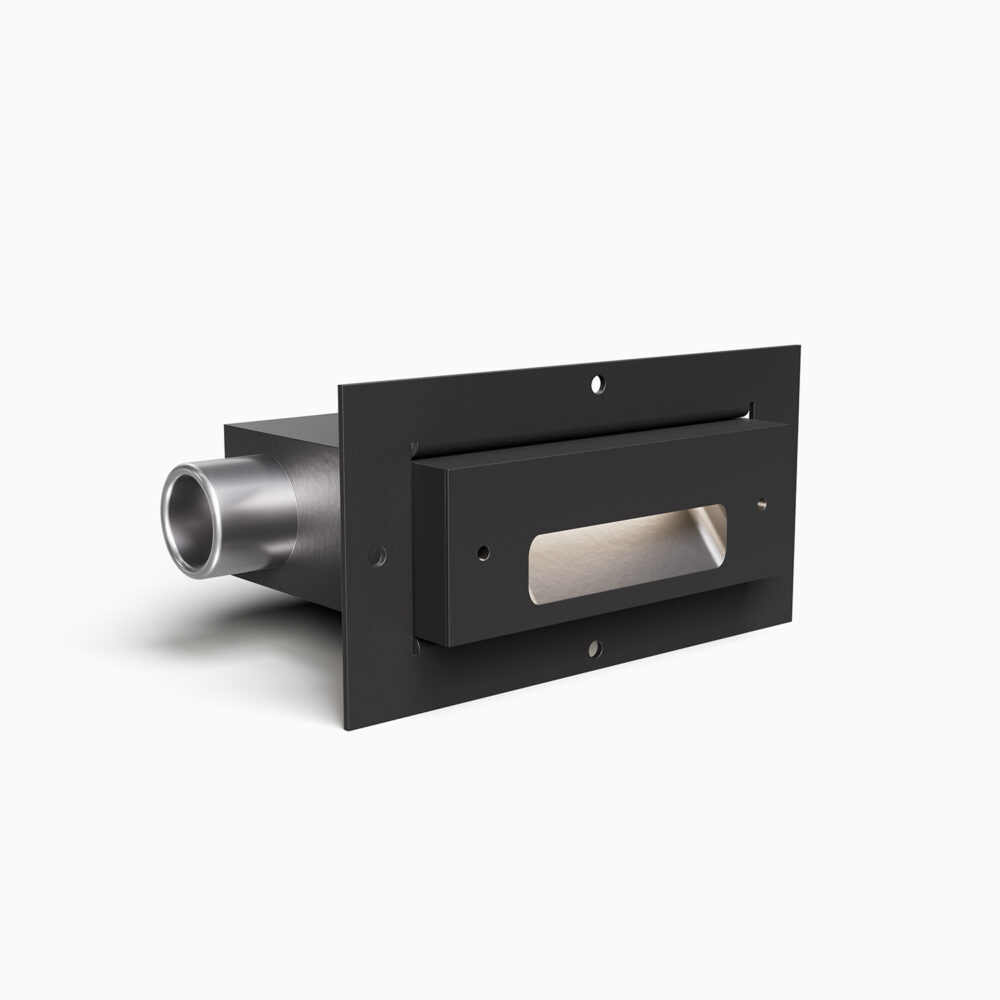

Mounts directly in wall or architectural material. Includes recessed housing, junction box, for mounting and wiring. Adjustable flange ensures flush installation into stucco, stone, wood, and other materials.
Light Engine
Innovative HK LED light engine. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Amber option available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
Non dimmable.
