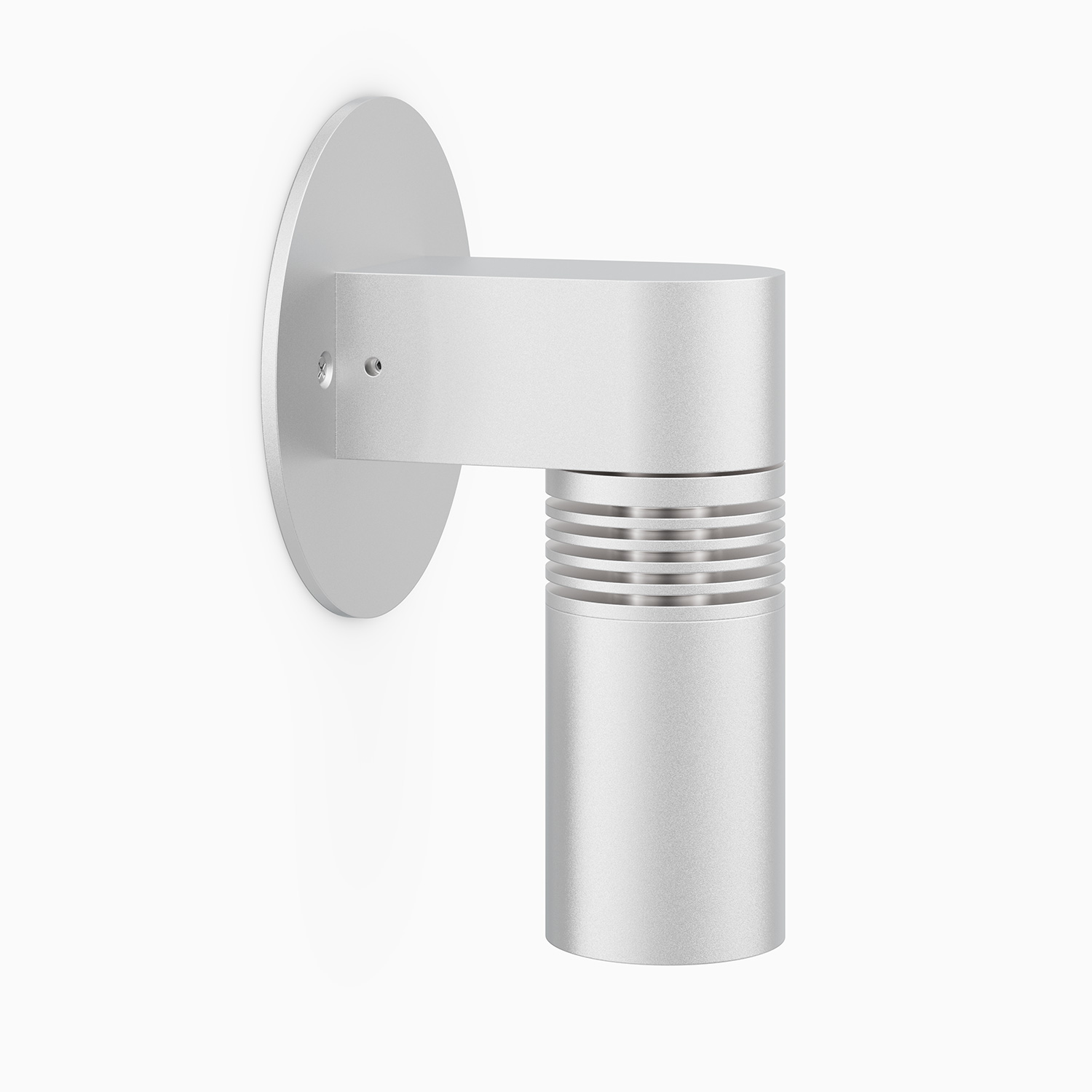

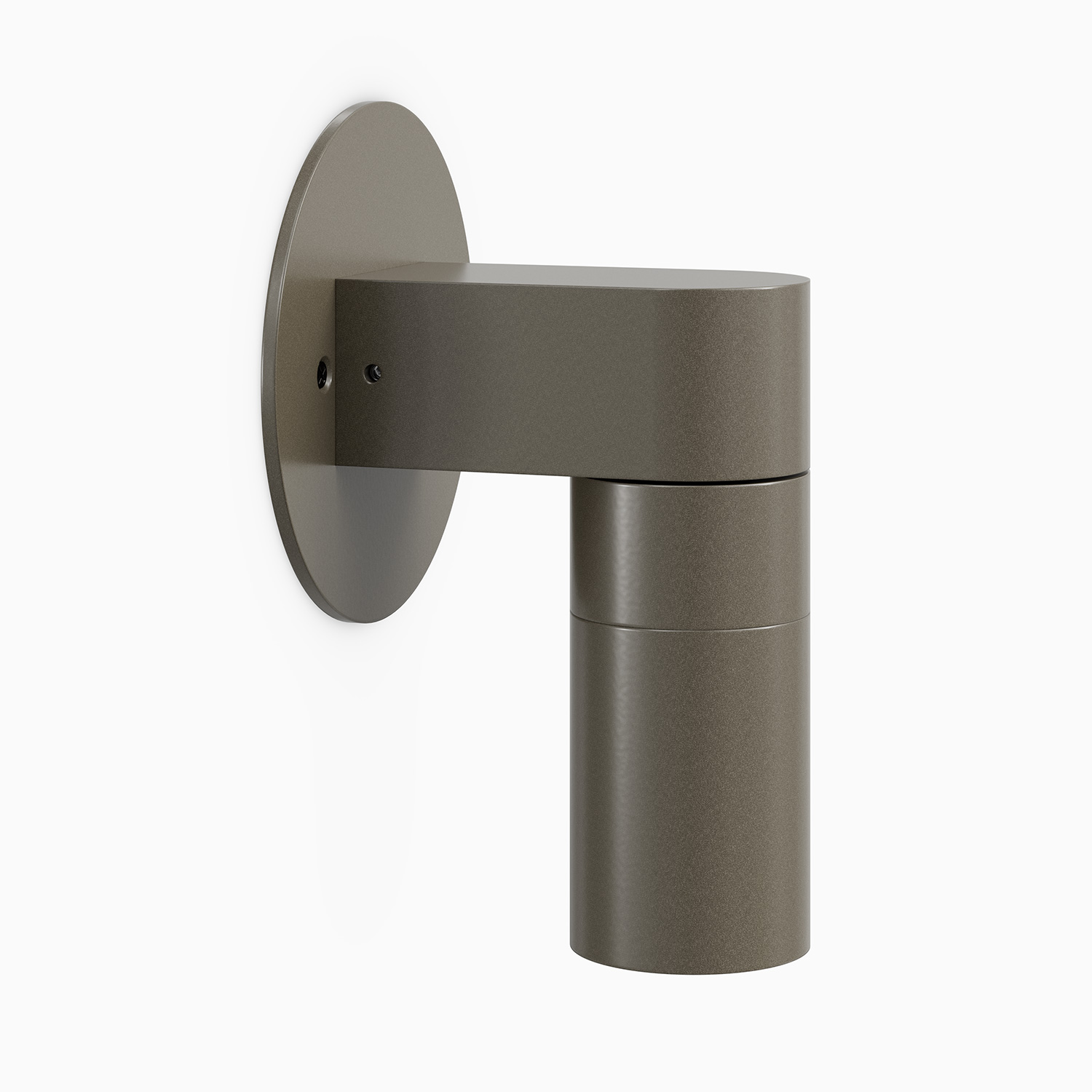

ZWL16-I

WALL MOUNT | ZW16 Series | 2.25" dia.
5–10W ( 400–1000lm ) | 120V–277V | HK LED

(includes former ZXL16i-WM model)

Versatile round line voltage, 120V–277V LED Wall Mount light, perfect for modern architectural outdoor lighting environments.

FEATURES:

5W, 7W, 10W integrated HK LED delivering 400–1000 lumens. 2200–4000K CCT.
Wet Location Listed, IP65 Standard.
Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
360º rotation adjustment permits operation as an uplight or downlight.
Field changeable optical lensing available.
Includes CM5 5″ Round Canopy Plate. Long, Short, and Angled Glare Shields available. Additional surface or canopy mounting options.
Every fixture tested end of line for water tightness and light quality.

spec sheets

photometry

Specifications

Materials

Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

120V–277V AC.

Optics

Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with a metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7 or 10W HK LED delivering 400–1000 lumens.

Mounting

Includes CM5 Round Canopy Plate and (2X) 8-32 UNC machine screws for finished mounting to standard 3O/3R style Junction Boxes. (See page 4 of the spec sheet for more mounting options)

Hood and Glare Shield

Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of the spec sheet for details)

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, and 2500K options available. Consult factory for specialty LED specification details.
