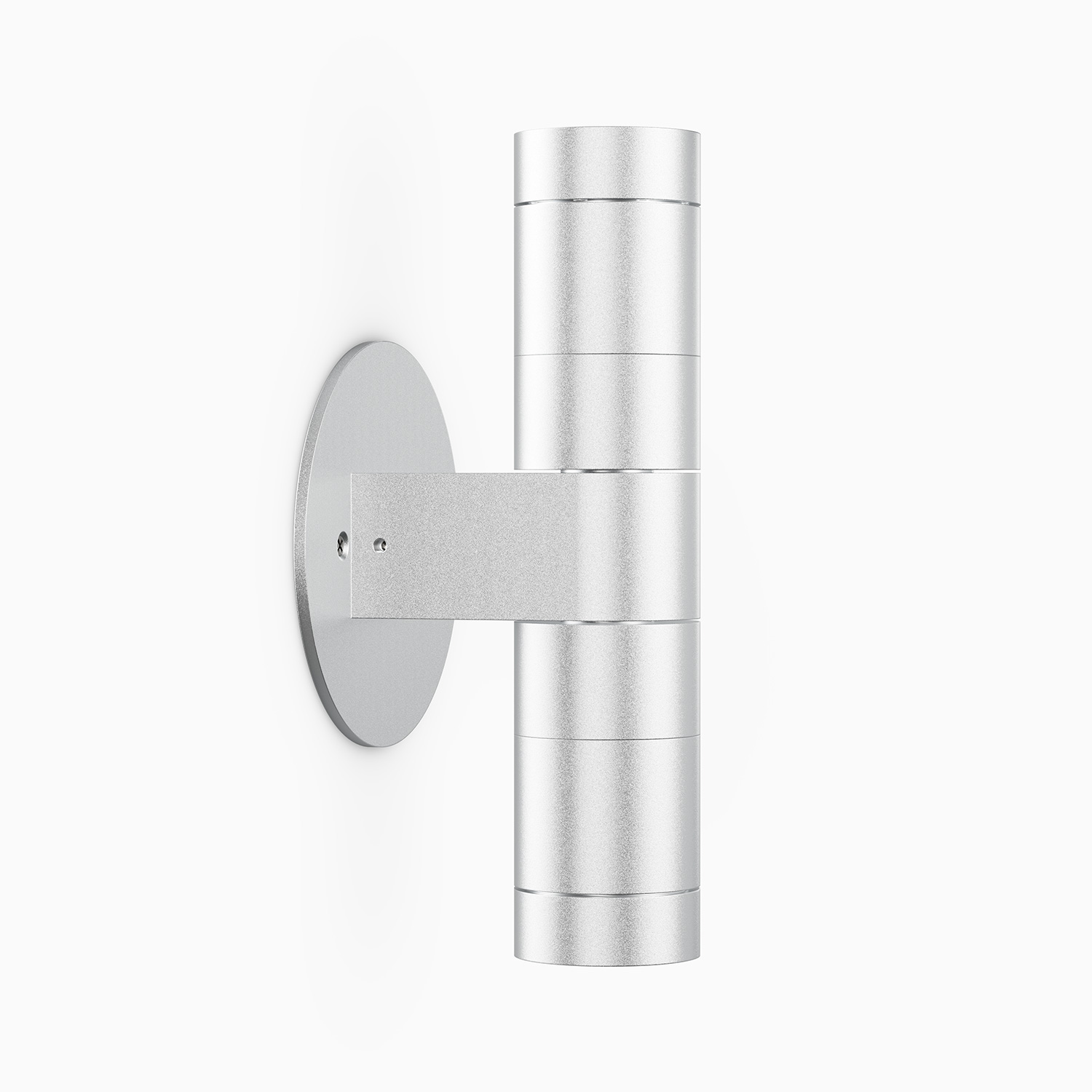

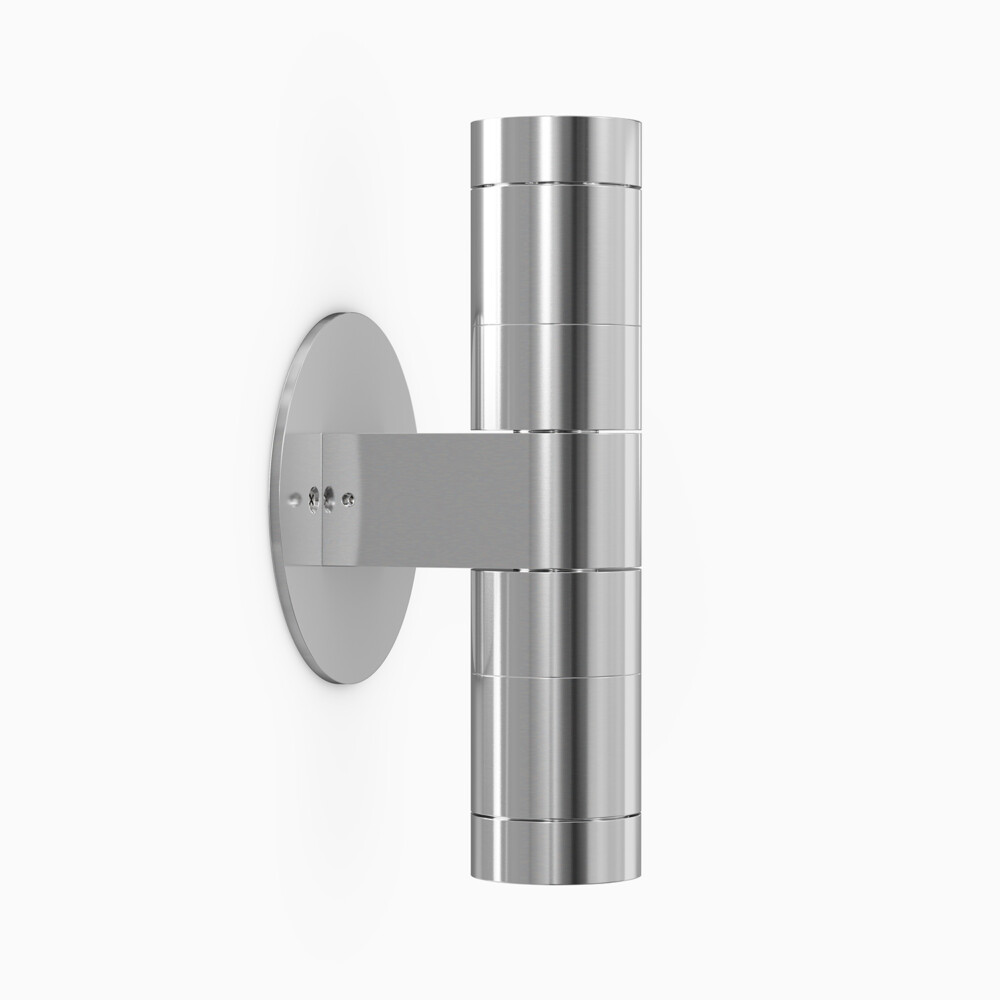

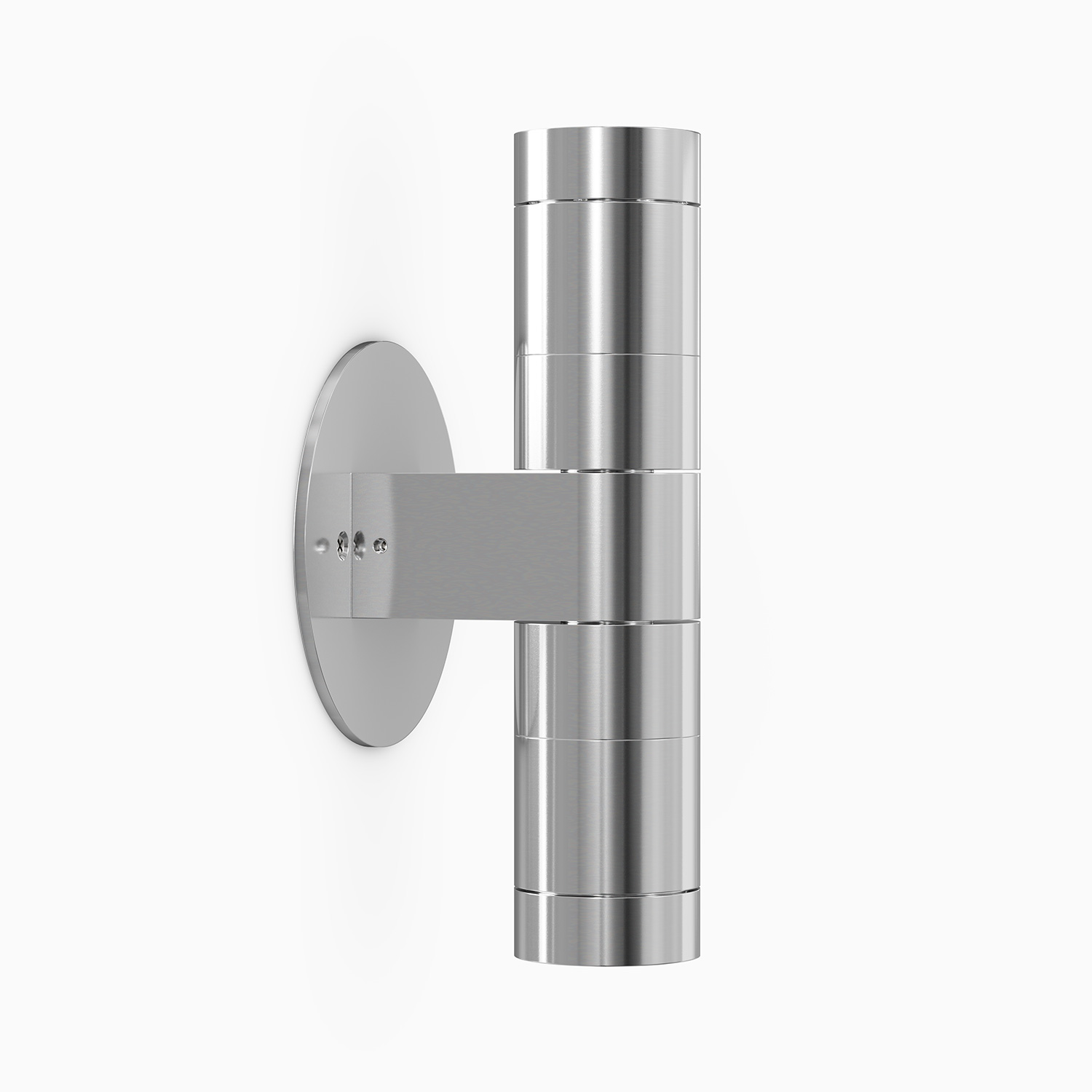

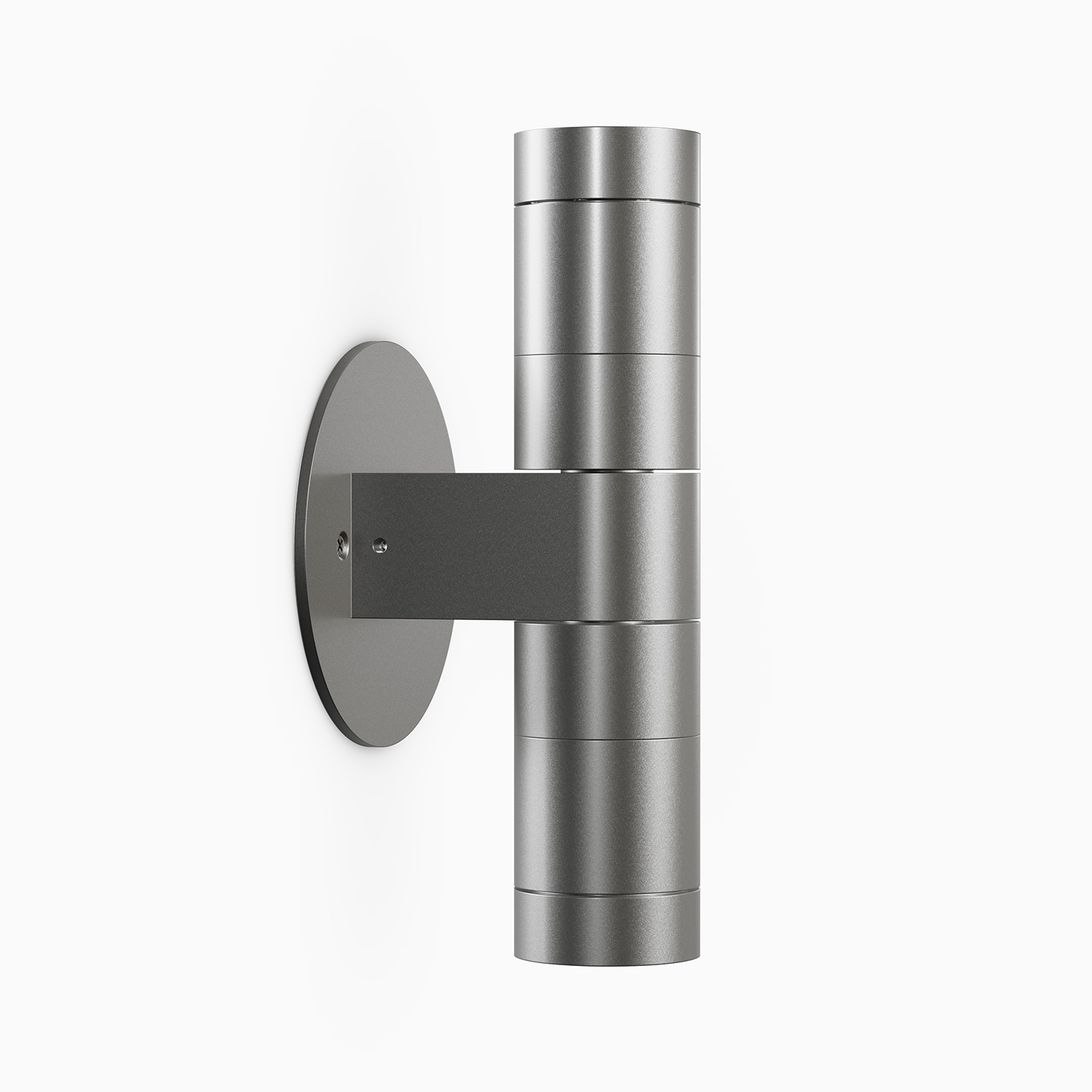

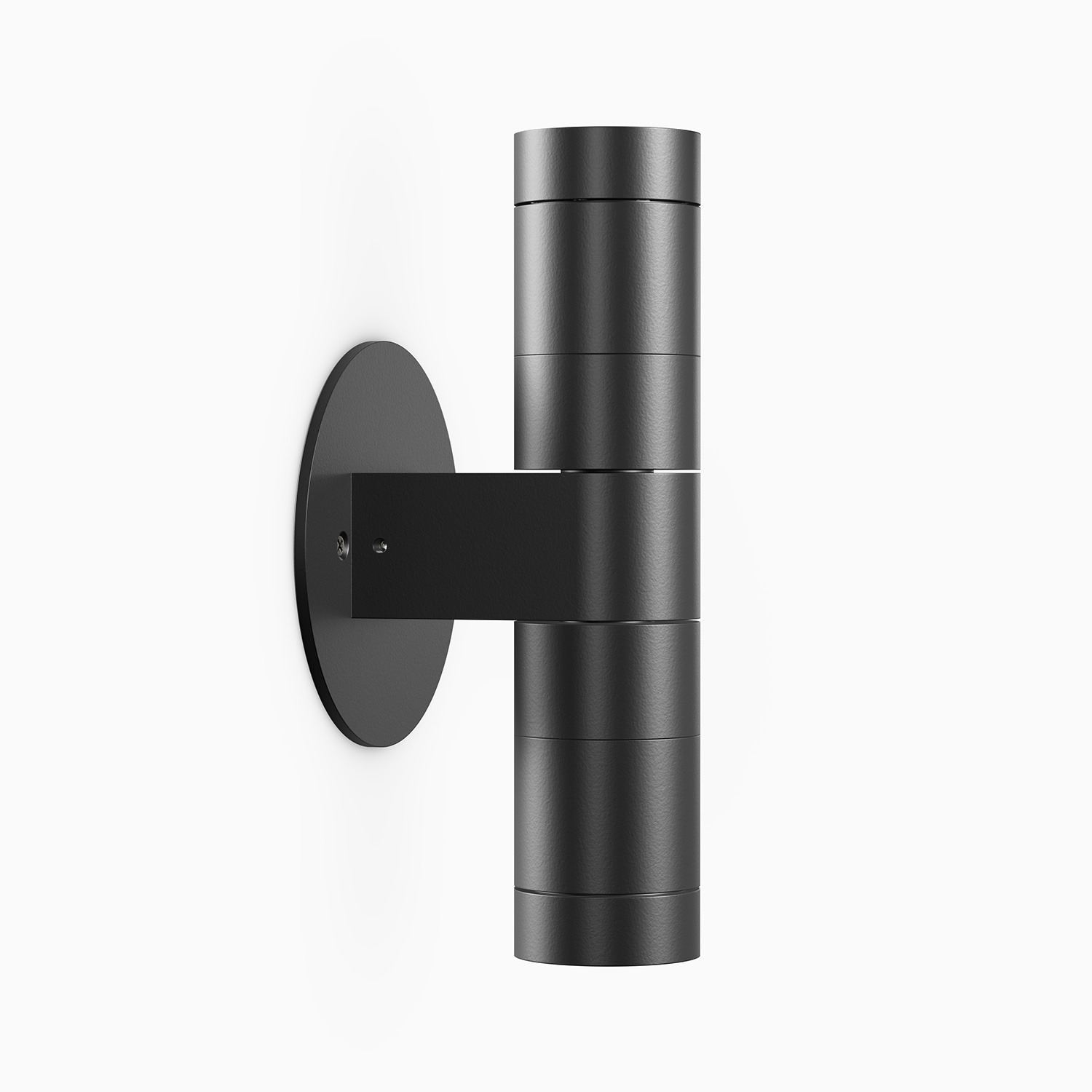

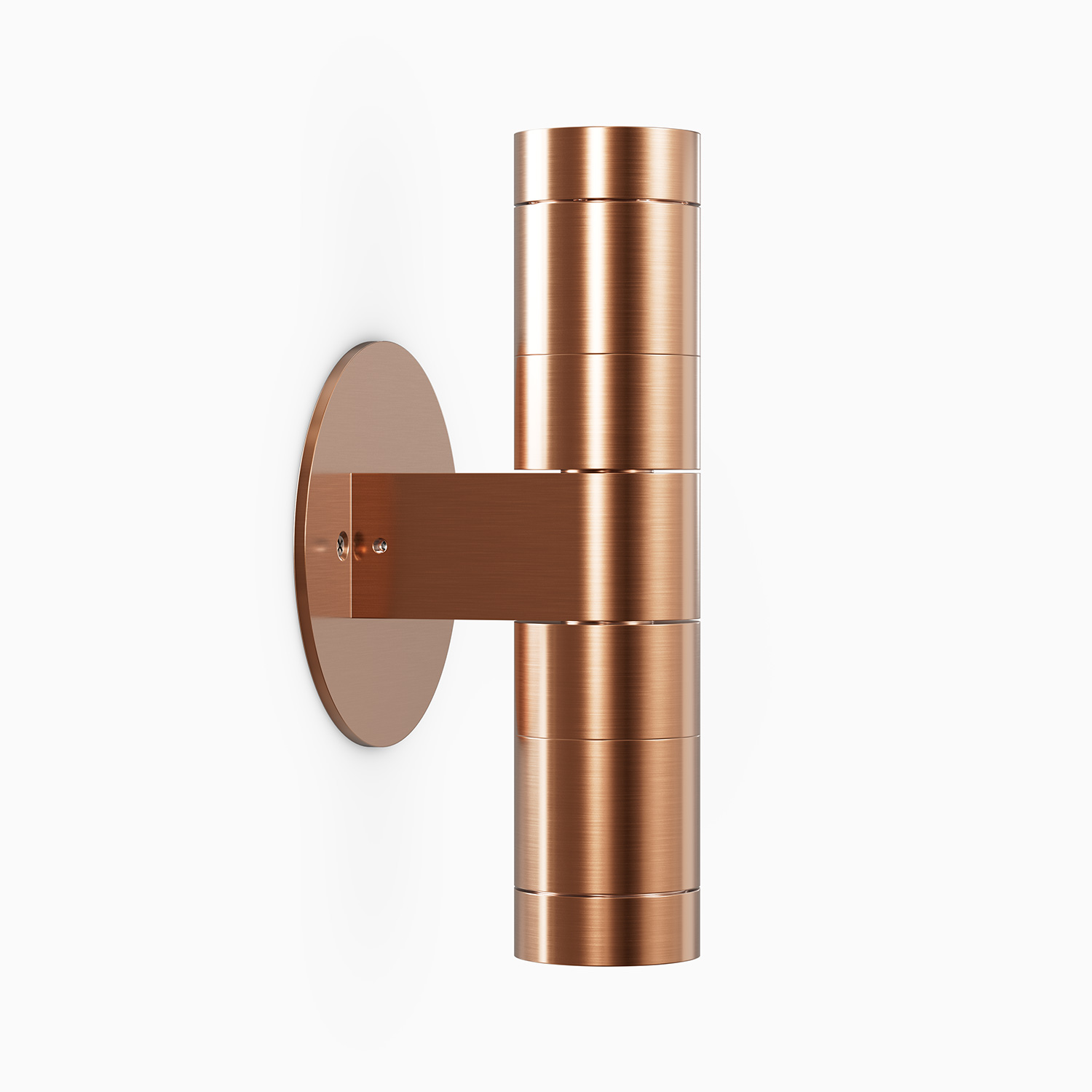

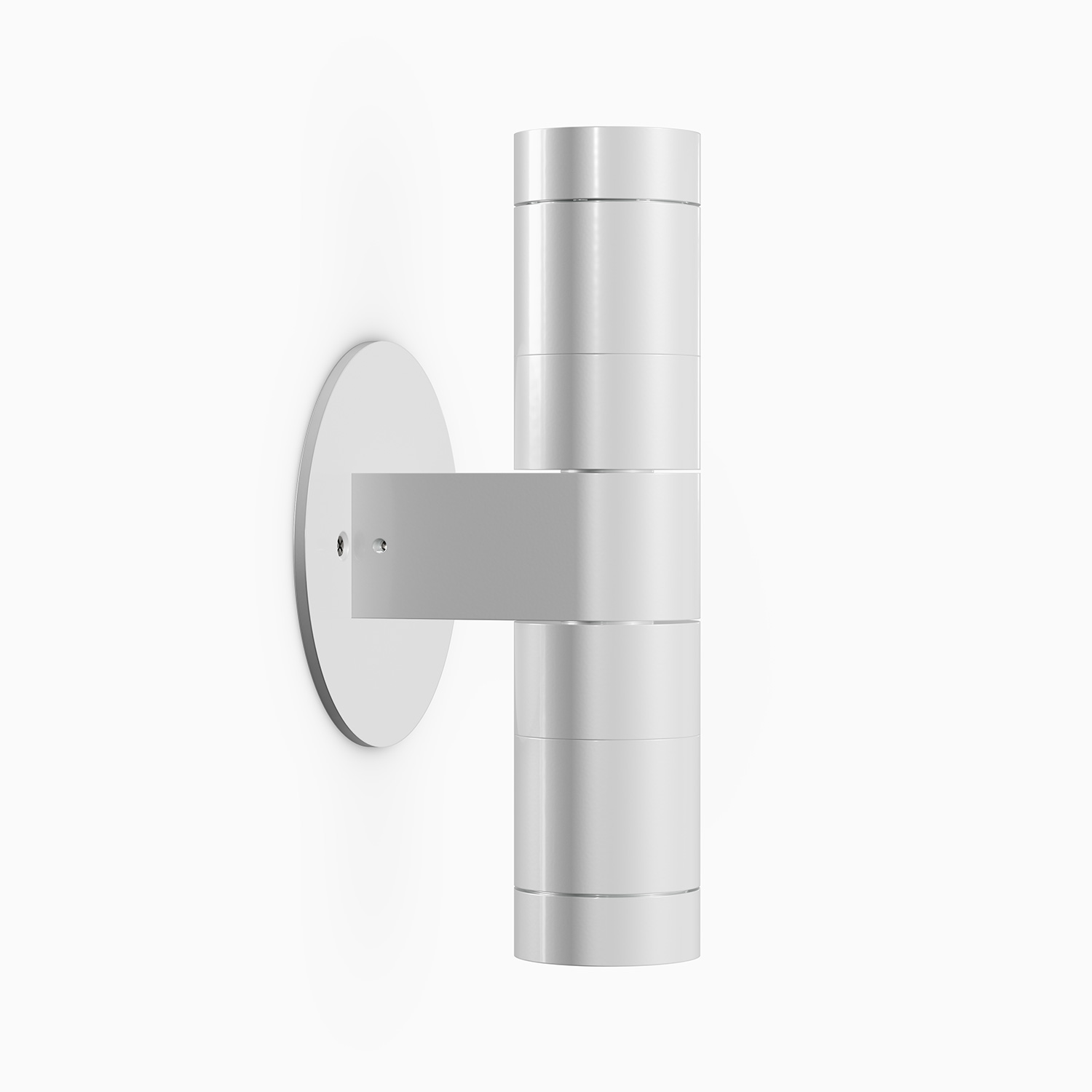

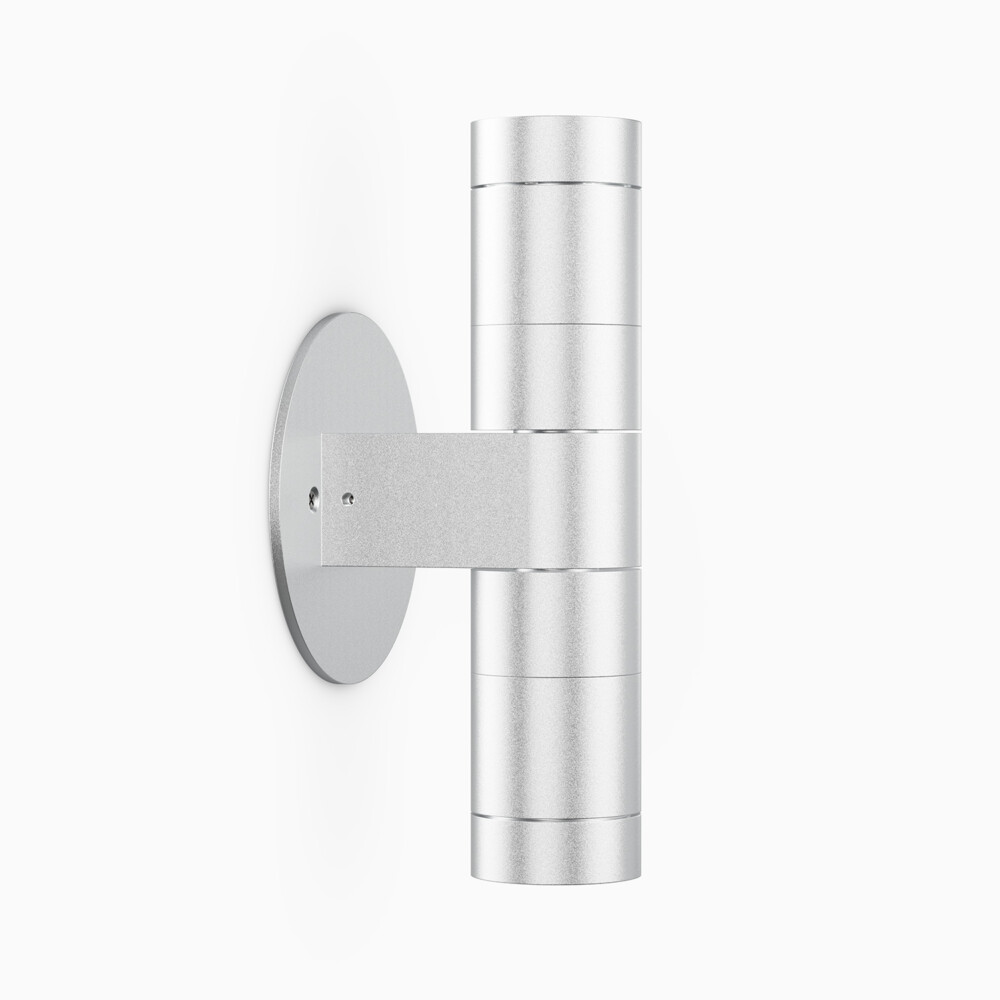

ZX16i-WM2 (SOi)

Wall Mount • ZX16-WM2 Series

FEATURES:

Up/Down wall sconce with mounting canopy.
ETL outdoor wet location listed. IP65 standard.
Machined from solid billet 6061-T6 corrosion resistant aluminum.
Swivel stem insert allows for precision adjustment during installation.
Unique weep hole design in hood of the up-light with minimum light leak.
GU5.3 socket with US patented integral SORAA® heat sink.
Line voltage input with integral step-down transformer.

spec sheets

photometry

Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

120V, 230V or 277V AC come with integral transformer.

Lamp Base/Socket

Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4

Finish

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.

Wattage

Max. 9W (x2) for SORAA MR16 lamp with Thermobuster. Max. 35W (x2) for halogen MR16.

Optics

Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.

Hood and Glare Shield

3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 2 of Spec Sheet for details).
