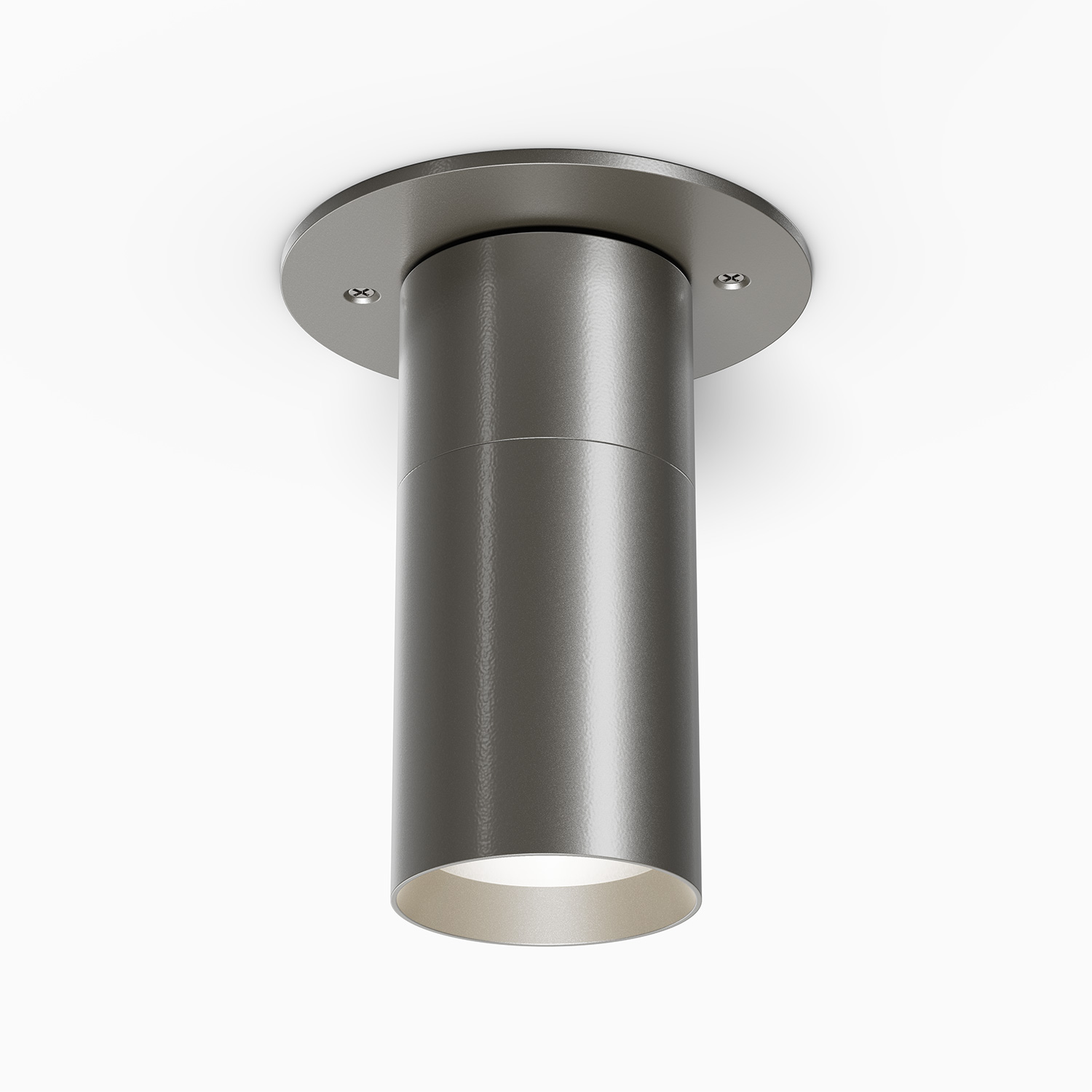

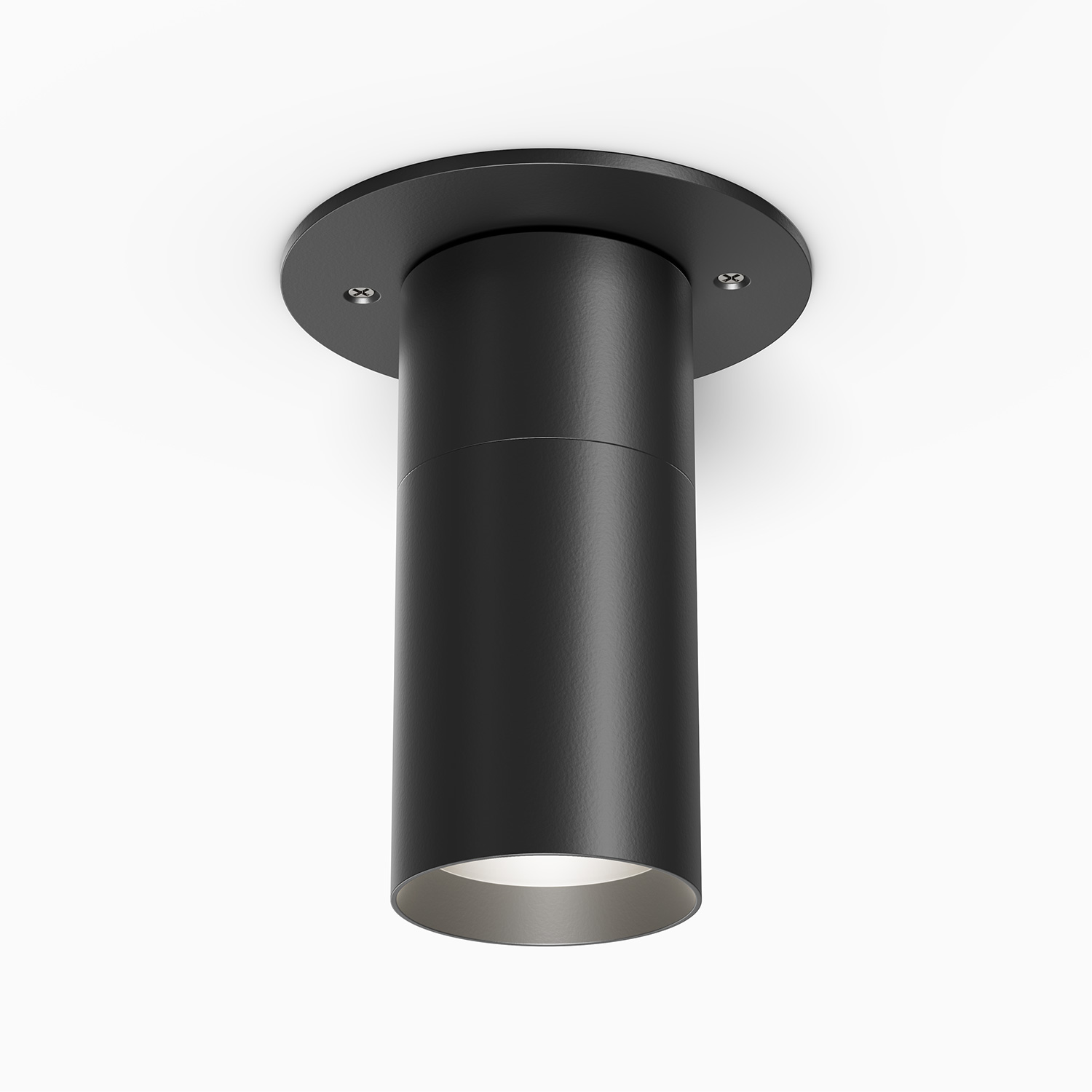

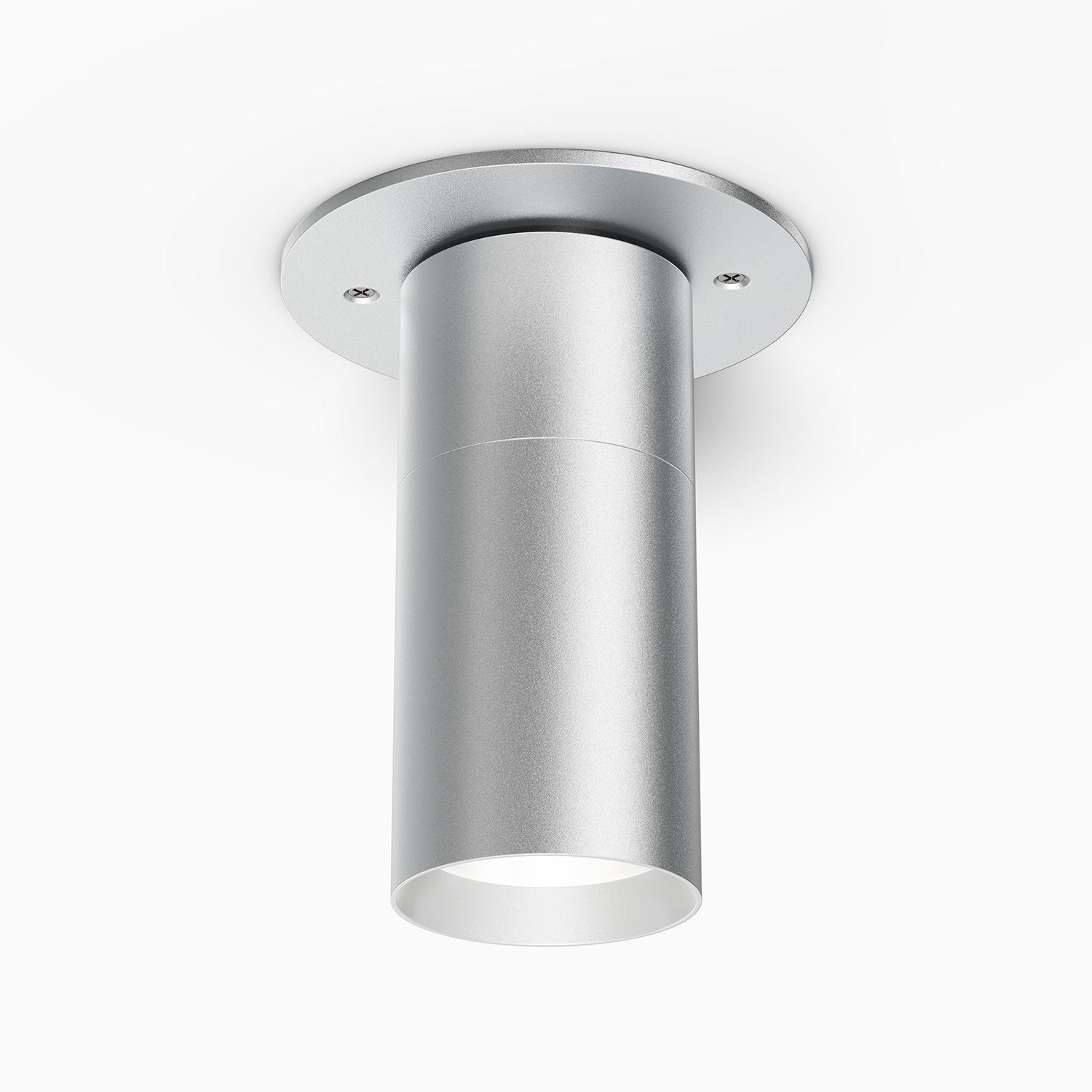

ZX20-CM
PAR20 lamp-based ceiling mount
FEATURES:
- Par 20 size ceiling mount down light for architectural and landscape application.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- US patented integral SORAA heat sink with the “SOi” model.
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V AC.
Lamp Base/Socket
Standard socket for E26.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Light Engine
PAR20 Halogen lamp
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
2 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice.
Dimming
Incandescent/halogen dimming.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
