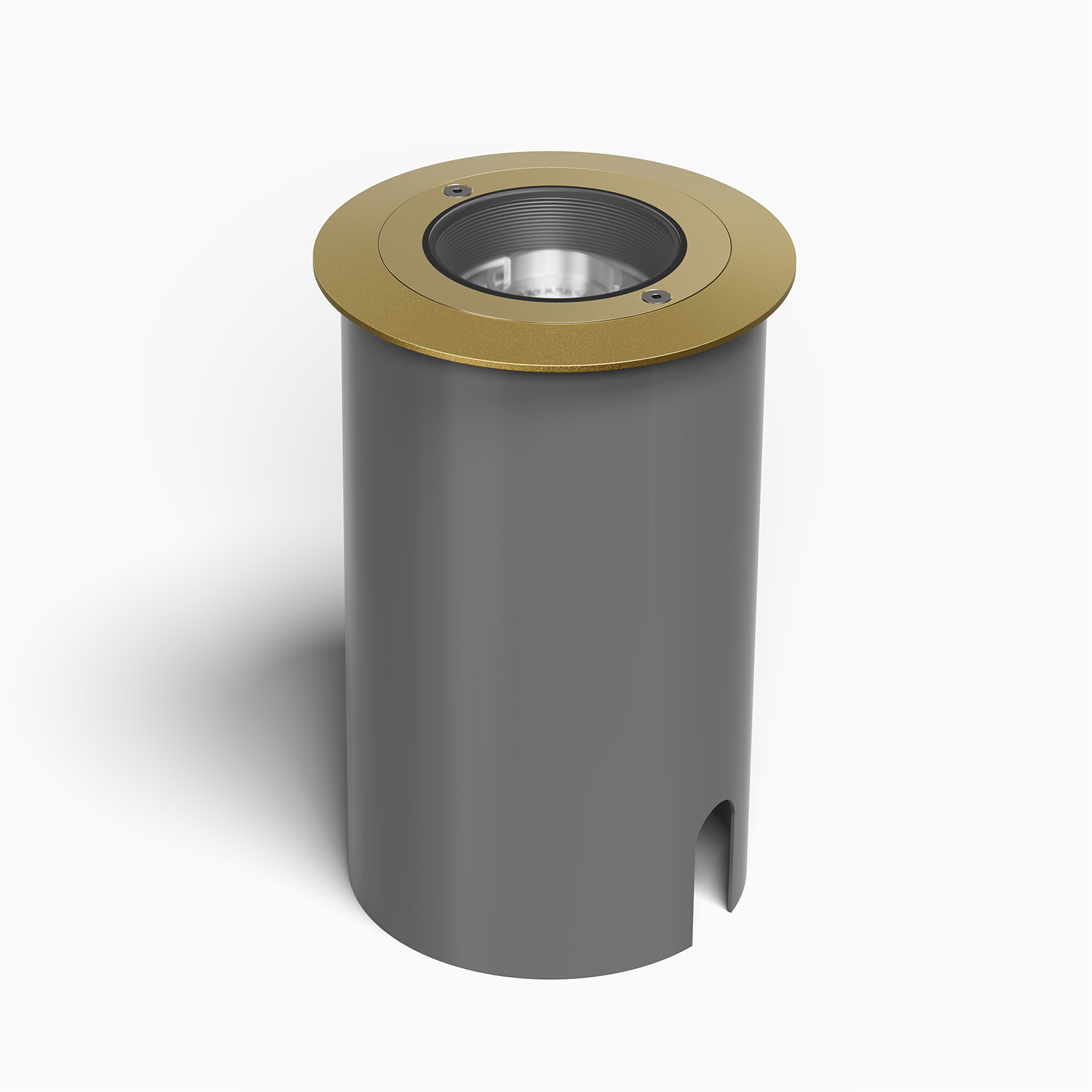

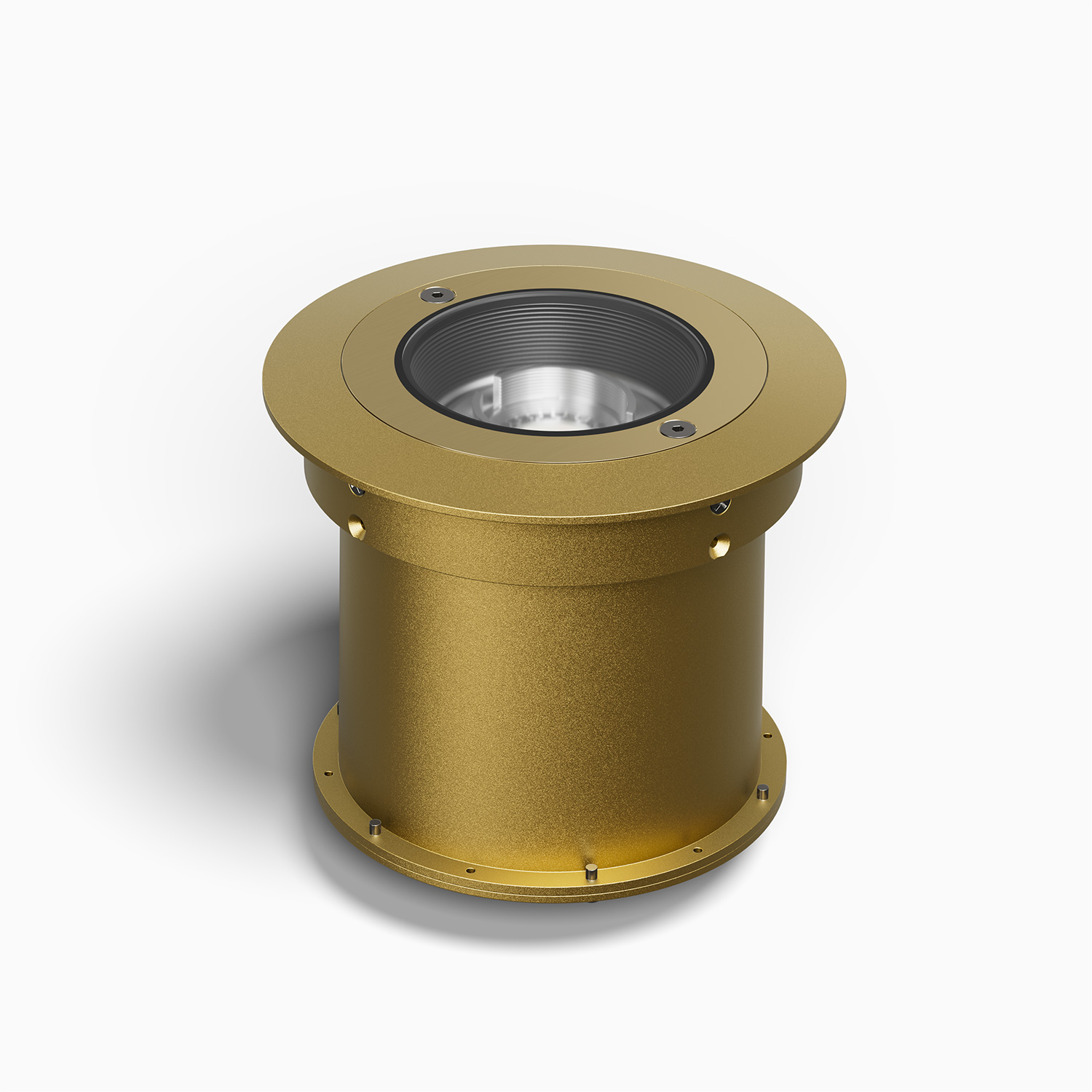

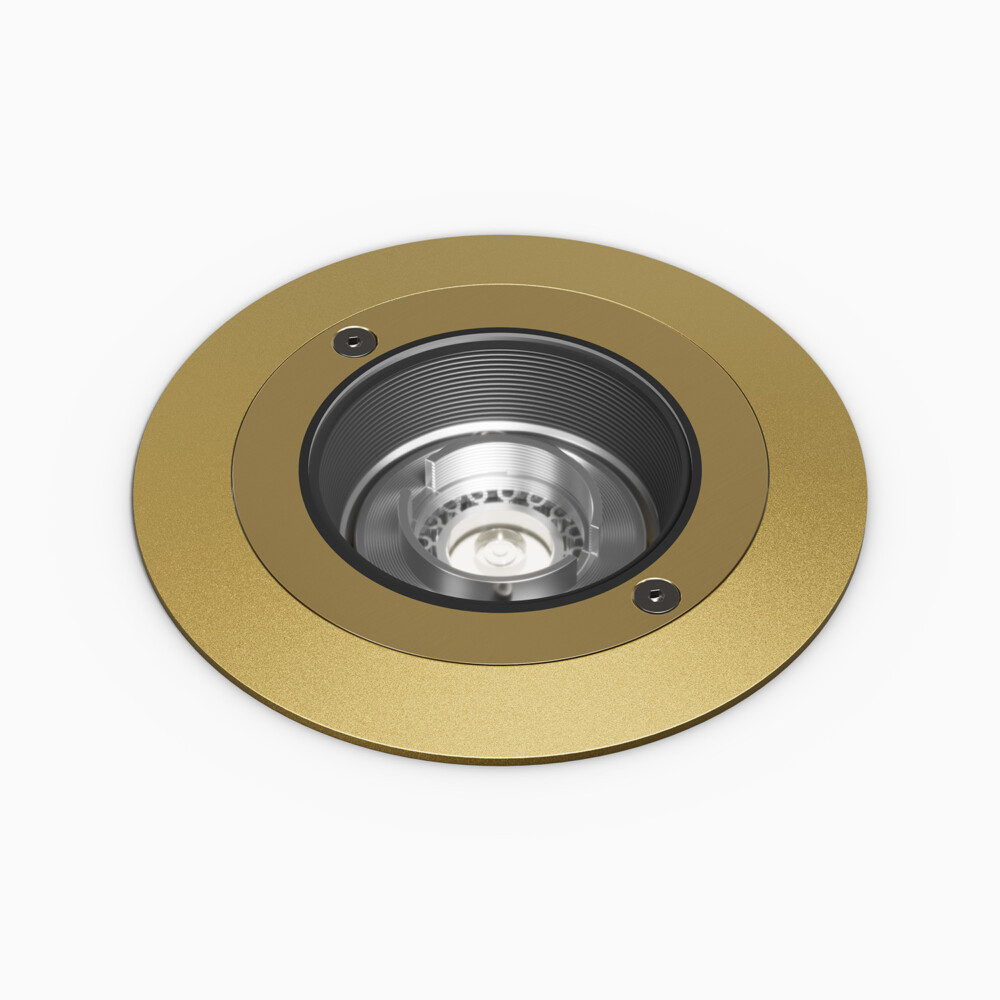

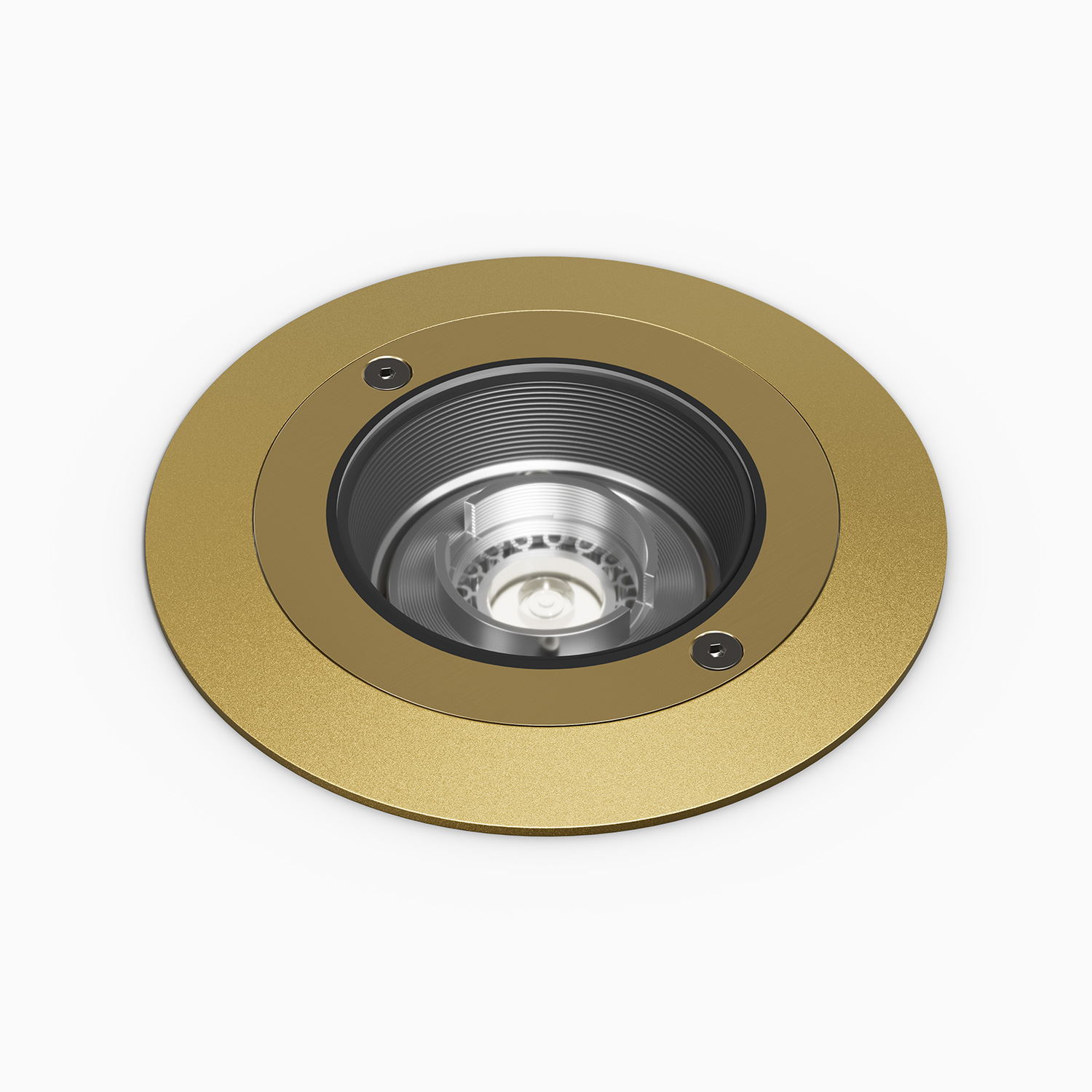

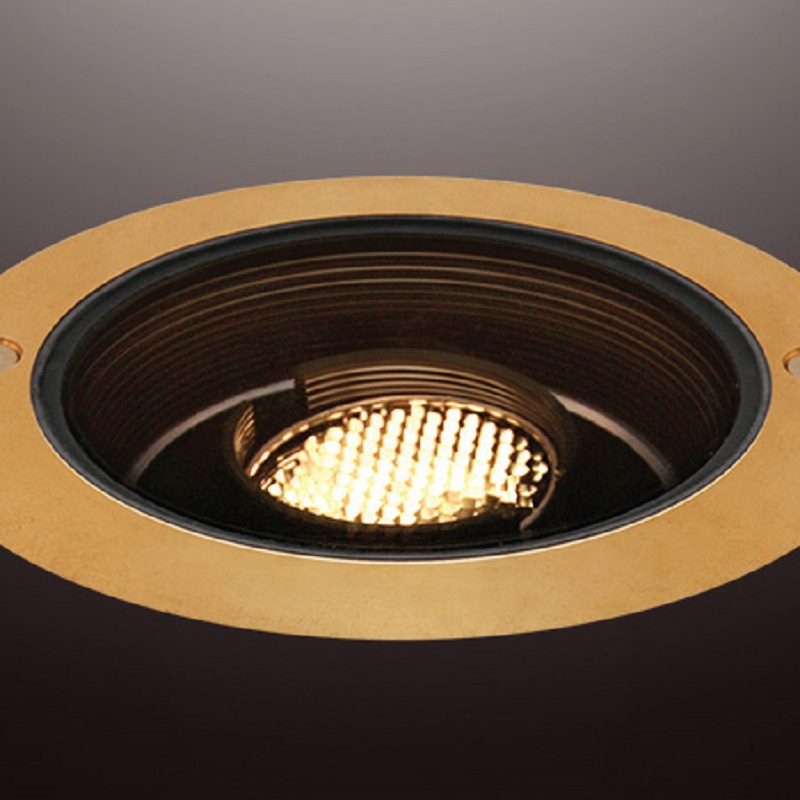

ZXG16-GU10-SOi
FEATURES:
- Brass In grade fixture with superior corrosion resistance.
- ETL outdoor wet location listed. IP67 standard.
- Built-in optic accessory holder.
- Easy-Lock Aiming Mechanism allows 360° Horizontal and 30° vertical adjustability.
- US patented integral SORAA heat sink.
- PVC outer sleeve for line voltage installation.
Materials
Housing: Die-cast brass. Lamp holder and Aiming Assembly: Machined from billet 6061-T6 corrosion resistant aluminum. Hardware: 304 stainless steel hardware. PVC Sleeve: 12" long, 3/16" thick.
Voltage
120V or 230V AC.
Optics
Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Finish
Superior corrosion resistant Natural Brass, Silver Nickel, or Black Oxide for a robust marine grade finish.
Wattage
Max 9W for SORAA MR16 lamp with Thermobuster. Max 50W for halogen MR16 without Thermobuster.
Mounting
Mounts directly in ground, or poured concrete. Optional PVC Outer Sleeve is available to aid installation (See page 4 of the spec sheet for details).
Optional Shields
Grate Cover, Slot Aperture, Top Cover, and Adjustable Shroud Shields available.
Light Engine
MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant
Dimming
MLV or ELV. Please refer to SORAA website for GU10 dimmer compatibility.
