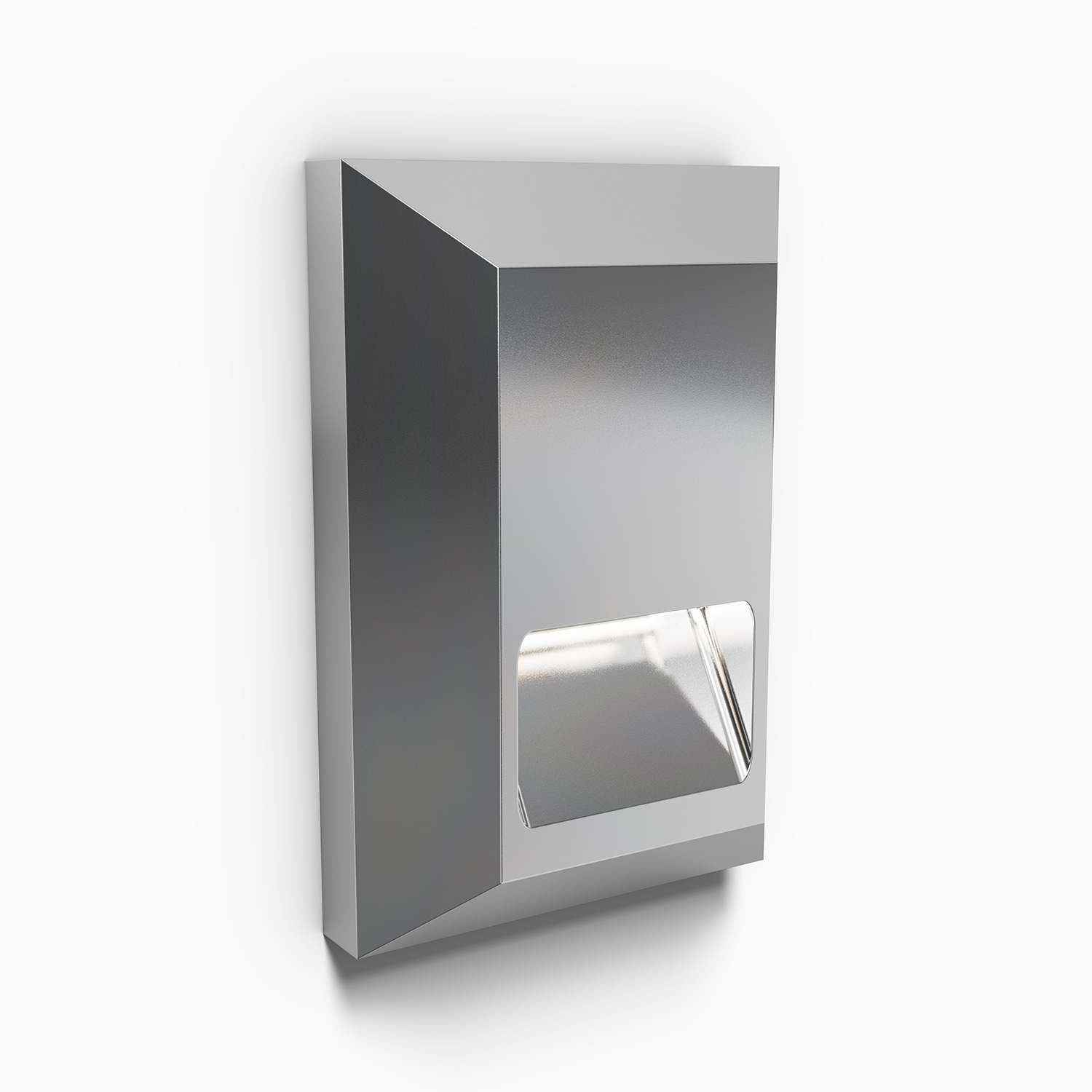

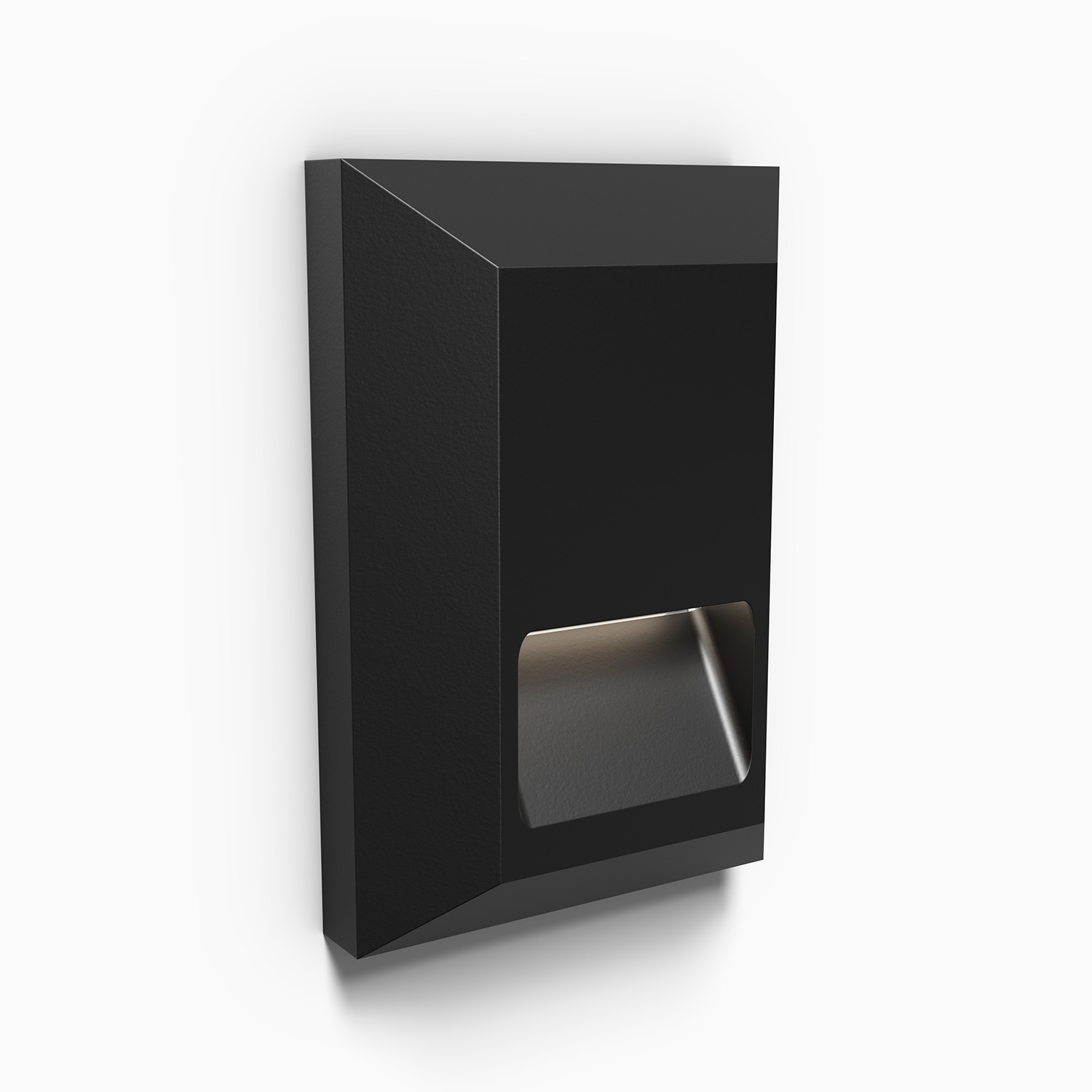

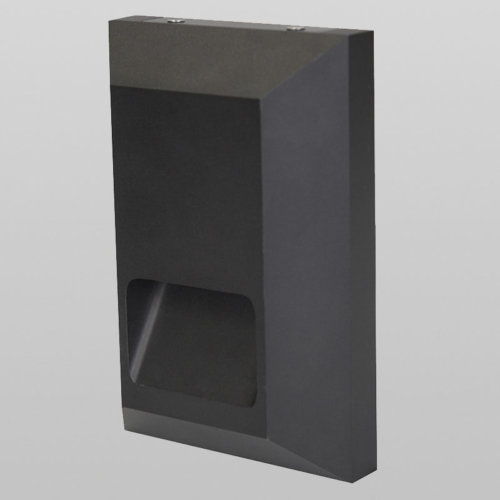

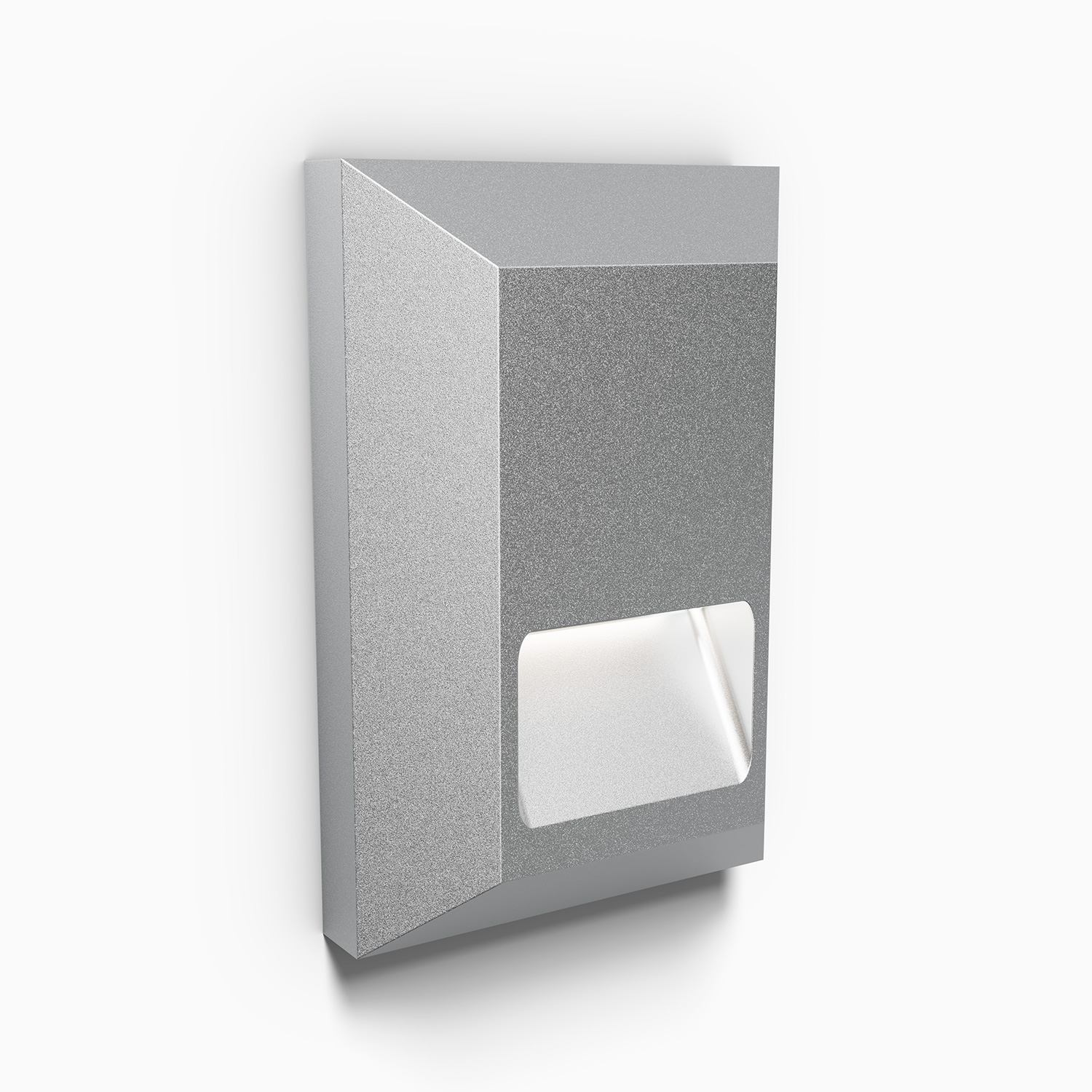

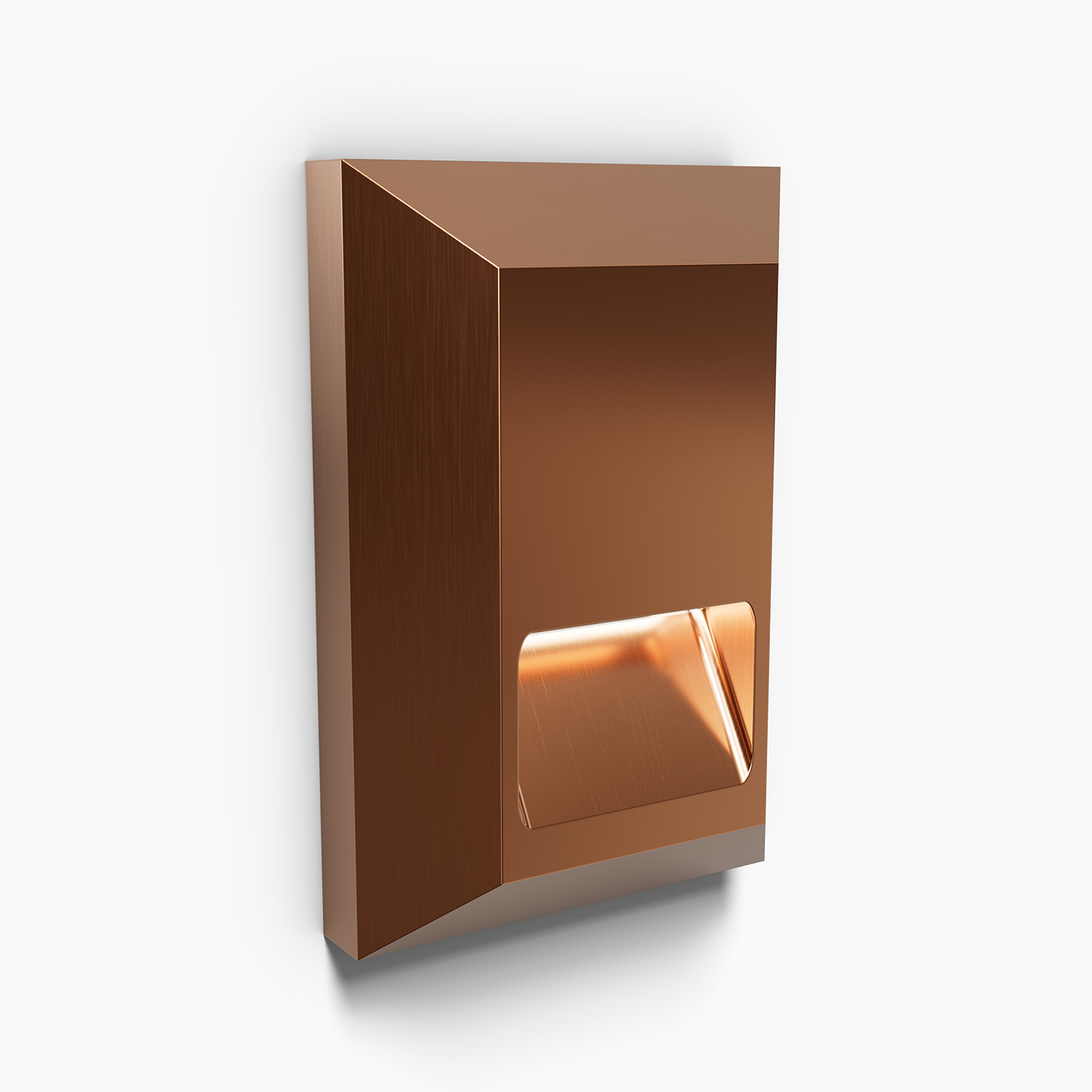

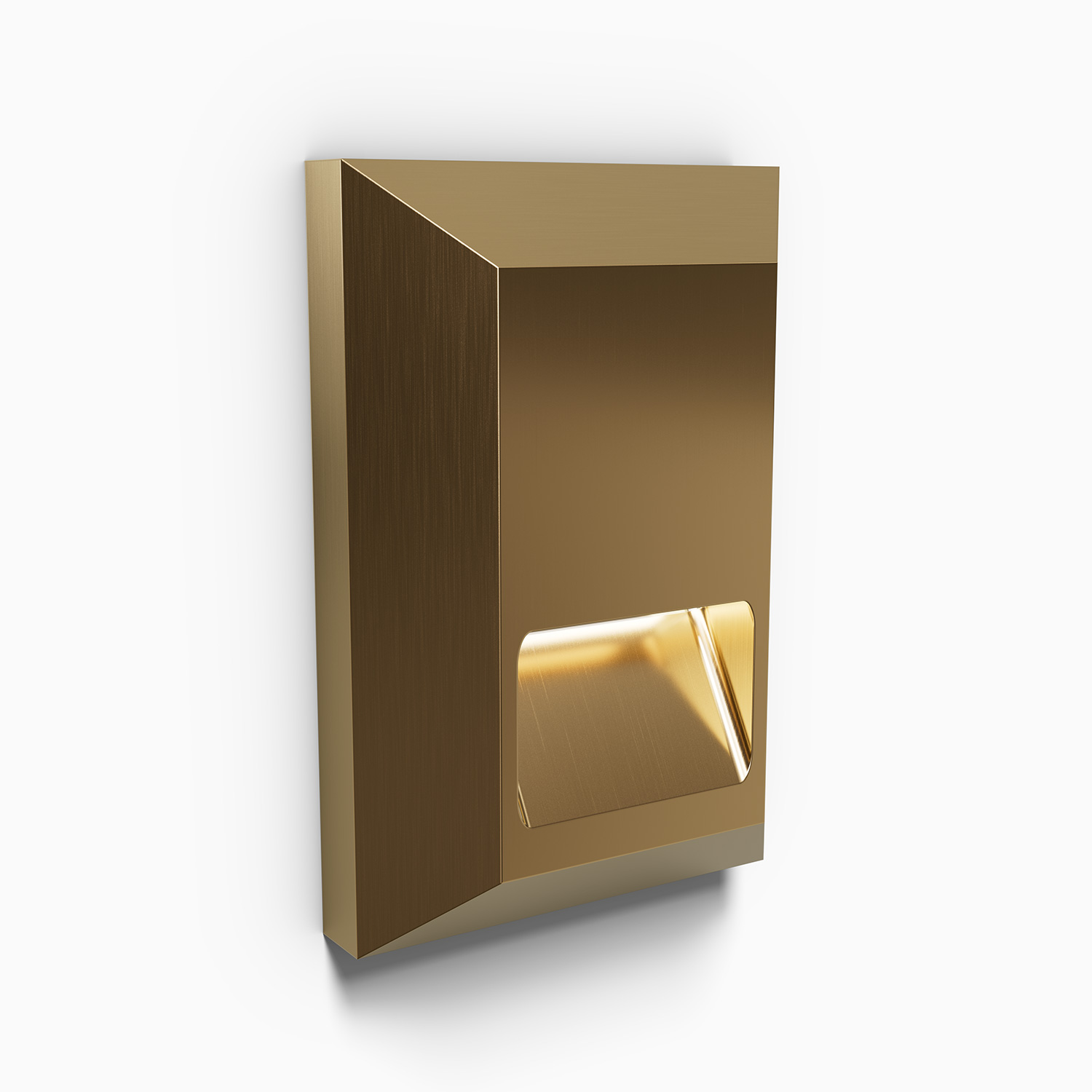

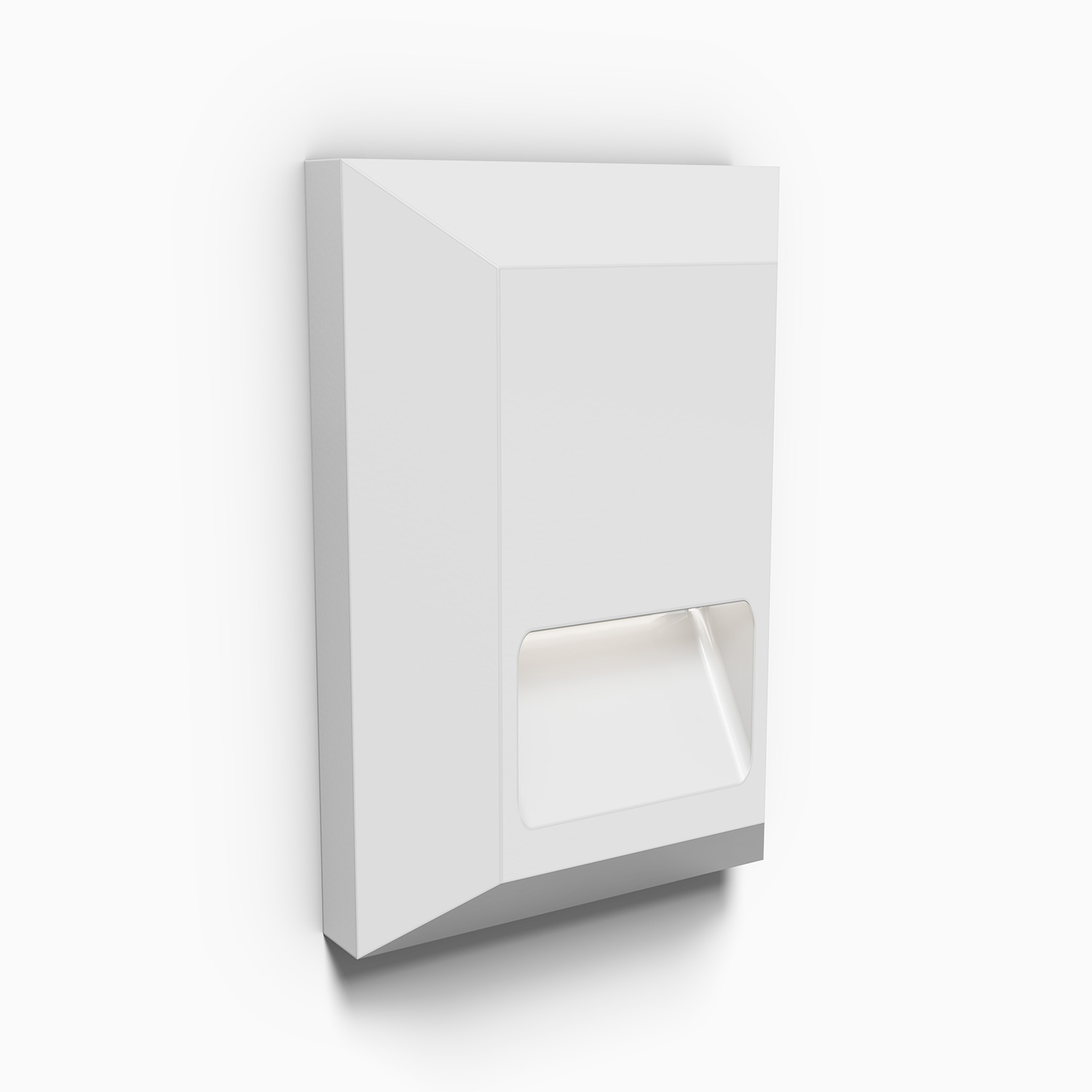

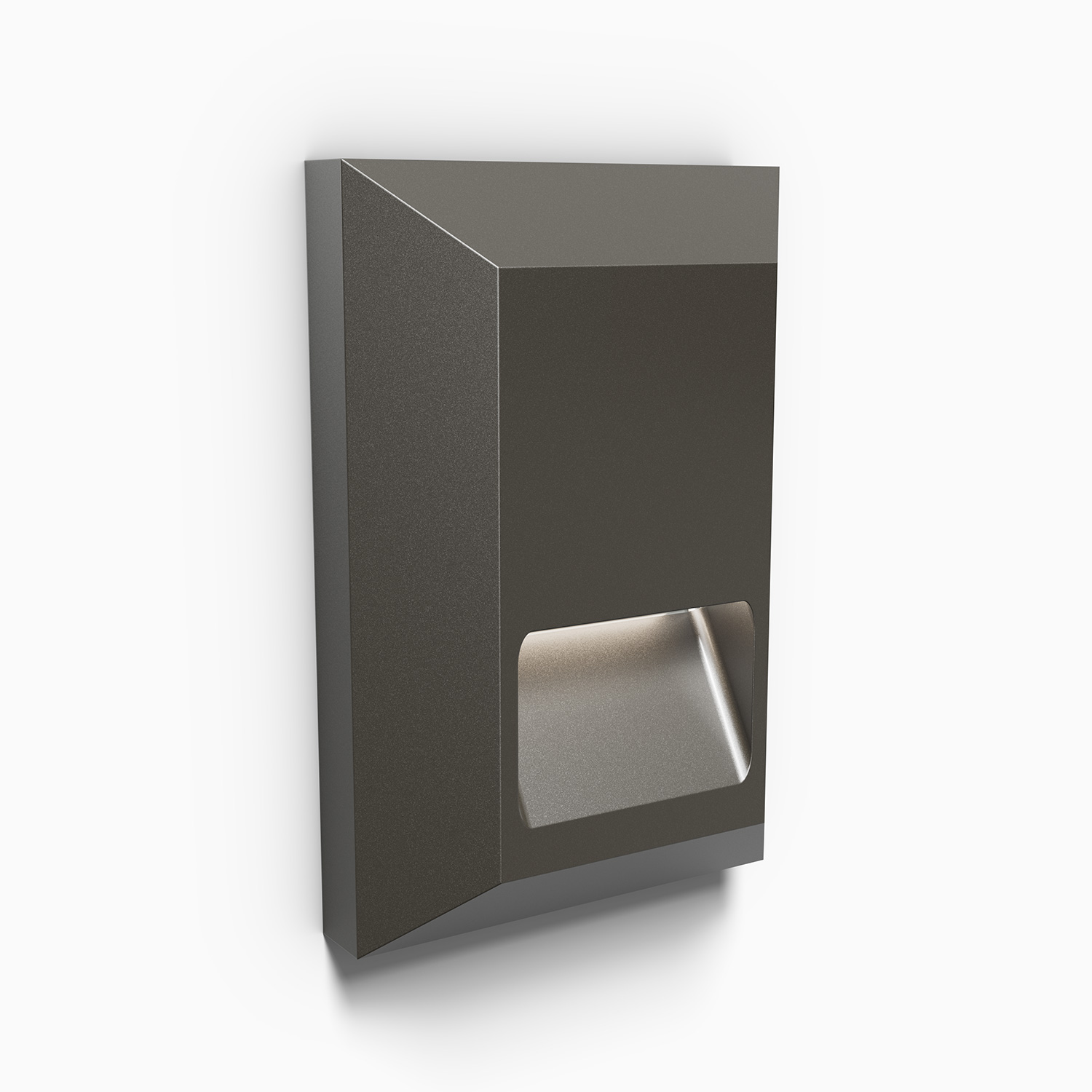

ZXL-SL-6X4-SM
Products • Step & In Ground
ZXL-SL-6X4-SM
Step & In Ground
FEATURES:
- Surface mount step light with minimum requirement for recessed space behind the wall.
- Recessed LED light source with minimum glare.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061- T6 corrosion resistant aluminum.
- Line voltage input with integral LED driver in fixture housing.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V - 277V AC with integral step down transformer.
Lens
Soft focus lens (SOLITE lens).
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
4 or 8W HK LED. 5W Amber LED.
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Dimming
Phase dimmable @120V
