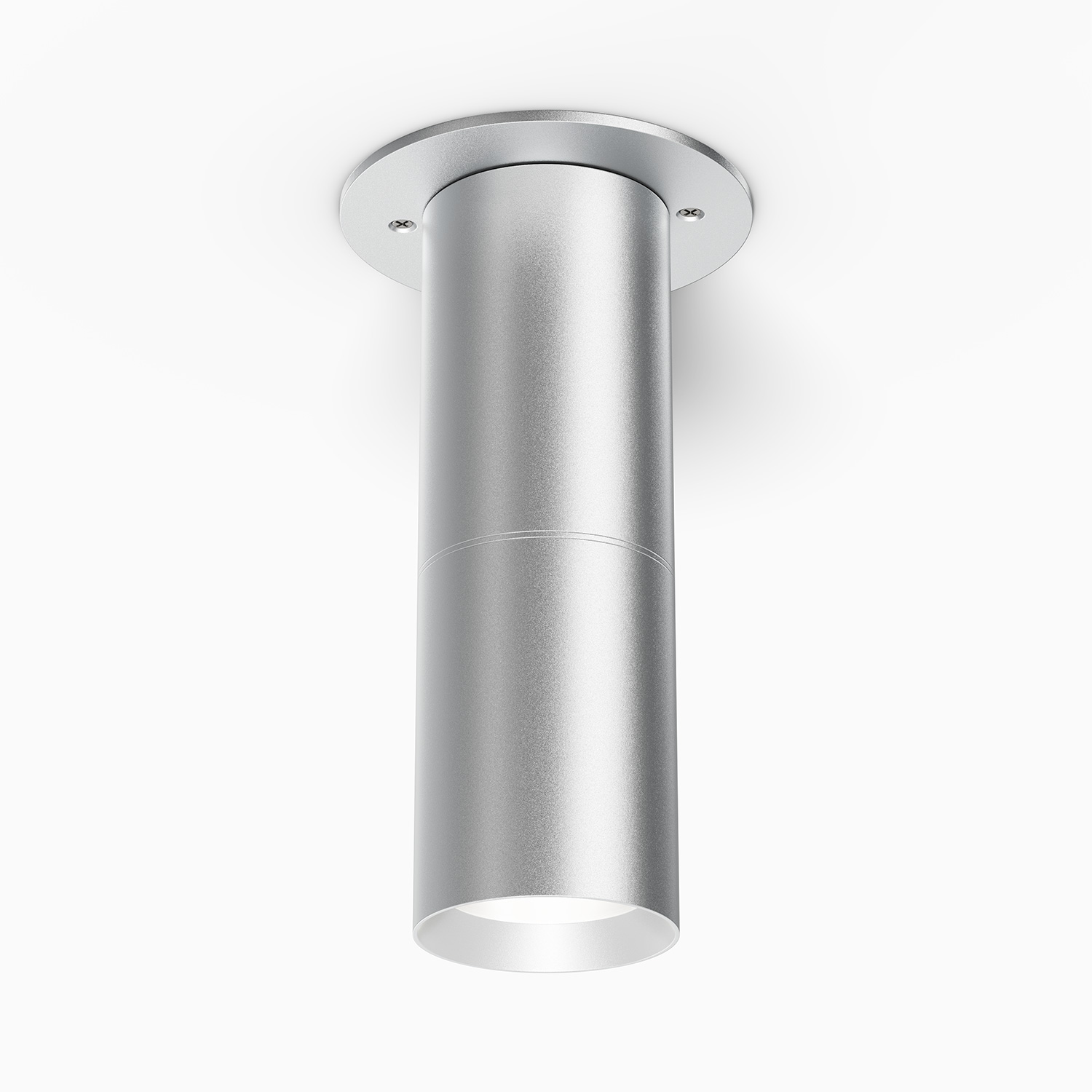

ZXL20i-CM
3" LED line voltage ceiling mount
FEATURES:
- 14W or 20W Ceiling mount lighting for architectural down light application.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Modular components – field changeable LED module & beam spread reflectors.
- Line voltage input with integral LED driver in fixture housing.
- Available in turtle friendly amber model.
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V, 230V or 277V AC with integral LED driver.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish

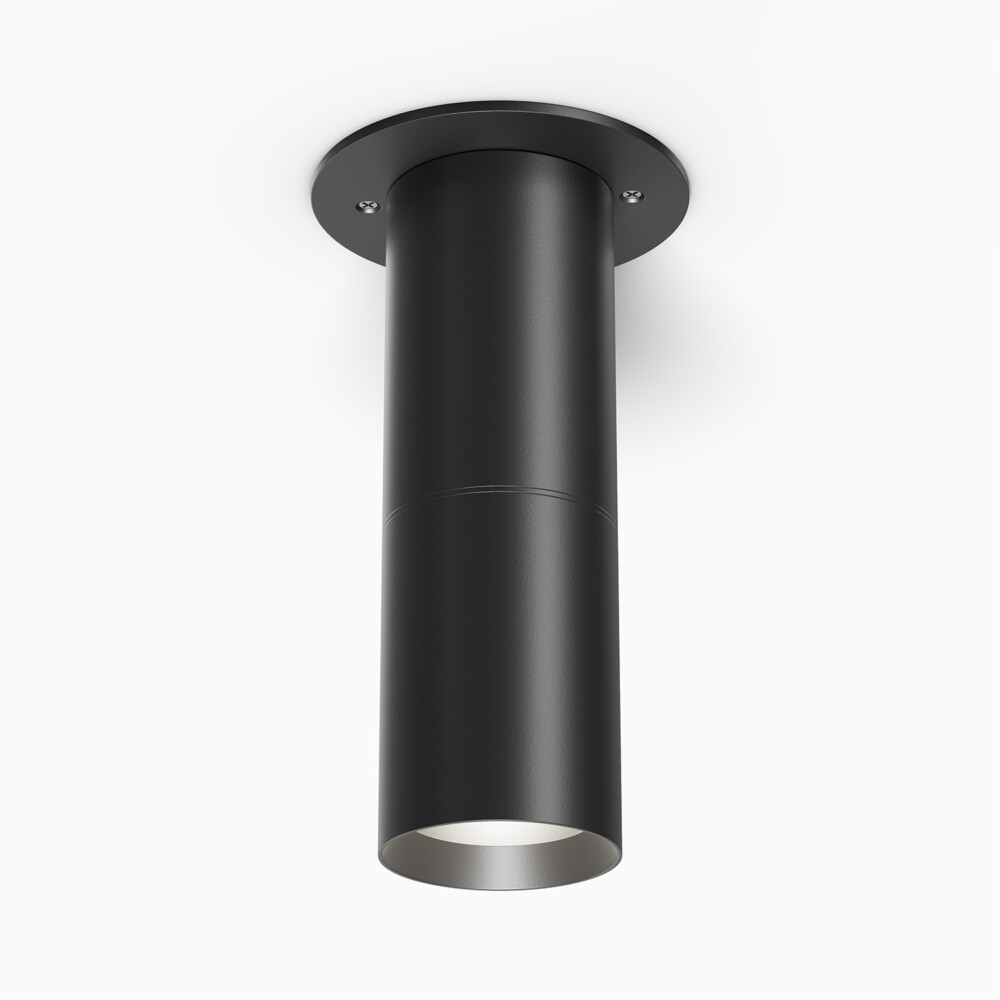

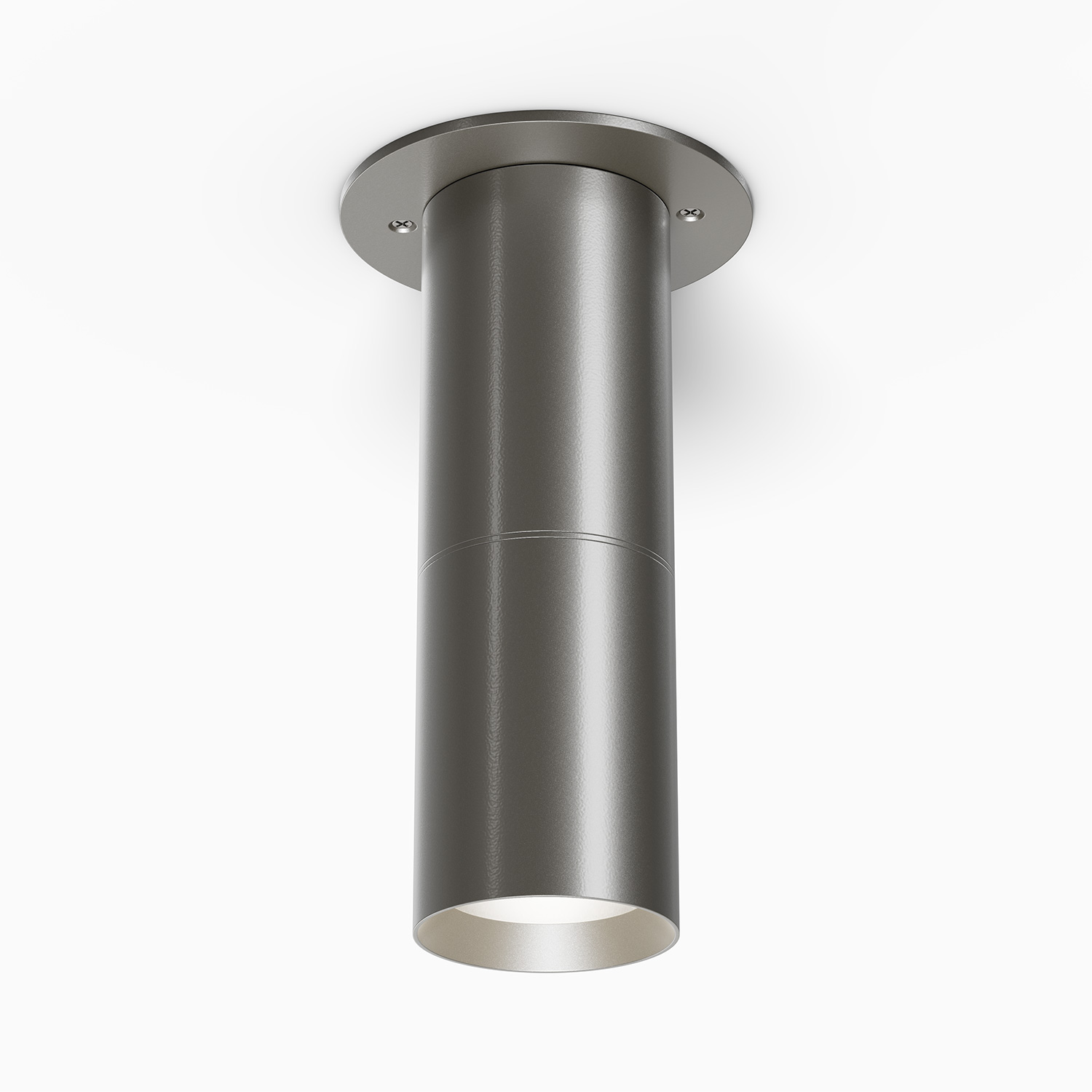

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
14 or 20W Nichia LED, 16W for Amber LED or 18W. Xicato LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
2 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice.
Light Engine
Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K. RGBW.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
Phase dimming @120V, 0V - 10V dimming @120V & 277V.
