Additional information
| Light Source | |
|---|---|
| Shape | |
| Input Voltage | |
| Wattage | |

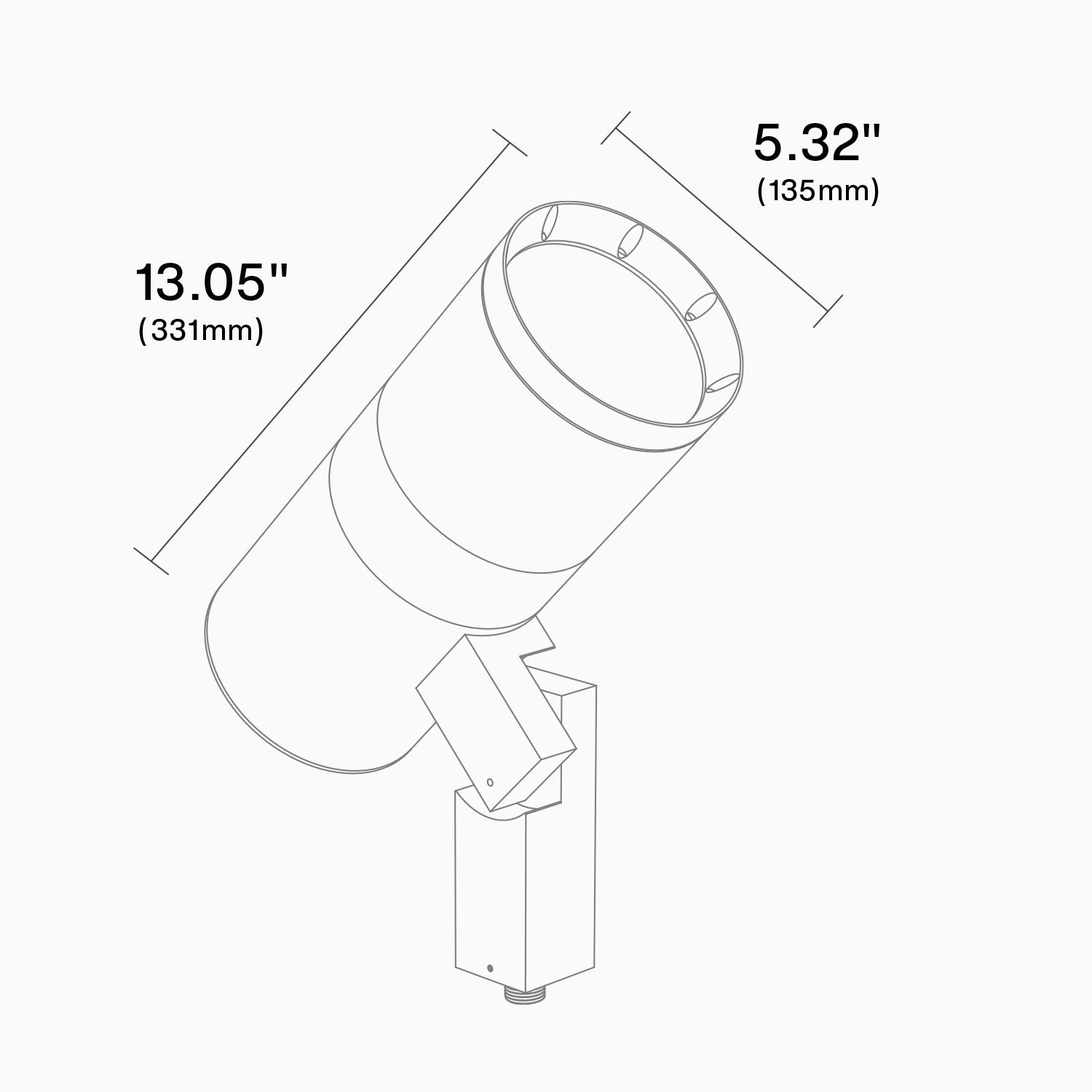

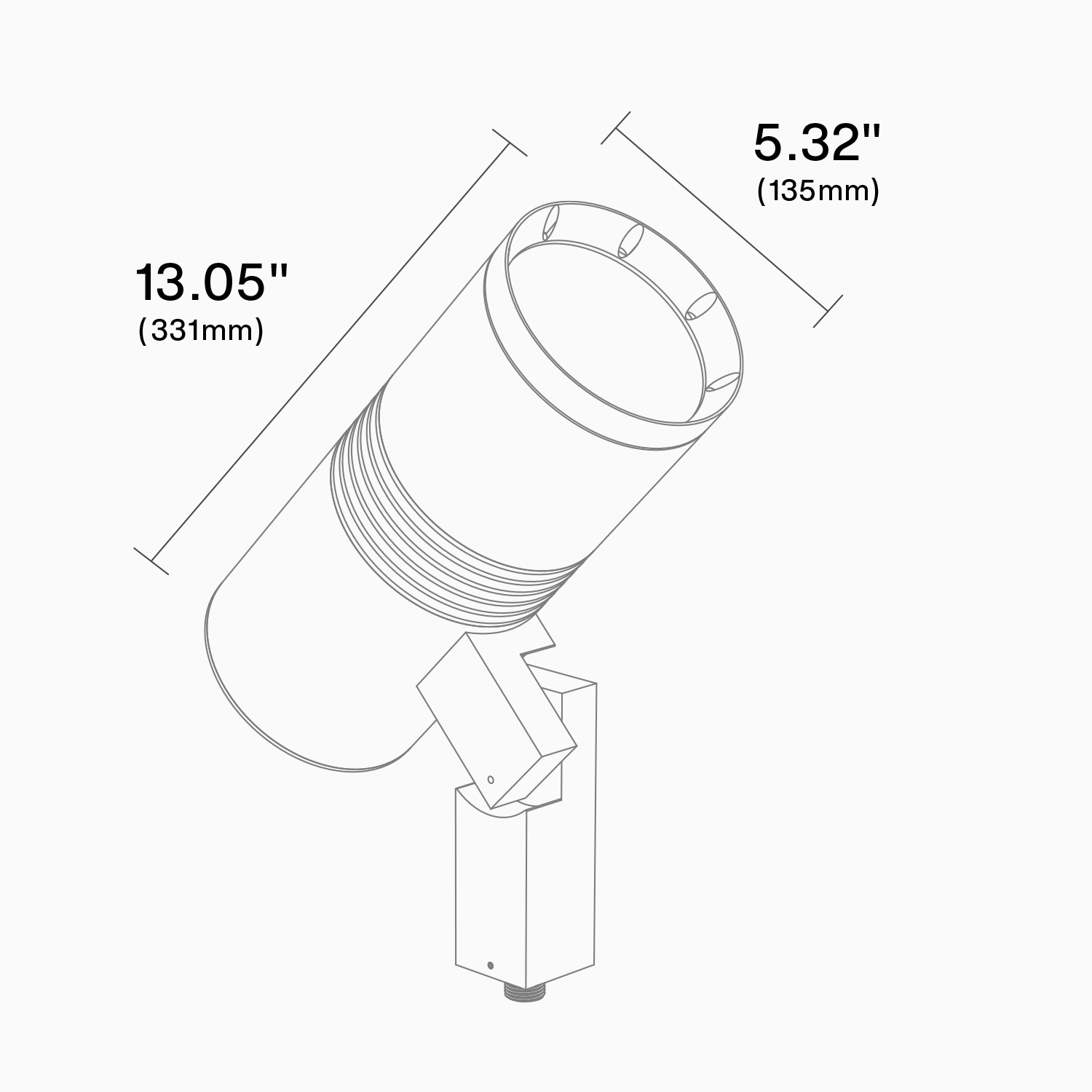

| Size | 5.32" |

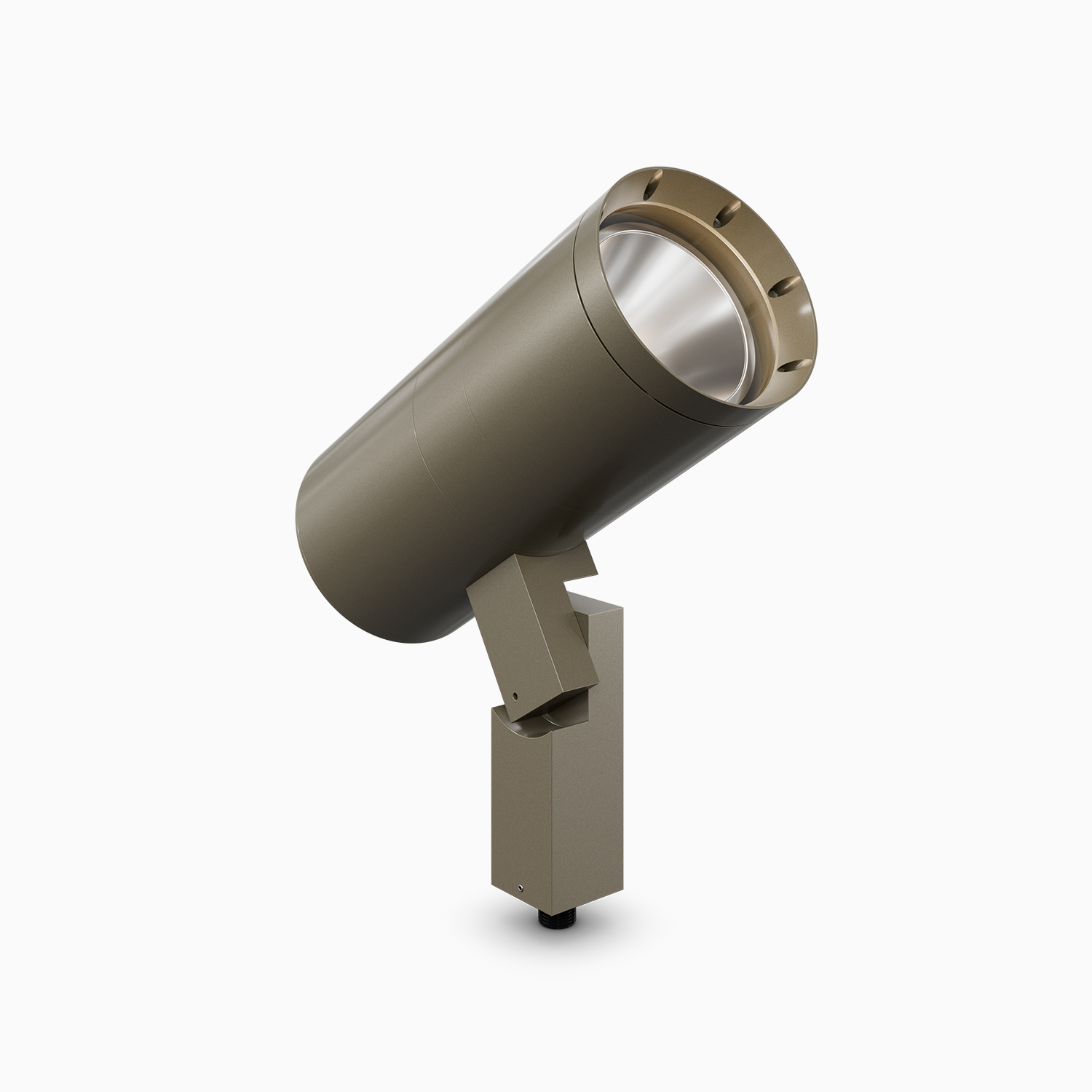

ZXL38-I
ACCENT & LANDSCAPE | ZX38 Series | 5.32"
54W ( 5000lm ) | 120V - 277V | HK LED, RGBW, Amber
54W ( 5000lm ) | 120V - 277V | HK LED, RGBW, Amber
ZXL38-I
ACCENT & LANDSCAPE | ZX38 Series | 5.32"
54W ( 5000lm ) | 120V - 277V | HK LED, RGBW, Amber
54W ( 5000lm ) | 120V - 277V | HK LED, RGBW, Amber

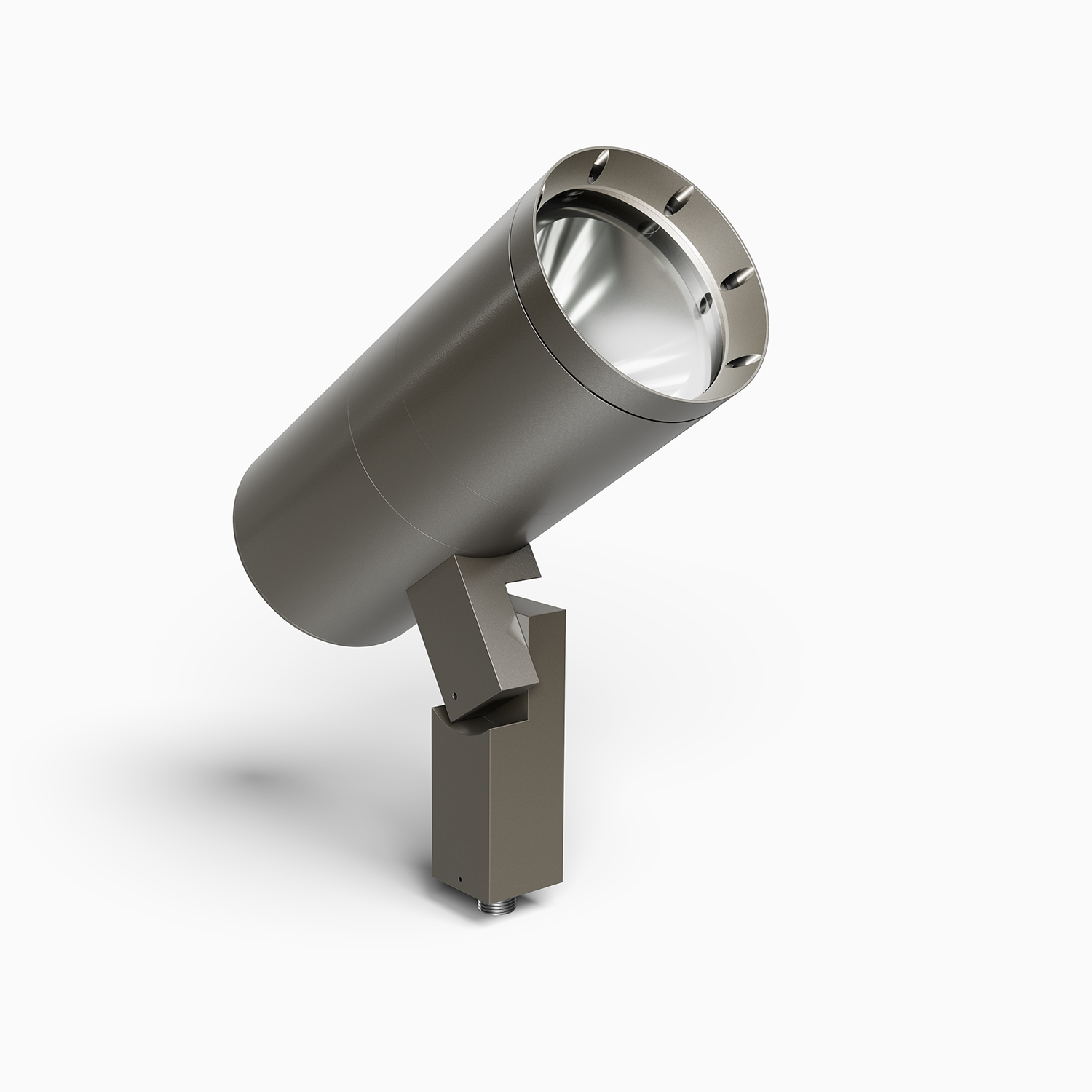

Our most powerful round, directional 120V - 277V LED modern accent light for commercial outdoor environments.
(includes former ZXL38i model)
FEATURES:
- 54W integrated HK LED delivering 5000 lumens.
- Wet Location Listed, IP67 Standard.

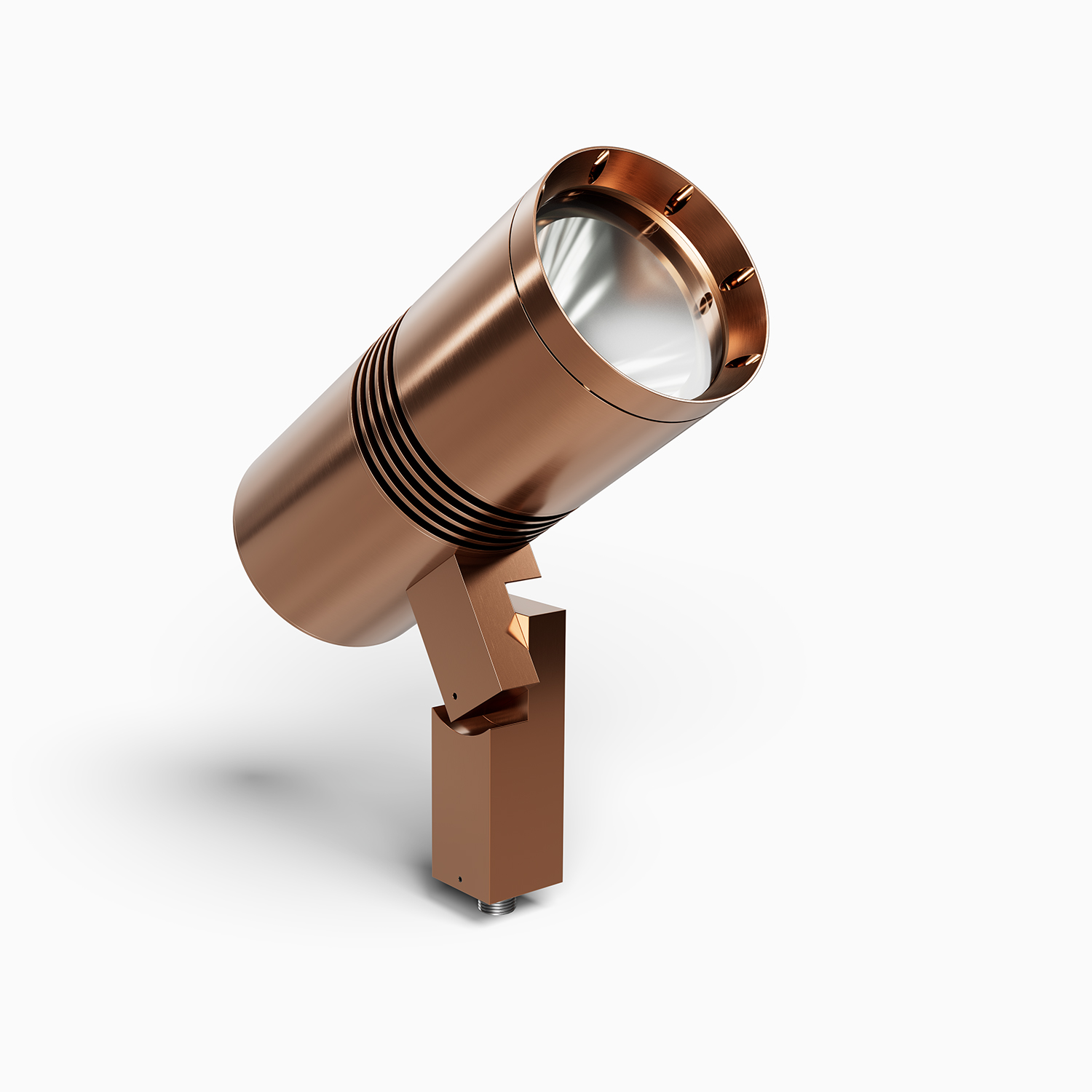

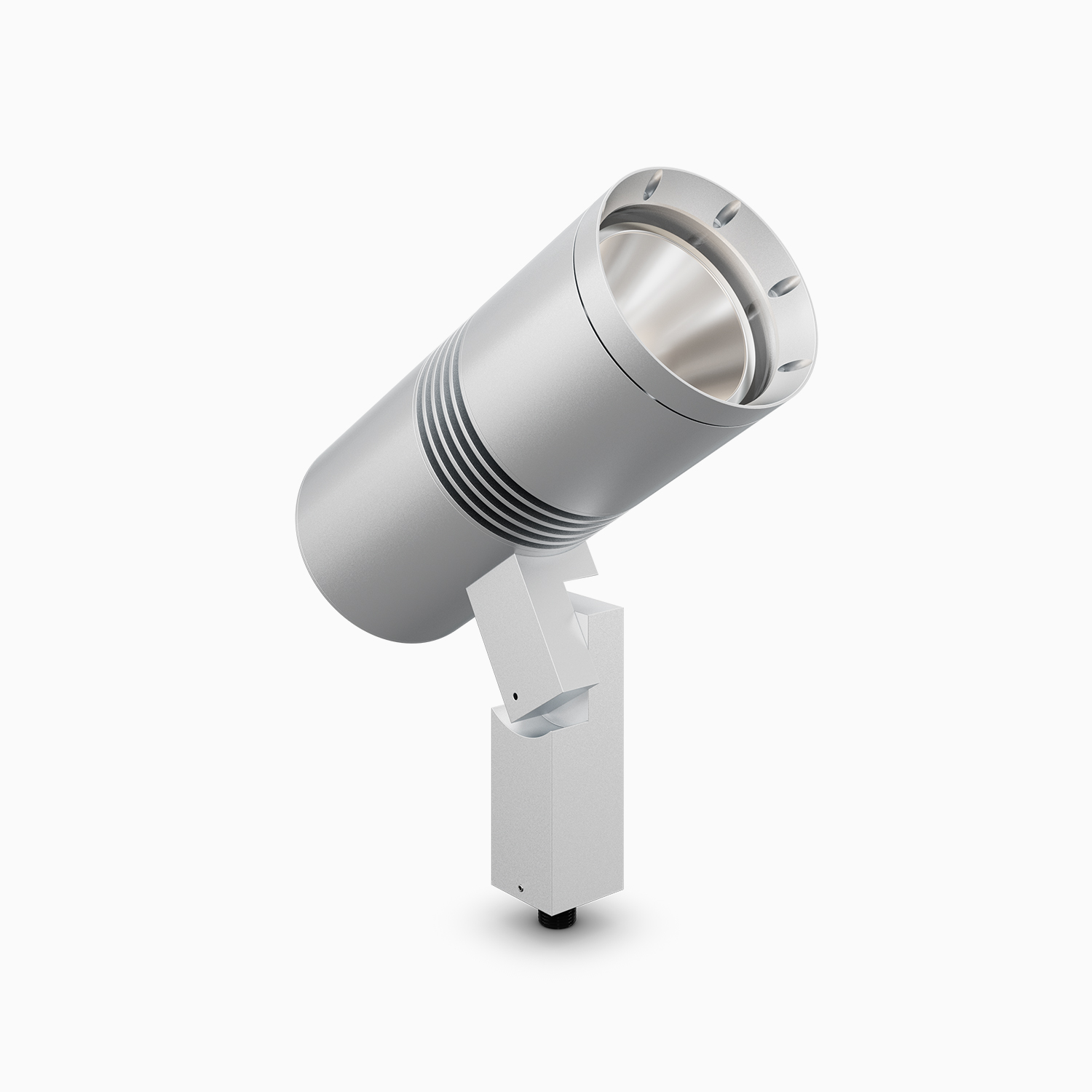

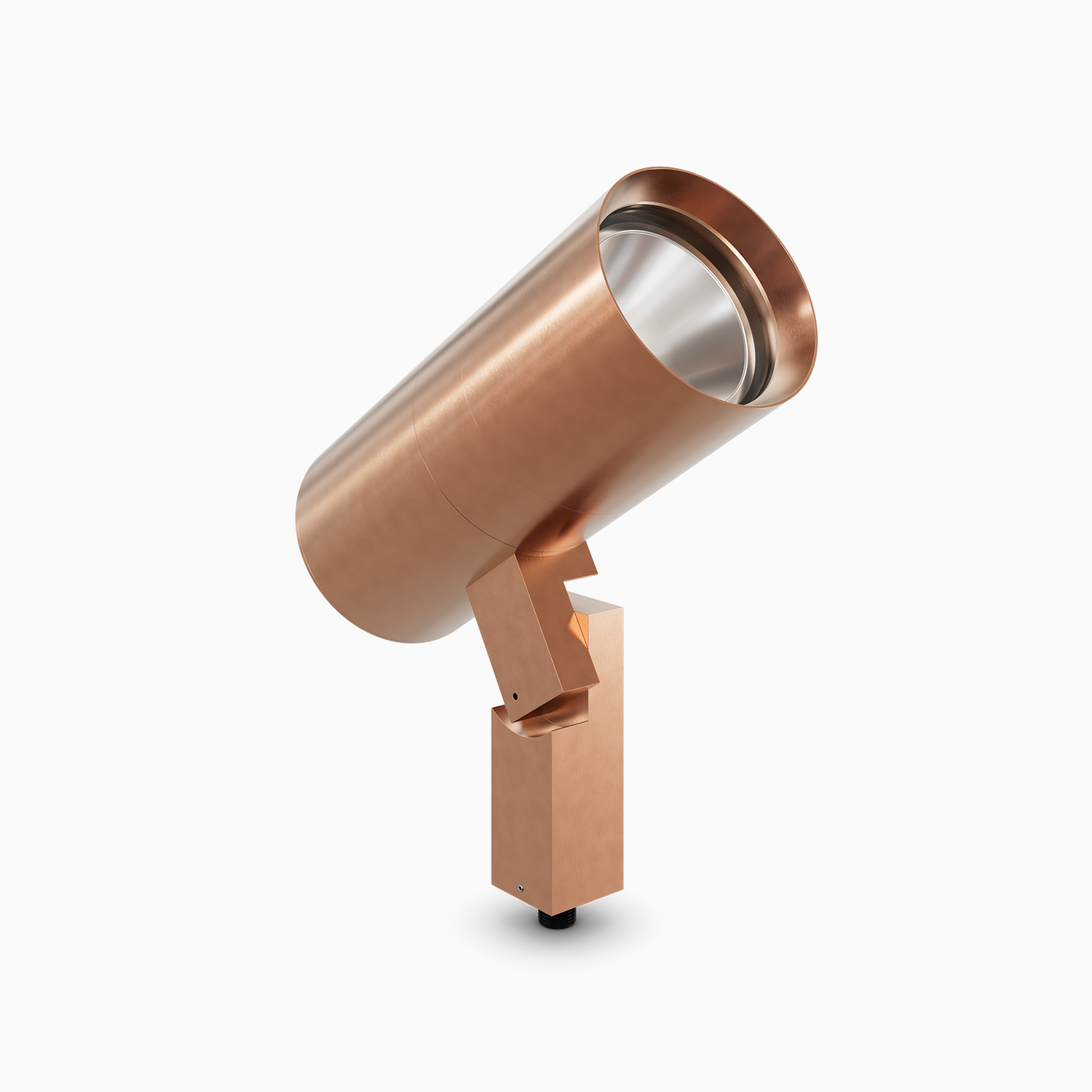

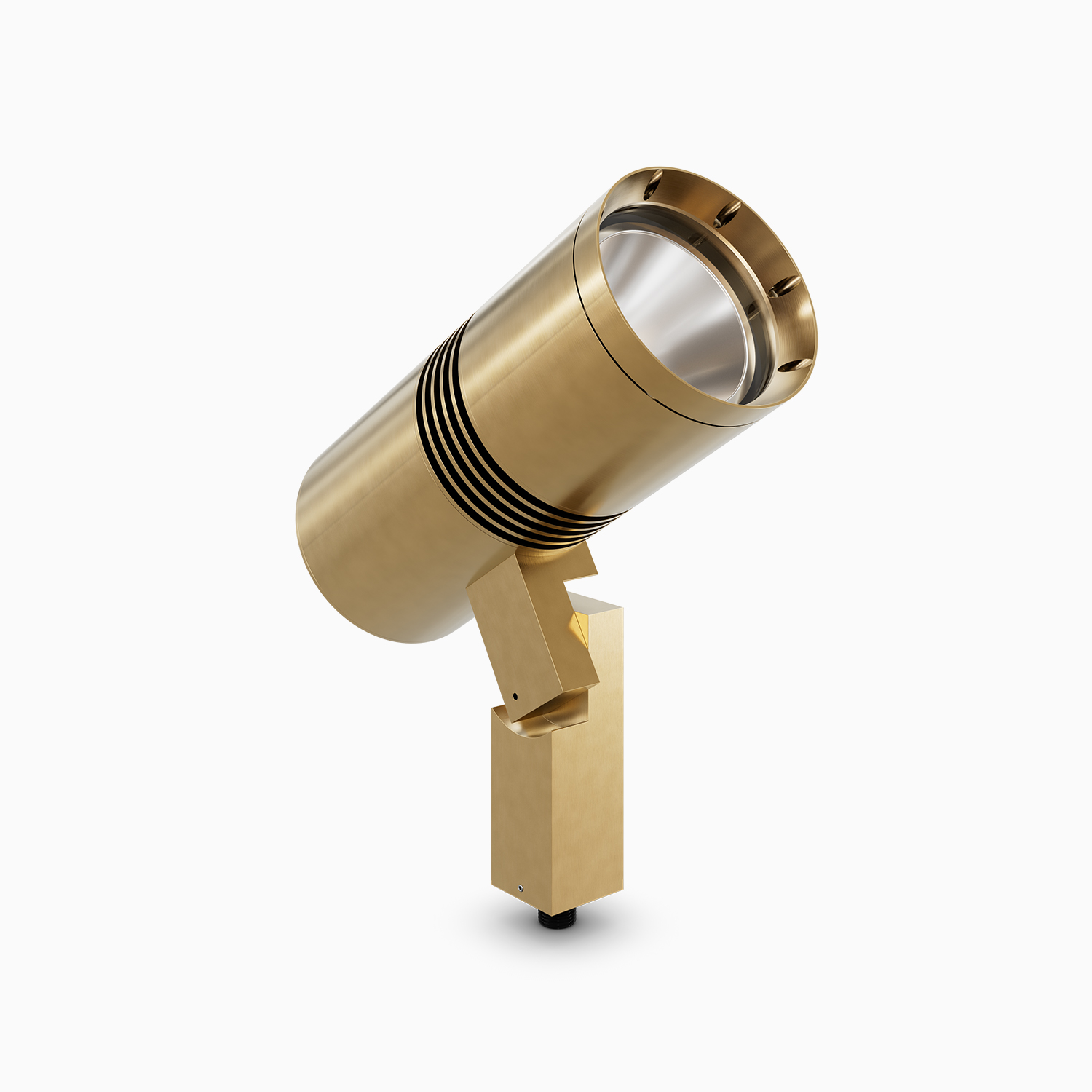

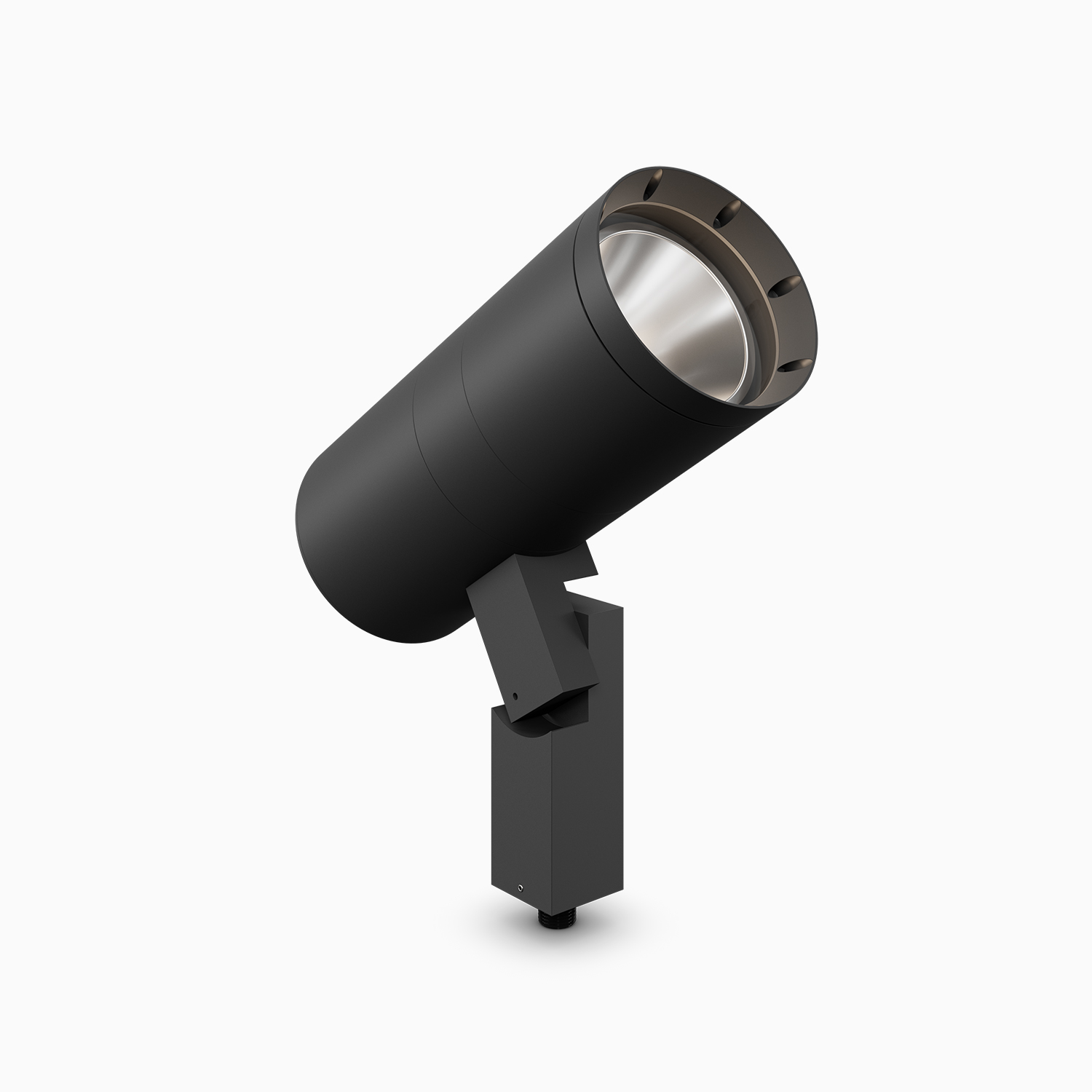

- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Ships complete with selected accessories installed.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V - 277V AC
Optics
Narrow (15º), Medium (24º), Wide (36º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Finish

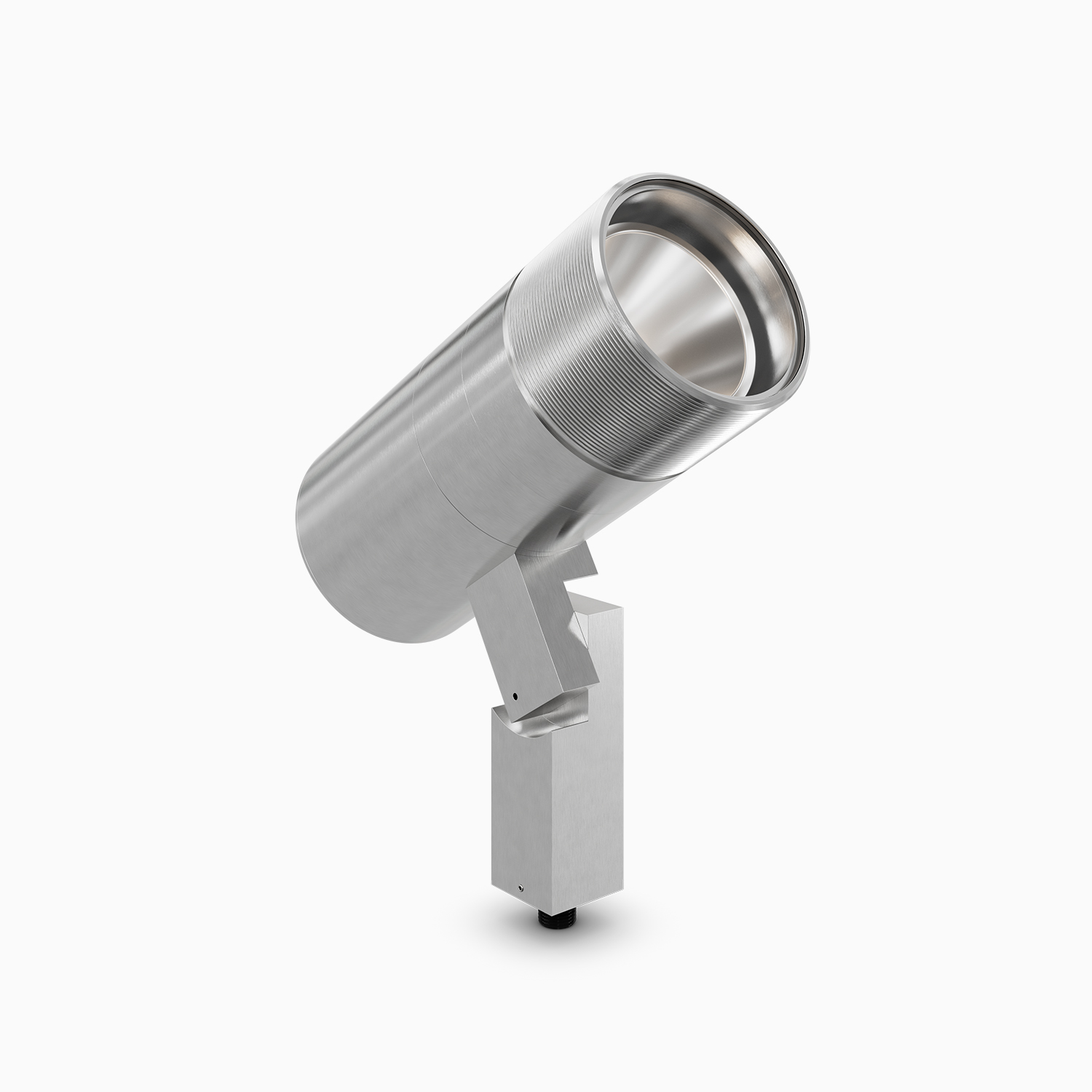

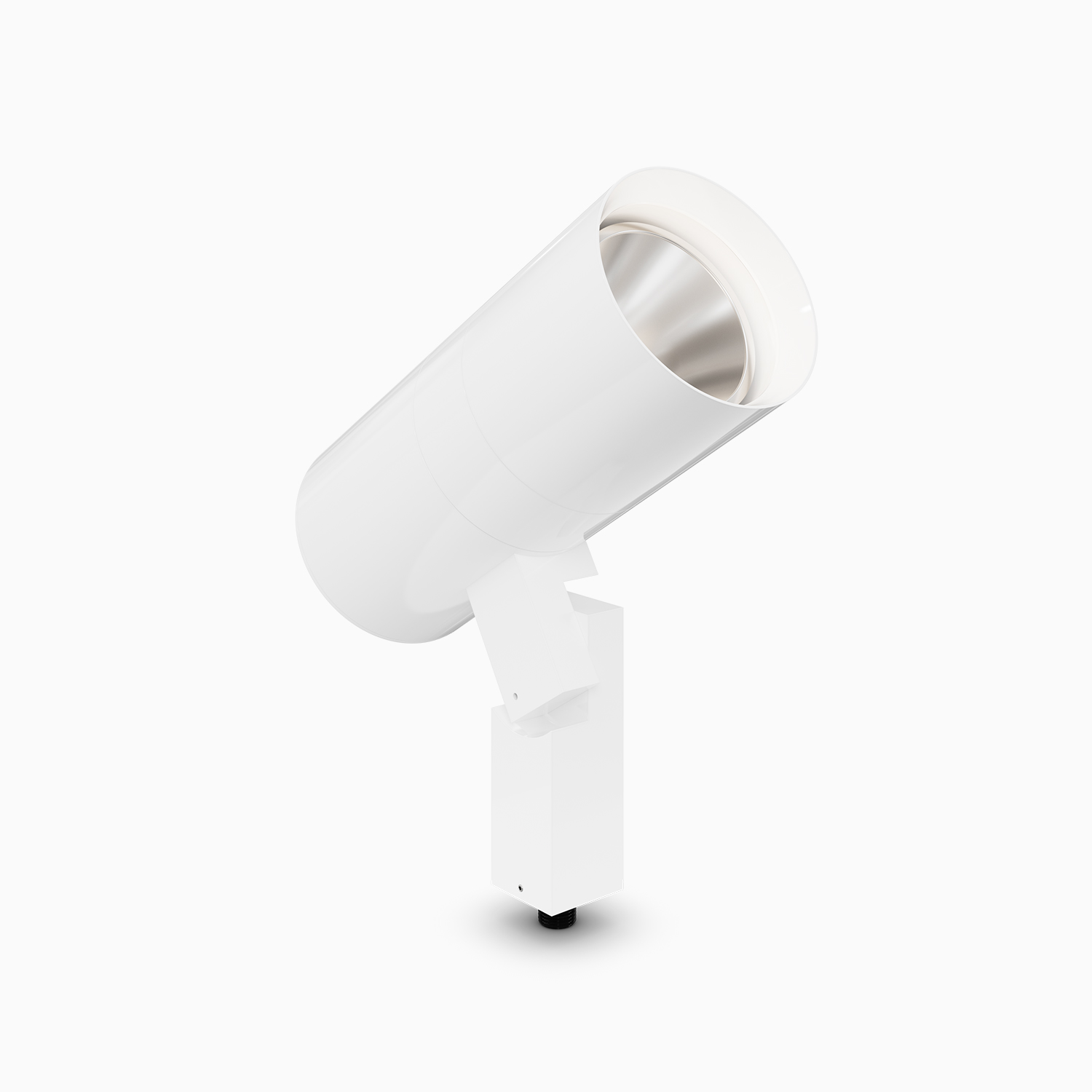

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
54W HK LED delivering 5000 lumens.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
Onboard, Integrated LED Driver , Phase Control @120V, 0V-10V @120V-277V, DALI or DMX control available, consult factory for details.
