ZPL08

PATH & BOLLARD | ZPL08 Series | 1.13"
3W ( 200lm ) | 12V | HK LED, Amber

(includes former PATH-1-08L-SQ model)

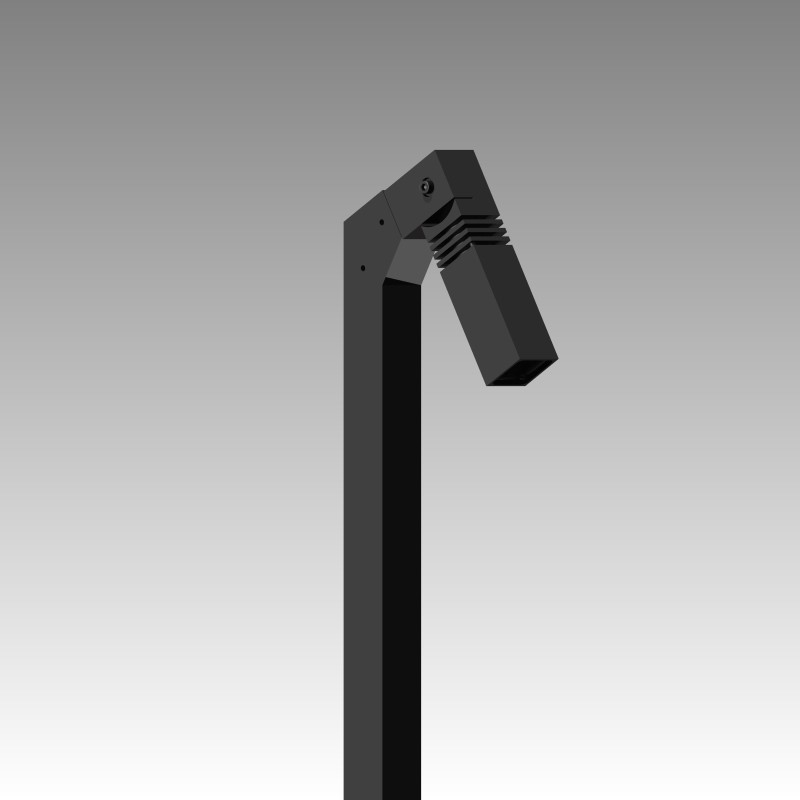

A compact square directional 12V LED Path Light with 240° vertical and 360° horizontal adjustment for precise residential pathway lighting.

FEATURES:

3W integrated HK LED delivering 200 lumens per light. 2200-4000K CCT.
Wet Location Listed, IP67 Standard.
Utilizes fully adjustable accent fixture head with directional light.
Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
240º vertical and 360º horizontal adjustment via locking swivel stem design.
Modular design with field-changeable LED light engine, optical beam spreads, and optical accessories.
Available with adjustable Angled Glare Shields and ground, surface, and canopy mounting options.
Single and double light mounting options at 12″, 24″, 30″ or custom height.
Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Explore wildlife lighting criteria and application guidance.
Every fixture tested end of line for water tightness and light quality.

spec sheets

photometry

Specifications

Materials

Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Narrow (19º), Medium (26º), and Wide (51º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with a metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

3W HK LED delivers 200 lumens per light.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of the spec sheet for details).

Glare Shield

Weeping Hood Style with Angled, Short, or Long Glare Shields. (See page 4 of the spec sheet for details)

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, and 2500K options available. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
