5–10W ( 500–950lm ) | 12V | HK LED, Amber
ZAA16
5–10W ( 500–950lm ) | 12V | HK LED, Amber

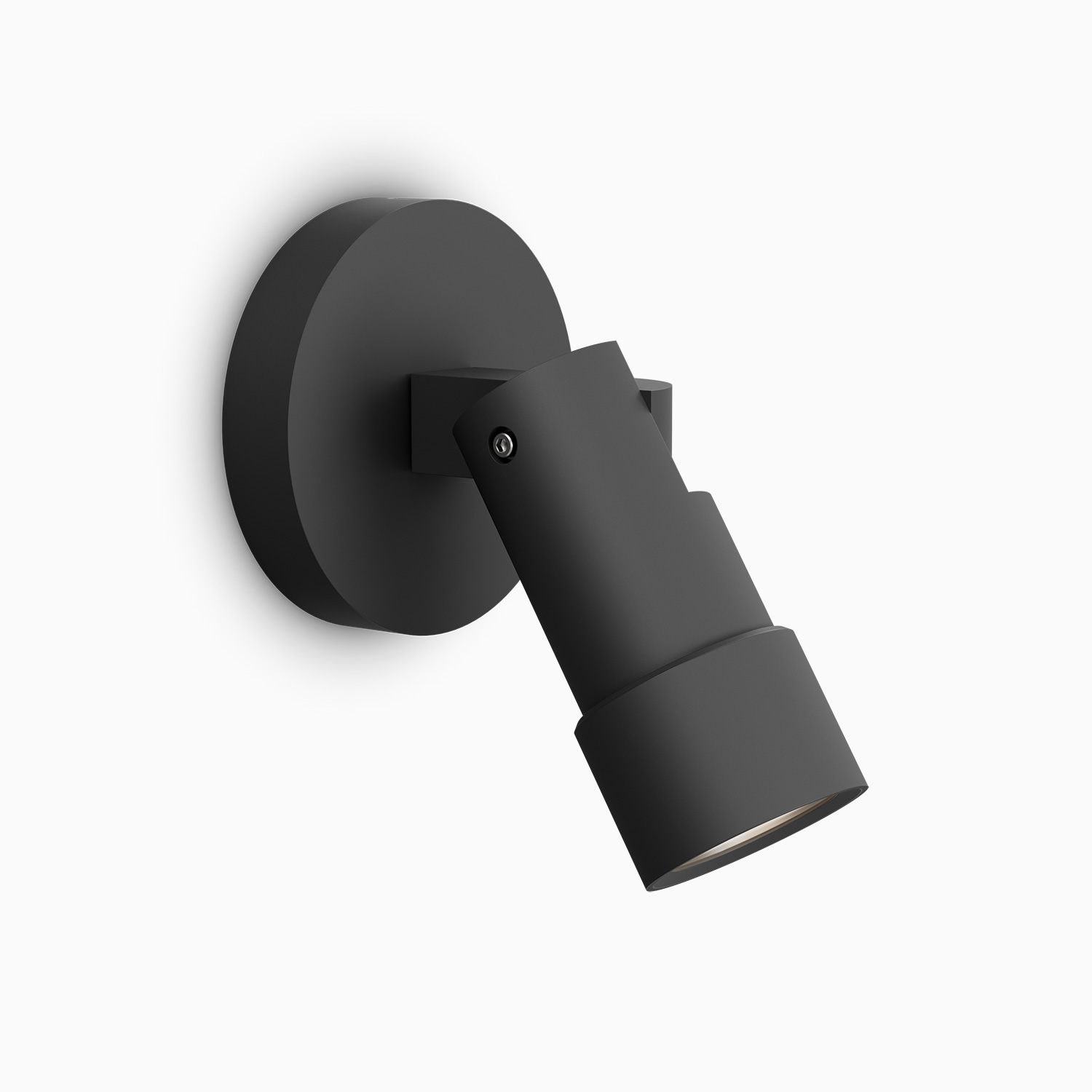

Single or double-head modern side pivot style low-voltage, 12V fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting. Features the Adapt Optic for precise light aiming.
FEATURES:
- Adapt Optic enables easy beam angle adjustment from 14º to 70º with a quick hood slide, locking securely in place with a set screw for precise and reliable positioning.
- 5W, 7W, 10W integrated HK LED delivering 500, 775, and 950 lumens per light head. 2700K, 3000K, and 4000K CCT options for residential and commercial lighting applications. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, or white to create a highly durable, marine-grade finish.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Two weeping hood styles available, integrated Angled Glare Shield or Flush Lens. With less than 1% field light, the Adapt Optic provides superior glare control in both hood options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics

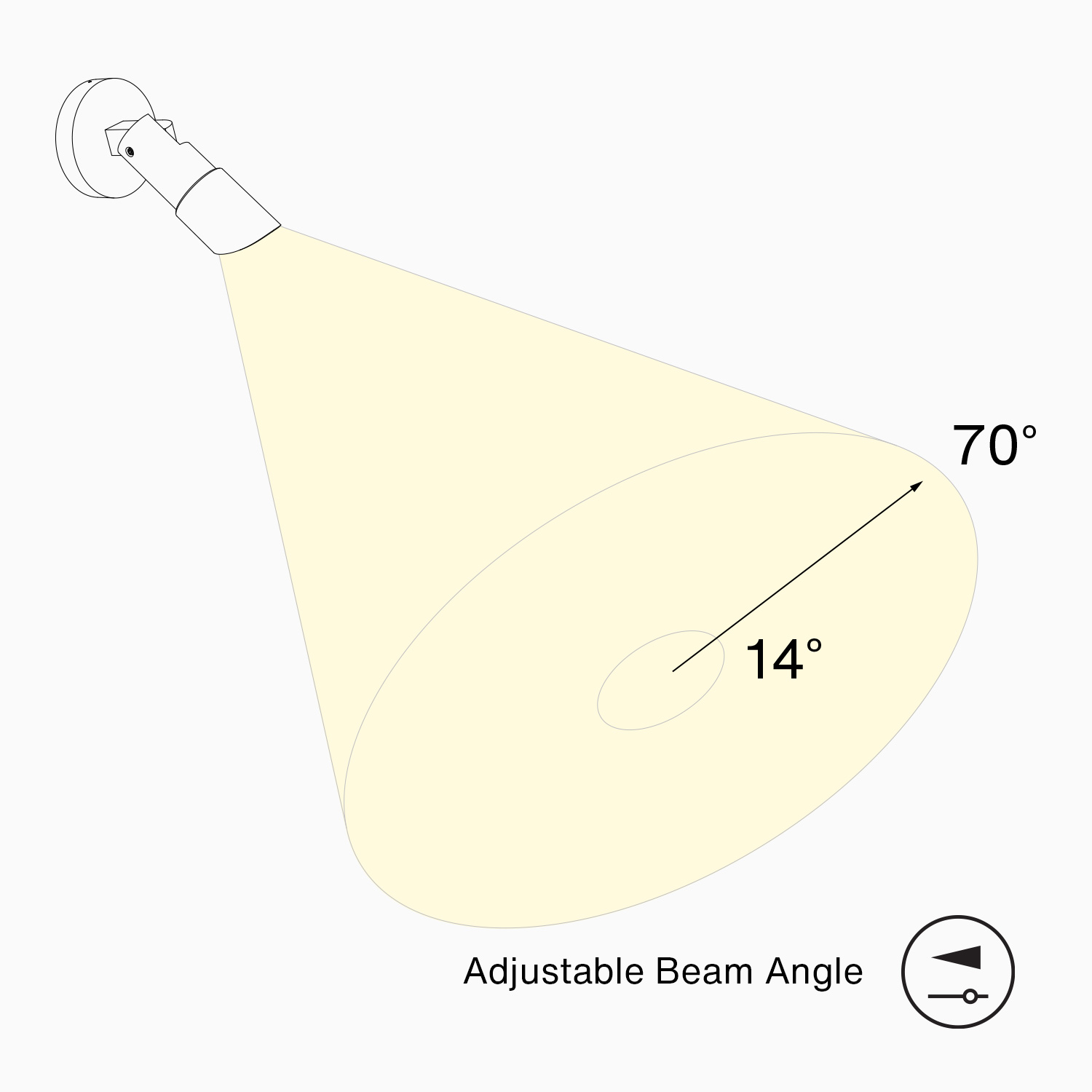

The Adapt Optic allows precise beam angle adjustment from a very narrow 14º spotlight to an extra wide 70º flood, locking securely with the set screw. It maintains less than 1% field light levels, minimizing glare even with the sleek Flush Lens Hood.
Finish
Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish.
Wattage
5, 7 or 10W HK LED delivers 500–950 lumens per light head.
Mounting

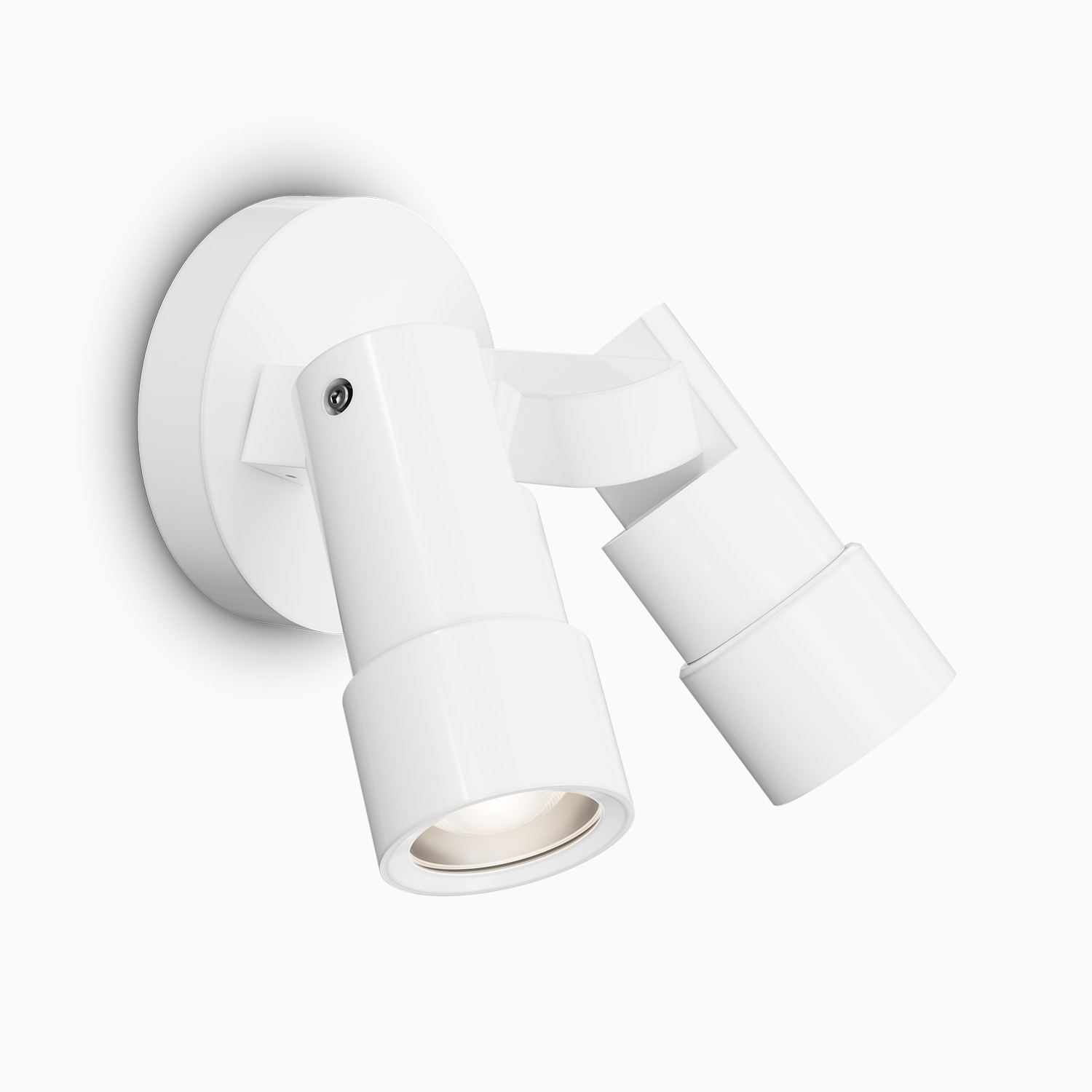

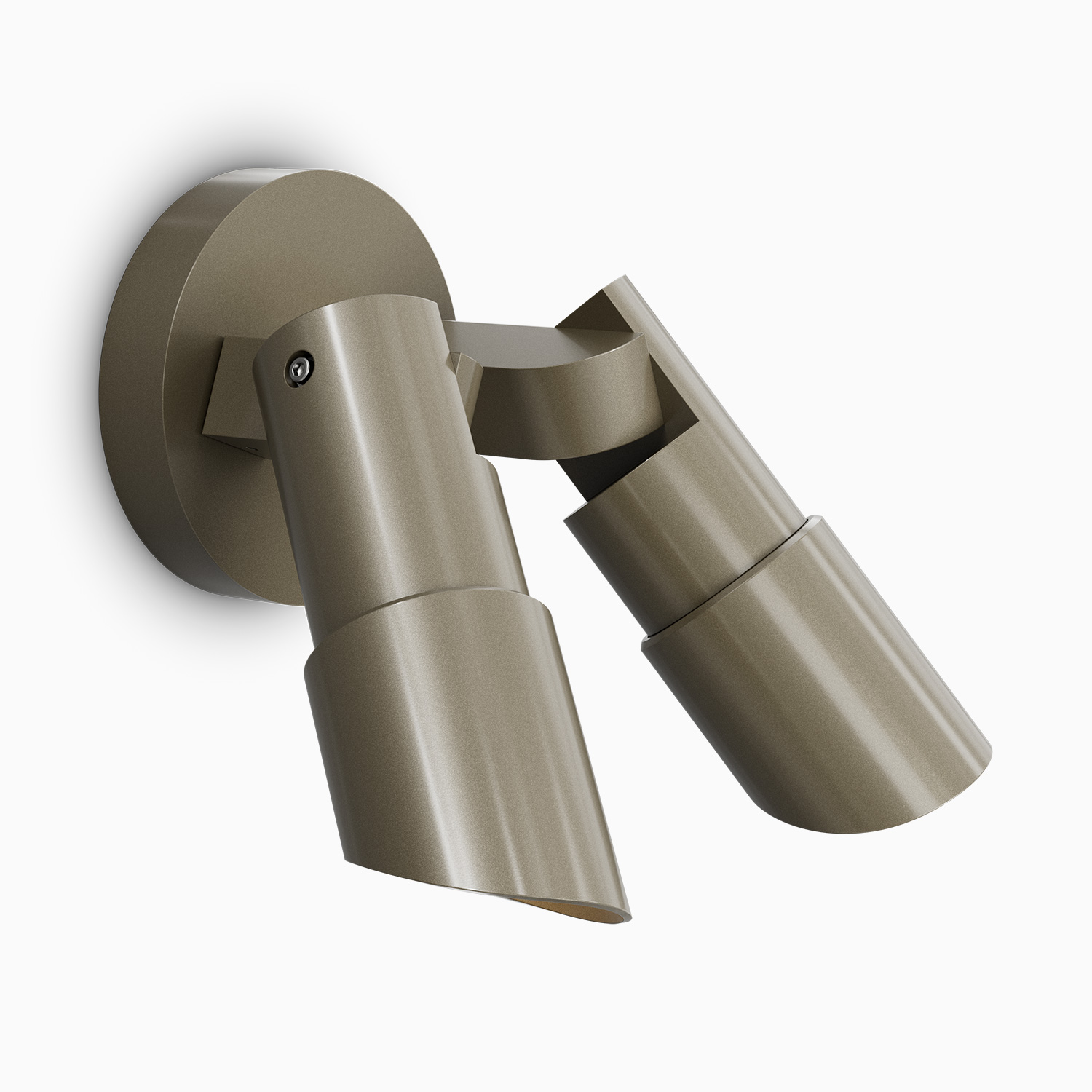

Single Area Light (Type-0R1) ships mounted to a CBA1 Surface Mount Box. Double Area Light (Type-0R2) ships pre-mounted to a CBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible a standard 3O and 4O junction boxes. Each light includes a ½"-14 NPS male fitting that is compatible with the included Surface Mount Box or a wide range of HK Lighting mounting accessories.
Hood Styles

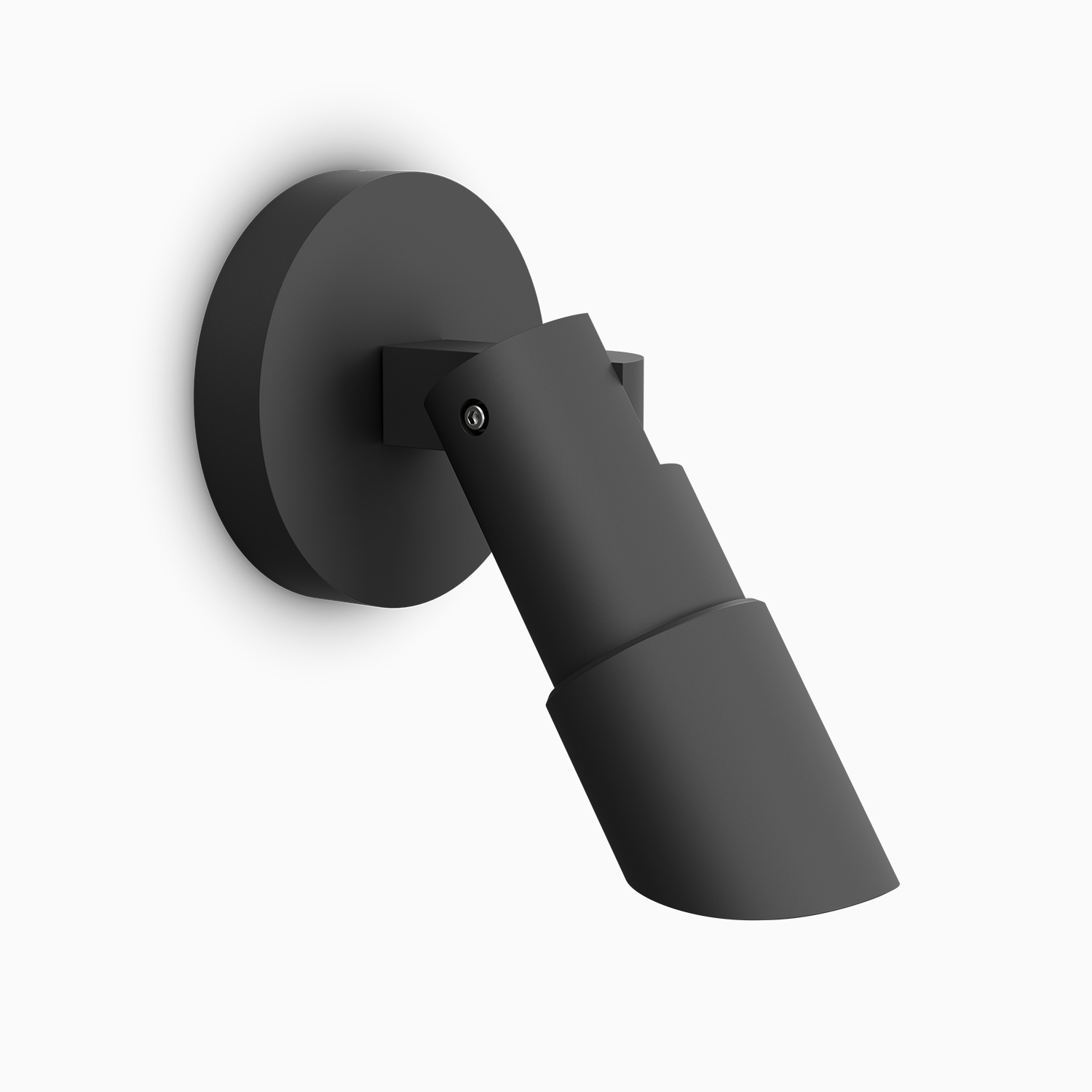

Two weeping hood styles available. The G Style includes an integrated Angled Glare Shield, while the F Style has a Flush Lens, without a glare shield. Both options provide exceptional glare control. (See page 7 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K, 3000K, and 4000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
Listings
ETL Listed for Wet Location, IP67 Standard RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.
Dimming
MLV or ELV Phase Control dimming.
