5–7W ( 450–675lm ) | 12V | HK LED, Amber
ZAL11
5–7W ( 450–675lm ) | 12V | HK LED, Amber

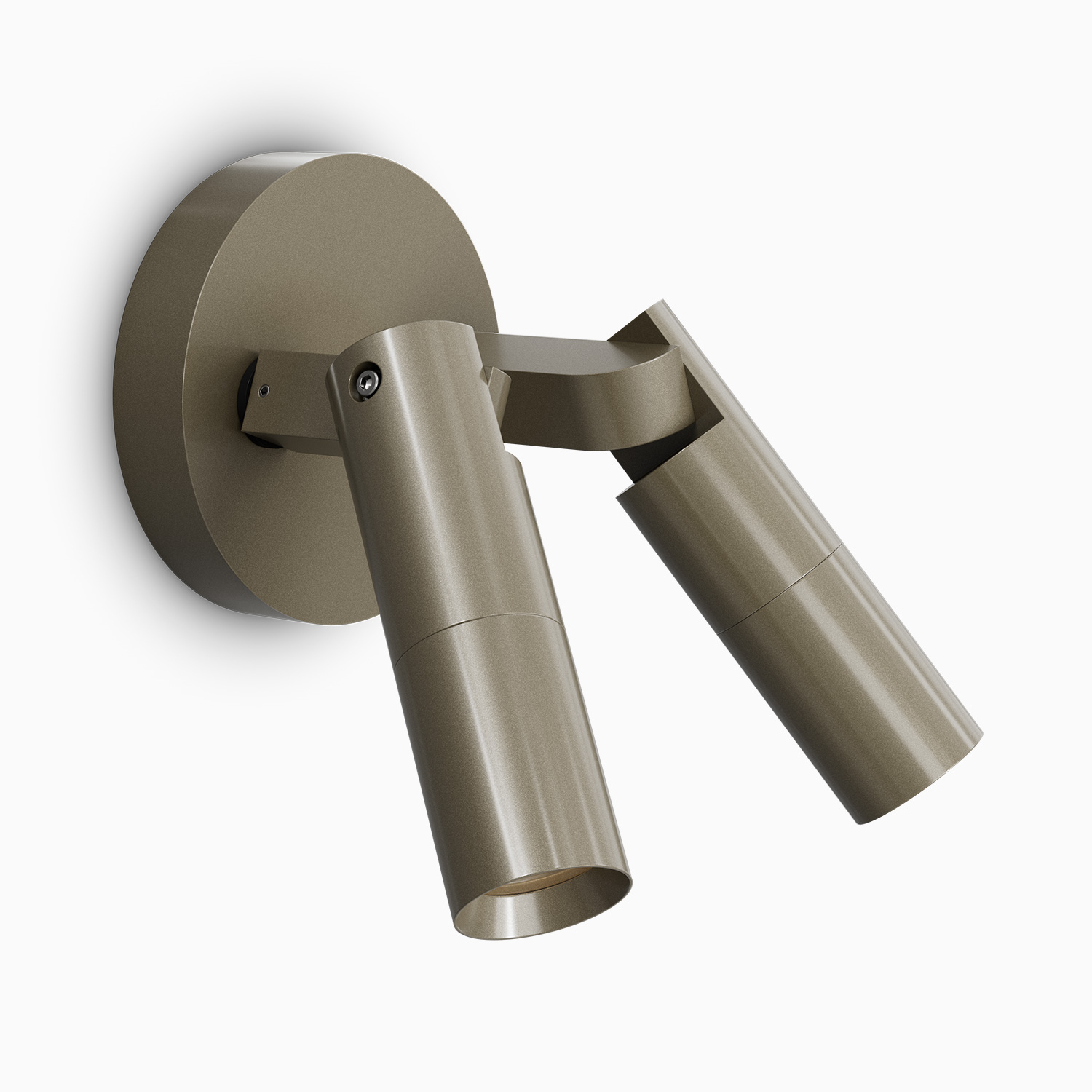

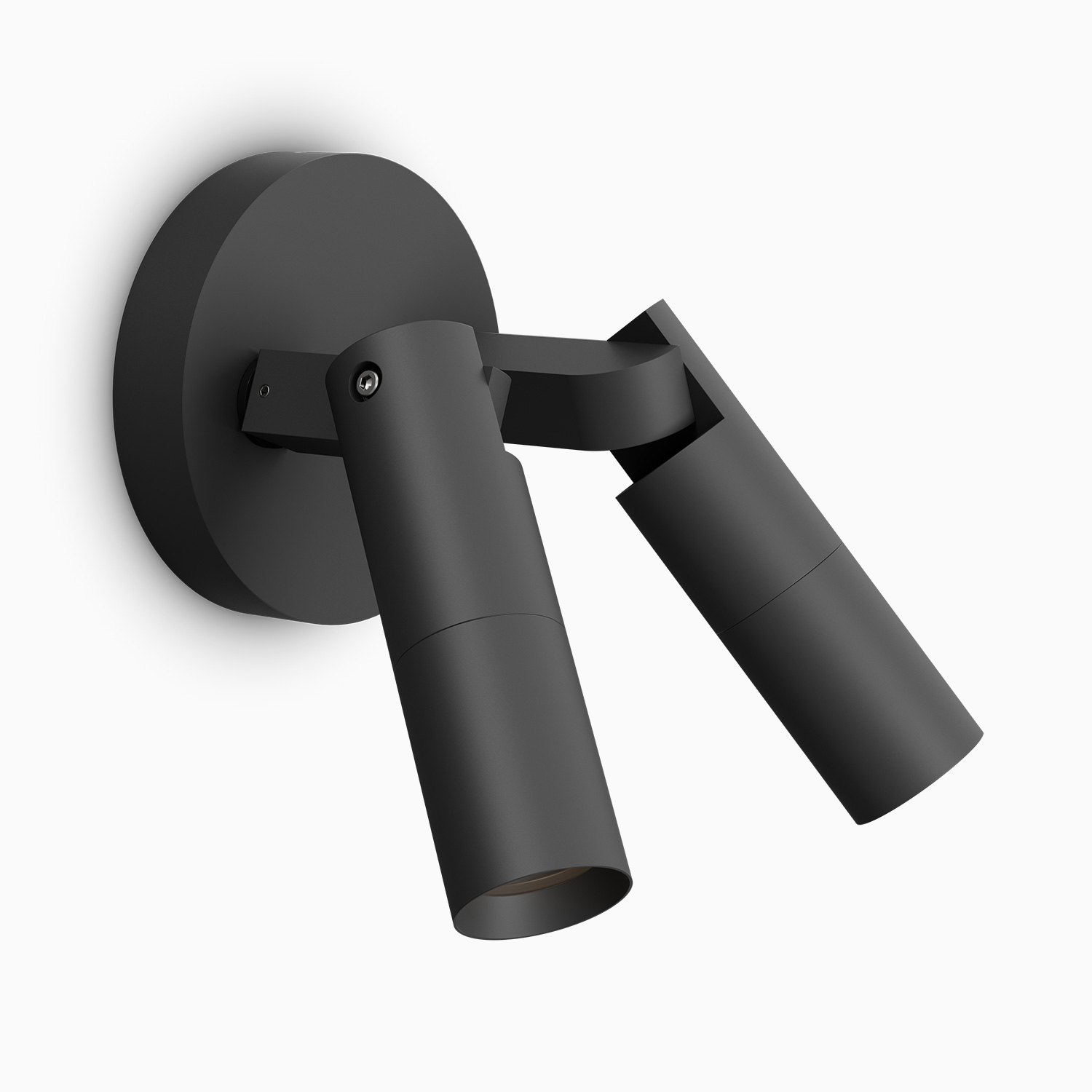

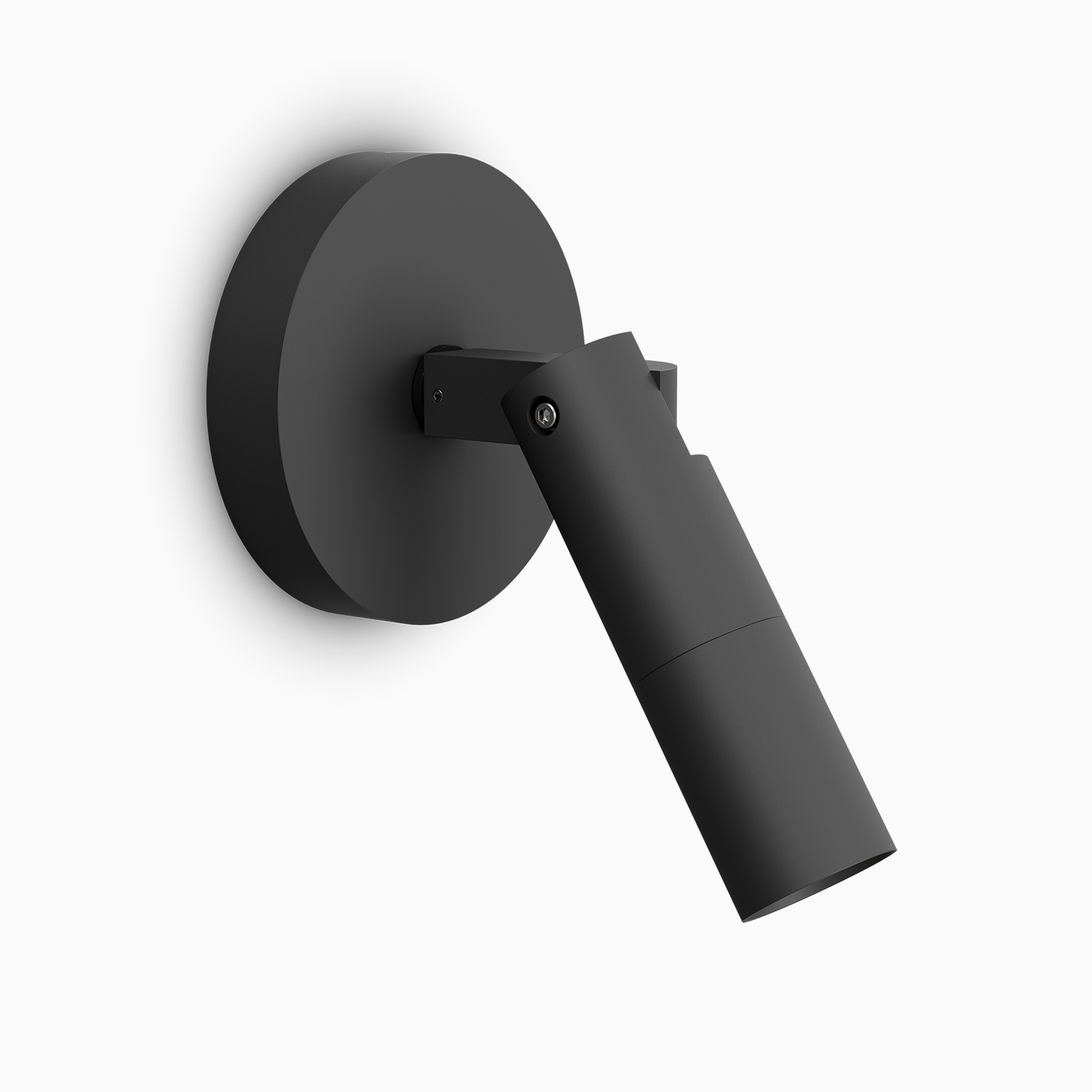

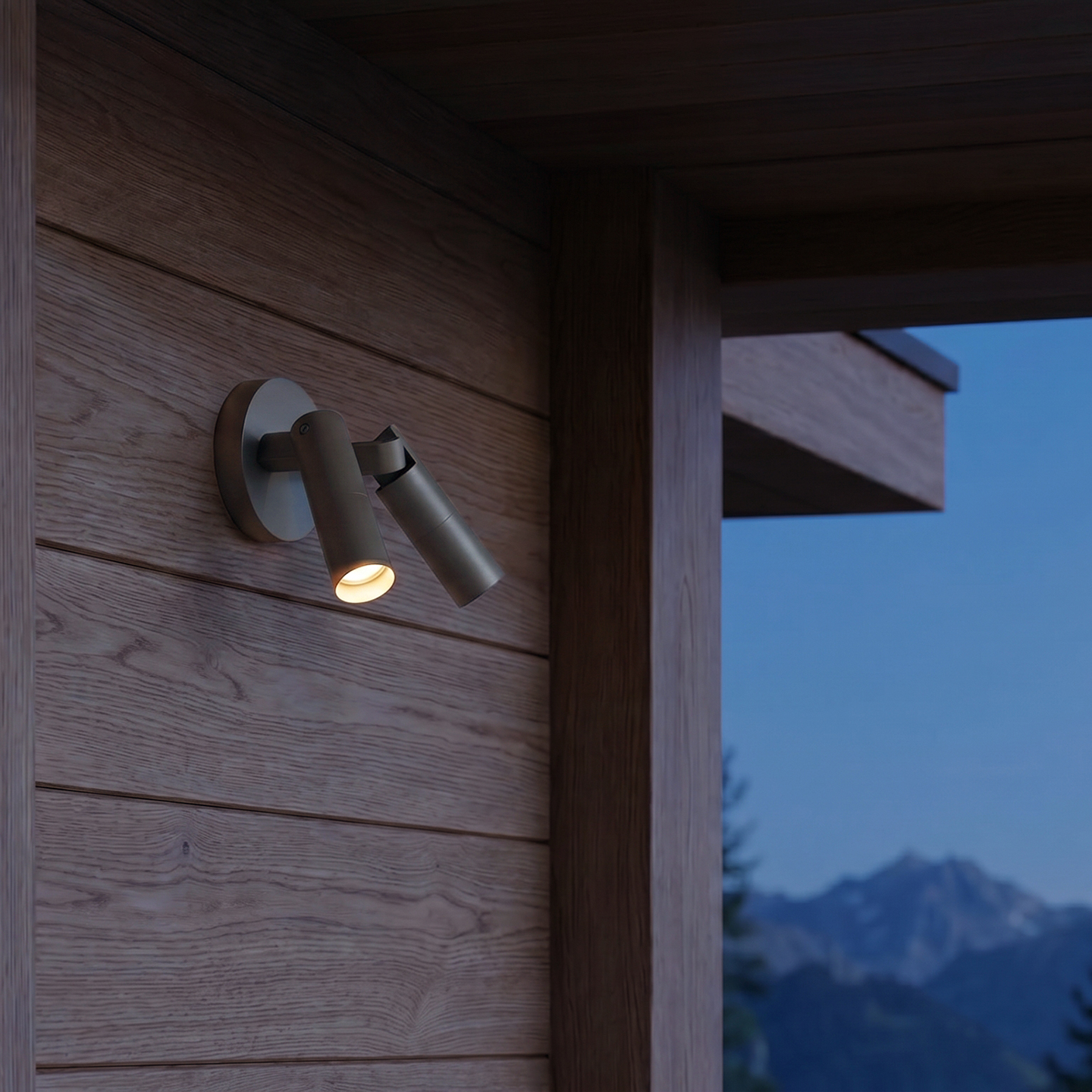

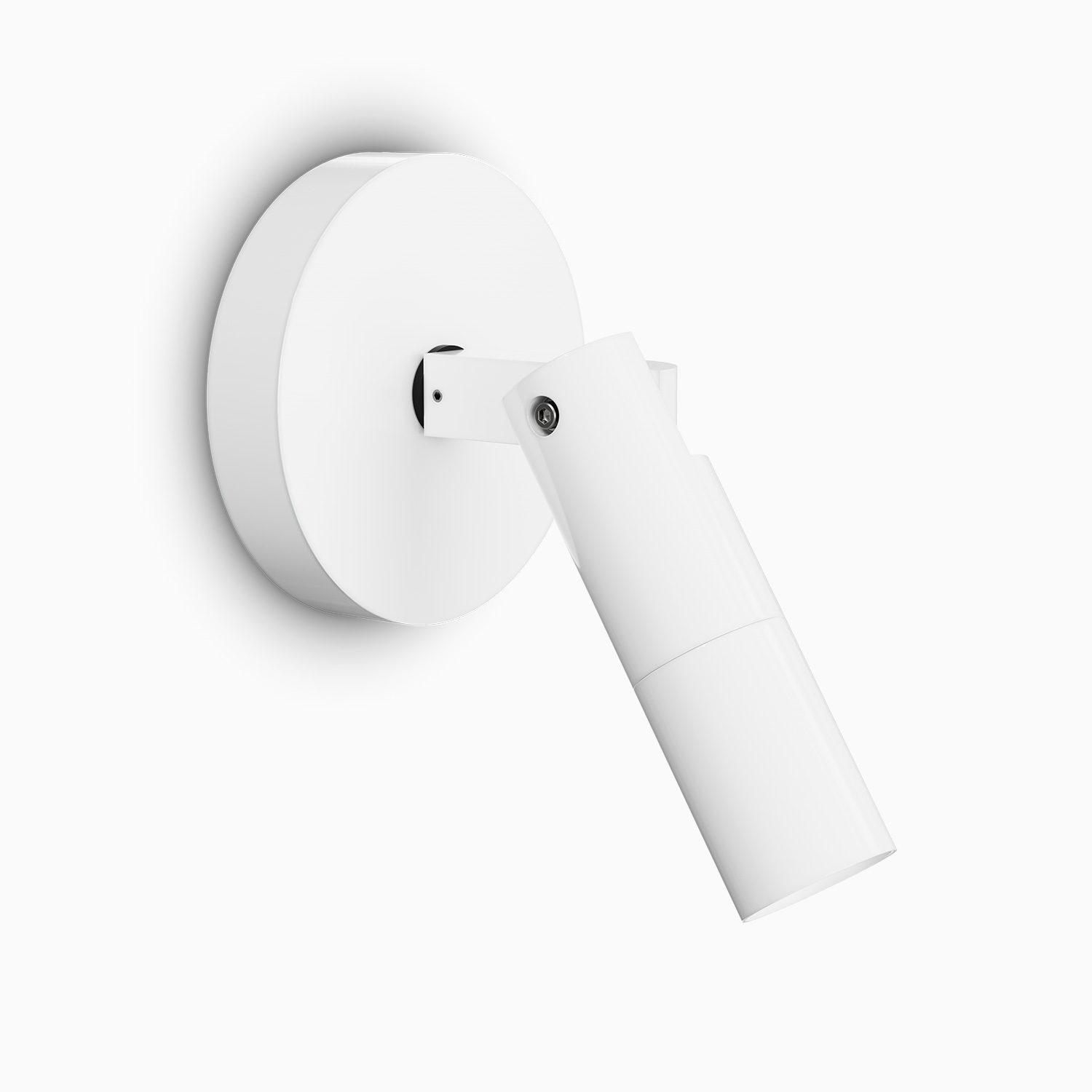

Single or double-head modern pivot style low-voltage, 12V LED fixture. Surface-mounts to walls or other architectural surfaces for aimable area and security lighting.
FEATURES:
- Built on the ZXL11 Accent Light platform, with heads that rotate and tilt to aim down or across for broader coverage. Ships installed to the new CBA1 or CBA2 4.75″ Surface Mount Box.
- 5W, 7W integrated HK LED delivering 450–675 lumens per light head. 2700K, 3000K, and 4000K CCT options for residential and commercial lighting applications. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated black, bronze, or white to create a highly durable, marine-grade finish.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field-changeable optical beams, and lenses.
- Adjustable Angled or Long Glare Shield available.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Narrow (29º), Medium (40º), and Wide (57º) beam spread options available. Accepts up to 3 optical accessories secured in place with metal snap ring.
Finish
Aluminum fixtures are anodized and then powder coated to create a robust, marine-grade, natatorium-grade finish.
Wattage
5 or 7W HK LED delivers 450–675 lumens per light head.
Mounting
Single Area Light (Type-0R1) ships pre-mounted to a CBA1 Surface Mount Box. Double Area Light (Type-0R2) ships pre-mounted to a CBA2 Surface Mount Box. Both variants mount directly to any architectural surface and are compatible with standard 3O and 4O junction boxes. Each light includes a ½"-14 NPS male fitting compatible with the included Surface Mount Box and the full range of HK Lighting mounting accessories.
Hood and Glare Shield
Clean aesthetic, non-weeping Hood Style. Set screw Angled or Long Glare Shields. (See page 5 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. 2700K, 3000K, and 4000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant. Narrow-band Amber LED meets wildlife and turtle-safe lighting requirements.
Dimming
MLV or ELV Phase Control dimming.
