ZGL16

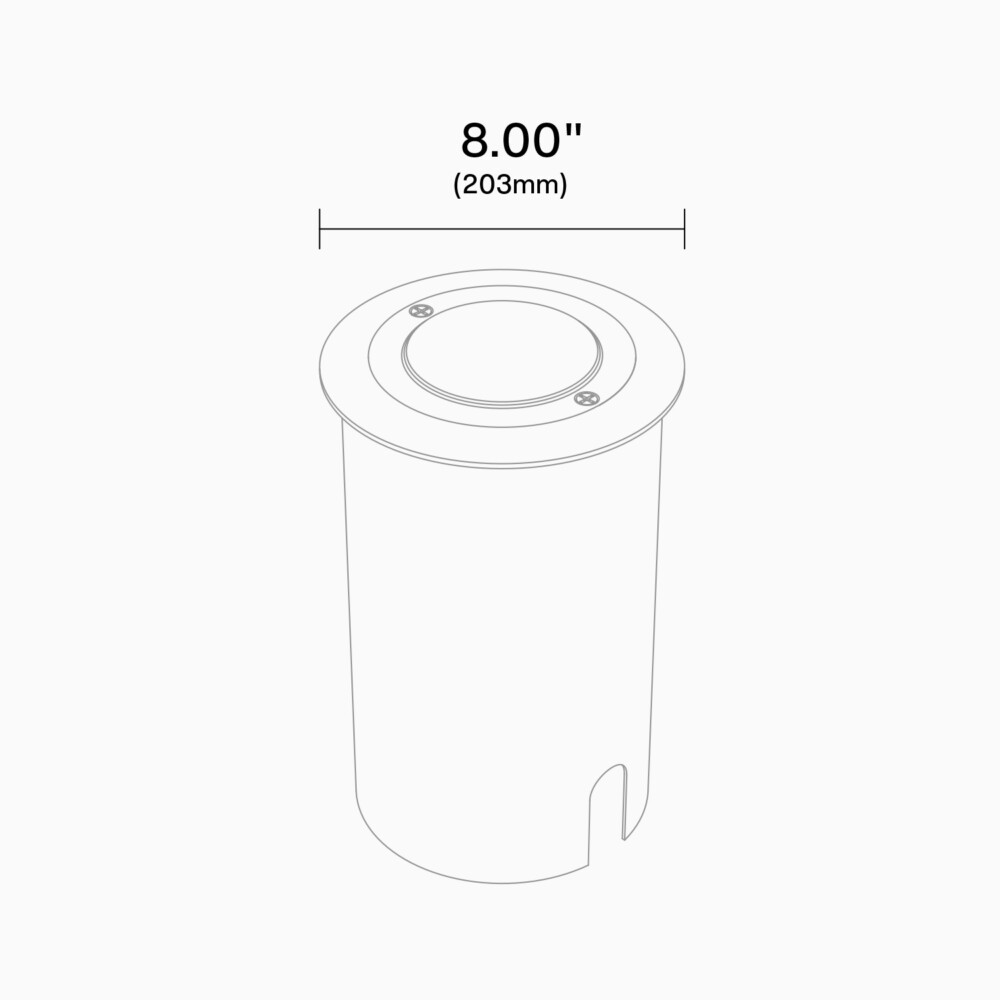

STEP & IN GROUND | ZG16 Series | 8.00" dia.
5 - 10W ( 500 - 900lm ) | 12V | HK LED, RGB, Amber

ZGL16

STEP & IN GROUND | ZG16 Series | 8.00" dia.
5 - 10W ( 500 - 900lm ) | 12V | HK LED, RGB, Amber

Robust and versatile low voltage, 12V LED, in ground lighting fixture for use in a range of landscape and architectural outdoor lighting applications.

(includes former ZXG-LED model)

FEATURES:

  • 5W, 7W, 10W integrated HK LED delivering 500 – 900 lumens. 2200 – 4000K CCT, including specialty Amber and RGB options.
  • Wet Location Listed, IP67 Standard.
  • Superior corrosion resistant die-cast and machined natural brass in ground fixture, also available in Silver Nickel and Black Oxide finishes to complement varying project aesthetics.
  • 360° horizontal and and 20° vertical adjustability.
  • PVC Outer Sleeve simplifies in ground installation.
  • Optional Grate Cover, Slot Aperture, Top Cover, and Adjustable Shroud Shields available.
  • Optional PVC Outer Sleeve simplifies installation.
  • Every fixture tested end of line for water tightness and light quality.
  • Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications

Materials

Housing: Die-cast brass. Top Plate: Machined Solid Natural Brass. Lamp holder and Aiming Assembly: Solid billet 6061-T6 corrosion resistant aluminum. Hardware: 304 stainless steel.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.

Finish

Superior corrosion resistant Natural Brass, Silver Nickel, or Black Oxide for a robust marine grade finish.

Optics

Narrow (26°), Medium (38°), and Wide (48°) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.

Optional Shields

Grate Cover, Slot Aperture, Top Cover, and Adjustable Shroud Shields available.

Mounting

Mounts directly in ground, or poured concrete. Optional PVC Outer Sleeve is available to aid installation (See page 4 of Spec Sheet for details).

Voltage

12V AC/DC. Requires remote step down transformer.

Wattage

5, 7 or 10W HK LED delivers 500 to 900 lumens.

Listings

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

Dimming

MLV or ELV Phase Control dimming.
