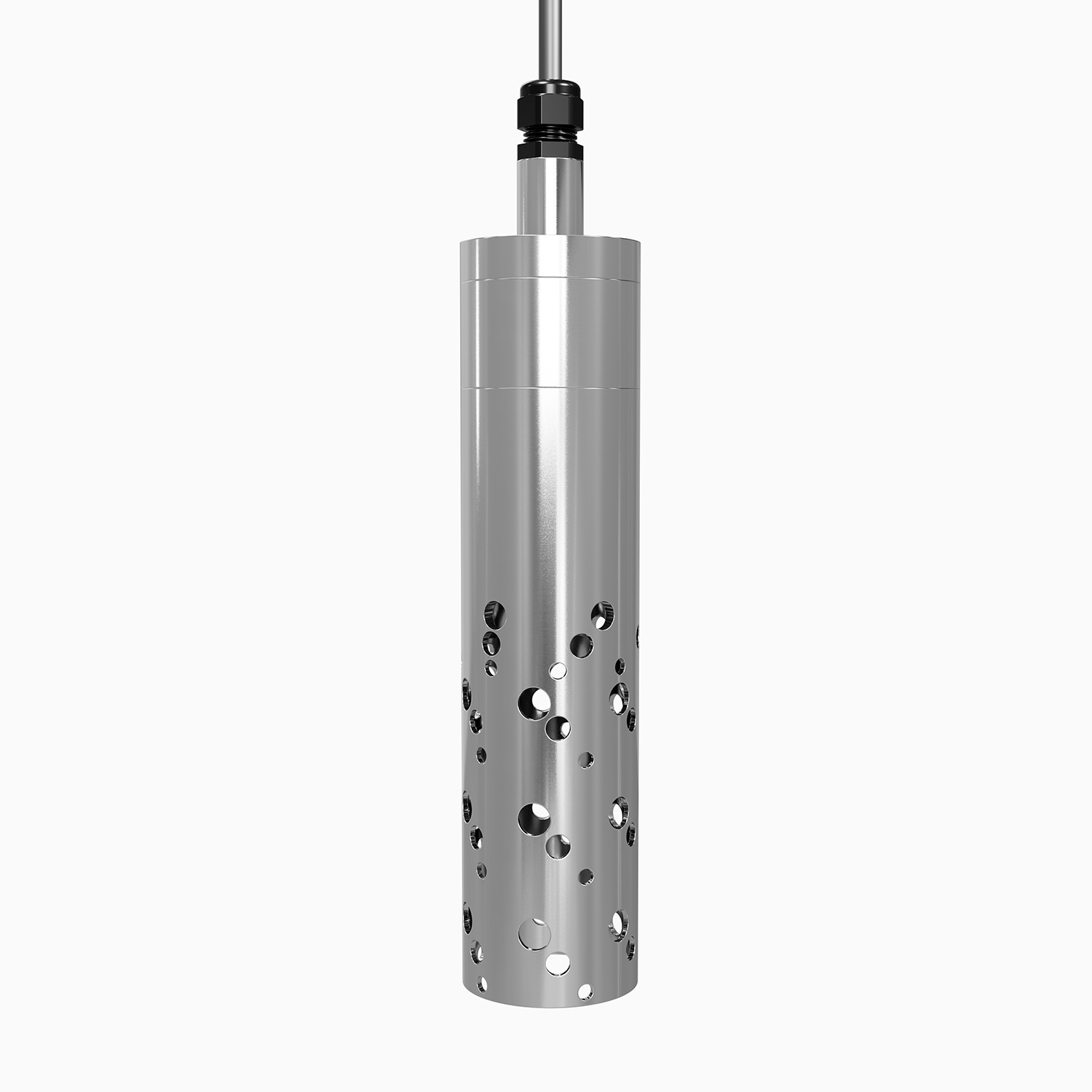

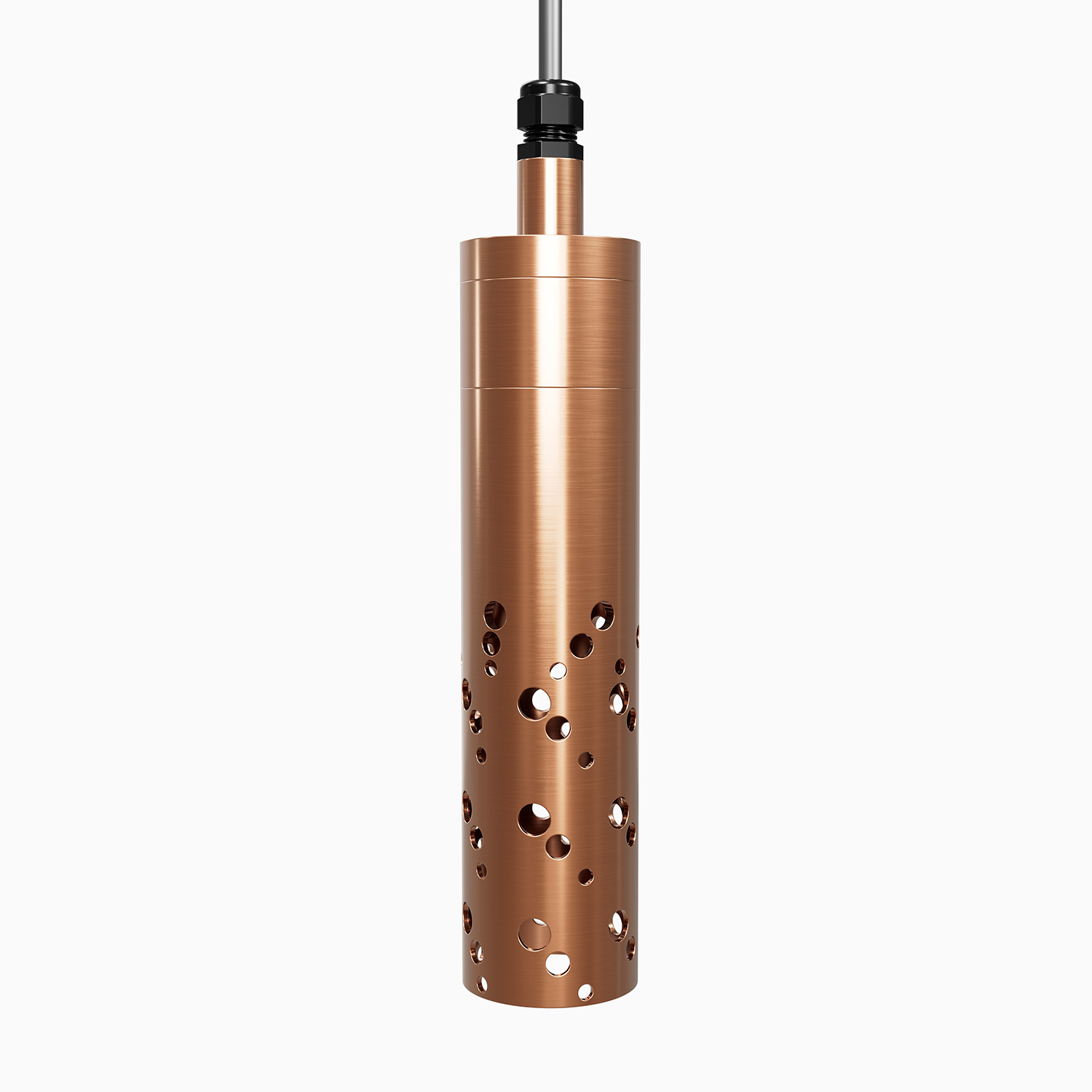

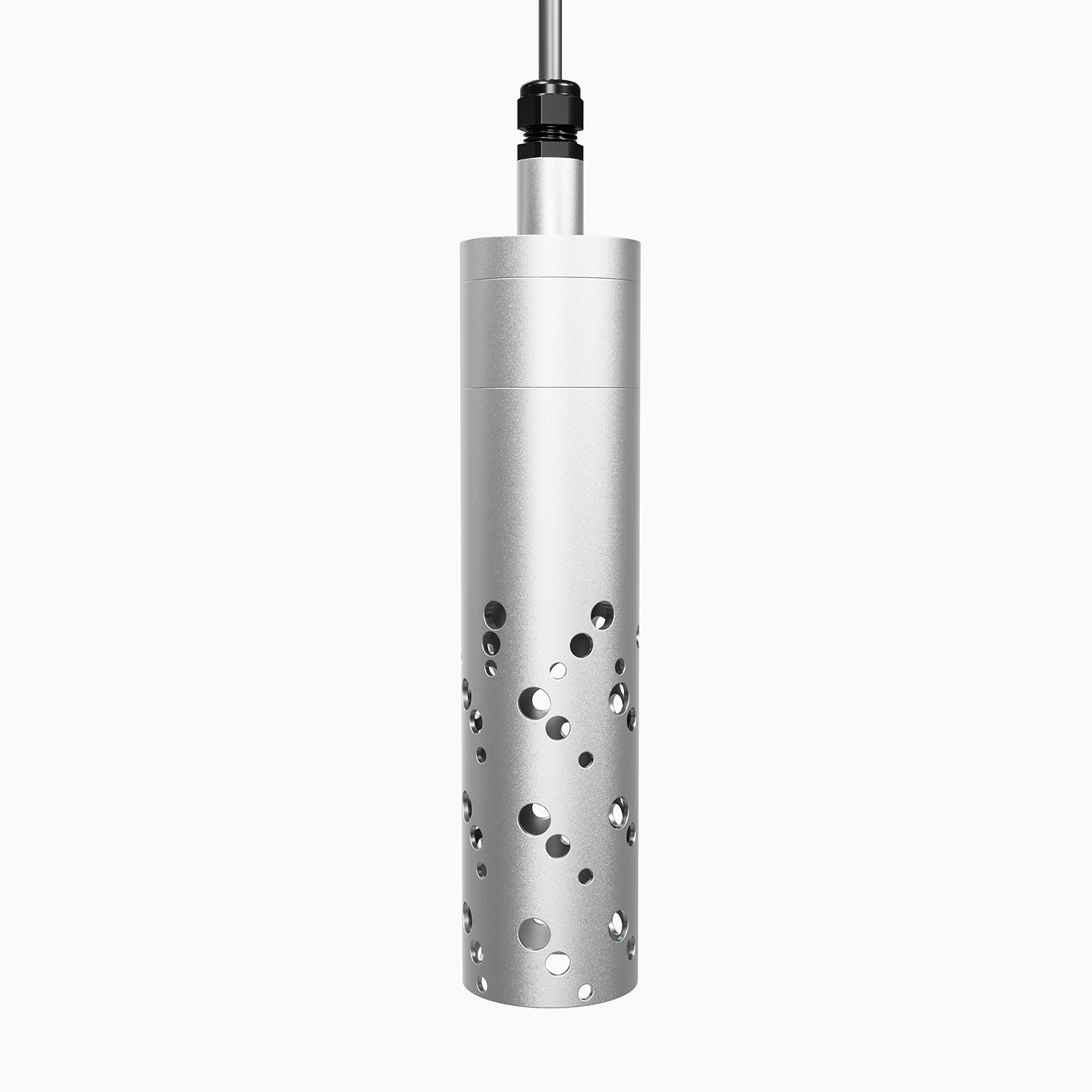

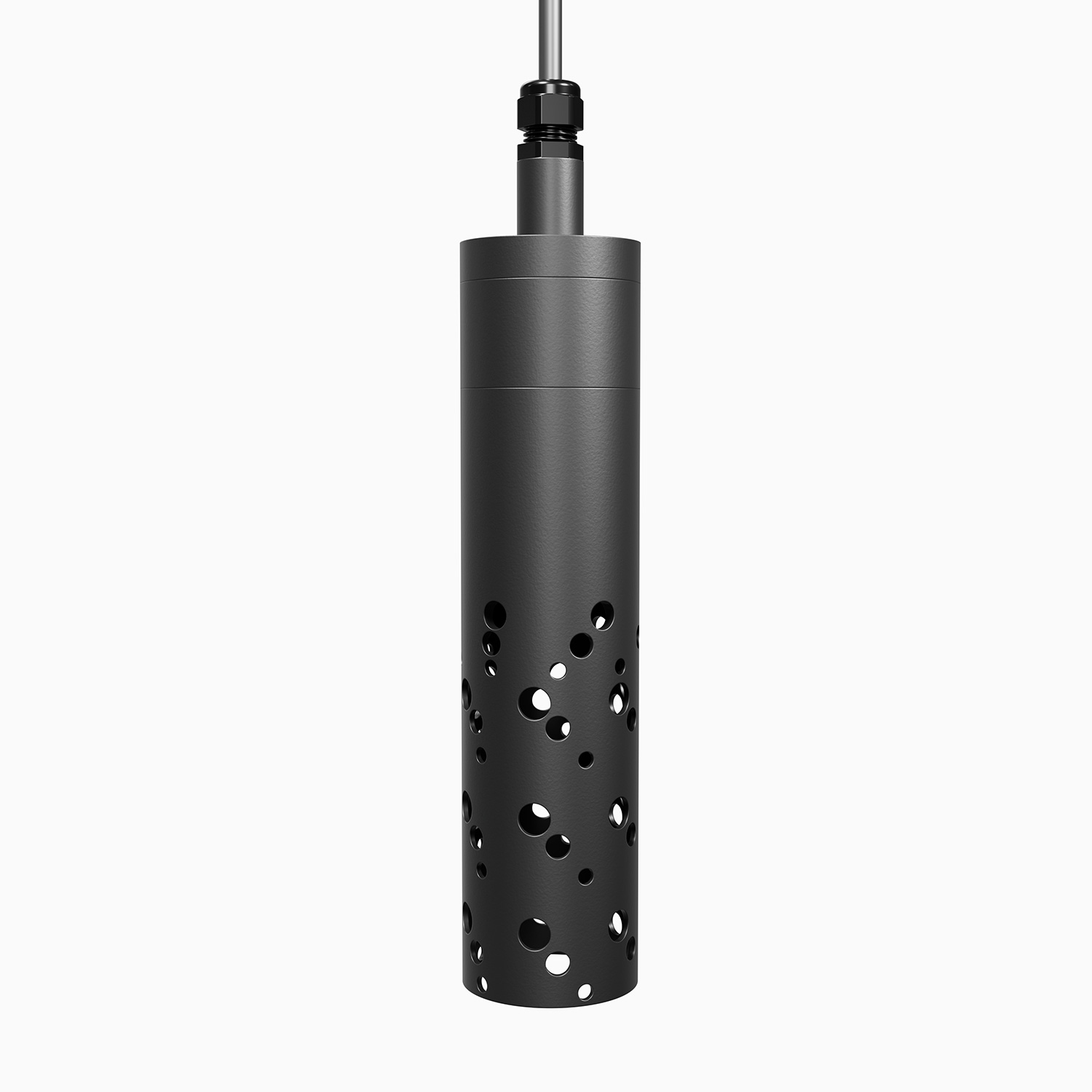

ZHL16 BUBBLE

HANGING & CATENARY | ZH16 Series | 2.25" dia.
5–10W | 12V | HK LED, Amber

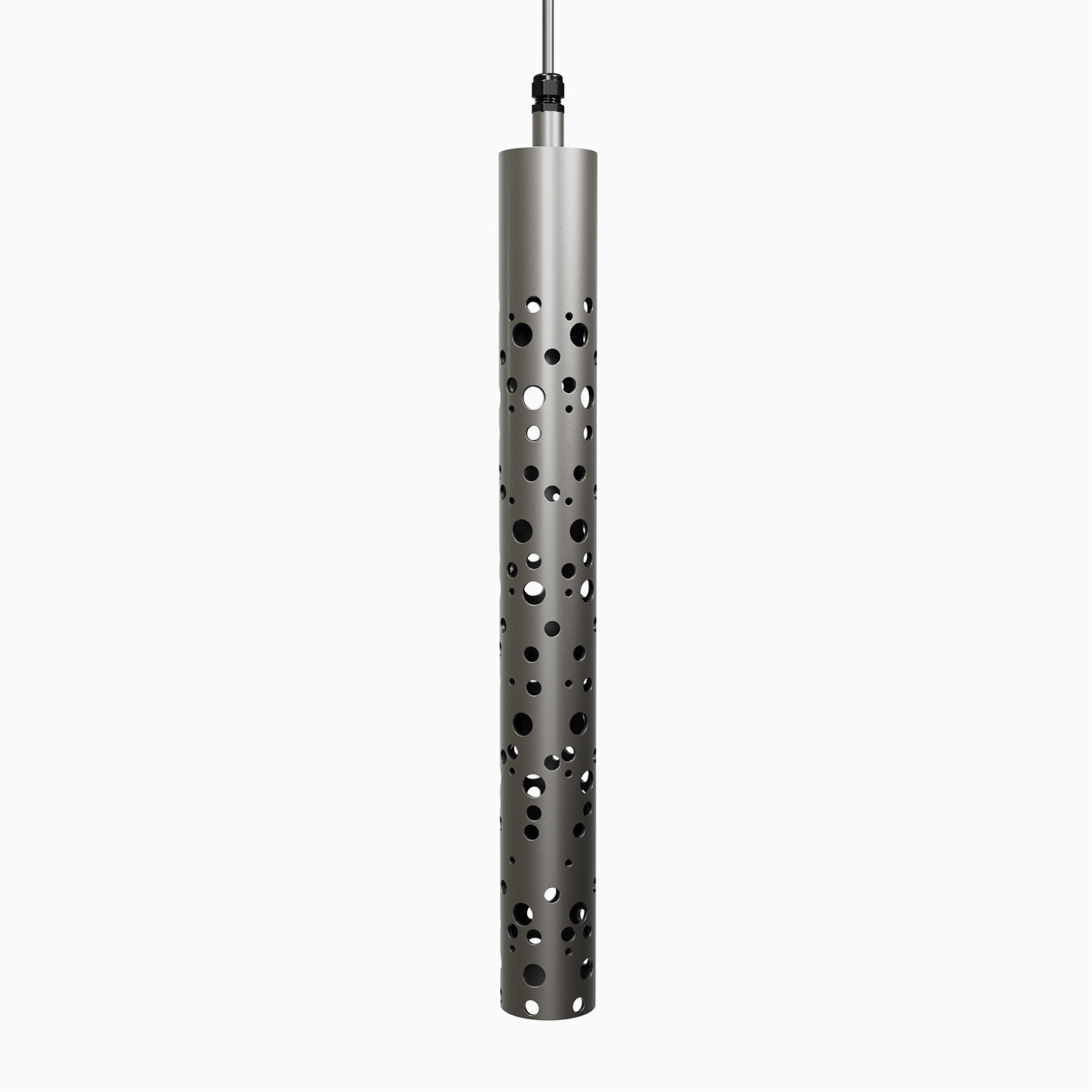

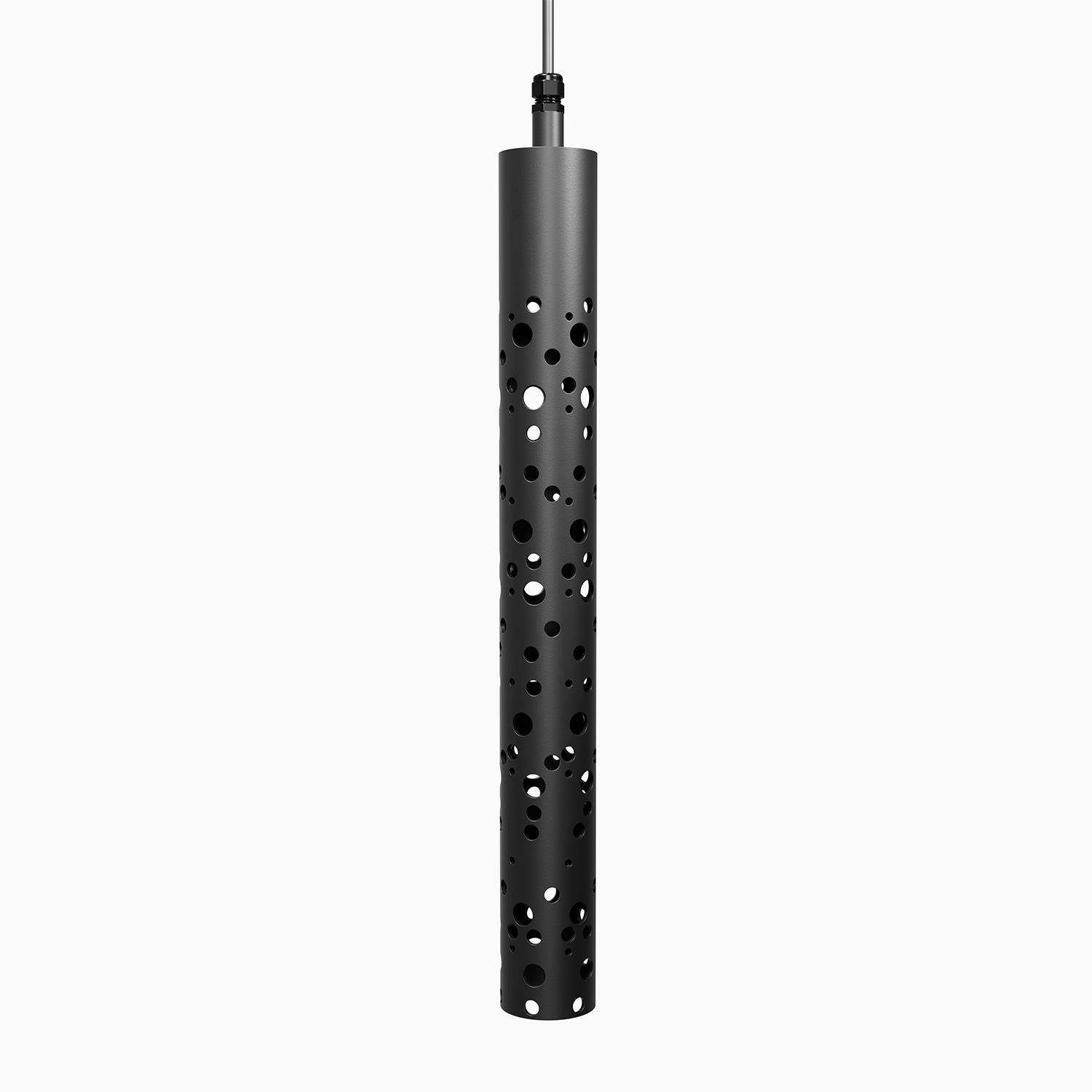

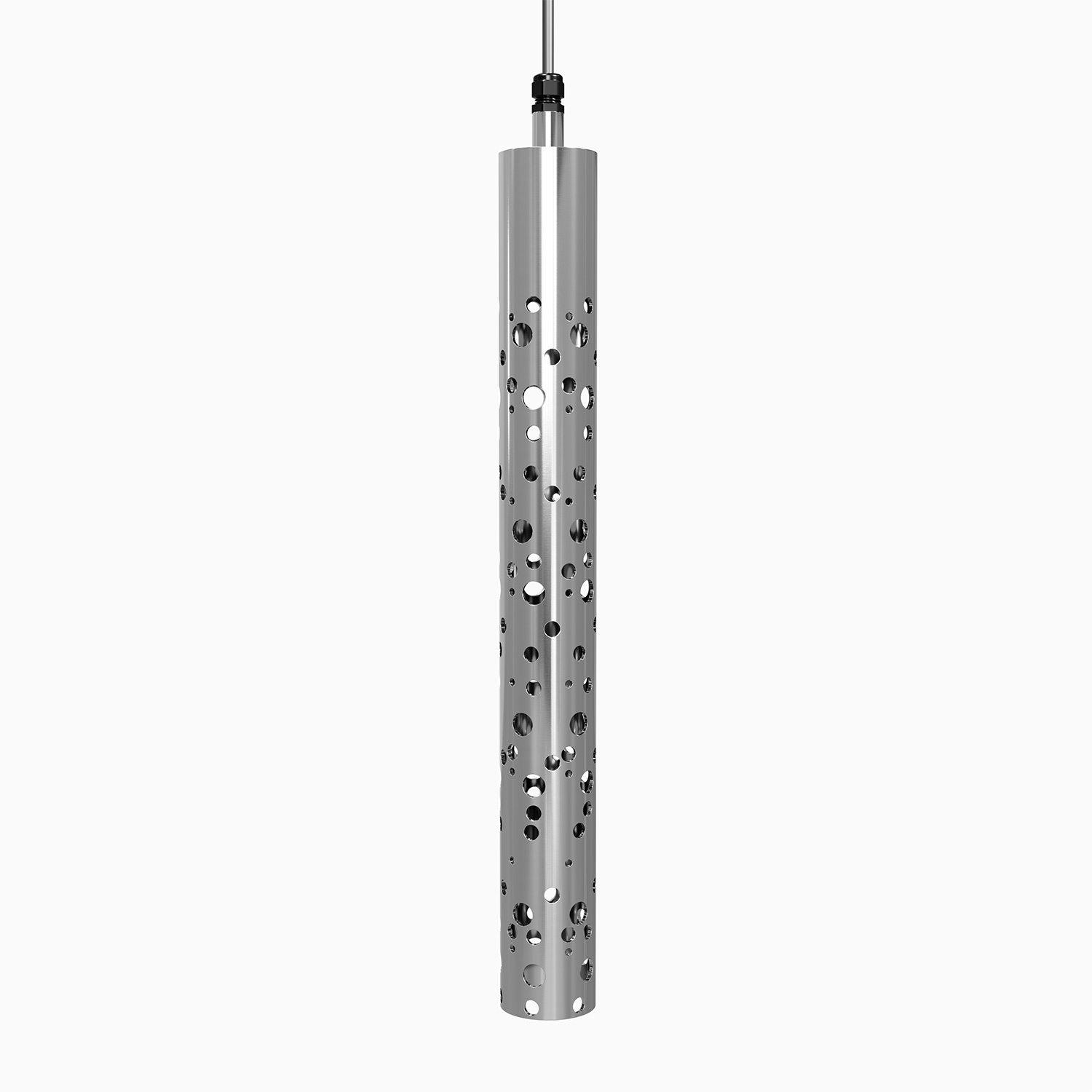

(includes former ZXL16-H-JB model)

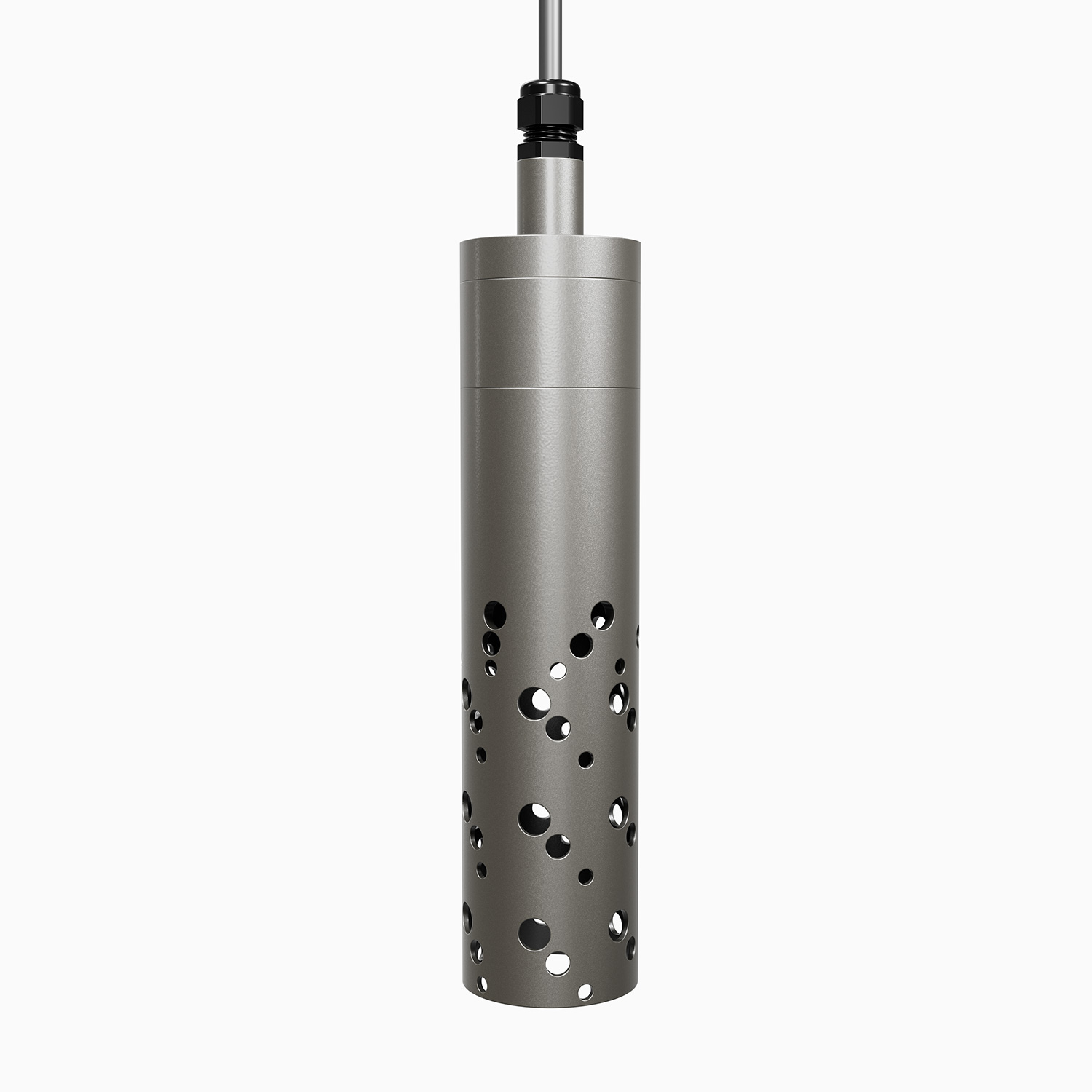

Elegant and versatile hanging light with bubble style hole pattern, perfect for architectural outdoor and landscape lighting environments.

FEATURES:

5W, 7W or 10W integrated HK LED. 2200-4000K CCT.
Wet Location Listed, IP65 Standard.
Machined from solid aircraft-grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine-grade finish. Also available in solid brass or stainless steel.
Perforated hood with random hole pattern creates subtle lighting around the fixture in addition to the down light.
Modular components, field changeable LED.
Hanging light ships standard with 60″ power cable or can be ordered in any custom length. Power cord can easily affix to tree branches or beams or installed with coordinating canopy plate.
Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Explore wildlife lighting criteria and application guidance.
Every fixture tested end of line for water tightness and light quality.

spec sheets

Specifications

Materials

Machined from billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Accepts optical accessories (dichroic color filters). Secured in place with a metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7 or 10W HK LED.

Mounting

Mounts to tree branches or wood beams using screw-mount cable ties or select coordinating canopy plate surface/box for pendant application. Standard fixture ships with 60" 18/2 SJTW power cable. Custom hanging lengths also available.

Fixture Weight

4 lbs.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 4000K. Specialty 2200K, 2400K, 2500K, 3500K, and Amber options available. Consult factory for specialty LED specification details.
