ZHL16 MESH
HANGING & CATENARY | ZH16 Series | DIA 2.25"
5 - 10W | 12V | HK LED, Amber, RGB

ZHL16 MESH

HANGING & CATENARY | ZH16 Series | DIA 2.25"
5 - 10W | 12V | HK LED, Amber, RGB

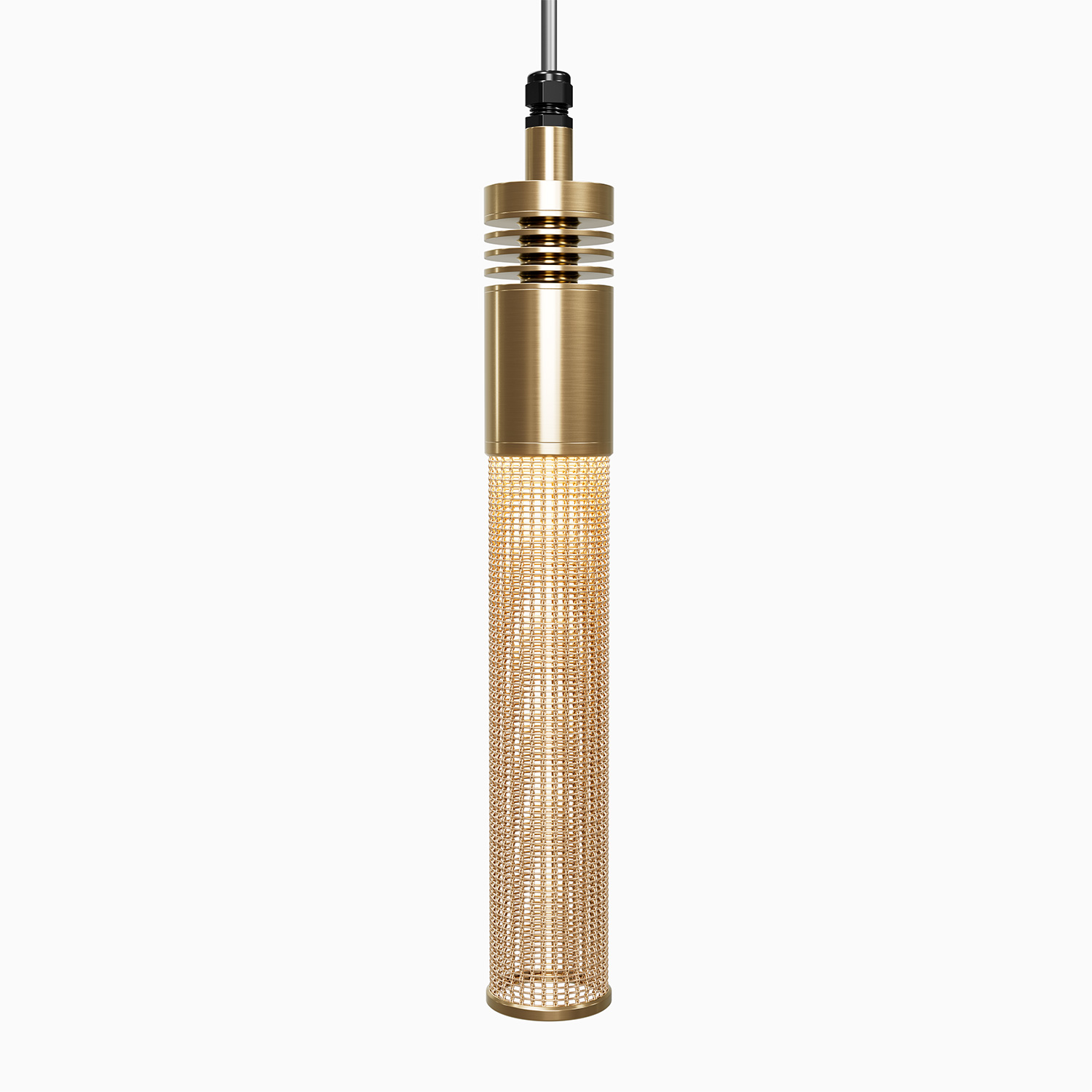

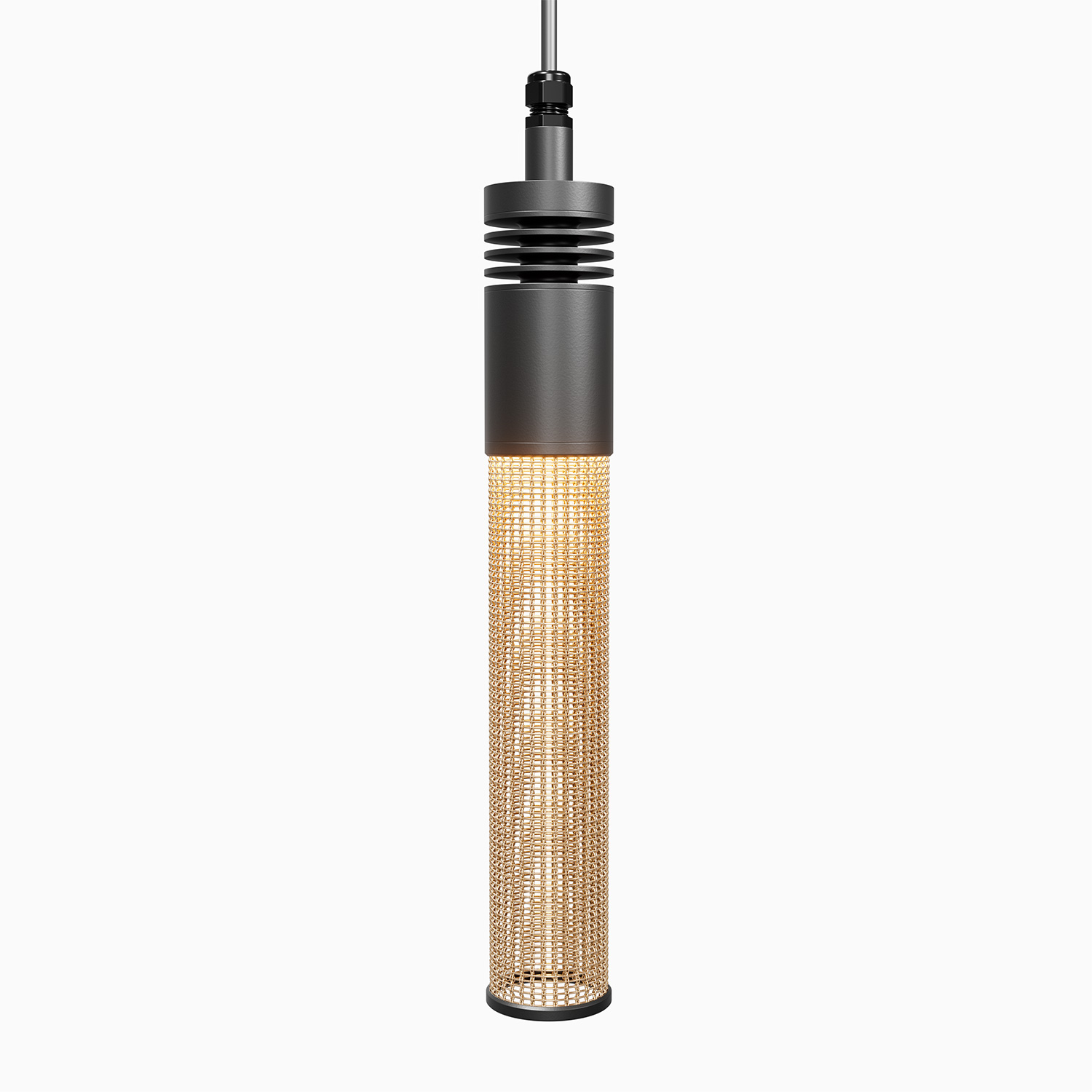

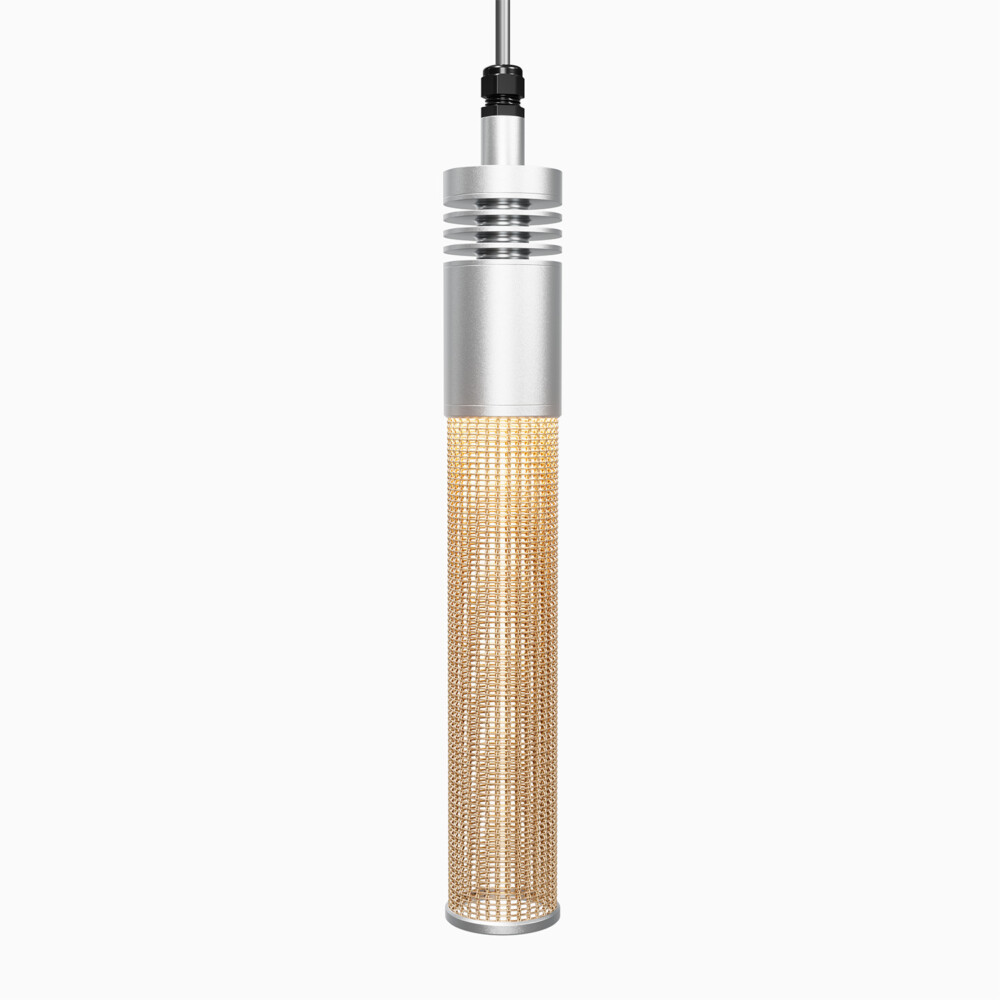

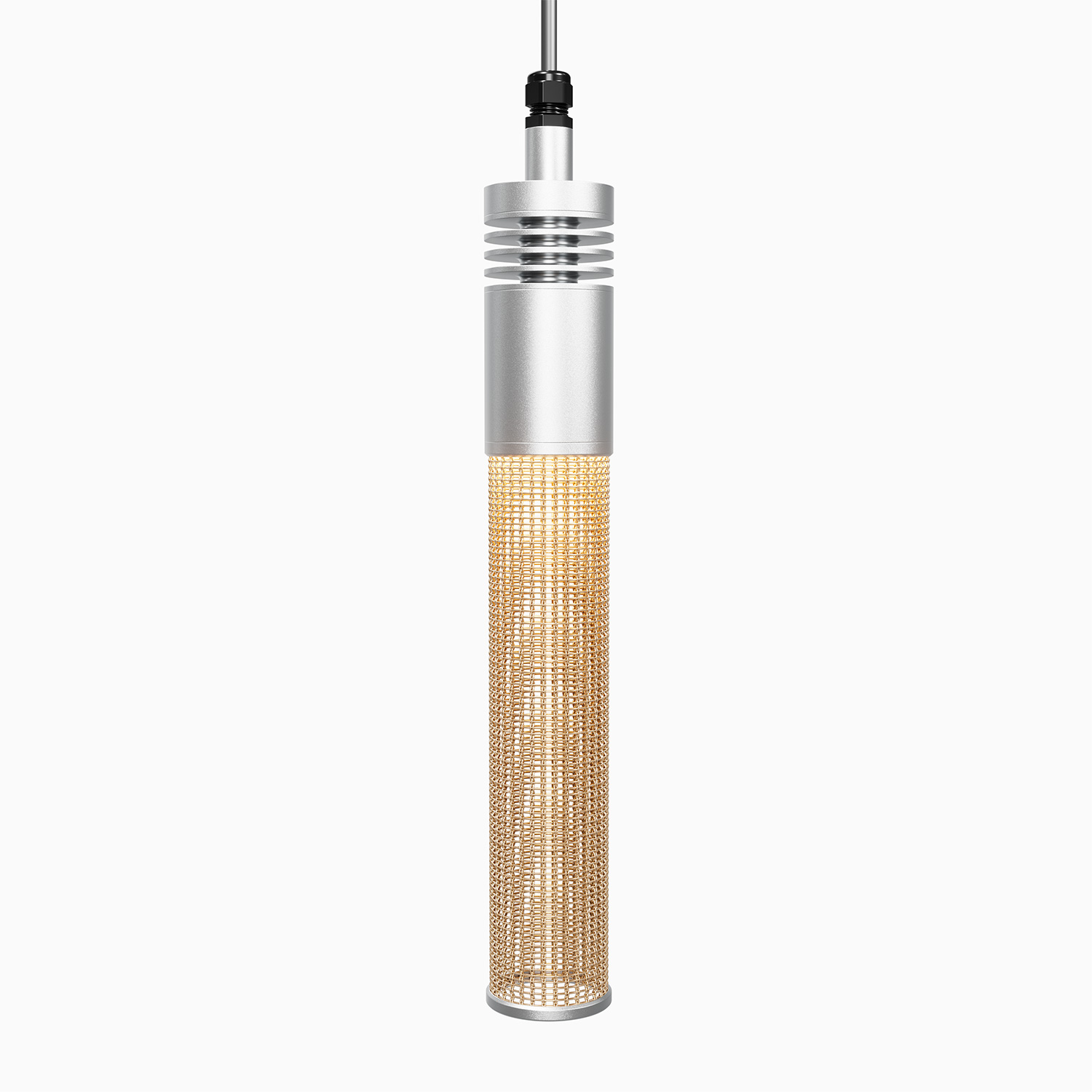

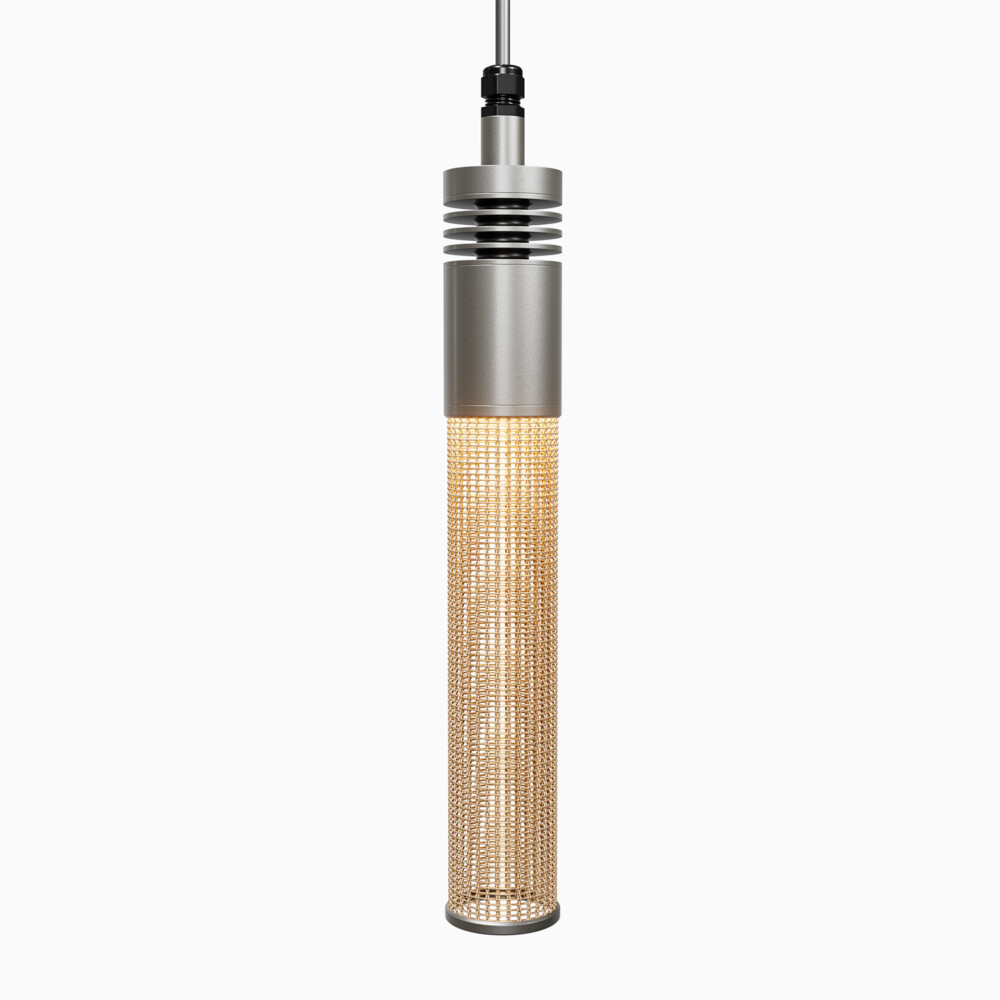

Elegant and versatile hanging light with unique brass mesh hood, perfect for architectural outdoor and landscape lighting environments.

(includes former ZXL16-H-BM model)

FEATURES:

  • 5W, 7W or 10W integrated HK LED. 2200-4000K CCT, including specialty Amber and RGB options.
  • Wet Location Listed, IP65 Standard.
  • Fixture body is machined from solid aircraft grade (6061-T6), corrosion resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • Woven natural brass mesh hood creates an elegant ambient light effect in addition to providing direct down light.
  • Modular components, field changeable LED.
  • Hanging light ships standard with 60″ power cable or can be ordered in any custom length. Power cord can easily affix to tree branches or beams or installed with coordinating canopy plate.
  • Every fixture tested end of line for water tightness and light quality.
Specifications

Materials

Body: Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request. Hood: Finely woven brass mesh hood.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Accepts optical accessories (dichroic color filters). Secured in place with metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7 or 10W HK LED.

Mounting

Mounts to tree branches or wood beams using screw-mount cable ties or select coordinating canopy plate surface/box for pendant application. Standard fixture ships with 60" 18/2 SJTW power cable. Custom hanging lengths also available.

Fixture Weight

1 lb

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 83 Standard. Available in CRI 95 upon request. CCT options are 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, Amber, and RGB options available. Consult factory for specialty LED specification details.

Dimming

MLV or ELV Phase Control dimming.

Additional information

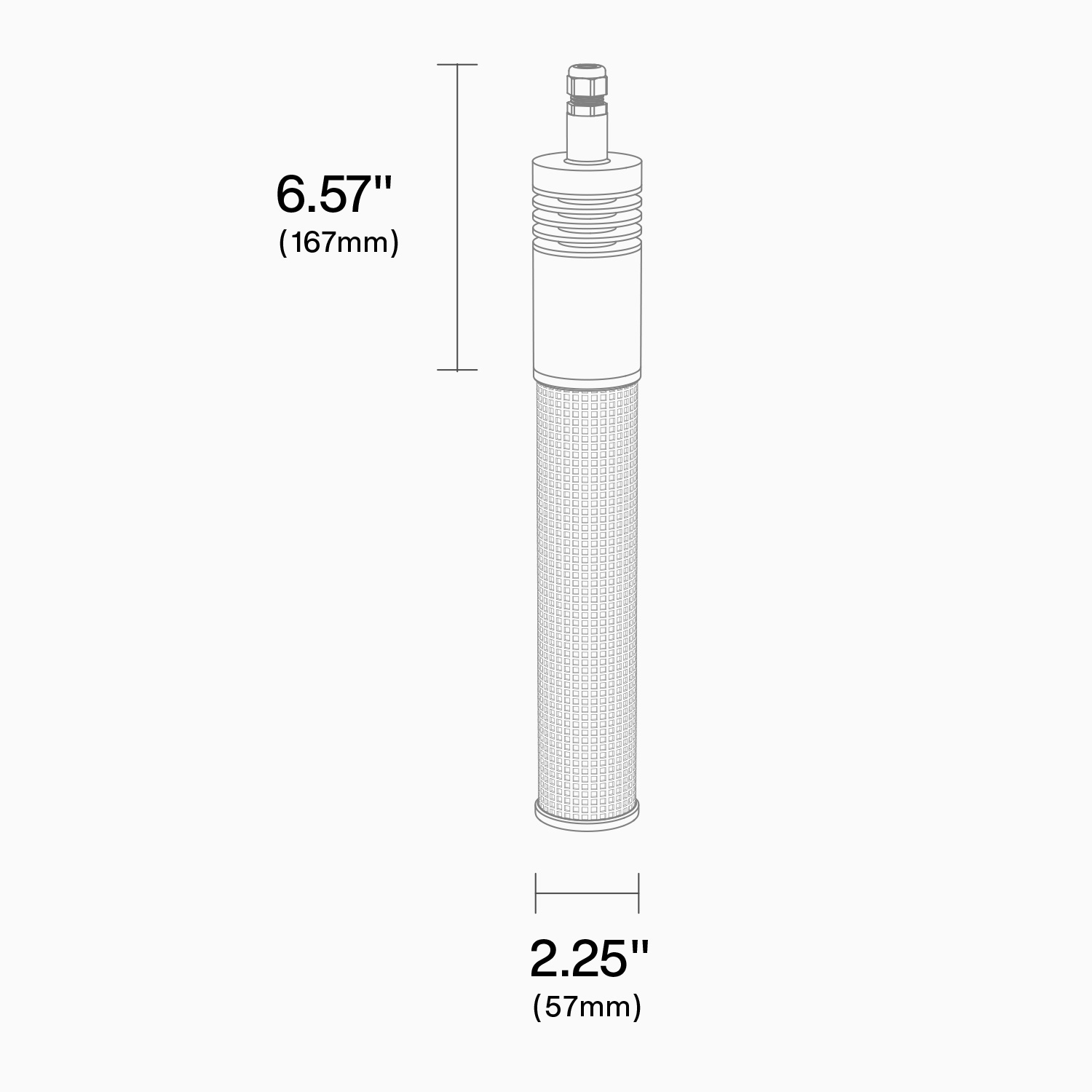

Dimensions 2.25 × 12.87 in
Light Source

, ,

Shape

Input Voltage

Wattage
