ZHL16
HANGING & CATENARY | ZH16 Series | DIA 2.25"
5 - 10W ( 500 - 900lm ) | 12V | HK LED, Amber, RGB

ZHL16

HANGING & CATENARY | ZH16 Series | DIA 2.25"
5 - 10W ( 500 - 900lm ) | 12V | HK LED, Amber, RGB

Aesthetic and high performing hanging light for residential and commercial architectural outdoor and landscape lighting environments.

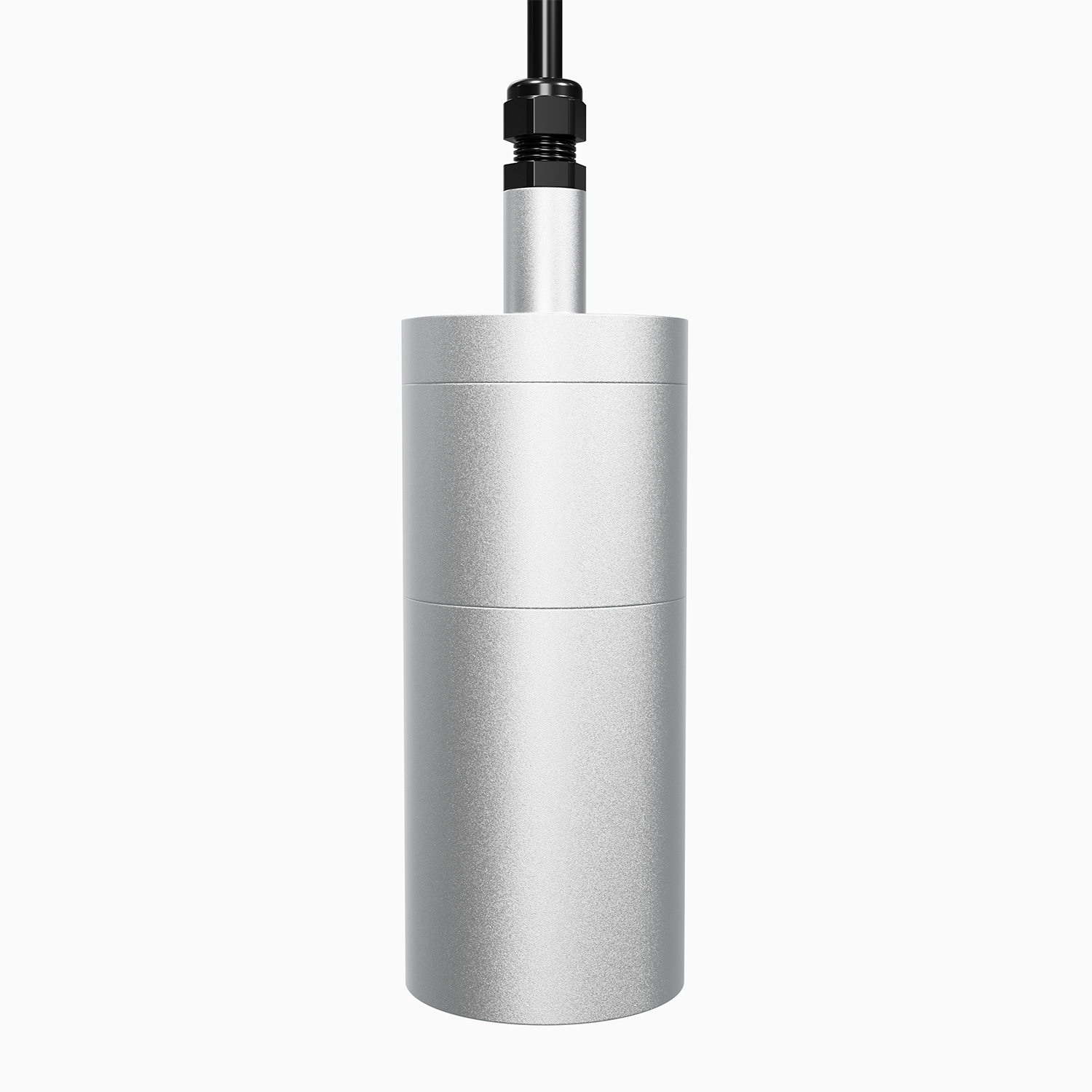

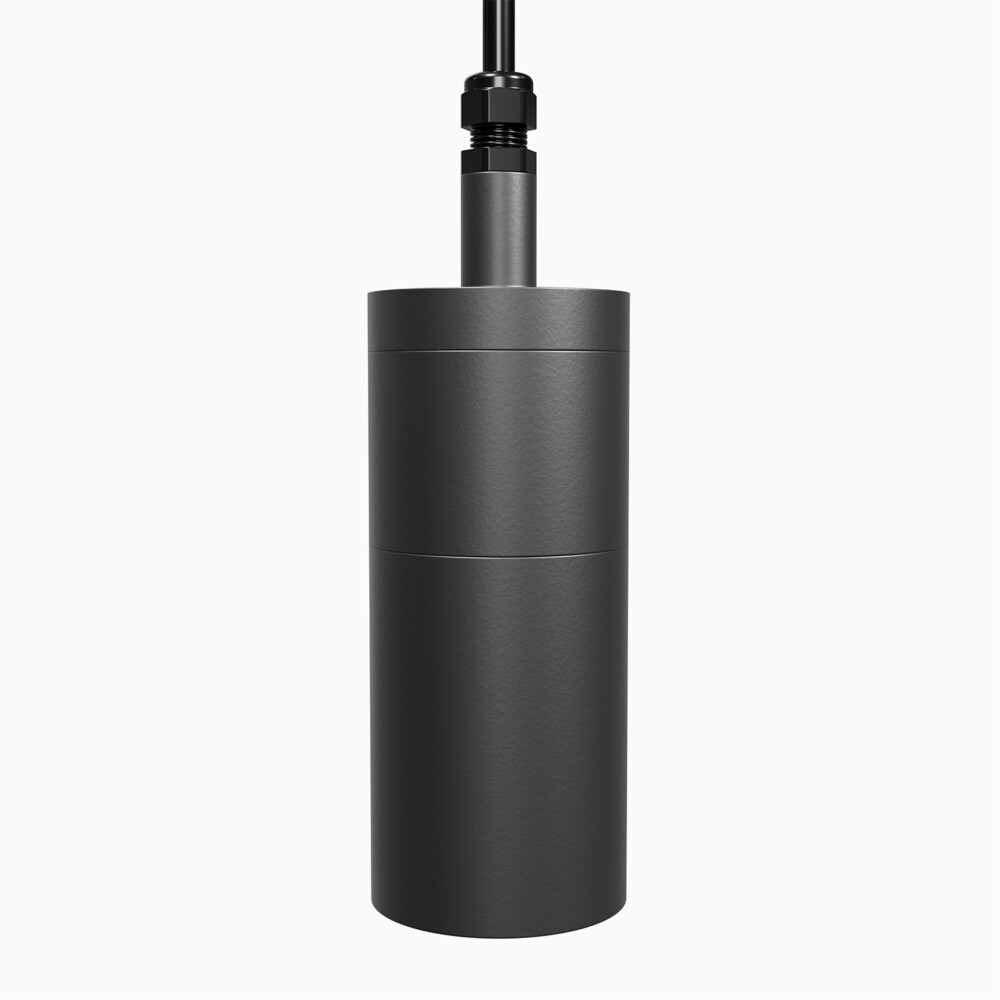

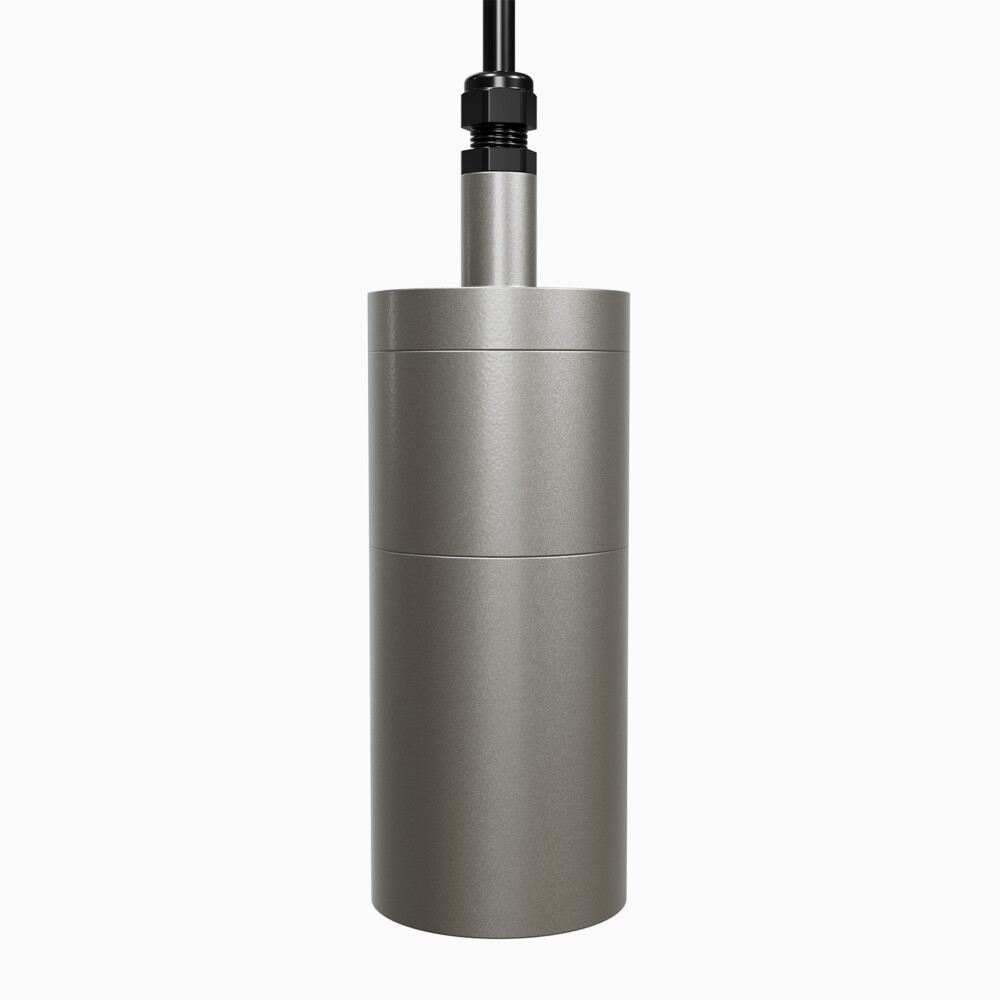

(includes former ZXL16-H-NF and ZXL16-H models)

FEATURES:

  • 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
  • Wet Location Listed, IP65 Standard.

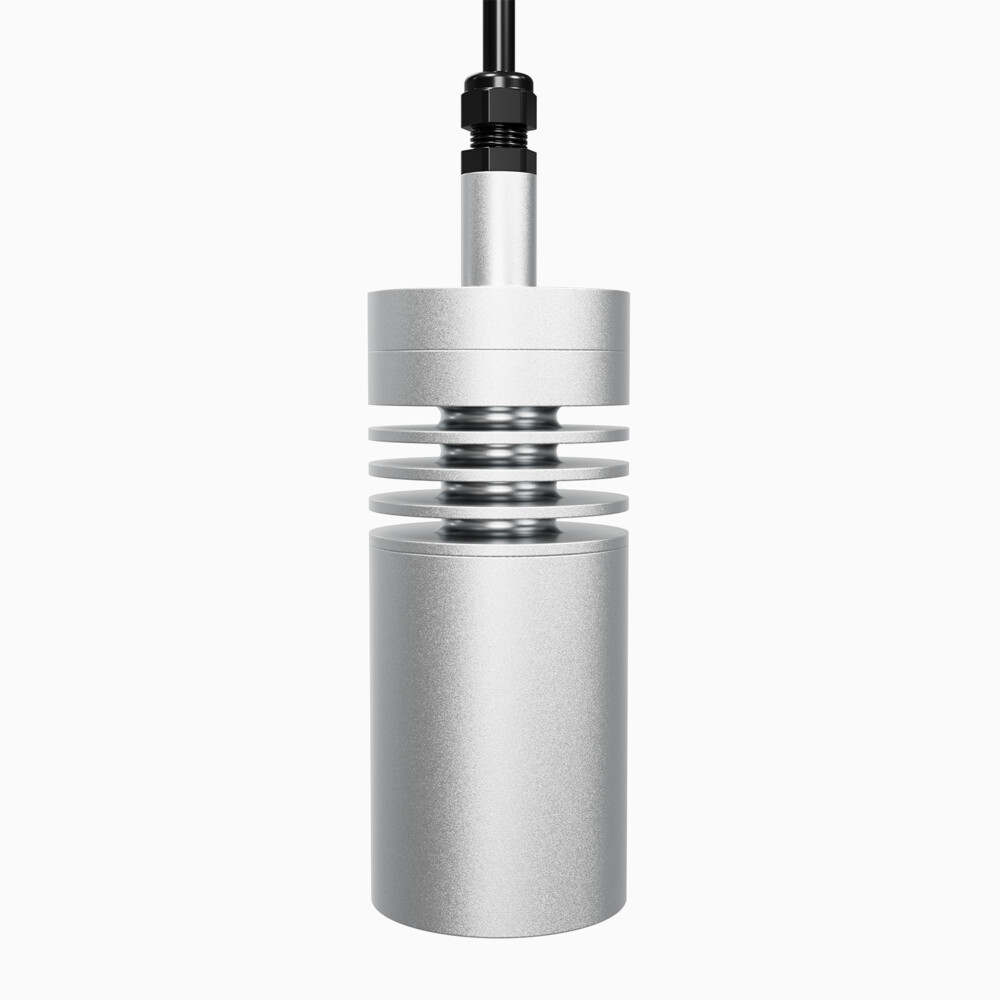

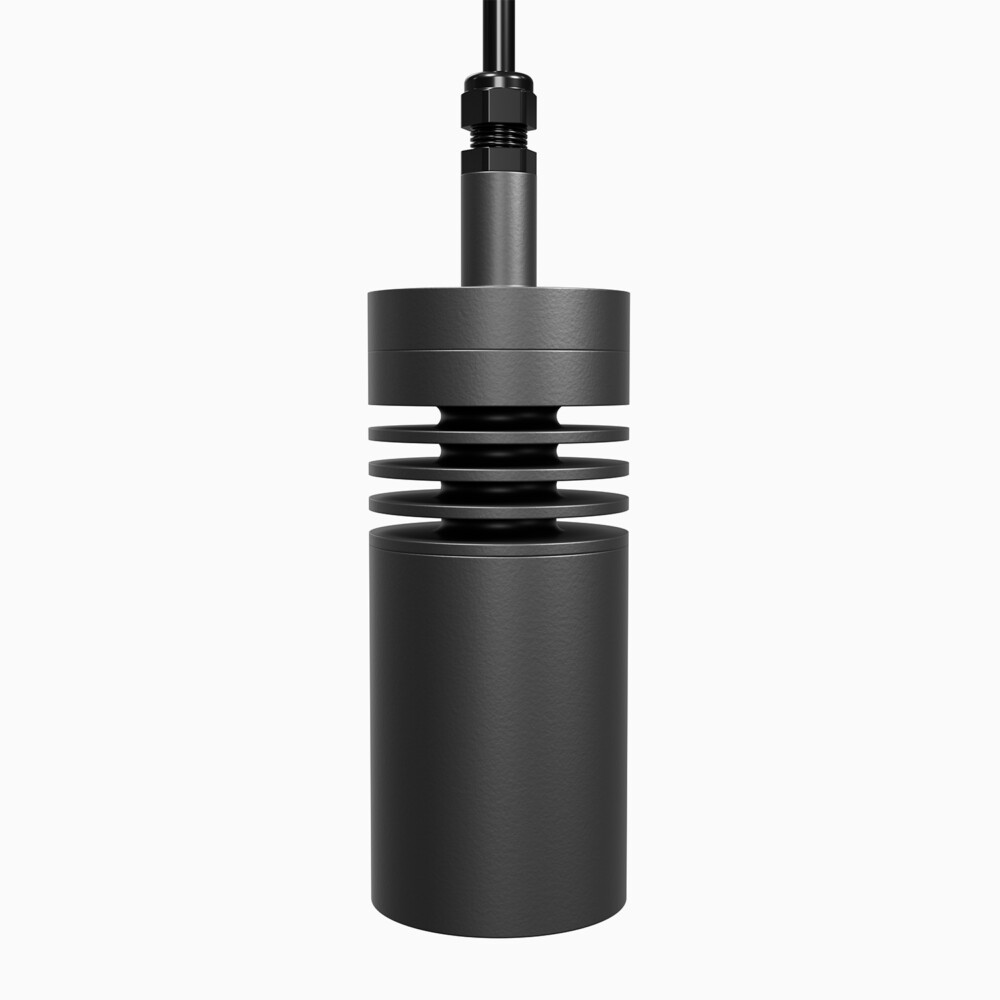

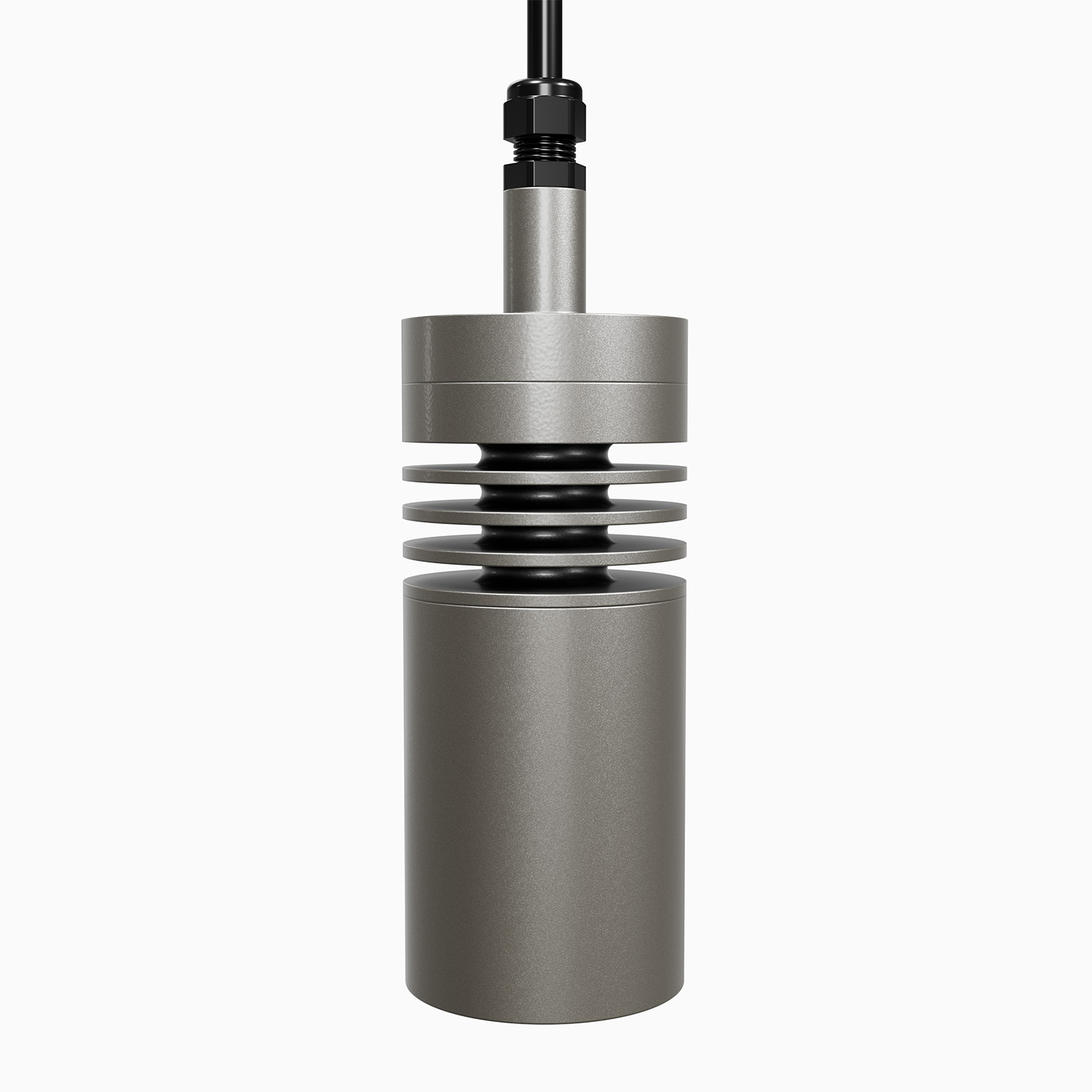

  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Long and Short Glare Shields
  • Hanging light ships standard with 60″ power cable or can be ordered in any custom length. Power cord can easily affix to tree branches or beams or installed with coordinating canopy plate.
  • Every fixture tested end of line for water tightness and light quality.
  • Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Narrow (20º), Medium (33º), Wide (44º), Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7 or 10W HK LED delivers 500 to 900 lumens.

Mounting

Mounts to tree branches or wood beams using available screw-mount cable ties or select coordinating canopy plate surface/ box for pendant application. Fixture ships with 60" 18/2 SJTW power cable. Custom hanging lengths also available.

Fixture Weight

1 lb

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 4000K. Specialty 2200K, 2400K, 2500K, 3500K, Amber, and RGB options available. Consult factory for specialty LED specification details.

Glare Shield

Set screw adjustable, Angled, Short or Long Glare Shields. (See page 4 of Spec Sheet for details)

Dimming

MLV or ELV Phase Control dimming.

Additional information

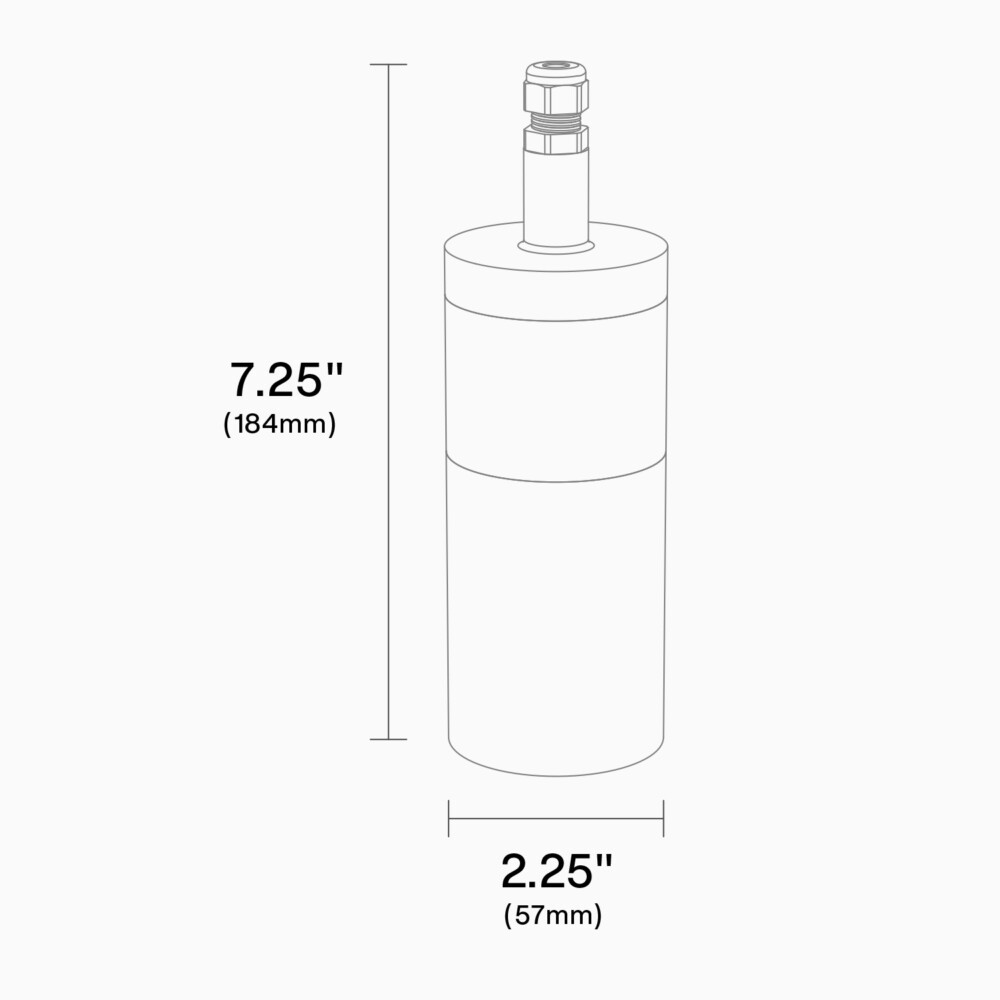

Dimensions 2.25 × 7.25 in
