Additional information
| Light Source | |
|---|---|
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage | |

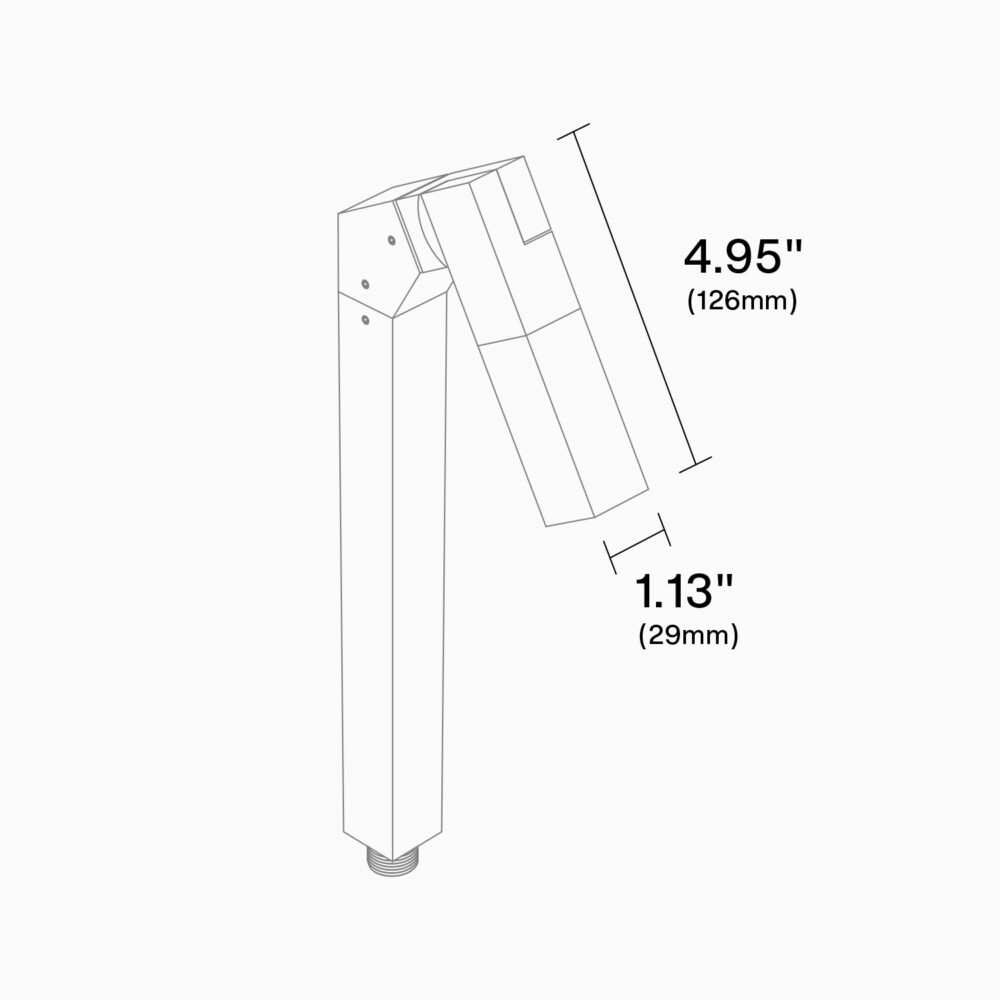

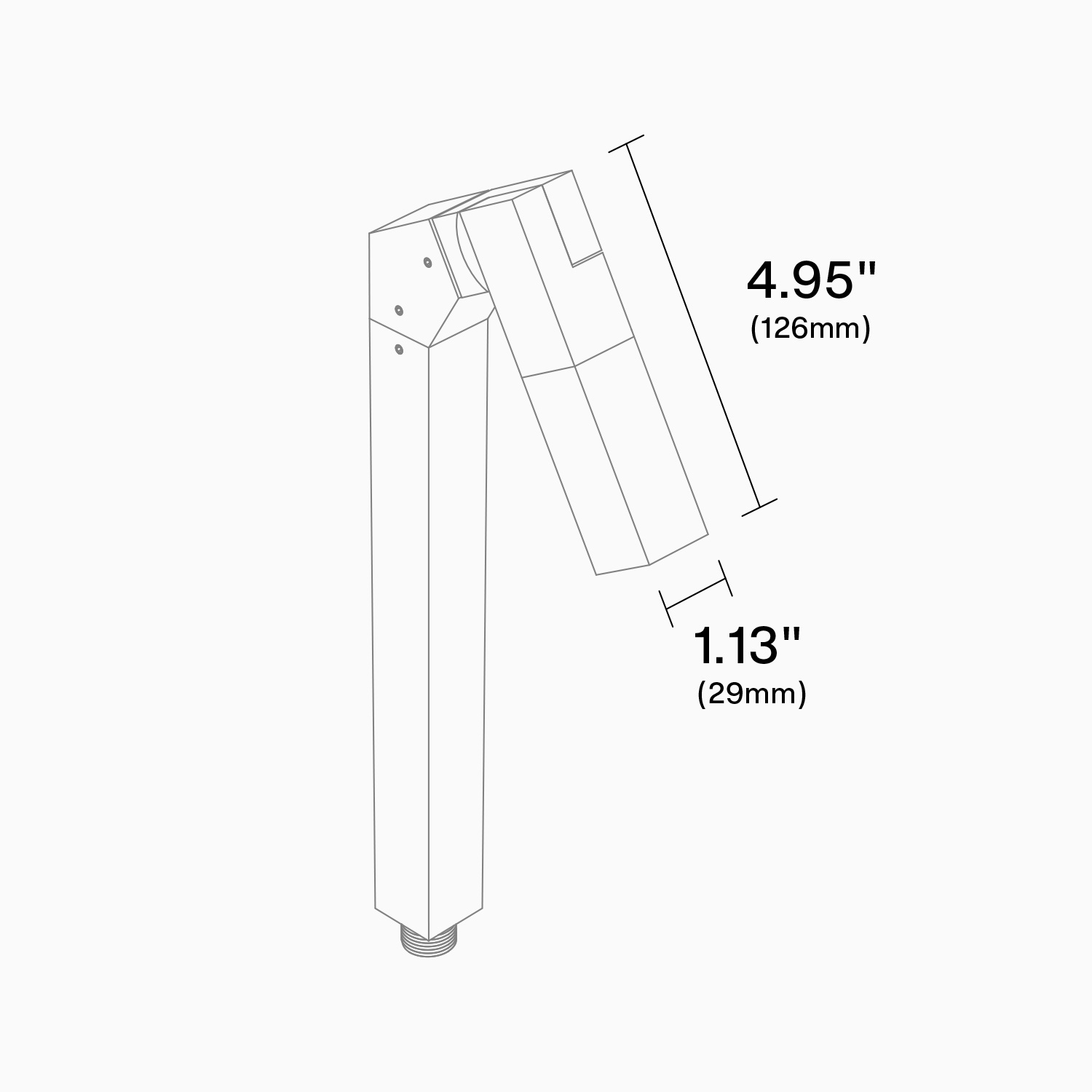

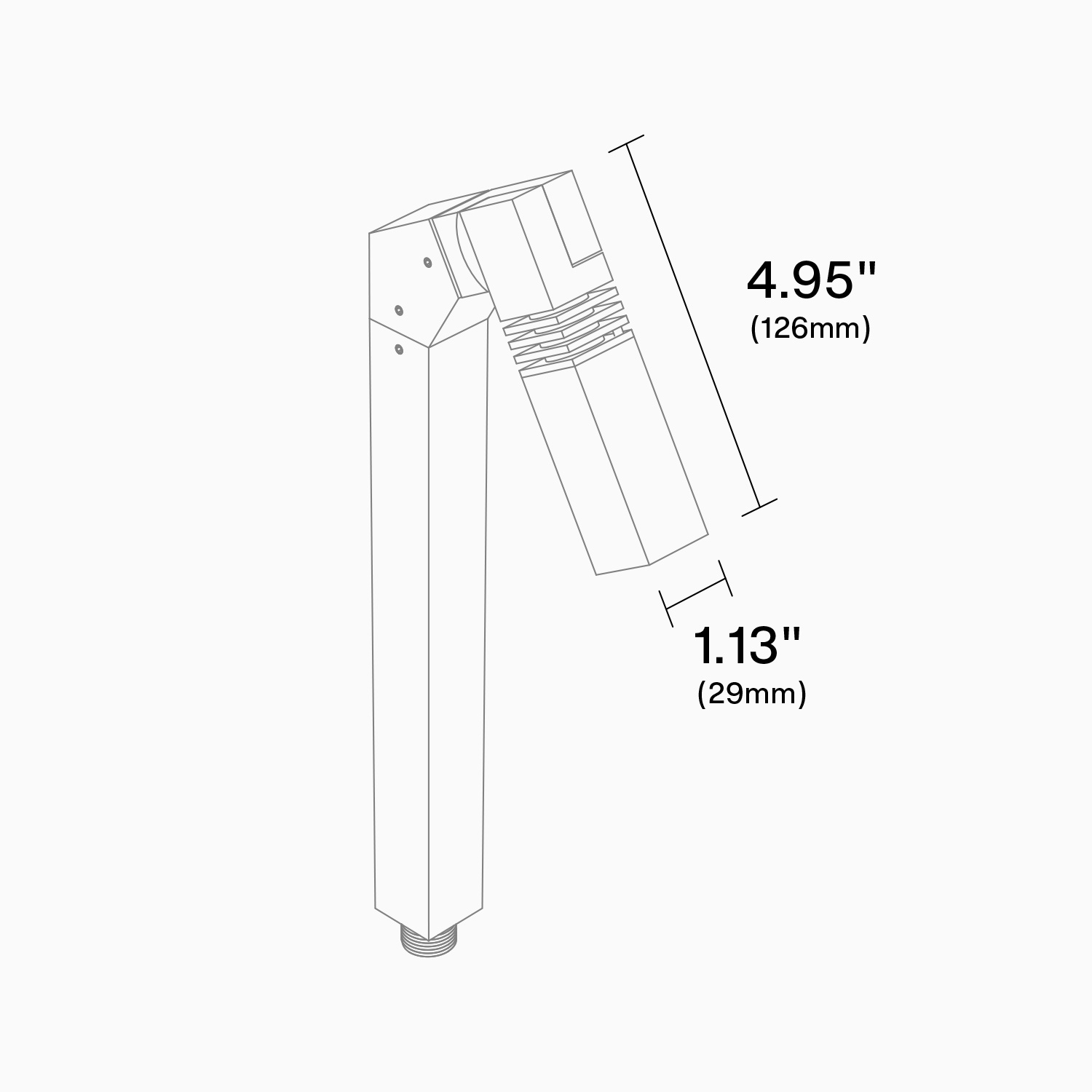

| Size | 1.13" |
ZPL08
PATH & BOLLARD | ZPL08 Series | 1.13"
3W ( 200lm) | 12V | HK LED, Amber
3W ( 200lm) | 12V | HK LED, Amber
ZPL08
PATH & BOLLARD | ZPL08 Series | 1.13"
3W ( 200lm) | 12V | HK LED, Amber
3W ( 200lm) | 12V | HK LED, Amber

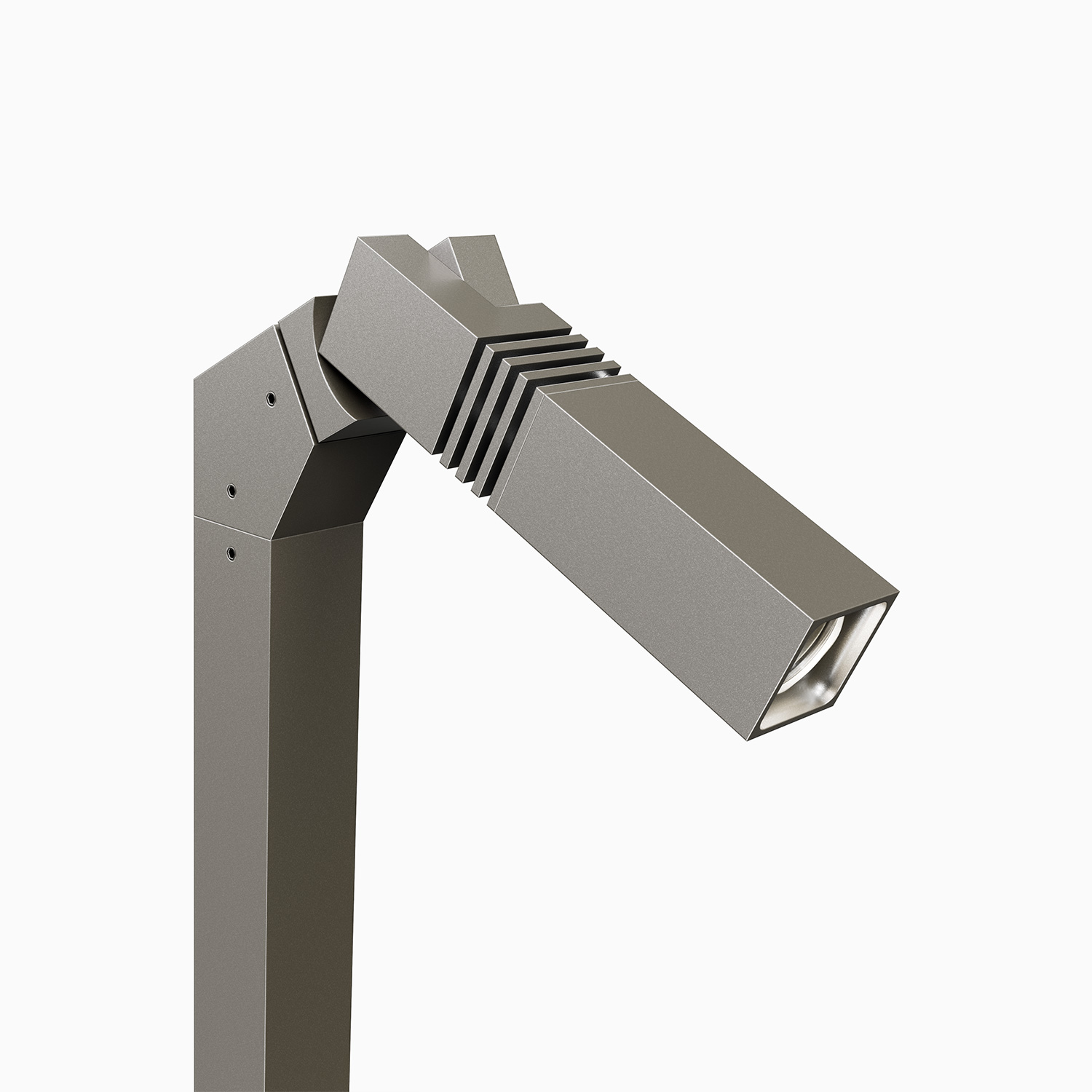

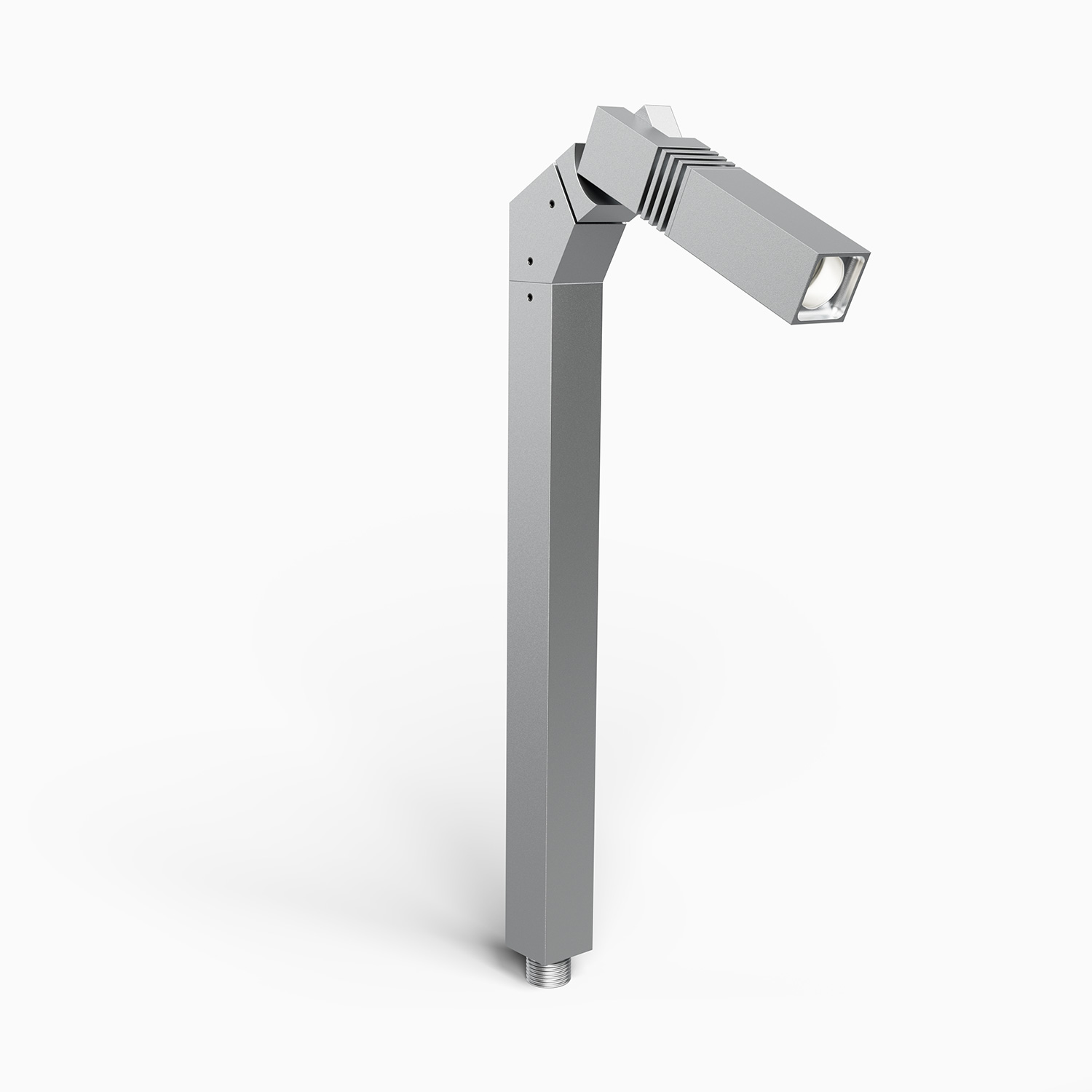

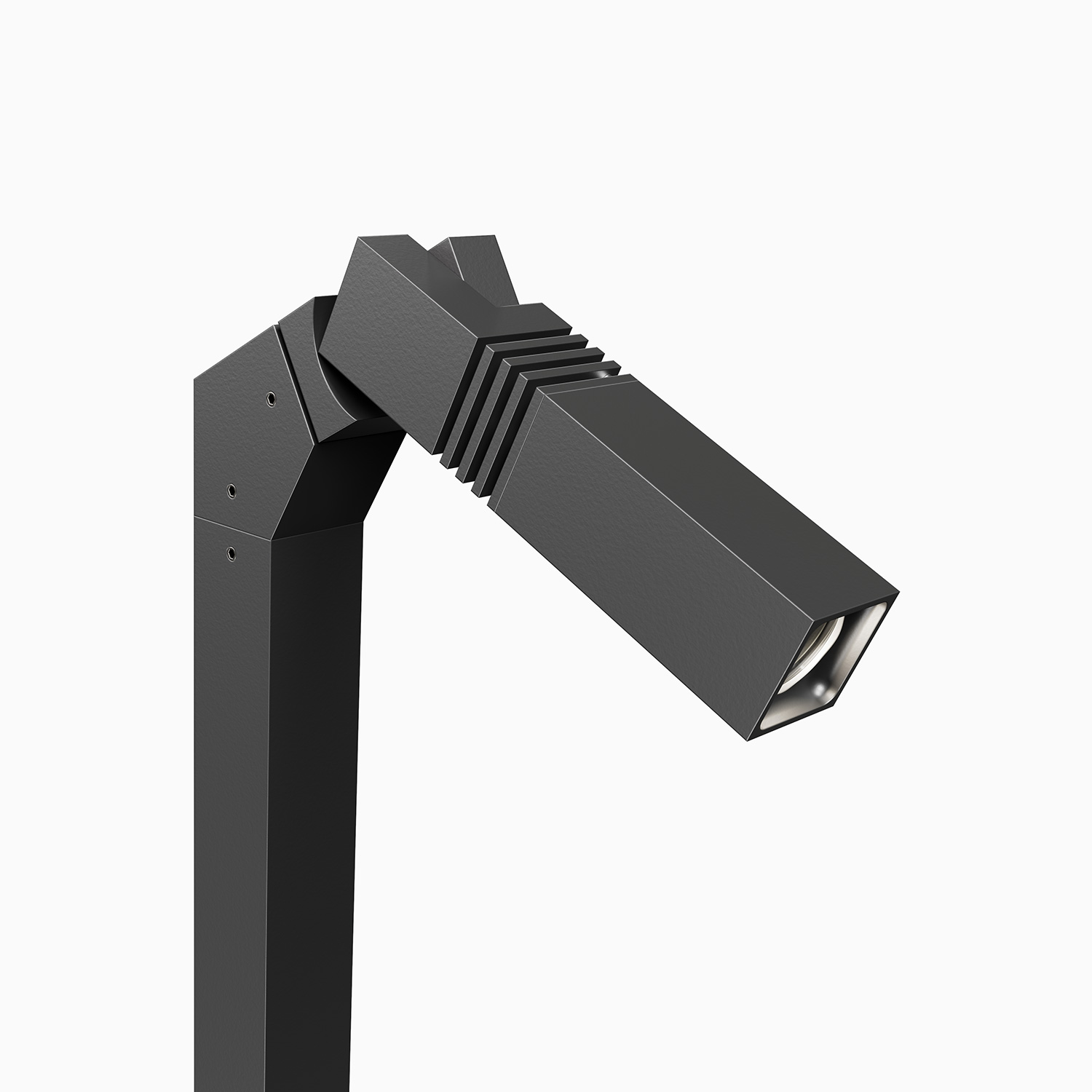

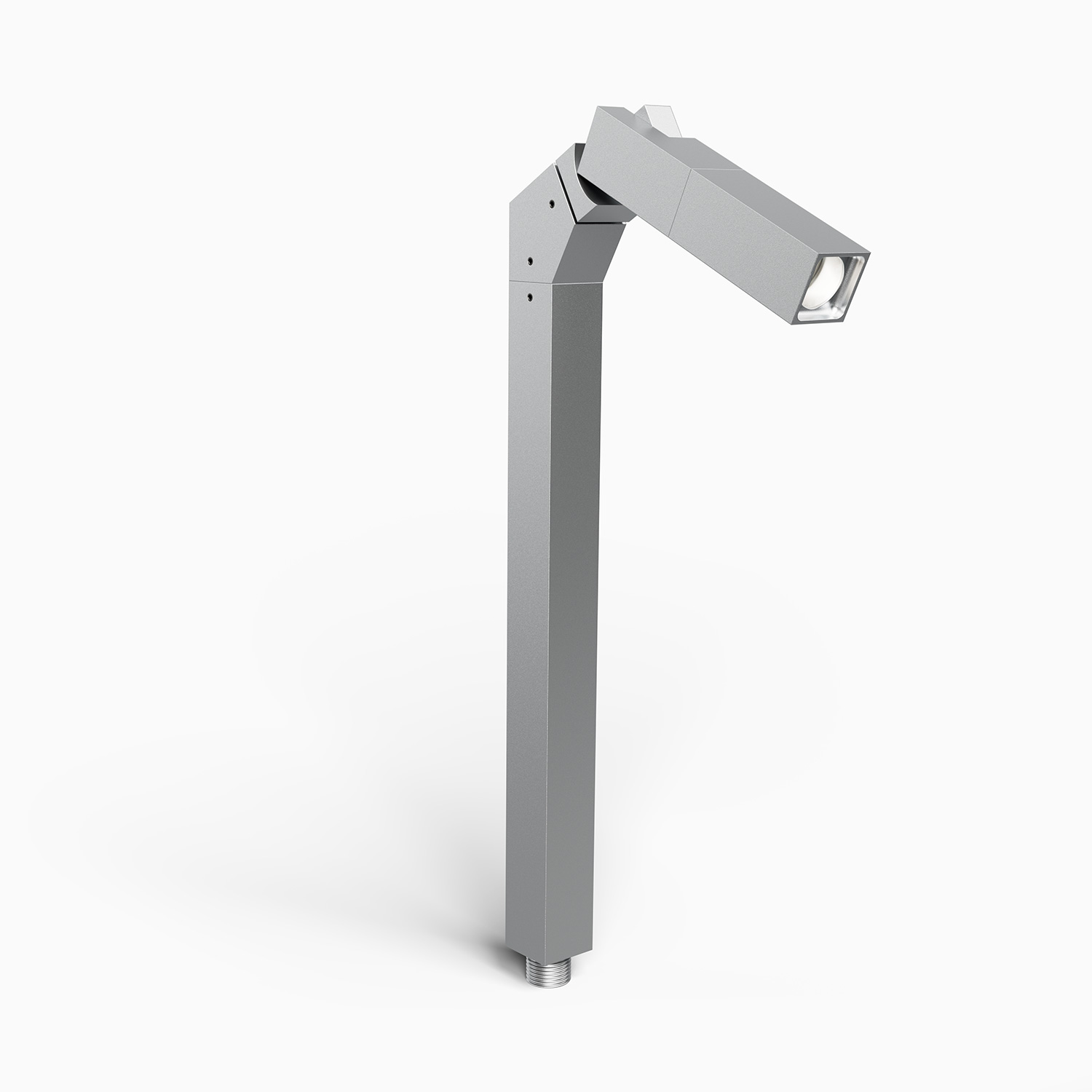

Versatile compact directional 12V LED path light for residential environments.
(includes former PATH-1-08L-SQ model)
FEATURES:
- 3W integrated HK LED delivering 200 lumens per light. 2200-4000K CCT, including specialty Amber options.
- Wet Location Listed, IP67 Standard.
- Utilizes fully adjustable accent fixture head with directional light.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- Innovative hydrophobic lense coating ensures clean, bright light for years to come.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled Glare Shields and ground, surface, and canopy mounting options.
- Single and double light mounting options at 12″, 24″, 30″ or custom height.
- Every fixture tested end of line for water tightness and light quality.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Dimming
MLV or ELV Phase Control dimming.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
3W HK LED delivering 200 lumens per light.
Optics
Narrow (19º), Medium (26º), and Wide (51º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with metal snap ring.
Glare Shield
Weeping Hood Style with Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and Amber options available. Consult factory for specialty LED specification details.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
