ZPL11

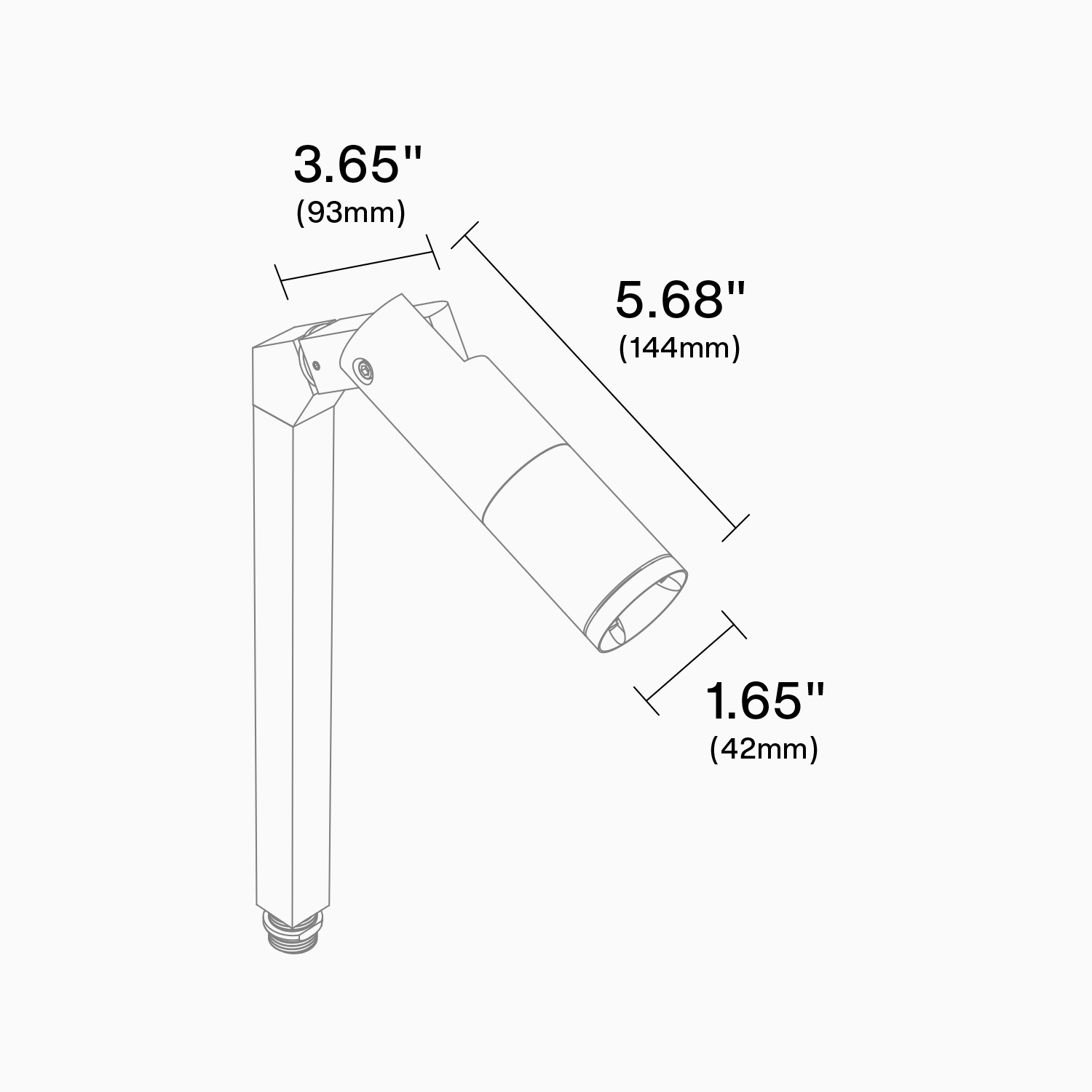

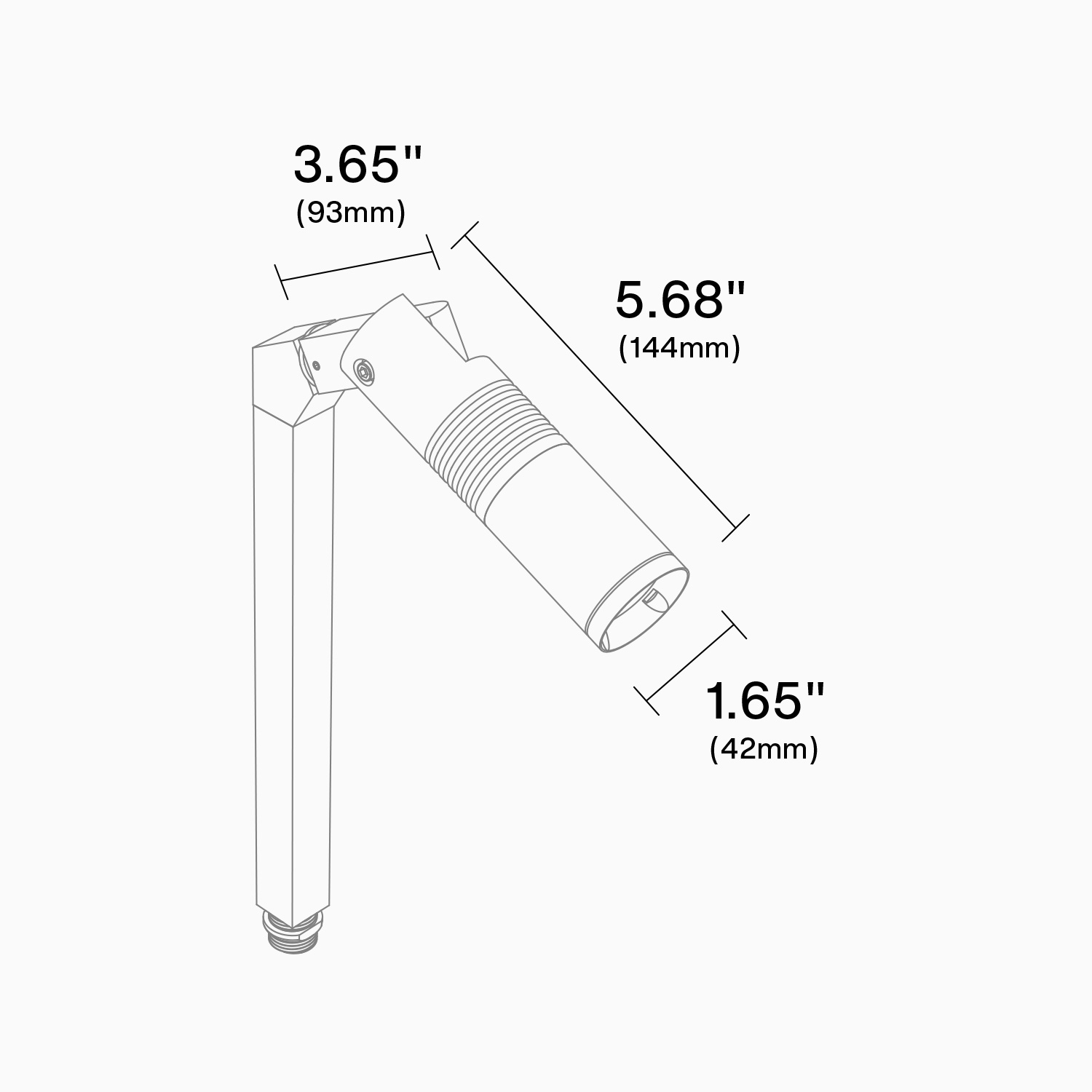

PATH & BOLLARD | ZPL11 Series | 1.65" dia.
5–7W ( 450–675lm ) | 12V | HK LED, Amber

ZPL11

PATH & BOLLARD | ZPL11 Series | 1.65" dia.
5–7W ( 450–675lm ) | 12V | HK LED, Amber

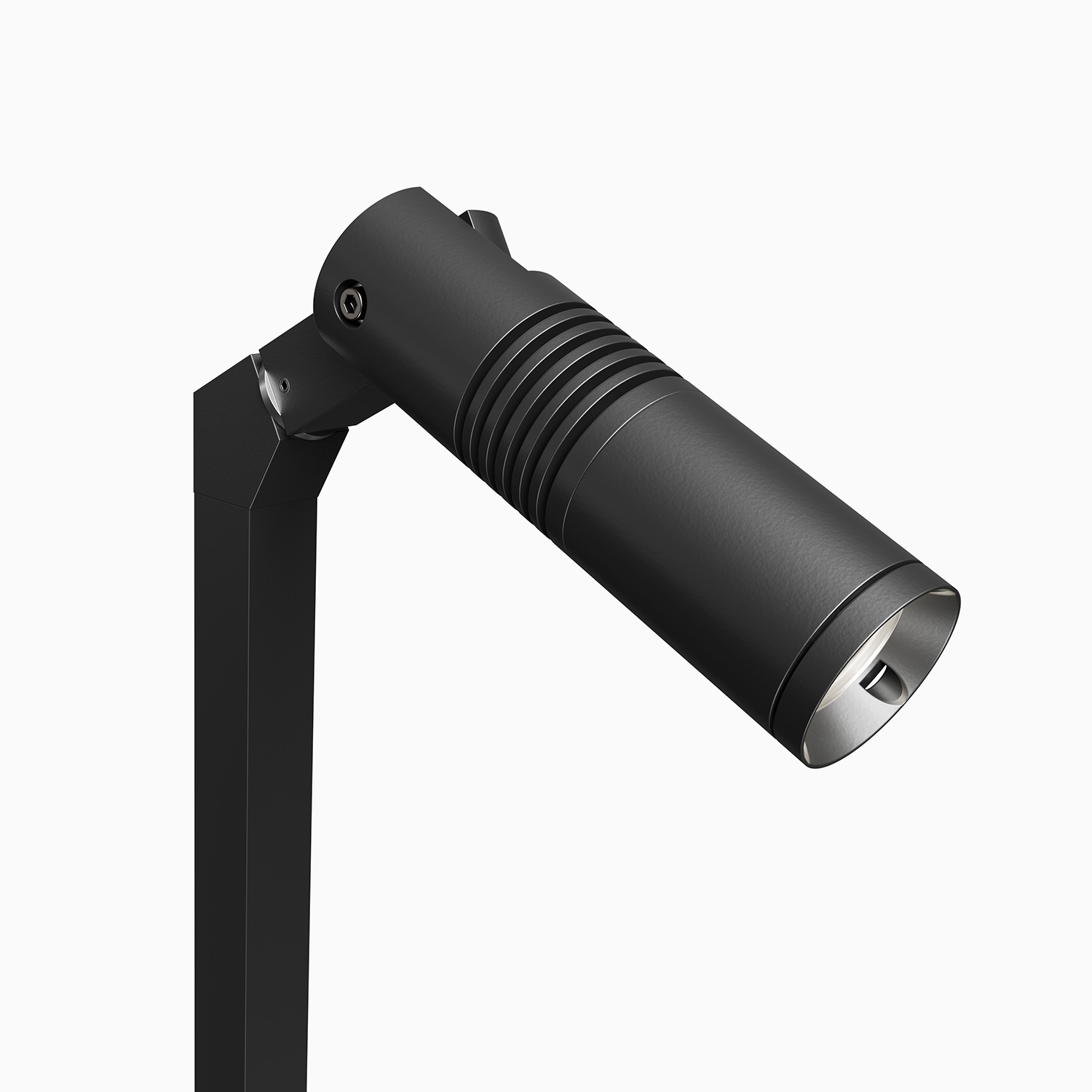

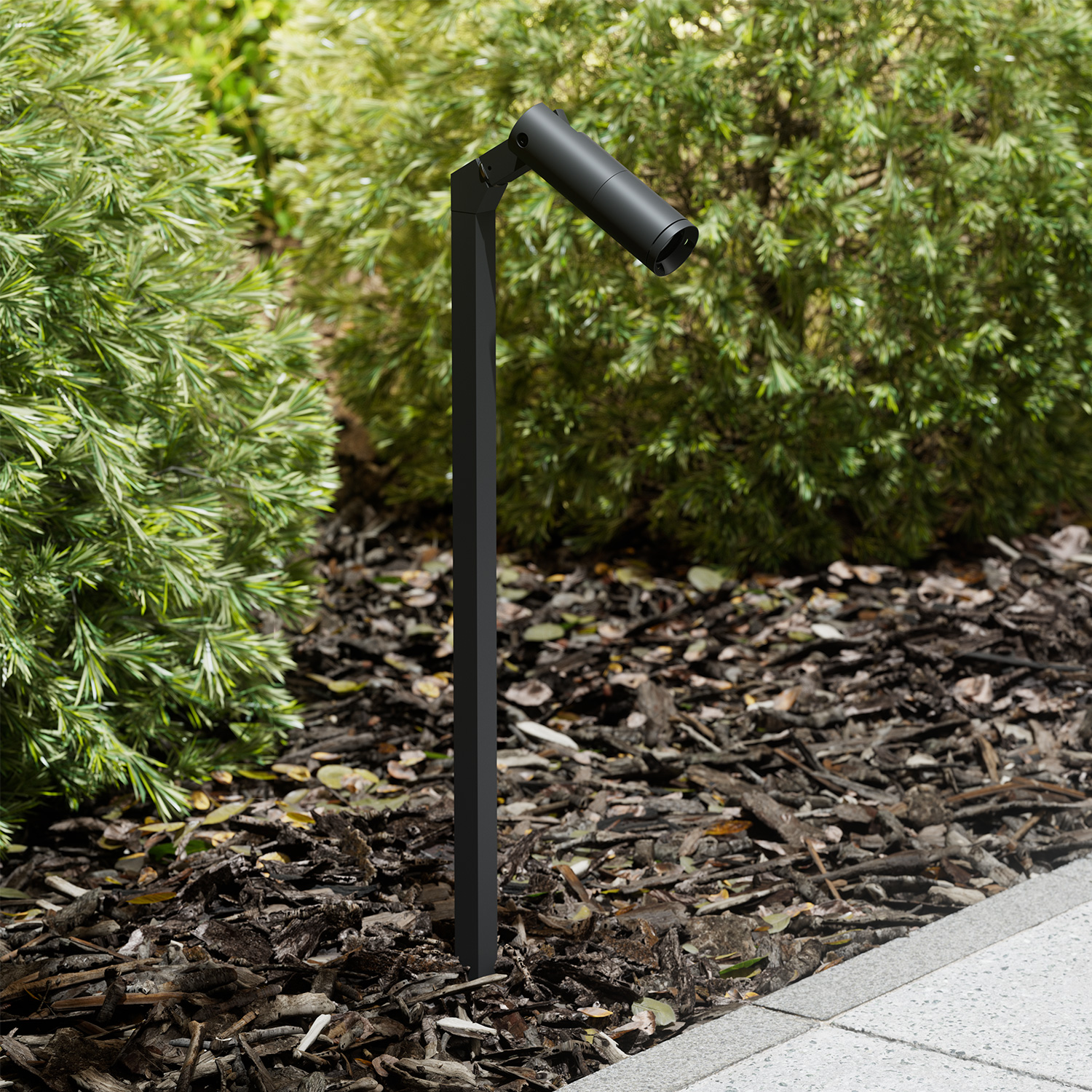

A versatile directional 12V LED Path Light with 240° vertical and 360° horizontal adjustment for precise residential and commercial pathway lighting.

(includes former PATH-1-11L-NF, PATH-1-11L, and PATH-2-11L models)

FEATURES:

5W, 7W integrated HK LED delivering 450–675 lumens per light. 2200–4000K CCT. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements.
Wet Location Listed, IP67 Standard.
Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
240º vertical and 360º horizontal adjustment via locking swivel stem design.
Modular design with field-changeable LED light engine, optical beam spreads, and optical accessories.
Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.

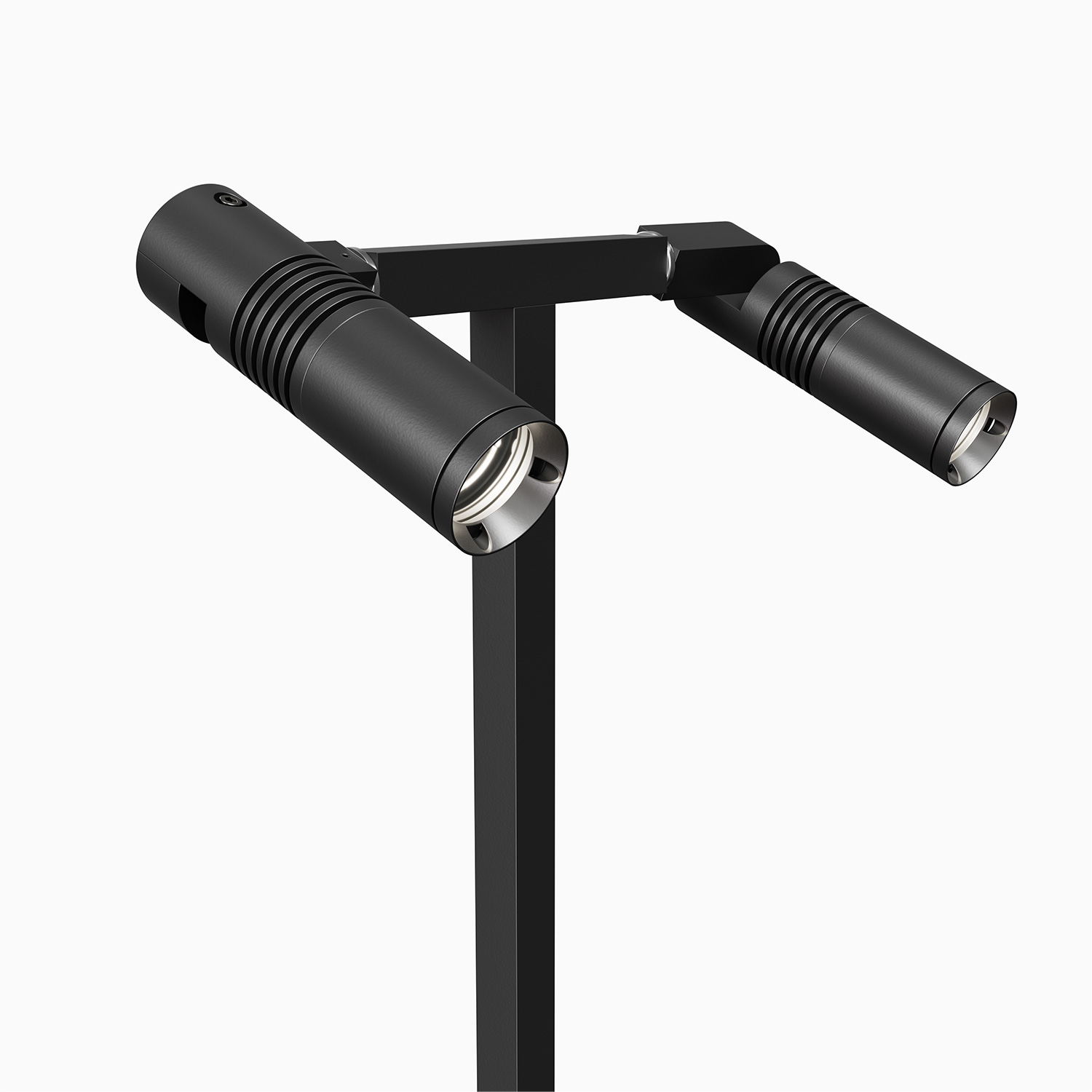

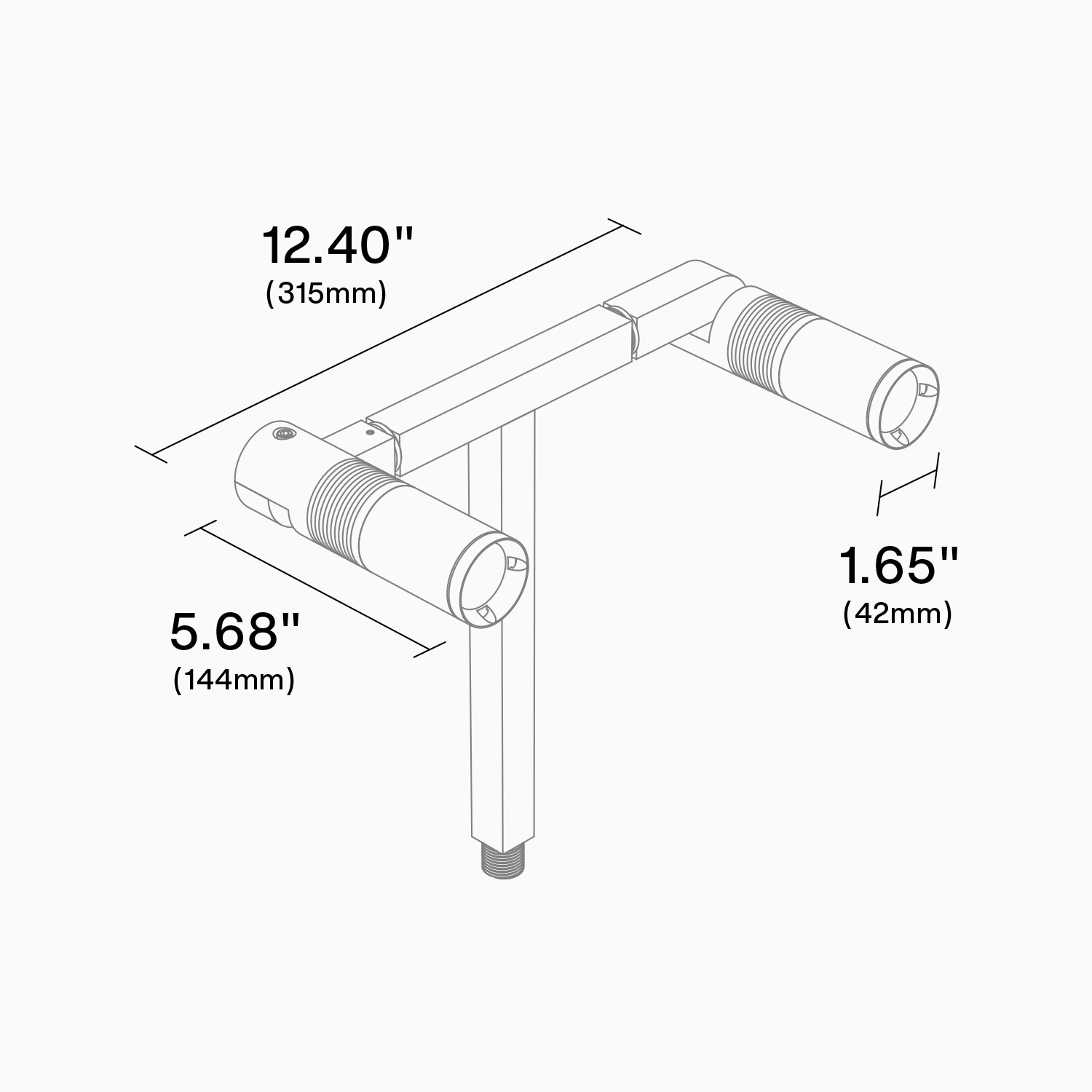

Single and double light mounting options at 12″, 24″, 30″ or custom height.
Every fixture tested end of line for water tightness and light quality.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.

spec sheets

photometry

Specifications

Materials

Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Narrow (29º), Medium (40º), and Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with a metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5 or 7W HK LED delivers 450–675 lumens per light.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of Spec Sheet for details).

Hood and Glare Shield

Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, and 4000K. Specialty 2200K, 2400K, and 2500K options are available. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
