ZPLLT

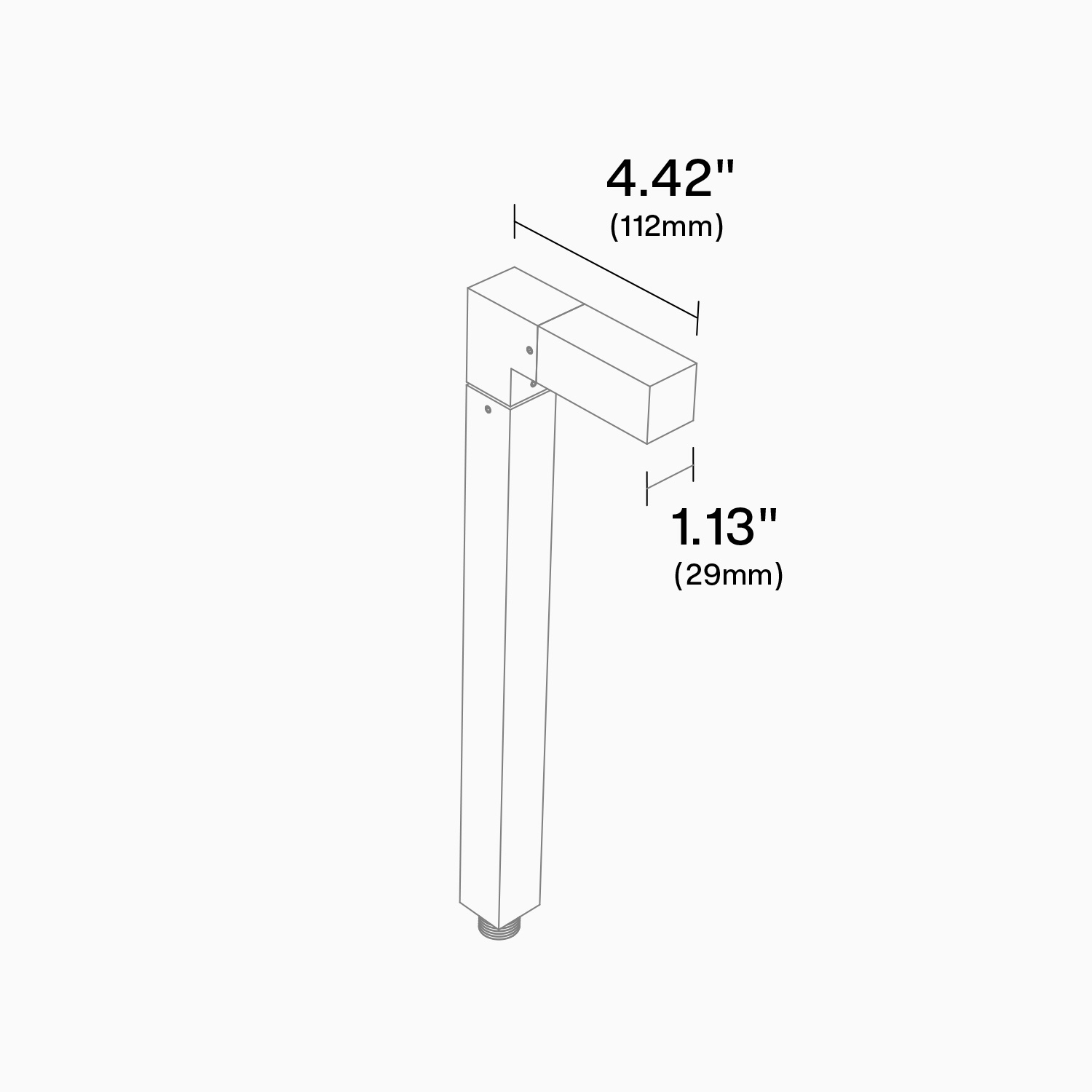

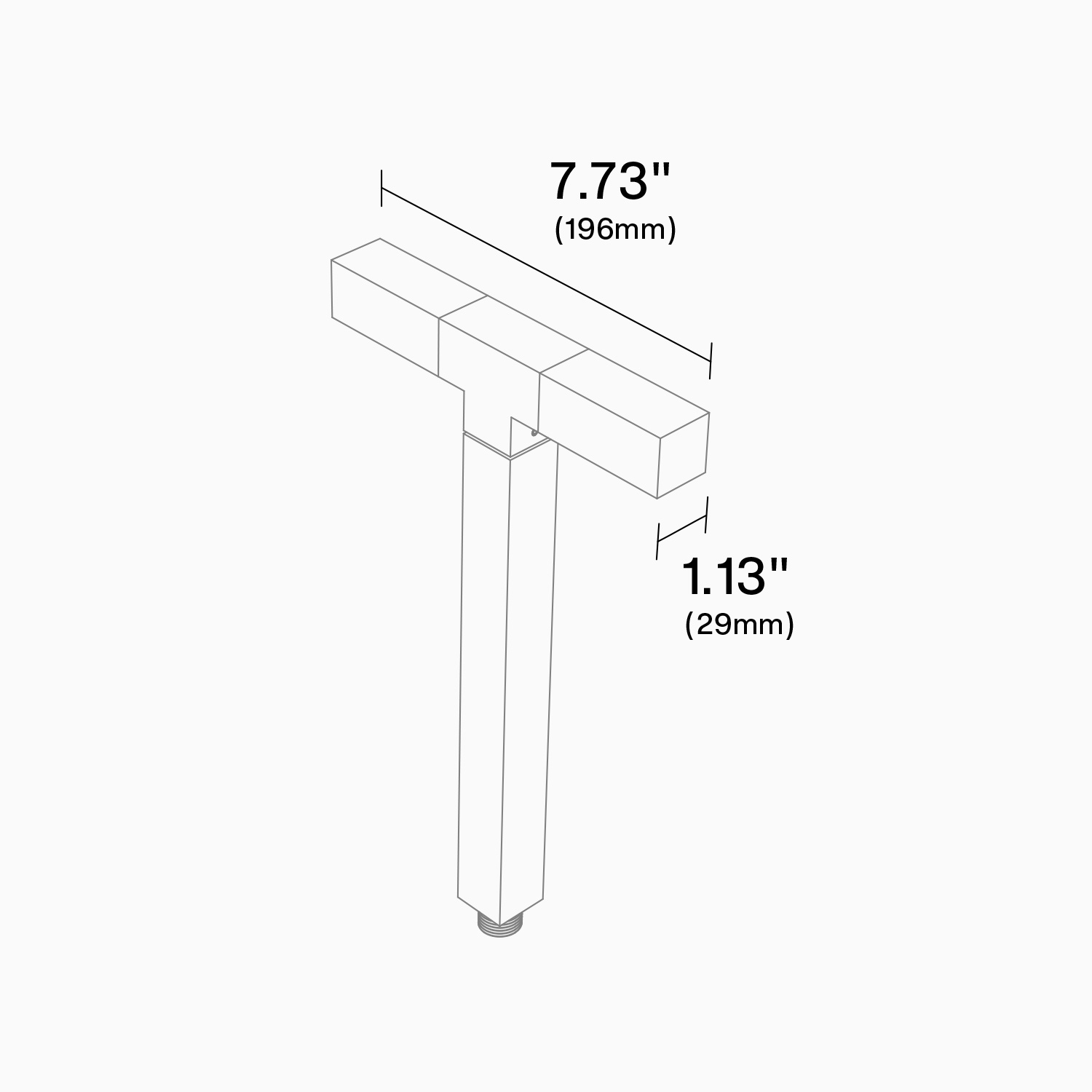

PATH & BOLLARD | ZPLLT Series | 1.13"
3W ( 125lm ) | 12V | HK LED, Amber

(includes former PATH-L-08L-SQ & PATH-T-08L-SQ models)

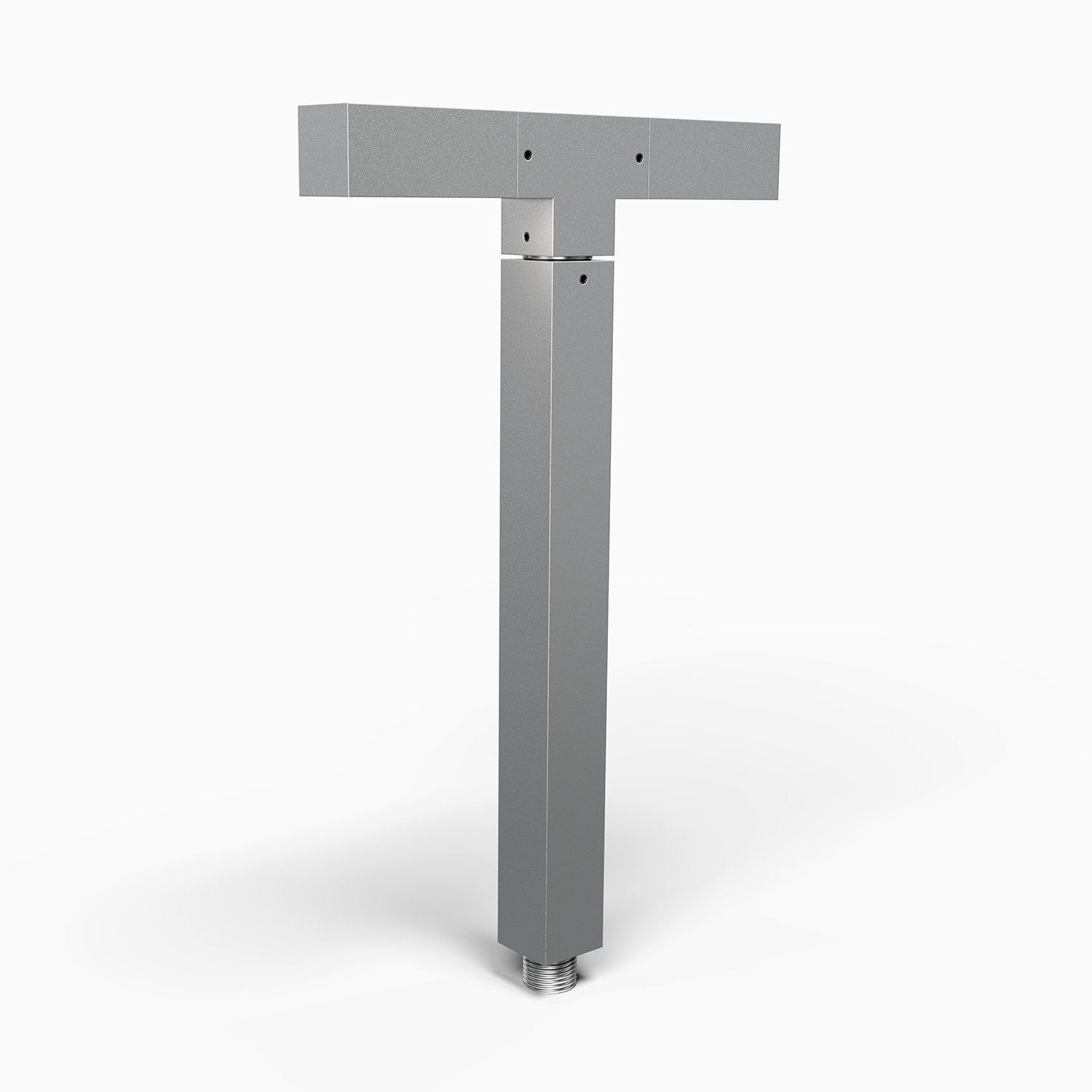

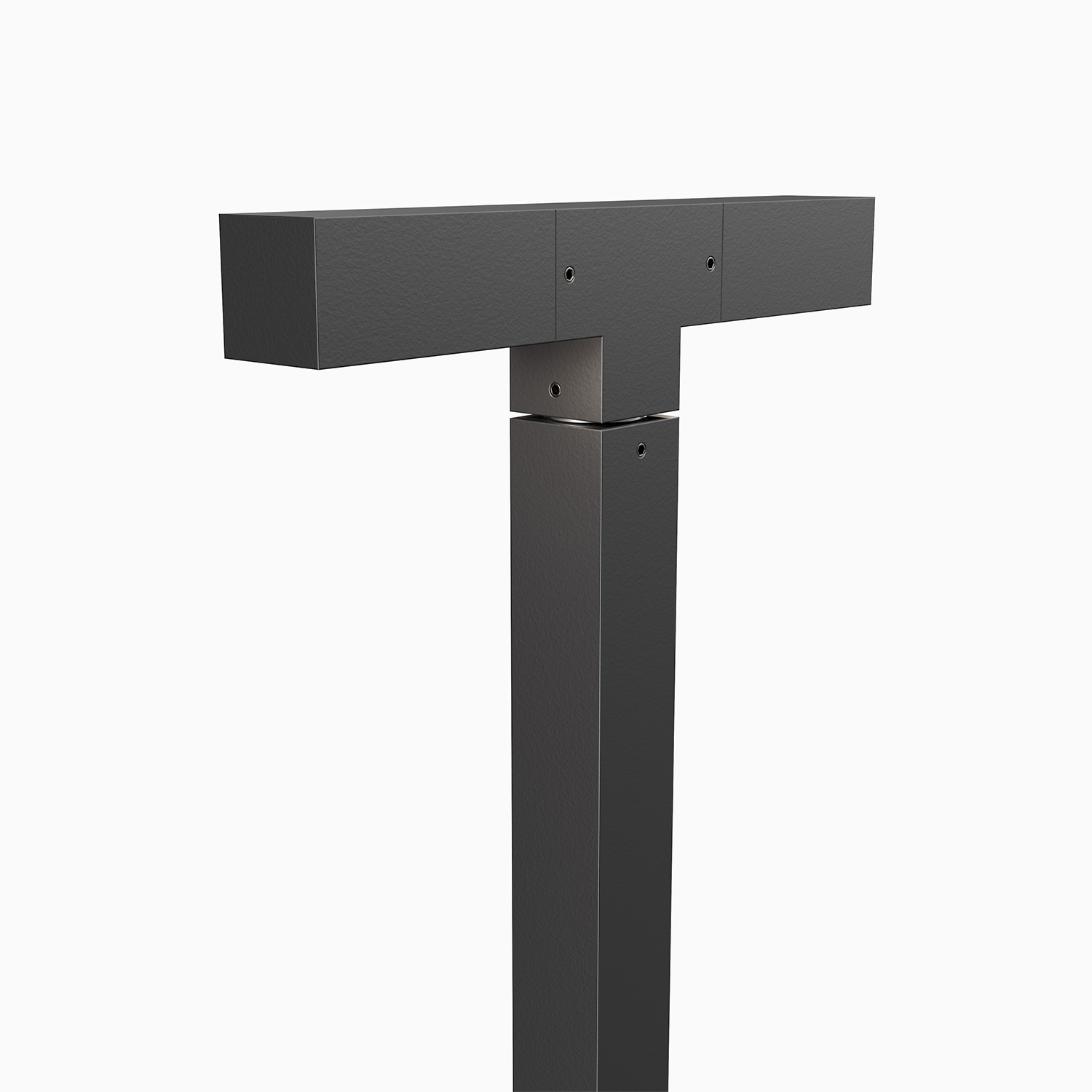

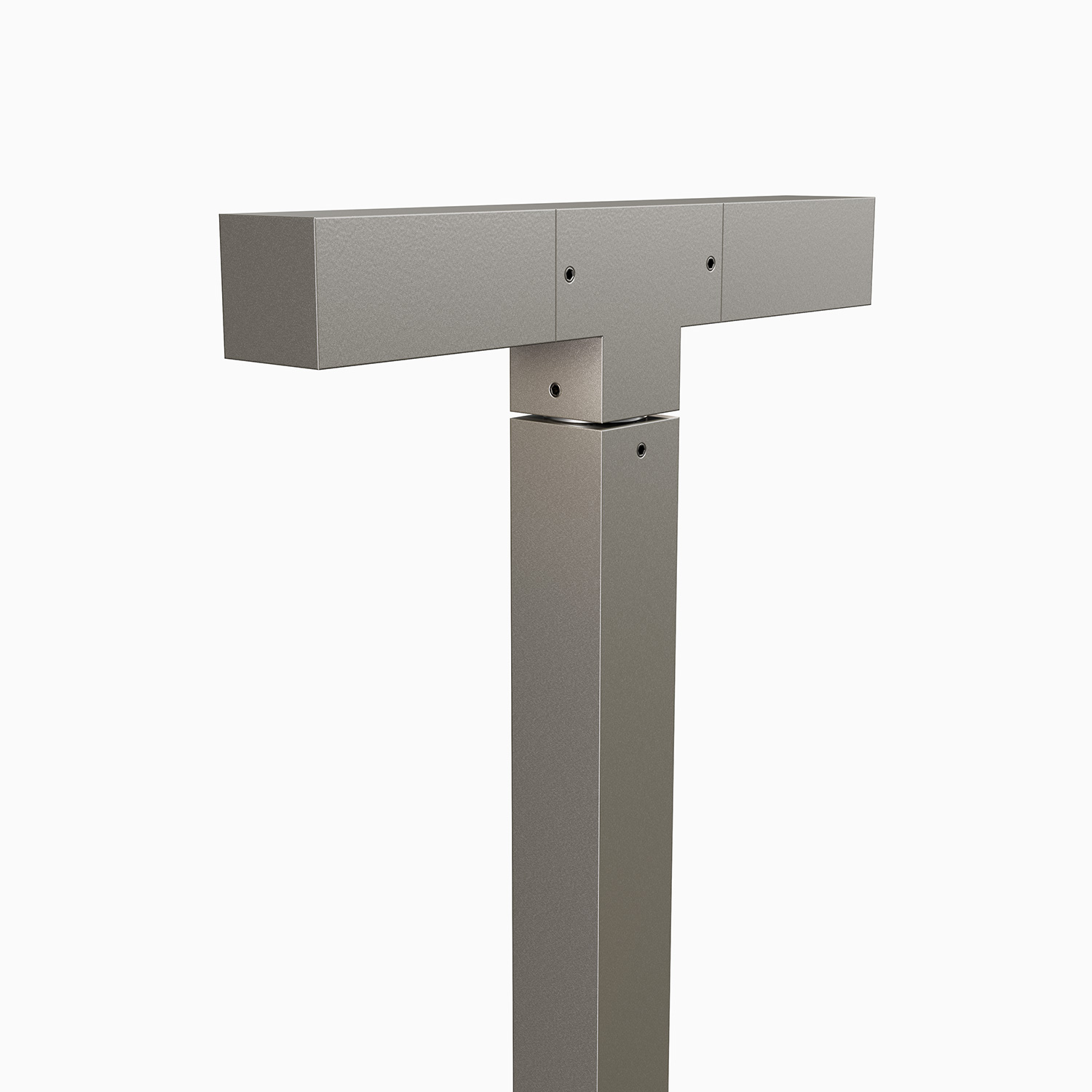

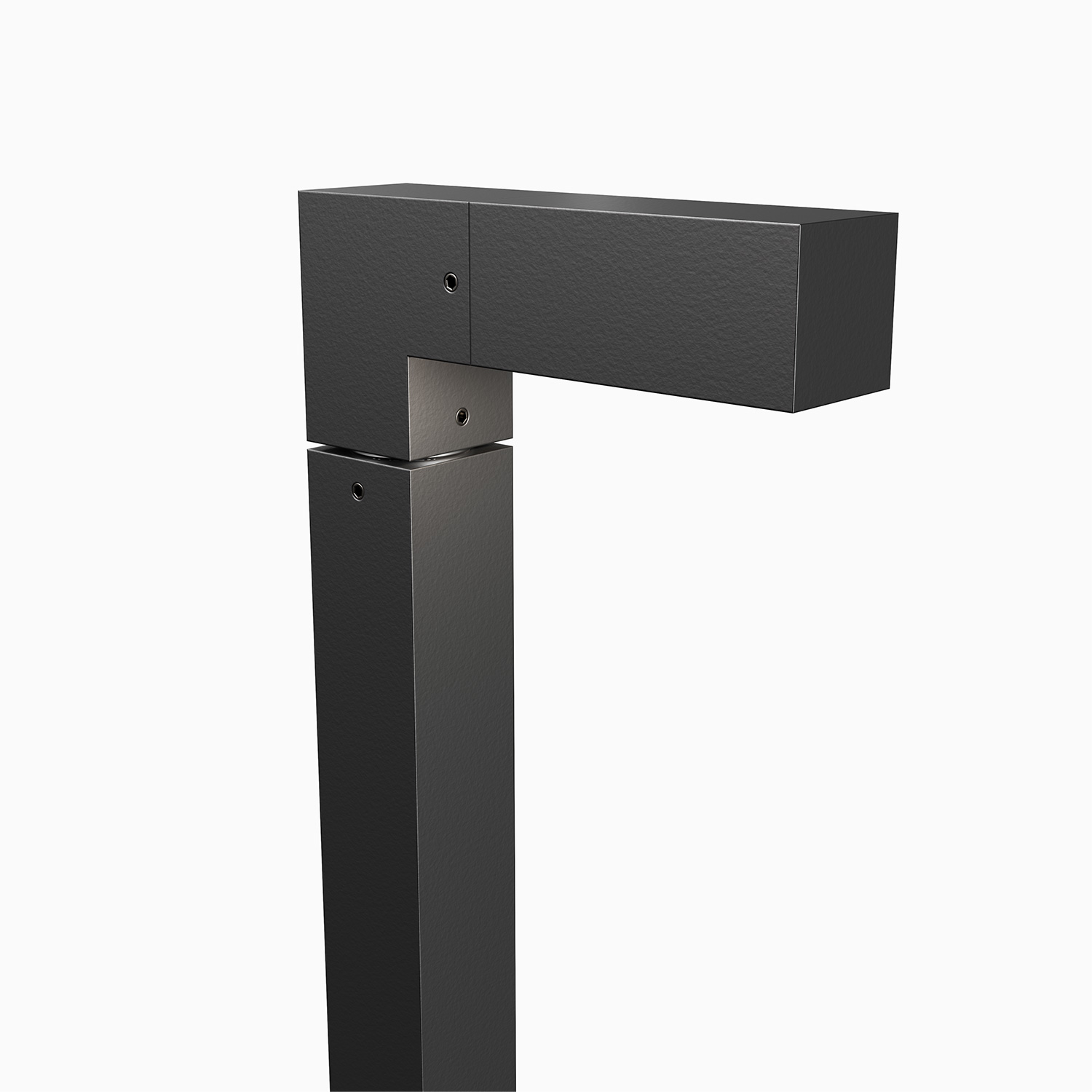

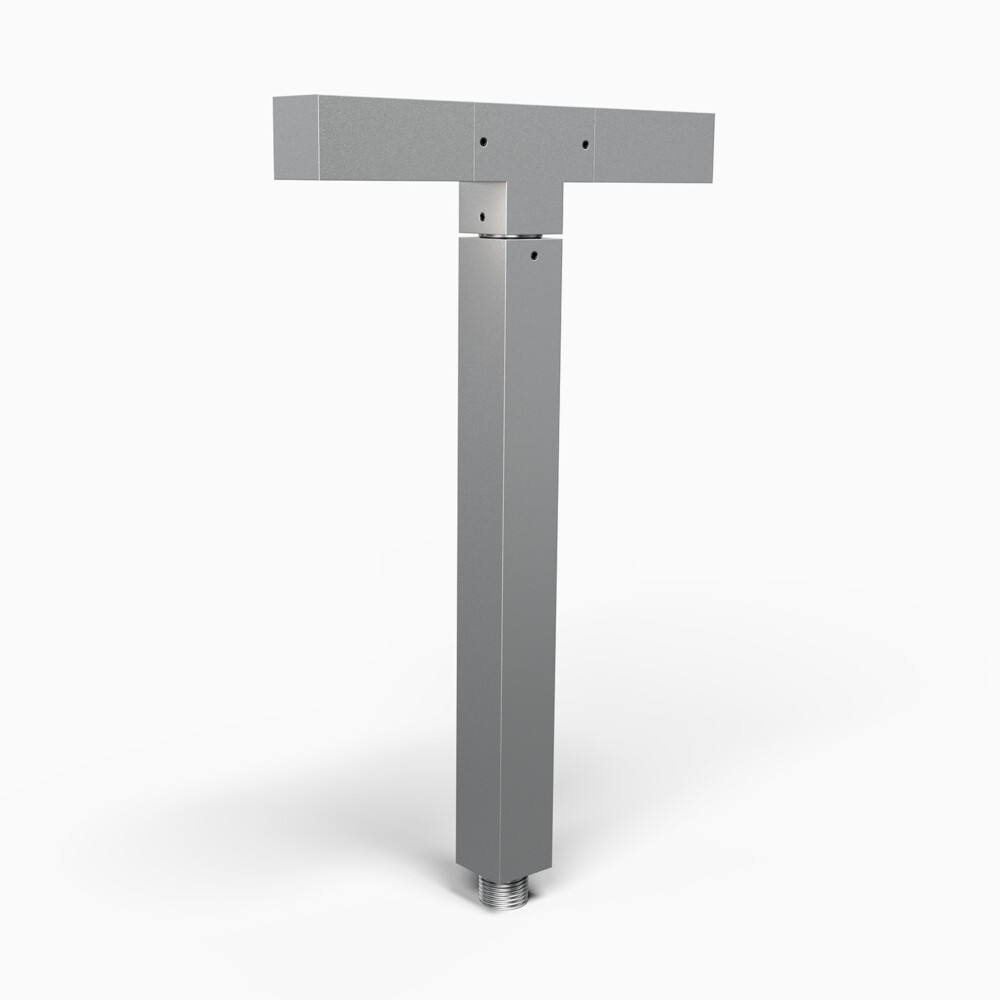

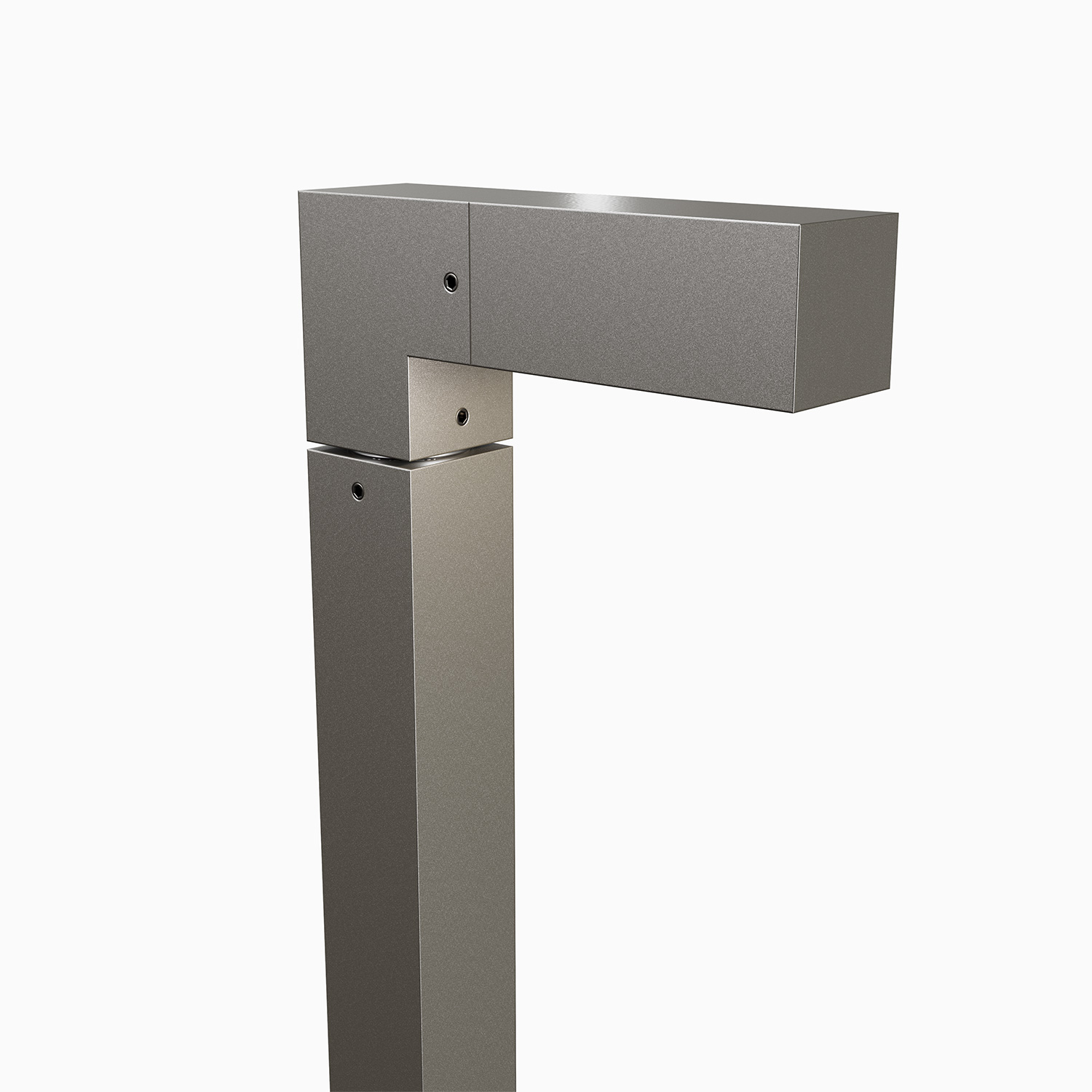

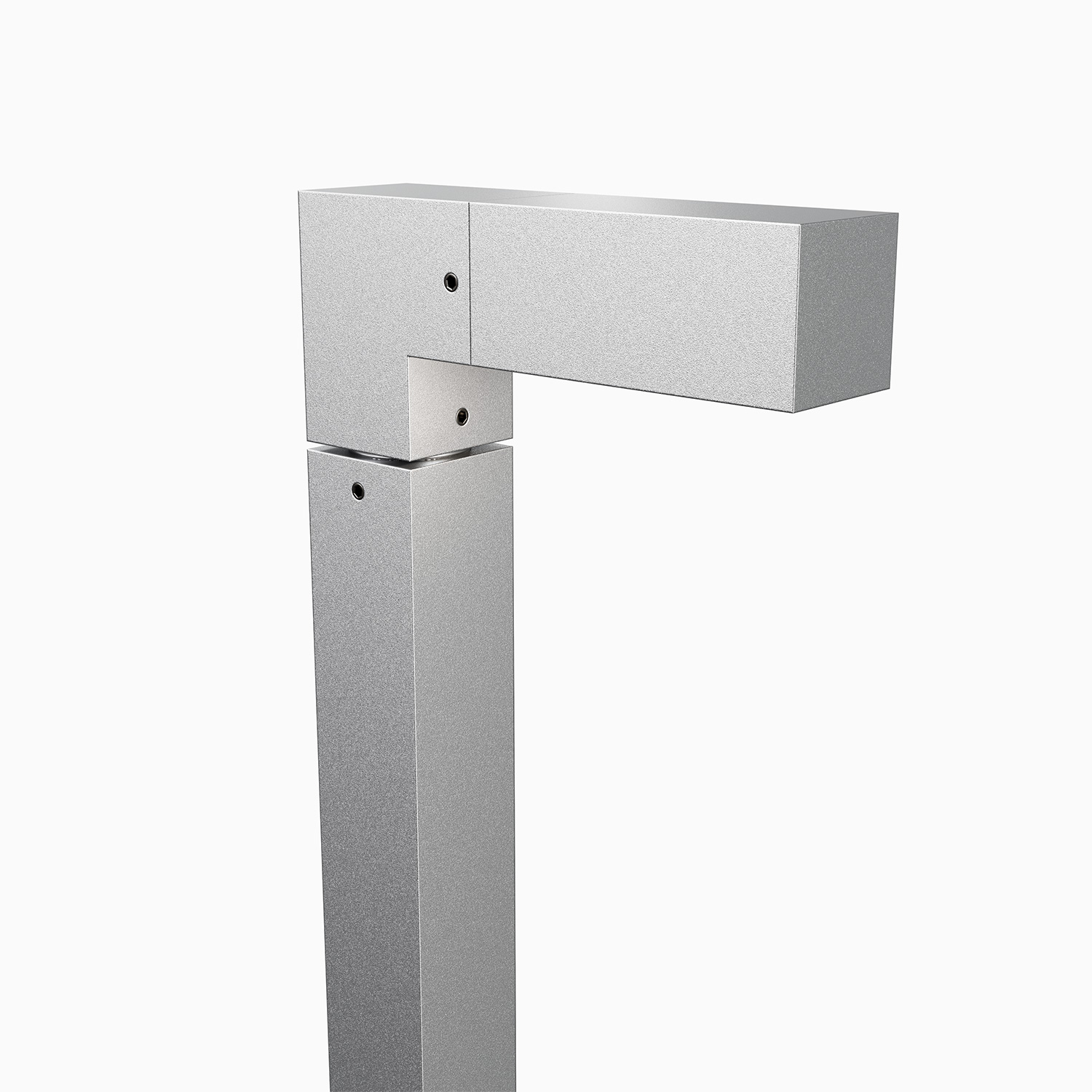

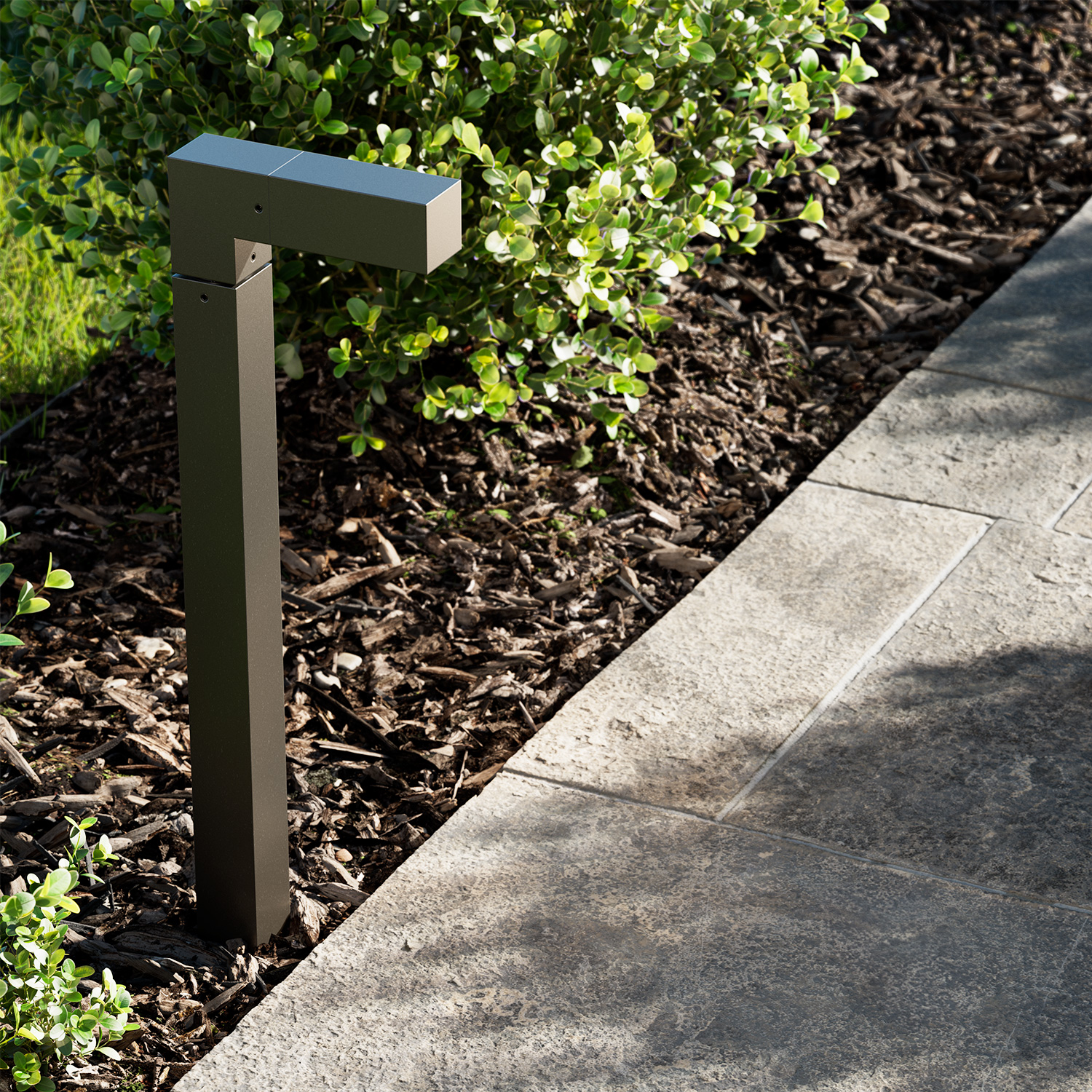

A compact modern 12V LED Path Light providing soft, even illumination with single L and double T configurations for residential pathways and general landscape lighting applications.

FEATURES:

3W integrated HK LED delivering 125 lumens of soft, pleasing light. 2700–4000K CCT.
Wet Location Listed, IP67 standard.
Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
360° vertical and 360° horizontal adjustment via unique swivel stem design.
Mounting height options at 12″, 24″, 30″, and custom heights.
Every fixture tested end of line for water tightness and light quality.
Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Explore wildlife lighting criteria and application guidance.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.

spec sheets

photometry

Specifications

Materials

aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Includes Solite Soft Focus lens for smooth, even distribution of light.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

3W HK LED delivers 125 lumens.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of the spec sheet for details).

Dimming

MLV or ELV Phase Control dimming.

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
