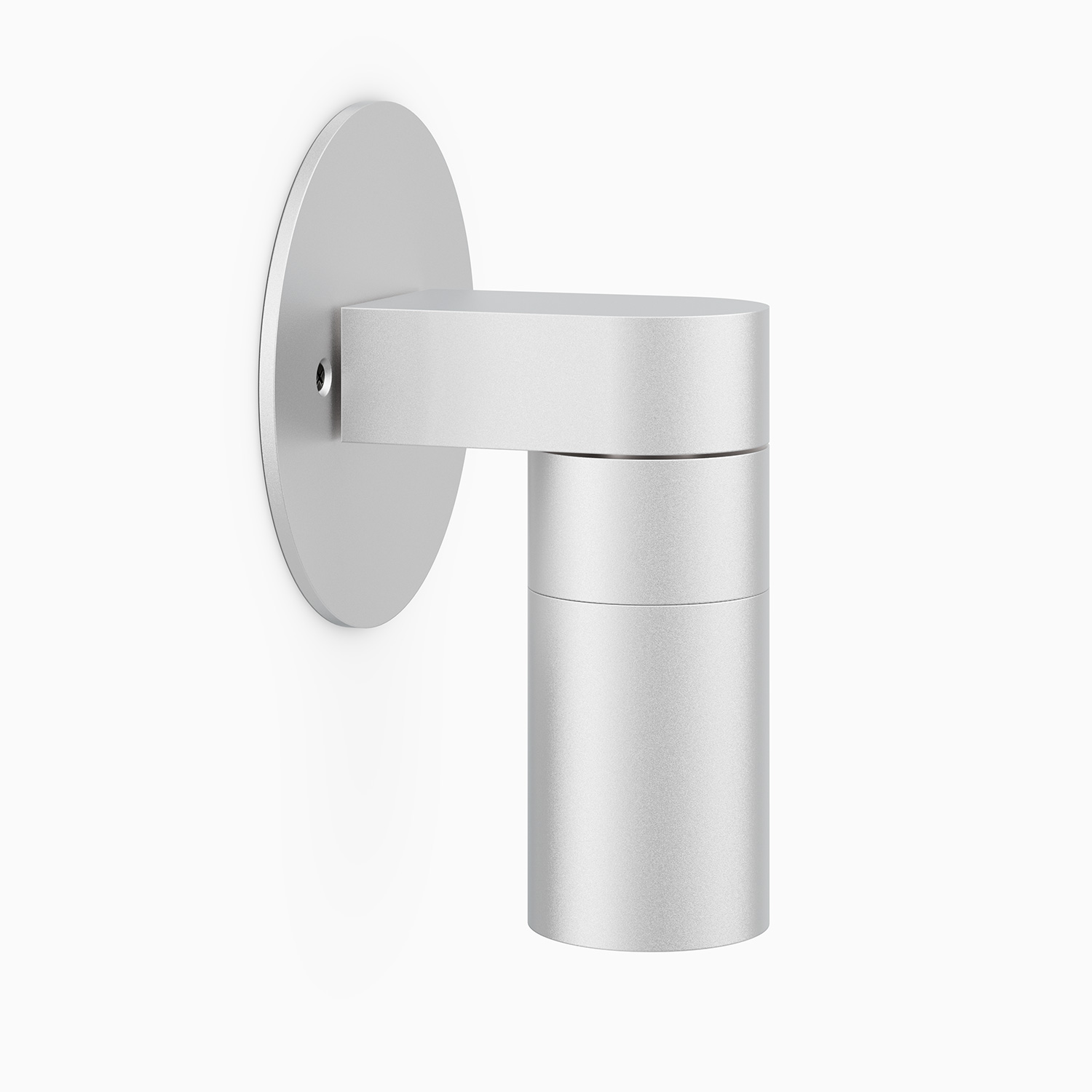

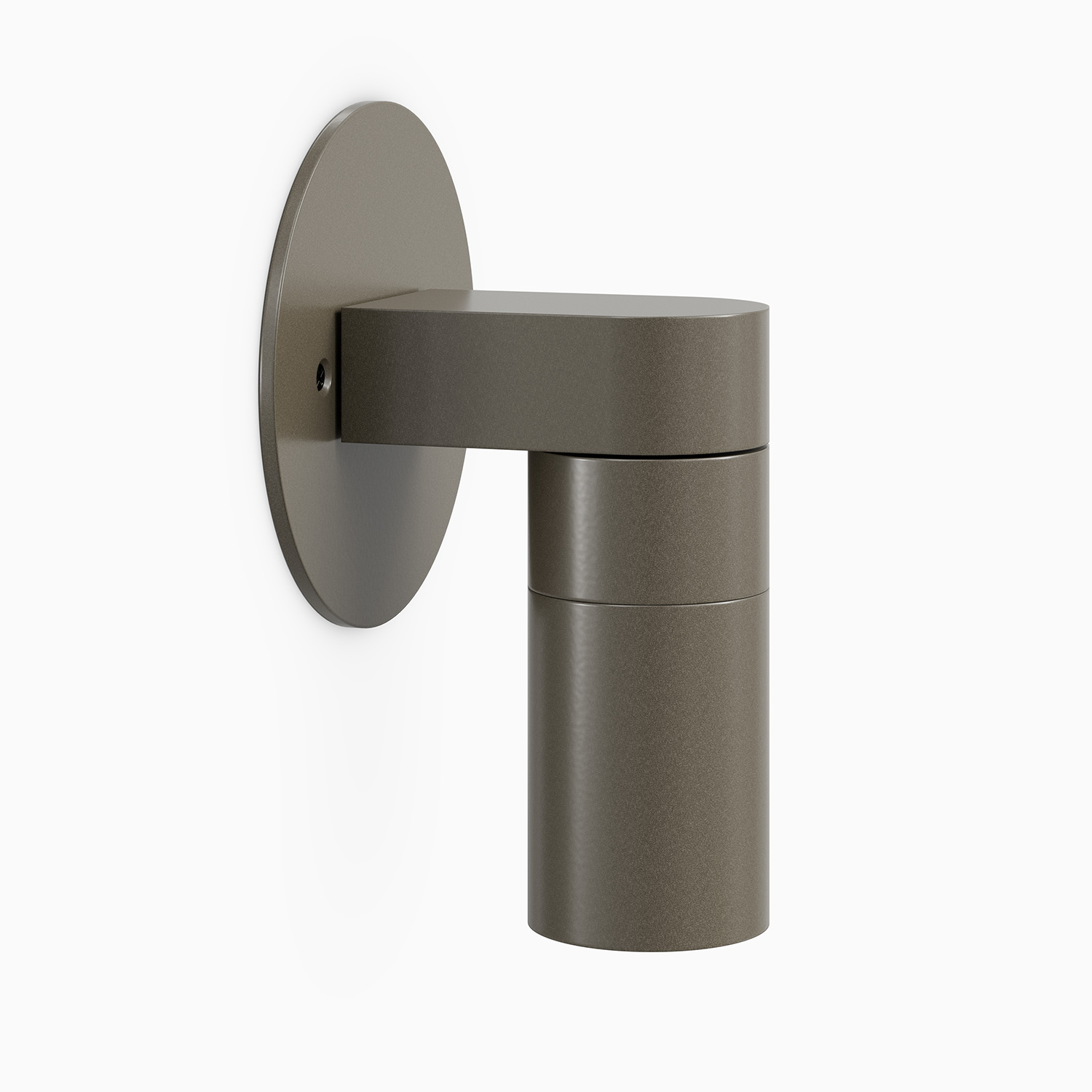

ZWL16

WALL MOUNT | ZW16 Series | 2.25" dia.
5–10W ( 500–900lm ) | 12V | HK LED, Amber

(includes former ZXL16-WM model)

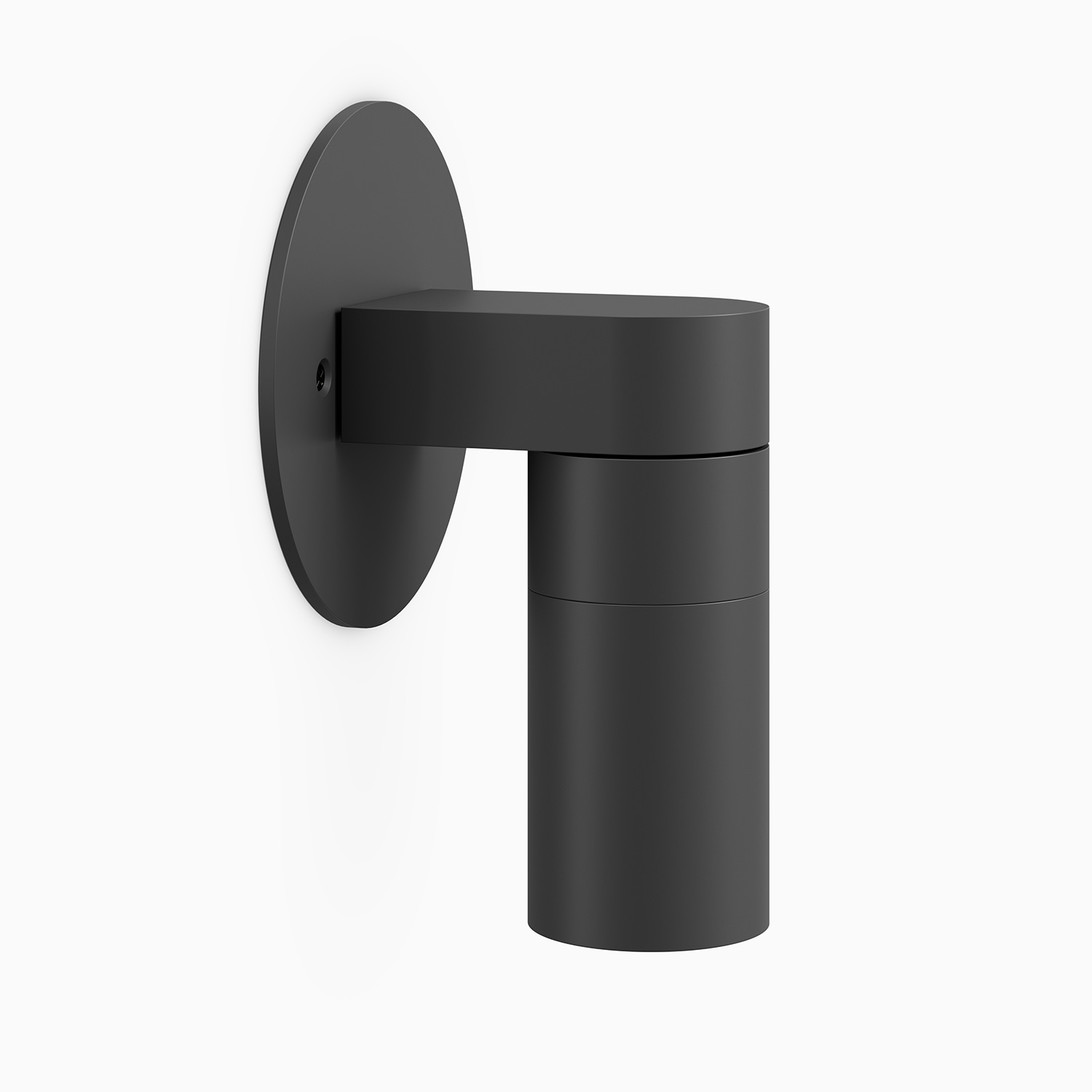

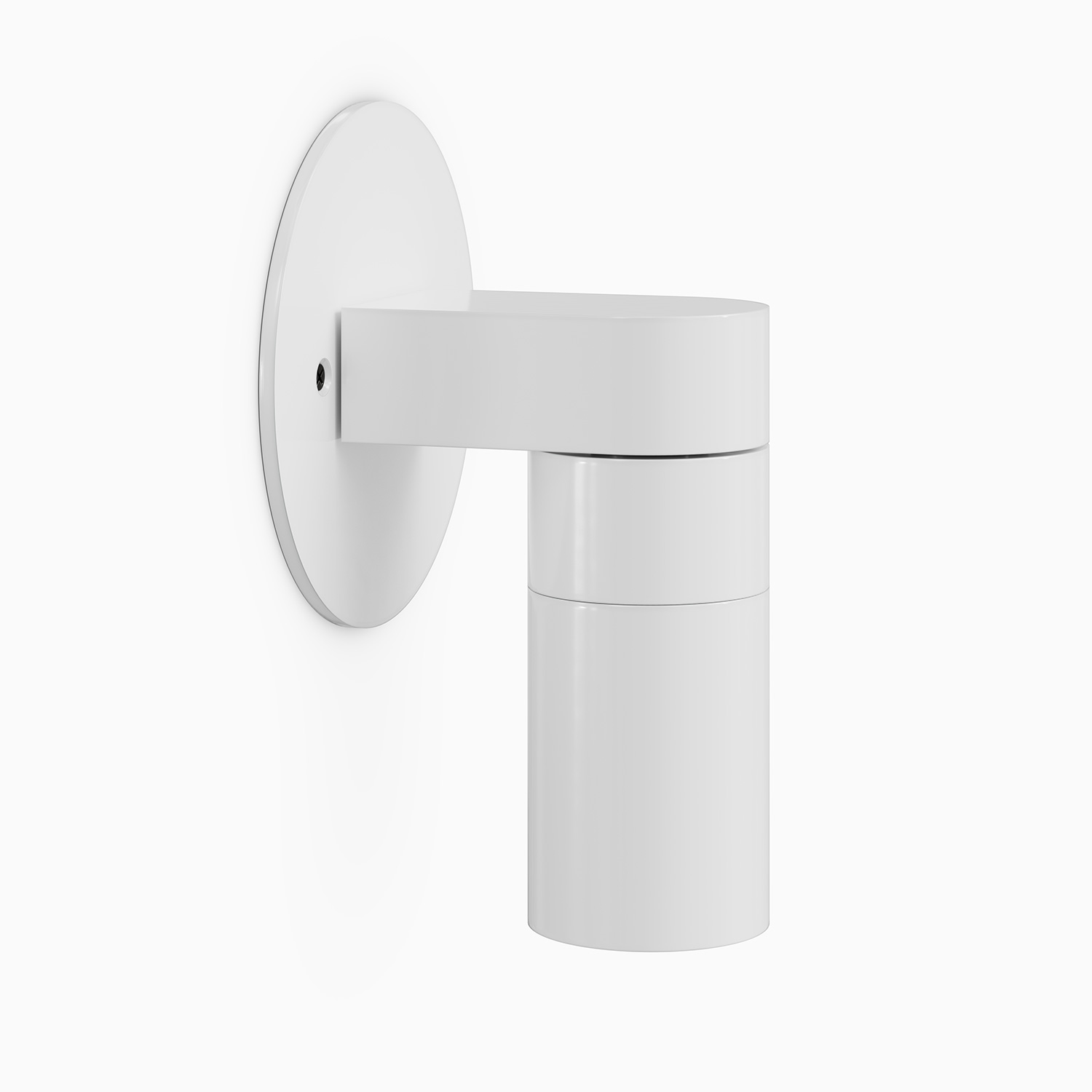

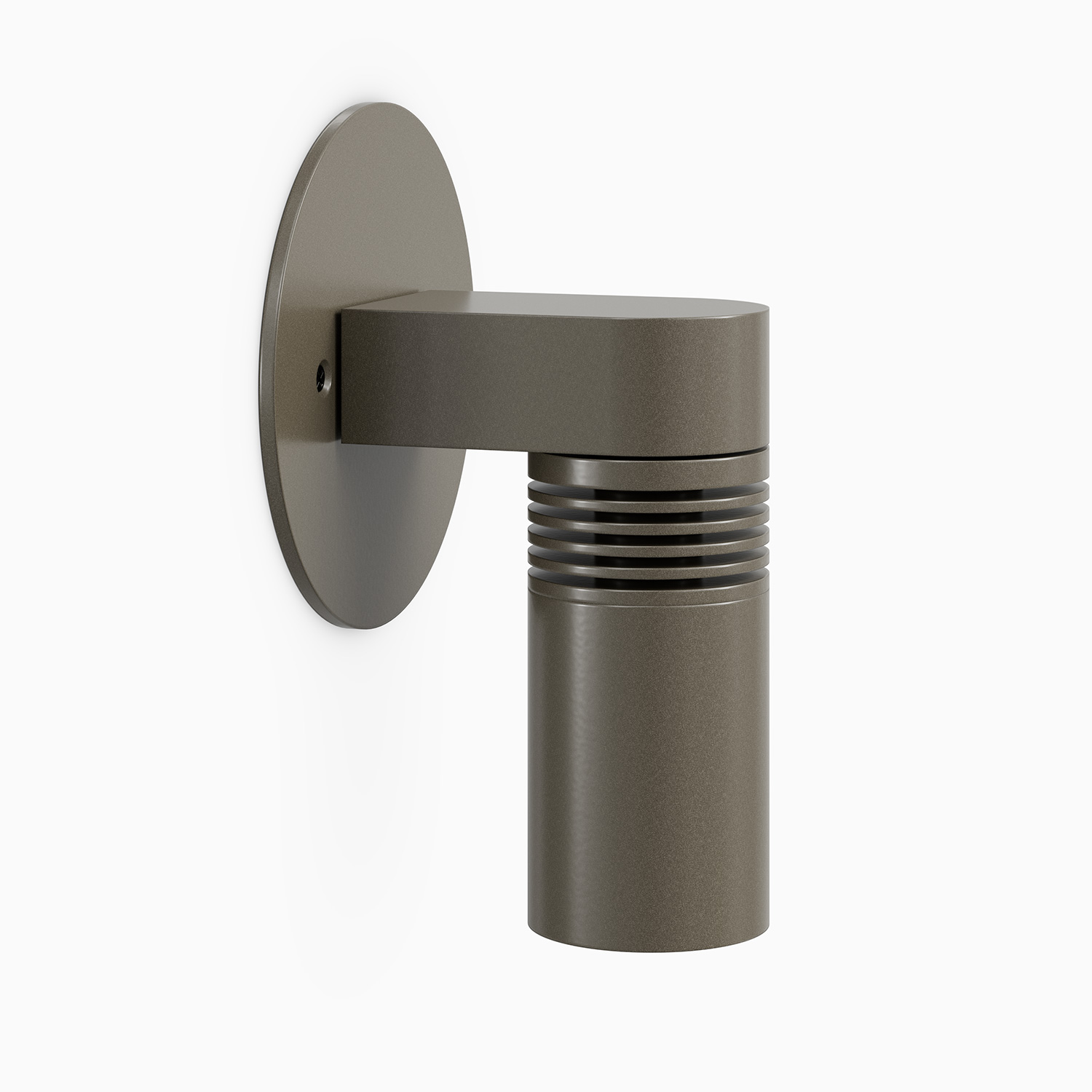

A versatile modern, round directional 12V LED Wall Mount Light with 360° rotation for precise uplighting or downlighting in architectural outdoor applications.

FEATURES:

5W, 7W, 10W integrated HK LED delivering 500–900 lumens. 2200–4000K CCT.
Wet Location Listed, IP65 Standard.

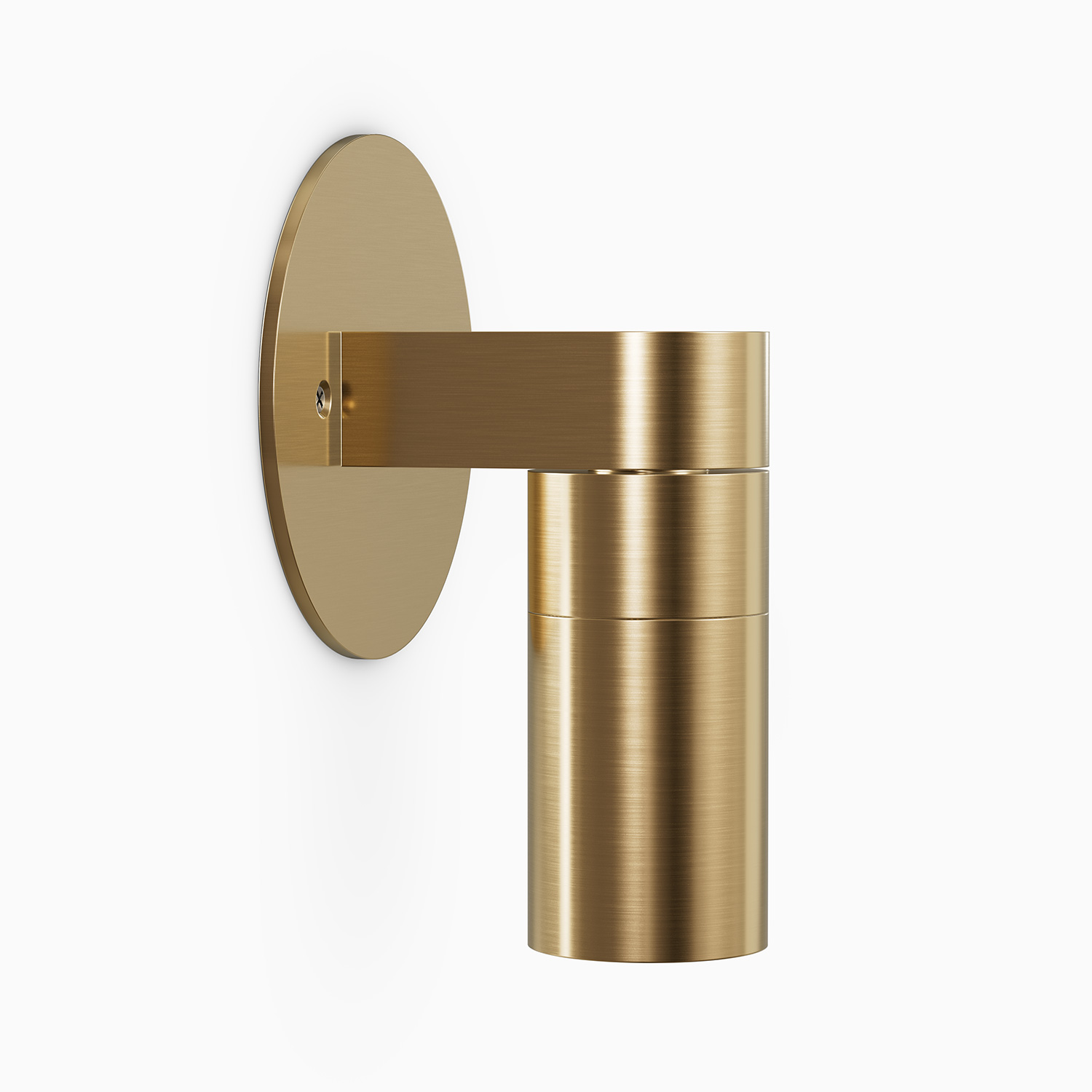

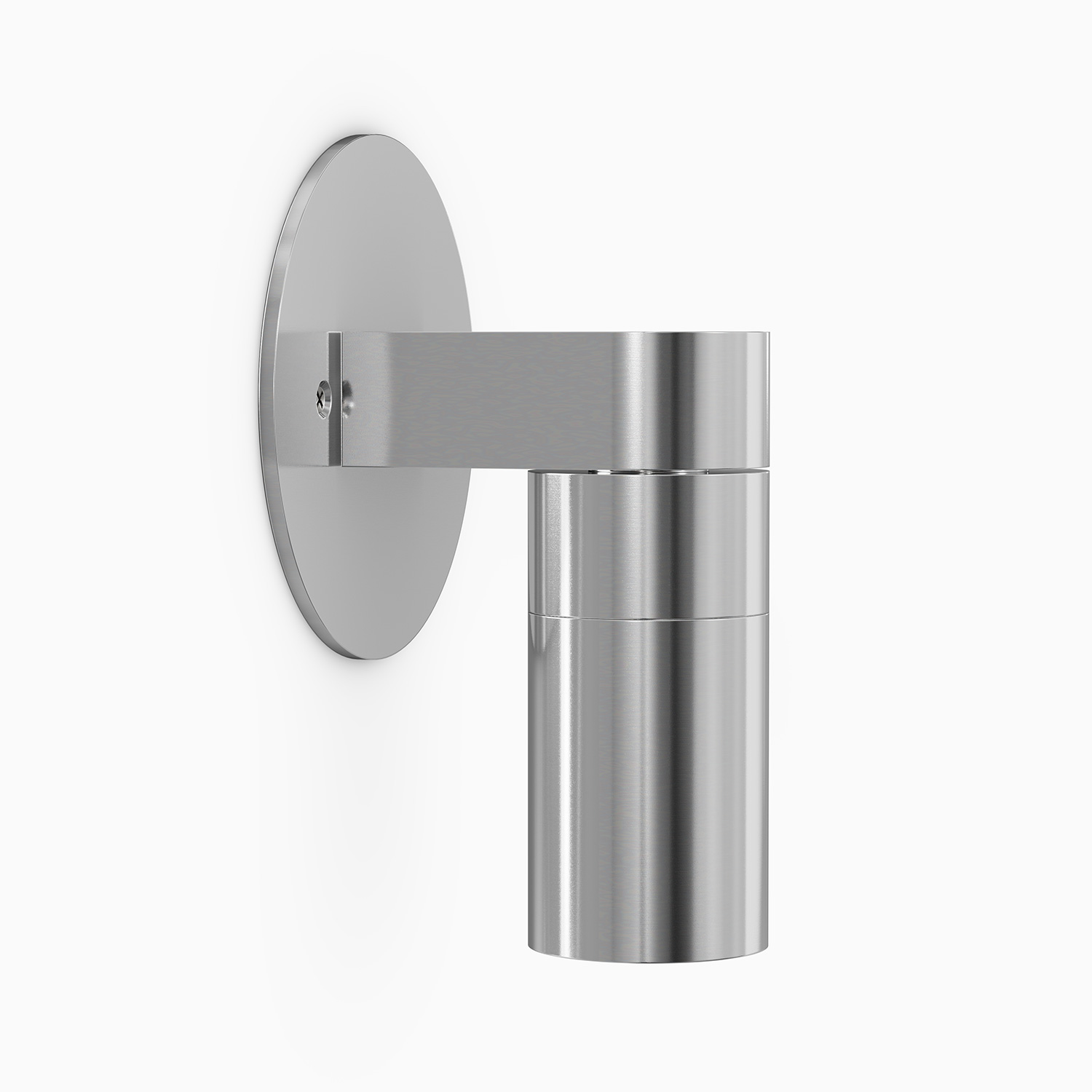

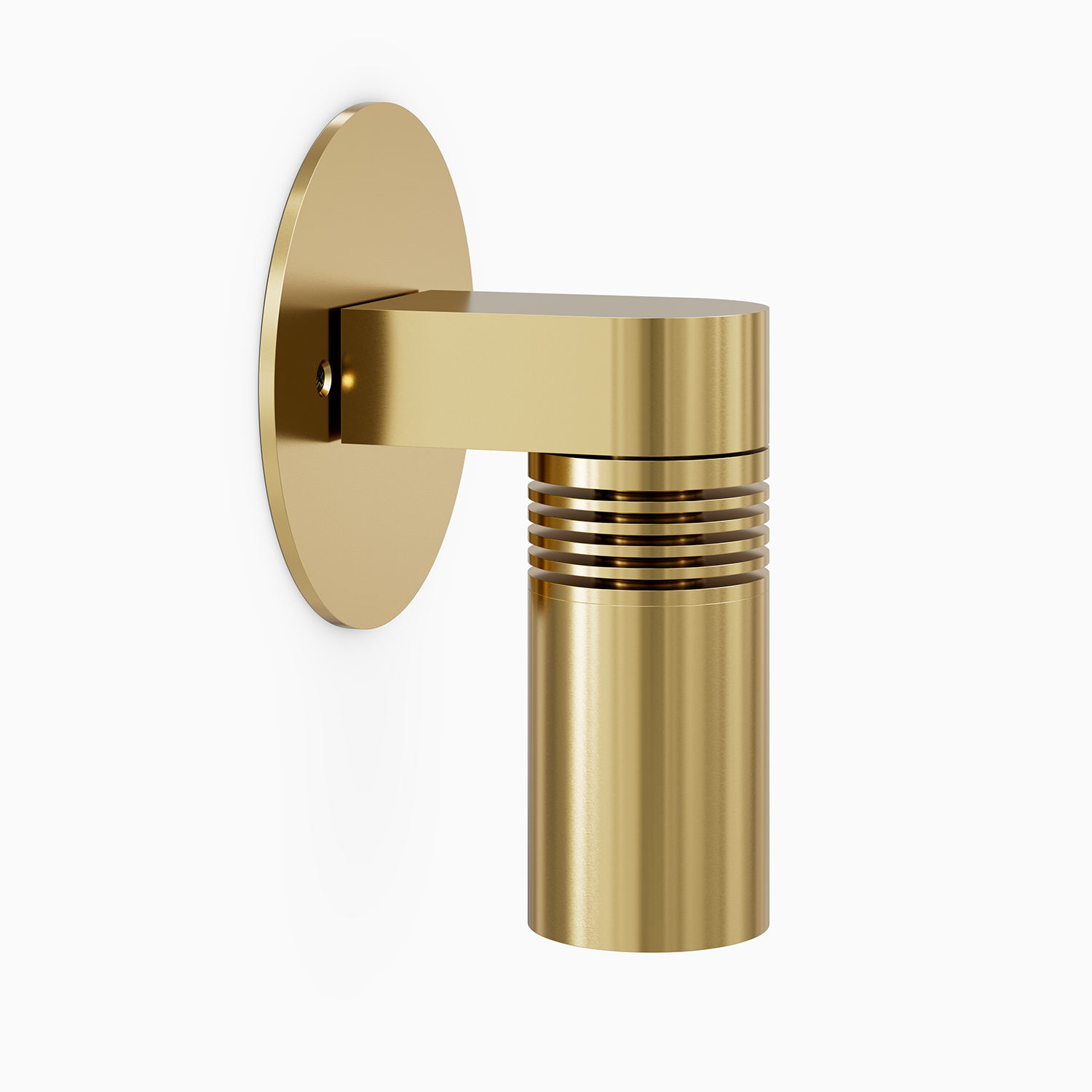

Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
360º rotation adjustment permits operation as an uplight or downlight.
Modular design with field-changeable LED light engine, optical beam spreads, and optical accessories.
Includes CM5 5″ Round Canopy Plate. Long, Short, and Angled Glare Shields available. Additional surface and canopy mounting options also available.
Every fixture tested end of line for water tightness and light quality.
Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Explore wildlife lighting criteria and application guidance.
Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.

spec sheets

photometry

Specifications

Materials

Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured in place with a metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7 or 10W HK LED delivers 500–900 lumens.

Mounting

Includes CM5 Round Canopy Plate and (2X) 8-32 UNC machine screws for finished mounting to standard 3O/3R style Junction Boxes. (See page 4 of the spec sheet for more mounting options)

Hood and Glare Shield

Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of the spec sheet for details)

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, and 4000K. Specialty 2200K, 2400K, and 2500K options are available. Narrow-band Amber LED available for wildlife and turtle-safe lighting requirements. Consult factory for specialty LED details.
