5–10W ( 500–950lm ) | 120V–277V | HK LED

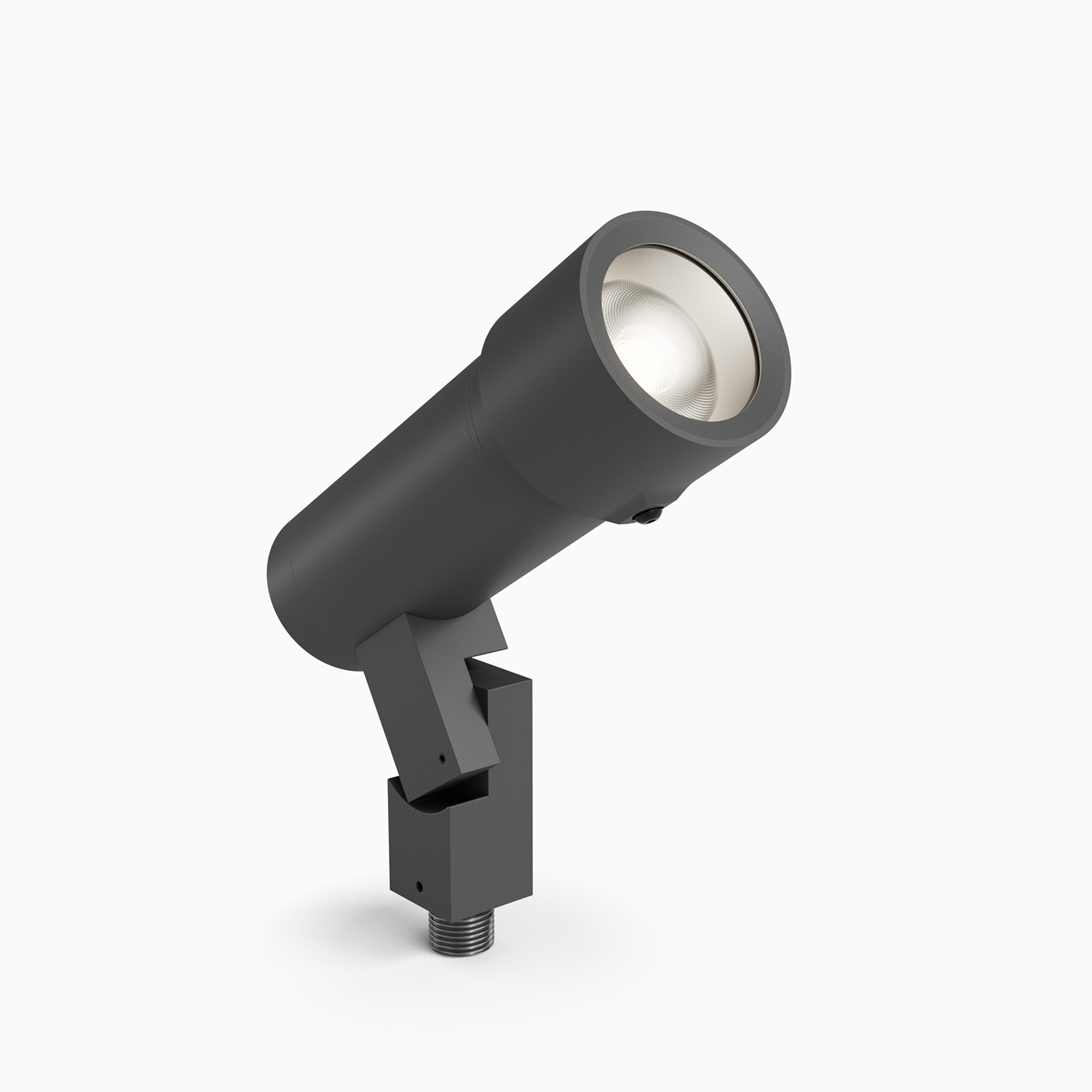

ZXA16-I Adapt
5–10W ( 500–950lm ) | 120V–277V | HK LED
A versatile directional line voltage (120V–277V) LED Accent Light combining 180° vertical and 360° horizontal adjustment with HK Adapt Optic technology for continuously adjustable beam angles from 14° to 70°. Most appropriate for architectural outdoor and landscape lighting environments.
FEATURES:
- Adapt Optic enables easy beam angle adjustment from 14º to 70º with a quick hood slide, locking securely in place with a set screw for precise and reliable positioning.
- 5W, 7W, 10W integrated HK LED delivers 500 to 950 lumens. 2200-4000K CCT.
- Wet Location Listed, IP67 Standard.
- Machined from solid 6061-T6 aluminum, then anodized and powder coated for durability and corrosion resistance in marine environments. Also available in solid brass or stainless steel.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Two weeping hood styles available, integrated Angled Glare Shield or Flush Lens. With less than 1% field light, the Adapt Optic provides superior glare control in both hood options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Materials
Solid billet 6061-T6 corrosion-resistant aluminum with 304 stainless steel hardware. Available in 316 stainless steel or 360 brass upon request.
Voltage
120V–277V AC.
Optics

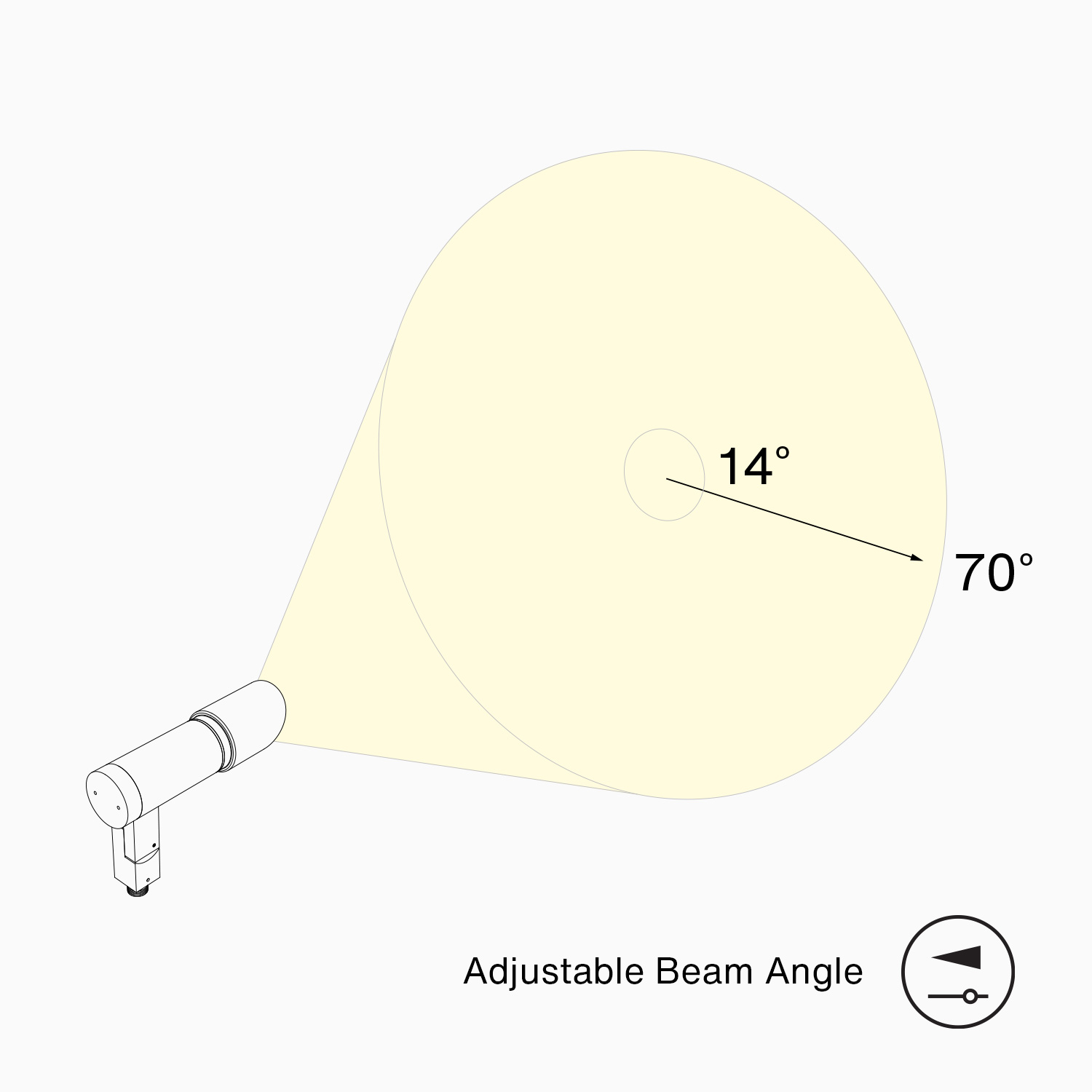

The HK Adapt Optic enables continuous beam angle adjustment from a very narrow (14°) spotlight to an extra wide (70°) flood. Once positioned, the hood locking screw securely maintains the selected beam angle. Preserves less than 1% field light levels for exceptional glare control, even with the sleek Flush Lens Hood.
Finish
Aluminum materials are first anodized and then powder coated to create a robust marine-grade, natatorium-grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7 or 10W HK LED delivering 500–950 lumens.
Mounting
Mounts using ½"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of Spec Sheet for details)
Hood Styles

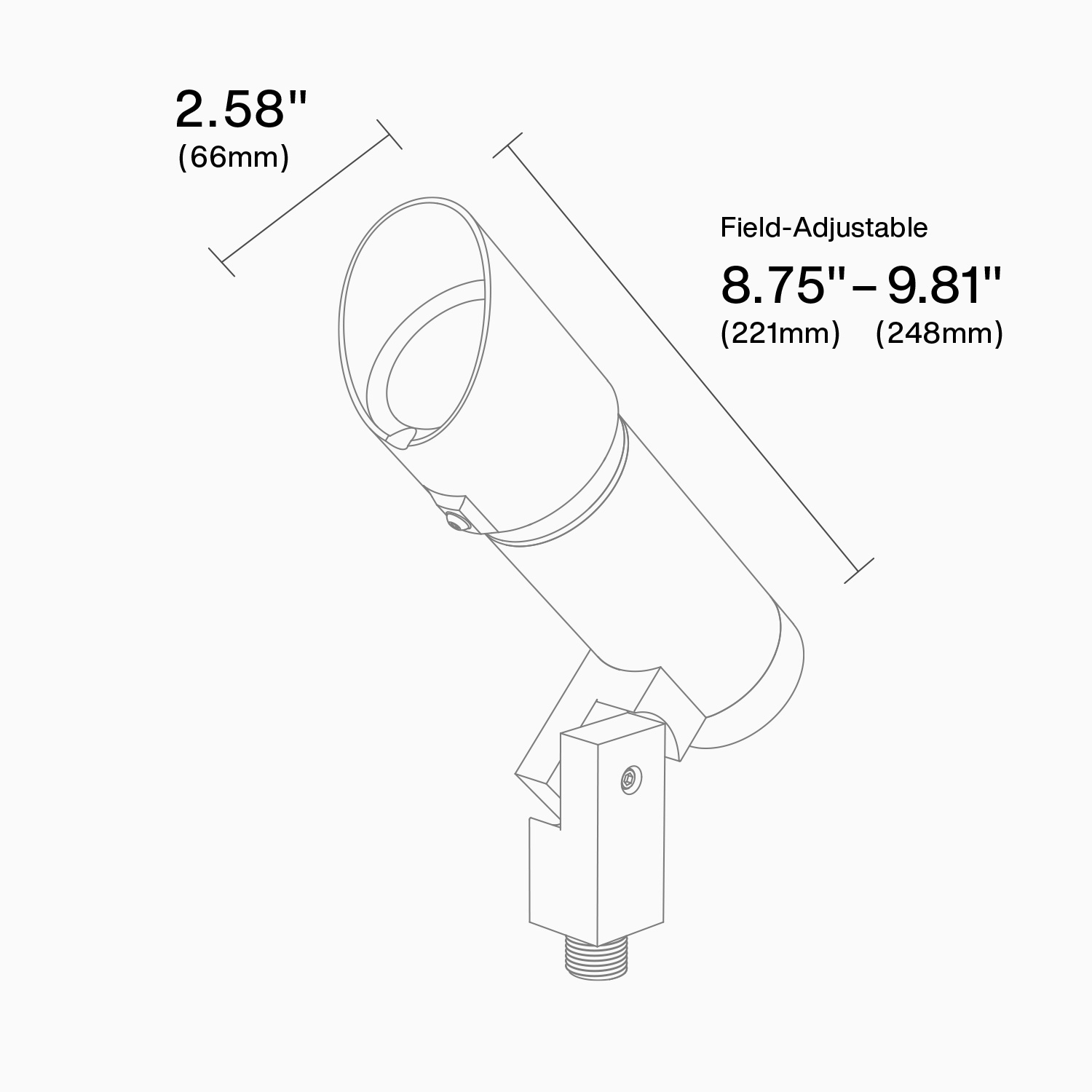

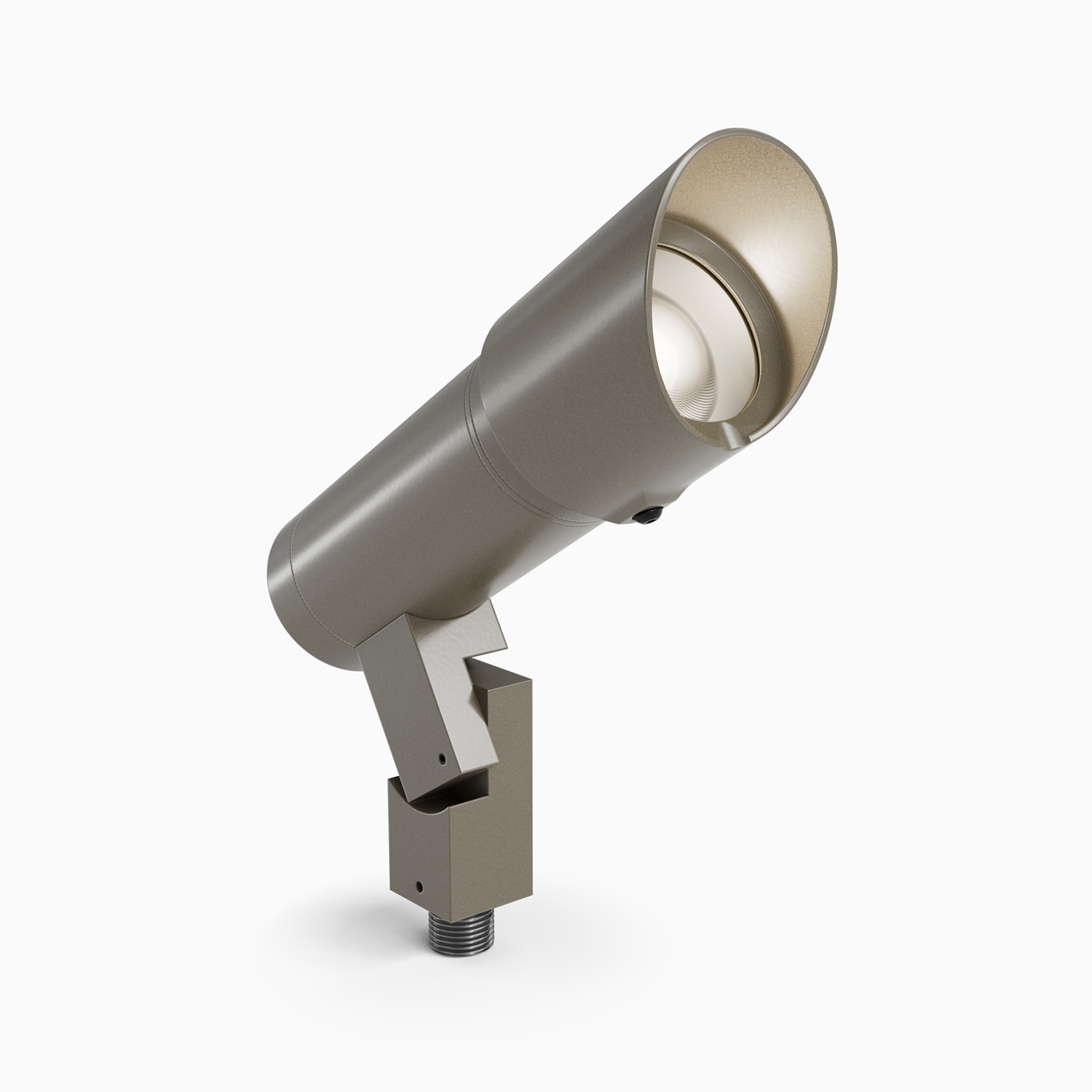

Two weeping hood styles available. The G Style includes an integrated Angled Glare Shield, while the F Style has a Flush Lens, without a glare shield. Both options provide exceptional glare control. (See page 4 of Spec Sheet for details)
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K.
Listings
CSA Listed for Wet Location (UL1838), IP67 Standard. RoHS Compliant.
Driver/ Dimming
Onboard, Integrated LED Driver Phase Control @120V, 0V–10V @120V–277V, DALI or DMX control available, consult factory for details.
