Additional information

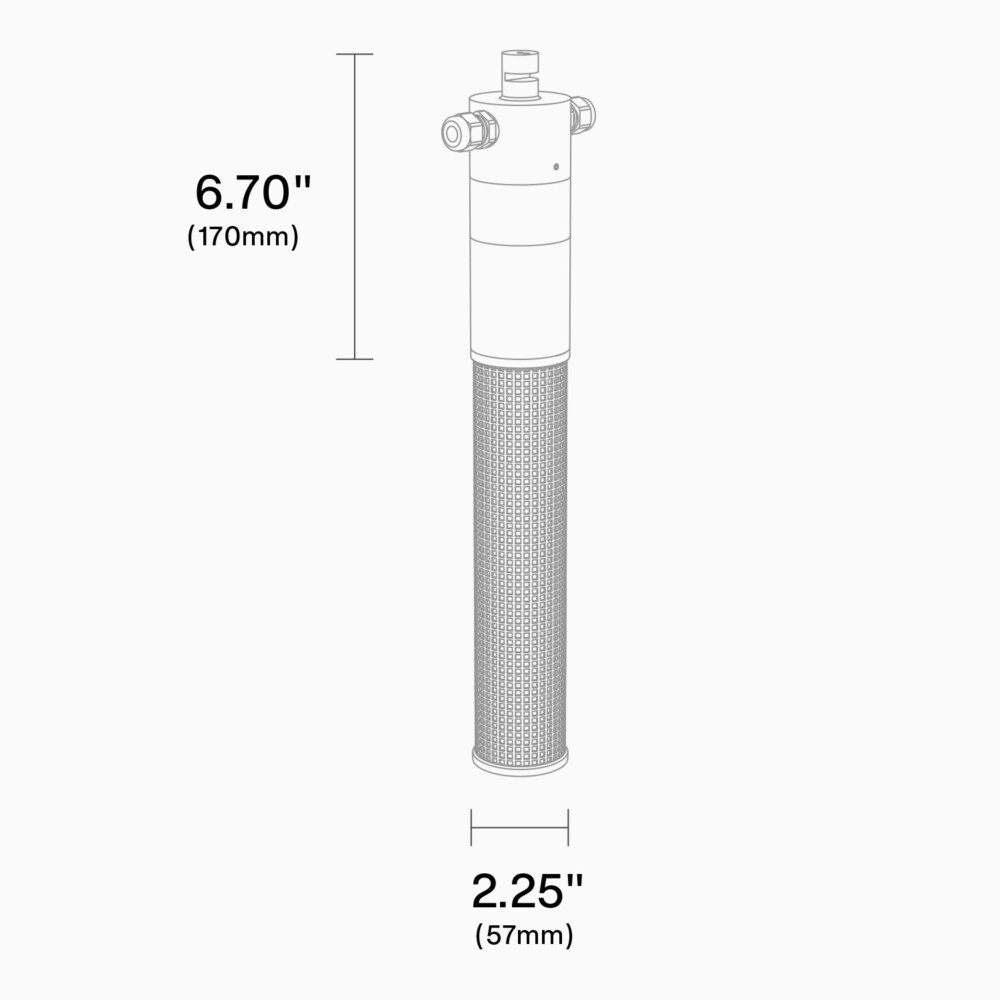

| Dimensions | 2.25 × 13 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |
ZXL16-CAT-BM
HANGING & CATENARY | ZX16-CAT Series | 2.25"
5W, 7W, 10W ( 464 - 877lm ) | 12V | HK LED, Amber
5W, 7W, 10W ( 464 - 877lm ) | 12V | HK LED, Amber
ZXL16-CAT-BM
HANGING & CATENARY | ZX16-CAT Series | 2.25"
5W, 7W, 10W ( 464 - 877lm ) | 12V | HK LED, Amber
5W, 7W, 10W ( 464 - 877lm ) | 12V | HK LED, Amber

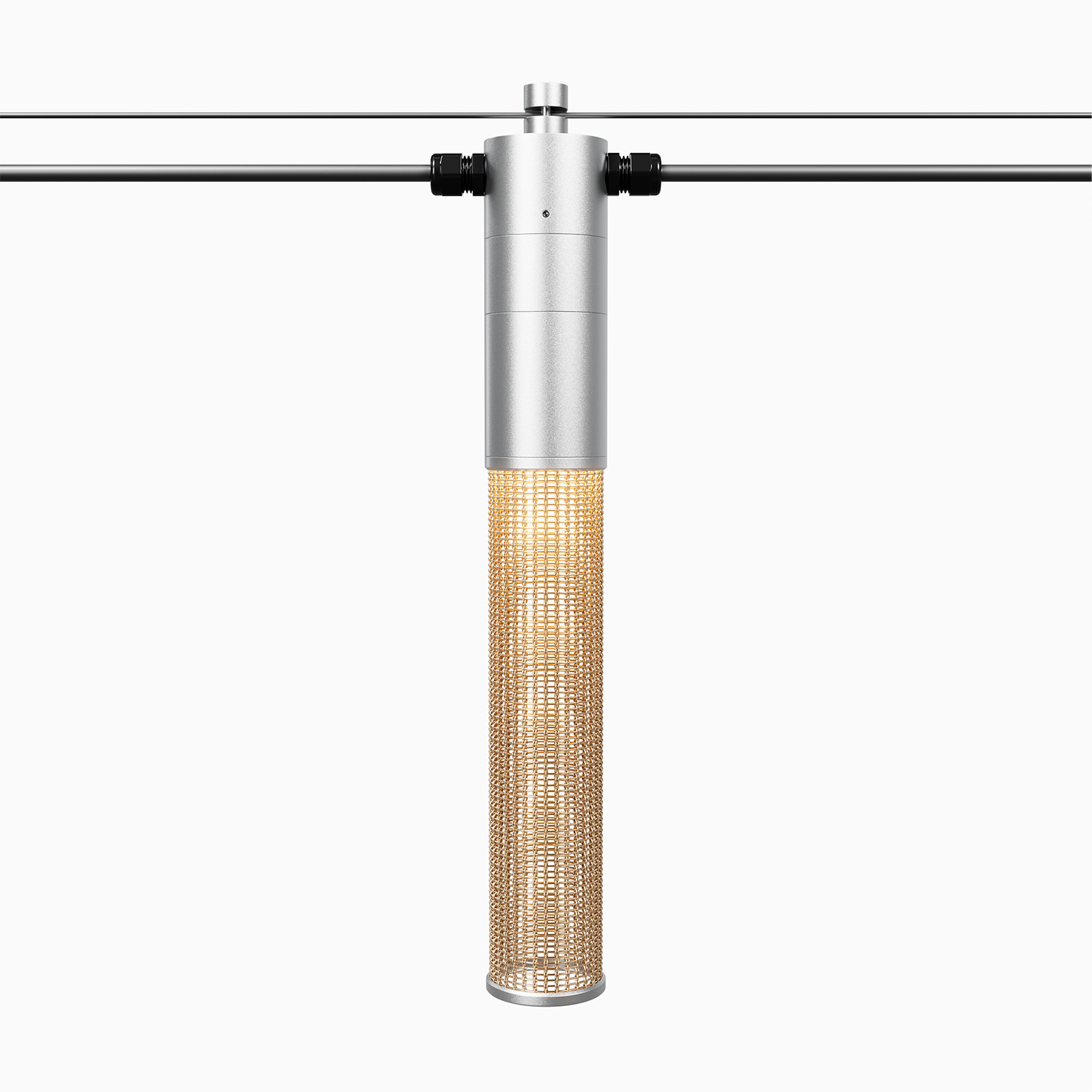

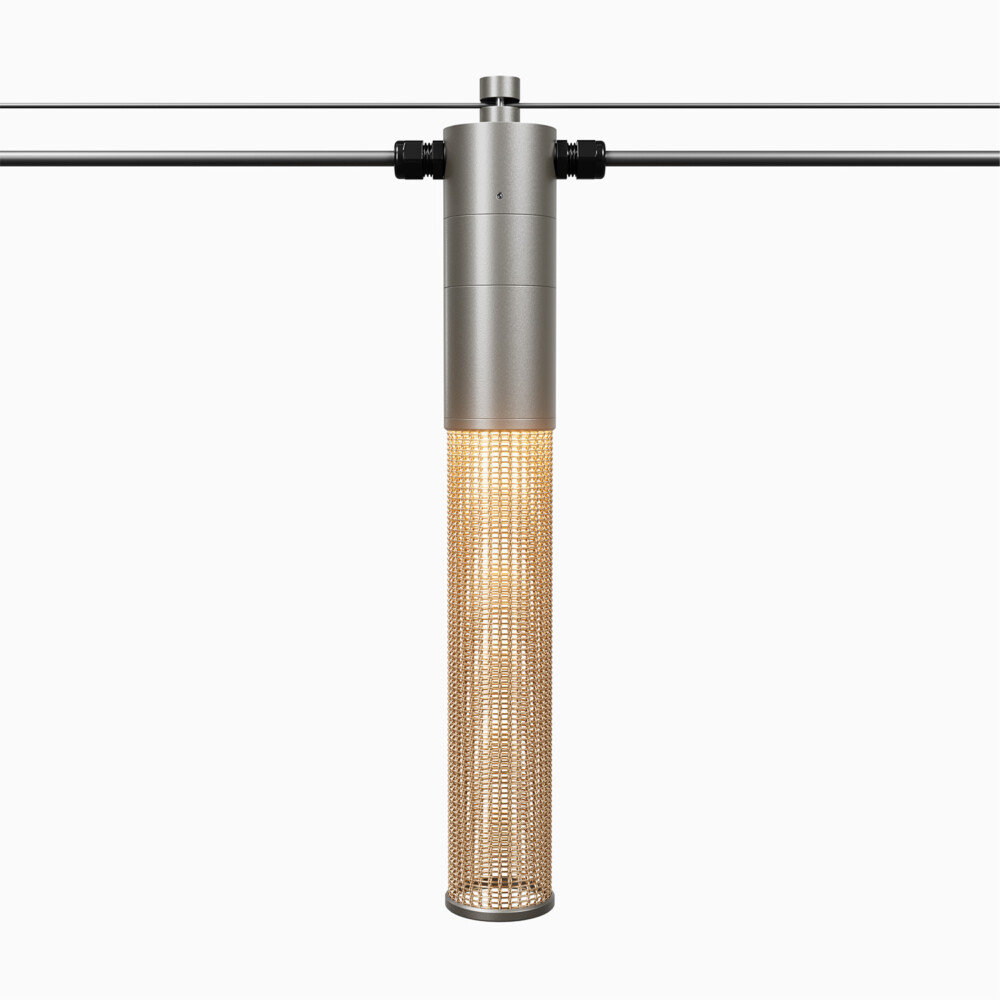

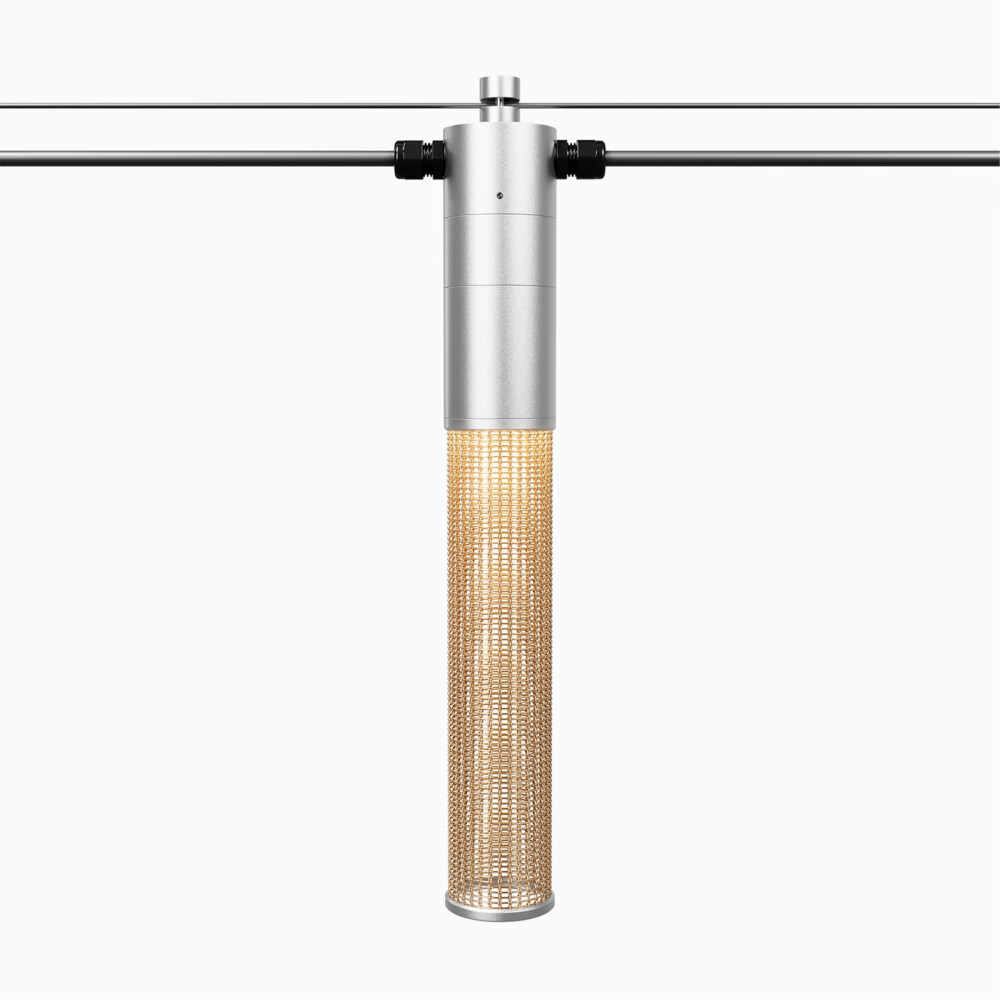

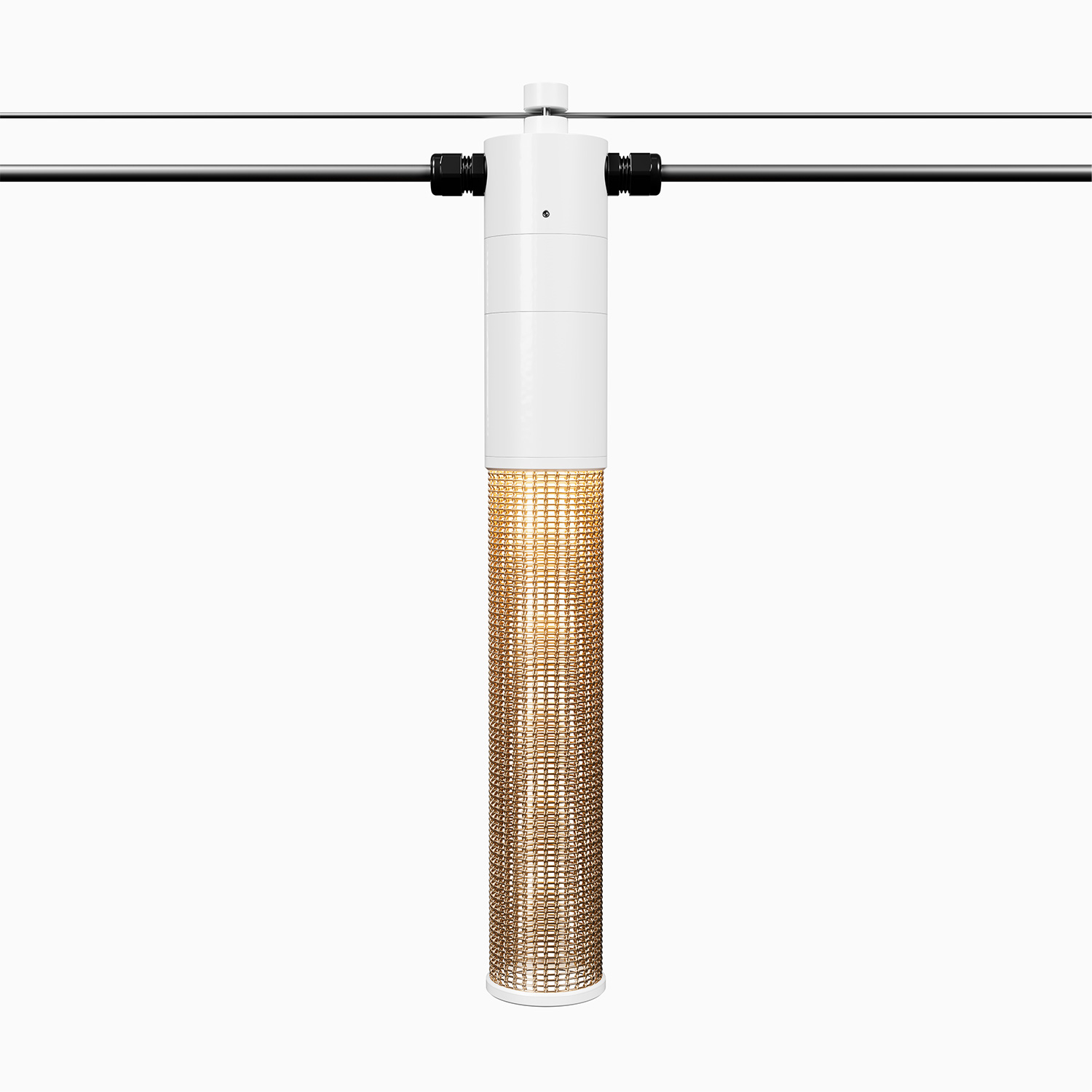

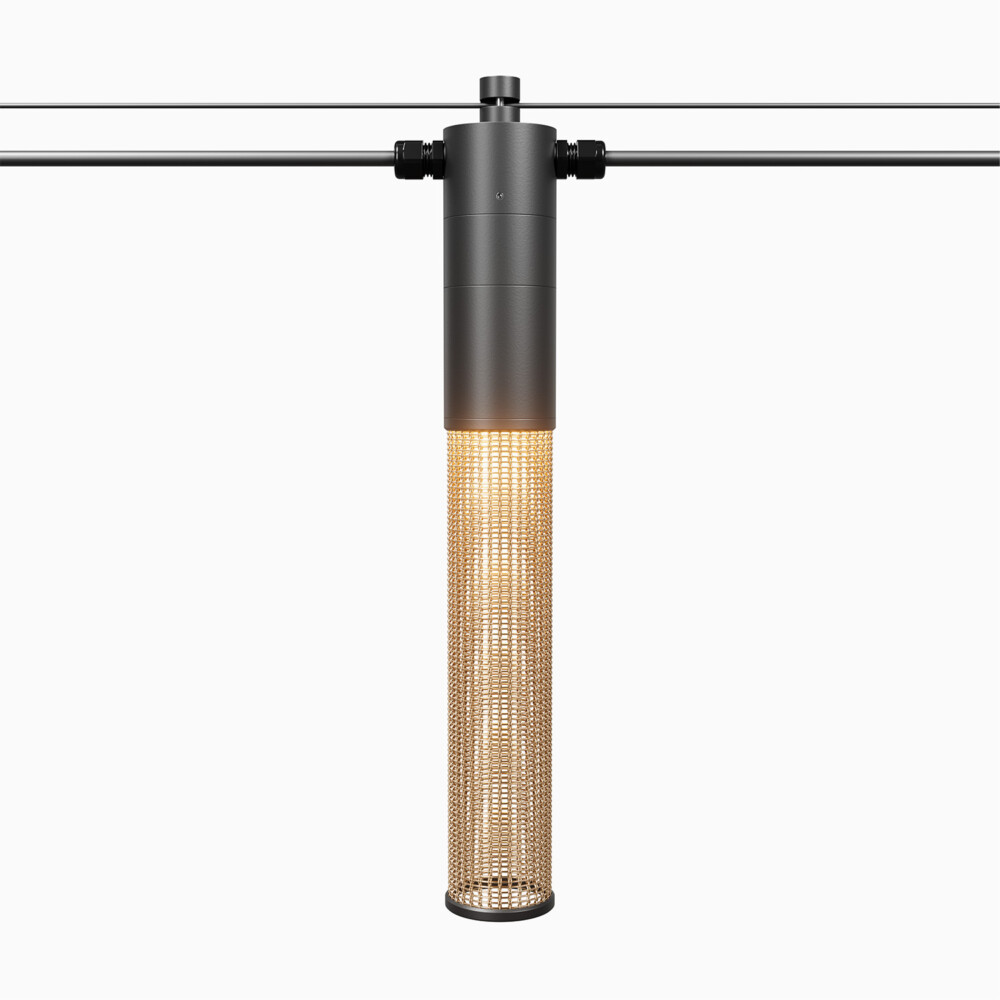

2" LED catenary light with brass mesh shade
FEATURES:
- A unique catenary system including LED fixtures, turnbuckle, suspension cable, power cable for outdoor illumination.
- Integral weatherproof wiring compartment in fixture body.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Modular components – field changeable LED module & beam spread reflectors.
- Unique brass mesh hood.
Specifications
Materials
Body: Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request. Hood: Finely woven brass mesh hood.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Dichroic color filters. Secured in place with metal snap ring.
Fixture Weight
2lbs.
Wattage
5, 7 or 10W HK LED.
Mounting
Custom hook mechanism on top of fixture that utilizes set screws to secure fixture(s) on the suspension cable and to lock the position of fixture on the cable.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Turn Buckle (Optional)
Allows fine tuning of the tension on the support cable, up to 1.50’’ of adjustment.
Lamp Base / Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Dimming
MLV.
Power Cable (Optional)
18/2 SJTW cable, dia 0.29’’.
Suspension Cable (Optional)
7x7 stainless steel wire rope, maximum diameter is 5/32’’, capacity 450Ibs.
Compatible Accessories
