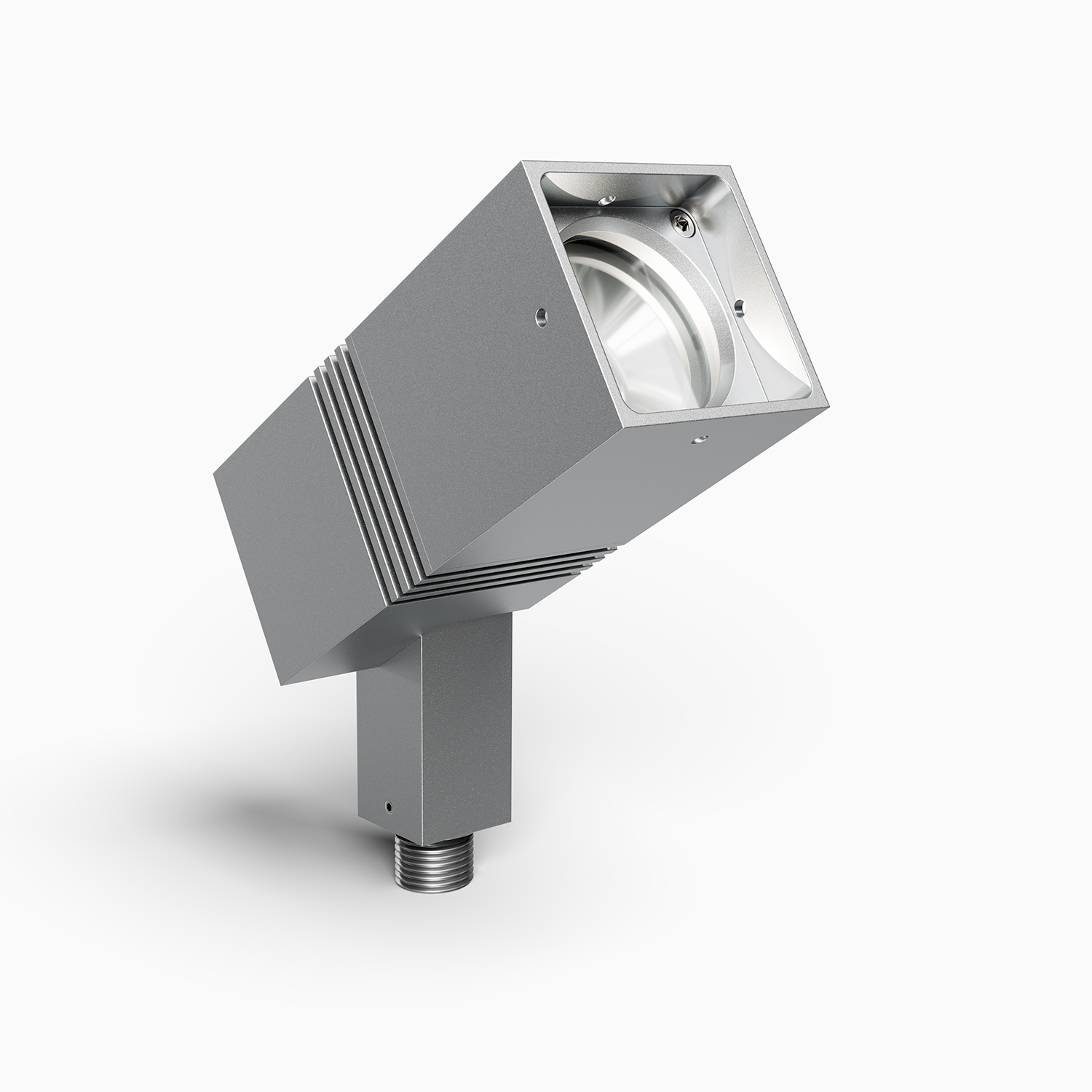

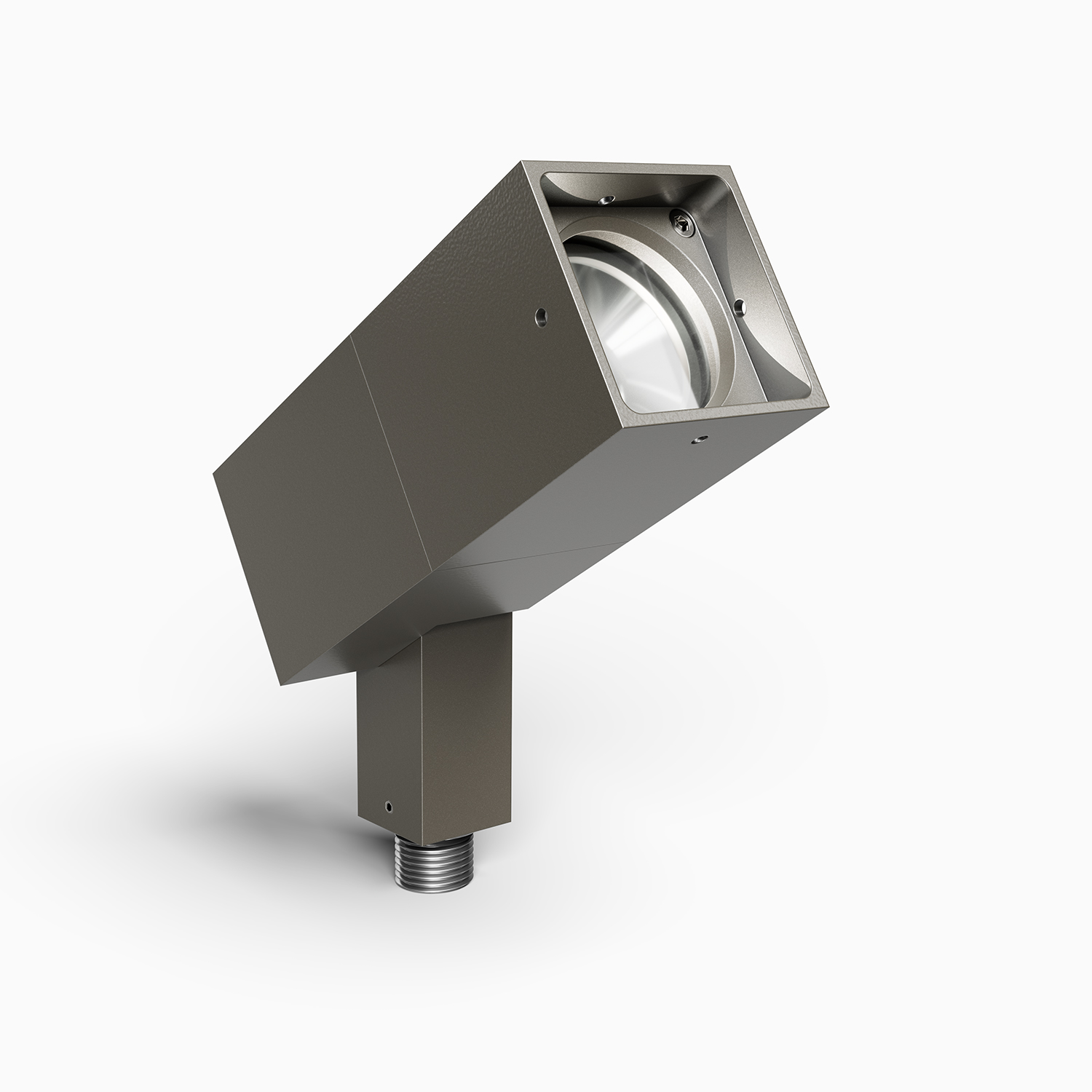

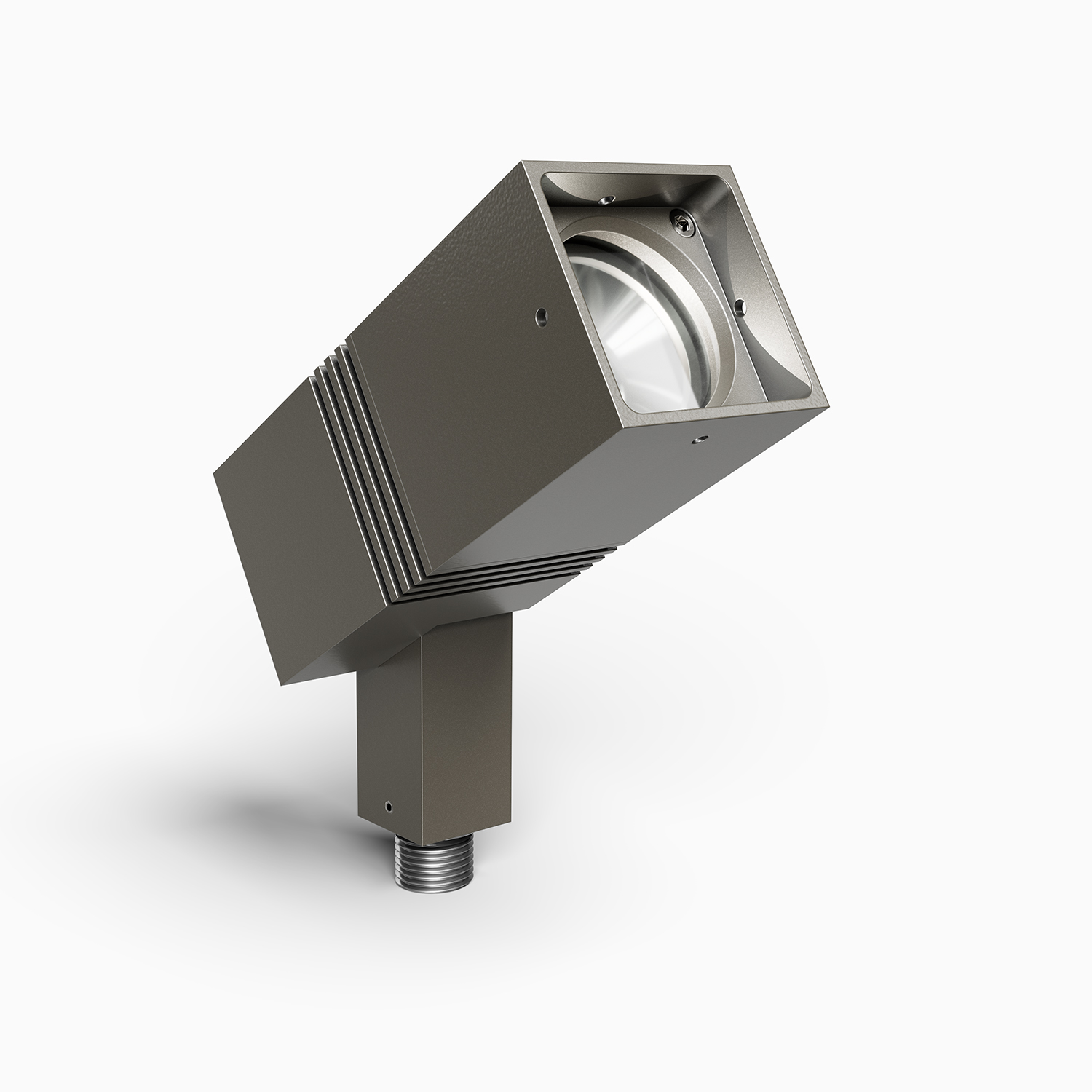

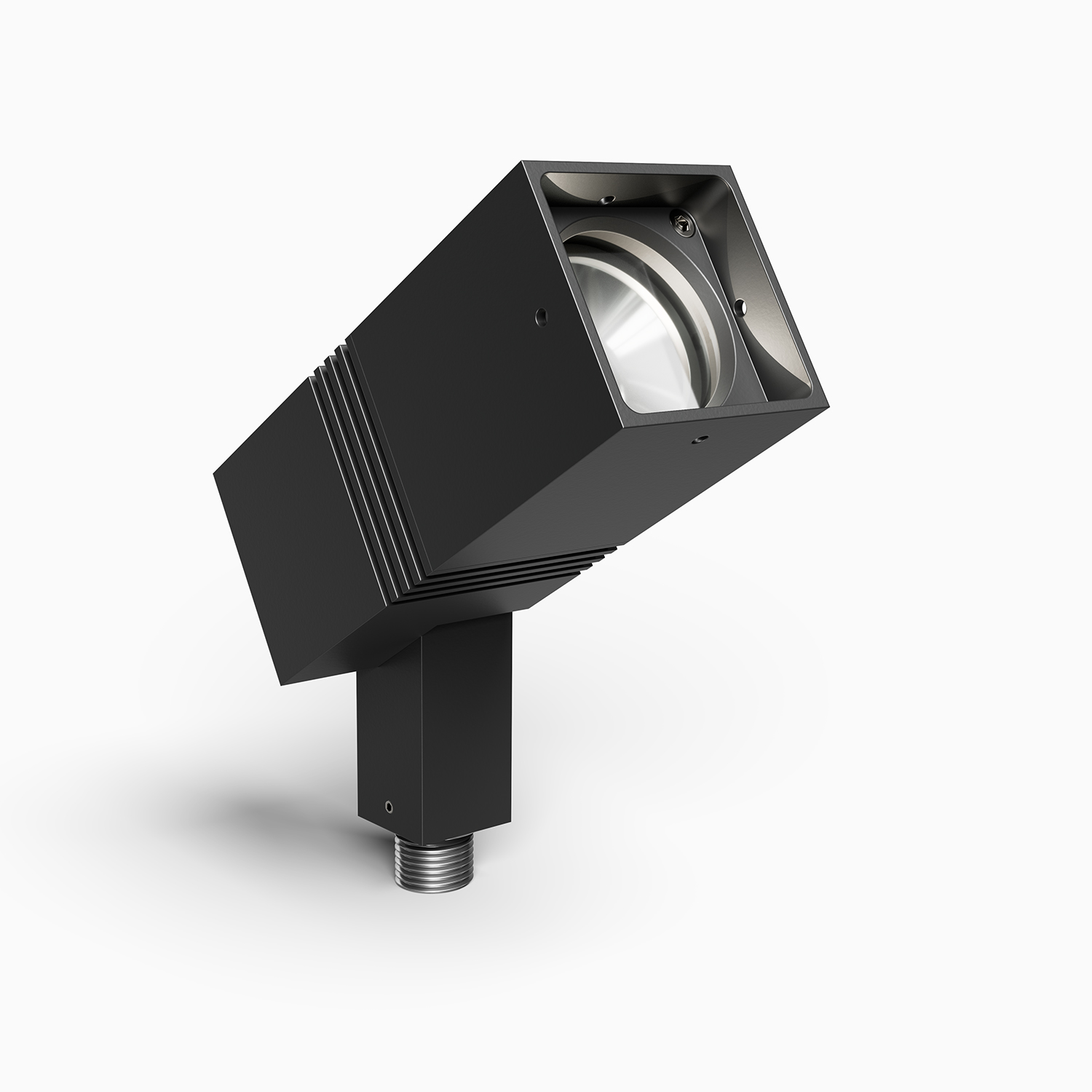

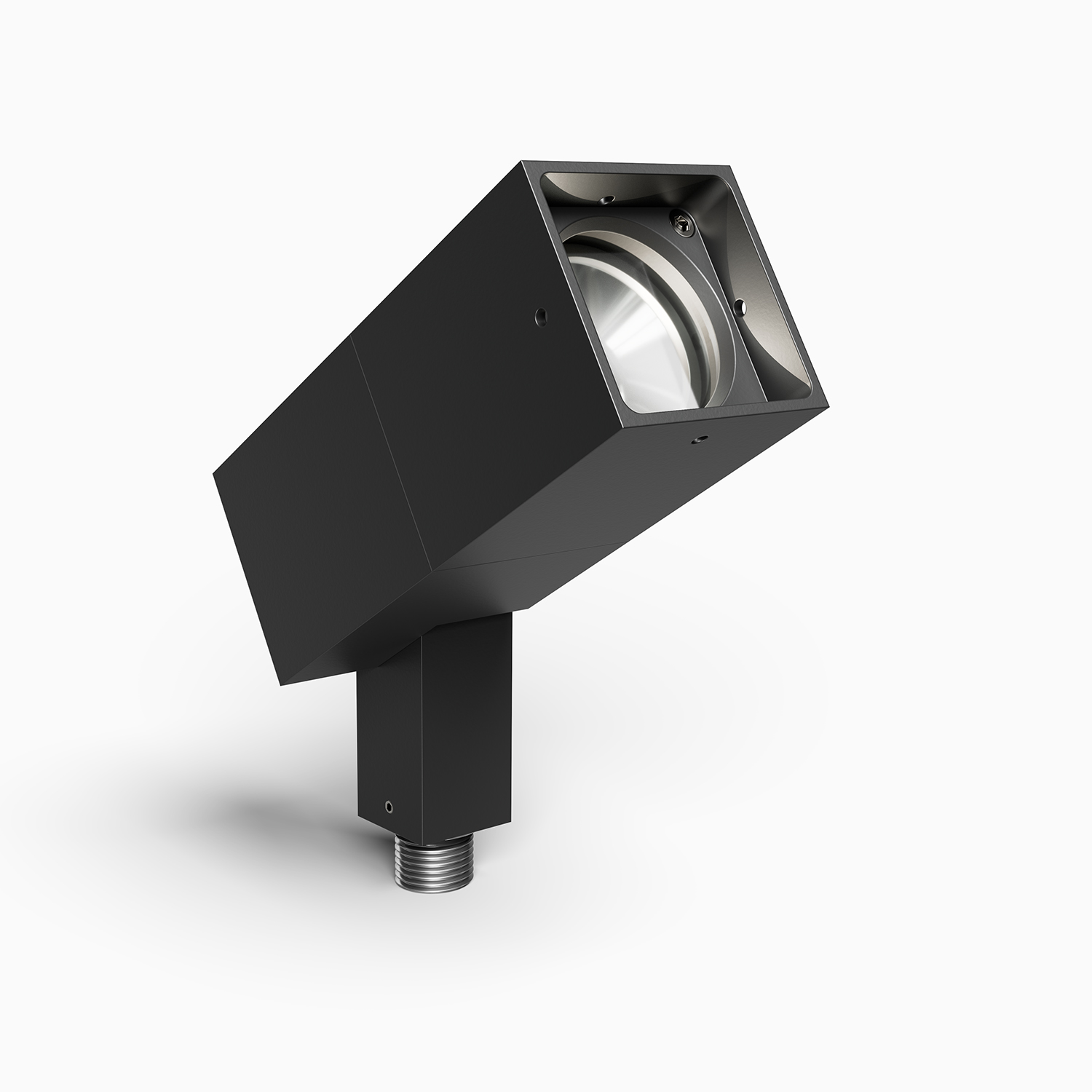

ZXL16 Square
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber

ZXL16 Square

ACCENT & LANDSCAPE | ZX16 Series | 2.25"
5 - 10W (500 - 900lm) | 12V | HK LED, RGB, Amber

Our most versatile square, directional 12V LED modern accent light for residential and commercial environments.

(includes former ZXL16-SQ and ZXL16-SQ-NF models)

FEATURES:

  • 5W, 7W, 10W integrated HK LED delivering 500 to 900 lumens. 2200-4000K CCT, including specialty Amber and RGB options.
  • Wet Location Listed, IP67 Standard.
  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • 90º vertical and 360º horizontal adjustment via locking swivel stem design.
  • Modular components, field changeable LED optical beams, and lenses.
  • Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
  • Ships complete with selected accessories installed.
Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Narrow (20º), Medium (33º), Wide (44º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured place with metal snap ring.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

5, 7, or 10W HK LED delivering 500 to 900 lumens.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).

Hood and Glare Shield

Weeping Hood Style with Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).

Light Engine

Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.

Listings

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

Dimming

MLV or ELV Phase Control dimming.

Additional information

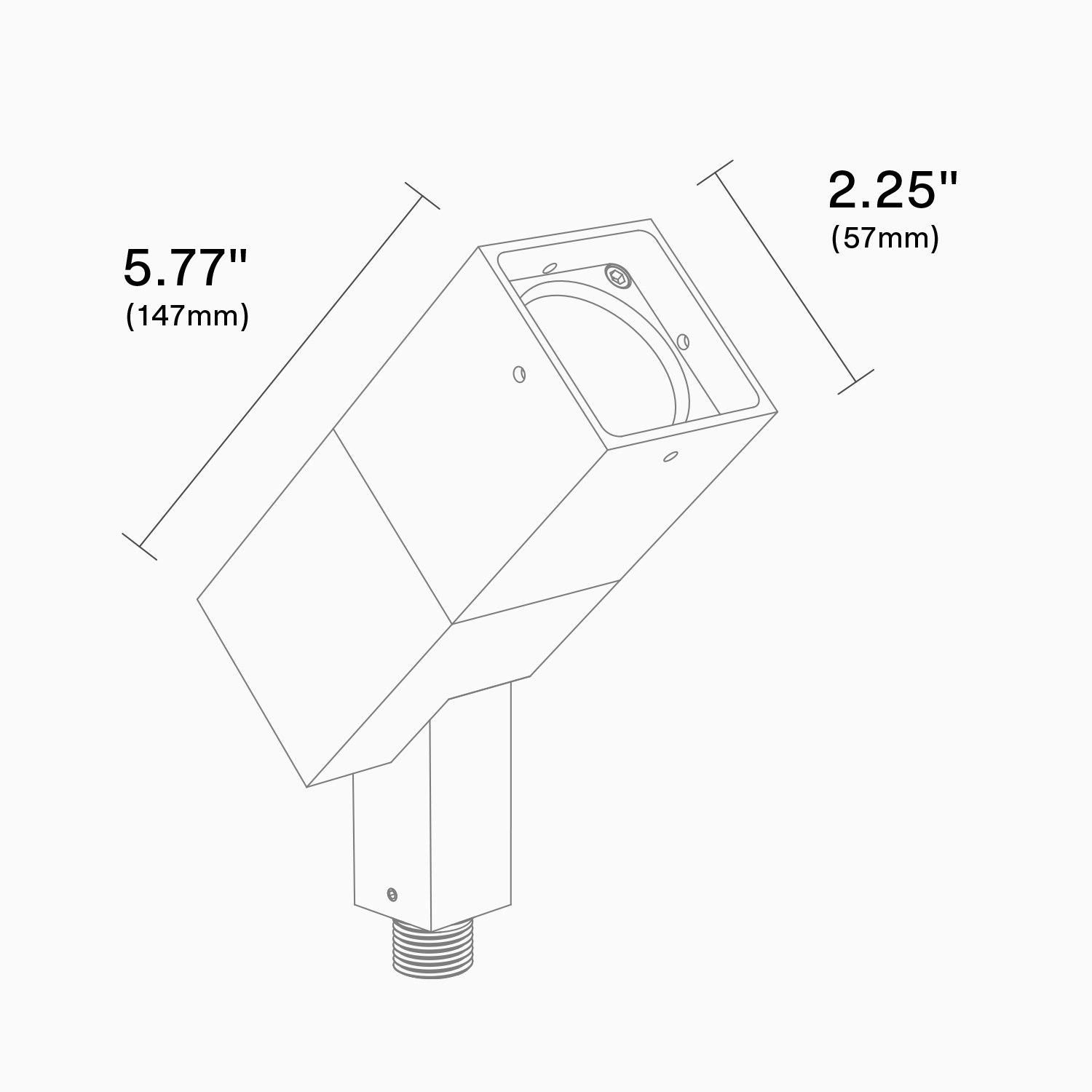

Dimensions 2.25 × 5.77 in
Light Source

, ,

Shape

Lumen Output

Input Voltage

Wattage

Compatible Accessories

GSA

Angled

GSL

Long

GSS

Short

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter

CM2

Canopy Mount

CM1

Canopy Mount

CM3

Canopy Mount

CM5

Canopy Mount
Canopy Mount
Surface Mount
Surface Mount

CB4

Surface Mount
Surface Mount
Surface Mount
Surface Mount
Surface Mount
Surface Mount
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Tree Mount
Tree Mount
Tree Mount
Tree Mount
Tree Mount
Tree Mount

EX

Extensions

EL

Extensions

ET

Extensions
Transformers
Transformers
Transformers
Transformers
Transformers
Transformers

IGT

Transformers
Transformers
